tire pressure JEEP CHEROKEE 2016 KL / 5.G User Guide

JEEP CHEROKEE 2016 KL / 5.G User Guide CHEROKEE 2016 KL / 5.G JEEP JEEP https://www.carmanualsonline.info/img/16/7060/w960_7060-0.png JEEP CHEROKEE 2016 KL / 5.G User Guide

Page 166 of 236

JEEP CHEROKEE 2016 KL / 5.G User Guide If the ABS light is on, the brake system should be serviced as soon as possible to restore
the benefits of Anti-Lock brakes. If the ABS light does not turn on when the ignition
switch is turned to the

Page 167 of 236

JEEP CHEROKEE 2016 KL / 5.G User Guide IF THE LIGHT STARTS FLASHING INDICATING A LOW TIRE PRESSURE, ADJUST THE AIR
PRESSURE IN THE LOW TIRE TO THE AIR PRESSURE SHOWN ON THE VEHICLE PLACARD OR
TIRE INFLATION PRESSURE LABEL LOCATED ON THE DR

Page 176 of 236

JEEP CHEROKEE 2016 KL / 5.G User Guide TIRE SERVICE KIT
Your vehicle may be equipped with a Tire Service Kit.
Small punctures up to 1/4” (6 mm) in the tire tread can be sealed with the Tire
Service Kit. Foreign objects (e.g., screws or n

Page 178 of 236

JEEP CHEROKEE 2016 KL / 5.G User Guide 4. Remove the cap from the valve stem and then screw the fitting at the end of theSealant Hose (6) onto the valve stem.
5.
Uncoil the Power Plug (8) and insert the plug into the vehicle’s 12 Volt po

Page 179 of 236

JEEP CHEROKEE 2016 KL / 5.G User Guide If the tire does not inflate to at least 26 psi (1.8 Bar) pressure within 15 minutes:
The tire is too badly damaged. Do not attempt to drive the vehicle further. Call for
assistance.
NOTE:
If the tire

Page 180 of 236

JEEP CHEROKEE 2016 KL / 5.G User Guide If the tire pressure is 19 psi (1.3 Bar) or higher:
1. Push the Power Button (4) to turn on Tire Service Kit and inflate the tire to thepressure indicated on the tire and loading information label on

Page 181 of 236

JEEP CHEROKEE 2016 KL / 5.G User Guide NOTE:
• The metal end fitting from Power Plug (8) may get hot after use, so it should behandled carefully.
• Failure to reinstall the cap on the fitting at the end of the Sealant Hose (6) can resu

Page 191 of 236

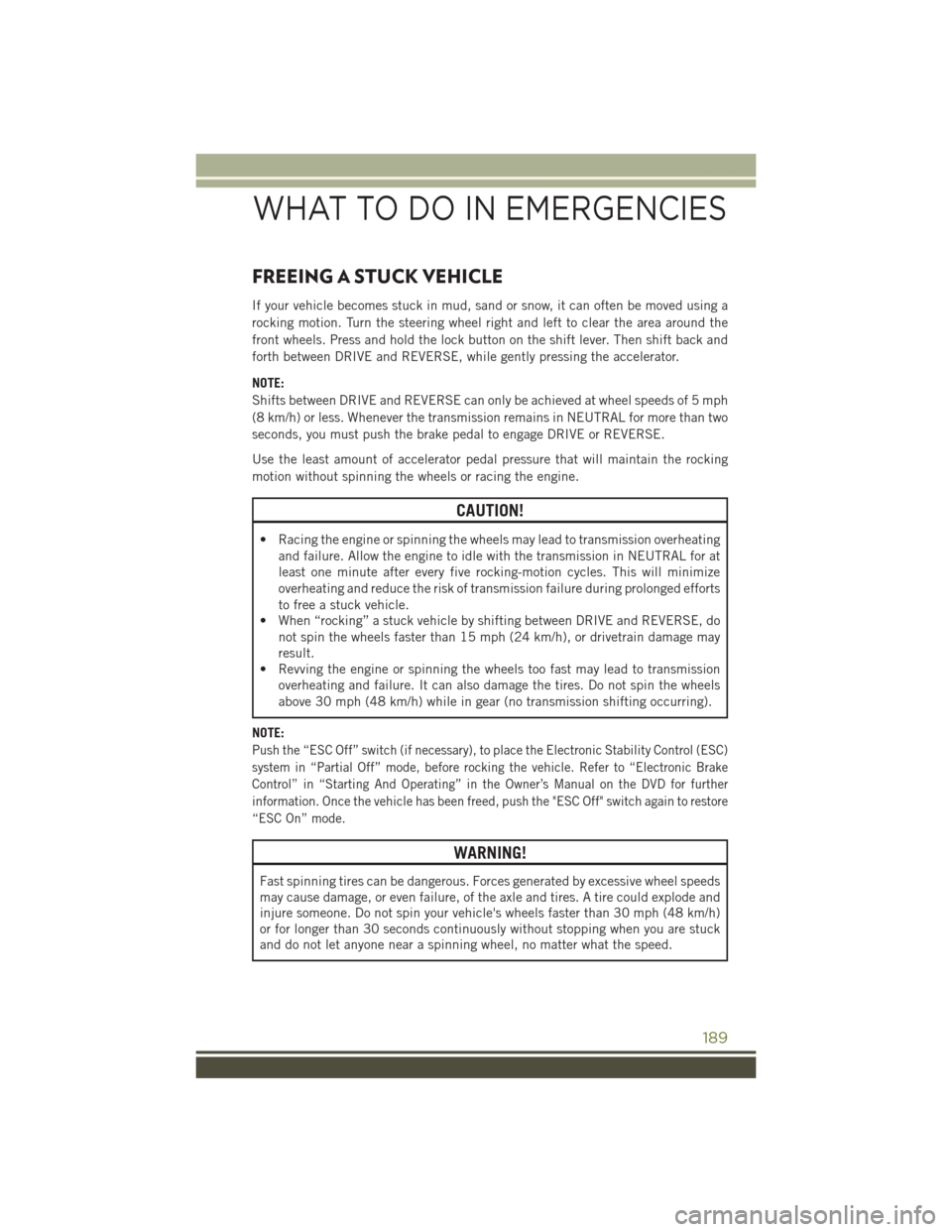

JEEP CHEROKEE 2016 KL / 5.G User Guide FREEING A STUCK VEHICLE
If your vehicle becomes stuck in mud, sand or snow, it can often be moved using a
rocking motion. Turn the steering wheel right and left to clear the area around the
front whee

Page 203 of 236

JEEP CHEROKEE 2016 KL / 5.G User Guide NOTE:
Under no circumstances should oil change intervals exceed 10,000 miles
(16,000 km), twelve months or 350 hours of engine run time, whichever comes first.
The 350 hours of engine run or idle time

Page 214 of 236

JEEP CHEROKEE 2016 KL / 5.G User Guide TIRES — GENERAL INFORMATION
TIRE PRESSURES
Check the inflation pressure of each tire, including the spare tire (if equipped), at
least monthly and inflate to the recommended pressure for your vehicl
