remote start JEEP CHEROKEE 2017 KL / 5.G Owner's Manual

•The Rain Sensing feature can be turned on and off using
the Uconnect System, refer to “Uconnect Settings” in
“Multimedia” for further information.
The Rain Sensing system has protection features for the
wiper blades and arms, and will not operate under the
following conditions:
• Low Ambient Temperature — When the ignition is first
turned ON, the Rain Sensing system will not operate
until the wiper switch is moved, vehicle speed is greater
than 3 mph (5 km/h), or the outside temperature is
greater than 32°F (0°C).
• Transmission In NEUTRAL Position — When the igni-
tion is ON, and the automatic transmission is in the
NEUTRAL position, the Rain Sensing system will not
operate until the wiper switch is moved, vehicle speed is
greater than 3 mph (5 km/h), or the gear selector is
moved out of the NEUTRAL position.
Remote Start Mode Inhibit — On vehicles equipped with
Remote Starting system, Rain Sensing wipers are not
operational when the vehicle is in the remote start mode.
Once the operator is in the vehicle and has placed the
ignition switch in the RUN position, rain sensing wiper operation can resume, if it has been selected, and no other
inhibit conditions (mentioned previously) exist.
Windshield Wiper De-Icer — If Equipped
Your vehicle may be equipped with a Windshield Wiper
De-Icer feature that may be activated under the following
conditions:
•
Activation By Front Defrost — The Windshield Wiper
De-Icer shall be activated automatically in the case of a
cold weather manual start with full front defrost, and
when the ambient temperature is below 33° F (0.6° C).
• Activation By Rear Defrost — The Windshield Wiper
De-Icer shall be activated automatically when the rear
defrost is turned on and when the ambient temperature
is below 33° F (0.6° C).
• Activation By Remote Start Operation — When remote
start is active and the outside ambient temperature is
less than 33° F (0.6° C), the Windshield Wiper De-Icer
shall be enabled. On exiting remote start resume previ-
ous operation except, if the Windshield Wiper De-Icer
timer and operation shall continue.3
GETTING TO KNOW YOUR VEHICLE 73

Economy Mode
If ECONOMY mode is desired, push the A/C button to turn
off the LED indicator and the A/C compressor. Rotate the
temperature control knob to the desired temperature. Also,
make sure to select only Panel, Bi-Level or Floor modes.
Stop/Start System — If Equipped
While in an Autostop, the Climate Controls system may
automatically adjust airflow to maintain cabin comfort.
Customer settings will be maintained upon return to an
engine running condition.
Windshield Wiper De-icer — If Equipped
The windshield wiper de-icer is a heating element located
at the base of the windshield.It operates automatically once the following conditions are
met:
•
Activation By Front Defrost
The wiper de-icer activates automatically during a cold
weather manual start with full defrost,and when the
ambient temperature is below 33° F (0.6° C).
• Activation By Rear Defrost
The wiper de-icer activates automatically when the Rear
Defrost is operating and the ambient temperature is below
33° F (0.6° C).
• Activation By Remote Start Operation
When the Remote Start is activated and the outside ambi-
ent temperature is less than 33° F (0.6° C) the windshield
wiper de-icer is activated. Upon exiting Remote Start, the
climate control functions will resume their previous opera-
tion except, if the de-icer is active, the de-icer timer and
operation will continue.
80 GETTING TO KNOW YOUR VEHICLE

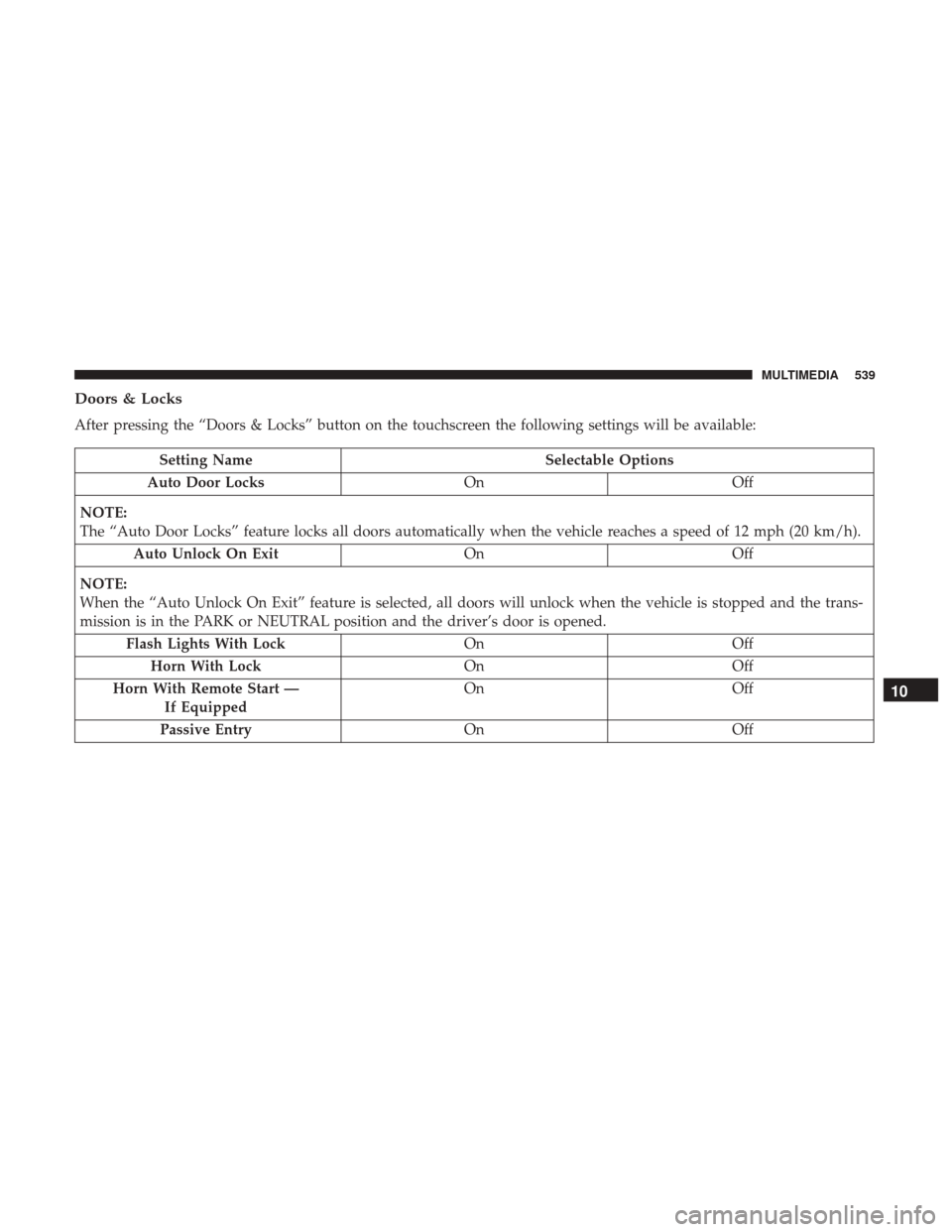

Doors & Locks
After pressing the “Doors & Locks” button on the touchscreen the following settings will be available:
Setting NameSelectable Options
Auto Door Locks OnOff
NOTE:
The “Auto Door Locks” feature locks all doors automatically when the vehicle reaches a speed of 12 mph (20 km/h). Auto Unlock On Exit OnOff
NOTE:
When the “Auto Unlock On Exit” feature is selected, all doors will unlock when the vehicle is stopped and the trans-
mission is in the PARK or NEUTRAL position and the driver’s door is opened. Flash Lights With Lock OnOff
Horn With Lock OnOff
Horn With Remote Start — If Equipped On
Off
Passive Entry OnOff
10
MULTIMEDIA 539

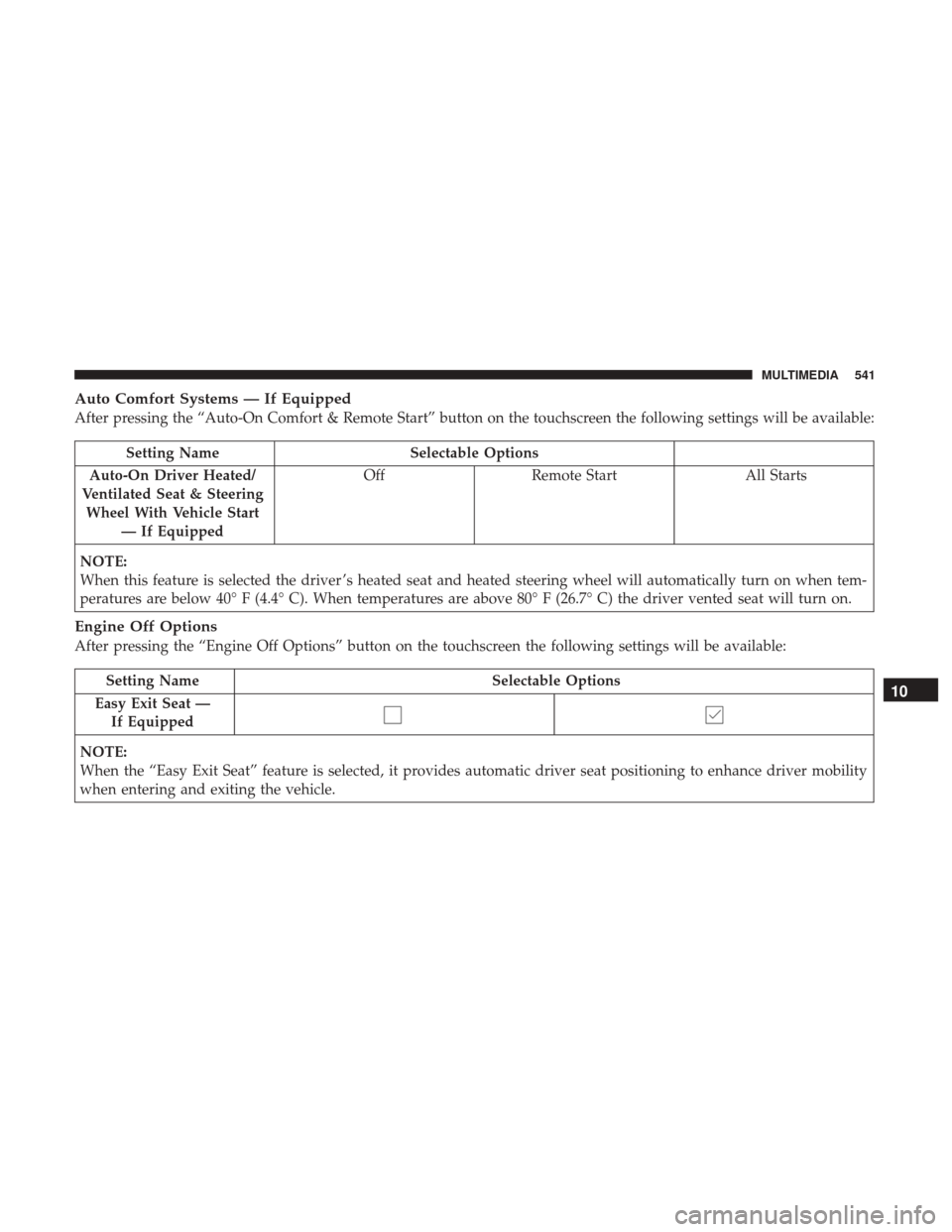

Auto Comfort Systems — If Equipped
After pressing the “Auto-On Comfort & Remote Start” button on the touchscreen the following settings will be available:
Setting NameSelectable Options
Auto-On Driver Heated/
Ventilated Seat & Steering Wheel With Vehicle Start — If Equipped Off
Remote Start All Starts
NOTE:
When this feature is selected the driver ’s heated seat and heated steering wheel will automatically turn on when tem-
peratures are below 40° F (4.4° C). When temperatures are above 80° F (26.7° C) the driver vented seat will turn on.
Engine Off Options
After pressing the “Engine Off Options” button on the touchscreen the following settings will be available:
Setting Name Selectable Options
Easy Exit Seat — If Equipped
NOTE:
When the “Easy Exit Seat” feature is selected, it provides automatic driver seat positioning to enhance driver mobility
when entering and exiting the vehicle.10
MULTIMEDIA 541

Setting NameSelectable Options
Auto Unlock On Exit
NOTE:
When this feature is selected, all doors will unlock when the vehicle is stopped, the transmission is in the PARK or
NEUTRAL position and the driver’s door is opened. Flash Lights With Lock
Sound Horn With Lock Off1st Press 2nd Press
Sound Horn With Remote Start 1st Press Of Key Fob Unlocks Driver DoorAll Doors
NOTE:
When Driver Door is selected with “1st Press Of Key Fob Unlocks”, only the driver’s door will unlock with the first
press of the key fob unlock button. You must press the key fob unlock button twice to unlock the passenger’s doors.
When All Doors is selected for “1st Press Of Key Fob Unlocks”, all doors will unlock on the first press of the key
fob unlock button. If the vehicle is programmed “1st Press Of Key Fob Unlocks: All Doors,” all doors will unlock no
matter which Passive Entry equipped door handle is grasped. If “1st Press Of Key Fob Unlocks: Driver Door” is pro-
grammed, only the driver ’s door will unlock when the driver ’s door is grasped. With Passive Entry, if “1st Press Of
Key Fob Unlocks: Driver Door” is programmed, touching the handle more than once will result in only the driver ’s
door opening. If “Driver Door” is selected, once the driver door is opened, the interior door lock/unlock switch can
be used to unlock all doors (or use the key fob).
10
MULTIMEDIA 559

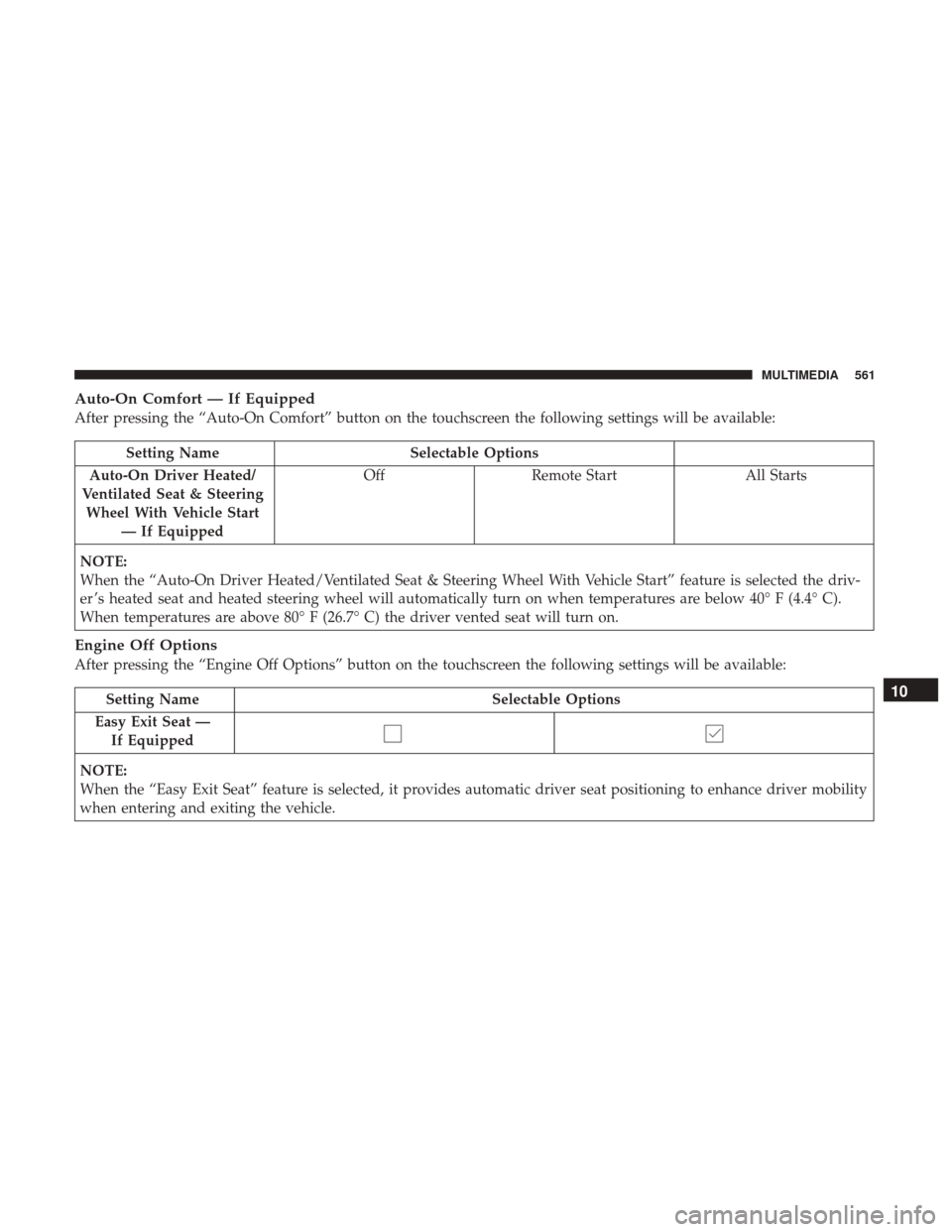

Auto-On Comfort — If Equipped
After pressing the “Auto-On Comfort” button on the touchscreen the following settings will be available:
Setting NameSelectable Options
Auto-On Driver Heated/
Ventilated Seat & Steering Wheel With Vehicle Start — If Equipped Off
Remote Start All Starts
NOTE:
When the “Auto-On Driver Heated/Ventilated Seat & Steering Wheel With Vehicle Start” feature is selected the driv-
er ’s heated seat and heated steering wheel will automatically turn on when temperatures are below 40° F (4.4° C).
When temperatures are above 80° F (26.7° C) the driver vented seat will turn on.
Engine Off Options
After pressing the “Engine Off Options” button on the touchscreen the following settings will be available:
Setting Name Selectable Options
Easy Exit Seat — If Equipped
NOTE:
When the “Easy Exit Seat” feature is selected, it provides automatic driver seat positioning to enhance driver mobility
when entering and exiting the vehicle.10
MULTIMEDIA 561

NOTE:Uconnect Access is available only on equipped
vehicles purchased within the continental United States,
Alaska and Hawaii. Services can only be used where
coverage is available; see coverage map for details.
9-1-1 Call
Security Alarm Notification
Remote Door Lock/Unlock
Stolen Vehicle Assistance
Remote Vehicle Start**
Remote Horn and Lights
Yelp Search
Voice Texting
Roadside Assistance Call
3G Wi-Fi Hotspot***
**If vehicle is equipped.
***Extra charges apply.
Register (8.4/8.4 NAV)
To unlock the full potential of Uconnect Access in your
vehicle, you first need to register with Uconnect Access.
1. Push the ASSIST button on your rearview mirror.
2. Press the “Uconnect Care” button on the touchscreen.
3. A helpful Uconnect Care Agent will register your ve- hicle and handle all of the details.
Assist Button
10
MULTIMEDIA 581

Rain Sensitive Wiper System...................72
Rear Camera ............................. .363
Rear Cross Path ........................... .189
Rear ParkSense System ...................314, 321
Rear Seat, Folding ...........................47
Rear Window Defroster .......................75
Rear Window Features ........................74
Rear Wiper/Washer ..........................74
Recreational Towing ........................ .378
Shifting Into Power Transfer Unit Neutral (N) . . . .382
Shifting Into Transfer Case Neutral (N) .........382
Shifting Out Of Power Transfer Unit Neutral (N) . .384
Shifting Out Of Transfer Case Neutral (N) .......384
Reformulated Gasoline ...................... .515
Refrigerant .............................. .463
Release, Hood ............................ .102
Reminder, Lights On .........................64
Reminder, Seat Belt ........................ .203
Remote Control Starting System ...........................29
Remote Keyless Entry Arm The Alarm ..........................34
Disarm The Alarm ........................35
Programming Additional Key Fobs ..........25, 33
Remote Sound System (Radio) Controls ...........567Remote Starting
Exit Remote Start Mode .....................31
Uconnect Customer Programmable Features . . .31, 541
Uconnect Settings ..................... .31, 541
Remote Starting System .......................29
Replacement Keys ....................... .25, 33
Replacement Tires ......................... .494
Reporting Safety Defects .....................595
Restraint, Head .............................54
Restraints, Child .......................... .234
Roll Over Warning ...........................5
Roof Type Carrier ......................... .126
Rotation, Tires ............................ .501
Safety Checks Inside Vehicle ...................253
Safety Checks Outside Vehicle .................255
Safety Defects, Reporting .....................595
Safety, Exhaust Gas ........................ .252
Safety Information, Tire ..................... .481
Safety

Tips .............................. .252
Schedule, Maintenance ...................... .447
Seat Belt Adjustable Upper Shoulder Belt Anchorage ......208
Automatic Locking Retractor (ALR) ........211,213
Energy Management Feature ................211
12
INDEX 607

Transfer Case, Shifting Out Of Transfer
Case Neutral (N)........................ .384
Shift Lever Override ....................... .437
Shoulder Belts ............................ .204
Side View Mirror Adjustment ...................60
Signals, Turn ....................... .66, 161, 255
Siri ................................ .586, 587
Snow Chains (Tire Chains) ....................500
Snow Tires .............................. .496
Spare Tire ........................ .496, 497, 498
Speed Control Accel/Decel ........................... .293
Cancel ............................... .293
Resume .............................. .293
Speed Control (Cruise Control) ..............290, 293
Starting ..................................29
Cold Weather .......................... .262
Engine Fails To Start ..................... .262
Remote ................................29
Steering Column Controls .........................65
Tilt Column .............................57
Wheel, Heated ...........................58
Wheel, Tilt ..............................57
Steering Wheel Audio Controls .................567Steering Wheel Mounted Sound System Controls . . . .567
Storage
..................................117
Storage, Vehicle .............................93
Stuck, Freeing ............................ .437
Sun Roof .................................97
Sun Visor Extension .........................62
Supplemental Restraint System - Air Bag ..........217
Sway Control, Trailer ....................... .178
Synthetic Engine Oil ....................... .457
System, Remote Starting ......................29
Telescoping Steering Column ...................57
Temperature Control, Automatic (ATC) ............92
Tie Down Hooks, Cargo ..................... .107
Tilt Steering Column .........................57
Time Delay, Headlight ........................64
Tire And Loading Information Placard ............485
Tire Markings ............................ .481
T

ires......................... .255, 489, 496, 503
Aging (Life Of Tires) ..................... .493
Air Pressure ........................... .489
Chains ............................... .500
Changing .......................... .414, 481
Compact Spare ......................... .497
General Information ...................489, 496
12
INDEX 609
