JEEP CHEROKEE 2020 Owner handbook (in English)

179

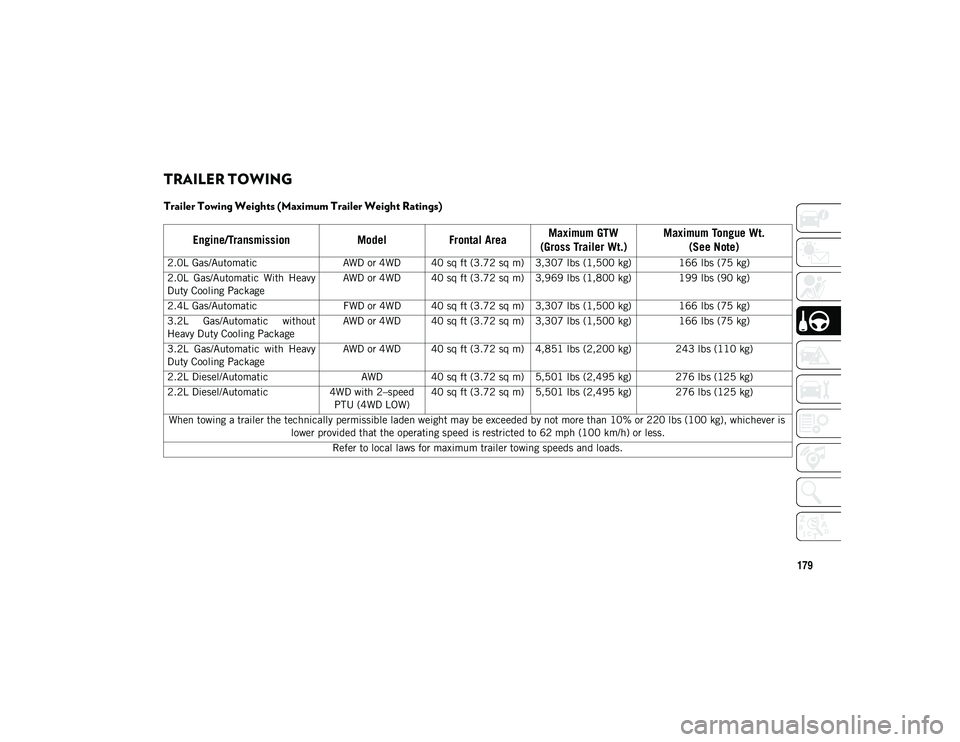

TRAILER TOWING
Trailer Towing Weights (Maximum Trailer Weight Ratings)
Engine/TransmissionModelFrontal Area Maximum GTW
(Gross Trailer Wt.) Maximum Tongue Wt.
(See Note)
2.0L Gas/Automatic AWD or 4WD 40 sq ft (3.72 sq m) 3,307 lbs (1,500 kg) 166 lbs (75 kg)
2.0L Gas/Automatic With Heavy
Duty Cooling Package AWD or 4WD 40 sq ft (3.72 sq m) 3,969 lbs (1,800 kg) 199 lbs (90 kg)
2.4L Gas/Automatic FWD or 4WD 40 sq ft (3.72 sq m) 3,307 lbs (1,500 kg) 166 lbs (75 kg)
3.2L Gas/Automatic without
Heavy Duty Cooling Package AWD or 4WD 40 sq ft (3.72 sq m) 3,307 lbs (1,500 kg) 166 lbs (75 kg)
3.2L Gas/Automatic with Heavy
Duty Cooling Package AWD or 4WD 40 sq ft (3.72 sq m) 4,851 lbs (2,200 kg) 243 lbs (110 kg)
2.2L Diesel/Automatic AWD 40 sq ft (3.72 sq m) 5,501 lbs (2,495 kg) 276 lbs (125 kg)
2.2L Diesel/Automatic 4WD with 2–speed
PTU (4WD LOW) 40 sq ft (3.72 sq m) 5,501 lbs (2,495 kg) 276 lbs (125 kg)
When towing a trailer the technically permissible laden weight may be exceeded by not more than 10% or 220 lbs (100 kg), whichever is lower provided that the operating speed is restricted to 62 mph (100 km/h) or less.
Refer to local laws for maximum trailer towing speeds and loads.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 179

STARTING AND OPERATING
180

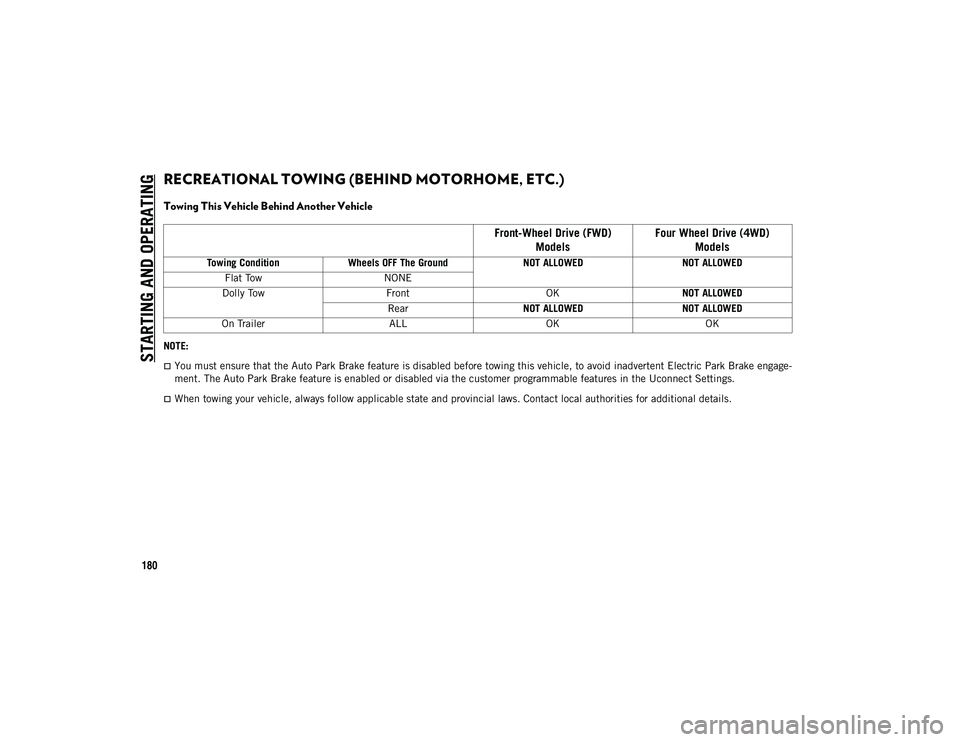

RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.)
Towing This Vehicle Behind Another Vehicle
NOTE:
You must ensure that the Auto Park Brake feature is disabled before towing this vehicle, to avoid inadvertent Electric Park Brake engage-
ment. The Auto Park Brake feature is enabled or disabled via the customer programmable features in the Uconnect Settings.
When towing your vehicle, always follow applicable state and provincial laws. Contact local authorities for additional details.
Front-Wheel Drive (FWD) Models Four Wheel Drive (4WD)
Models
Towing Condition Wheels OFF The Ground NOT ALLOWEDNOT ALLOWED
Flat Tow NONE
Dolly Tow FrontOKNOT ALLOWED
Rear NOT ALLOWED NOT ALLOWED
On Trailer ALLOK OK
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 180

181

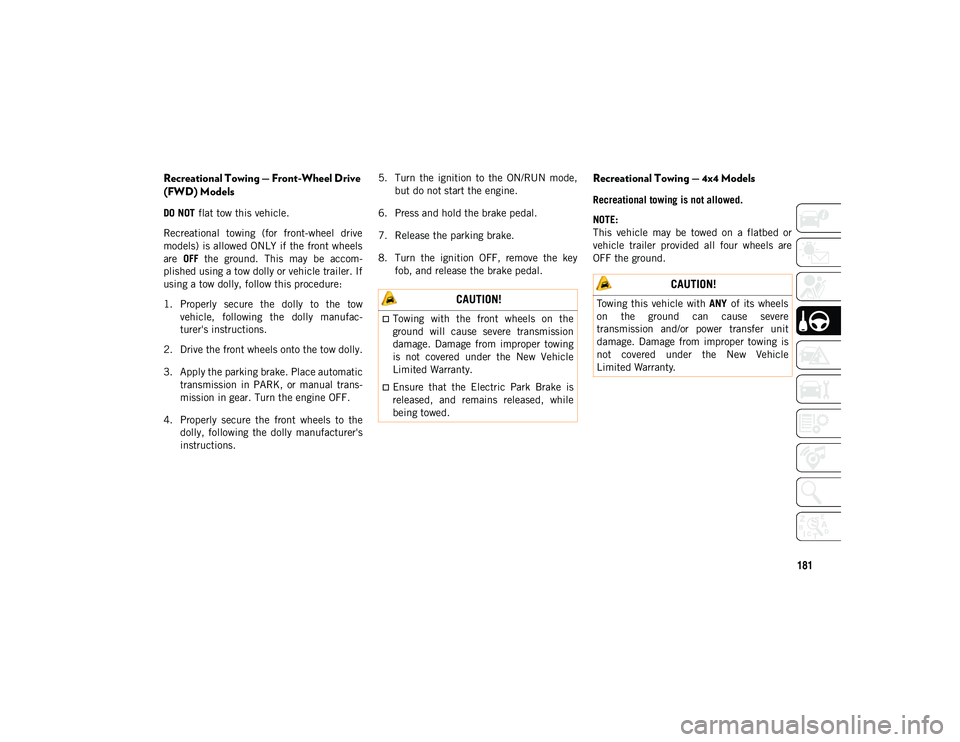

Recreational Towing — Front-Wheel Drive
(FWD) Models
DO NOT flat tow this vehicle.
Recreational towing (for front-wheel drive
models) is allowed ONLY if the front wheels
are OFF the ground. This may be accom -
plished using a tow dolly or vehicle trailer. If
using a tow dolly, follow this procedure:
1. Properly secure the dolly to the tow vehicle, following the dolly manufac -
turer's instructions.
2. Drive the front wheels onto the tow dolly.
3. Apply the parking brake. Place automatic transmission in PARK, or manual trans -
mission in gear. Turn the engine OFF.
4. Properly secure the front wheels to the dolly, following the dolly manufacturer's
instructions. 5. Turn the ignition to the ON/RUN mode,
but do not start the engine.
6. Press and hold the brake pedal.
7. Release the parking brake.
8. Turn the ignition OFF, remove the key fob, and release the brake pedal.
Recreational Towing — 4x4 Models
Recreational towing is not allowed.
NOTE:
This vehicle may be towed on a flatbed or
vehicle trailer provided all four wheels are
OFF the ground.
CAUTION!
Towing with the front wheels on the
ground will cause severe transmission
damage. Damage from improper towing
is not covered under the New Vehicle
Limited Warranty.
Ensure that the Electric Park Brake is
released, and remains released, while
being towed.
CAUTION!
Towing this vehicle with ANY of its wheels
on the ground can cause severe
transmission and/or power transfer unit
damage. Damage from improper towing is
not covered under the New Vehicle
Limited Warranty.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 181

182
IN CASE OF EMERGENCY

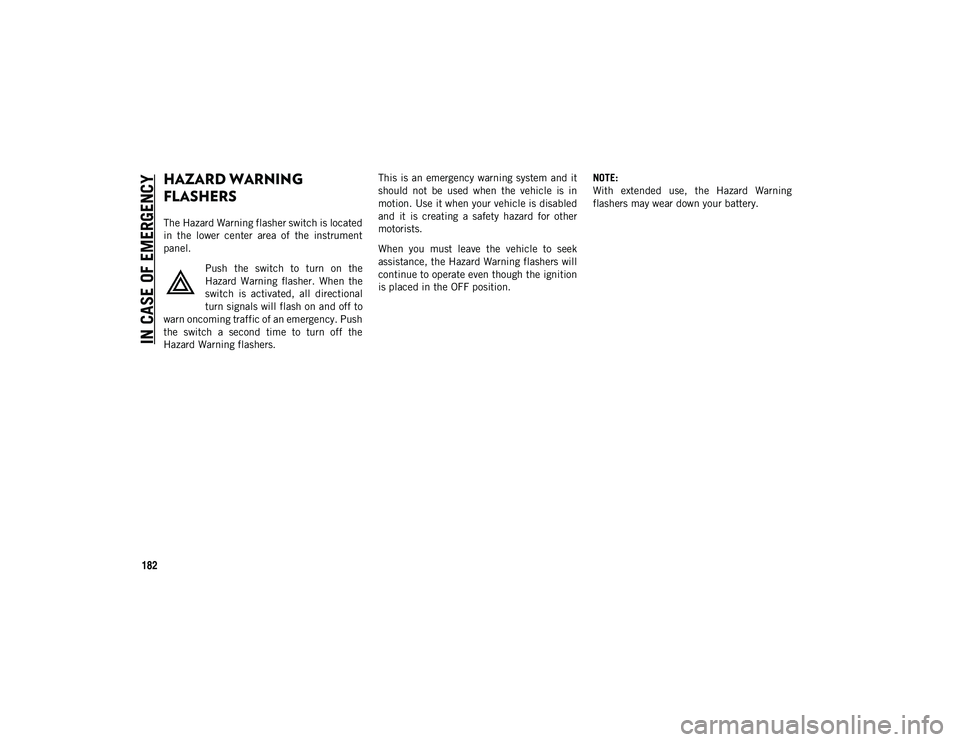

HAZARD WARNING
FLASHERS
The Hazard Warning flasher switch is located
in the lower center area of the instrument
panel.Push the switch to turn on the
Hazard Warning flasher. When the
switch is activated, all directional
turn signals will flash on and off to
warn oncoming traffic of an emergency. Push
the switch a second time to turn off the
Hazard Warning flashers. This is an emergency warning system and it
should not be used when the vehicle is in
motion. Use it when your vehicle is disabled
and it is creating a safety hazard for other
motorists.
When you must leave the vehicle to seek
assistance, the Hazard Warning flashers will
continue to operate even though the ignition
is placed in the OFF position.
NOTE:
With extended use, the Hazard Warning
flashers may wear down your battery.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 182

183
BULB REPLACEMENT
Replacement Bulbs
Interior Bulbs
Bulb Name Bulb Number
Cargo Lamp TL212–2
Overhead Console Lamp PLW214–2A
Reading Lamp WL212–2
Exterior Bulbs
Bulb Name Bulb Number
Low Beam/High Beam Headlamps LED (Serviced at an authorized dealer)
Front Park/Daytime Running Lamps LED (Serviced at an authorized dealer)
Front Turn Signal Lamps LED (Serviced at an authorized dealer)
Front Fog Lamps LED (Serviced at an authorized dealer)
Rear Tail/Stop Lamps LED (Serviced at an authorized dealer)
Rear Turn Signal Lamps LED (Serviced at an authorized dealer)
Center High Mounted Stop Lamp (CHMSL) LED (Serviced at an authorized dealer)
Back-Up Lamps LED (Serviced at an authorized dealer)
License Plate Lamp LED (Serviced at an authorized dealer)
Rear Fog Lamps LED (Serviced at an authorized dealer)
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 183

IN CASE OF EMERGENCY
184
(Continued)

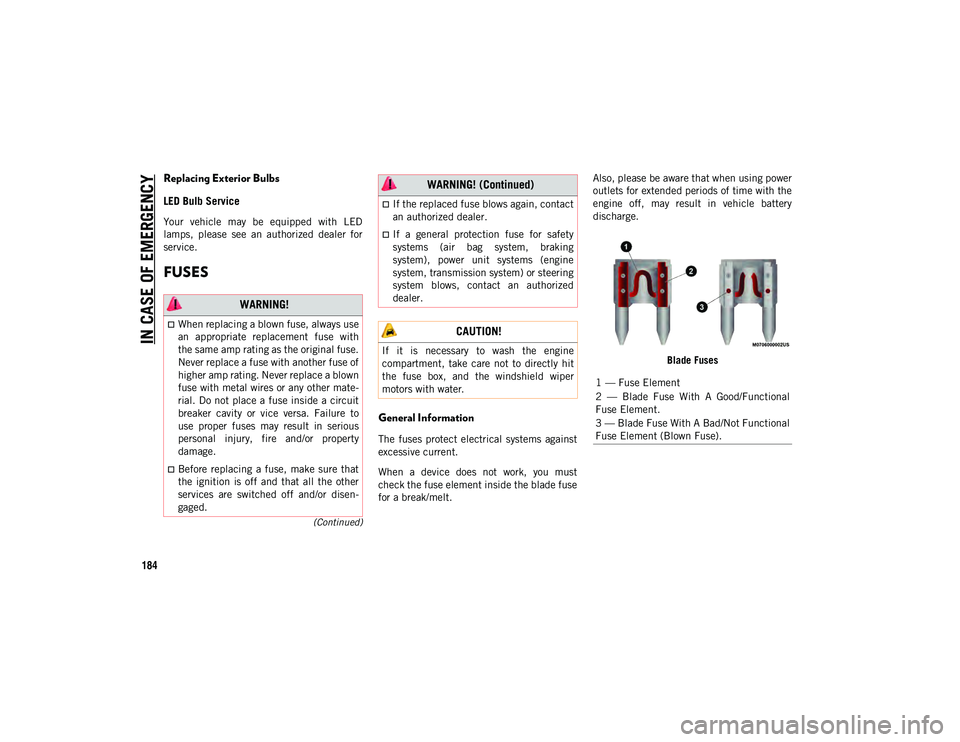

Replacing Exterior Bulbs
LED Bulb Service
Your vehicle may be equipped with LED
lamps, please see an authorized dealer for
service.
FUSES
General Information
The fuses protect electrical systems against
excessive current.
When a device does not work, you must
check the fuse element inside the blade fuse
for a break/melt.Also, please be aware that when using power
outlets for extended periods of time with the
engine off, may result in vehicle battery
discharge.
Blade Fuses
WARNING!
When replacing a blown fuse, always use
an appropriate replacement fuse with
the same amp rating as the original fuse.
Never replace a fuse with another fuse of
higher amp rating. Never replace a blown
fuse with metal wires or any other mate-
rial. Do not place a fuse inside a circuit
breaker cavity or vice versa. Failure to
use proper fuses may result in serious
personal injury, fire and/or property
damage.
Before replacing a fuse, make sure that
the ignition is off and that all the other
services are switched off and/or disen -
gaged.
If the replaced fuse blows again, contact
an authorized dealer.
If a general protection fuse for safety
systems (air bag system, braking
system), power unit systems (engine
system, transmission system) or steering
system blows, contact an authorized
dealer.
CAUTION!
If it is necessary to wash the engine
compartment, take care not to directly hit
the fuse box, and the windshield wiper
motors with water.
WARNING! (Continued)
1 — Fuse Element
2 — Blade Fuse With A Good/Functional
Fuse Element.
3 — Blade Fuse With A Bad/Not Functional
Fuse Element (Blown Fuse).
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 184

185
Underhood Fuses
The Power Distribution Center is located in
the engine compartment near the battery.
This center contains cartridge fuses,
mini-fuses and relays. A label that identifies
each component is printed on the inside of
the cover.NOTE:
Fuses for safety systems (marked with *)
must be serviced by an authorized dealer.
Power Distribution Center
CavityBlade Fuse Cartridge Fuse Description
F06– – Not Used
F07 15 Amp Blue –Powertrain Control Module - PCM (Diesel) / Surge
Solenoid Purge Valve (Gas) – If Equipped (*)
F08 25 Amp Clear –Fuel Injectors (Gas), ECM (Gas), PCM/Fuel
Injectors (Diesel)(*)
F09 15 Amp Blue (Gas)
10 Amp Red (Diesel) –
Coolant Pump (Gas) – If Equipped
UREA Coolant Pump/PCM (Diesel) – If Equipped (*)
F10 20 Amp Yellow –Power Transfer Unit (PTU) – If Equipped
(*)
F11 – – Not Used
F12 10 Amp Red –Supply And Purging Pump (Diesel)
(*)
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 185

IN CASE OF EMERGENCY
186

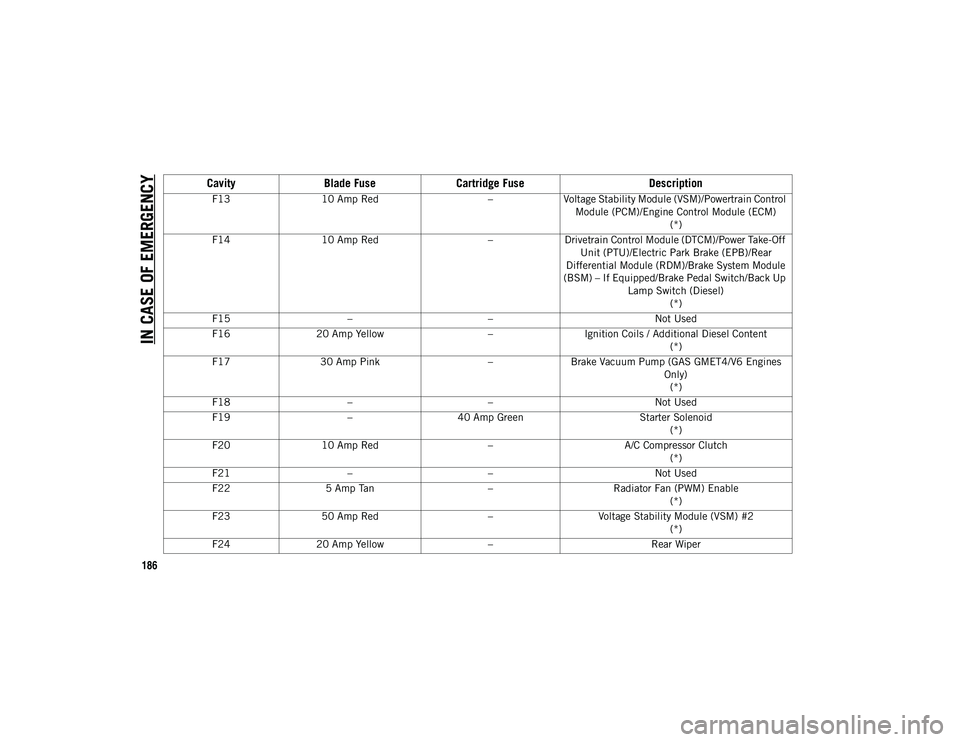

F1310 Amp Red –Voltage Stability Module (VSM)/Powertrain Control
Module (PCM)/Engine Control Module (ECM) (*)
F14 10 Amp Red –Drivetrain Control Module (DTCM)/Power Take-Off
Unit (PTU)/Electric Park Brake (EPB)/Rear
Differential Module (RDM)/Brake System Module
(BSM) – If Equipped/Brake Pedal Switch/Back Up Lamp Switch (Diesel)(*)
F15 – – Not Used
F16 20 Amp Yellow –Ignition Coils / Additional Diesel Content
(*)
F17 30 Amp Pink –Brake Vacuum Pump (GAS GMET4/V6 Engines
Only)(*)
F18 – – Not Used
F19 –40 Amp Green Starter Solenoid
(*)
F20 10 Amp Red –A/C Compressor Clutch
(*)
F21 – – Not Used
F22 5 Amp Tan –Radiator Fan (PWM) Enable
(*)
F23 50 Amp Red –Voltage Stability Module (VSM) #2
(*)
F24 20 Amp Yellow –Rear Wiper
CavityBlade Fuse Cartridge Fuse Description
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 186

187
F25B20 Amp Yellow –FT/RR Washer
F26 –30 Amp Pink Fuel Heater (Diesel)
(*)
F27 – – Not Used
F28 15 Amp Blue –Transmission Control Module (TCM/Shifter)
(*)
F29 – – Not Used
F30 10 Amp Red –Engine Control Module (ECM)/Electric Power
Steering (EPS)/Fuel Pump Relay Feed/Powertrain
Control Module (PCM)/Gas Particulate Filter (GPF) (*)
F31 – – Not Used
F32 – – Not Used
F33 – – Not Used
F34 – – Not Used
F35 – – Not Used
F36 – – Not Used
F37 – – Not Used
F38 –60 Amp Yellow Glow Plugs (Diesel)
(*)
F39 –40 Amp Green HVAC Blower Motor
(*)
F40 –20 Amp Blue Trailer Tow Park Light – If Equipped
F41 –50 Amp Red Voltage Stability Module (VSM) #1
(*)
Cavity Blade Fuse Cartridge Fuse Description
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 187

IN CASE OF EMERGENCY
188
F42–30 Amp Pink Trailer Tow Module – If Equipped
(*)
F43 20 Amp Yellow –Fuel Pump Motor
(*)
F44 –30 Amp Pink Trailer Tow Receptacle - If Equipped
F45 –30 Amp Pink Passenger Door Module (PDM) – If Equipped
(*)
F46 –25 Amp Clear Sunroof Control Module - If Equipped
F47 – – Not Used
F48 –30 Amp Pink Driver Door Module
(*)
F49 –30 Amp Pink Power Inverter (115V/220V A/C)
(*)
F50 –30 Amp Pink Power Liftgate Module
F51 – – Not Used
F52 –30 Amp Pink Front Wipers
F53 –30 Amp Pink Brake System Module (BSM) - ECU And Valves
(*)
F54 –30 Amp Pink Body Control Module (BCM) Feed 3
(*)
F55 10 Amp Red –Blind Spot Sensors/Rearview Camera, Rear
Heated Seat Switch(*)
Cavity Blade Fuse Cartridge Fuse Description
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 188
