JEEP CHEROKEE 2020 Owner handbook (in English)

299

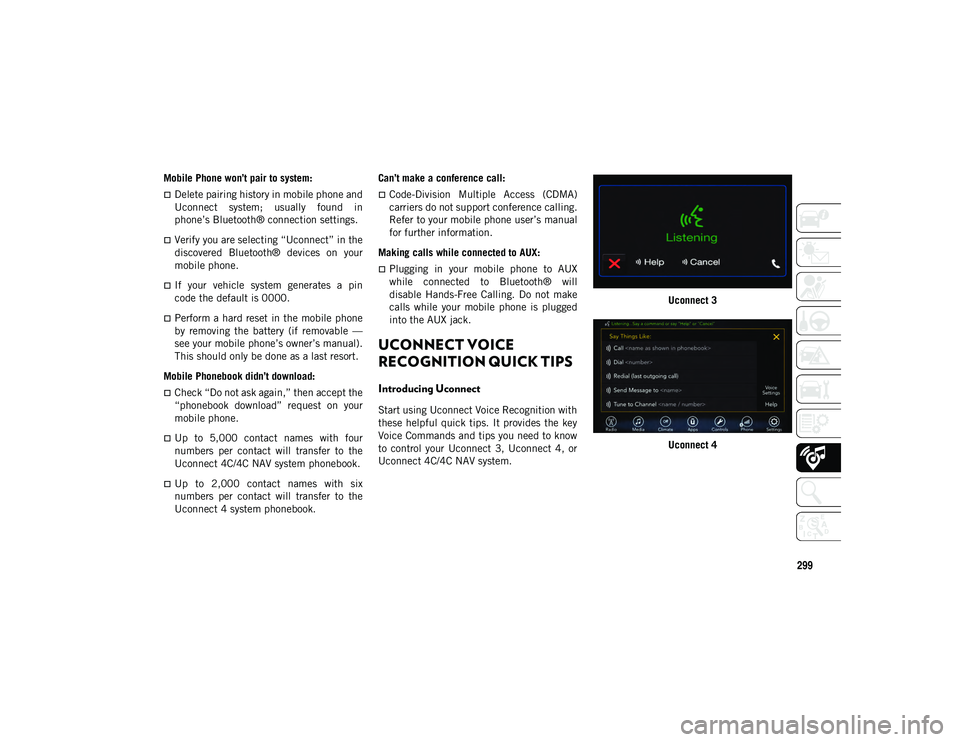

Mobile Phone won’t pair to system:
Delete pairing history in mobile phone and
Uconnect system; usually found in
phone’s Bluetooth® connection settings.
Verify you are selecting “Uconnect” in the
discovered Bluetooth® devices on your
mobile phone.
If your vehicle system generates a pin
code the default is 0000.
Perform a hard reset in the mobile phone
by removing the battery (if removable —
see your mobile phone’s owner’s manual).
This should only be done as a last resort.
Mobile Phonebook didn’t download:
Check “Do not ask again,” then accept the
“phonebook download” request on your
mobile phone.
Up to 5,000 contact names with four
numbers per contact will transfer to the
Uconnect 4C/4C NAV system phonebook.
Up to 2,000 contact names with six
numbers per contact will transfer to the
Uconnect 4 system phonebook. Can’t make a conference call:
Code-Division Multiple Access (CDMA)
carriers do not support conference calling.
Refer to your mobile phone user’s manual
for further information.
Making calls while connected to AUX:
Plugging in your mobile phone to AUX
while connected to Bluetooth® will
disable Hands-Free Calling. Do not make
calls while your mobile phone is plugged
into the AUX jack.
UCONNECT VOICE
RECOGNITION QUICK TIPS
Introducing Uconnect
Start using Uconnect Voice Recognition with
these helpful quick tips. It provides the key
Voice Commands and tips you need to know
to control your Uconnect 3, Uconnect 4, or
Uconnect 4C/4C NAV system. Uconnect 3
Uconnect 4
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 299

MULTIMEDIA
300

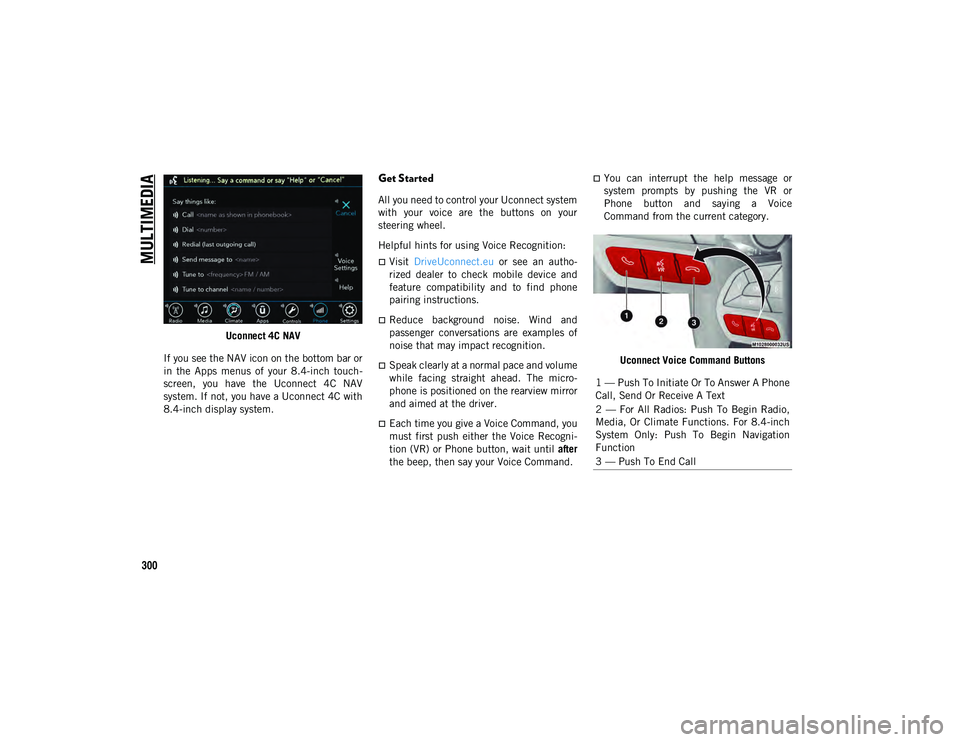

Uconnect 4C NAV
If you see the NAV icon on the bottom bar or
in the Apps menus of your 8.4-inch touch -
screen, you have the Uconnect 4C NAV
system. If not, you have a Uconnect 4C with
8.4-inch display system.
Get Started
All you need to control your Uconnect system
with your voice are the buttons on your
steering wheel.
Helpful hints for using Voice Recognition:
Visit DriveUconnect.eu or see an autho -
rized dealer to check mobile device and
feature compatibility and to find phone
pairing instructions.
Reduce background noise. Wind and
passenger conversations are examples of
noise that may impact recognition.
Speak clearly at a normal pace and volume
while facing straight ahead. The micro-
phone is positioned on the rearview mirror
and aimed at the driver.
Each time you give a Voice Command, you
must first push either the Voice Recogni -
tion (VR) or Phone button, wait until after
the beep, then say your Voice Command.
You can interrupt the help message or
system prompts by pushing the VR or
Phone button and saying a Voice
Command from the current category.
Uconnect Voice Command Buttons
1 — Push To Initiate Or To Answer A Phone
Call, Send Or Receive A Text
2 — For All Radios: Push To Begin Radio,
Media, Or Climate Functions. For 8.4-inch
System Only: Push To Begin Navigation
Function
3 — Push To End Call
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 300

301

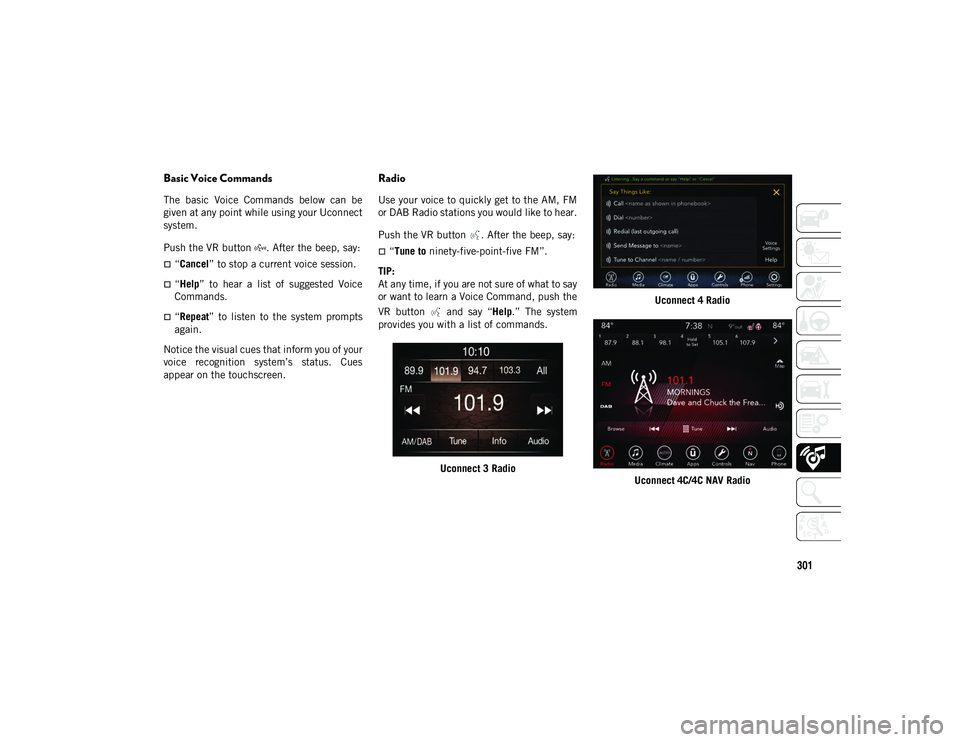

Basic Voice Commands
The basic Voice Commands below can be
given at any point while using your Uconnect
system.
Push the VR button . After the beep, say:
“Cancel” to stop a current voice session.
“Help” to hear a list of suggested Voice
Commands.
“Repeat ” to listen to the system prompts
again.
Notice the visual cues that inform you of your
voice recognition system’s status. Cues
appear on the touchscreen.
Radio
Use your voice to quickly get to the AM, FM
or DAB Radio stations you would like to hear.
Push the VR button . After the beep, say:
“Tune to ninety-five-point-five FM”.
TIP:
At any time, if you are not sure of what to say
or want to learn a Voice Command, push the
VR button and say “ Help.” The system
provides you with a list of commands.
Uconnect 3 Radio Uconnect 4 Radio
Uconnect 4C/4C NAV Radio
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 301

MULTIMEDIA
302

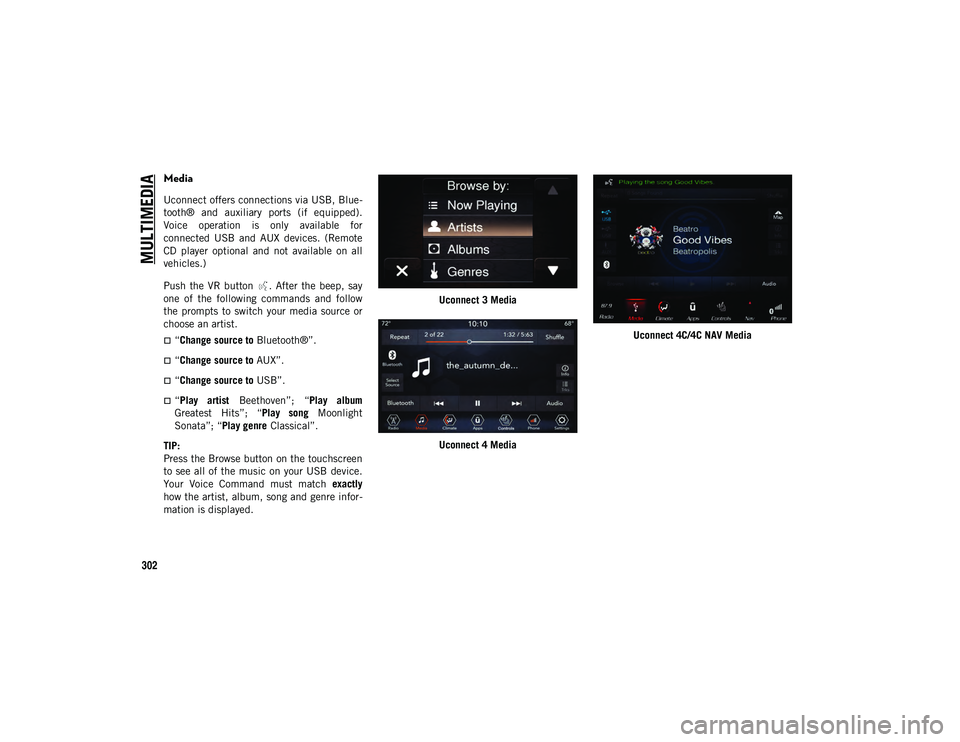

Media
Uconnect offers connections via USB, Blue-
tooth® and auxiliary ports (if equipped).
Voice operation is only available for
connected USB and AUX devices. (Remote
CD player optional and not available on all
vehicles.)
Push the VR button . After the beep, say
one of the following commands and follow
the prompts to switch your media source or
choose an artist.
“Change source to Bluetooth®”.
“Change source to AUX”.
“Change source to USB”.
“Play artist Beethoven”; “ Play album
Greatest Hits”; “ Play song Moonlight
Sonata”; “ Play genre Classical”.
TIP:
Press the Browse button on the touchscreen
to see all of the music on your USB device.
Your Voice Command must match exactly
how the artist, album, song and genre infor -
mation is displayed. Uconnect 3 Media
Uconnect 4 Media Uconnect 4C/4C NAV Media
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 302

303
Phone
Making and answering hands-free phone
calls is easy with Uconnect. When the
Phonebook button is illuminated on your
touchscreen, your system is ready. Check
www.driveuconnect.eu or contact an autho-
rized dealer for mobile phone compatibility
and pairing instructions.
Push the VR button or Phone button .
After the beep, say one of the following
commands:
“Call John Smith”.
“Dial 123-456-7890 and follow the
system prompts”.
“Redial (call previous outgoing phone
number)”.
“Call back (call previous incoming phone
number)”.
TIP:
When providing a Voice Command, push the
VR button or Phone button and say
“Call ,” then pronounce the name exactly as
it appears in your phone book. When a
contact has multiple phone numbers, you
can say “ Call John Smith work.” Uconnect 3 Phone
Uconnect 4 Phone Uconnect 4C/4C NAV Phone
Voice Text Reply — If Equipped
Uconnect announces
incoming text
messages. Push the VR button or Phone (if active) and say “ Listen.” (Must have
compatible mobile phone paired to Uconnect
system.)
1. Once an incoming text message is read to
you, push the VR button or Phone(if active). After the beep, say:
“Reply .”
2. Listen to the Uconnect prompts. After the beep, repeat one of the pre-defined
messages and follow the system prompts.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 303

MULTIMEDIA
304

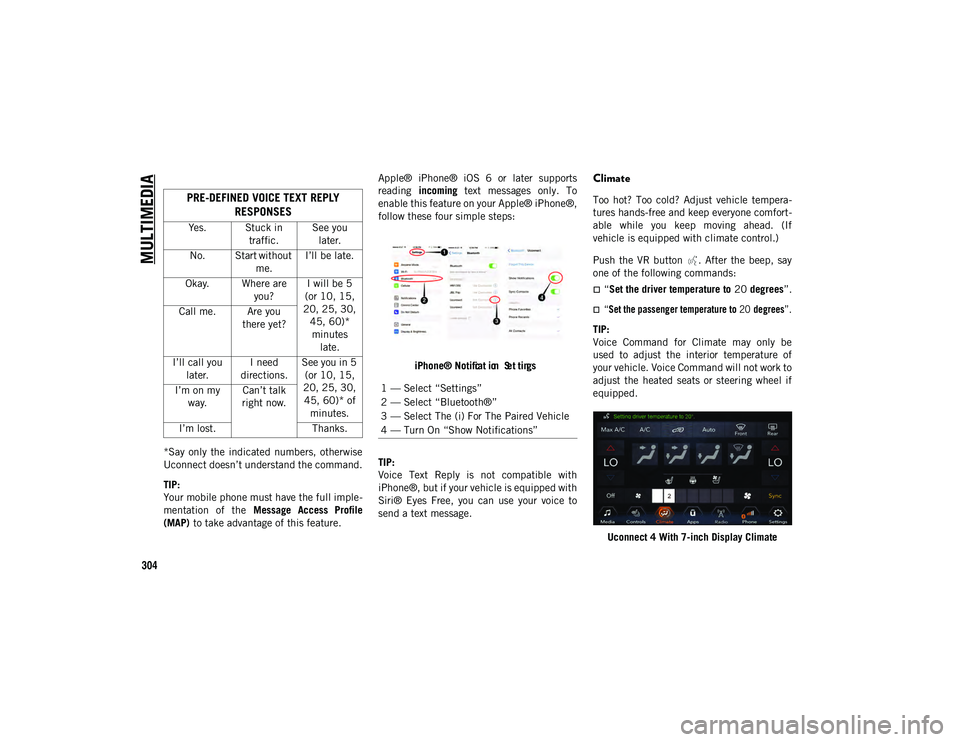

*Say only the indicated numbers, otherwise
Uconnect doesn’t understand the command.
TIP:
Your mobile phone must have the full imple-
mentation of the Message Access Profile
(MAP) to take advantage of this feature. Apple® iPhone® iOS 6 or later supports
reading
incoming text messages only. To
enable this feature on your Apple® iPhone®,
follow these four simple steps:
iPhone® Notif
ca
t ion Set
tin
gsTI
P:
Voice Text Reply is not compatible with
iPhone®, but if your vehicle is equipped with
Siri® Eyes Free, you can use your voice to
send a text message.
Climate
Too hot? Too cold? Adjust vehicle tempera -
tures hands-free and keep everyone comfort -
able while you keep moving ahead. (If
vehicle is equipped with climate control.)
Push the VR button . After the beep, say
one of the following commands:
“Set the driver temperature to 20 degrees ”.

“Set the passenger temperature to 20 degrees ”.

TIP:
Voice Command for Climate may only be
used to adjust the interior temperature of
your vehicle. Voice Command will not work to
adjust the heated seats or steering wheel if
equipped.
Uconnect 4 With 7-inch Display Climate
PRE-DEFINED VOICE TEXT REPLY RESPONSES
Yes. Stuck in
traffic. See you
later.
No. Start without me.I’ll be late.
Okay. Where are you?I will be 5
(or 10, 15,
20, 25, 30, 45, 60)* minutes late.
Call me. Are you
there yet?
I’ll call you later. I need
directions. See you in 5
(or 10, 15,
20, 25, 30, 45, 60)* of minutes.
I’m on my
way. Can’t talk
right now.
I’m lost. Thanks.
1 — Select “Settings”
2 — Select “Bluetooth®”
3 — Select The (i) For The Paired Vehicle
4 — Turn On “Show Notifications”
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 304

305
Uconnect 4C/4C NAV With 8.4-Inch Display Climate
Siri® Eyes Free — If Equipped
Siri lets you use your voice to send text
messages, select media, place phone calls
and much more. Siri uses your natural
language to understand what you mean and
responds back to confirm your requests. The
system is designed to keep your eyes on the
road and your hands on the wheel by letting
Siri help you perform useful tasks.
To enable Siri, push and hold, then release
the Uconnect Voice Recognition (VR) button
on the steering wheel. After you hear a double beep, you can ask Siri to play
podcasts and music, get directions, read text
messages, and many other useful requests.
Uconnect 4 Siri® Eyes Free Available
Uconnect 4C/4C NAV With 8.4-inch Siri® Eyes Free Available
Using Do Not Disturb
With Do Not Disturb, you can disable notifi -
cations from incoming calls and texts,
allowing you to keep your eyes on the road
and hands on the wheel. For your conve -
nience, there is a counter display to keep
track of your missed calls and text messages
while you were using Do Not Disturb.
Do Not Disturb can automatically reply with
a text message, a call, or both, when
declining an incoming call and send it to
voicemail.
Automatic reply messages can be:
“I am driving right now, I will get back to
you shortly”.
Create a custom auto reply message up to
160 characters.
While in Do Not Disturb, Conference Call can
be selected so you can still place a second
call without being interrupted by incoming
calls.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 305

MULTIMEDIA
306
NOTE:
Only the beginning of your custom
message will be seen on the touchscreen.
Reply with text message is not compatible
with iPhones®.
Auto reply with text message is only avail-
able on phones that support Bluetooth®
MAP.
Android Auto™ — If Equipped
NOTE:
Feature availability depends on your carrier
and mobile phone manufacturer. Some
Android Auto™ features may or may not be
available in every region and/or language.
Android Auto™ allows you to use your voice
to interact with Android™’s best-in-class
speech technology through your vehicle’s
voice recognition system, and use your
smartphone’s data plan to project your
Android™-powered smartphone and a
number of its apps onto your Uconnect
touchscreen. Connect your Android™ 5.0
(Lollipop) or higher to one of the media USB
ports, using the factory-provided USB cable,
and press the new Android Auto™ icon that
replaces your “Phone” icon on the main
menu bar to begin Android Auto™. Push and hold the VR button on the steering wheel, or
press and hold the Microphone icon within
Android Auto™, to activate Android™’s VR,
which recognizes natural voice commands,
to use a list of your smartphone’s features:
Maps
Music
Phone
Text Messages
Additional Apps
Android Auto™ On 7-inch Display Android Auto™ On 8.4-inch Display
Refer to your Uconnect Owner’s Manual
Supplement for further information.
NOTE:
Requires compatible smartphone running
Android™ 5.0 (Lollipop) or higher and down -
load app on Google Play. Android™, Android
Auto™, and Google Play are trademarks of
Google Inc.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 306

307
Apple CarPlay® — If Equipped
NOTE:
Feature availability depends on your carrier
and mobile phone manufacturer. Some
Apple CarPlay® features may or may not be
available in every region and/or language.
Apple CarPlay® allows you to use your voice
to interact with Siri® through your vehicle’s
voice recognition system, and use your
smartphone’s data plan to project your
iPhone® and a number of its apps onto your
Uconnect touchscreen. Connect your
iPhone® 5, or higher, to one of the media
USB ports, using the factory-provided Light-
ning cable, and press the new Apple
CarPlay® icon that replaces your phone icon
on the main menu bar to begin Apple
CarPlay®. Push and hold the VR button on
the steering wheel, or press and hold the
“Home” button within Apple CarPlay®, to
activate Siri, which recognizes natural voice
commands to use a list of your iPhone®’s
features:
Phone
Music
Messages
Maps — if equipped
Additional Apps — if equipped
Apple CarPlay® On 7-inch Display
Apple CarPlay® On 8.4-inch Display Refer to your Uconnect Owner’s Manual
Supplement for further information.
NOTE:
Requires compatible iPhone®. See dealer
for phone compatibility. Data plan rates
apply. Vehicle user interface is a product of
Apple®. Apple CarPlay® is a trademark of
Apple® Inc. iPhone® is a trademark of
Apple® Inc., registered in the US and other
countries. Apple® terms of use and privacy
statements apply.
Additional Information
© 2019 FCA. All rights reserved. Mopar and
Uconnect are registered trademarks and
Mopar Owner Connect is a trademark of FCA.
Android™ is a trademark of Google Inc.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 307

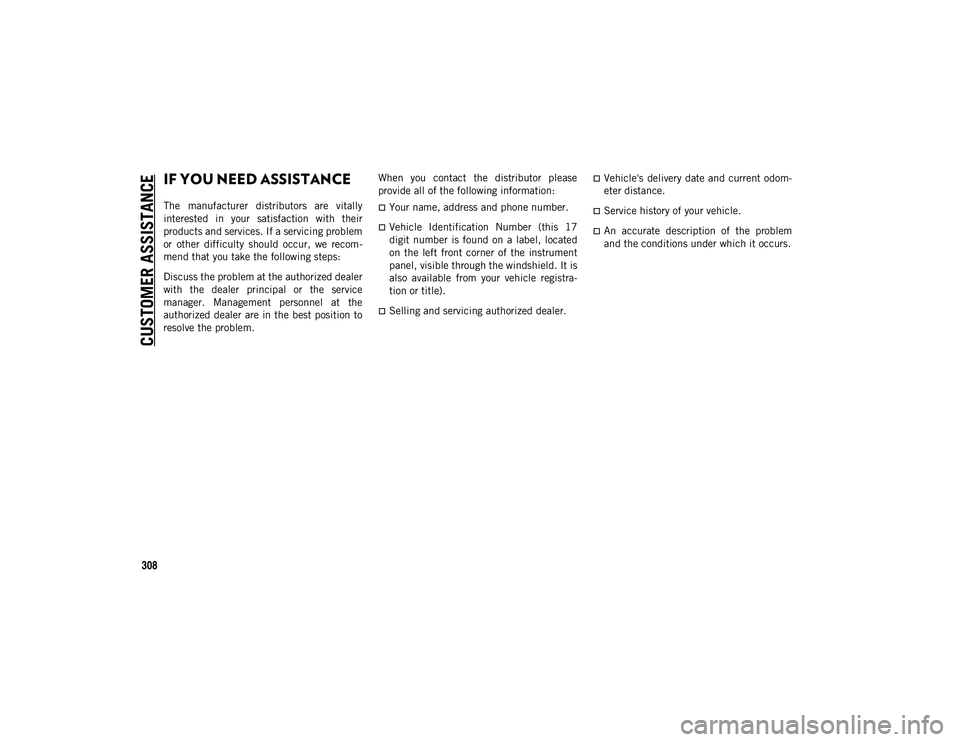

308
CUSTOMER ASSISTANCE
IF YOU NEED ASSISTANCE
The manufacturer distributors are vitally
interested in your satisfaction with their
products and services. If a servicing problem
or other difficulty should occur, we recom-
mend that you take the following steps:
Discuss the problem at the authorized dealer
with the dealer principal or the service
manager. Management personnel at the
authorized dealer are in the best position to
resolve the problem. When you contact the distributor please
provide all of the following information:Your name, address and phone number.
Vehicle Identification Number (this 17
digit number is found on a label, located
on the left front corner of the instrument
panel, visible through the windshield. It is
also available from your vehicle registra-
tion or title).
Selling and servicing authorized dealer.
Vehicle's delivery date and current odom
-
eter distance.
Service history of your vehicle.
An accurate description of the problem
and the conditions under which it occurs.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 308
