49
(Continued)
POWER SUNROOF WITH
POWER SHADE — IF
EQUIPPED
The power sunroof switches are located to
the left between the sun visors on the over-
head console.
Power Sunroof Switches
The power shade switches are located to the
right between the sun visors on the overhead
console. Power Shade Switches
Opening Sunroof
The sunroof has two programmed open posi
-
tions, comfort stop position and full open
position. The comfort stop position is set to
minimize wind buffeting when driving with
side windows closed and sunroof open. If the
sunshade is in the closed position when initi -
ating a sunroof open or vent command, the
sunshade will automatically open to the half
open position prior to the sunroof opening.
WARNING!
Never leave children unattended in a
vehicle, or with access to an unlocked
vehicle. Never leave the key fob in or
near the vehicle, or in a location acces-
sible to children. Do not leave the igni -
tion of a vehicle equipped with Keyless
Enter-N-Go in the ACC or ON/RUN
mode. Occupants, particularly unat -
tended children, can become entrapped
by the power sunroof while operating the
power sunroof switch. Such entrapment
may result in serious injury or death.
In a collision, there is a greater risk of
being thrown from a vehicle with an open
sunroof. You could also be seriously
injured or killed. Always fasten your seat
belt properly and make sure all passen -
gers are also properly secured.
Do not allow small children to operate
the sunroof. Never allow your fingers,
other body parts, or any object, to project
through the sunroof opening. Injury may
result.
WARNING! (Continued)
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 49

GETTING TO KNOW YOUR VEHICLE
50
Express
Push the switch rearward and release it
within one-half second, the sunroof will open
to the comfort stop position and automati-
cally stop. Push the switch rearward and
release it again, the sunroof will open to the
full open position and automatically stop.
This is called “Express Open”. During
Express Open operation, any movement of
the sunroof switch will stop the sunroof.
Manual Mode
Push and hold the switch rearward, the
sunroof will open to the comfort stop position
and automatically stop. Push the switch rear -
ward and hold it again, the sunroof will open
to the full open position and automatically
stop. Any release of the switch will stop the
sunroof movement. The sunroof will remain
in a partially opened condition until the
switch is pushed and held again.
Venting Sunroof

Push and release the "Vent" button within
one-half second and the sunroof will open to
the vent position. This is called “Express Vent”,
and it will occur regardless of sunroof position.
During Express Vent operation, any movement
of the switch will stop the sunroof.

Closing Sunroof
Express
Push the switch forward and release it within
one-half second and the sunroof will close
automatically from any position. The sunroof
will close fully and stop automatically. This
is called “Express Close”. During Express
Close operation, any other actuation of the
switch will stop the sunroof.
Manual Mode
To close the sunroof, push and hold the
switch in the forward position. Any release of
the switch will stop the movement and the
sunroof will remain in a partially closed
condition until the sunroof switch is pushed
again.
Wind Buffeting
Wind buffeting can be described as the
perception of pressure on the ears or a heli -
copter-type sound in the ears. Your vehicle
may exhibit wind buffeting with the windows
down, or the sunroof (if equipped) in certain
open or partially open positions. This is a
normal occurrence and can be minimized. If
the buffeting occurs with the rear windows
open, then open the front and rear windows together to minimize the buffeting. If the
buffeting occurs with the sunroof open,
adjust the sunroof opening to minimize the
buffeting or open any window.
Opening Power Shade
The sunshade has two programmed open
positions, half open and full open positions.
When opening the sunshade from the closed
position the sunshade will always stop at the
half open position regardless of express or
manual open operation. The switch must be
actuated again to continue on to full open
position.
Express
Push the sunshade switch rearward and
release it within one-half second, the
sunshade will open to the half open position
and stop automatically. Push and release the
switch again from the half open position and
the sunshade will open to the full open posi
-
tion and stop automatically. This is called
“Express Open”. During Express Open oper -
ation, any movement of the sunshade switch
will stop the shade.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 50

51

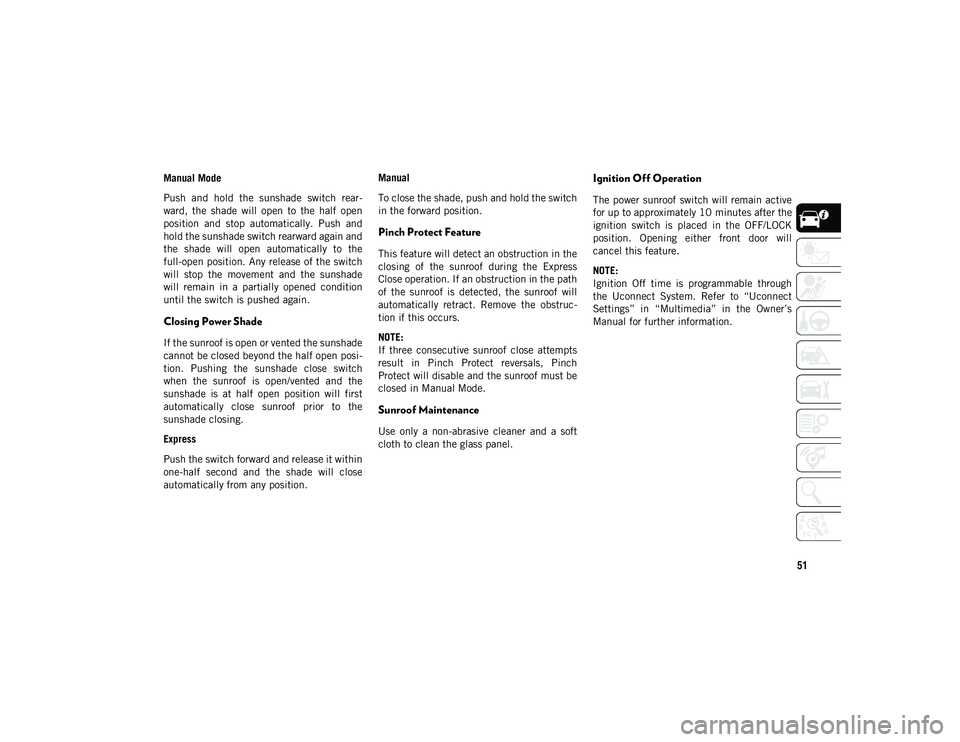

Manual Mode
Push and hold the sunshade switch rear-
ward, the shade will open to the half open
position and stop automatically. Push and
hold the sunshade switch rearward again and
the shade will open automatically to the
full-open position. Any release of the switch
will stop the movement and the sunshade
will remain in a partially opened condition
until the switch is pushed again.
Closing Power Shade
If the sunroof is open or vented the sunshade
cannot be closed beyond the half open posi -
tion. Pushing the sunshade close switch
when the sunroof is open/vented and the
sunshade is at half open position will first
automatically close sunroof prior to the
sunshade closing.
Express
Push the switch forward and release it within
one-half second and the shade will close
automatically from any position. Manual
To close the shade, push and hold the switch
in the forward position.
Pinch Protect Feature
This feature will detect an obstruction in the
closing of the sunroof during the Express
Close operation. If an obstruction in the path
of the sunroof is detected, the sunroof will
automatically retract. Remove the obstruc
-
tion if this occurs.
NOTE:
If three consecutive sunroof close attempts
result in Pinch Protect reversals, Pinch
Protect will disable and the sunroof must be
closed in Manual Mode.
Sunroof Maintenance
Use only a non-abrasive cleaner and a soft
cloth to clean the glass panel.
Ignition Off Operation
The power sunroof switch will remain active
for up to approximately 10 minutes after the
ignition switch is placed in the OFF/LOCK
position. Opening either front door will
cancel this feature.
NOTE:
Ignition Off time is programmable through
the Uconnect System. Refer to “Uconnect
Settings” in “Multimedia” in the Owner’s
Manual for further information.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 51

GETTING TO KNOW YOUR VEHICLE
52

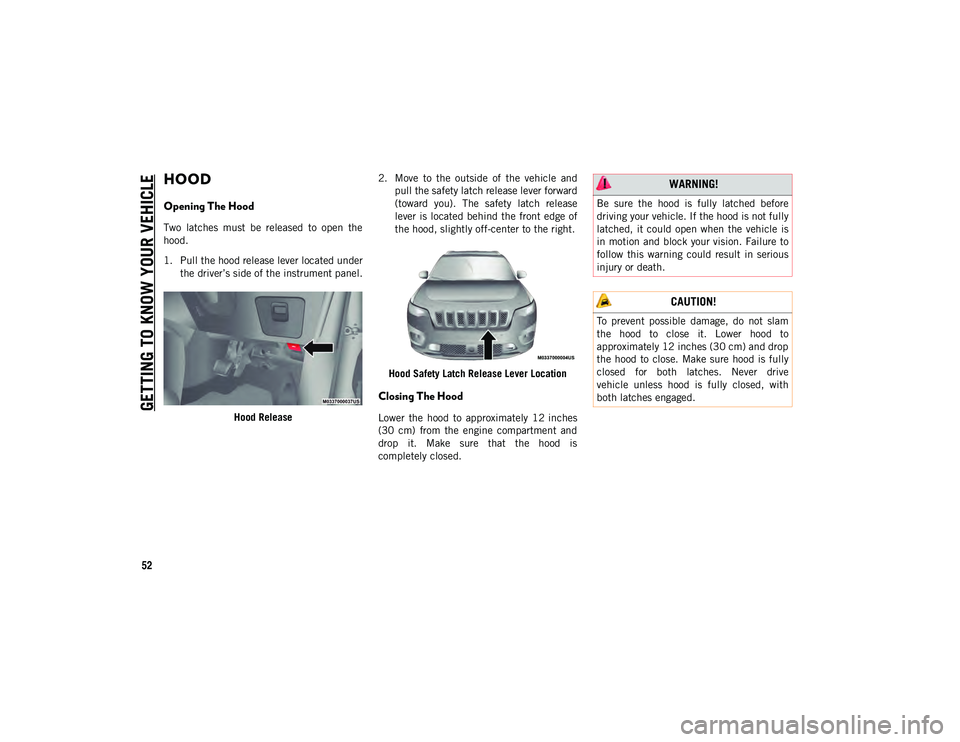

HOOD
Opening The Hood
Two latches must be released to open the
hood.
1. Pull the hood release lever located underthe driver’s side of the instrument panel.
Hood Release 2. Move to the outside of the vehicle and
pull the safety latch release lever forward
(toward you). The safety latch release
lever is located behind the front edge of
the hood, slightly off-center to the right.
Hood Safety Latch Release Lever Location
Closing The Hood
Lower the hood to approximately 12 inches
(30 cm) from the engine compartment and
drop it. Make sure that the hood is
completely closed.
WARNING!
Be sure the hood is fully latched before
driving your vehicle. If the hood is not fully
latched, it could open when the vehicle is
in motion and block your vision. Failure to
follow this warning could result in serious
injury or death.
CAUTION!
To prevent possible damage, do not slam
the hood to close it. Lower hood to
approximately 12 inches (30 cm) and drop
the hood to close. Make sure hood is fully
closed for both latches. Never drive
vehicle unless hood is fully closed, with
both latches engaged.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 52

53

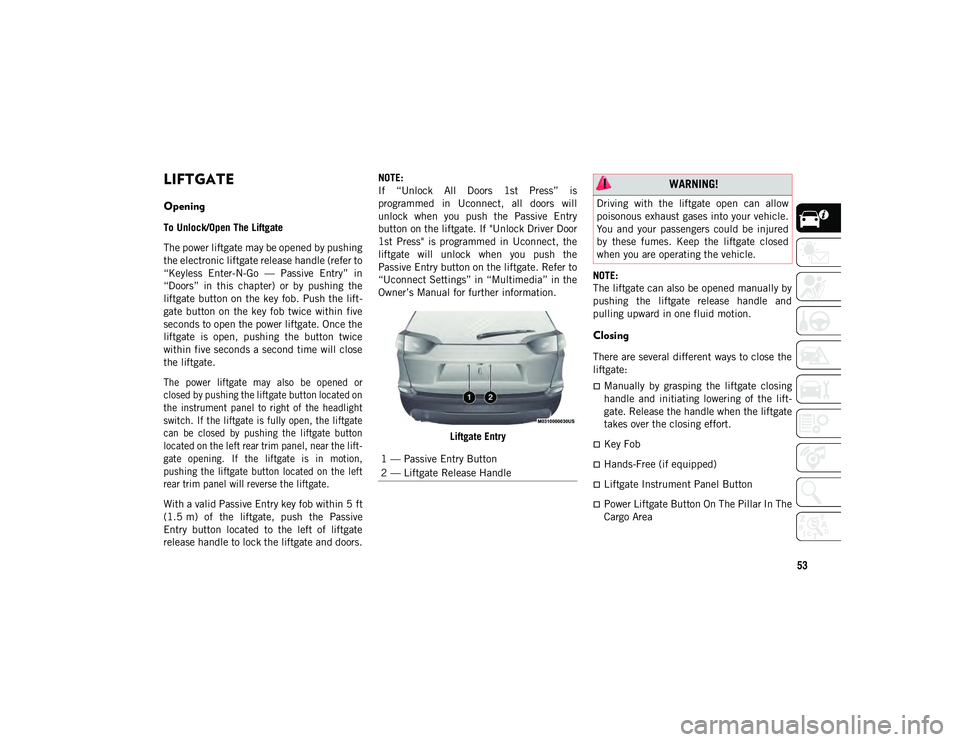

LIFTGATE
Opening
To Unlock/Open The Liftgate
The power liftgate may be opened by pushing
the electronic liftgate release handle (refer to
“Keyless Enter-N-Go — Passive Entry” in
“Doors” in this chapter) or by pushing the
liftgate button on the key fob. Push the lift-
gate button on the key fob twice within five
seconds to open the power liftgate. Once the
liftgate is open, pushing the button twice
within five seconds a second time will close
the liftgate.

The power liftgate may also be opened or
closed by pushing the liftgate button located on
the instrument panel to right of the headlight
switch. If the liftgate is fully open, the liftgate
can be closed by pushing the liftgate button
located on the left rear trim panel, near the lift -
gate opening. If the liftgate is in motion,
pushing the liftgate button located on the left
rear trim panel will reverse the liftgate.

With a valid Passive Entry key fob within 5 ft
(1.5 m) of the liftgate, push the Passive
Entry button located to the left of liftgate
release handle to lock the liftgate and doors. NOTE:
If “Unlock All Doors 1st Press” is
programmed in Uconnect, all doors will
unlock when you push the Passive Entry
button on the liftgate. If "Unlock Driver Door
1st Press" is programmed in Uconnect, the
liftgate will unlock when you push the
Passive Entry button on the liftgate. Refer to
“Uconnect Settings” in “Multimedia” in the
Owner’s Manual for further information.
Liftgate Entry NOTE:
The liftgate can also be opened manually by
pushing the liftgate release handle and
pulling upward in one fluid motion.
Closing
There are several different ways to close the
liftgate:
Manually by grasping the liftgate closing
handle and initiating lowering of the lift
-
gate. Release the handle when the liftgate
takes over the closing effort.
Key Fob
Hands-Free (if equipped)
Liftgate Instrument Panel Button
Power Liftgate Button On The Pillar In The
Cargo Area
1 — Passive Entry Button
2 — Liftgate Release Handle
WARNING!
Driving with the liftgate open can allow
poisonous exhaust gases into your vehicle.
You and your passengers could be injured
by these fumes. Keep the liftgate closed
when you are operating the vehicle.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 53

GETTING TO KNOW YOUR VEHICLE
54
To Lock The Liftgate
With a valid Passive Entry key fob within 5 ft
(1.5 m) of the liftgate, pushing the Keyless
Enter-N-Go — Passive Entry lock/push
button located to the left of the back-up
camera will lock the vehicle only.
The power liftgate may be closed by pushing
the button, located in the upper left trim in
the liftgate opening. Pushing the button will
only close the liftgate. This button cannot be
used to open the liftgate.Rear Power Liftgate SwitchHands-Free Liftgate — If Equipped
Hands-Free Liftgate Activation Zone
To open or close the liftgate using hands-free
activation, use a straight in and out kicking
motion under the vehicle activation zone in
the general location below the rear license
plate. Do not move your foot sideways or in a
sweeping motion or the sensors may not
detect the motion.
NOTE:
Activation zone is the same for vehicles
equipped with and without trailer tow
package.
When a valid kicking motion is completed,
the liftgate will chime, the hazard lights will
flash and the liftgate will open after approxi -mately one second, or close after approxi
-
mately three seconds. This assumes all
options are enabled in the radio.
NOTE:
Opening or closing the Hands-Free Lift -
gate requires a valid Passive Entry key fob
within 5 ft (1.5 m) of the door handle. If a
valid Passive Entry key fob is not within
5 ft (1.5 m), the liftgate will not respond
to any kicks.
The Hands-Free Liftgate feature may be
turned on or off in Uconnect Settings.
Refer to “Uconnect Settings” in “Multi -
media” in the Owner’s Manual for further
information. The Hands-Free Liftgate
feature should be turned off during
Jacking, Tire Changing, Manual Car Wash,
and Vehicle Service.
The Hands-Free Liftgate feature can be
activated by any metallic object making a
similar in-and-out motion under the rear
bumper, such as cleaning using a metal
broom.
The Hands-Free Liftgate will only operate
when the transmission is in PARK.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 54

55
If anything obstructs the Hands-Free Lift-
gate while it is opening or closing, the lift -
gate will automatically reverse to the
closed/open position, provided it meets
sufficient resistance.
There are pinch sensors attached to the
side of the liftgate opening. Light pressure
anywhere along these strips will cause the
liftgate to return to the open position.
If the power liftgate encounters multiple
obstructions within the same cycle, the
system will automatically stop. If this
occurs, the liftgate must be operated
manually.
The power liftgate will release, but not
power open, in temperatures below −12°F
(−24°C). Be sure to remove any buildup of
snow or ice from the liftgate before
opening the liftgate.
If the liftgate is left open for an extended
period of time, the liftgate may need to be
closed manually to reset power liftgate
functionality. Gas props support the liftgate in the open
position. However, because the gas pressure
drops with temperature, it may be necessary
to assist the props when opening the liftgate
in cold weather.
NOTE:
Allow the power system to open the liftgate.
Manually pushing or pulling the liftgate may
activate the liftgate obstacle detection
feature and stop the power operation or
reverse its direction.
INTERNAL EQUIPMENT
Power Outlets
Your vehicle is equipped with 12 Volt (13
Amp) power outlets that can be used to
power cellular phones, small electronics, and
other low powered electrical accessories. The
power outlets are labeled with either a “key”
or a “battery” symbol to indicate how the
outlet is powered. Power outlets labeled with
a “key” are powered when the ignition switch
is in the ON or ACC position, while the
outlets labeled with a “battery” are
connected directly to the battery and
powered at all times.
NOTE:
All accessories connected to the “battery”
powered outlets should be removed or turned
off when the vehicle is not in use to protect
the battery against discharge.
WARNING!
Driving with the liftgate open can allow
poisonous exhaust gases into your
vehicle. You and your passengers could
be injured by these fumes. Keep the lift
-
gate closed when you are operating the
vehicle.
If you are required to drive with the lift -
gate open, make sure that all windows
are closed, and the climate control
blower switch is set at high speed. Do
not use the recirculation mode.
WARNING!
During power operation, personal injury or
cargo damage may occur. Ensure the
liftgate travel path is clear. Make sure the
liftgate is closed and latched before
driving away.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 55

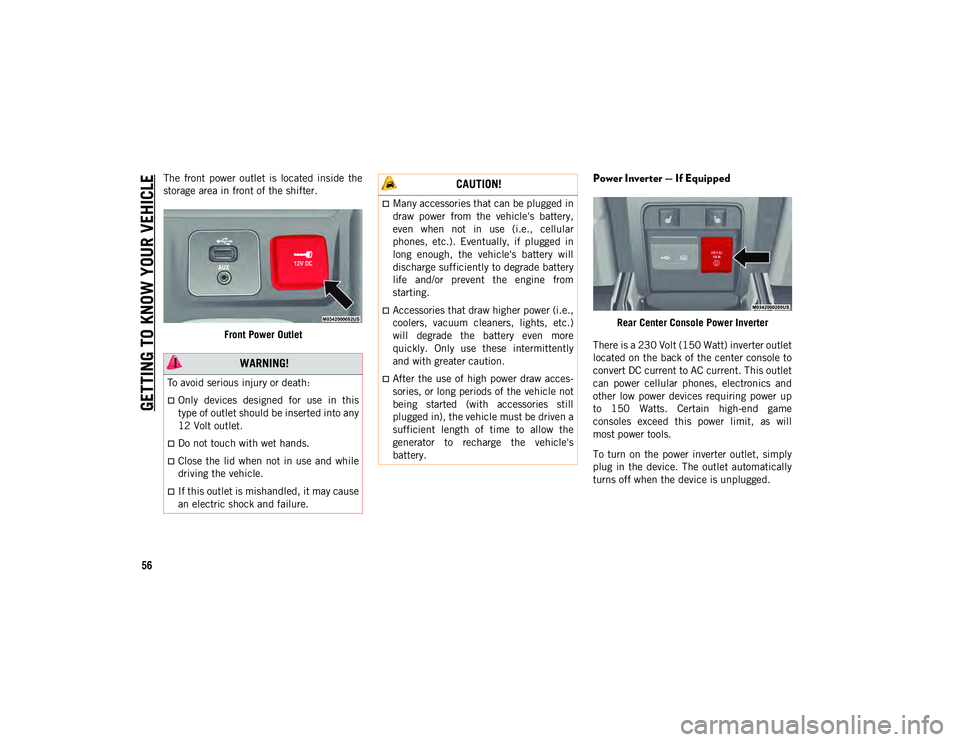

GETTING TO KNOW YOUR VEHICLE
56
The front power outlet is located inside the
storage area in front of the shifter.Front Power OutletPower Inverter — If Equipped
Rear Center Console Power Inverter
There is a 230 Volt (150 Watt) inverter outlet
located on the back of the center console to
convert DC current to AC current. This outlet
can power cellular phones, electronics and
other low power devices requiring power up
to 150 Watts. Certain high-end game
consoles exceed this power limit, as will
most power tools.
To turn on the power inverter outlet, simply
plug in the device. The outlet automatically
turns off when the device is unplugged.
WARNING!
To avoid serious injury or death:
Only devices designed for use in this
type of outlet should be inserted into any
12 Volt outlet.
Do not touch with wet hands.
Close the lid when not in use and while
driving the vehicle.
If this outlet is mishandled, it may cause
an electric shock and failure.
CAUTION!
Many accessories that can be plugged in
draw power from the vehicle's battery,
even when not in use (i.e., cellular
phones, etc.). Eventually, if plugged in
long enough, the vehicle's battery will
discharge sufficiently to degrade battery
life and/or prevent the engine from
starting.
Accessories that draw higher power (i.e.,
coolers, vacuum cleaners, lights, etc.)
will degrade the battery even more
quickly. Only use these intermittently
and with greater caution.
After the use of high power draw acces-
sories, or long periods of the vehicle not
being started (with accessories still
plugged in), the vehicle must be driven a
sufficient length of time to allow the
generator to recharge the vehicle's
battery.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 56

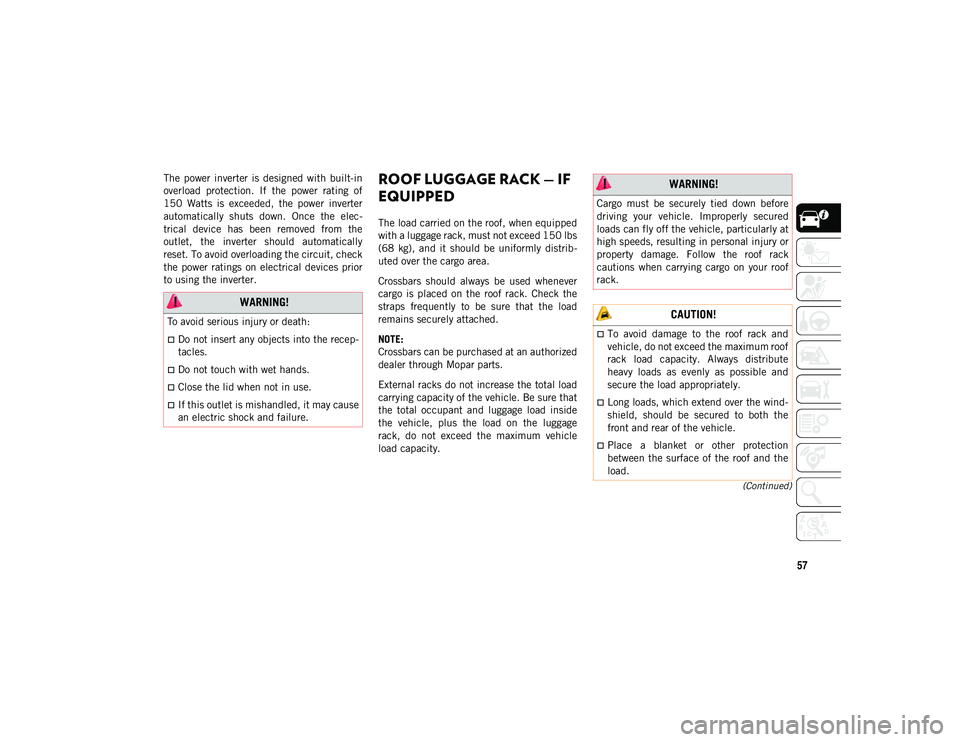

57
(Continued)
The power inverter is designed with built-in
overload protection. If the power rating of
150 Watts is exceeded, the power inverter
automatically shuts down. Once the elec-
trical device has been removed from the
outlet, the inverter should automatically
reset. To avoid overloading the circuit, check
the power ratings on electrical devices prior
to using the inverter.ROOF LUGGAGE RACK — IF
EQUIPPED
The load carried on the roof, when equipped
with a luggage rack, must not exceed 150 lbs
(68 kg), and it should be uniformly distrib -
uted over the cargo area.
Crossbars should always be used whenever
cargo is placed on the roof rack. Check the
straps frequently to be sure that the load
remains securely attached.
NOTE:
Crossbars can be purchased at an authorized
dealer through Mopar parts.
External racks do not increase the total load
carrying capacity of the vehicle. Be sure that
the total occupant and luggage load inside
the vehicle, plus the load on the luggage
rack, do not exceed the maximum vehicle
load capacity.
WARNING!
To avoid serious injury or death:
Do not insert any objects into the recep -
tacles.
Do not touch with wet hands.
Close the lid when not in use.
If this outlet is mishandled, it may cause
an electric shock and failure.
WARNING!
Cargo must be securely tied down before
driving your vehicle. Improperly secured
loads can fly off the vehicle, particularly at
high speeds, resulting in personal injury or
property damage. Follow the roof rack
cautions when carrying cargo on your roof
rack.
CAUTION!
To avoid damage to the roof rack and
vehicle, do not exceed the maximum roof
rack load capacity. Always distribute
heavy loads as evenly as possible and
secure the load appropriately.
Long loads, which extend over the wind -
shield, should be secured to both the
front and rear of the vehicle.
Place a blanket or other protection
between the surface of the roof and the
load.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 57

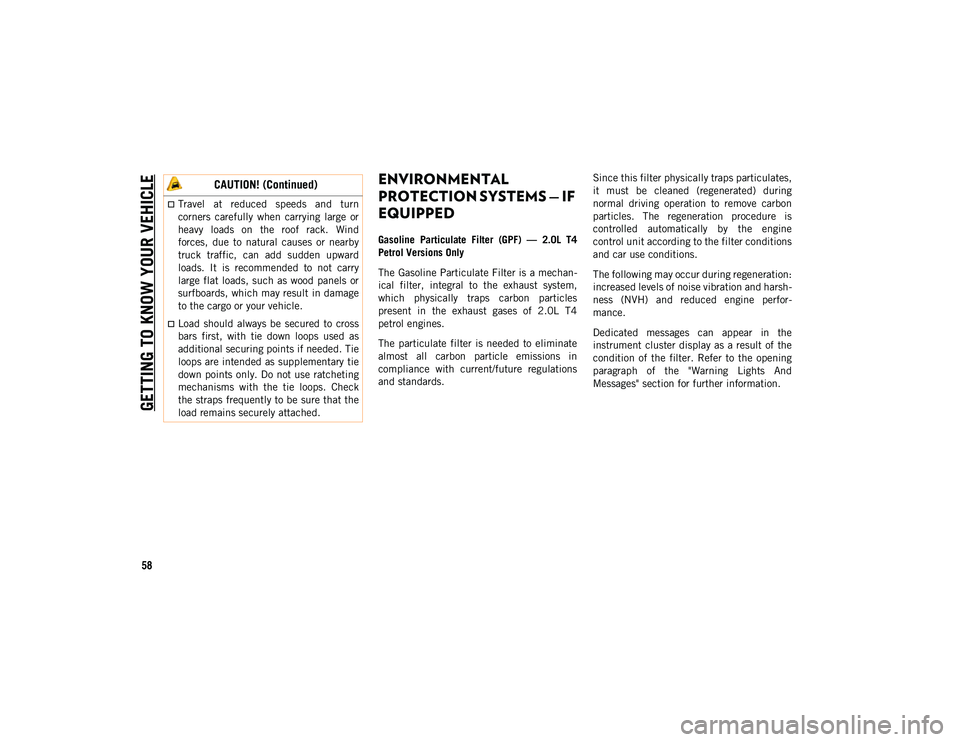

GETTING TO KNOW YOUR VEHICLE
58
ENVIRONMENTAL
PROTECTION SYSTEMS — IF
EQUIPPED
Gasoline Particulate Filter (GPF) — 2.0L T4
Petrol Versions Only
The Gasoline Particulate Filter is a mechan-
ical filter, integral to the exhaust system,
which physically traps carbon particles
present in the exhaust gases of 2.0L T4
petrol engines.
The particulate filter is needed to eliminate
almost all carbon particle emissions in
compliance with current/future regulations
and standards. Since this filter physically traps particulates,
it must be cleaned (regenerated) during
normal driving operation to remove carbon
particles. The regeneration procedure is
controlled automatically by the engine
control unit according to the filter conditions
and car use conditions.
The following may occur during regeneration:
increased levels of noise vibration and harsh
-
ness (NVH) and reduced engine perfor -
mance.
Dedicated messages can appear in the
instrument cluster display as a result of the
condition of the filter. Refer to the opening
paragraph of the "Warning Lights And
Messages" section for further information.
Travel at reduced speeds and turn
corners carefully when carrying large or
heavy loads on the roof rack. Wind
forces, due to natural causes or nearby
truck traffic, can add sudden upward
loads. It is recommended to not carry
large flat loads, such as wood panels or
surfboards, which may result in damage
to the cargo or your vehicle.
Load should always be secured to cross
bars first, with tie down loops used as
additional securing points if needed. Tie
loops are intended as supplementary tie
down points only. Do not use ratcheting
mechanisms with the tie loops. Check
the straps frequently to be sure that the
load remains securely attached.
CAUTION! (Continued)
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 58
