JEEP CHEROKEE 2020 Owner handbook (in English)

39

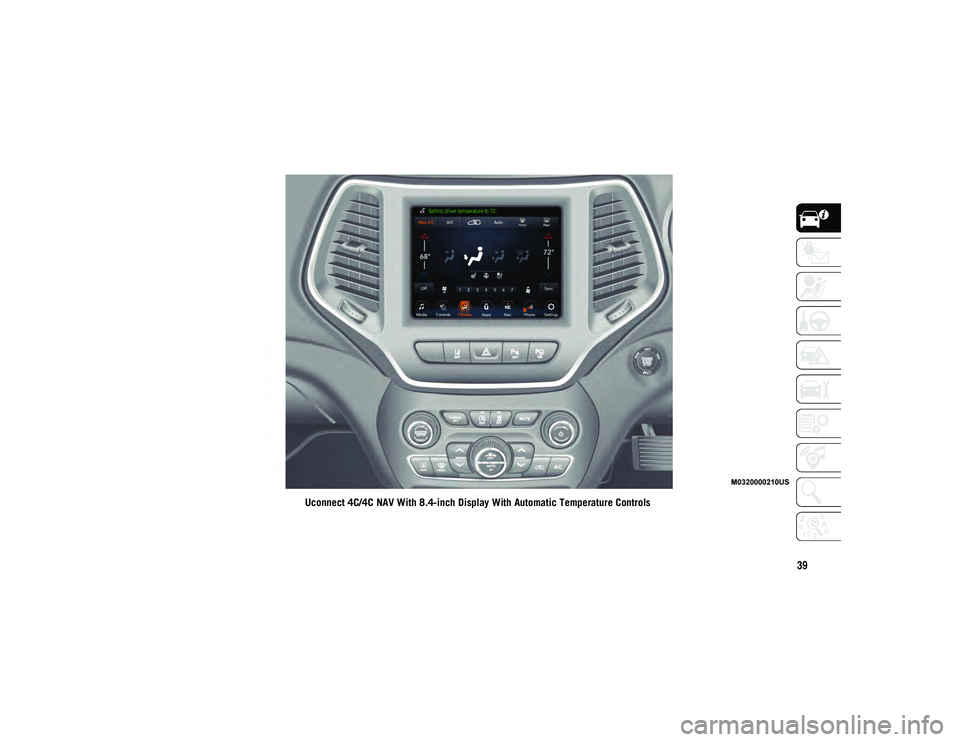

Uconnect 4C/4C NAV With 8.4-inch Display With Automatic Temperature Controls
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 39

GETTING TO KNOW YOUR VEHICLE
40Icon
Description

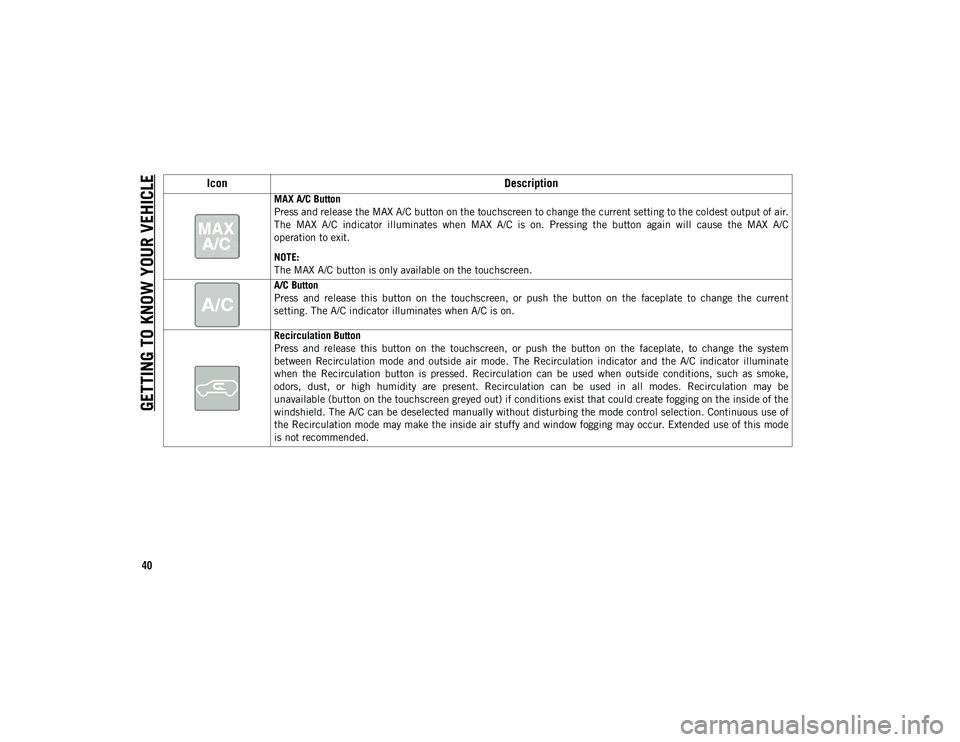

MAX A/C Button
Press and release the MAX A/C button on the touchscreen to change the current setting to the coldest output of air.
The MAX A/C indicator illuminates when MAX A/C is on. Pressing the button again will cause the MAX A/C
operation to exit.
NOTE:
The MAX A/C button is only available on the touchscreen.
A/C Button
Press and release this button on the touchscreen, or push the button on the faceplate to change the current
setting. The A/C indicator illuminates when A/C is on.
Recirculation Button
Press and release this button on the touchscreen, or push the button on the faceplate, to change the system
between Recirculation mode and outside air mode. The Recirculation indicator and the A/C indicator illuminate
when the Recirculation button is pressed. Recirculation can be used when outside conditions, such as smoke,
odors, dust, or high humidity are present. Recirculation can be used in all modes. Recirculation may be
unavailable (button on the touchscreen greyed out) if conditions exist that could create fogging on the inside of the
windshield. The A/C can be deselected manually without disturbing the mode control selection. Continuous use of
the Recirculation mode may make the inside air stuffy and window fogging may occur. Extended use of this mode
is not recommended.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 40

41

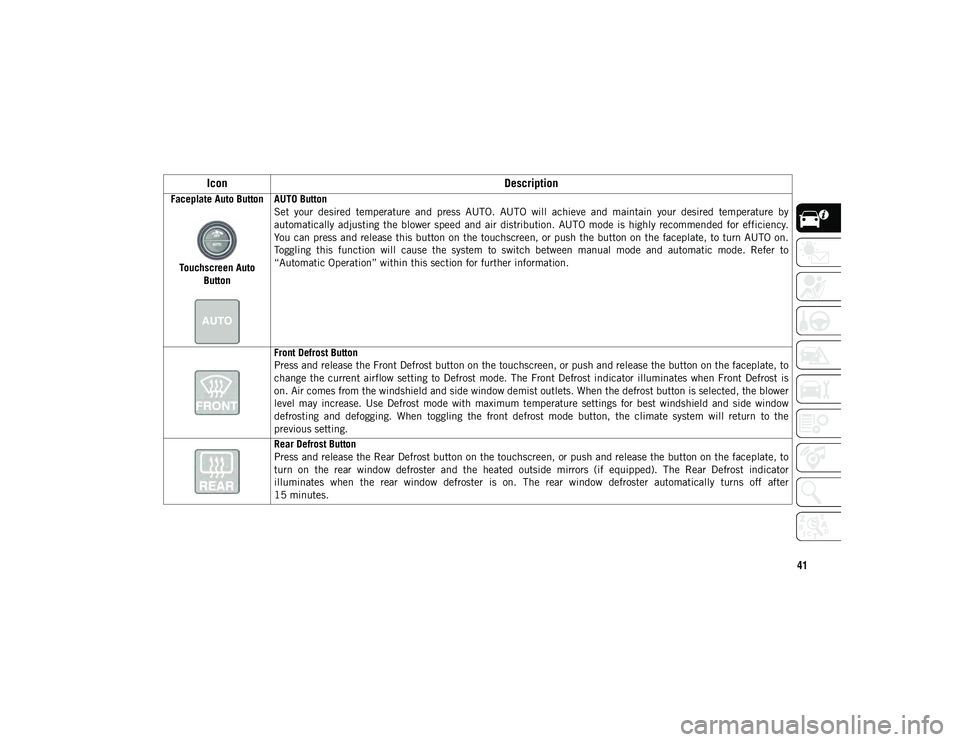

Faceplate Auto ButtonTouchscreen Auto Button AUTO Button
Set your desired temperature and press AUTO. AUTO will achieve and maintain your desired temperature by
automatically adjusting the blower speed and air distribution. AUTO mode is highly recommended for efficiency.
You can press and release this button on the touchscreen, or push the button on the faceplate, to turn AUTO on.
Toggling this function will cause the system to switch between manual mode and automatic mode. Refer to
“Automatic Operation” within this section for further information.
Front Defrost Button
Press and release the Front Defrost button on the touchscreen, or push and release the button on the faceplate, to
change the current airflow setting to Defrost mode. The Front Defrost indicator illuminates when Front Defrost is
on. Air comes from the windshield and side window demist outlets. When the defrost button is selected, the blower
level may increase. Use Defrost mode with maximum temperature settings for best windshield and side window
defrosting and defogging. When toggling the front defrost mode button, the climate system will return to the
previous setting.
Rear Defrost Button
Press and release the Rear Defrost button on the touchscreen, or push and release the button on the faceplate, to
turn on the rear window defroster and the heated outside mirrors (if equipped). The Rear Defrost indicator
illuminates when the rear window defroster is on. The rear window defroster automatically turns off after
15 minutes.
Icon
Description
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 41

GETTING TO KNOW YOUR VEHICLE
42

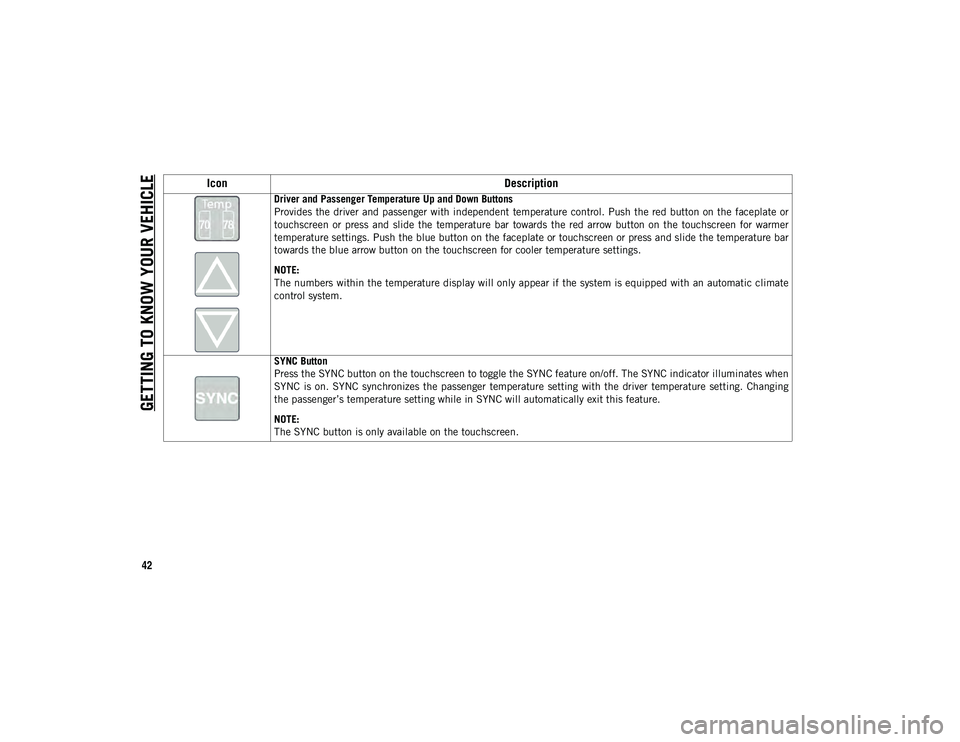

Driver and Passenger Temperature Up and Down Buttons
Provides the driver and passenger with independent temperature control. Push the red button on the faceplate or
touchscreen or press and slide the temperature bar towards the red arrow button on the touchscreen for warmer
temperature settings. Push the blue button on the faceplate or touchscreen or press and slide the temperature bar
towards the blue arrow button on the touchscreen for cooler temperature settings.
NOTE:
The numbers within the temperature display will only appear if the system is equipped with an automatic climate
control system.
SYNC Button
Press the SYNC button on the touchscreen to toggle the SYNC feature on/off. The SYNC indicator illuminates when
SYNC is on. SYNC synchronizes the passenger temperature setting with the driver temperature setting. Changing
the passenger’s temperature setting while in SYNC will automatically exit this feature.
NOTE:
The SYNC button is only available on the touchscreen.
IconDescription
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 42

43
Faceplate Blower KnobTouchscreen Blower Buttons Blower Control
Blower Control regulates the amount of air forced through the climate system. There are seven blower speeds
available. Adjusting the blower will cause automatic mode to switch to manual operation. The speeds can be
selected using either the blower control knob on the faceplate or the buttons on the touchscreen.
Faceplate:
The blower speed increases as you turn the blower control knob clockwise from the lowest blower
setting. The blower speed decreases as you turn the blower control knob counterclockwise.
Touchscreen: Use the small blower icon to reduce the blower setting and the large blower icon to increase the
blower setting. Blower can also be selected by pressing the blower bar area between the icons.
Mode Control
Select Mode by pressing one of the Mode buttons on the touchscreen to change the airflow distribution mode. The
airflow distribution mode can be adjusted so air comes from the instrument panel outlets, floor outlets, defrost
outlets, and demist outlets. The Mode settings are as follows:
Panel Mode Panel Mode Selecting this mode from the touchscreen causes air to flow from the outlets in the instrument panel. Each of these
outlets can be individually adjusted to direct the flow of air. The air vanes of the center outlets and outboard outlets
can be moved up and down or side to side to regulate airflow direction. There is a shut off wheel located below the
air vanes to shut off or adjust the amount of airflow from these outlets.
Bi-Level Mode Bi-Level Mode Selecting this mode from the touchscreen causes air to flow from the instrument panel outlets and floor outlets. A
slight amount of air is directed through the defrost and side window demister outlets.
NOTE:
Bi-Level mode is designed under comfort conditions to provide cooler air out of the panel outlets and warmer air
from the floor outlets.
Icon Description
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 43

GETTING TO KNOW YOUR VEHICLE
44

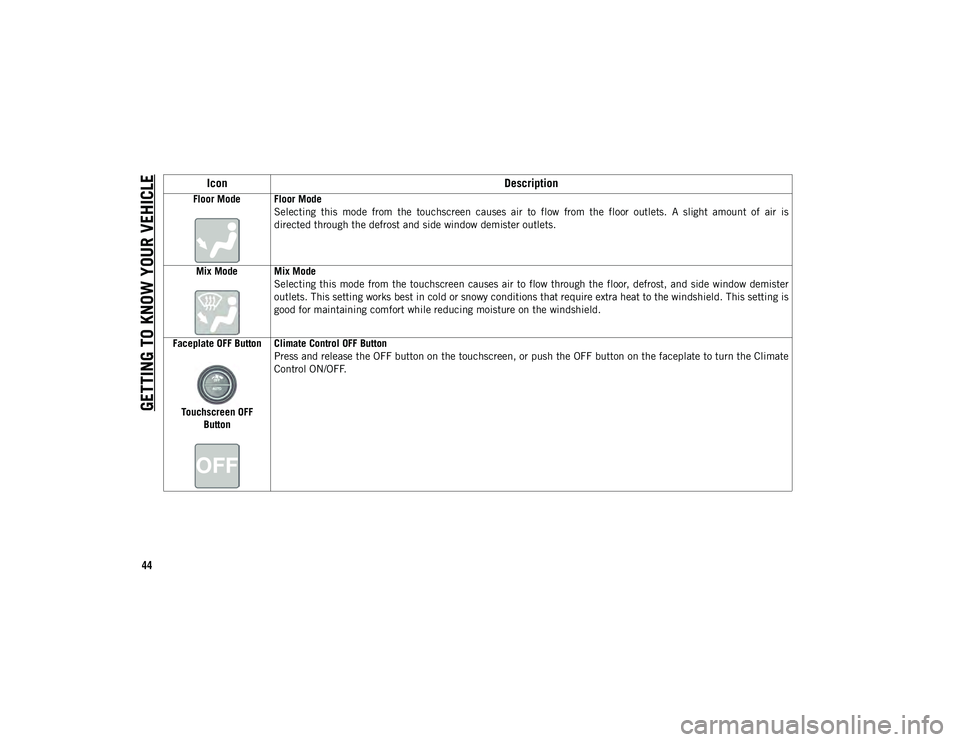

Floor Mode Floor ModeSelecting this mode from the touchscreen causes air to flow from the floor outlets. A slight amount of air is
directed through the defrost and side window demister outlets.
Mix Mode Mix Mode Selecting this mode from the touchscreen causes air to flow through the floor, defrost, and side window demister
outlets. This setting works best in cold or snowy conditions that require extra heat to the windshield. This setting is
good for maintaining comfort while reducing moisture on the windshield.
Faceplate OFF Button
Touchscreen OFF Button Climate Control OFF Button
Press and release the OFF button on the touchscreen, or push the OFF button on the faceplate to turn the Climate
Control ON/OFF.
Icon
Description
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 44

45

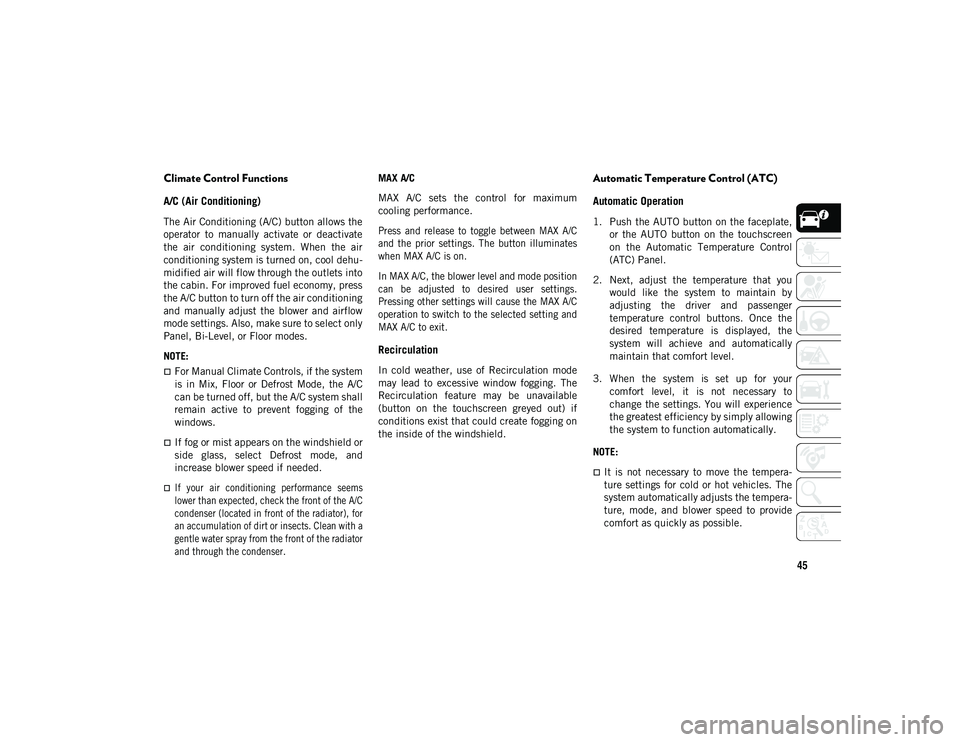

Climate Control Functions
A/C (Air Conditioning)
The Air Conditioning (A/C) button allows the
operator to manually activate or deactivate
the air conditioning system. When the air
conditioning system is turned on, cool dehu-
midified air will flow through the outlets into
the cabin. For improved fuel economy, press
the A/C button to turn off the air conditioning
and manually adjust the blower and airflow
mode settings. Also, make sure to select only
Panel, Bi-Level, or Floor modes.
NOTE:
For Manual Climate Controls, if the system
is in Mix, Floor or Defrost Mode, the A/C
can be turned off, but the A/C system shall
remain active to prevent fogging of the
windows.
If fog or mist appears on the windshield or
side glass, select Defrost mode, and
increase blower speed if needed.

If your air conditioning performance seems
lower than expected, check the front of the A/C
condenser (located in front of the radiator), for
an accumulation of dirt or insects. Clean with a
gentle water spray from the front of the radiator
and through the condenser.
MAX A/C
MAX A/C sets the control for maximum
cooling performance.

Press and release to toggle between MAX A/C
and the prior settings. The button illuminates
when MAX A/C is on.
In MAX A/C, the blower level and mode position
can be adjusted to desired user settings.
Pressing other settings will cause the MAX A/C
operation to switch to the selected setting and
MAX A/C to exit.

Recirculation
In cold weather, use of Recirculation mode
may lead to excessive window fogging. The
Recirculation feature may be unavailable
(button on the touchscreen greyed out) if
conditions exist that could create fogging on
the inside of the windshield.
Automatic Temperature Control (ATC)
Automatic Operation
1. Push the AUTO button on the faceplate,
or the AUTO button on the touchscreen
on the Automatic Temperature Control
(ATC) Panel.
2. Next, adjust the temperature that you would like the system to maintain by
adjusting the driver and passenger
temperature control buttons. Once the
desired temperature is displayed, the
system will achieve and automatically
maintain that comfort level.
3. When the system is set up for your comfort level, it is not necessary to
change the settings. You will experience
the greatest efficiency by simply allowing
the system to function automatically.
NOTE:
It is not necessary to move the tempera-
ture settings for cold or hot vehicles. The
system automatically adjusts the tempera-
ture, mode, and blower speed to provide
comfort as quickly as possible.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 45

GETTING TO KNOW YOUR VEHICLE
46

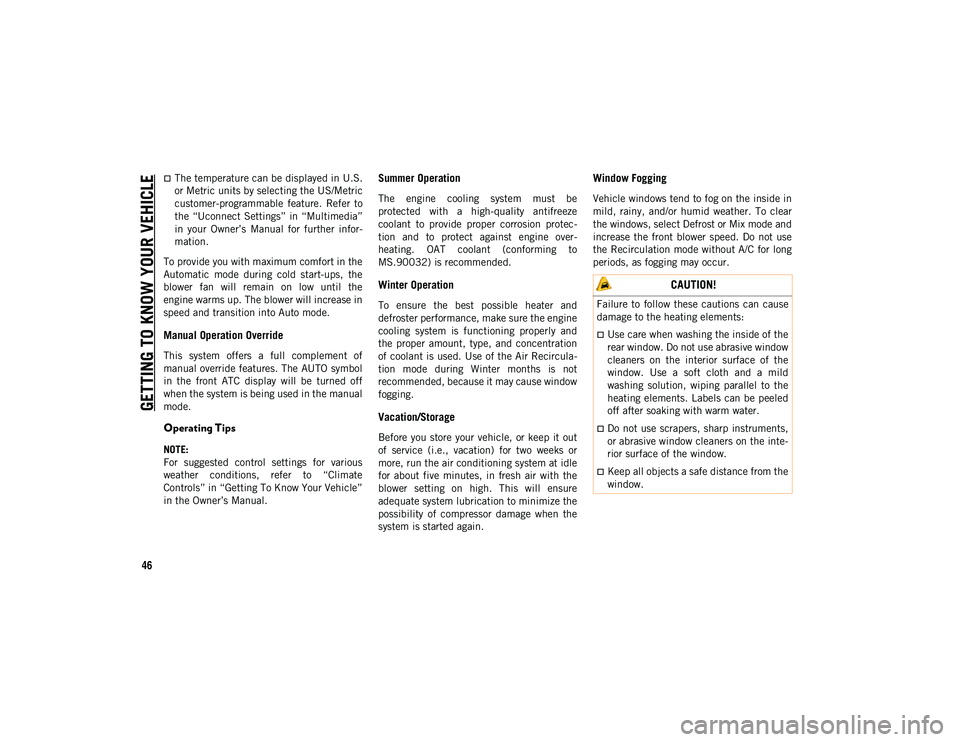

The temperature can be displayed in U.S.
or Metric units by selecting the US/Metric
customer-programmable feature. Refer to
the “Uconnect Settings” in “Multimedia”
in your Owner’s Manual for further infor-
mation.
To provide you with maximum comfort in the
Automatic mode during cold start-ups, the
blower fan will remain on low until the
engine warms up. The blower will increase in
speed and transition into Auto mode.
Manual Operation Override
This system offers a full complement of
manual override features. The AUTO symbol
in the front ATC display will be turned off
when the system is being used in the manual
mode.
Operating Tips
NOTE:
For suggested control settings for various
weather conditions, refer to “Climate
Controls” in “Getting To Know Your Vehicle”
in the Owner’s Manual.
Summer Operation
The engine cooling system must be
protected with a high-quality antifreeze
coolant to provide proper corrosion protec -
tion and to protect against engine over -
heating. OAT coolant (conforming to
MS.90032) is recommended.
Winter Operation
To ensure the best possible heater and
defroster performance, make sure the engine
cooling system is functioning properly and
the proper amount, type, and concentration
of coolant is used. Use of the Air Recircula -
tion mode during Winter months is not
recommended, because it may cause window
fogging.
Vacation/Storage
Before you store your vehicle, or keep it out
of service (i.e., vacation) for two weeks or
more, run the air conditioning system at idle
for about five minutes, in fresh air with the
blower setting on high. This will ensure
adequate system lubrication to minimize the
possibility of compressor damage when the
system is started again.
Window Fogging
Vehicle windows tend to fog on the inside in
mild, rainy, and/or humid weather. To clear
the windows, select Defrost or Mix mode and
increase the front blower speed. Do not use
the Recirculation mode without A/C for long
periods, as fogging may occur.
CAUTION!
Failure to follow these cautions can cause
damage to the heating elements:
Use care when washing the inside of the
rear window. Do not use abrasive window
cleaners on the interior surface of the
window. Use a soft cloth and a mild
washing solution, wiping parallel to the
heating elements. Labels can be peeled
off after soaking with warm water.
Do not use scrapers, sharp instruments,
or abrasive window cleaners on the inte-
rior surface of the window.
Keep all objects a safe distance from the
window.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 46

47
Outside Air Intake
Make sure the air intake, located directly in
front of the windshield, is free of obstruc-
tions, such as leaves. Leaves collected in the
air intake may reduce airflow, and if they
enter the plenum, they could plug the water
drains. In Winter months, make sure the air
intake is clear of ice, slush, and snow.
Cabin Air Filter
The climate control system filters out dust
and pollen from the air. Contact an autho -
rized dealer to service your cabin air filter,
and to have it replaced when needed.
Stop/Start System — If Equipped
While in an Autostop, the Climate Control
system may automatically adjust airflow to
maintain cabin comfort. Customer settings
will be maintained upon return to an engine
running condition.
Windshield Wiper De-icer — If Equipped
The windshield wiper de-icer is a heating
element located at the base of the wind -
shield.
It operates automatically once the following
conditions are met:
Activation By Front Defrost
The wiper de-icer activates automatically
during a cold weather manual start with
full defrost, and when the ambient tem-
perature is below 33°F (0.6°C) .
Activation By Rear Defrost
The wiper de-icer activates automatically
when the Rear Defrost is operating and
the ambient temperature is below 33°F
(0.6°C) .
Activation By Remote Start Operation
When the Remote Start is activated and
the outside ambient temperature is less
than 33°F (0.6°C) the windshield wiper
de-icer is activated. Upon exiting Remote
Start, the climate control functions will
resume their previous operation except, if
the de-icer is active, the de-icer timer
and operation will continue.
WINDOWS
Power Window Controls
The window controls on the driver's door
control all the door windows.
Power Window Switches
1 — Front Driver’s Side Power Window
Switch
2 — Rear Driver’s Side Power Window
Switch
3 — Rear Passenger’s Side Power Window
Switch
4 — Front Passenger’s Side Power Window
Switch
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 47

GETTING TO KNOW YOUR VEHICLE
48

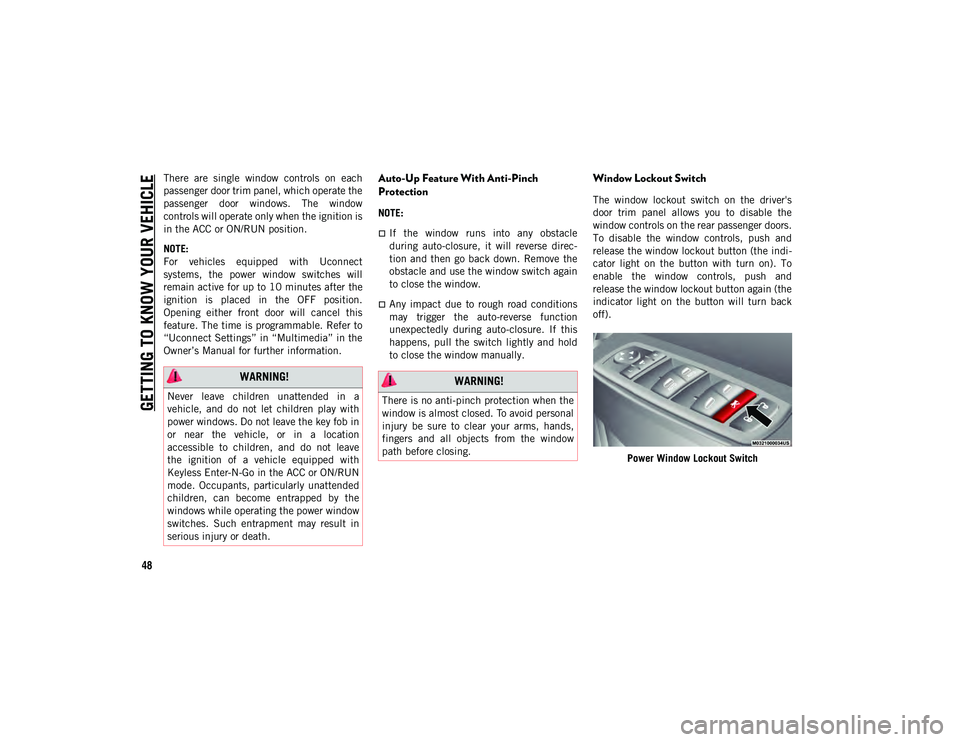

There are single window controls on each
passenger door trim panel, which operate the
passenger door windows. The window
controls will operate only when the ignition is
in the ACC or ON/RUN position.
NOTE:
For vehicles equipped with Uconnect
systems, the power window switches will
remain active for up to 10 minutes after the
ignition is placed in the OFF position.
Opening either front door will cancel this
feature. The time is programmable. Refer to
“Uconnect Settings” in “Multimedia” in the
Owner’s Manual for further information.Auto-Up Feature With Anti-Pinch
Protection
NOTE:
If the window runs into any obstacle
during auto-closure, it will reverse direc-
tion and then go back down. Remove the
obstacle and use the window switch again
to close the window.
Any impact due to rough road conditions
may trigger the auto-reverse function
unexpectedly during auto-closure. If this
happens, pull the switch lightly and hold
to close the window manually.
Window Lockout Switch
The window lockout switch on the driver's
door trim panel allows you to disable the
window controls on the rear passenger doors.
To disable the window controls, push and
release the window lockout button (the indi-
cator light on the button with turn on). To
enable the window controls, push and
release the window lockout button again (the
indicator light on the button will turn back
off).
Power Window Lockout Switch
WARNING!
Never leave children unattended in a
vehicle, and do not let children play with
power windows. Do not leave the key fob in
or near the vehicle, or in a location
accessible to children, and do not leave
the ignition of a vehicle equipped with
Keyless Enter-N-Go in the ACC or ON/RUN
mode. Occupants, particularly unattended
children, can become entrapped by the
windows while operating the power window
switches. Such entrapment may result in
serious injury or death.
WARNING!
There is no anti-pinch protection when the
window is almost closed. To avoid personal
injury be sure to clear your arms, hands,
fingers and all objects from the window
path before closing.
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 48
