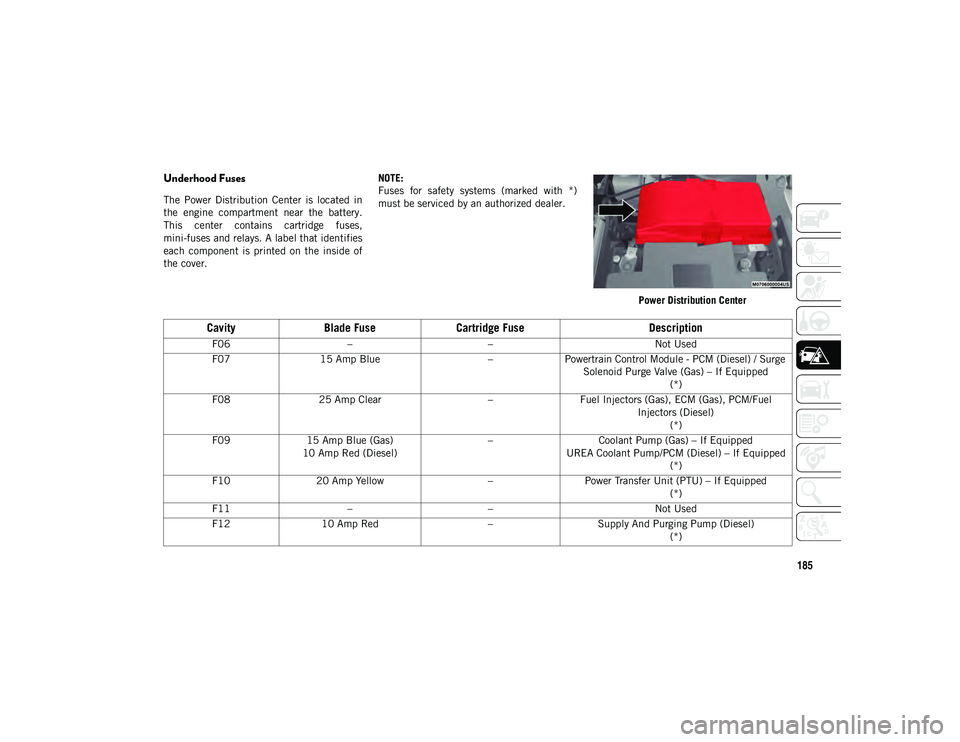

Underhood Fuses
The Power Distribution Center is located in
the engine compartment near the battery.
This center contains cartridge fuses,
mini-fuses and relays. A label that identifies
each component is printed on the inside of
the cover.NOTE:
Fuses for safety systems (marked with *)
must be serviced by an authorized dealer.
Power Distribution Center
CavityBlade Fuse Cartridge Fuse Description
F06– – Not Used
F07 15 Amp Blue –Powertrain Control Module - PCM (Diesel) / Surge
Solenoid Purge Valve (Gas) – If Equipped (*)
F08 25 Amp Clear –Fuel Injectors (Gas), ECM (Gas), PCM/Fuel
Injectors (Diesel)(*)
F09 15 Amp Blue (Gas)
10 Amp Red (Diesel) –
Coolant Pump (Gas) – If Equipped
UREA Coolant Pump/PCM (Diesel) – If Equipped (*)
F10 20 Amp Yellow –Power Transfer Unit (PTU) – If Equipped
(*)
F11 – – Not Used
F12 10 Amp Red –Supply And Purging Pump (Diesel)
(*)
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 185

187

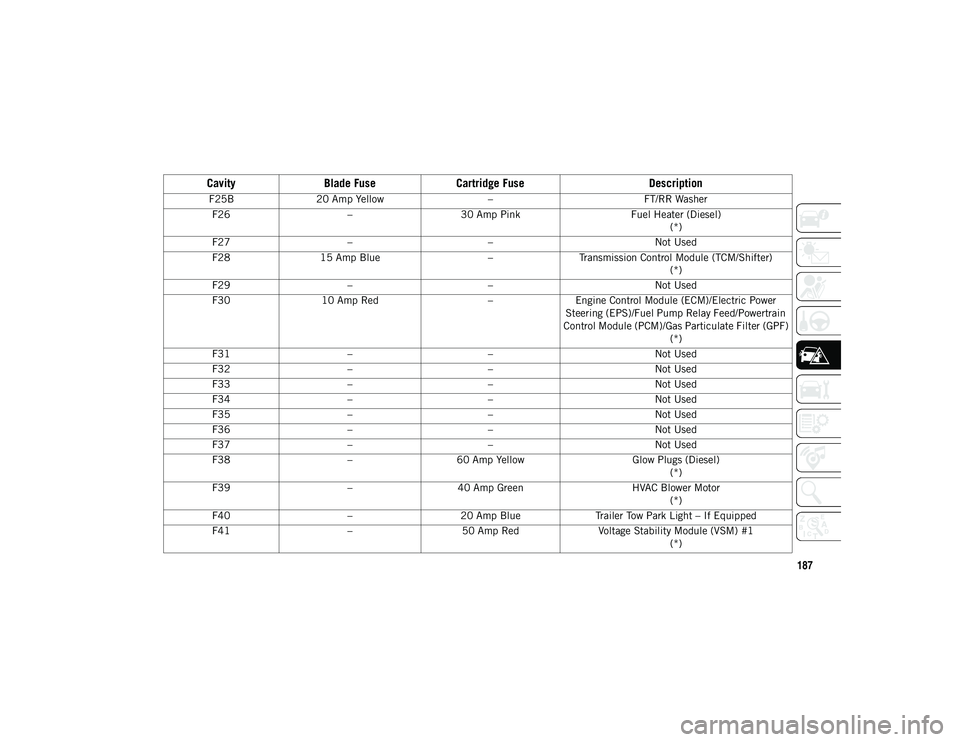

F25B20 Amp Yellow –FT/RR Washer
F26 –30 Amp Pink Fuel Heater (Diesel)
(*)
F27 – – Not Used
F28 15 Amp Blue –Transmission Control Module (TCM/Shifter)
(*)
F29 – – Not Used
F30 10 Amp Red –Engine Control Module (ECM)/Electric Power
Steering (EPS)/Fuel Pump Relay Feed/Powertrain
Control Module (PCM)/Gas Particulate Filter (GPF) (*)
F31 – – Not Used
F32 – – Not Used
F33 – – Not Used
F34 – – Not Used
F35 – – Not Used
F36 – – Not Used
F37 – – Not Used
F38 –60 Amp Yellow Glow Plugs (Diesel)
(*)
F39 –40 Amp Green HVAC Blower Motor
(*)
F40 –20 Amp Blue Trailer Tow Park Light – If Equipped
F41 –50 Amp Red Voltage Stability Module (VSM) #1
(*)
Cavity Blade Fuse Cartridge Fuse Description
2020_JEEP_CHEROKEE_UG_RHD_UK.book Page 187
