Front Heated Seats — If Equipped
The front heated seats control buttons are located within
the Uconnect® system. You can gain access to the control
buttons through the climate screen or the controls screen.
•Press the heated seat button
Page 151 of 764
WARNING!(Continued)
even at low temperatures, especially if used for
long periods of time.
• Do not place anything on the seat or seatback that
insulates against heat, such as a blanket or cushion.
This may cause the seat heater to overheat. Sitting
in a seat that has been overheated could cause
serious burns due to the increased surface tempera-
ture of the seat.
Front Ventilated Seats — If Equipped
Located in the seat cushion and seat back are small fans
that draw the air from the passenger compartment and
move air through fine perforations in the seat cover to
help keep the driver and front passenger cooler in higher
ambient temperatures. The fans operate at two speeds,
HI and LO. The front ventilated seats control buttons are located
within the Uconnect® system. You can gain access to the
control buttons through the climate screen or the controls
screen.
•
Press the ventilated seat button
Page 520 of 764

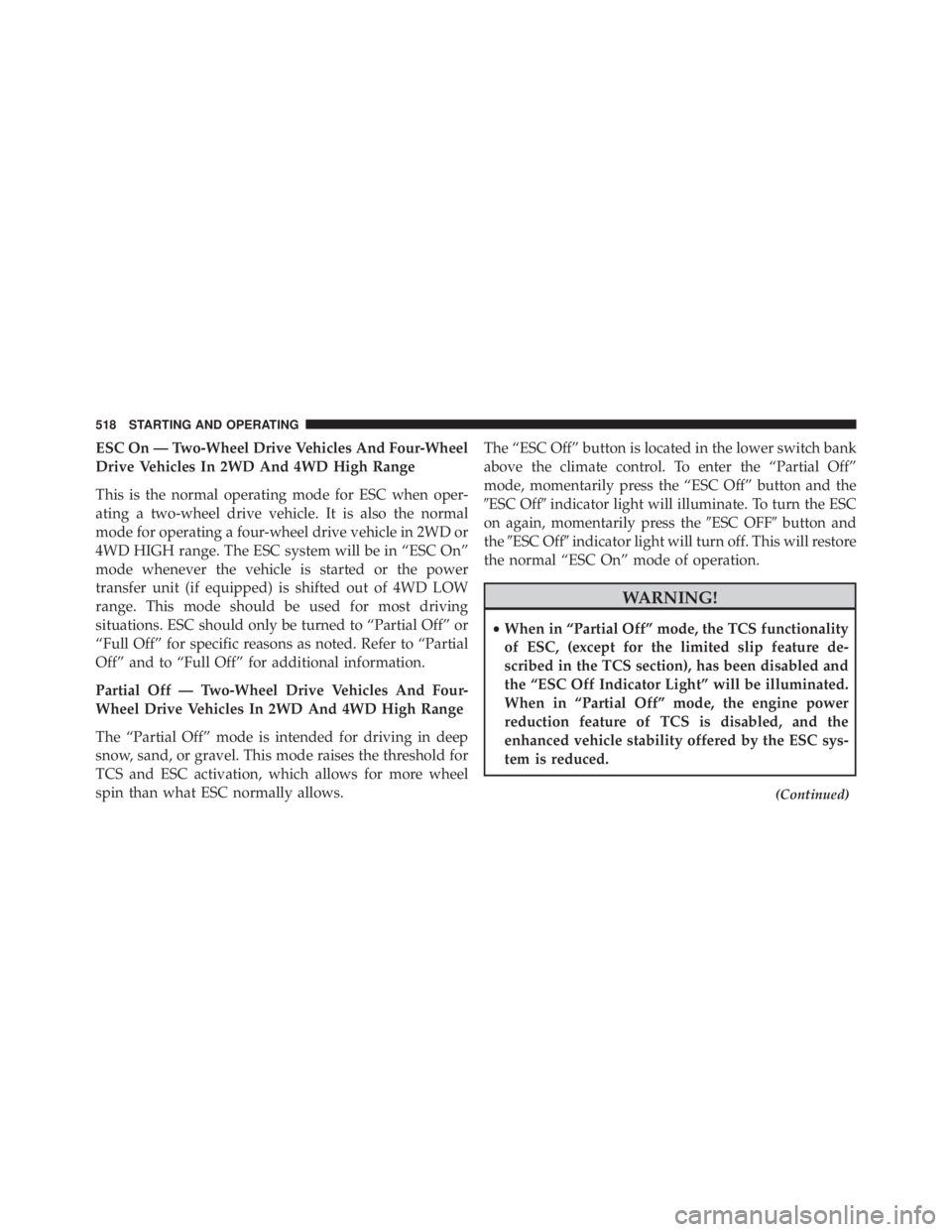

ESC On — Two-Wheel Drive Vehicles And Four-Wheel
Drive Vehicles In 2WD And 4WD High Range
This is the normal operating mode for ESC when oper-
ating a two-wheel drive vehicle. It is also the normal
mode for operating a four-wheel drive vehicle in 2WD or
4WD HIGH range. The ESC system will be in “ESC On”
mode whenever the vehicle is started or the power
transfer unit (if equipped) is shifted out of 4WD LOW
range. This mode should be used for most driving
situations. ESC should only be turned to “Partial Off” or
“Full Off” for specific reasons as noted. Refer to “Partial
Off” and to “Full Off” for additional information.
Partial Off — Two-Wheel Drive Vehicles And Four-
Wheel Drive Vehicles In 2WD And 4WD High Range
The “Partial Off” mode is intended for driving in deep
snow, sand, or gravel. This mode raises the threshold for
TCS and ESC activation, which allows for more wheel
spin than what ESC normally allows.The “ESC Off” button is located in the lower switch bank
above the climate control. To enter the “Partial Off”
mode, momentarily press the “ESC Off” button and the
ESC Off
indicator light will illuminate. To turn the ESC
on again, momentarily press the ESC OFFbutton and
the ESC Off indicator light will turn off. This will restore
the normal “ESC On” mode of operation.
Page 521 of 764
WARNING!(Continued)
•Trailer Sway Control (TSC) is disabled when the
ESC system is in the Partial Offmode.
NOTE: To improve the vehicle’s traction when driving
with snow chains, or when starting off in deep snow,
sand, or gravel, it may be desirable to switch to the
“Partial Off” mode by momentarily pressing the “ESC
Off” button. Once the situation requiring “Partial Off”
mode is overcome, turn ESC back on by momentarily
pressing the “ESC Off” button. This may be done while
the vehicle is in motion.
Full Off — Four-Wheel Drive Vehicles In 4WD High
And 4WD Low Range
The “Full Off” mode is intended for off-highway and
off-road use when ESC stability features could inhibit
vehicle maneuverability due to trail conditions. The “ESC Off” button is located in the lower switch bank
above the climate control panel. To enter “Full Off”
mode, press and hold the “ESC Off” button for five
seconds while the vehicle is stopped with the engine
running. After five seconds, the
ESC Offindicator light
will illuminate and an “ESC Off” message will appear in
the odometer.
In this mode, ESC and TCS are turned off (except for the
“limited slip” feature described in the TCS section) until
the vehicle reaches a speed of 40 mph (64 km/h). At
speeds over 40 mph (64 km/h), the system automatically
switches to “Partial Off” mode, described above. When
the vehicle speed returns to less than 35 mph (56 km/h),
the ESC system will return to “Full Off” mode. The ESC
OFF indicator light is always illuminated when ESC is
off. To turn ESC on again, momentarily press the “ESC
Off” button. This will restore the normal “ESC On” mode
of operation.
5
STARTING AND OPERATING 519
