Child-Protection Door Lock System — Rear Doors
To provide a safer environment for small children riding in
the rear seats, the rear doors are equipped with a Child-
Protection Door Lock system.
To use the system, open each rear door, use a flat blade
screwdriver (or emergency key) and rotate the dial to the
lock or unlock position. When the system on a door is
engaged, that door can only be opened by using the
outside door handle even if the inside door lock is in the
unlocked position.NOTE:
•
When the child lock system is engaged, the door can be
opened only by using the outside door handle even
though the inside door lock is in the unlocked position.
• After engaging or disengaging the Child-Protection
Door Lock system, always test the door from the inside
to make certain it is in the desired position.
• For emergency exit with the system engaged, rotate the
door lock button until the lock indicator is hidden
(unlocked position), roll down the window, and open
the door with the outside door handle.
Child-Protection Door Lock Function
44 GETTING TO KNOW YOUR VEHICLE
NOTE:Always use this device when carrying children.
After engaging the child lock on both rear doors, check for
effective engagement by trying to open a door with the
internal handle. Once the child protection door lock system
is engaged, it is impossible to open the doors from inside
the vehicle. Before getting out of the car, be sure to check
that there is no one left inside.
SEATS
Seats are a part of the Occupant Restraint System of the
vehicle.
WARNING!
•Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
• Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious injury
or death could result from a poorly adjusted seat belt.
Manual Seat Height Adjustment
The driver ’s and passenger ’s seat height can be raised or
lowered by using a lever, located on the outboard side of
the seat. Pull upward on the lever to raise the seat height or
push downward on the lever to lower the seat height.

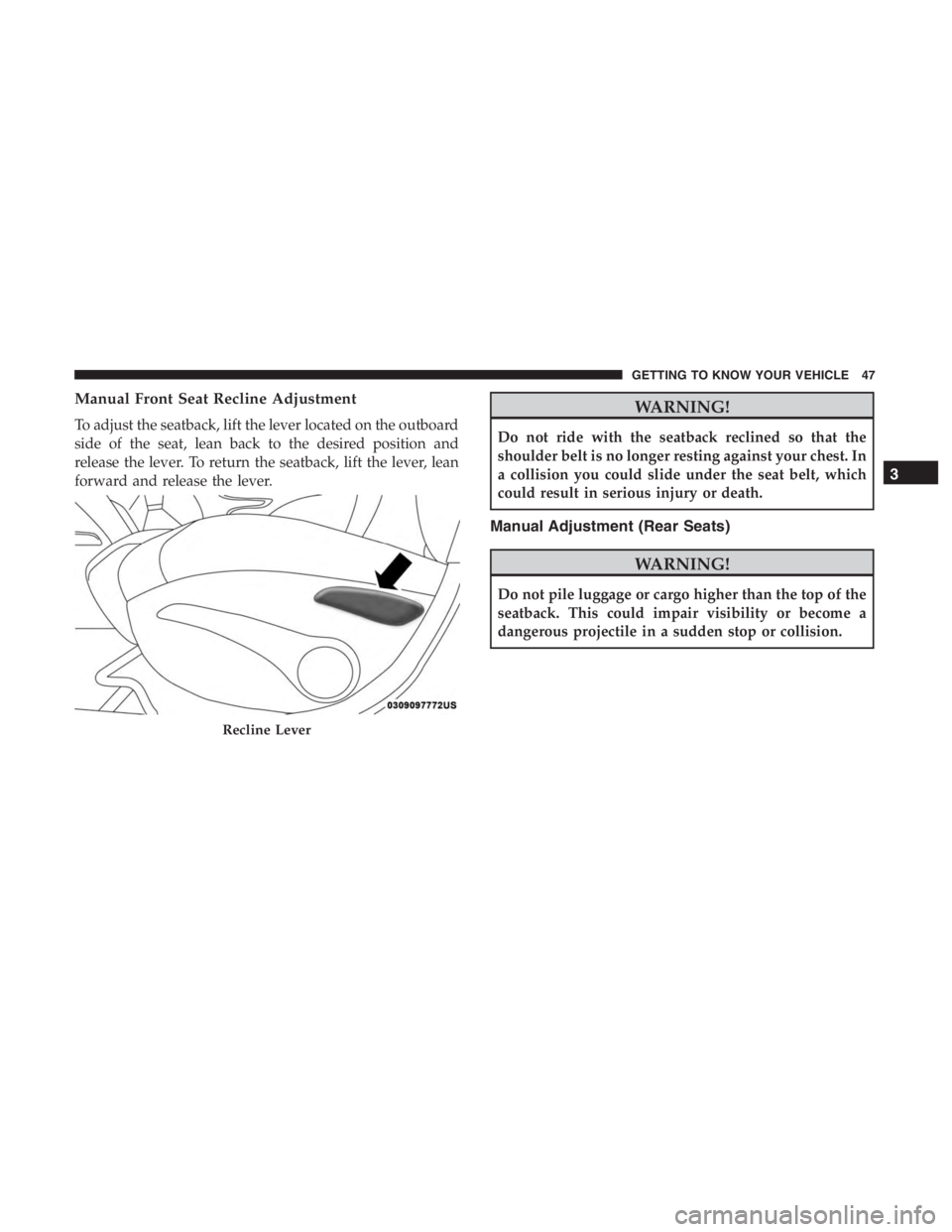

Manual Front Seat Recline Adjustment
To adjust the seatback, lift the lever located on the outboard
side of the seat, lean back to the desired position and
release the lever. To return the seatback, lift the lever, lean
forward and release the lever.
Recline Lever
3
GETTING TO KNOW YOUR VEHICLE 47
