CD player JEEP COMMANDER 2007 1.G User Guide

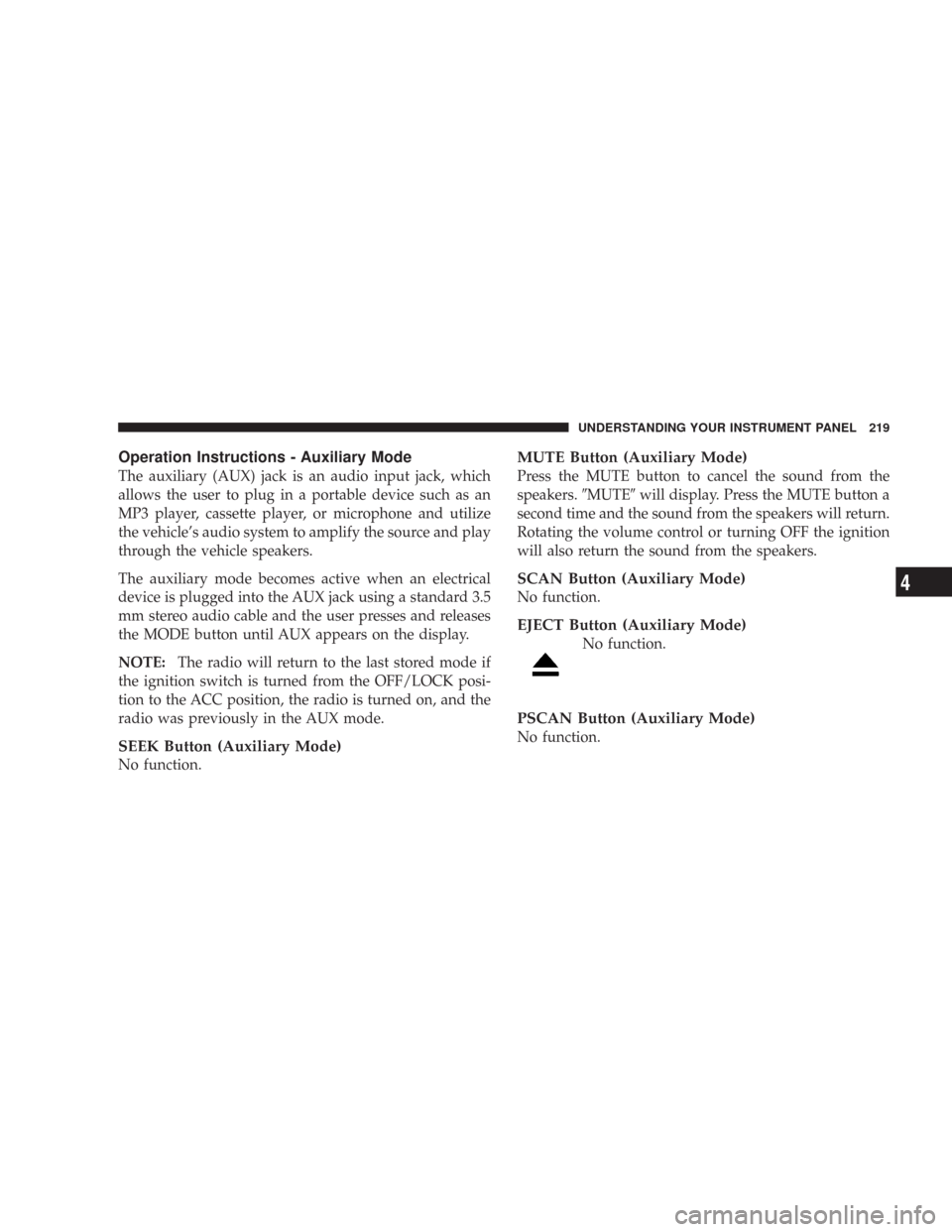

Operation Instructions - Auxiliary Mode
The auxiliary (AUX) jack is an audio input jack, which
allows the user to plug in a portable device such as an
MP3 player, cassette player, or microphone and utilize
the vehicle’s audio system to amplify the source and play
through the vehicle speakers.
The auxiliary mode becomes active when an electrical
device is plugged into the AUX jack using a standard 3.5
mm stereo audio cable and the user presses and releases
the MODE button until AUX appears on the display.
NOTE:The radio will return to the last stored mode if
the ignition switch is turned from the OFF/LOCK posi-
tion to the ACC position, the radio is turned on, and the
radio was previously in the AUX mode.
SEEK Button (Auxiliary Mode)
No function.
MUTE Button (Auxiliary Mode)
Press the MUTE button to cancel the sound from the
speakers.MUTEwill display. Press the MUTE button a
second time and the sound from the speakers will return.
Rotating the volume control or turning OFF the ignition
will also return the sound from the speakers.
SCAN Button (Auxiliary Mode)
No function.
EJECT Button (Auxiliary Mode)
No function.
PSCAN Button (Auxiliary Mode)
No function.
UNDERSTANDING YOUR INSTRUMENT PANEL 219
4

TIME Button (Auxiliary Mode)
Press this button to change the display from elapsed
playing time to time of day. The time of day will display
for 5 seconds.
RW/FF (Auxiliary Mode)
No function.
RND/SET Button (Auxiliary Mode)
No function.
Mode Button (Auxiliary Mode)
Press the mode button repeatedly to select between the
CD player and Satellite Radio (if equipped).
Operating Instructions - Hands Free Phone — If
Equipped
Refer to the “HANDS FREE PHONE (UConnect™)”
section of the Owner’s Manual.
Operating Instructions - Satellite Radio — If
Equipped
Refer to the “Satellite Radio” section of the Owner’s
Manual.
SALES CODE REC — AM/FM/CD (6–DISC) RADIO
WITH NAVIGATION SYSTEM
REC Radio
220 UNDERSTANDING YOUR INSTRUMENT PANEL

Satellite Navigation Radio with CD Player with MP3
Capability (REC) - combines a Global-Positioning
System-based navigation system with an integrated color
screen to provide maps, turn identification, selection
menus and instructions for selecting a variety of destina-
tions and routes, AM/FM stereo radio and six-disc CD
changer with MP3 capability.
Mapping information for navigation is supplied on a
DVD that is loaded into the unit. One map DVD covers
all of North America. Refer to your “Navigation User’s
Manual” for detailed operating instructions.
Operating Instructions — Satellite Radio (If
Equipped)
Refer to your “Navigation User’s Manual” for detailed
operating instructions.
REC Setting the Clock
GPS Clock
The GPS receiver used in this system is synchronized to
the time data being transmitted by the GPS satellites. The
satellites’ clock is Greenwich Mean Time (GMT). This is
the worldwide standard for time. This makes the sys-
tem’s clock very accurate once the appropriate time zone
and daylight savings information is set.
UNDERSTANDING YOUR INSTRUMENT PANEL 221
4

VIDEO ENTERTAINMENT SYSTEM (SALES CODE
XRV) — IF EQUIPPED
The optional VES™ (Video Entertainment System) con-
sists of a DVD player and LCD (liquid crystal display)
screen, a battery-powered remote control, and two head-
sets. The DVD player is mounted in the rear of the center
console storage bin, and is concealed by a door that lifts
up for access. Refer to your VES™ User’s Manual for
detailed operating instructions.
DVD Player Location
UNDERSTANDING YOUR INSTRUMENT PANEL 225
4

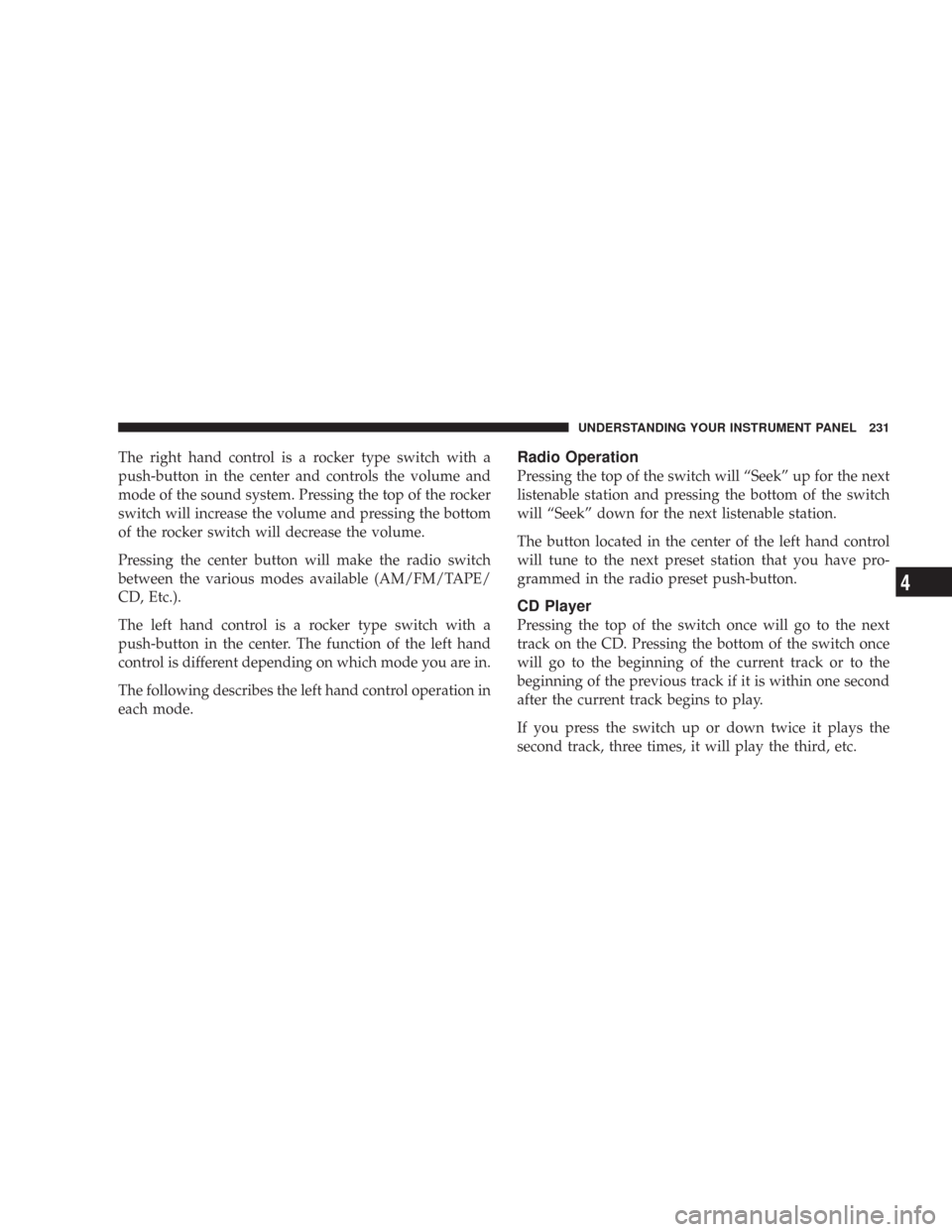

The right hand control is a rocker type switch with a
push-button in the center and controls the volume and
mode of the sound system. Pressing the top of the rocker
switch will increase the volume and pressing the bottom
of the rocker switch will decrease the volume.
Pressing the center button will make the radio switch
between the various modes available (AM/FM/TAPE/
CD, Etc.).
The left hand control is a rocker type switch with a
push-button in the center. The function of the left hand
control is different depending on which mode you are in.
The following describes the left hand control operation in
each mode.Radio Operation
Pressing the top of the switch will “Seek” up for the next
listenable station and pressing the bottom of the switch
will “Seek” down for the next listenable station.
The button located in the center of the left hand control
will tune to the next preset station that you have pro-
grammed in the radio preset push-button.
CD Player
Pressing the top of the switch once will go to the next
track on the CD. Pressing the bottom of the switch once
will go to the beginning of the current track or to the
beginning of the previous track if it is within one second
after the current track begins to play.
If you press the switch up or down twice it plays the
second track, three times, it will play the third, etc.
UNDERSTANDING YOUR INSTRUMENT PANEL 231
4

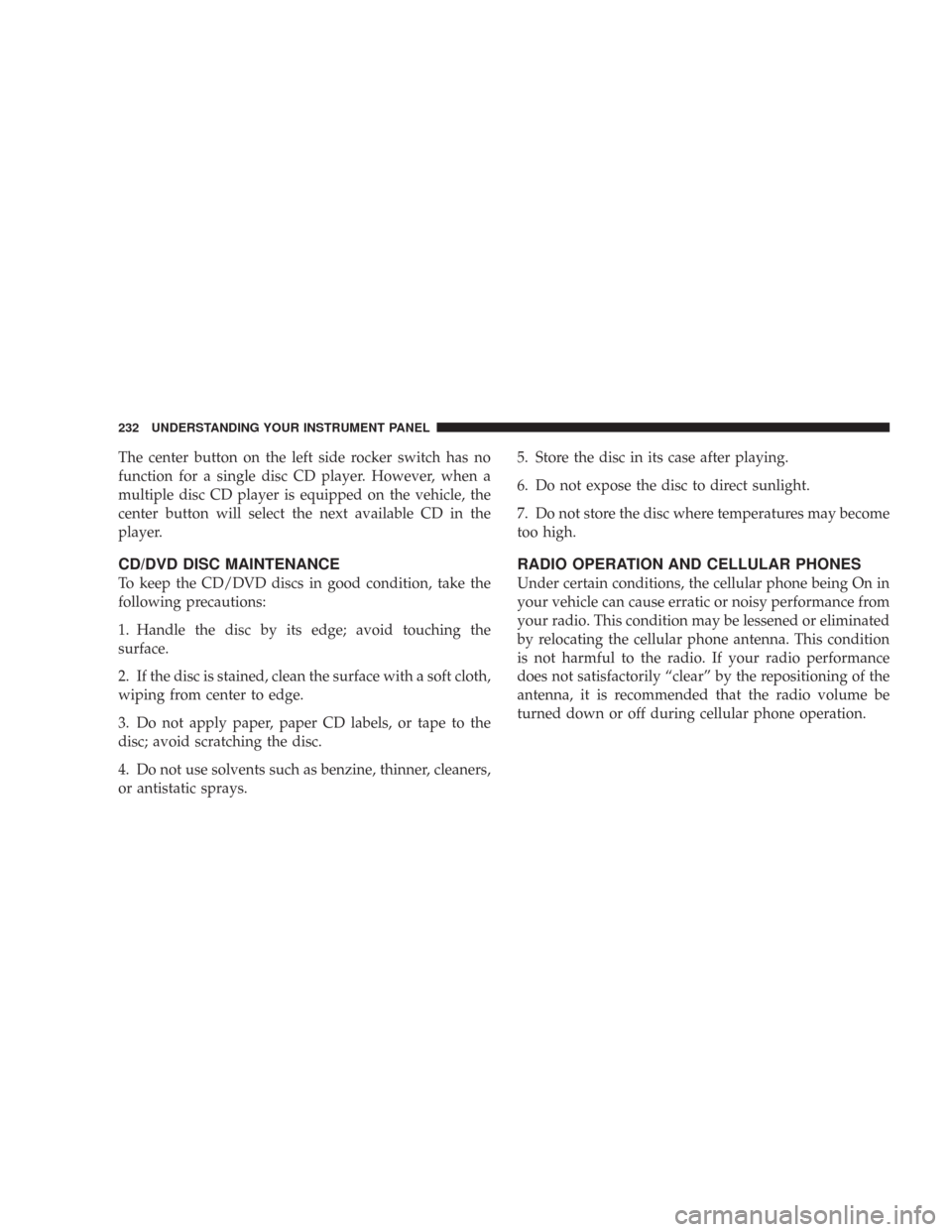

The center button on the left side rocker switch has no
function for a single disc CD player. However, when a
multiple disc CD player is equipped on the vehicle, the
center button will select the next available CD in the
player.
CD/DVD DISC MAINTENANCE
To keep the CD/DVD discs in good condition, take the
following precautions:
1. Handle the disc by its edge; avoid touching the
surface.
2. If the disc is stained, clean the surface with a soft cloth,
wiping from center to edge.
3. Do not apply paper, paper CD labels, or tape to the
disc; avoid scratching the disc.
4. Do not use solvents such as benzine, thinner, cleaners,
or antistatic sprays.5. Store the disc in its case after playing.
6. Do not expose the disc to direct sunlight.
7. Do not store the disc where temperatures may become
too high.
RADIO OPERATION AND CELLULAR PHONES
Under certain conditions, the cellular phone being On in
your vehicle can cause erratic or noisy performance from
your radio. This condition may be lessened or eliminated
by relocating the cellular phone antenna. This condition
is not harmful to the radio. If your radio performance
does not satisfactorily “clear” by the repositioning of the
antenna, it is recommended that the radio volume be
turned down or off during cellular phone operation.
232 UNDERSTANDING YOUR INSTRUMENT PANEL

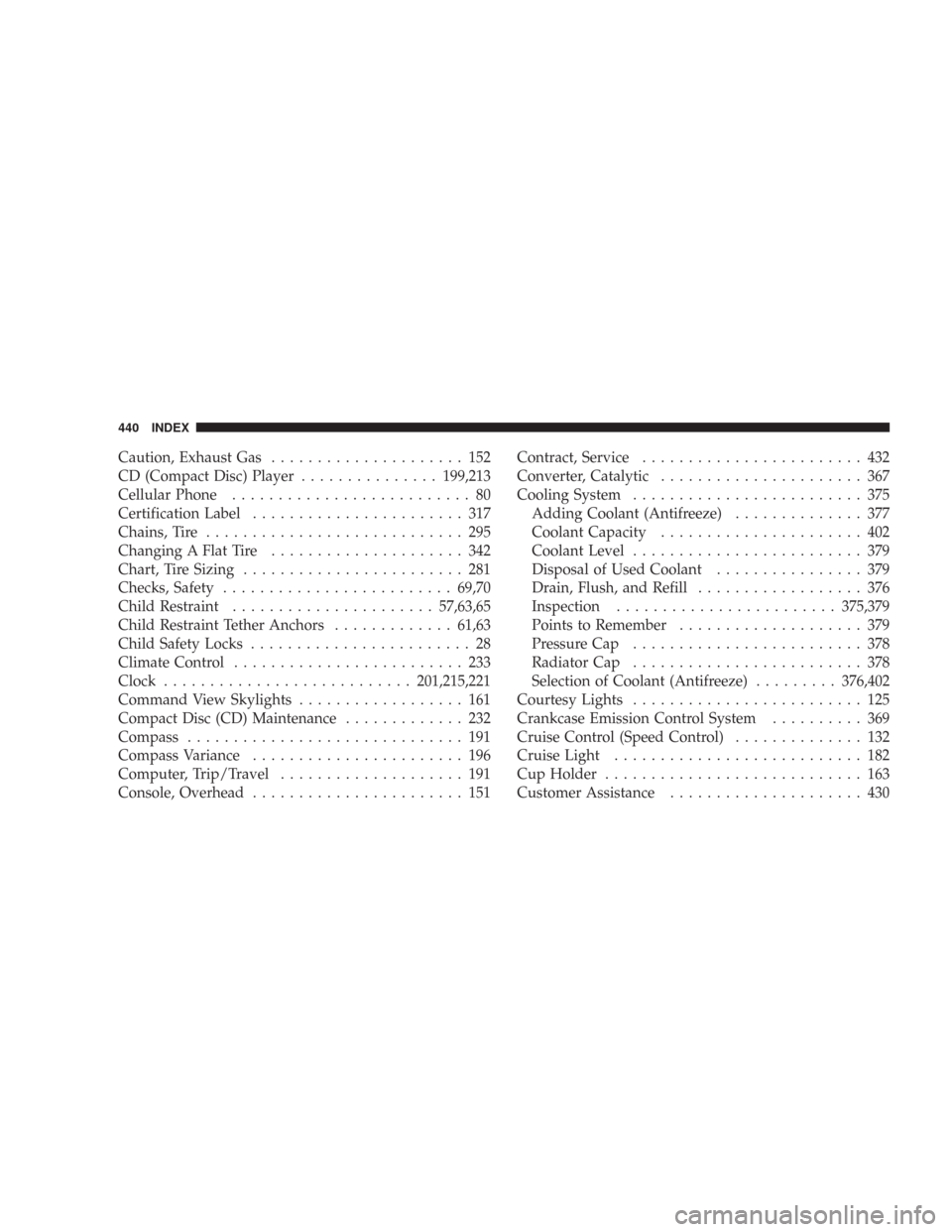

Caution, Exhaust Gas..................... 152
CD (Compact Disc) Player...............199,213
Cellular Phone.......................... 80
Certification Label....................... 317
Chains, Tire............................ 295
Changing A Flat Tire..................... 342
Chart, Tire Sizing........................ 281
Checks, Safety.........................69,70
Child Restraint......................57,63,65
Child Restraint Tether Anchors.............61,63
Child Safety Locks........................ 28
Climate Control......................... 233
Clock...........................201,215,221
Command View Skylights.................. 161
Compact Disc (CD) Maintenance............. 232
Compass.............................. 191
Compass Variance....................... 196
Computer, Trip/Travel.................... 191
Console, Overhead....................... 151Contract, Service........................ 432
Converter, Catalytic...................... 367
Cooling System......................... 375
Adding Coolant (Antifreeze).............. 377
Coolant Capacity...................... 402
Coolant Level......................... 379
Disposal of Used Coolant................ 379
Drain, Flush, and Refill.................. 376
Inspection........................375,379
Points to Remember.................... 379
Pressure Cap......................... 378
Radiator Cap......................... 378
Selection of Coolant (Antifreeze).........376,402
Courtesy Lights......................... 125
Crankcase Emission Control System.......... 369
Cruise Control (Speed Control).............. 132
Cruise Light........................... 182
Cup Holder............................ 163
Customer Assistance..................... 430
440 INDEX

Data Recorder, Event...................... 55
Daytime Running Lights................... 123
Dealer Service.......................... 361
Defroster, Rear Window................... 167
Defroster, Windshield................69,234,240
Diagnostic System, Onboard................ 358
Dimmer Switch, Headlight................. 124
Dipsticks
Automatic Transmission................. 385
Oil (Engine).......................... 362
Power Steering........................ 372
Disabled Vehicle Towing................... 352
Disposal
Antifreeze (Engine Coolant)............... 379
Engine Oil........................... 365
Used Engine Fluids..................... 365
Door Locks............................. 26
Door Locks, Automatic.................... 27
Door Opener, Garage..................... 151Drive Belts............................ 365
Driving............................... 269
Off-Pavement......................... 270
Off-Road............................ 270
DVD Player (Video Entertainment System)...... 225
E-85 Fuel.............................. 311
Electric Remote Mirrors.................... 78
Electrical Outlet, Auxiliary (Power Outlet)...... 162
Electronic Brake Control System............. 135
Electronic Speed Control (Cruise Control)...... 132
Electronic Stability Program (ESP)............ 138
Electronic Throttle Control Warning Light...... 182
Electronic Vehicle Information Center
(EVIC).............................181,184
Emergency, In Case of
Freeing Vehicle When Stuck............... 263
Hazard Warning Flasher................. 340
Jacking............................. 342
INDEX 441
10
