display JEEP COMMANDER 2007 1.G Owners Manual

▫BAS (Brake Assist System)...............136
▫ERM (Electronic Roll Mitigation)..........137
▫ESP (Electronic Stability Program).........138
▫ESP/BAS Warning Lamp And ESP/TCS
Indicator Light.......................143
Rear Park Assist System— If Equipped.......144
▫Rear Park Assist Sensors................144
▫Rear Park Assist Warning Display.........145
▫Enable/Disable The Rear Park Assist System . . 146
▫Service The Rear Park Assist System........147
▫Cleaning The Rear Park Assist System......147
Rear Camera — If Equipped...............149
▫Turning The Rear Camera On............150▫Turning The Rear Camera Off............150
Overhead Console — If Equipped...........151
Garage Door Opener — If Equipped.........151
▫Programming HomeLink................153
▫Canadian Programming/Gate Programming . . 156
▫Using HomeLink.....................156
▫Erasing HomeLink Buttons..............157
▫Reprogramming a Single HomeLink Button . . . 157
▫Security............................157
Power Sunroof — If Equipped.............158
▫Opening Sunroof - Express..............159
▫Closing Sunroof - Express...............159
▫Pinch Protect Feature...................159
74 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

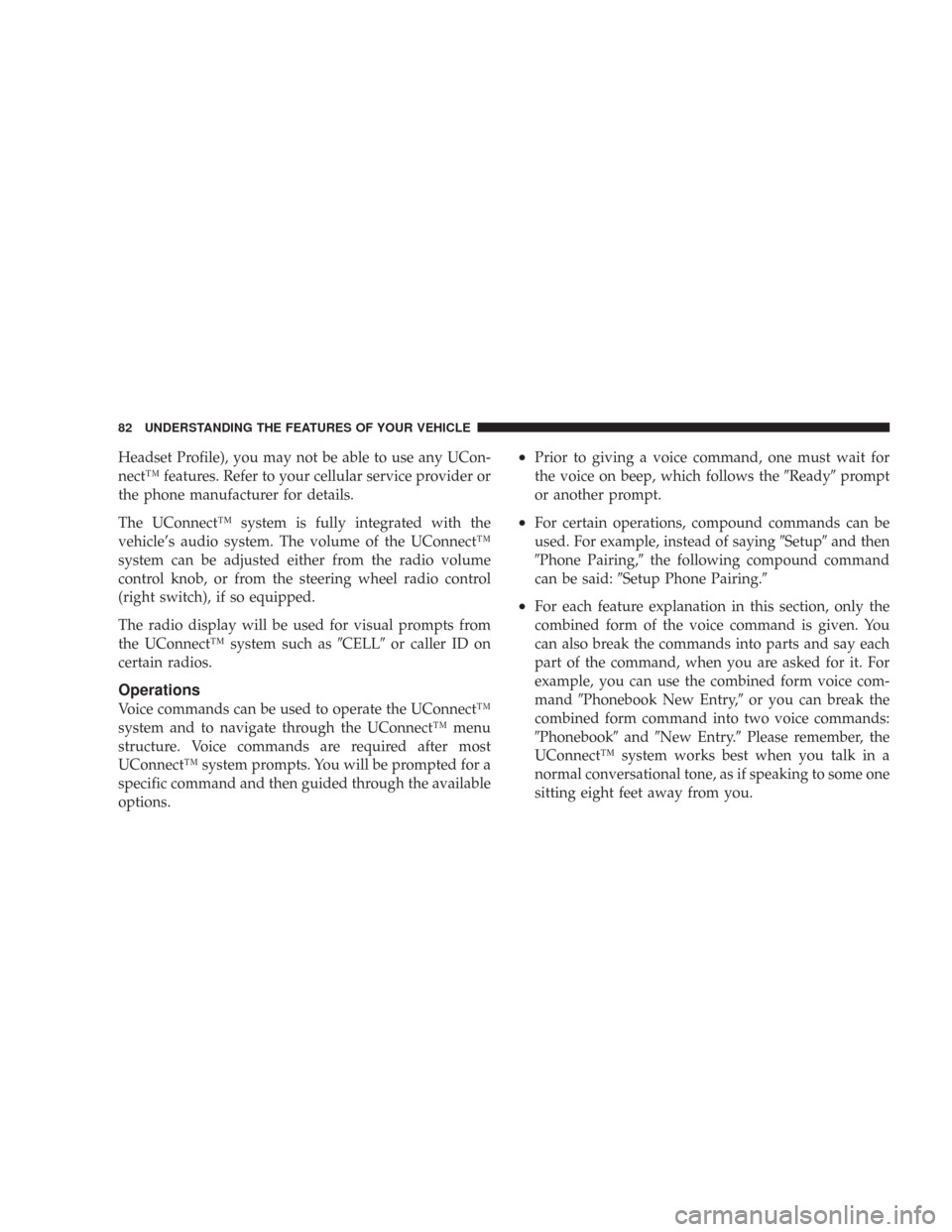

Headset Profile), you may not be able to use any UCon-
nect™ features. Refer to your cellular service provider or
the phone manufacturer for details.
The UConnect™ system is fully integrated with the
vehicle’s audio system. The volume of the UConnect™
system can be adjusted either from the radio volume
control knob, or from the steering wheel radio control
(right switch), if so equipped.
The radio display will be used for visual prompts from
the UConnect™ system such asCELLor caller ID on
certain radios.
Operations
Voice commands can be used to operate the UConnect™
system and to navigate through the UConnect™ menu
structure. Voice commands are required after most
UConnect™ system prompts. You will be prompted for a
specific command and then guided through the available
options.
•Prior to giving a voice command, one must wait for
the voice on beep, which follows theReadyprompt
or another prompt.
•For certain operations, compound commands can be
used. For example, instead of sayingSetupand then
Phone Pairing,the following compound command
can be said:Setup Phone Pairing.
•For each feature explanation in this section, only the
combined form of the voice command is given. You
can also break the commands into parts and say each
part of the command, when you are asked for it. For
example, you can use the combined form voice com-
mandPhonebook New Entry,or you can break the
combined form command into two voice commands:
PhonebookandNew Entry.Please remember, the
UConnect™ system works best when you talk in a
normal conversational tone, as if speaking to some one
sitting eight feet away from you.
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

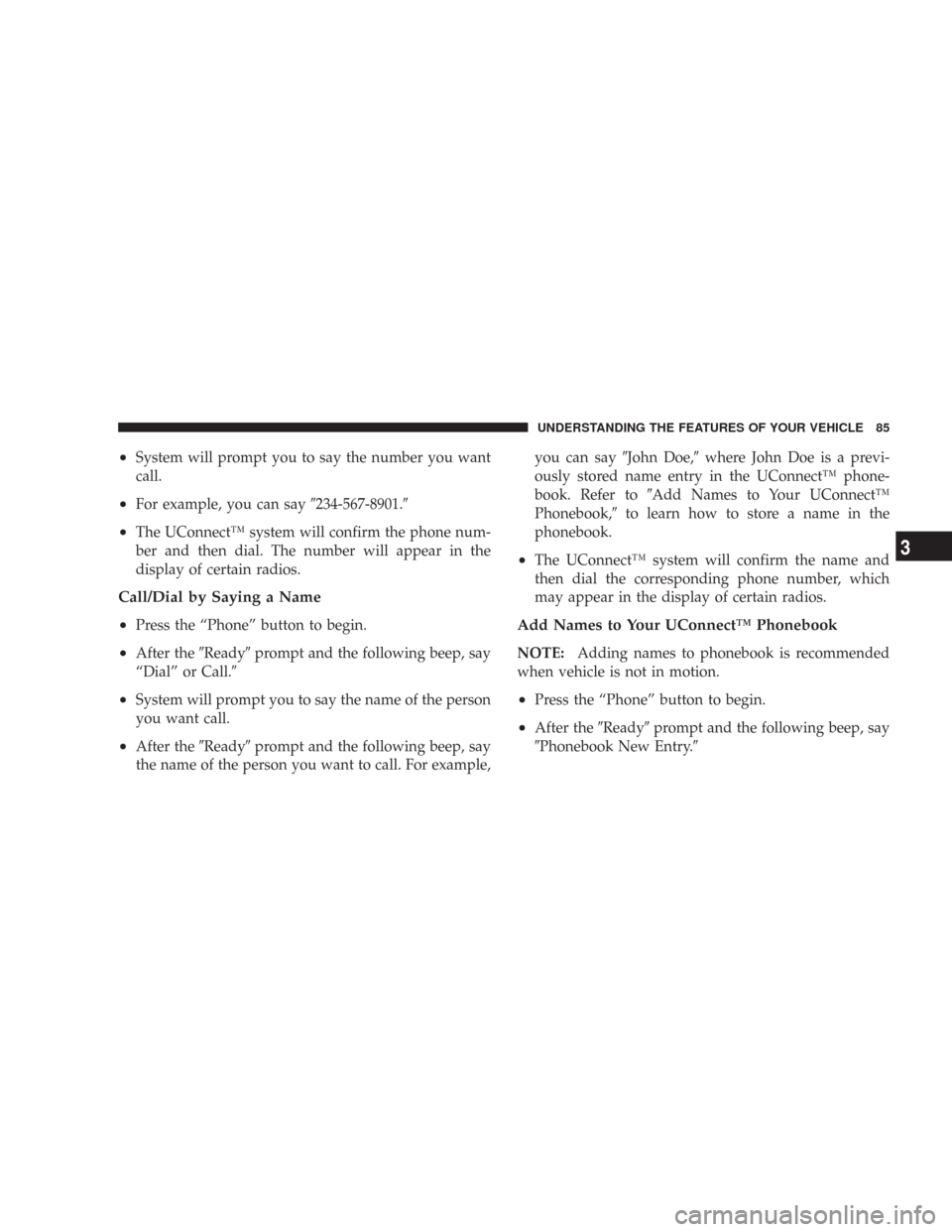

•System will prompt you to say the number you want
call.
•For example, you can say234-567-8901.
•The UConnect™ system will confirm the phone num-
ber and then dial. The number will appear in the
display of certain radios.
Call/Dial by Saying a Name
•
Press the “Phone” button to begin.
•After theReadyprompt and the following beep, say
“Dial” or Call.
•System will prompt you to say the name of the person
you want call.
•After theReadyprompt and the following beep, say
the name of the person you want to call. For example,you can sayJohn Doe,where John Doe is a previ-
ously stored name entry in the UConnect™ phone-
book. Refer toAdd Names to Your UConnect™
Phonebook,to learn how to store a name in the
phonebook.
•The UConnect™ system will confirm the name and
then dial the corresponding phone number, which
may appear in the display of certain radios.
Add Names to Your UConnect™ Phonebook
NOTE:Adding names to phonebook is recommended
when vehicle is not in motion.
•Press the “Phone” button to begin.
•After theReadyprompt and the following beep, say
Phonebook New Entry.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85
3

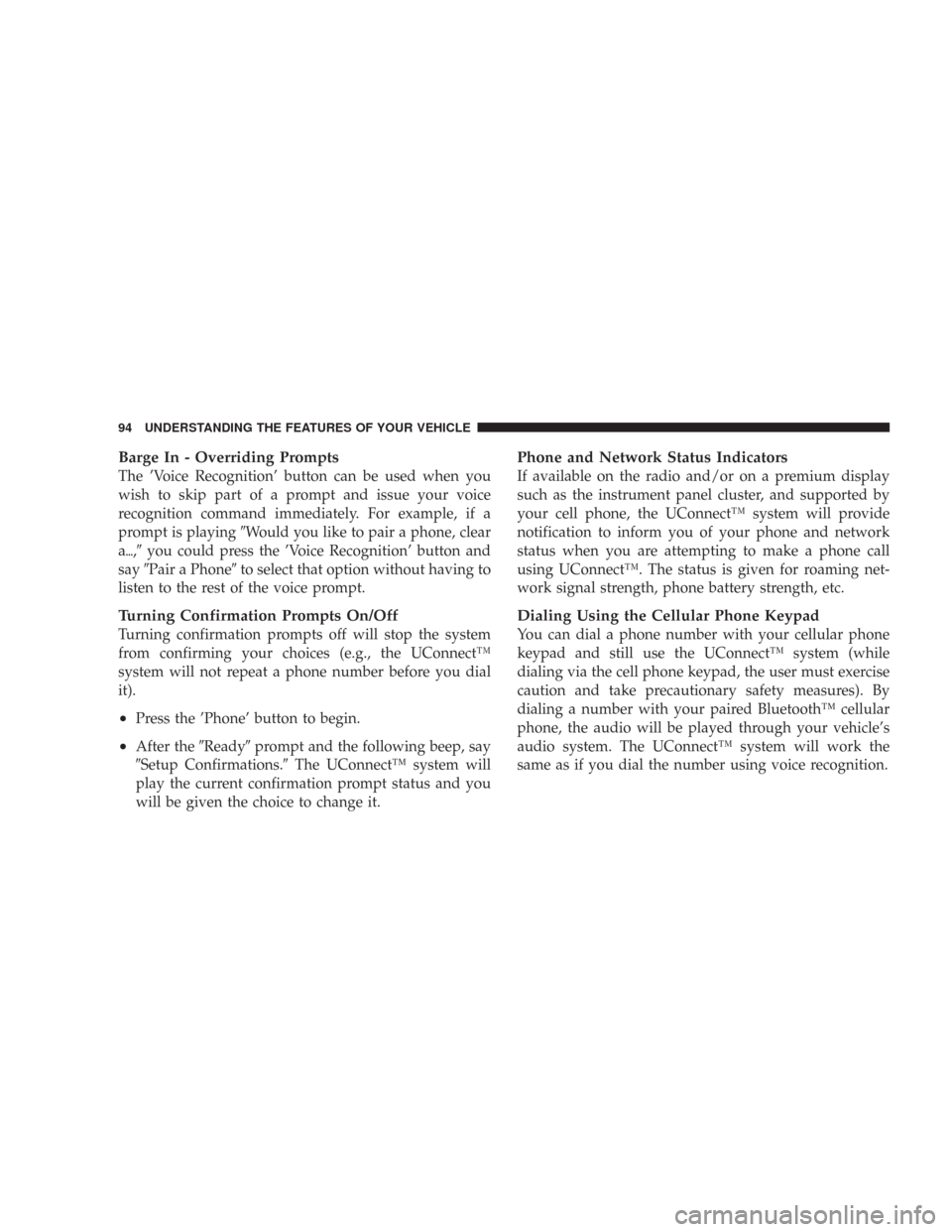

Barge In - Overriding Prompts
The ’Voice Recognition’ button can be used when you
wish to skip part of a prompt and issue your voice
recognition command immediately. For example, if a
prompt is playingWould you like to pair a phone, clear
a,you could press the ’Voice Recognition’ button and
sayPair a Phoneto select that option without having to
listen to the rest of the voice prompt.
Turning Confirmation Prompts On/Off
Turning confirmation prompts off will stop the system
from confirming your choices (e.g., the UConnect™
system will not repeat a phone number before you dial
it).
•Press the ’Phone’ button to begin.
•After theReadyprompt and the following beep, say
Setup Confirmations.The UConnect™ system will
play the current confirmation prompt status and you
will be given the choice to change it.
Phone and Network Status Indicators
If available on the radio and/or on a premium display
such as the instrument panel cluster, and supported by
your cell phone, the UConnect™ system will provide
notification to inform you of your phone and network
status when you are attempting to make a phone call
using UConnect™. The status is given for roaming net-
work signal strength, phone battery strength, etc.
Dialing Using the Cellular Phone Keypad
You can dial a phone number with your cellular phone
keypad and still use the UConnect™ system (while
dialing via the cell phone keypad, the user must exercise
caution and take precautionary safety measures). By
dialing a number with your paired Bluetooth™ cellular
phone, the audio will be played through your vehicle’s
audio system. The UConnect™ system will work the
same as if you dial the number using voice recognition.
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

11. SelectRemote Linked to Memoryin the Electronic
Vehicle Information Center (EVIC) and enterYe sor
selectUse Factory Settingsfrom the EVIC and enter
Ye s. Refer to “Electronic Vehicle Information Center
(EVIC) — Customer Programmable Features” in Section
4 for more information.
12. Repeat the above steps to set the next memory
position using the other numbered memory button or to
link another Remote Keyless Entry transmitter to
memory.
Memory Position Recall
NOTE:The vehicle must be in Park to recall memory
positions. If a recall is attempted when the vehicle is not
in Park, a message will be displayed in the Electronic
Vehicle Information Center (EVIC).To recall the memory settings for driver one, press
memory button number 1 on the driver’s door or the
“Unlock” button on the Remote Keyless Entry transmit-
ter linked to memory position 1.
To recall the memory setting for driver two, press
memory button number 2 on the driver’s door or the
“Unlock” button on the Remote Keyless Entry transmit-
ter linked to memory position 2.
A recall can be cancelled by pressing any of the memory
buttons on the drivers door during a recall (S, 1, or 2).
When a recall is cancelled, the driver’s seat, driver’s
mirror, and the pedals stop moving. A delay of one
second will occur before another recall can be selected.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115
3

To Activate
1. Select “Auto Headlamp Low/High Beams? — Low/
High Beam.” Refer to “EVIC — Customer Programmable
Features” in Section 4 of this manual.
2. Turn the end of the multi-function control lever to the
A (Auto) headlight position.
NOTE:This system will not activate until the vehicle is
at or above 20 mph (32 km/h).
To Deactivate
1. Pull back on the muti-function control lever to manu-
ally deactivate the system (normal operation of high
beams).
2. Pull back on the multi-function control lever once
again to re-activate the system.
NOTE:Broken, muddy, or obstructed headlights and
taillights of vehicles in the field of view will causeheadlights to remain on longer (closer to the vehicle).
Also, dirt, film, and other obstructions (sticker, toll box,
etc.) on the windshield or camera lens will cause the
system to function improperly.
Instrument Panel and Interior Lights
When the multi-function control lever is in the parklight,
headlight, or A (Auto) position (if equipped), rotating the
center portion of the lever up and down will increase and
decrease the brightness (dimmer control) of the instru-
ment panel lights. Full daytime brightness on all elec-
tronic displays (odometer, overhead console, radio, and
Automatic Climate Control (if equipped) is obtained by
rotating the center portion of the control to the first
detent above the dimmer range. Rotating the control to
the second detent above the dimmer range turns the
interior lights on. Rotating the control to the “Off”
(extreme bottom) position disables all the interior lights,
even when the doors and liftgate are open. While in the
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

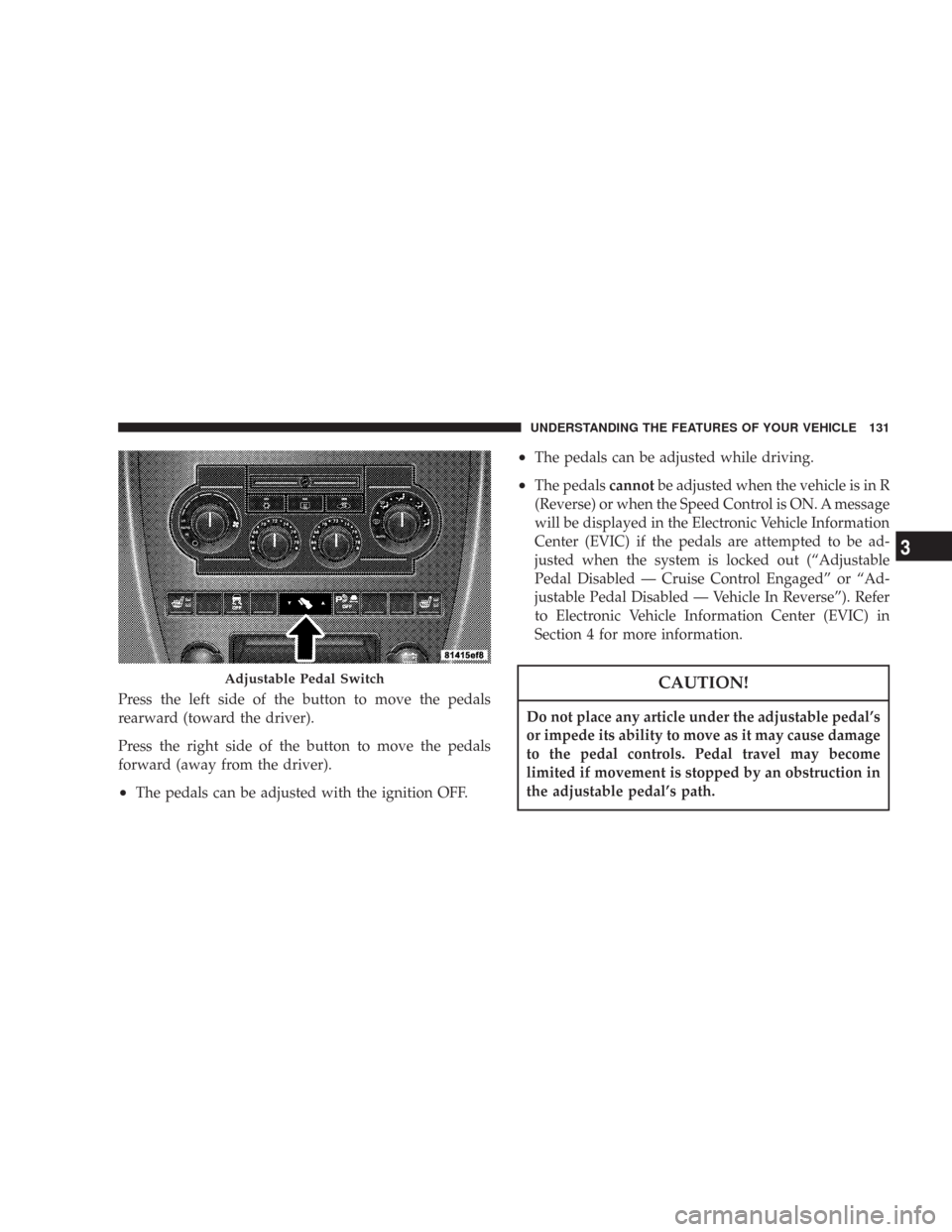

Press the left side of the button to move the pedals
rearward (toward the driver).
Press the right side of the button to move the pedals
forward (away from the driver).
•The pedals can be adjusted with the ignition OFF.
•The pedals can be adjusted while driving.
•The pedalscannotbe adjusted when the vehicle is in R
(Reverse) or when the Speed Control is ON. A message
will be displayed in the Electronic Vehicle Information
Center (EVIC) if the pedals are attempted to be ad-
justed when the system is locked out (“Adjustable
Pedal Disabled — Cruise Control Engaged” or “Ad-
justable Pedal Disabled — Vehicle In Reverse”). Refer
to Electronic Vehicle Information Center (EVIC) in
Section 4 for more information.
CAUTION!
Do not place any article under the adjustable pedal’s
or impede its ability to move as it may cause damage
to the pedal controls. Pedal travel may become
limited if movement is stopped by an obstruction in
the adjustable pedal’s path.
Adjustable Pedal Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131
3

NOTE:To improve the vehicle’s traction when driving
with snow chains, or starting off in deep snow, sand, or
gravel, it may be desirable to switch to the “Partial Off”
mode by pressing the ESP switch. Once the situation
requiring ESP to be switched to the “Partial Off” mode is
overcome, turn ESP back on by momentarily depressing
the “ESP Control Switch”. This may be done while the
vehicle is in motion.
Full Off (4WD Models Only)
This mode is intended for off-highway or off-road use
when ESP stability features could inhibit vehicle maneu-
verability due to trail conditions. This mode is entered by
depressing and holding the “ESP Control Switch” for 5
seconds when the vehicle is stopped and the engine is
running. After 5 seconds, the “ESP/TCS Indicator Light”
will illuminate, and theESP OFFmessage will appear in
the Electronic Vehicle Information Center (EVIC). Refer
to “Electronic Vehicle Information Center (EVIC)” in
Section 4 of this manual.In this mode, ESP and TCS, except for the “limited slip”
feature described in the TCS section, are turned off until
the vehicle reaches a speed of 40 mph (64 km/h). At 40
mph (64 km/h) the system returns to “Partial Off” mode,
described above. When the vehicle speed drops below 35
mph (56 km/h) the ESP system shuts off. ESP is off at low
vehicle speeds so that it will not interfere with off-road
driving but ESP function returns to provide the stability
feature at speeds above 40 mph (64 km/h). The “ESP/
TCS Indicator Light” will always be illuminated when
ESP is off. To turn ESP on again, momentarily depress the
“ESP Control Switch”. This will restore the normal “ESP
On” mode of operation.
NOTE:The “ESP OFF” message will display and the
audible chime will sound when the gear selector is
placed into the “P” (Park) position from any position
other than “P” (Park), and then moved out of the “P”
(Park) position. This will occur even if the message was
previously cleared.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141
3

WARNING!
With the ESP switched off, the enhanced vehicle
stability offered by ESP and ERM are unavailable. In
an emergency evasive maneuver, the ESP and ERM
systems will not engage to assist in maintaining
stability. The “Full Off” ESP mode is intended for
off-highway or off-road use only.
4WD Low Range
Full Off
This is the normal operating mode for ESP in 4WD low
range. Whenever the vehicle is started in 4WD low range,
or the transfer case (if equipped) is shifted from 4WD
high range or neutral to 4WD low range, the ESP system
will be in this mode. In 4WD low range, ESP and TCS,
except for the “limited slip” feature described in the TCS
section, are turned off until the vehicle reaches a speed of40 mph (64 km/h). At 40 mph (64 km/h), the normal ESP
stability function returns but TCS remains off. When the
vehicle speed drops below 35 mph (56 km/h), the ESP
system shuts off. ESP is off at low vehicle speeds in 4WD
low range so that it will not interfere with off-road
driving but ESP function returns to provide the stability
feature at speeds above 40 mph (64 km/h). TheESP/
TCS Indicator Lightwill always be illuminated in 4WD
low range when ESP is off.
NOTE:The “ESP OFF” message will display and the
audible chime will sound when the gear selector is
placed into the “P” (Park) position from any position
other than “P” (Park), and then moved out of the “P”
(Park) position. This will occur even if the message was
previously cleared
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Rear Park Assist Warning Display
The Rear Park Assist Warning Display, located in the
headliner near the flipper glass, provides both visual and
audible warnings to indicate the distance between the
rear fascia and the detected obstacle.When the ignition is changed to the RUN/ON position,
the warning display will turn ON all of its LEDs for
about 1 second. Each side of the warning display has 6
yellow and 2 red LEDs. The vehicle is close to the obstacle
when the red LED is ON.
When the obstacle is detected at a distance of about 59
inches (150 cm) from the rear fascia, the outermost LEDs
of the warning display will be ON with increased bright-
ness. Along with the LED, a half second tone will occur.
As the distance of the detected obstacle to the rear fascia
decreases, more LEDs are illuminated. When the warning
display has the first 5 yellow LEDs ON, the warning
display will actuate an intermittent tone for about 10
seconds. The radio will be muted while the tone is
actuated. The intermittent tone will increase in frequency
as each additional LED is lit.
Rear Park Assist Display
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145
3
