jacking JEEP COMMANDER 2007 1.G Owners Manual

WHAT TO DO IN EMERGENCIES
CONTENTS
Hazard Warning Flashers.................340
If Your Engine Overheats.................341
Jacking And Tire Changing................342
▫Jack Location........................342
▫Spare Tire Stowage....................343
▫Spare Tire Removal....................344
▫Preparations For Jacking................344▫Jacking Instructions....................345
Jump Starting.........................348
Emergency Tow Hooks — If Equipped........351
Towing A Disabled Vehicle................352
▫2WD Models Only....................352
▫4WD Models Only....................352
6

JACKING AND TIRE CHANGING
WARNING!
•Getting under a jacked-up vehicle is dangerous.
The vehicle could slip off the jack and fall on you.
You could be crushed. Never get any part of your
body under a vehicle that is on a jack. If you need
to get under a raised vehicle, take it to a service
center where it can be raised on a lift.
•The jack is designed to use as a tool for changing
tires only. The jack should not be used to lift the
vehicle for service purposes. The vehicle should
be jacked on a firm level surface only. Avoid ice or
slippery areas.
Jack Location
The scissor-type jack and tire changing tools are located
in a compartment behind the third row seat. Refer to
“Cargo Area Features” in Section 3 of this manual.
Jack Storage Location
342 WHAT TO DO IN EMERGENCIES

Spare Tire Removal
Fit the jack handle extension over the drive nut. Use the
Lug Wrench to rotate the nut counter clockwise until the
spare is on the ground with enough slack in the cable to
allow to pull the tire out from under the vehicle.
CAUTION!
The winch mechanism is designed for use with the
jack extension tube only. Use of an air wrench or
other power tools is not recommended and can
damage the winch.
When the spare is clear, tilt the retainer at the end of the
cable and pull it through the center of the wheel.
Preparations For Jacking
Park the vehicle on a firm level surface, avoid ice or
slippery areas,set the parking brakeand place the gear
selector in P (Park). Turn OFF the ignition.
WARNING!
Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid being hit when operating the jack
or changing the wheel.
•Turn on the Hazard Warning Flasher.
•Block both the front and rear
of the wheel diagonally oppo-
site of the jacking position.
344 WHAT TO DO IN EMERGENCIES

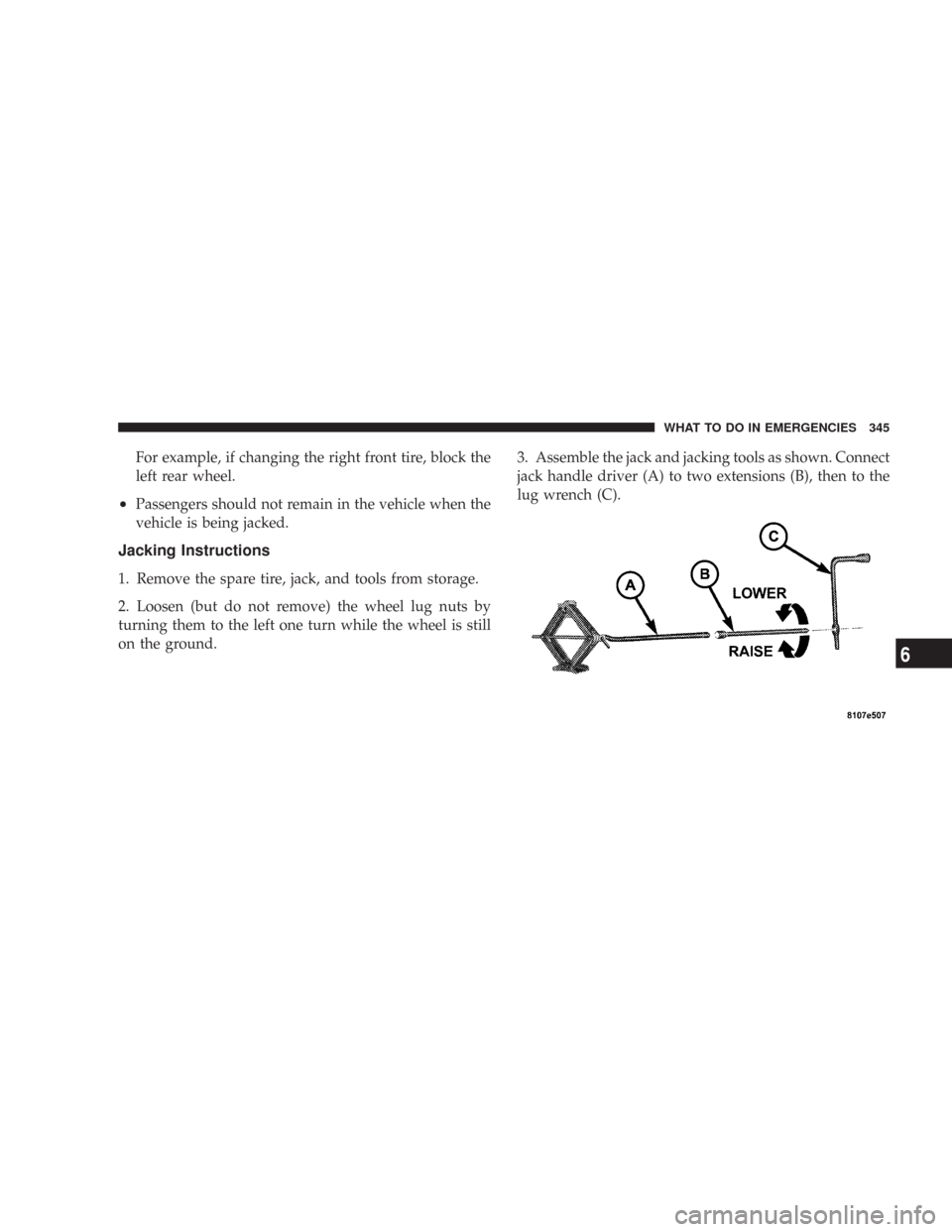

For example, if changing the right front tire, block the
left rear wheel.
•Passengers should not remain in the vehicle when the
vehicle is being jacked.
Jacking Instructions
1. Remove the spare tire, jack, and tools from storage.
2. Loosen (but do not remove) the wheel lug nuts by
turning them to the left one turn while the wheel is still
on the ground.3. Assemble the jack and jacking tools as shown. Connect
jack handle driver (A) to two extensions (B), then to the
lug wrench (C).
WHAT TO DO IN EMERGENCIES 345
6

4. Locate the jack as shown. For the front axle, place it
under the front lower control arm as shown. For the rear
axle, place it under the axle near the wheel to be changed.
Ensure the jack is closest to the inside of the wheel when
jacking on the rear axle.Do not raise the vehicle until
you are sure the jack is fully engaged.
5. Raise the vehicle by turning the jack screw clockwise.
Raise the vehicle only until the tire just clears the surface
and enough clearance is obtained to install the spare tire.
Minimum tire lift provides maximum stability.
Front Jacking Location
Rear Jacking Location
346 WHAT TO DO IN EMERGENCIES

Data Recorder, Event...................... 55
Daytime Running Lights................... 123
Dealer Service.......................... 361
Defroster, Rear Window................... 167
Defroster, Windshield................69,234,240
Diagnostic System, Onboard................ 358
Dimmer Switch, Headlight................. 124
Dipsticks
Automatic Transmission................. 385
Oil (Engine).......................... 362
Power Steering........................ 372
Disabled Vehicle Towing................... 352
Disposal
Antifreeze (Engine Coolant)............... 379
Engine Oil........................... 365
Used Engine Fluids..................... 365
Door Locks............................. 26
Door Locks, Automatic.................... 27
Door Opener, Garage..................... 151Drive Belts............................ 365
Driving............................... 269
Off-Pavement......................... 270
Off-Road............................ 270
DVD Player (Video Entertainment System)...... 225
E-85 Fuel.............................. 311
Electric Remote Mirrors.................... 78
Electrical Outlet, Auxiliary (Power Outlet)...... 162
Electronic Brake Control System............. 135
Electronic Speed Control (Cruise Control)...... 132
Electronic Stability Program (ESP)............ 138
Electronic Throttle Control Warning Light...... 182
Electronic Vehicle Information Center
(EVIC).............................181,184
Emergency, In Case of
Freeing Vehicle When Stuck............... 263
Hazard Warning Flasher................. 340
Jacking............................. 342
INDEX 441
10

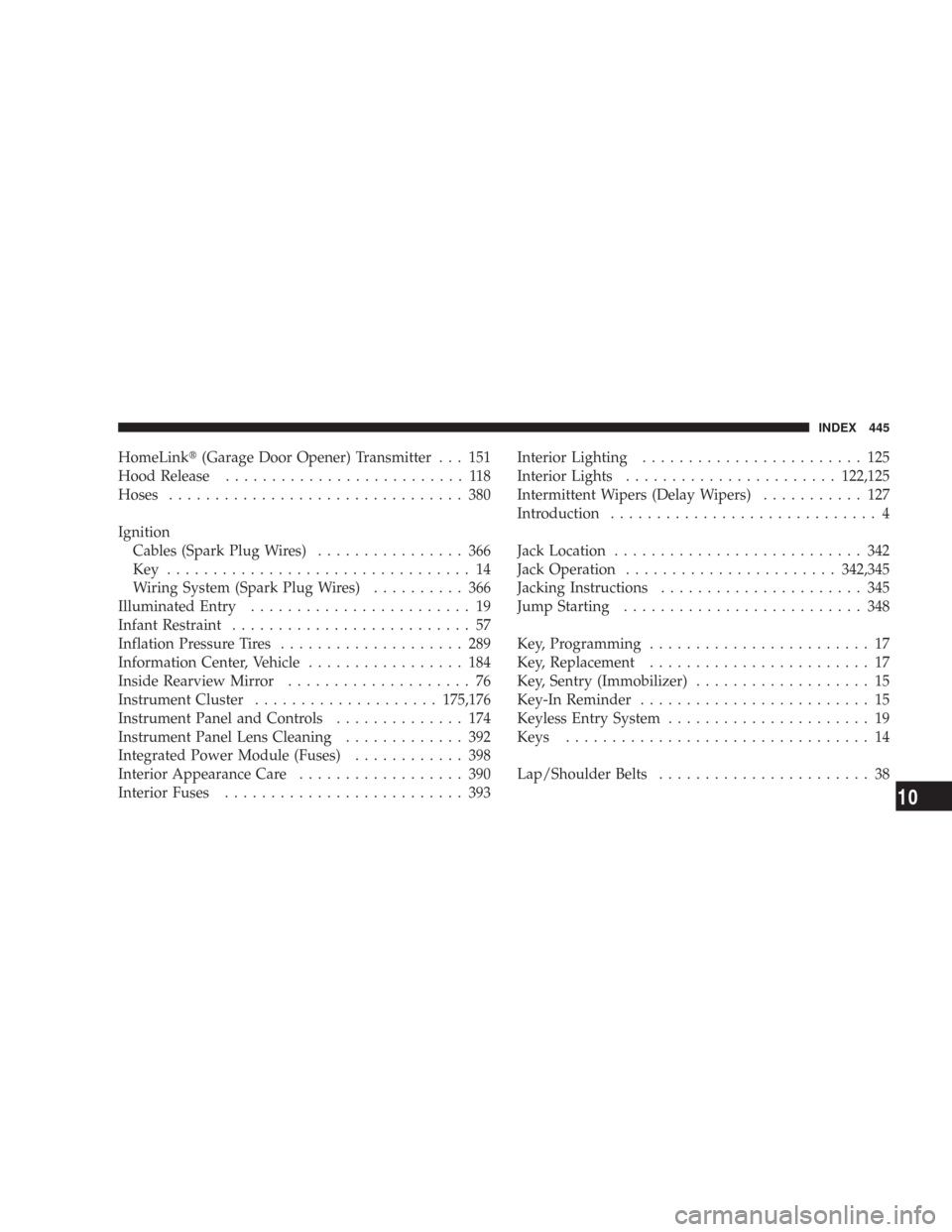

HomeLink(Garage Door Opener) Transmitter . . . 151
