Page 171 of 456

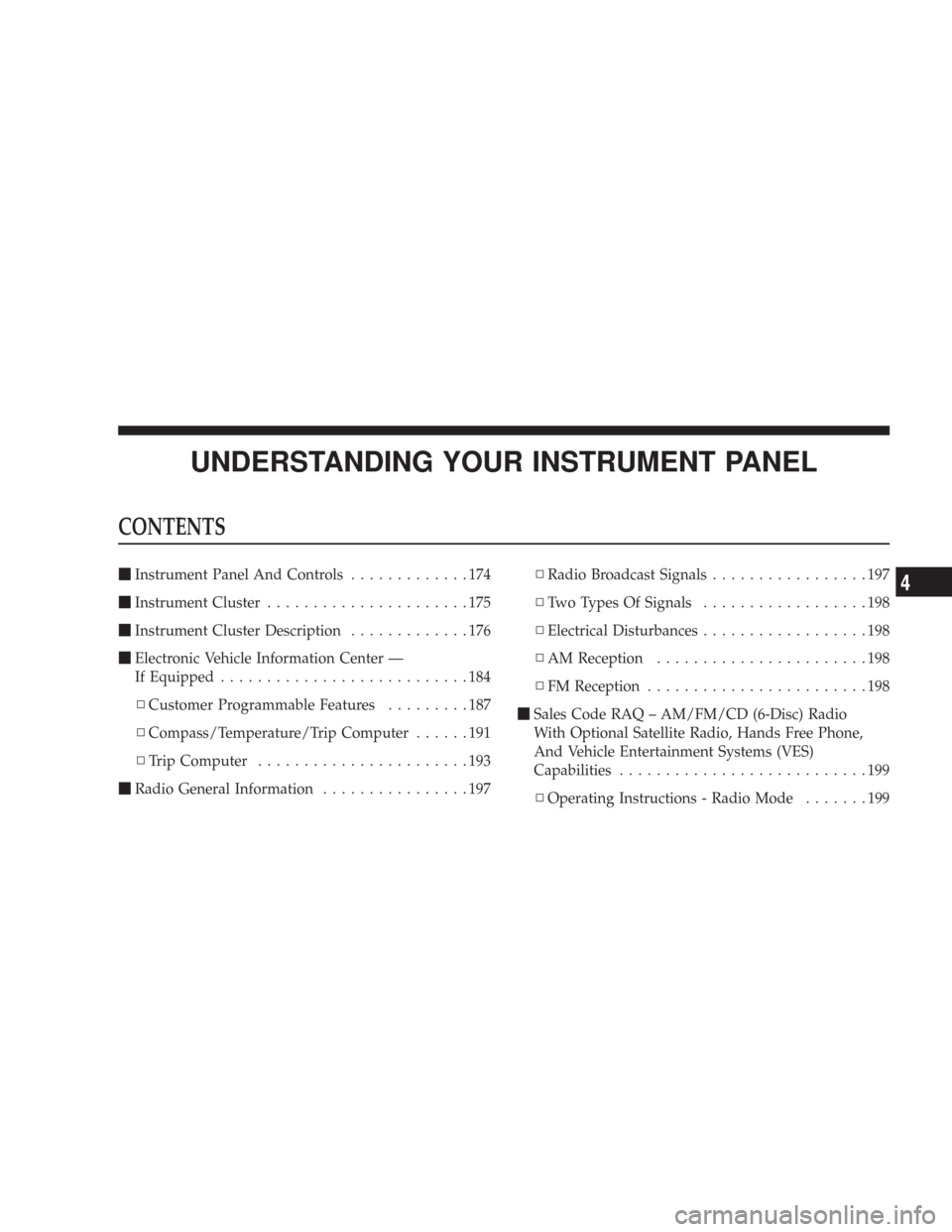

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel And Controls.............174
Instrument Cluster......................175
Instrument Cluster Description.............176
Electronic Vehicle Information Center —
If Equipped...........................184
▫Customer Programmable Features.........187
▫Compass/Temperature/Trip Computer......191
▫Trip Computer.......................193
Radio General Information................197▫Radio Broadcast Signals.................197
▫Two Types Of Signals..................198
▫Electrical Disturbances..................198
▫AM Reception.......................198
▫FM Reception........................198
Sales Code RAQ – AM/FM/CD (6-Disc) Radio
With Optional Satellite Radio, Hands Free Phone,
And Vehicle Entertainment Systems (VES)
Capabilities...........................199
▫Operating Instructions - Radio Mode.......1994
Page 173 of 456
▫Electronic Serial Number/Sirius Identification
Number (ESN/SID)....................227
▫Selecting Satellite Mode In REF Radios......228
▫Selecting Satellite Mode In RAQ Radios.....228
▫Selecting a Channel....................228
▫Storing And Selecting Pre-Set Channels......229
▫Using The PTY (Program Type) Button —
If Equipped.........................229
▫PTY ButtonScan.....................229
▫PTY ButtonSeek.....................229
▫Satellite Antenna......................230
▫Reception Quality.....................230
Remote Sound System Controls — If Equipped . . 230▫Radio Operation......................231
▫CD Player..........................231
CD/DVD Disc Maintenance...............232
Radio Operation And Cellular Phones........232
Climate Controls.......................233
▫Manual Air Conditioning And Heating
System — If Equipped..................233
▫Automatic Temperature Control —
If Equipped.........................236
▫Rear Climate Control — If Equipped.......242
▫Operating Tips.......................244
▫Operating Tips Chart...................246
UNDERSTANDING YOUR INSTRUMENT PANEL 173
4
Page 198 of 456

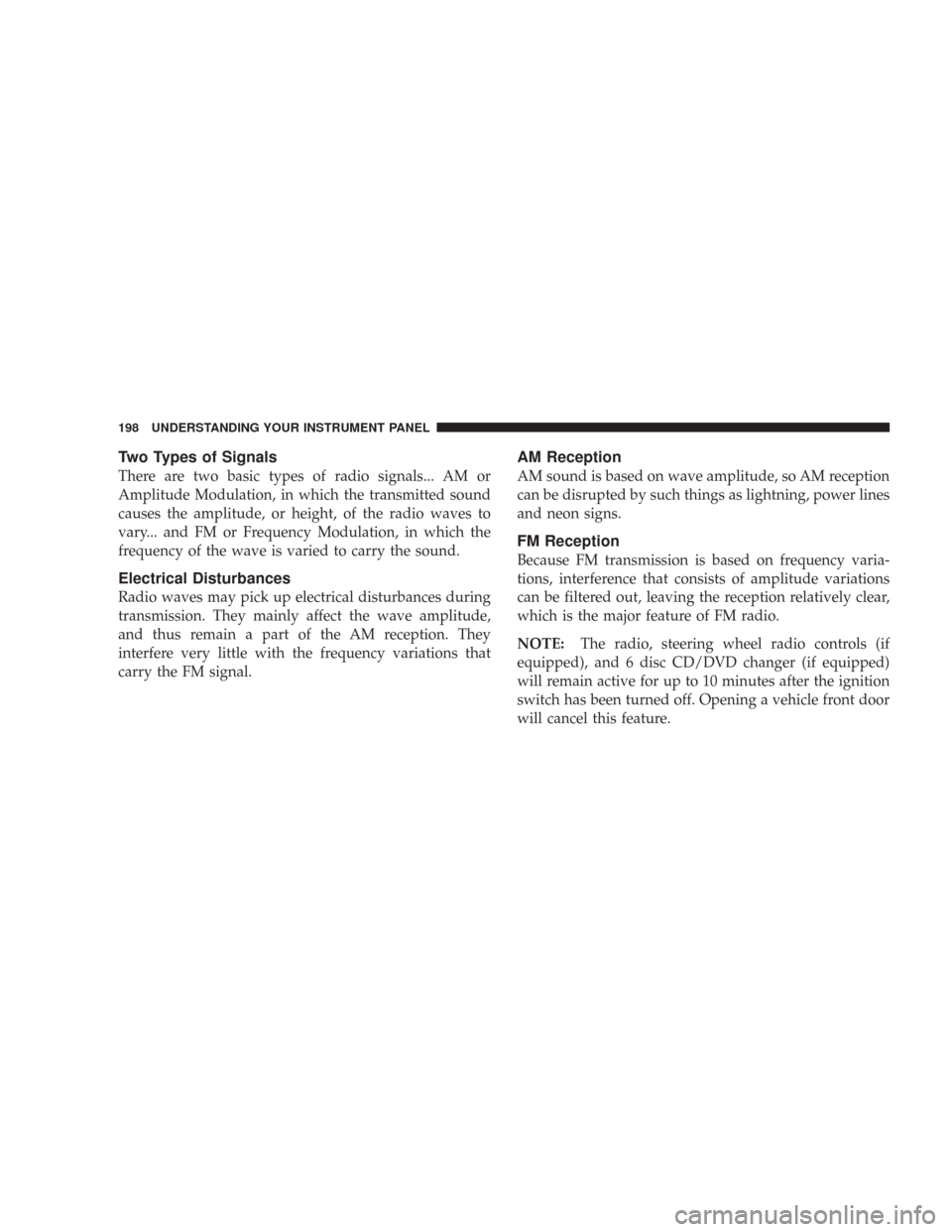

Two Types of Signals
There are two basic types of radio signals... AM or
Amplitude Modulation, in which the transmitted sound
causes the amplitude, or height, of the radio waves to
vary... and FM or Frequency Modulation, in which the
frequency of the wave is varied to carry the sound.
Electrical Disturbances
Radio waves may pick up electrical disturbances during
transmission. They mainly affect the wave amplitude,
and thus remain a part of the AM reception. They
interfere very little with the frequency variations that
carry the FM signal.
AM Reception
AM sound is based on wave amplitude, so AM reception
can be disrupted by such things as lightning, power lines
and neon signs.
FM Reception
Because FM transmission is based on frequency varia-
tions, interference that consists of amplitude variations
can be filtered out, leaving the reception relatively clear,
which is the major feature of FM radio.
NOTE:The radio, steering wheel radio controls (if
equipped), and 6 disc CD/DVD changer (if equipped)
will remain active for up to 10 minutes after the ignition
switch has been turned off. Opening a vehicle front door
will cancel this feature.
198 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 231 of 456
The right hand control is a rocker type switch with a
push-button in the center and controls the volume and
mode of the sound system. Pressing the top of the rocker
switch will increase the volume and pressing the bottom
of the rocker switch will decrease the volume.
Pressing the center button will make the radio switch
between the various modes available (AM/FM/TAPE/
CD, Etc.).
The left hand control is a rocker type switch with a
push-button in the center. The function of the left hand
control is different depending on which mode you are in.
The following describes the left hand control operation in
each mode.Radio Operation
Pressing the top of the switch will “Seek” up for the next
listenable station and pressing the bottom of the switch
will “Seek” down for the next listenable station.
The button located in the center of the left hand control
will tune to the next preset station that you have pro-
grammed in the radio preset push-button.
CD Player
Pressing the top of the switch once will go to the next
track on the CD. Pressing the bottom of the switch once
will go to the beginning of the current track or to the
beginning of the previous track if it is within one second
after the current track begins to play.
If you press the switch up or down twice it plays the
second track, three times, it will play the third, etc.
UNDERSTANDING YOUR INSTRUMENT PANEL 231
4
Page 450 of 456
Programming Transmitters
(Remote Keyless Entry).................153,157
Quadra-Trac........................... 264
Radial Ply Tires......................... 291
Radio Broadcast Signals................... 197
Radio, Navigation....................... 220
Radio Operation...................199,213,232
Radio, Satellite.......................221,226
Radio (Sound Systems).................199,213
Rain Sensitive Wiper System................ 128
Rear Air Conditioning.................... 242
Rear Axle (Differential).................... 384
Rear Camera........................... 149
Rear Cup Holder........................ 163
Rear Heater............................ 242
Rear Park Assist System................... 144
Rear Seat, Fold and Tumble................ 108Rear Seat, Folding.....................108,111
Rear Window Defroster................... 167
Rear Window Features.................... 166
Rear Wiper/Washer...................... 166
Rearview Mirrors........................ 76
Reclining Front Seats..................... 104
Recorder, Event Data...................... 55
Recreational Towing...................... 333
Shifting into Transfer Case Neutral (N)....... 334
Shifting out of Transfer Case Neutral (N)..... 336
Reformulated Gasoline.................... 308
Refrigerant............................ 372
Reminder, Lights On..................... 123
Remote Keyless Entry (RKE)................. 19
Remote Sound System (Radio) Controls........ 230
Remote Starting System.................... 25
Replacement Bulbs....................... 401
Replacement Tires....................... 293
Reporting Safety Defects................... 433
450 INDEX
