remote control JEEP COMMANDER 2007 1.G Owners Manual

WARNING!
•Relying on the airbags alone could lead to more
severe injuries in a collision. The airbags work
with your seat belt to restrain you properly. In
some collisions the airbags won’t deploy at all.
Always wear your seat belts even though you
have airbags.
•Being too close to the steering wheel or instru-
ment panel during airbag deployment could cause
serious injury. Airbags need room to inflate. Sit
back, comfortably extending your arms to reach
the steering wheel or instrument panel.
•Side curtain airbags need room to inflate. Do not
lean against the door or window. Sit upright in the
center of the seat.
Airbag System Components
The airbag system consists of the following:
•Occupant Restraint Control Module
•Airbag Warning Light
•Driver Airbag
•Passenger Airbag
•Side Curtain Airbags above Side Windows
•Side Remote Acceleration Sensors
•Steering Wheel and Column
•Instrument Panel
•Interconnecting Wiring
•Knee Impact Bolsters
•Front Acceleration Sensors
•Driver and Front Passenger Seat Belt Pretensioners
50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

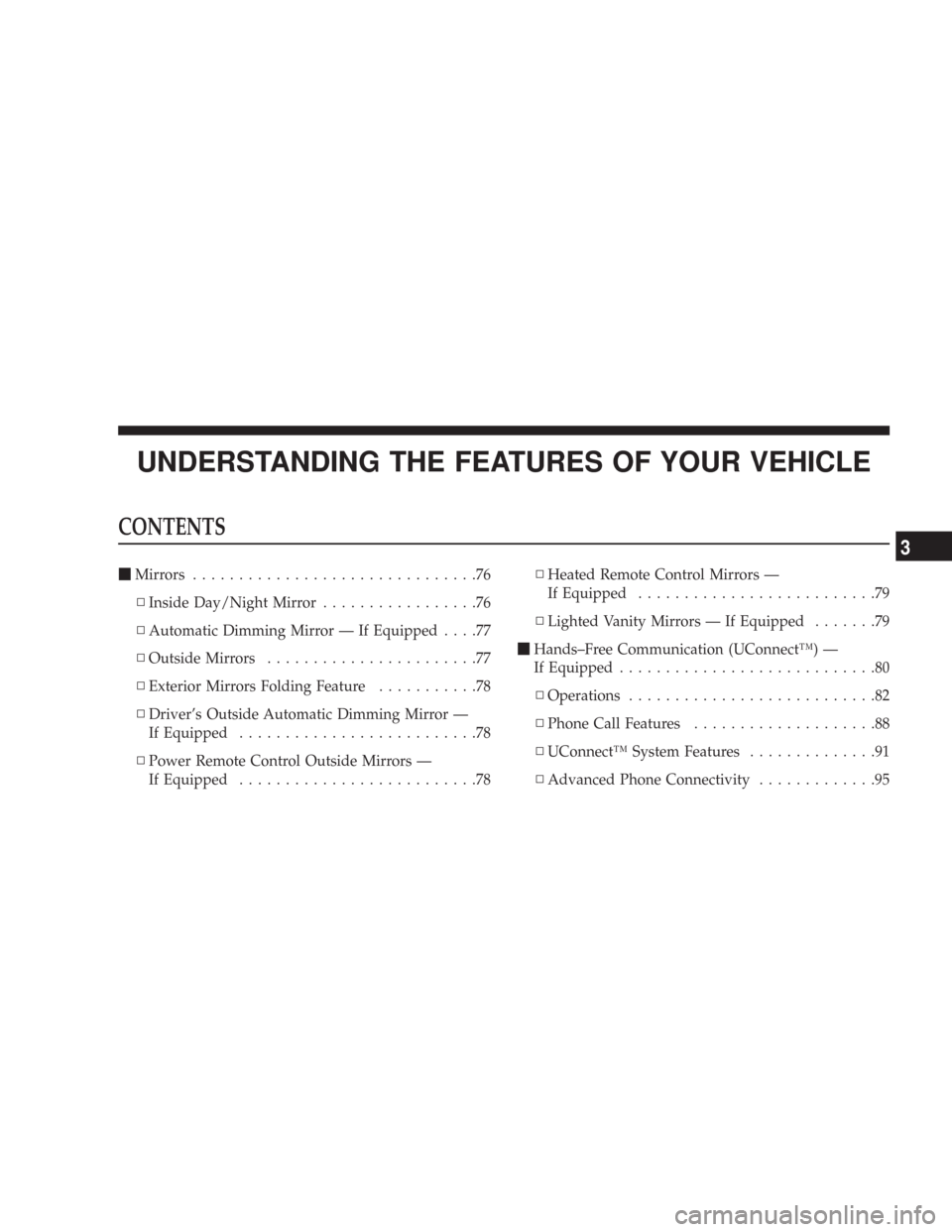

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors...............................76
▫Inside Day/Night Mirror.................76
▫Automatic Dimming Mirror — If Equipped....77
▫Outside Mirrors.......................77
▫Exterior Mirrors Folding Feature...........78
▫Driver’s Outside Automatic Dimming Mirror —
If Equipped..........................78
▫Power Remote Control Outside Mirrors —
If Equipped..........................78▫Heated Remote Control Mirrors —
If Equipped..........................79
▫Lighted Vanity Mirrors — If Equipped.......79
Hands–Free Communication (UConnect™) —
If Equipped............................80
▫Operations...........................82
▫Phone Call Features....................88
▫UConnect™ System Features..............91
▫Advanced Phone Connectivity.............95
3

▫Things You Should Know About Your
UConnect™ System.....................97
Seats................................103
▫Front Manual Seat Adjustment............103
▫Front Seat Adjustment — Recline..........104
▫Manual Lumbar Support Adjustment.......105
▫8 - Way Driver’s Power Seat..............105
▫4 - Way Passenger’s Power Seat —
If Equipped.........................106
▫Head Restraints......................106
▫Heated Seats—If Equipped..............106
▫40/20/40 Second Row Folding Seat........108
▫50/50 Third Row Folding Seat............111
Driver Memory Seat — If Equipped.........113▫Setting Memory Positions And Linking Remote
Keyless Entry Transmitter To Memory.......114
▫Memory Position Recall.................115
▫To Disable A Transmitter Linked To Memory . . 116
▫Easy Entry/Exit Seat...................116
To Open And Close The Hood.............118
Lights...............................119
▫Multi-Function Control Lever.............119
▫Battery Saver Feature—Exterior/Interior
Lights.............................120
▫Headlights And Parking Lights...........120
▫Automatic Headlight System — If Equipped . . 120
▫Smartbeams — If Equipped..............121
▫Instrument Panel And Interior Lights.......122
72 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

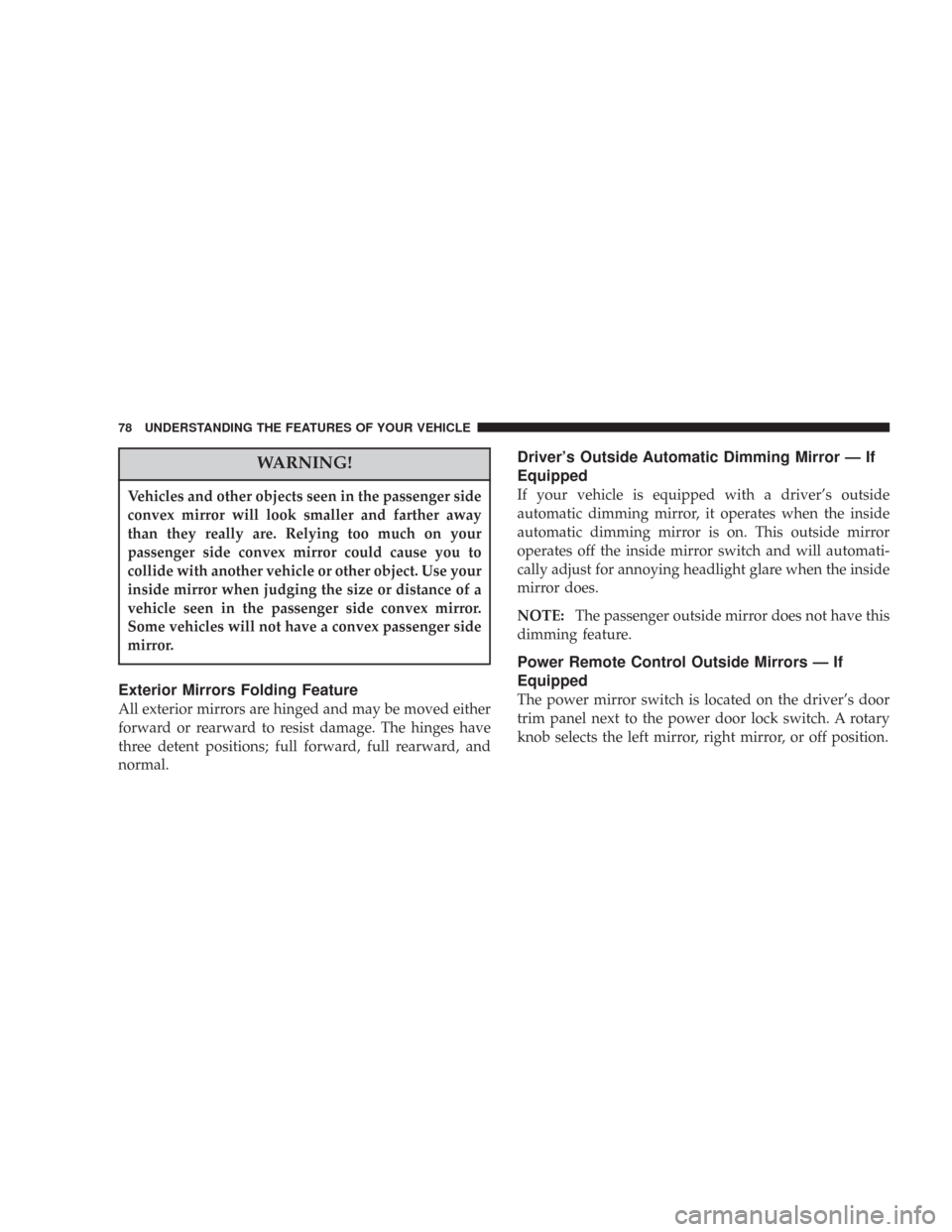

WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side convex mirror could cause you to
collide with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger side convex mirror.
Some vehicles will not have a convex passenger side
mirror.
Exterior Mirrors Folding Feature
All exterior mirrors are hinged and may be moved either
forward or rearward to resist damage. The hinges have
three detent positions; full forward, full rearward, and
normal.
Driver’s Outside Automatic Dimming Mirror — If
Equipped
If your vehicle is equipped with a driver’s outside
automatic dimming mirror, it operates when the inside
automatic dimming mirror is on. This outside mirror
operates off the inside mirror switch and will automati-
cally adjust for annoying headlight glare when the inside
mirror does.
NOTE:The passenger outside mirror does not have this
dimming feature.
Power Remote Control Outside Mirrors — If
Equipped
The power mirror switch is located on the driver’s door
trim panel next to the power door lock switch. A rotary
knob selects the left mirror, right mirror, or off position.
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

After selecting a mirror move the knob in the same
direction you want the mirror to move. Use the center off
position to guard against accidentally moving a mirror
position.Power mirror preselected positions can be controlled by
the optional Memory Seat Feature. Refer to “Driver
Memory Seat” in this section for details.
Heated Remote Control Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature is activated whenever you turn on the rear
window defrost.
Lighted Vanity Mirrors — If Equipped
To access a lighted vanity mirror, flip down one of the
visors.
Power Mirror Switches
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79
3

OVERHEAD CONSOLE — IF EQUIPPED
The overhead console contains an optional universal
garage door opener (HomeLink), storage for sunglasses,
and optional power sunroof switches.
GARAGE DOOR OPENER — IF EQUIPPED
The HomeLinkUniversal Transceiver replaces up to
three remote controls (hand held transmitters) that oper-
ate devices such as garage door openers, motorized
gates, or home lighting. It triggers these devices at the
push of a button. The Universal Transceiver operates off
your vehicle’s battery and charging system; no batteries
are needed.
NOTE:The HomeLinkUniversal Transceiver is dis-
abled when the Vehicle Theft Alarm is active.
For additional information on HomeLink, call 1–800–
355–3515, or on the internet at www.homelink.com.
Overhead Console
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151
3

▫Electronic Serial Number/Sirius Identification
Number (ESN/SID)....................227
▫Selecting Satellite Mode In REF Radios......228
▫Selecting Satellite Mode In RAQ Radios.....228
▫Selecting a Channel....................228
▫Storing And Selecting Pre-Set Channels......229
▫Using The PTY (Program Type) Button —
If Equipped.........................229
▫PTY ButtonScan.....................229
▫PTY ButtonSeek.....................229
▫Satellite Antenna......................230
▫Reception Quality.....................230
Remote Sound System Controls — If Equipped . . 230▫Radio Operation......................231
▫CD Player..........................231
CD/DVD Disc Maintenance...............232
Radio Operation And Cellular Phones........232
Climate Controls.......................233
▫Manual Air Conditioning And Heating
System — If Equipped..................233
▫Automatic Temperature Control —
If Equipped.........................236
▫Rear Climate Control — If Equipped.......242
▫Operating Tips.......................244
▫Operating Tips Chart...................246
UNDERSTANDING YOUR INSTRUMENT PANEL 173
4

VIDEO ENTERTAINMENT SYSTEM (SALES CODE
XRV) — IF EQUIPPED
The optional VES™ (Video Entertainment System) con-
sists of a DVD player and LCD (liquid crystal display)
screen, a battery-powered remote control, and two head-
sets. The DVD player is mounted in the rear of the center
console storage bin, and is concealed by a door that lifts
up for access. Refer to your VES™ User’s Manual for
detailed operating instructions.
DVD Player Location
UNDERSTANDING YOUR INSTRUMENT PANEL 225
4

The LCD screen is located on the headliner behind the
front seats.
SATELLITE RADIO — IF EQUIPPED
Satellite radio uses direct satellite to receiver broadcast-
ing technology to provide clear digital sound, coast to
coast. The subscription service provider is Sirius™ Satel-
lite Radio. This service offers over 100 channels of music,
sports, news, entertainment, and programming for chil-
dren, directly from its satellites and broadcasting studios.Lowering the Display Screen
Remote Control Location
226 UNDERSTANDING YOUR INSTRUMENT PANEL

Satellite Antenna
To ensure optimum reception on vehicles available with
a luggage rack, do not place items on the roof around the
rooftop antenna location. Metal objects placed within the
line of sight of the antenna will cause decreased perfor-
mance. Larger luggage items should be placed as far
forward as possible. Do not place items directly on or
above the antenna.
Reception Quality
Satellite reception may be interrupted due to one of the
following reasons.
•The vehicle is parked in an underground parking
structure or under a physical obstacle.
•Dense tree coverage may interrupt reception.
•Driving under wide bridges or along tall buildings can
cause intermittent reception.
•Placing objects over or too close to the antenna can
cause signal blockage.
REMOTE SOUND SYSTEM CONTROLS — IF
EQUIPPED
The remote sound system controls are located on the rear
surface of the steering wheel. Reach behind the wheel to
access the switches.
230 UNDERSTANDING YOUR INSTRUMENT PANEL
