Page 71 of 456
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors...............................76
▫Inside Day/Night Mirror.................76
▫Automatic Dimming Mirror — If Equipped....77
▫Outside Mirrors.......................77
▫Exterior Mirrors Folding Feature...........78
▫Driver’s Outside Automatic Dimming Mirror —
If Equipped..........................78
▫Power Remote Control Outside Mirrors —
If Equipped..........................78▫Heated Remote Control Mirrors —
If Equipped..........................79
▫Lighted Vanity Mirrors — If Equipped.......79
Hands–Free Communication (UConnect™) —
If Equipped............................80
▫Operations...........................82
▫Phone Call Features....................88
▫UConnect™ System Features..............91
▫Advanced Phone Connectivity.............95
3
Page 76 of 456
MIRRORS
Inside Day/Night Mirror
The mirror should be adjusted to center on the view
through the rear window.A two-point pivot system allows for horizontal and
vertical adjustment of the mirror.
Annoying headlight glare from vehicles behind you can
be reduced by moving the small control under the mirror
to the night position (toward rear of vehicle). The mirror
should be adjusted while set in the day position (toward
windshield).
Adjusting Rear View Mirror
76 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 77 of 456
Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for annoying headlight
glare from vehicles behind you. You can turn the feature
on or off by pressing the button at the base of the mirror.
A light next to the button will indicate when the dimming
feature is activated.CAUTION!
To avoid damage to the mirror during cleaning,
never spray any cleaning solution directly onto the
mirror. Apply the solution onto a clean cloth and
wipe the mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirrors
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.
Automatic Dimming Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 77
3
Page 78 of 456
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side convex mirror could cause you to
collide with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger side convex mirror.
Some vehicles will not have a convex passenger side
mirror.
Exterior Mirrors Folding Feature
All exterior mirrors are hinged and may be moved either
forward or rearward to resist damage. The hinges have
three detent positions; full forward, full rearward, and
normal.
Driver’s Outside Automatic Dimming Mirror — If
Equipped
If your vehicle is equipped with a driver’s outside
automatic dimming mirror, it operates when the inside
automatic dimming mirror is on. This outside mirror
operates off the inside mirror switch and will automati-
cally adjust for annoying headlight glare when the inside
mirror does.
NOTE:The passenger outside mirror does not have this
dimming feature.
Power Remote Control Outside Mirrors — If
Equipped
The power mirror switch is located on the driver’s door
trim panel next to the power door lock switch. A rotary
knob selects the left mirror, right mirror, or off position.
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 79 of 456
After selecting a mirror move the knob in the same
direction you want the mirror to move. Use the center off
position to guard against accidentally moving a mirror
position.Power mirror preselected positions can be controlled by
the optional Memory Seat Feature. Refer to “Driver
Memory Seat” in this section for details.
Heated Remote Control Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature is activated whenever you turn on the rear
window defrost.
Lighted Vanity Mirrors — If Equipped
To access a lighted vanity mirror, flip down one of the
visors.
Power Mirror Switches
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79
3
Page 80 of 456
Lift the cover to reveal the mirror. The light will turn on
automatically.
Sun Visor Extension (If Equipped)
This feature has a pull out extension on the sun visor for
increased coverage.
HANDS–FREE COMMUNICATION (UConnect™) —
IF EQUIPPED
UConnect™ is a voice-activated, hands-free, in- vehicle
communications system. UConnect™ allows you to dial
a phone number with your cellular phone using simple
voice commands (e.g.,Call”“Mike””WorkorDial”
“248-555-1212). Your cellular phone’s audio is trans-
mitted through your vehicle’s audio system; the system
will automatically mute your radio when using the
UConnect™ system.
NOTE:The UConnect™ system use requires a cellular
phone equipped with the BluetoothHands-Free Profile,
version 0.96 or higher. See www.chrysler.com/uconnect
for supported phones.
UConnect™ allows you to transfer calls between the
system and your cellular phone as you enter or exit your
vehicle, and enables you to mute the system’s micro-
phone for private conversation.
Lighted Vanity Mirror
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 81 of 456
The UConnect™ phonebook enables you to store up to 32
names and four numbers per name. Each language has a
separate 32-name phonebook accessible only in that
language. This system is driven through your Blue-
tooth™ Hands-Free profile cellular phone. UConnect™
features Bluetooth™ technology - the global standard
that enables different electronic devices to connect to
each other without wires or a docking station, so UCon-
nect works no matter where you stow your cellular
phone (be it your purse, pocket, or briefcase), as long as
your phone is turned on and has been paired to the
vehicle’s UConnect™ system. The UConnect™ system
allows up to seven cellular phones to be linked to system.
Only one linked (or paired) cellular phone can be used
with the system at a time. The system is available in
English, Spanish, or French languages (as equipped).
The rearview mirror contains the microphone for the
system and the control buttons that will enable you to
access the system.The UConnect™ system can be used with any Hands-
Free Profile certified Bluetooth™ cellular phone. See
www.chrysler.com/uconnect for supported phones. If
your cellular phone supports a different profile (e.g.,
UConnect™ Switches
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81
3

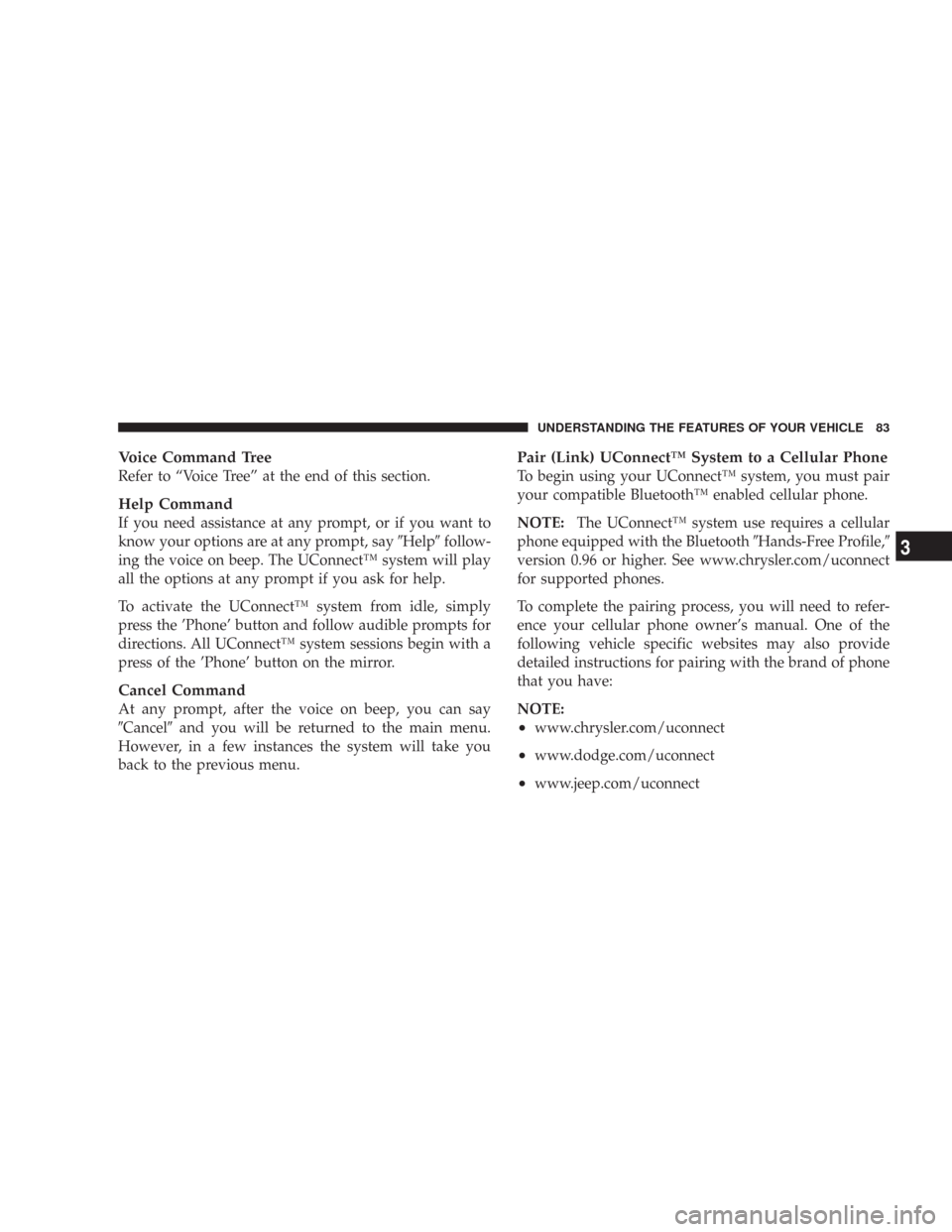

Page 83 of 456
Voice Command Tree
Refer to “Voice Tree” at the end of this section.
Help Command
If you need assistance at any prompt, or if you want to
know your options are at any prompt, sayHelpfollow-
ing the voice on beep. The UConnect™ system will play
all the options at any prompt if you ask for help.
To activate the UConnect™ system from idle, simply
press the ’Phone’ button and follow audible prompts for
directions. All UConnect™ system sessions begin with a
press of the ’Phone’ button on the mirror.
Cancel Command
At any prompt, after the voice on beep, you can say
Canceland you will be returned to the main menu.
However, in a few instances the system will take you
back to the previous menu.
Pair (Link) UConnect™ System to a Cellular Phone
To begin using your UConnect™ system, you must pair
your compatible Bluetooth™ enabled cellular phone.
NOTE:The UConnect™ system use requires a cellular
phone equipped with the BluetoothHands-Free Profile,
version 0.96 or higher. See www.chrysler.com/uconnect
for supported phones.
To complete the pairing process, you will need to refer-
ence your cellular phone owner’s manual. One of the
following vehicle specific websites may also provide
detailed instructions for pairing with the brand of phone
that you have:
NOTE:
•www.chrysler.com/uconnect
•www.dodge.com/uconnect
•www.jeep.com/uconnect
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83
3
Page 113 of 456
4. Close the tailgate.
WARNING!
The cargo area in the rear of the vehicle (with the
rear seatbacks in the locked-up or folded down
position) should not be used as a play area by
children when the vehicle is in motion. They could
be seriously injured in an accident. Children should
be seated and using the proper restraint system.
DRIVER MEMORY SEAT — IF EQUIPPED
Once programmed, the memory buttons 1 and 2 on the
driver’s door panel can be used to recall the driver’s seat,
driver’s outside mirror, adjustable brake and accelerator
pedals, and radio station preset settings. Your Remote
Keyless Entry transmitters can also be programmed to
recall the same positions when the “Unlock” button is
pressed.Your vehicle may have been delivered with two Remote
Keyless Entry transmitters. One or both transmitters can
be linked to either memory position. The memory system
can accommodate up to four transmitters, each one
linked to either of the two memory positions.
Driver Memory Switches
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113
3
Page 114 of 456
Setting Memory Positions and Linking Remote
Keyless Entry Transmitter to Memory
NOTE:Each time the SET (S) button and a numbered
button (1 or 2) are pressed, you erase the memory settings
for that button and store a new one.
1. Insert the ignition key and turn the ignition switch to
the ON position.
2. Press the driver door memory button number 1 if you
are setting the memory for driver 1, or button number 2
if you are setting the memory for driver 2. The system
will recall any stored settings. Wait for the system to
complete the memory recall before continuing to step 3.
3. Adjust the driver’s seat, recliner, and driver’s side
view mirror to the desired positions.
4. Adjust the brake and accelerator pedals to the desired
positions.5. Turn on the radio and set the radio station presets (up
to 10 AM and 10 FM stations can be set).
6. Turn the ignition switch to the OFF position and
remove the key.
7. Press and release the SET (S) button located on the
driver’s door.
8. Within 5 seconds, press and release memory button 1
or 2 on the driver’s door. The next step must be per-
formed within 5 seconds if you desire to also use a
Remote Keyless Entry transmitter to recall memory po-
sitions.
9. Press and release the “Lock” button on one of the
transmitters.
10. Insert the ignition key and turn the ignition switch to
the ON position.
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
