Page 31 of 519

To Turn Off the Engine While in Remote Start
Mode
Press and release the REMOTE START button one time.
NOTE:To avoid inadvertent shutdowns, the system
will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.
DOOR LOCKS
Manual Door Locks
Use the manual door lock plunger to lock the doors from
inside the vehicle. If the plunger is down when the door
is closed, the door will lock. Therefore, make sure the key
is not inside the vehicle before closing the door.
WARNING!
•For personal security and safety in the event of an
accident, lock the vehicle doors when you drive, as
well as when you park and leave the vehicle.
•When leaving the vehicle always remove the key
from the ignition, and lock your vehicle. Do not
leave unattended children in the vehicle, or with
access to an unlocked vehicle. Unsupervised use of
vehicle equipment may cause severe personal in-
juries and death.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
2
Page 32 of 519

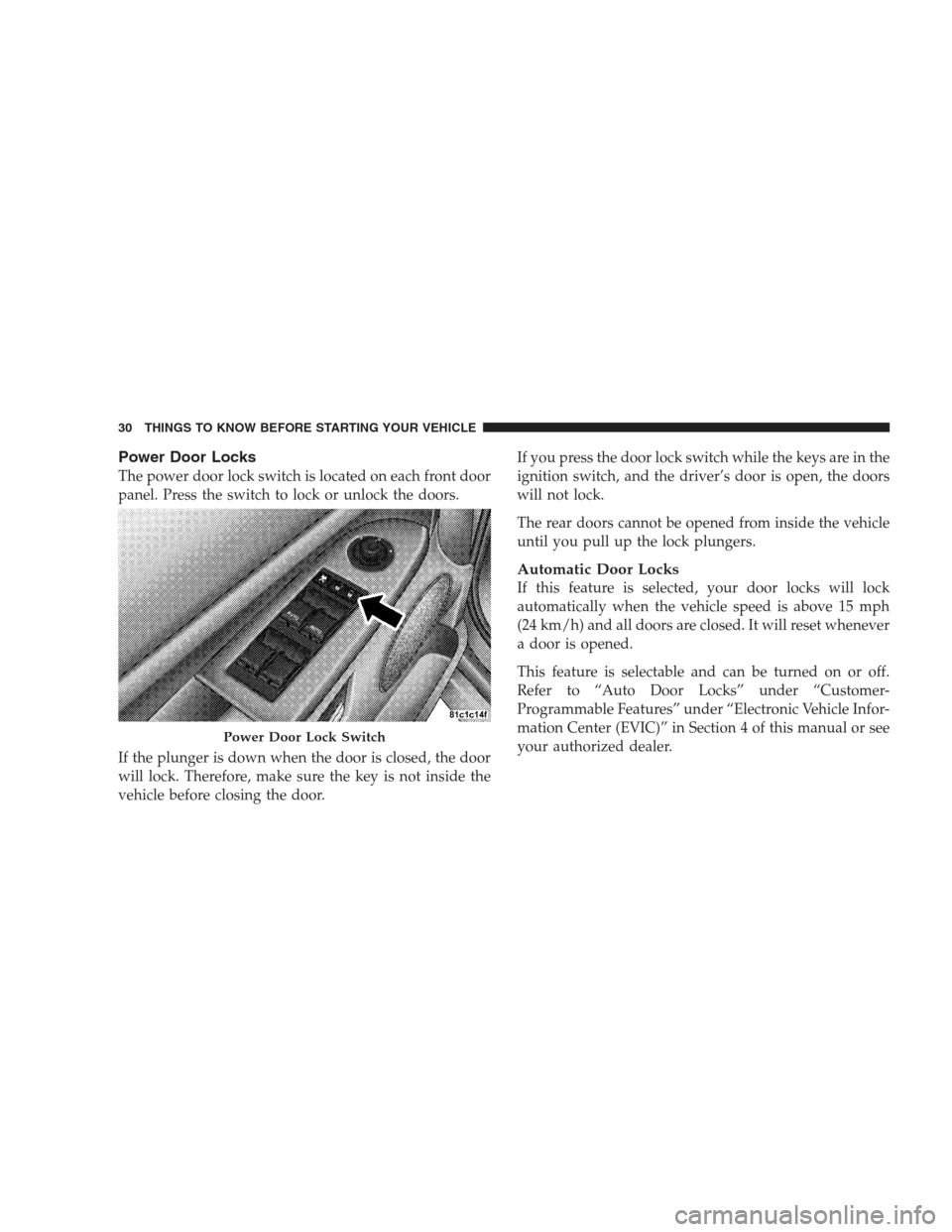

Power Door Locks
The power door lock switch is located on each front door
panel. Press the switch to lock or unlock the doors.
If the plunger is down when the door is closed, the door
will lock. Therefore, make sure the key is not inside the
vehicle before closing the door.If you press the door lock switch while the keys are in the
ignition switch, and the driver’s door is open, the doors
will not lock.
The rear doors cannot be opened from inside the vehicle
until you pull up the lock plungers.
Automatic Door Locks
If this feature is selected, your door locks will lock
automatically when the vehicle speed is above 15 mph
(24 km/h) and all doors are closed. It will reset whenever
a door is opened.
This feature is selectable and can be turned on or off.
Refer to “Auto Door Locks” under “Customer-
Programmable Features” under “Electronic Vehicle Infor-
mation Center (EVIC)” in Section 4 of this manual or see
your authorized dealer.
Power Door Lock Switch
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 33 of 519

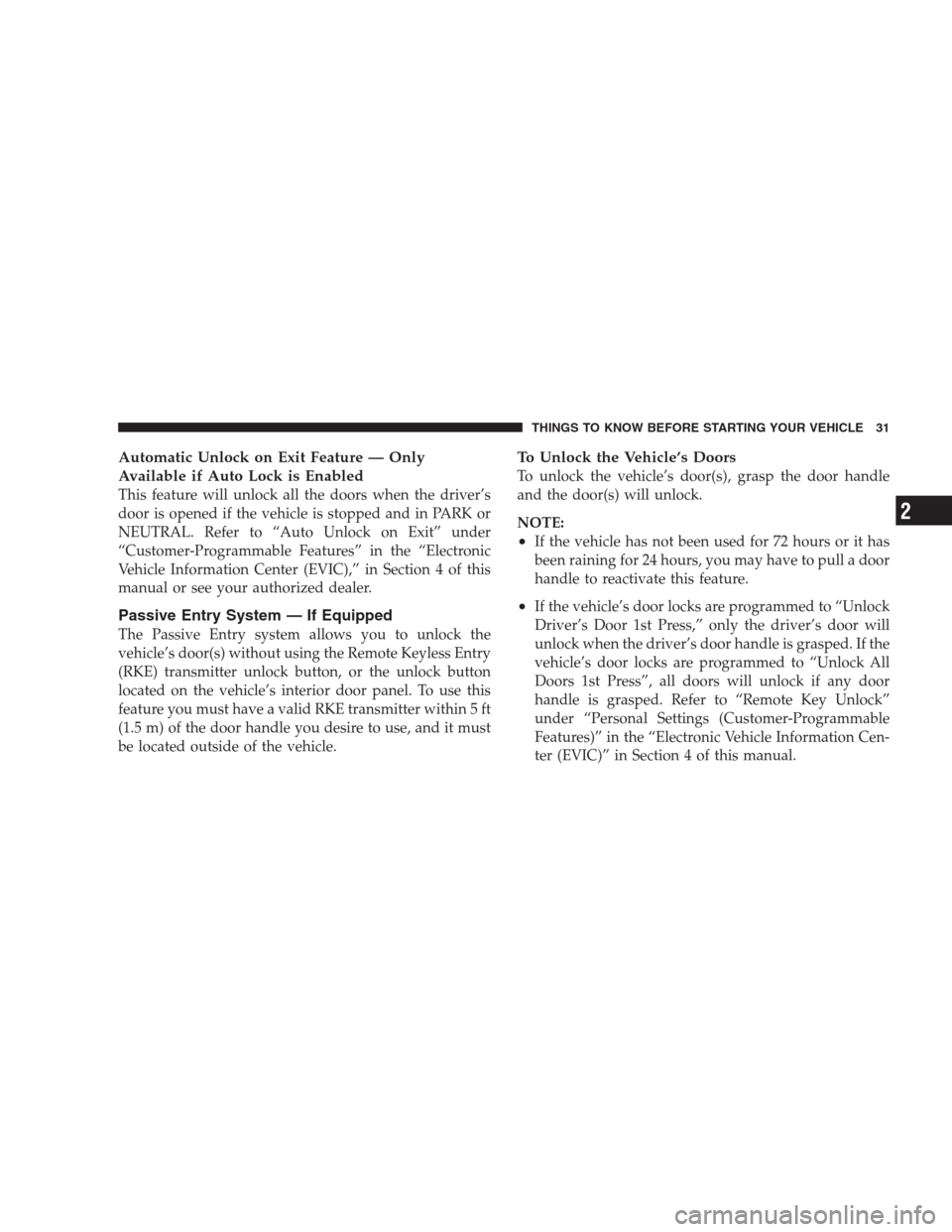

Automatic Unlock on Exit Feature — Only
Available if Auto Lock is Enabled
This feature will unlock all the doors when the driver’s
door is opened if the vehicle is stopped and in PARK or
NEUTRAL. Refer to “Auto Unlock on Exit” under
“Customer-Programmable Features” in the “Electronic
Vehicle Information Center (EVIC),” in Section 4 of this
manual or see your authorized dealer.
Passive Entry System — If Equipped
The Passive Entry system allows you to unlock the
vehicle’s door(s) without using the Remote Keyless Entry
(RKE) transmitter unlock button, or the unlock button
located on the vehicle’s interior door panel. To use this
feature you must have a valid RKE transmitter within 5 ft
(1.5 m) of the door handle you desire to use, and it must
be located outside of the vehicle.
To Unlock the Vehicle’s Doors
To unlock the vehicle’s door(s), grasp the door handle
and the door(s) will unlock.
NOTE:
•If the vehicle has not been used for 72 hours or it has
been raining for 24 hours, you may have to pull a door
handle to reactivate this feature.
•If the vehicle’s door locks are programmed to “Unlock
Driver’s Door 1st Press,” only the driver’s door will
unlock when the driver’s door handle is grasped. If the
vehicle’s door locks are programmed to “Unlock All
Doors 1st Press”, all doors will unlock if any door
handle is grasped. Refer to “Remote Key Unlock”
under “Personal Settings (Customer-Programmable
Features)” in the “Electronic Vehicle Information Cen-
ter (EVIC)” in Section 4 of this manual.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2
Page 34 of 519

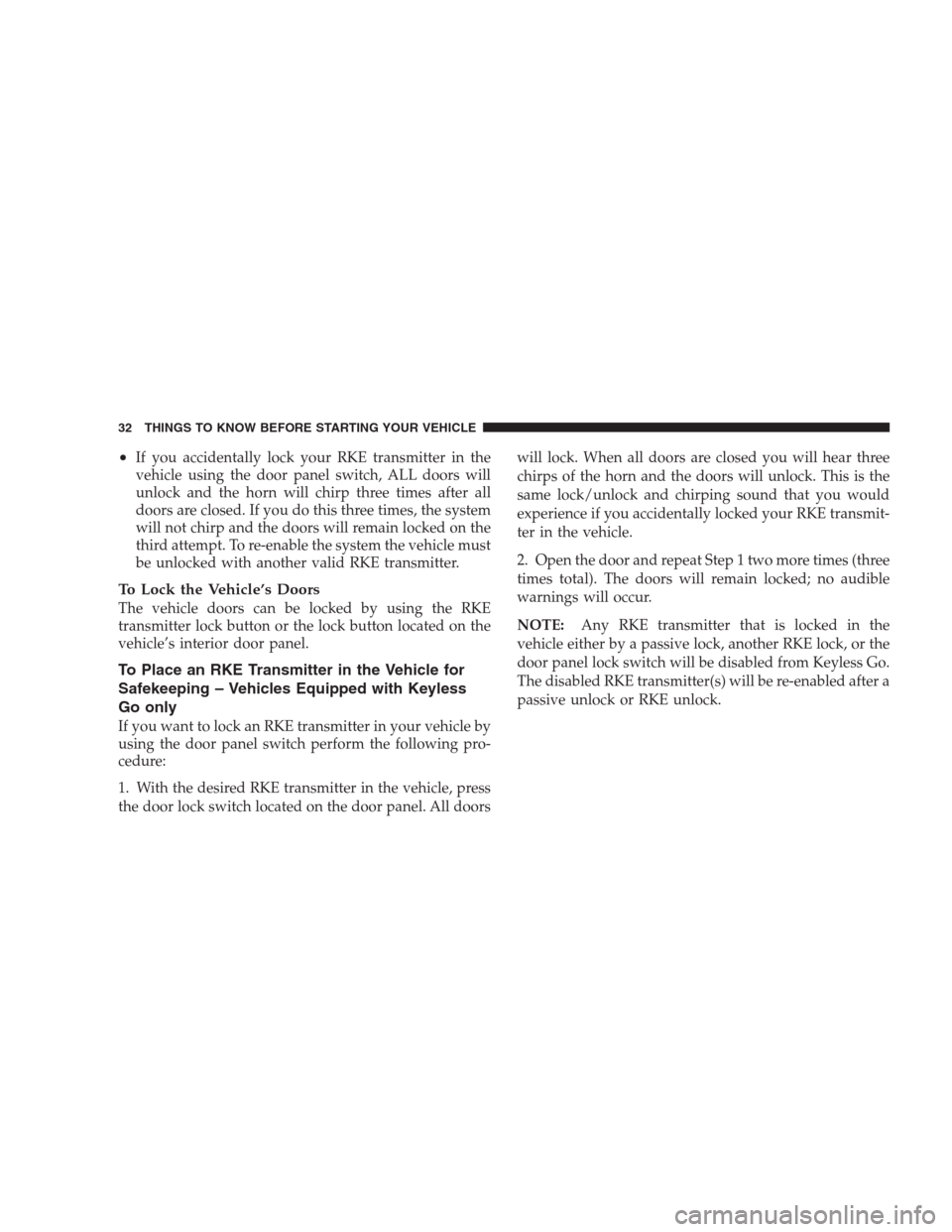

•If you accidentally lock your RKE transmitter in the
vehicle using the door panel switch, ALL doors will
unlock and the horn will chirp three times after all
doors are closed. If you do this three times, the system
will not chirp and the doors will remain locked on the
third attempt. To re-enable the system the vehicle must
be unlocked with another valid RKE transmitter.
To Lock the Vehicle’s Doors
The vehicle doors can be locked by using the RKE
transmitter lock button or the lock button located on the
vehicle’s interior door panel.
To Place an RKE Transmitter in the Vehicle for
Safekeeping – Vehicles Equipped with Keyless
Go only
If you want to lock an RKE transmitter in your vehicle by
using the door panel switch perform the following pro-
cedure:
1. With the desired RKE transmitter in the vehicle, press
the door lock switch located on the door panel. All doorswill lock. When all doors are closed you will hear three
chirps of the horn and the doors will unlock. This is the
same lock/unlock and chirping sound that you would
experience if you accidentally locked your RKE transmit-
ter in the vehicle.
2. Open the door and repeat Step 1 two more times (three
times total). The doors will remain locked; no audible
warnings will occur.
NOTE:Any RKE transmitter that is locked in the
vehicle either by a passive lock, another RKE lock, or the
door panel lock switch will be disabled from Keyless Go.
The disabled RKE transmitter(s) will be re-enabled after a
passive unlock or RKE unlock.
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 35 of 519

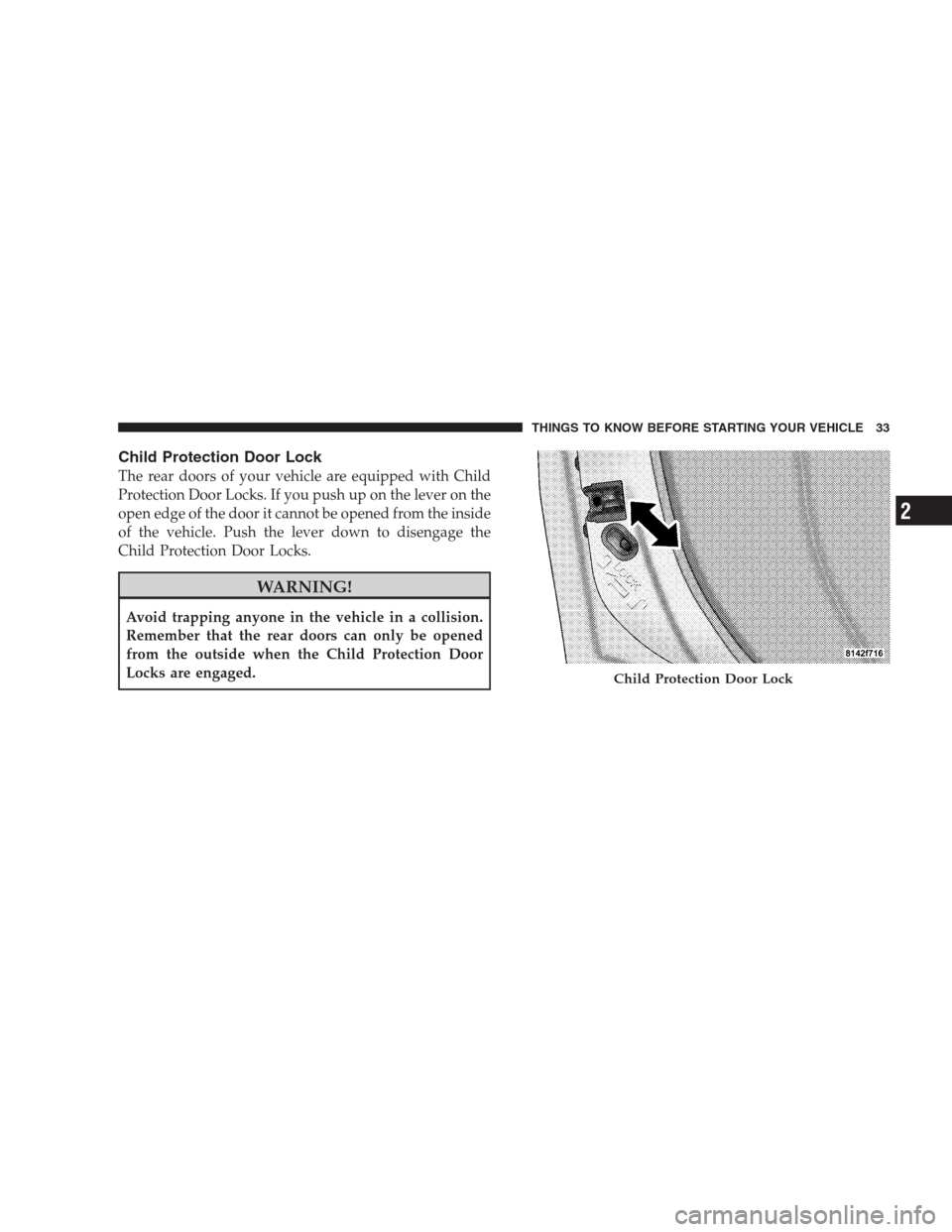

Child Protection Door Lock
The rear doors of your vehicle are equipped with Child
Protection Door Locks. If you push up on the lever on the
open edge of the door it cannot be opened from the inside
of the vehicle. Push the lever down to disengage the
Child Protection Door Locks.
WARNING!
Avoid trapping anyone in the vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the Child Protection Door
Locks are engaged.
Child Protection Door Lock
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33
2
Page 36 of 519

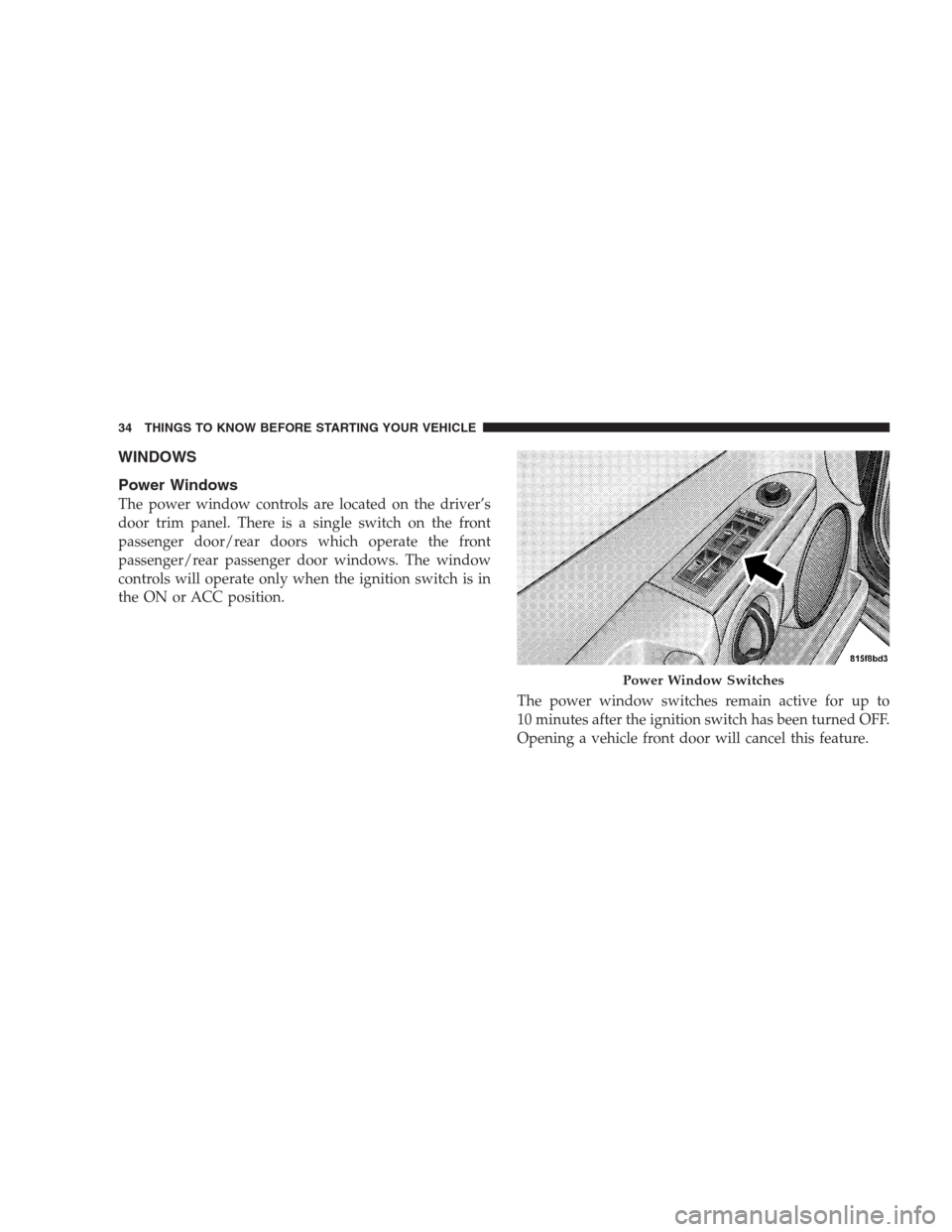

WINDOWS
Power Windows
The power window controls are located on the driver’s
door trim panel. There is a single switch on the front
passenger door/rear doors which operate the front
passenger/rear passenger door windows. The window
controls will operate only when the ignition switch is in
the ON or ACC position.
The power window switches remain active for up to
10 minutes after the ignition switch has been turned OFF.
Opening a vehicle front door will cancel this feature.
Power Window Switches
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 37 of 519

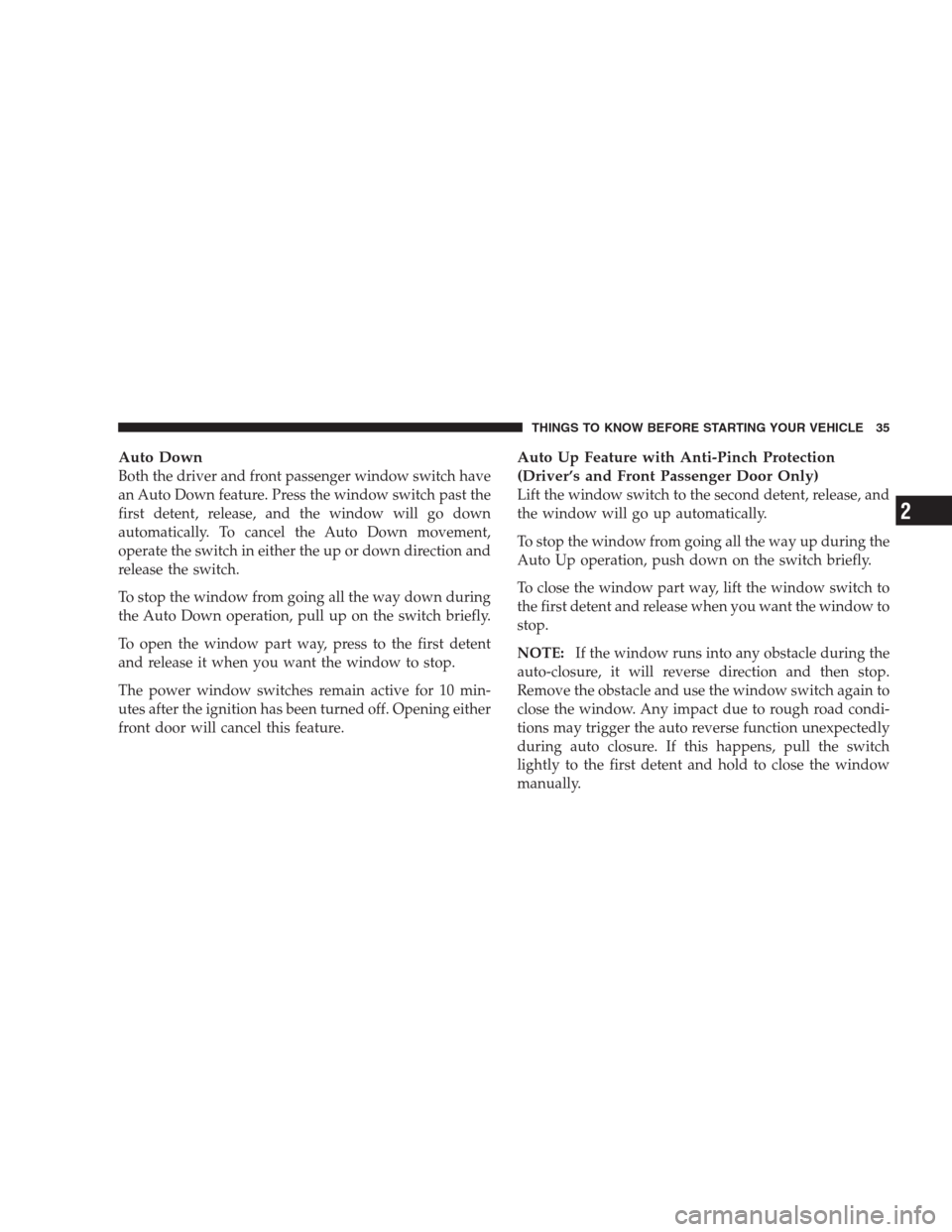

Auto Down
Both the driver and front passenger window switch have
an Auto Down feature. Press the window switch past the
first detent, release, and the window will go down
automatically. To cancel the Auto Down movement,
operate the switch in either the up or down direction and
release the switch.
To stop the window from going all the way down during
the Auto Down operation, pull up on the switch briefly.
To open the window part way, press to the first detent
and release it when you want the window to stop.
The power window switches remain active for 10 min-
utes after the ignition has been turned off. Opening either
front door will cancel this feature.
Auto Up Feature with Anti-Pinch Protection
(Driver’s and Front Passenger Door Only)
Lift the window switch to the second detent, release, and
the window will go up automatically.
To stop the window from going all the way up during the
Auto Up operation, push down on the switch briefly.
To close the window part way, lift the window switch to
the first detent and release when you want the window to
stop.
NOTE:If the window runs into any obstacle during the
auto-closure, it will reverse direction and then stop.
Remove the obstacle and use the window switch again to
close the window. Any impact due to rough road condi-
tions may trigger the auto reverse function unexpectedly
during auto closure. If this happens, pull the switch
lightly to the first detent and hold to close the window
manually.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35
2
Page 38 of 519

WARNING!
There is no anti-pinch protection when the window
is almost closed. Be sure to clear all objects from the
window before closing.
Resetting the Auto Up Feature
Should the Auto Up feature stop working, the window
probably needs to be reset. To reset Auto Up, pull the
window switch up and close the window completely,
then pull and hold the switch for one second.

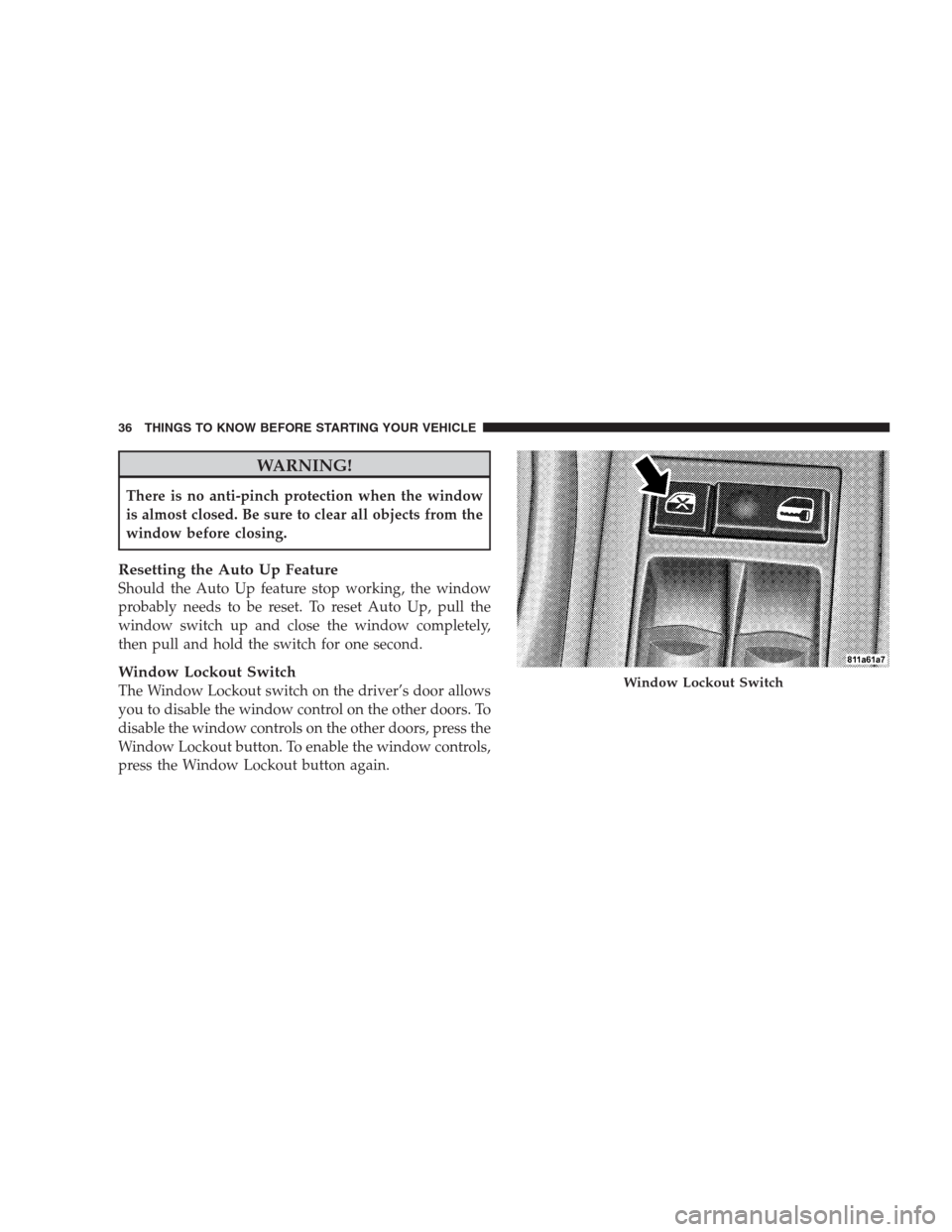

Window Lockout Switch
The Window Lockout switch on the driver’s door allows
you to disable the window control on the other doors. To
disable the window controls on the other doors, press the
Window Lockout button. To enable the window controls,
press the Window Lockout button again.Window Lockout Switch
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 39 of 519

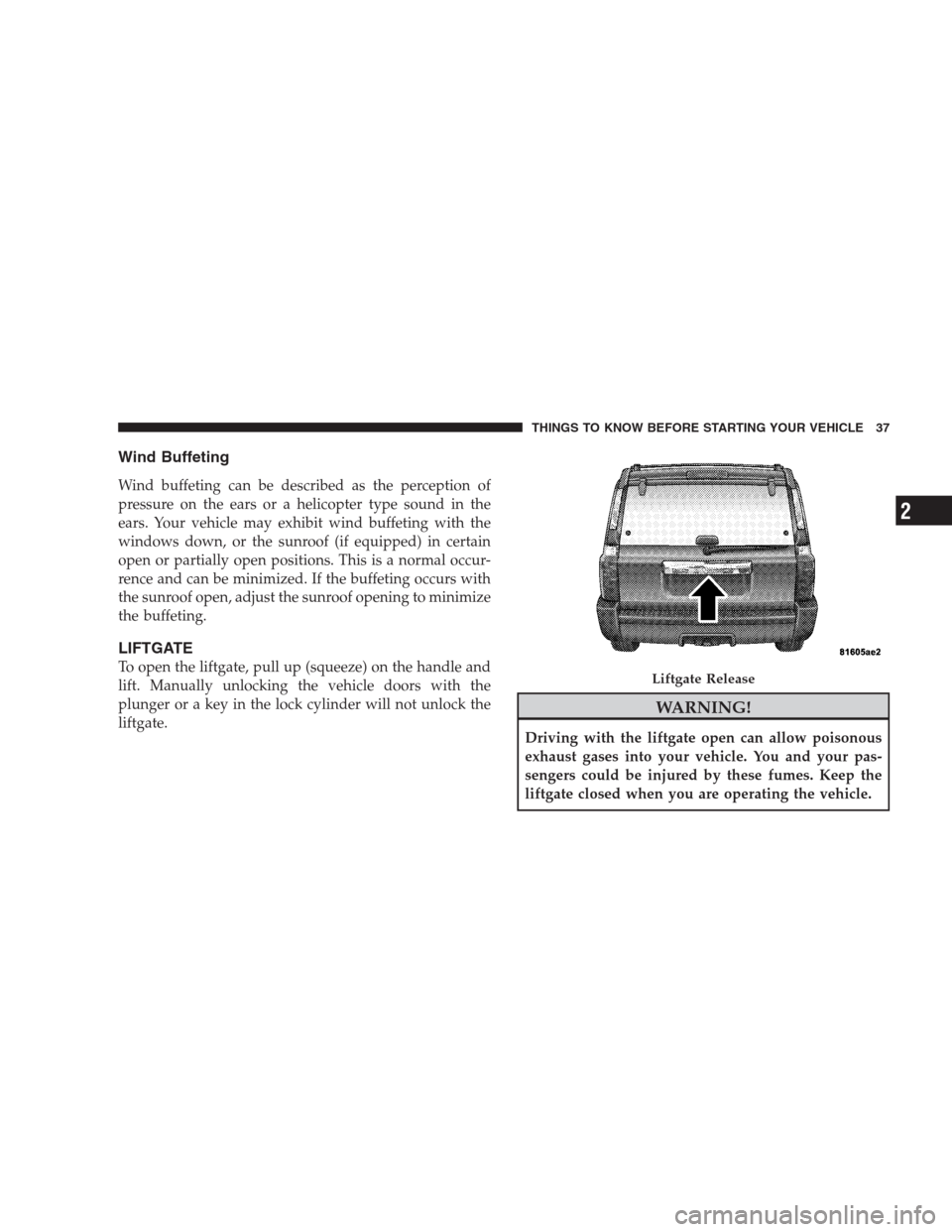

Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the sunroof open, adjust the sunroof opening to minimize
the buffeting.
LIFTGATE
To open the liftgate, pull up (squeeze) on the handle and
lift. Manually unlocking the vehicle doors with the
plunger or a key in the lock cylinder will not unlock the
liftgate.
WARNING!
Driving with the liftgate open can allow poisonous
exhaust gases into your vehicle. You and your pas-
sengers could be injured by these fumes. Keep the
liftgate closed when you are operating the vehicle.
Liftgate Release
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37
2
Page 40 of 519

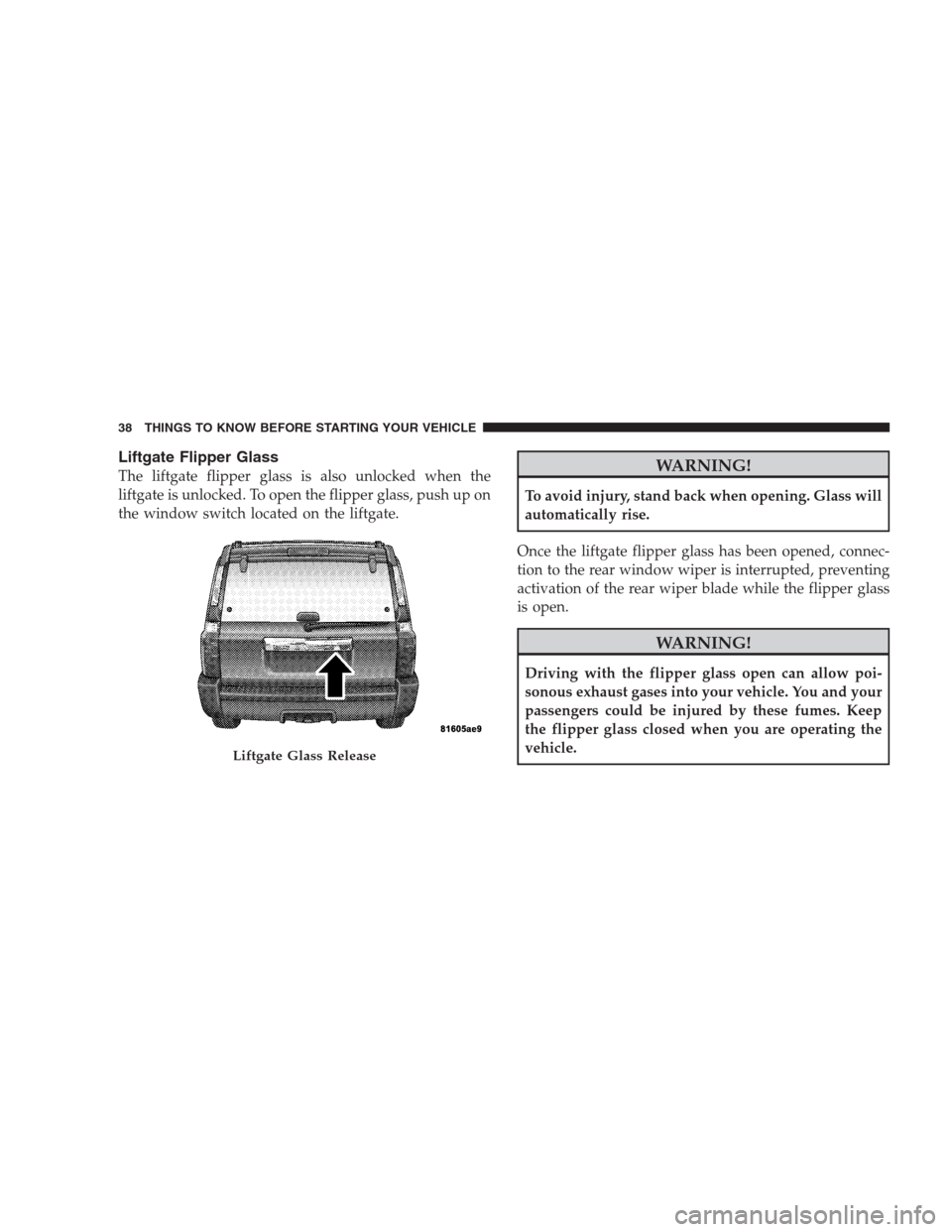

Liftgate Flipper Glass
The liftgate flipper glass is also unlocked when the
liftgate is unlocked. To open the flipper glass, push up on
the window switch located on the liftgate.WARNING!
To avoid injury, stand back when opening. Glass will
automatically rise.
Once the liftgate flipper glass has been opened, connec-
tion to the rear window wiper is interrupted, preventing
activation of the rear wiper blade while the flipper glass
is open.
WARNING!
Driving with the flipper glass open can allow poi-
sonous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the flipper glass closed when you are operating the
vehicle.
Liftgate Glass Release
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
