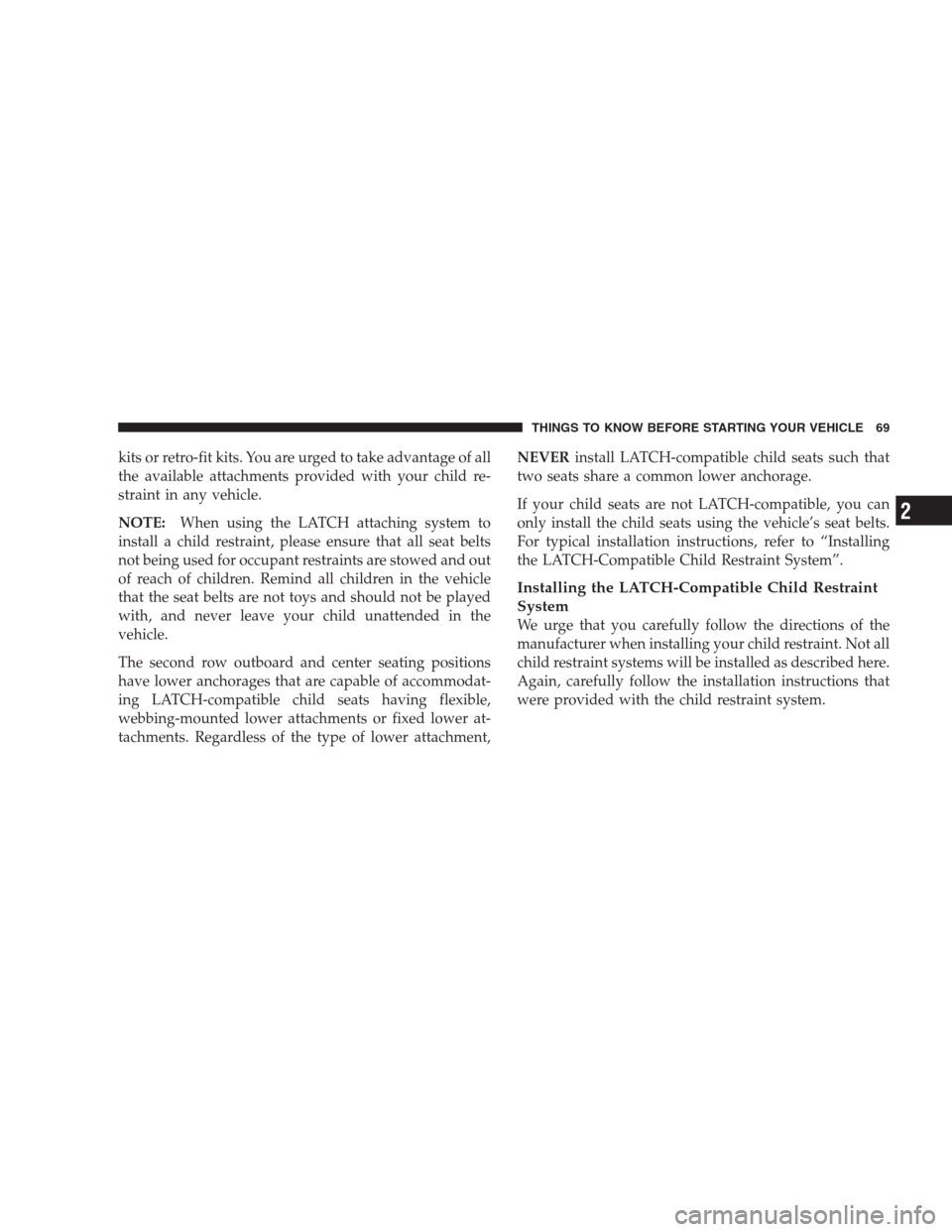

kits or retro-fit kits. You are urged to take advantage of all
the available attachments provided with your child re-
straint in any vehicle.
NOTE:When using the LATCH attaching system to
install a child restraint, please ensure that all seat belts
not being used for occupant restraints are stowed and out
of reach of children. Remind all children in the vehicle
that the seat belts are not toys and should not be played
with, and never leave your child unattended in the
vehicle.
The second row outboard and center seating positions
have lower anchorages that are capable of accommodat-
ing LATCH-compatible child seats having flexible,
webbing-mounted lower attachments or fixed lower at-
tachments. Regardless of the type of lower attachment,NEVERinstall LATCH-compatible child seats such that
two seats share a common lower anchorage.
If your child seats are not LATCH-compatible, you can
only install the child seats using the vehicle’s seat belts.
For typical installation instructions, refer to “Installing
the LATCH-Compatible Child Restraint System”.
Installing the LATCH-Compatible Child Restraint
System
We urge that you carefully follow the directions of the
manufacturer when installing your child restraint. Not all
child restraint systems will be installed as described here.
Again, carefully follow the installation instructions that
were provided with the child restraint system.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69
2

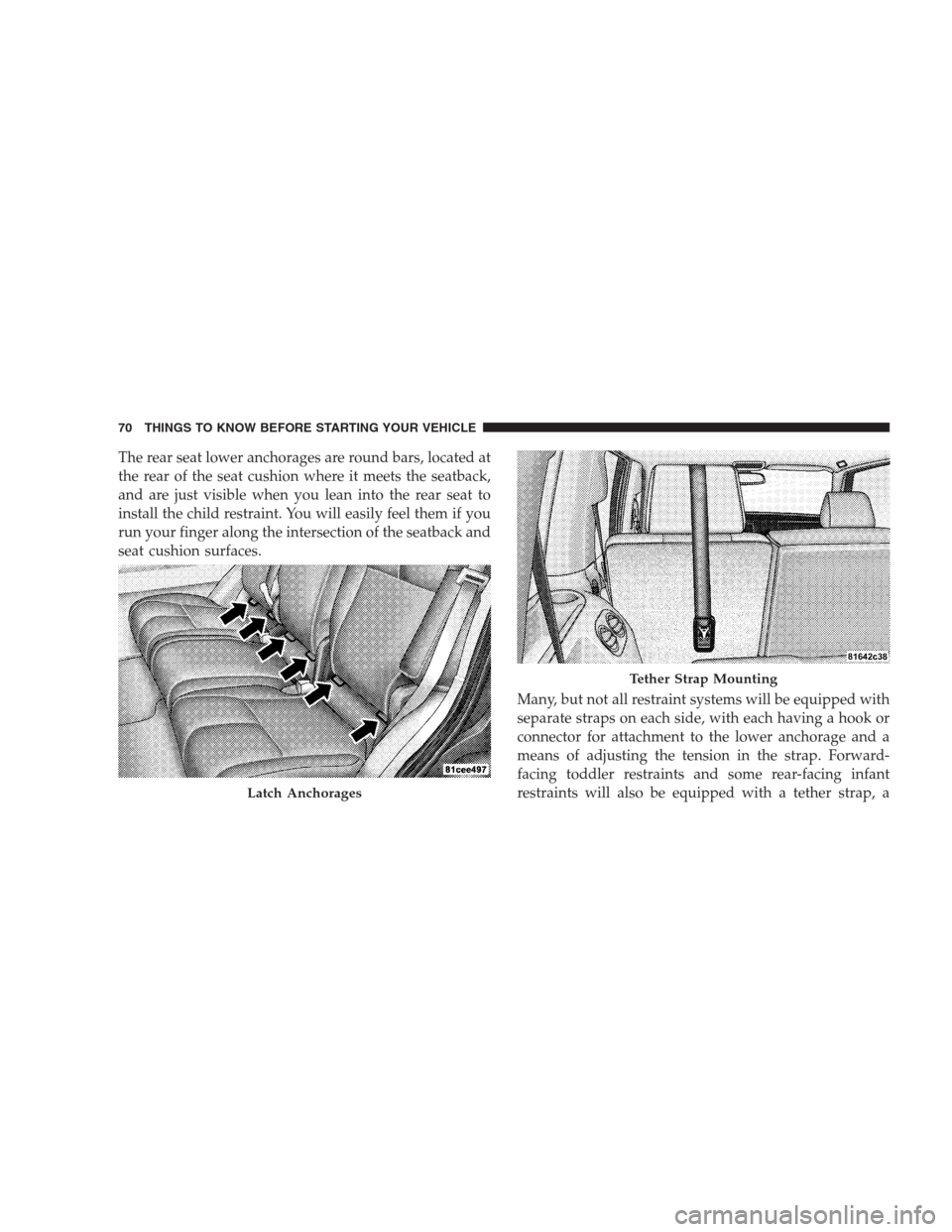

The rear seat lower anchorages are round bars, located at
the rear of the seat cushion where it meets the seatback,
and are just visible when you lean into the rear seat to
install the child restraint. You will easily feel them if you
run your finger along the intersection of the seatback and
seat cushion surfaces.
Many, but not all restraint systems will be equipped with
separate straps on each side, with each having a hook or
connector for attachment to the lower anchorage and a
means of adjusting the tension in the strap. Forward-
facing toddler restraints and some rear-facing infant
restraints will also be equipped with a tether strap, a
Latch Anchorages
Tether Strap Mounting
70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

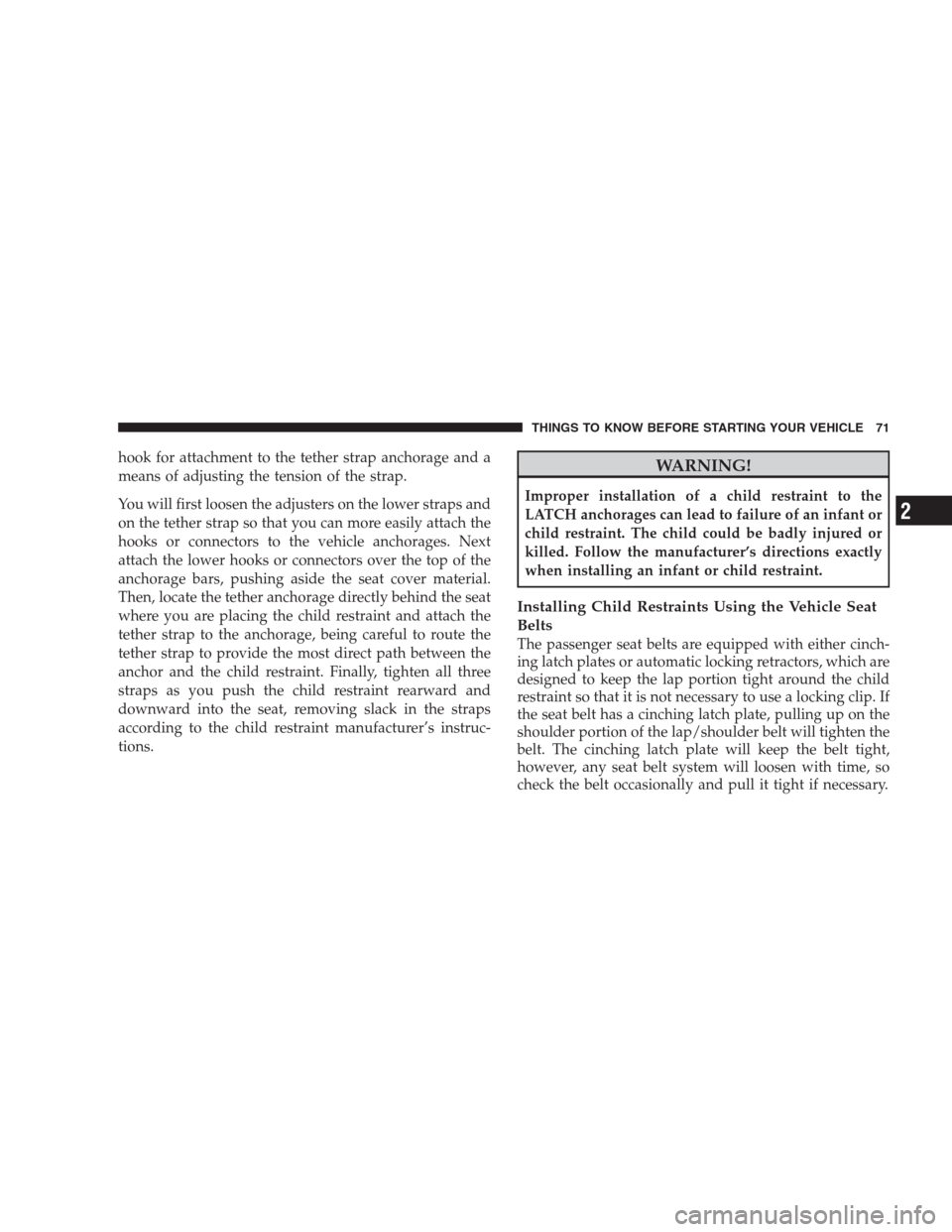

hook for attachment to the tether strap anchorage and a
means of adjusting the tension of the strap.
You will first loosen the adjusters on the lower straps and
on the tether strap so that you can more easily attach the
hooks or connectors to the vehicle anchorages. Next
attach the lower hooks or connectors over the top of the
anchorage bars, pushing aside the seat cover material.
Then, locate the tether anchorage directly behind the seat
where you are placing the child restraint and attach the
tether strap to the anchorage, being careful to route the
tether strap to provide the most direct path between the
anchor and the child restraint. Finally, tighten all three
straps as you push the child restraint rearward and
downward into the seat, removing slack in the straps
according to the child restraint manufacturer’s instruc-
tions.WARNING!
Improper installation of a child restraint to the
LATCH anchorages can lead to failure of an infant or
child restraint. The child could be badly injured or
killed. Follow the manufacturer’s directions exactly
when installing an infant or child restraint.
Installing Child Restraints Using the Vehicle Seat
Belts
The passenger seat belts are equipped with either cinch-
ing latch plates or automatic locking retractors, which are
designed to keep the lap portion tight around the child
restraint so that it is not necessary to use a locking clip. If
the seat belt has a cinching latch plate, pulling up on the
shoulder portion of the lap/shoulder belt will tighten the
belt. The cinching latch plate will keep the belt tight,
however, any seat belt system will loosen with time, so
check the belt occasionally and pull it tight if necessary.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71
2

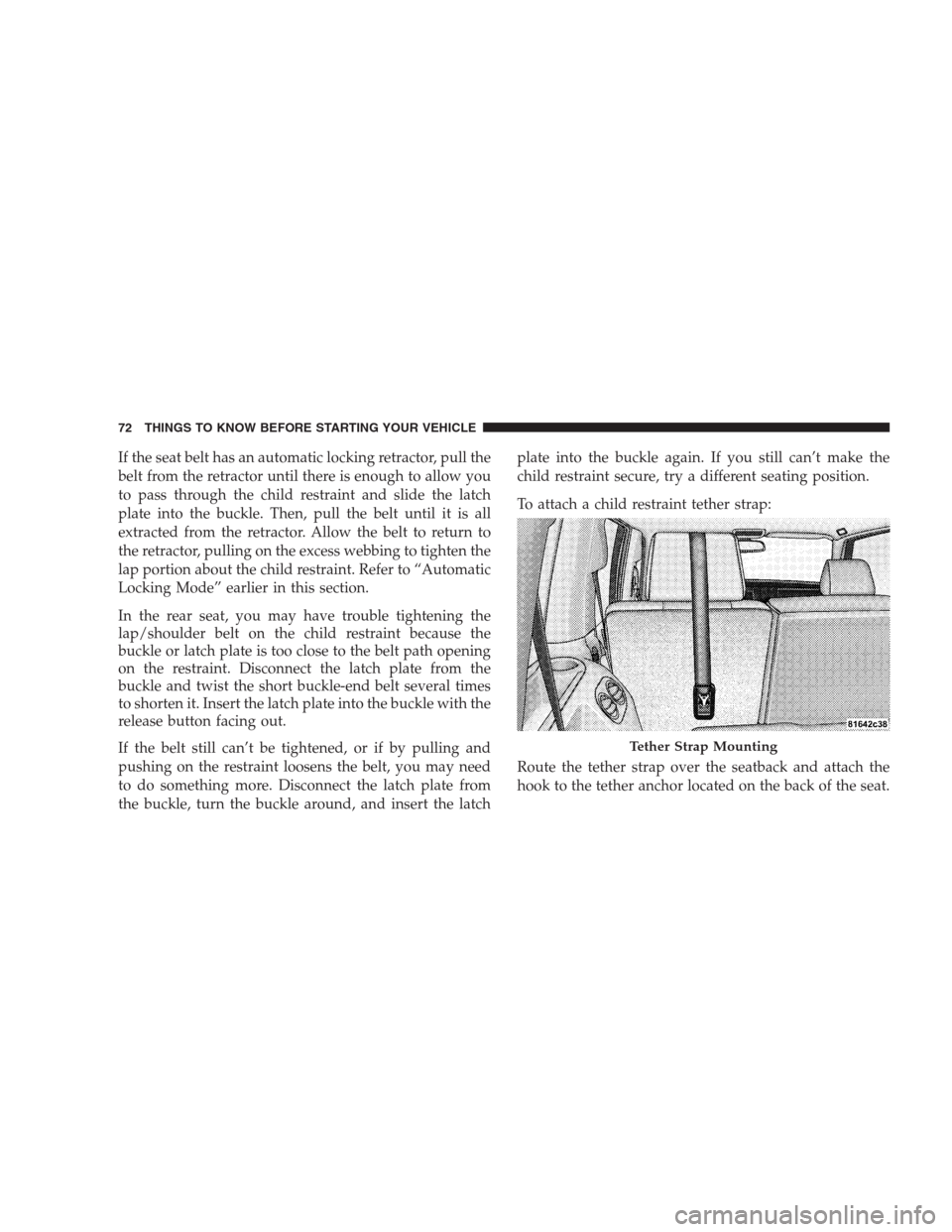

If the seat belt has an automatic locking retractor, pull the
belt from the retractor until there is enough to allow you
to pass through the child restraint and slide the latch
plate into the buckle. Then, pull the belt until it is all
extracted from the retractor. Allow the belt to return to
the retractor, pulling on the excess webbing to tighten the
lap portion about the child restraint. Refer to “Automatic
Locking Mode” earlier in this section.
In the rear seat, you may have trouble tightening the
lap/shoulder belt on the child restraint because the
buckle or latch plate is too close to the belt path opening
on the restraint. Disconnect the latch plate from the
buckle and twist the short buckle-end belt several times
to shorten it. Insert the latch plate into the buckle with the
release button facing out.
If the belt still can’t be tightened, or if by pulling and
pushing on the restraint loosens the belt, you may need
to do something more. Disconnect the latch plate from
the buckle, turn the buckle around, and insert the latchplate into the buckle again. If you still can’t make the
child restraint secure, try a different seating position.
To attach a child restraint tether strap:
Route the tether strap over the seatback and attach the
hook to the tether anchor located on the back of the seat.
Tether Strap Mounting
72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

For the outboard seating positions, route the tether over
the head rests, and attach the hook to the tether anchor
located on the back of the seat.
WARNING!
An incorrectly anchored tether strap could lead to
increased head motion and possible injury to the
child. Use only the anchor positions directly behind
the child seat to secure a child restraint top tether
strap.
Transporting Pets
Airbags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possibly
injured, or injure a passenger during panic braking or in
a collision. Pets should be restrained in the rear seat in
pet harnesses or pet carriers that are secured by seat belts.
ENGINE BREAK-IN RECOMMENDATIONS
A long break-in period is not required for the engine in
your vehicle.
Drive moderately during the first 300 miles (500 km).
After the initial 60 miles (100 km), speeds up to 50 or
55 mph (80 or 90 km/h) are desirable.
While cruising, brief full-throttle acceleration within the
limits of local traffic laws, contributes to a good break-in.
Wide-open throttle acceleration in low gear can be detri-
mental and should be avoided.
The engine oil installed in the engine at the factory is a
high-quality energy conserving type lubricant. Oil changes
should be consistent with anticipated climate conditions
under which vehicle operations will occur. The recom-
mended viscosity and quality grades are shown under
“Engine Oil”, under “Maintenance Procedures” in section 7
of this manual. NON-DETERGENT OR STRAIGHT MIN-
ERAL OILS MUST NEVER BE USED.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73
2

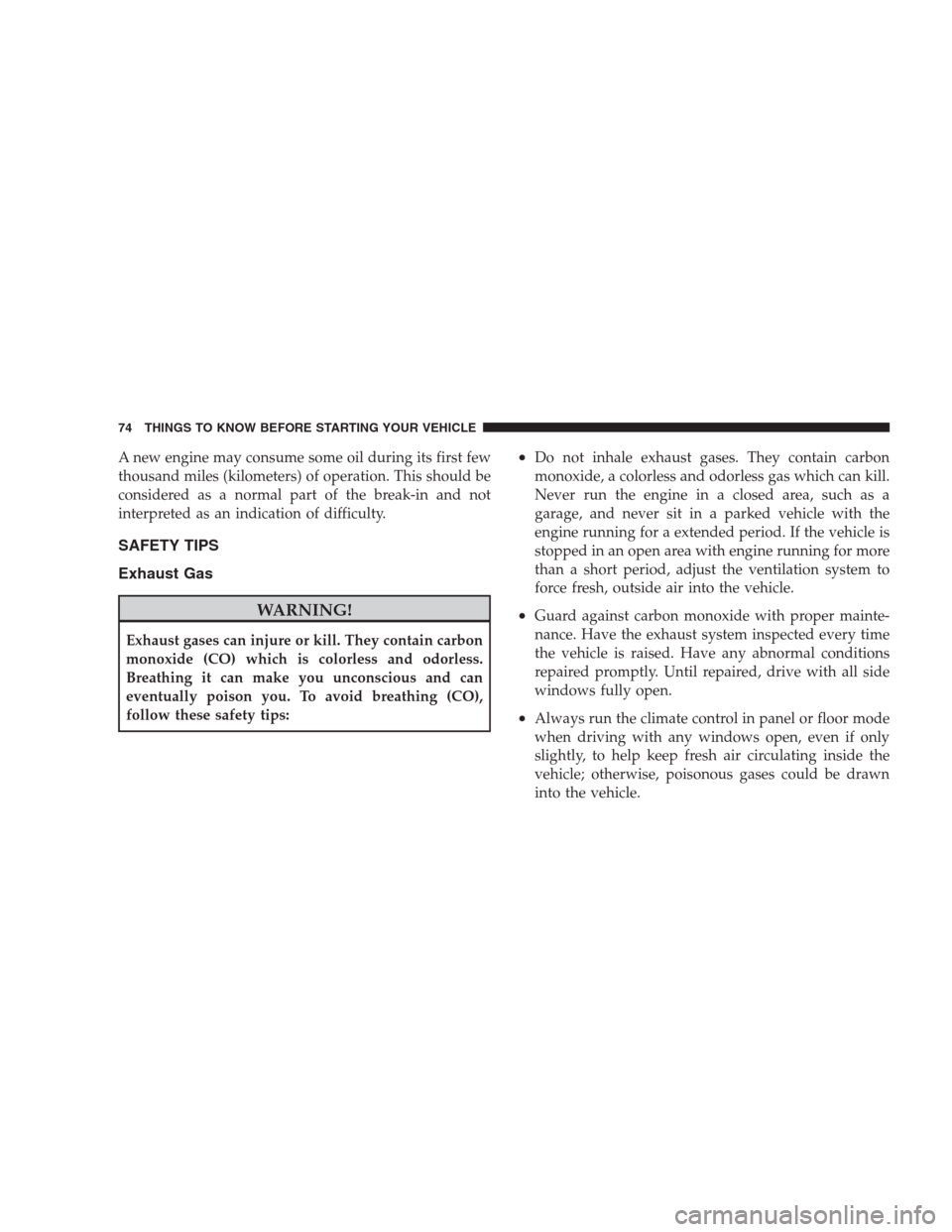

A new engine may consume some oil during its first few
thousand miles (kilometers) of operation. This should be
considered as a normal part of the break-in and not
interpreted as an indication of difficulty.
SAFETY TIPS
Exhaust Gas
WARNING!
Exhaust gases can injure or kill. They contain carbon
monoxide (CO) which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing (CO),
follow these safety tips:
•Do not inhale exhaust gases. They contain carbon
monoxide, a colorless and odorless gas which can kill.
Never run the engine in a closed area, such as a
garage, and never sit in a parked vehicle with the
engine running for a extended period. If the vehicle is
stopped in an open area with engine running for more
than a short period, adjust the ventilation system to
force fresh, outside air into the vehicle.
•Guard against carbon monoxide with proper mainte-
nance. Have the exhaust system inspected every time
the vehicle is raised. Have any abnormal conditions
repaired promptly. Until repaired, drive with all side
windows fully open.
•Always run the climate control in panel or floor mode
when driving with any windows open, even if only
slightly, to help keep fresh air circulating inside the
vehicle; otherwise, poisonous gases could be drawn
into the vehicle.
74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

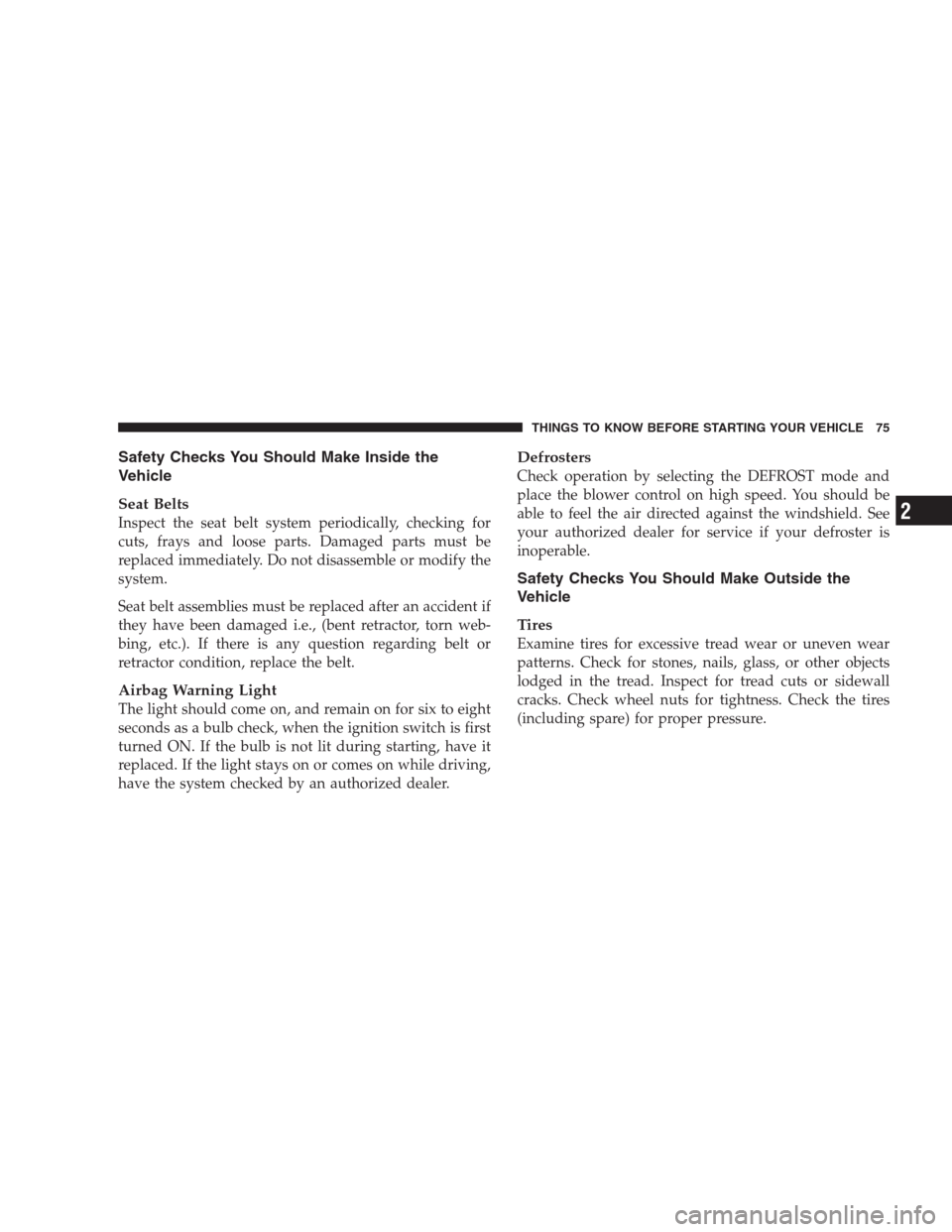

Safety Checks You Should Make Inside the
Vehicle
Seat Belts
Inspect the seat belt system periodically, checking for
cuts, frays and loose parts. Damaged parts must be
replaced immediately. Do not disassemble or modify the
system.
Seat belt assemblies must be replaced after an accident if
they have been damaged i.e., (bent retractor, torn web-
bing, etc.). If there is any question regarding belt or
retractor condition, replace the belt.
Airbag Warning Light
The light should come on, and remain on for six to eight
seconds as a bulb check, when the ignition switch is first
turned ON. If the bulb is not lit during starting, have it
replaced. If the light stays on or comes on while driving,
have the system checked by an authorized dealer.
Defrosters
Check operation by selecting the DEFROST mode and
place the blower control on high speed. You should be
able to feel the air directed against the windshield. See
your authorized dealer for service if your defroster is
inoperable.
Safety Checks You Should Make Outside the
Vehicle
Tires
Examine tires for excessive tread wear or uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect for tread cuts or sidewall
cracks. Check wheel nuts for tightness. Check the tires
(including spare) for proper pressure.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75
2

Lights
Have someone observe the operation of all exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Fluid Leaks
Check the area under the vehicle after overnight parking
for fuel, coolant, oil or other fluid leaks. Also, if gasoline
fumes are detected, the cause should be located and
corrected immediately.
76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

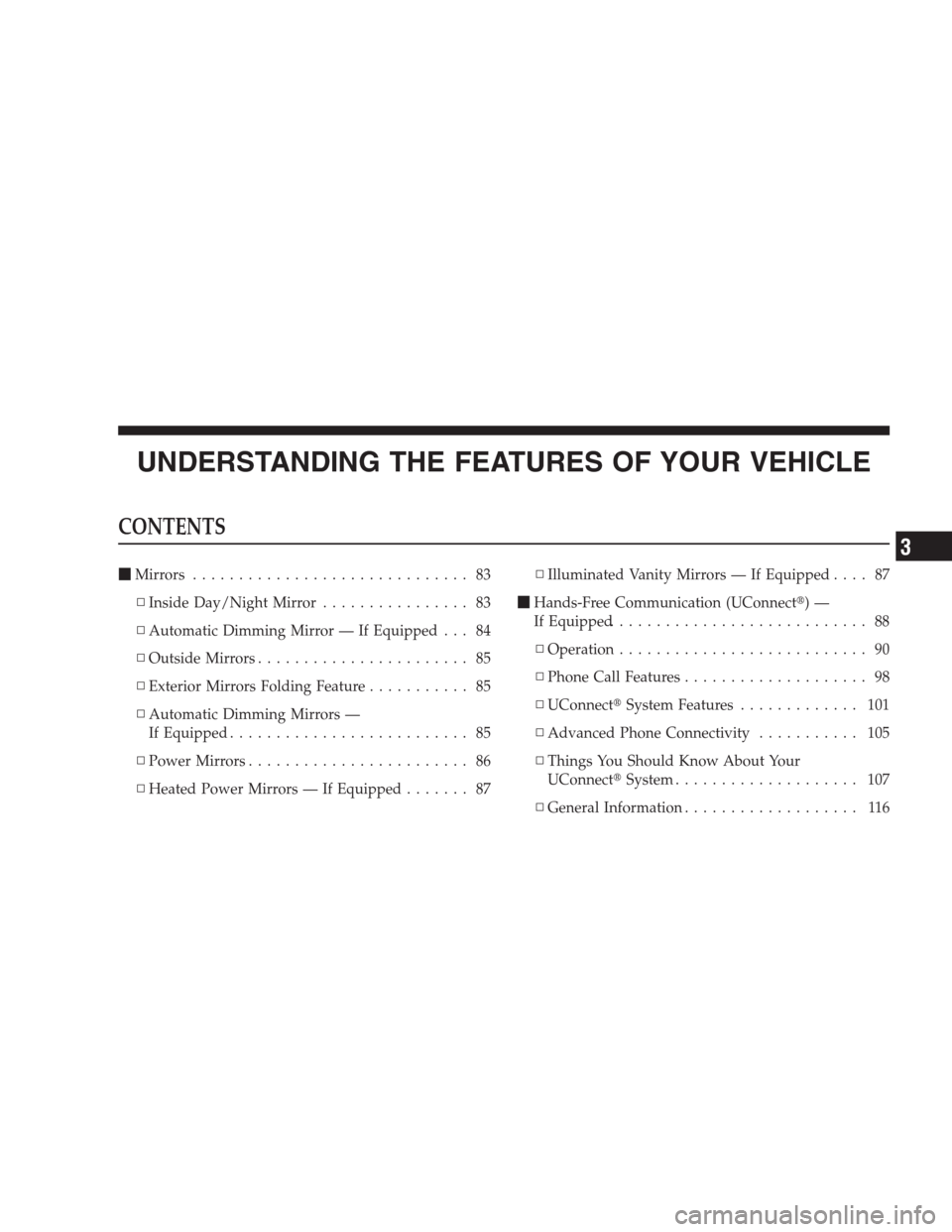

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors.............................. 83
▫Inside Day/Night Mirror................ 83
▫Automatic Dimming Mirror — If Equipped . . . 84
▫Outside Mirrors....................... 85
▫Exterior Mirrors Folding Feature........... 85
▫Automatic Dimming Mirrors —
If Equipped.......................... 85
▫Power Mirrors........................ 86
▫Heated Power Mirrors — If Equipped....... 87▫Illuminated Vanity Mirrors — If Equipped.... 87
Hands-Free Communication (UConnect)—
If Equipped............................ 88
▫Operation........................... 90
▫Phone Call Features.................... 98
▫UConnectSystem Features............. 101
▫Advanced Phone Connectivity........... 105
▫Things You Should Know About Your
UConnectSystem.................... 107
▫General Information................... 116
3

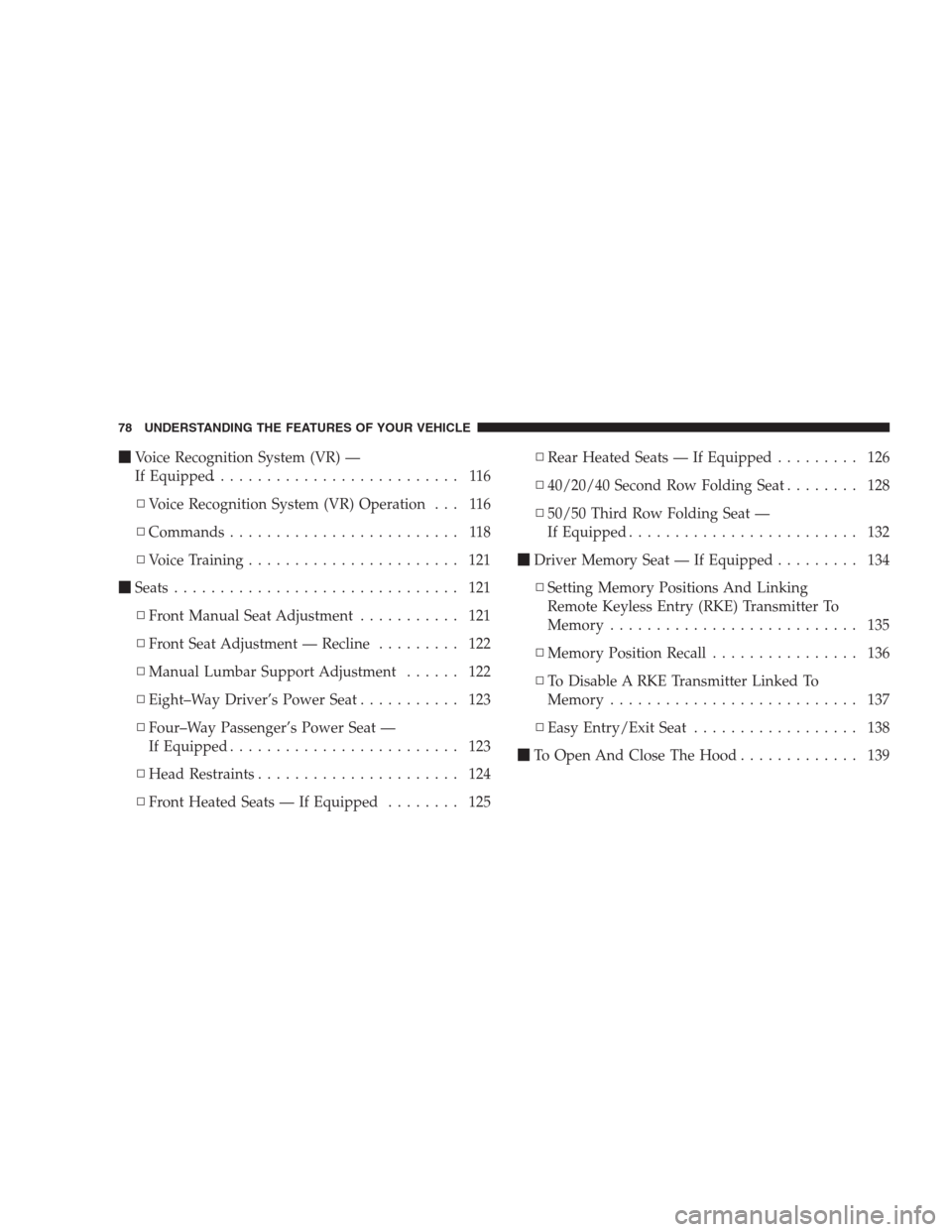

Voice Recognition System (VR) —
If Equipped........................... 116
▫Voice Recognition System (VR) Operation . . . 116
▫Commands......................... 118
▫Voice Training....................... 121
Seats............................... 121
▫Front Manual Seat Adjustment........... 121
▫Front Seat Adjustment — Recline......... 122
▫Manual Lumbar Support Adjustment...... 122
▫Eight–Way Driver’s Power Seat........... 123
▫Four–Way Passenger’s Power Seat —
If Equipped......................... 123
▫Head Restraints...................... 124
▫Front Heated Seats — If Equipped........ 125▫Rear Heated Seats — If Equipped......... 126
▫40/20/40 Second Row Folding Seat........ 128
▫50/50 Third Row Folding Seat —
If Equipped......................... 132
Driver Memory Seat — If Equipped......... 134
▫Setting Memory Positions And Linking
Remote Keyless Entry (RKE) Transmitter To
Memory........................... 135
▫Memory Position Recall................ 136
▫To Disable A RKE Transmitter Linked To
Memory........................... 137
▫Easy Entry/Exit Seat.................. 138
To Open And Close The Hood............. 139
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
