JEEP COMMANDER 2009 1.G Owners Manual

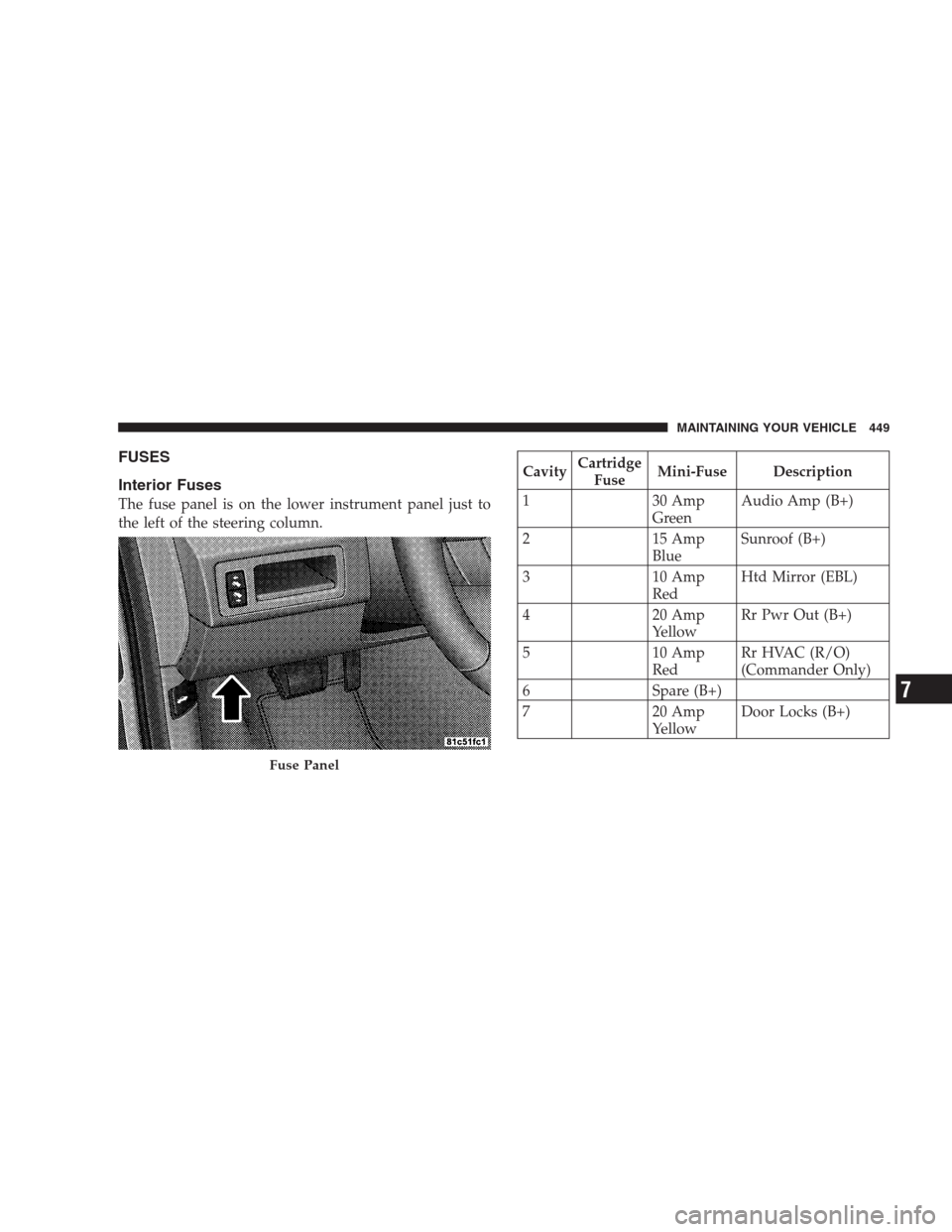

FUSES
Interior Fuses
The fuse panel is on the lower instrument panel just to
the left of the steering column.
CavityCartridge
FuseMini-Fuse Description
1 30 Amp
GreenAudio Amp (B+)
2 15 Amp
BlueSunroof (B+)
3 10 Amp
RedHtd Mirror (EBL)
4 20 Amp
YellowRr Pwr Out (B+)
5 10 Amp
RedRr HVAC (R/O)
(Commander Only)
6 Spare (B+)
7 20 Amp
YellowDoor Locks (B+)
Fuse Panel
MAINTAINING YOUR VEHICLE 449
7

CavityCartridge
FuseMini-Fuse Description
8 Spare (B+)
9 20 Amp
YellowPwr Outlet (B+)
10 10 Amp
RedFinal Drive Control
Module (FDCM),
Heater Ventilation/
Air Conditioning
(HVAC), Rear
Heated Seat Switch,
O/H, Heater
Ventilation/ Air Con-
ditioning (HVAC)
Relay, Rear Park As-
sist
11 Spare (B+)CavityCartridge
FuseMini-Fuse Description
12 10 Amp
RedDoor Mods, O/H
Lamps, IP Courtesy
Lamps, Glove Box
Lamp (B+)
13 10 Amp
RedAutowipe (R/A)
14 20 Amp
YellowCigar Ltr (R/A)
15 10 Amp
RedTire Pressure Tran-
sponders (R/O)
16 10 Amp
RedUpper & Lower
Switch Bank, Diag.
Connector, Cluster
(B+)
17 15 Amp
BlueFlipper Glass (B+)
19 Spare (R/S)
450 MAINTAINING YOUR VEHICLE

CavityCartridge
FuseMini-Fuse Description
20 10 Amp
RedSteering Column
Control Module
(SCCM), Cluster (R/
S), BUX Trailer Tow
21 Spare (Acc
Delay)
22 15 Amp
BlueRear Wiper (B+)
24 10 Amp
RedPower Distribution
Center (PDC) Relays,
Powertrain Control
Module, A580 (R/S)
25 10 Amp
RedShifter Assy (BTSI),
Trans. Case Switch,
ESP/ABS, Trailer
Sway Damp RelayUnderhood Fuses (Power Distribution Center)
CavityCartridge
FuseMini-
FuseDescription
1 50 Amp
RedPTC Heater 1 (Diesel
Only)
Power Distribution Center
MAINTAINING YOUR VEHICLE 451
7

CavityCartridge
FuseMini-
FuseDescription
2 40 Amp
GreenHID Headlamps
3 50 Amp
RedPTC Heater 2 (Diesel
Only)
4 30 Amp
PinkPower Outlets
5 50 Amp
RedPTC Heater 3 (Diesel
Only)
6 30 Amp
PinkCig Lighter, Trail Tow
Batt
7 40 Amp
GreenPower Liftgate (Com-
mander Only)
8 40 Amp
GreenStarter, JB Power
9 20 Amp
BlueFront Power Win-
dowsCavityCartridge
FuseMini-
FuseDescription
10 — Spare
11 40 Amp
GreenHVAC Blower
12 30 Amp
PinkRear Wiper, Ign R/O
13 40 Amp
GreenRear Window De-
froster (EBL)/Heated
Mirror
14 30 Amp
PinkRear HVAC (If
Equipped)
15 — Spare
16 50 Amp
RedASD
17 30 Amp
PinkABS Pump
452 MAINTAINING YOUR VEHICLE

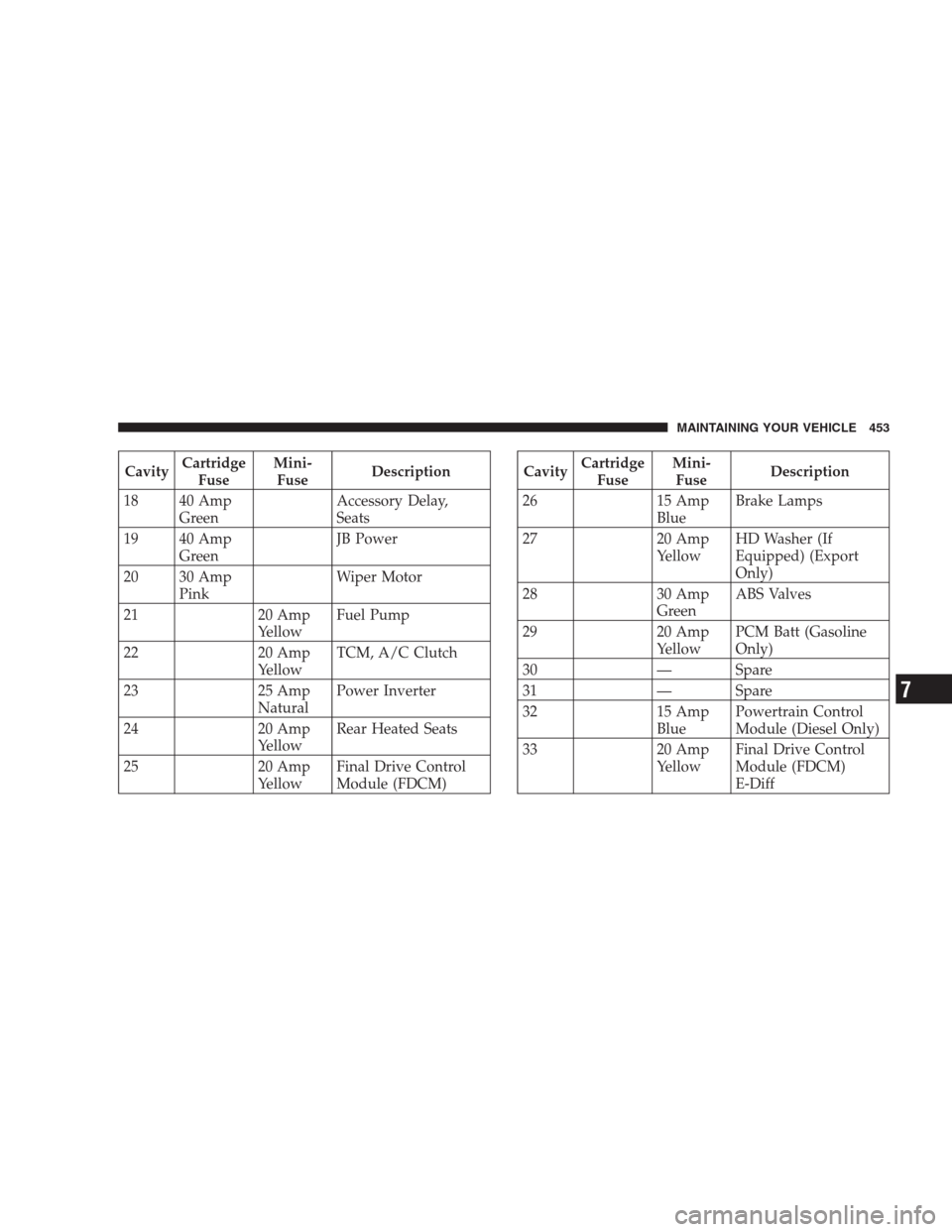

CavityCartridge
FuseMini-
FuseDescription
18 40 Amp
GreenAccessory Delay,
Seats
19 40 Amp
GreenJB Power
20 30 Amp
PinkWiper Motor
21 20 Amp
YellowFuel Pump
22 20 Amp
YellowTCM, A/C Clutch
23 25 Amp
NaturalPower Inverter
24 20 Amp
YellowRear Heated Seats
25 20 Amp
YellowFinal Drive Control
Module (FDCM)CavityCartridge
FuseMini-
FuseDescription
26 15 Amp
BlueBrake Lamps
27 20 Amp
YellowHD Washer (If
Equipped) (Export
Only)
28 30 Amp
GreenABS Valves
29 20 Amp
YellowPCM Batt (Gasoline
Only)
30 — Spare
31 — Spare
32 15 Amp
BluePowertrain Control
Module (Diesel Only)
33 20 Amp
YellowFinal Drive Control
Module (FDCM)
E-Diff
MAINTAINING YOUR VEHICLE 453
7

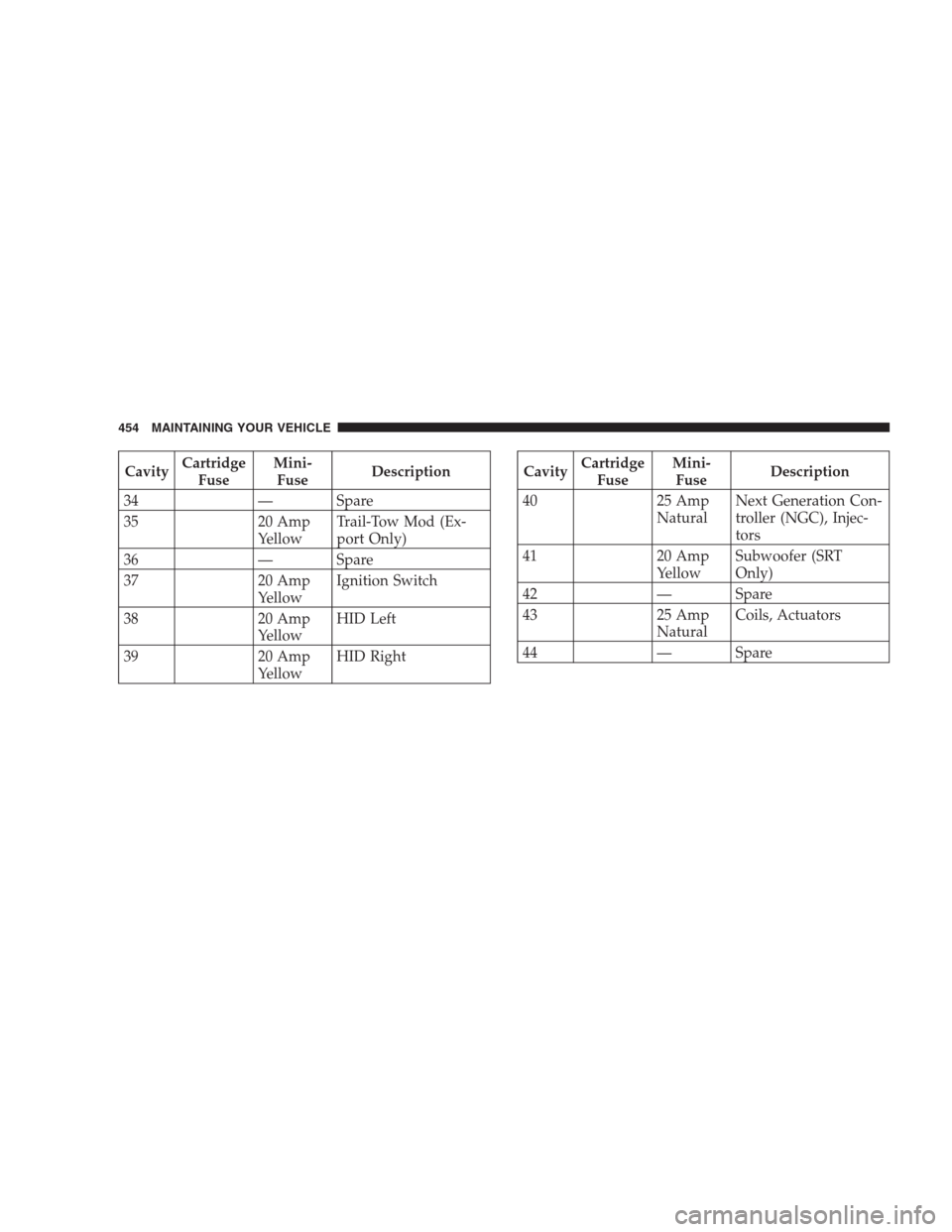

CavityCartridge
FuseMini-
FuseDescription
34 — Spare
35 20 Amp
YellowTrail-Tow Mod (Ex-
port Only)
36 — Spare
37 20 Amp
YellowIgnition Switch
38 20 Amp
YellowHID Left
39 20 Amp
YellowHID RightCavityCartridge
FuseMini-
FuseDescription
40 25 Amp
NaturalNext Generation Con-
troller (NGC), Injec-
tors
41 20 Amp
YellowSubwoofer (SRT
Only)
42 — Spare
43 25 Amp
NaturalCoils, Actuators
44 — Spare
454 MAINTAINING YOUR VEHICLE

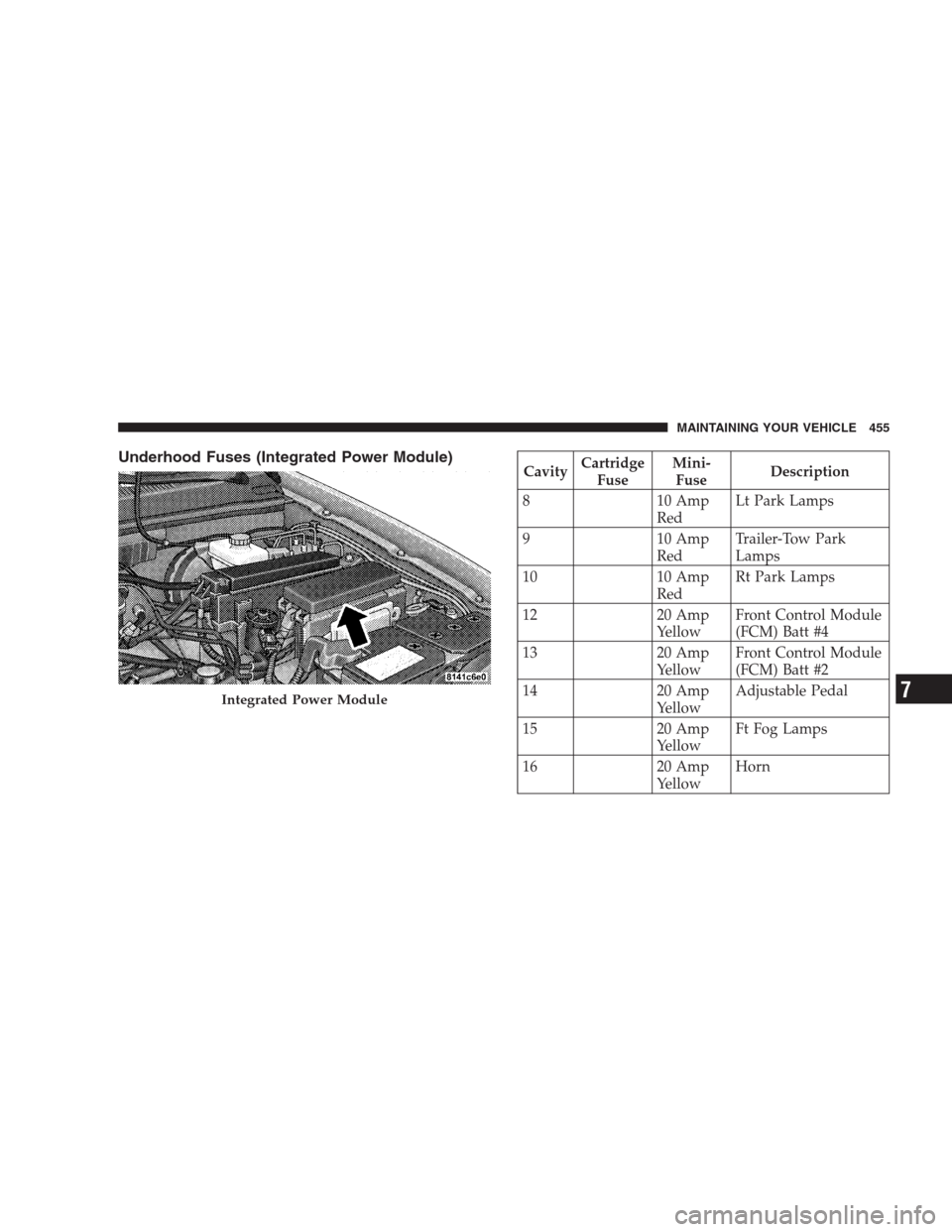

Underhood Fuses (Integrated Power Module)CavityCartridge
FuseMini-
FuseDescription
8 10 Amp
RedLt Park Lamps
9 10 Amp
RedTrailer-Tow Park
Lamps
10 10 Amp
RedRt Park Lamps
12 20 Amp
YellowFront Control Module
(FCM) Batt #4
13 20 Amp
YellowFront Control Module
(FCM) Batt #2
14 20 Amp
YellowAdjustable Pedal
15 20 Amp
YellowFt Fog Lamps
16 20 Amp
YellowHorn
Integrated Power Module
MAINTAINING YOUR VEHICLE 455
7

CavityCartridge
FuseMini-
FuseDescription
17 20 Amp
YellowRear Fog Lamps (Ex-
port Only)
18 20 Amp
YellowFront Control Module
(FCM) Batt #1
19 20 Amp
YellowLt Trailer-Tow Stop/
Turn
20 20 Amp
YellowFront Control Module
(FCM) Batt #3
21 20 Amp
YellowRt Trailer-Tow Stop/
Turn
22 30 Amp
PinkFinal Drive Control
Module (FDCM)
MOD
23 50 Amp
RedRadiator Fan
27 15 Amp
BlueIgnition Off Draw
(IOD) #1CavityCartridge
FuseMini-
FuseDescription
28 20 Amp
YellowIgnition Off Draw
(IOD) #2
29 10 Amp
RedOccupant Restraint
Controller (ORC) R/S
30 10 Amp
RedOccupant Restraint
Controller (ORC)
R/O

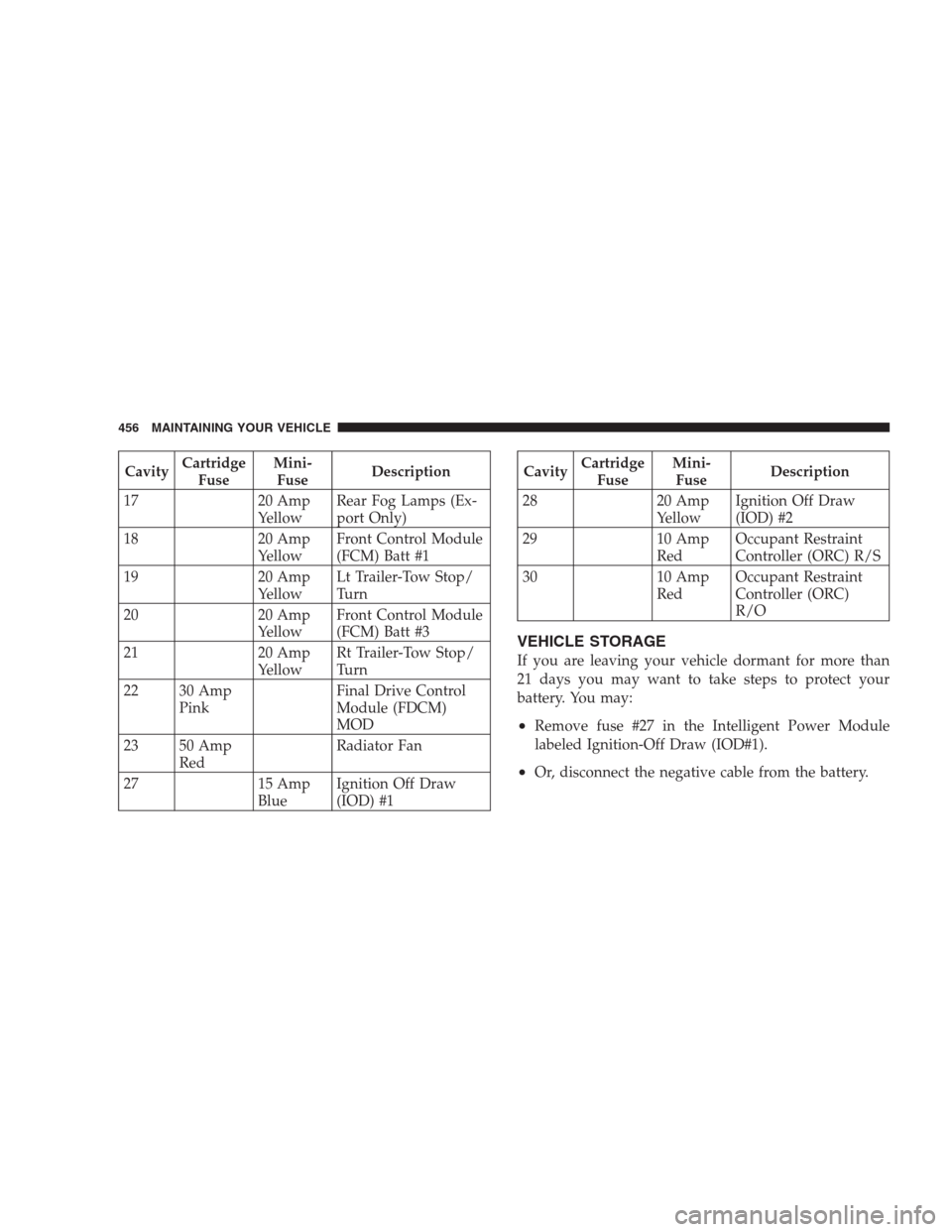

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days you may want to take steps to protect your
battery. You may:
•Remove fuse #27 in the Intelligent Power Module
labeled Ignition-Off Draw (IOD#1).
•Or, disconnect the negative cable from the battery.
456 MAINTAINING YOUR VEHICLE

•Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.

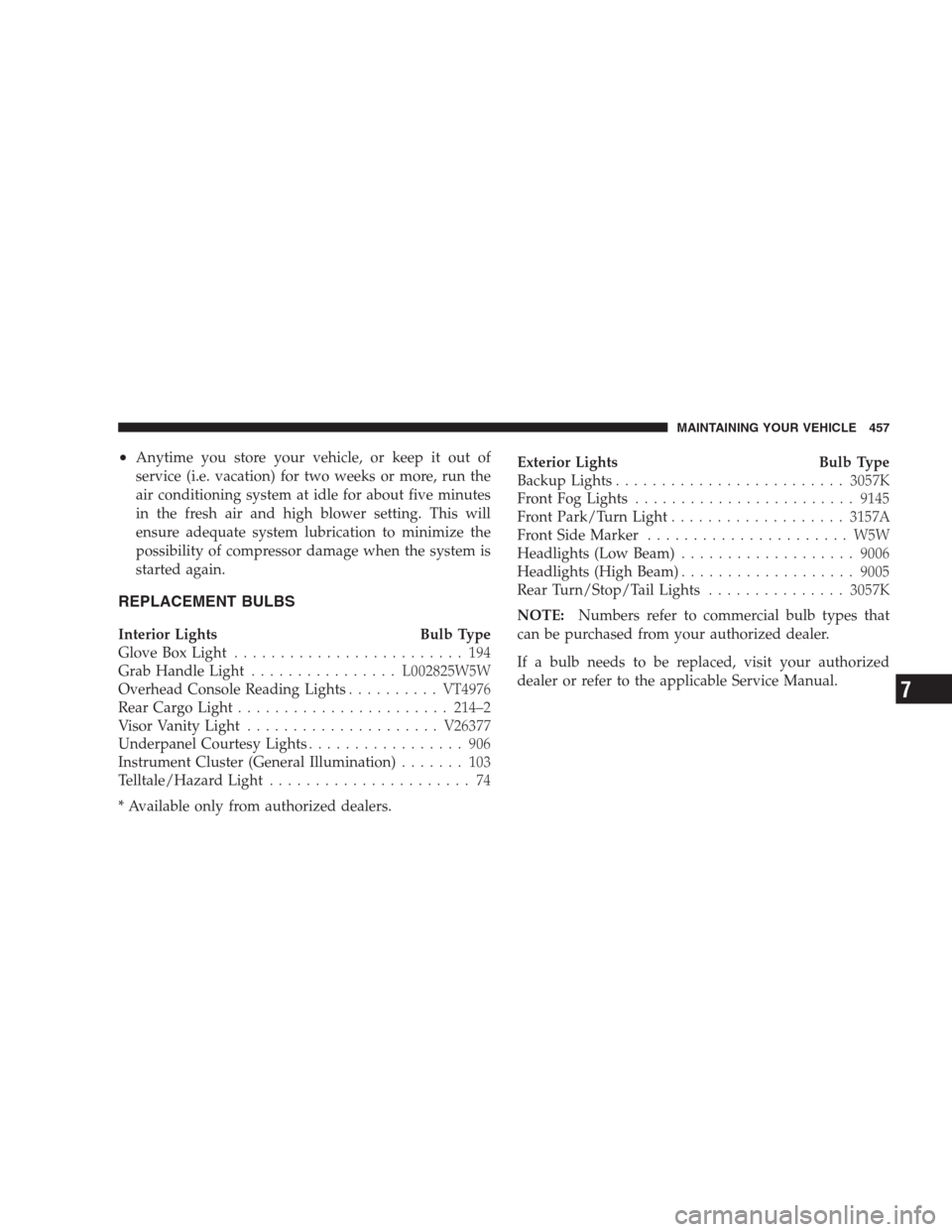

REPLACEMENT BULBS
Interior Lights Bulb Type
Glove Box Light......................... 194
Grab Handle Light................L002825W5W
Overhead Console Reading Lights..........VT4976
Rear Cargo Light.......................214–2
Visor Vanity Light.....................V26377
Underpanel Courtesy Lights................. 906
Instrument Cluster (General Illumination)....... 103
Telltale/Hazard Light...................... 74
* Available only from authorized dealers.Exterior Lights Bulb Type
Backup Lights.........................3057K
Front Fog Lights........................9145
Front Park/Turn Light...................3157A
Front Side Marker...................... W5W
Headlights (Low Beam)...................9006
Headlights (High Beam)...................9005
Rear Turn/Stop/Tail Lights...............3057K
NOTE:Numbers refer to commercial bulb types that
can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
MAINTAINING YOUR VEHICLE 457
7

BULB REPLACEMENT
Head Light
1. Open the hood.
2. Remove the headlamp cover.
Insert a finger into each hole of the headlamp cover, and
pull upward to unsnap the rear edge of the cover from
the two upper lamp mounting brackets. Slide the cover
rearward to disengage the front edge from beneath the
tab on the top near the front of the lamp housing.
