key JEEP COMMANDER 2009 1.G Service Manual

Cleaning The Rear Park Assist System
Clean the Rear Park Assist Sensors with water, car wash
soap and a soft cloth. Do not use rough or hard cloths. Do
not scratch or poke the sensors. Otherwise, you could
damage the sensors.
REAR CAMERA — IF EQUIPPED
Vehicles with a MyGiG radio may be equipped with a
rearview camera (located on the rear liftgate) that allows
you to see an on-screen image (on the navigation radio
screen) of the rear of your vehicle, whenever the vehicle
is put into REVERSE.
WARNING!
Drivers must be careful when backing up even when
using the Rear Camera System. Always check care-
fully behind your vehicle, and be sure to check for
pedestrians, animals, other vehicles, obstructions, or
blind spots before backing up. You are responsible
for the safety of your surroundings and must con-
tinue to pay attention while backing up. Failure to do
so can result in serious injury or death.
Turning the Rear Camera On or Off
1. Press themenuhard key.
2. Selectsystem set upsoft key.
3. Enable or disable the rear camera feature by selecting
enable rear camera in reversesoft key.
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

POWER SUNROOF — IF EQUIPPED
The power sunroof switch is located on the overhead
console.WARNING!
•Never leave children in a vehicle with the keys in
the ignition switch. Occupants, particularly unat-
tended children, can become entrapped by the
power sunroof while operating the power sunroof
switch. Such entrapment may result in serious
injury or death.
•In an accident, there is a greater risk of being
thrown from a vehicle with an open sunroof. You
could also be seriously injured or killed. Always
fasten your seat belt properly and make sure all
passengers are properly secured too.
•Do not allow small children to operate the sun-
roof. Never allow fingers or other body parts, or
any object to project through the sunroof opening.
Injury may result.
Power Sunroof Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169
3

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features................ 189
Instrument Cluster..................... 190
Instrument Cluster Description............ 191
Electronic Vehicle Information Center (EVIC) . . 200
▫Electronic Vehicle Information Center (EVIC)
Displays........................... 201
▫Engine Oil Change Indicator System....... 205
▫Trip Functions....................... 206
▫Keyless Go Display — If Equipped........ 209▫Compass Display..................... 210
▫Personal Settings (Customer-Programmable
Features)........................... 212
▫System Status....................... 216
Sales Code REQ — AM/FM Stereo Radio And
6–Disc CD/DVD Changer (MP3/WMA AUX
Jack)................................ 218
▫Operating Instructions - Radio Mode....... 218
▫Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 2274

5. Malfunction Indicator Light (MIL)
The Malfunction Indicator Light (MIL) is part of
an onboard diagnostic system called OBD II that
monitors engine and automatic transmission con-
trol systems. The light will illuminate when the key is in
the ON position before engine start. If the bulb does not
come on when turning the key from OFF to ON, have the
condition checked promptly.
Certain conditions such as a loose or missing gas cap,
poor fuel quality, etc. may illuminate the light after
engine start. The vehicle should be serviced if the light
stays on through several of your typical driving cycles. In
most situations the vehicle will drive normally and will
not require towing.
The Malfunction Indicator Light flashes to alert you to
serious conditions that could lead to immediate loss of
power or severe catalytic converter damage. The vehicle
should be serviced as soon as possible if this occurs.6. Airbag Warning Light
This light turns on and remains on for six to
eight seconds as a bulb check when the ignition
switch is first turned ON. If the light is not on
during starting, stays on, or turns on while
driving, have the system inspected by an authorized
dealer as soon as possible.
7. Anti-Lock Brake (ABS) Light
This light monitors the Anti-Lock Brake System
(ABS). The light will turn on when the ignition
switch is turned to the ON position and may
stay on for as long as four seconds.
If the ABS light remains on or turns on while driving, it
indicates that the Anti-Lock portion of the brake system
is not functioning and that service is required. However,
the conventional brake system will continue to operate
normally if the BRAKE warning light is not on.
UNDERSTANDING YOUR INSTRUMENT PANEL 193
4

NOTE:You must apply the brakes before shifting from
PARK.
22. Fuel Gauge
The pointer shows the level of fuel in the fuel tank when
the ignition switch is in the ON position.
23. Electronic Throttle Control (ETC) Warning Light
This light informs you of a problem with the
Electronic Throttle Control (ETC) system. If a
problem is detected, the light will come on
while the engine is running. Cycle the ignition
key when the vehicle has completely stopped, and the
shift lever is placed into the PARK position. The light
should turn off. If the light remains lit with the engine
running, your vehicle will usually be drivable; however,
see your authorized dealer for service as soon as possible.
If the light is flashing when the engine is running,
immediate service is required and you may experience
reduced performance, an elevated/rough idle or enginestall and your vehicle may require towing. The light will
come on when the ignition is first turned on and remain
on briefly as a bulb check. If the light does not come on
during starting, have the system checked by an autho-
rized dealer.
24. Front Fog Light Indicator — If Equipped
This light shows the front fog lights are ON.
25. Charging System Light
This light shows the status of the electrical charging
system. The light should come on when the ignition
switch is first turned ON and remain on briefly as a bulb
check. If the light stays on or comes on while driving, turn
off some of the vehicle’s non-essential electrical devices or
increase engine speed (if at idle). If the charging system light
remains on, it means that the vehicle is experiencing a
problem with the charging system. Obtain SERVICE IMME-
DIATELY. See an authorized dealer.
UNDERSTANDING YOUR INSTRUMENT PANEL 199
4

•DAMAGED KEY — KEY DOES NOT COMMUNI-
CATE
•KEY NOT PROGRAMMED — KEY NOT PRO-
GRAMMED
•WRONG KEY — KEY DOES NOT BELONG TO
VEHICLE
•KEY NOT PROGRAMMED — EXCEEDED KEY PRO-
GRAM LIMIT
•PROGRAMMING ACTIVE — NEW KEY PRO-
GRAMMED
•SERVICE SECURITY KEY
•DRIVER/PASSENGER DOOR OPEN (with graphic)
•LEFT/RIGHT REAR DOOR OPEN (with graphic)
•X DOORS OPEN (with graphic)
•LIFTGATE OPEN (with graphic)
•LIFTGATE/DOOR OPEN (with graphic)
•LIFTGATE/DOORS OPEN (with graphic)
•LIFTGLASS OPEN (with graphic)
•HOOD OPEN (with graphic)
•HOOD/DOOR OPEN (with graphic)
•HOOD/DOORS OPEN (with graphic)
•LIFTGATE/HOOD OPEN (with graphic)
•HOOD/GLASS/DOOR OPEN (with graphic)
•HOOD/GLASS/DOORS OPEN (with graphic)
•HOOD/GATE/DOOR OPEN (with graphic)
•HOOD/GATE/DOORS OPEN (with graphic)
•LIFTGLASS/DOOR OPEN (with graphic)
•LIFTGLASS/DOORS OPEN (with graphic)
202 UNDERSTANDING YOUR INSTRUMENT PANEL

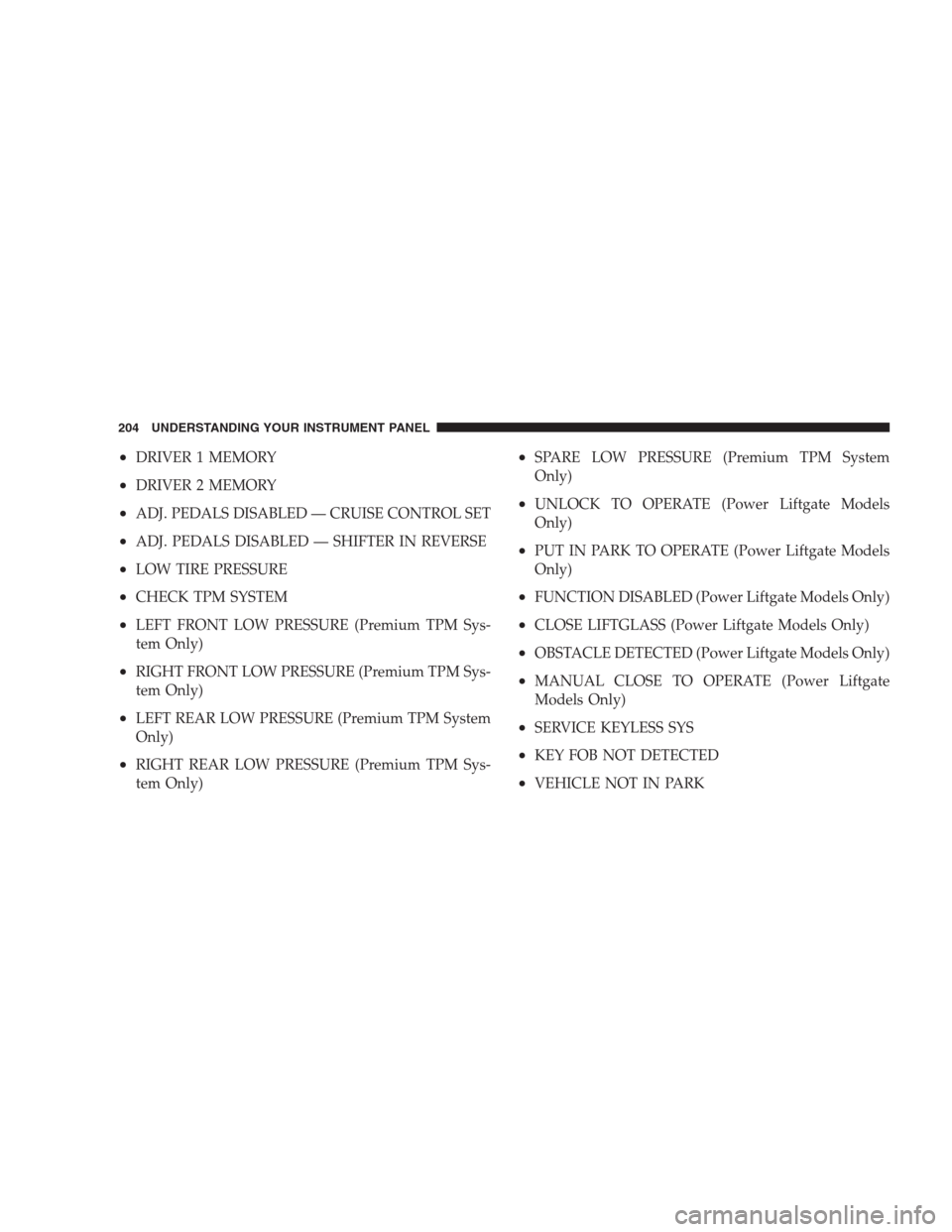

•DRIVER 1 MEMORY
•DRIVER 2 MEMORY
•ADJ. PEDALS DISABLED — CRUISE CONTROL SET
•ADJ. PEDALS DISABLED — SHIFTER IN REVERSE
•LOW TIRE PRESSURE
•CHECK TPM SYSTEM
•LEFT FRONT LOW PRESSURE (Premium TPM Sys-
tem Only)
•RIGHT FRONT LOW PRESSURE (Premium TPM Sys-
tem Only)
•LEFT REAR LOW PRESSURE (Premium TPM System
Only)
•RIGHT REAR LOW PRESSURE (Premium TPM Sys-
tem Only)
•SPARE LOW PRESSURE (Premium TPM System
Only)
•UNLOCK TO OPERATE (Power Liftgate Models
Only)
•PUT IN PARK TO OPERATE (Power Liftgate Models
Only)
•FUNCTION DISABLED (Power Liftgate Models Only)
•CLOSE LIFTGLASS (Power Liftgate Models Only)
•OBSTACLE DETECTED (Power Liftgate Models Only)
•MANUAL CLOSE TO OPERATE (Power Liftgate
Models Only)
•SERVICE KEYLESS SYS
•KEY FOB NOT DETECTED
•VEHICLE NOT IN PARK
204 UNDERSTANDING YOUR INSTRUMENT PANEL

•IGNITION POSITION
•PRESS BRAKE TO START
•PUSH BUTTON OR INSERT KEY
•TURN TO ON
•ECO – Multi-Displacement System (MDS) is activated
(if equipped with MDS)
Engine Oil Change Indicator System
Oil Change Required
Your vehicle is equipped with an engine oil change
indicator system. The “Oil Change Required” message
will flash in the EVIC display for approximately 10 sec-
onds after a single chime has sounded to indicate the next
scheduled oil change interval. The engine oil change
indicator system is duty cycle based, which means the
engine oil change interval may fluctuate dependent upon
your personal driving style.Unless reset, this message will continue to display each
time you turn the ignition switch to the ON/RUN
position. To turn off the message temporarily, press and
release the MENU button. To reset the oil change indica-
tor system (after performing the scheduled maintenance)
refer to the following procedure.
1. Turn the ignition switch to the ON position (Do not
start the engine).
2. Fully depress the accelerator pedal slowly three times
within 10 seconds.
3. Turn the ignition switch to the OFF/LOCK position.
NOTE:If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary repeat this procedure.
UNDERSTANDING YOUR INSTRUMENT PANEL 205
4

To Reset The Display
Reset will only occur while a resettable function is being
displayed. Press and release the FUNCTION SELECT
button once to clear the resettable function being dis-
played. To reset all resettable functions, press and release
the FUNCTION SELECT button a second time within
three seconds of resetting the currently displayed func-
tion (>Reset ALL will display during this three second
window).
Keyless Go Display — If Equipped
When the ENGINE START/STOP button is pressed to
change ignition states, the Keyless Go icon momentarily
appears in the EVIC display showing the new ignition
state.The round symbol in the middle rotates to point at the
new ignition state. If desired, the ignition state graphic
can be set to be constantly visible by pressing the EVIC
MENU button until the display appears.
Keyless Go Display
UNDERSTANDING YOUR INSTRUMENT PANEL 209
4

make your selection, press and release the FUNCTION
SELECT button until YES (Y) or NO (N) appears.
Remote Key Unlock
When “Driver Door 1st Press” is selected, only the driver’s
door will unlock on the first press of the Remote Keyless
Entry (RKE) transmitter UNLOCK button. When “Driver
Door 1st Press” is selected, you must press the RKE trans-
mitter UNLOCK button twice to unlock the passenger’s
doors. When “All Doors 1st Press” is selected, all of the
doors will unlock on the first press of the RKE transmitter
UNLOCK button. To make your selection, press and release
the FUNCTION SELECT button until “Driver Door 1st
Press” or “All Doors 1st Press” appears.
NOTE:If the vehicle is equipped with Passive Entry
and the EVIC is programmed to Unlock All Doors 1st
Press, all doors will unlock no matter which handle is
grasped. If Driver Door 1st Press is programmed, only
the driver ’s door will unlock when the driver ’s door is
grasped. With Passive Entry, if Driver Door 1st Press isprogrammed touching the handle more than once will
only result in the driver ’s door opening. You have to
touch a passenger handle to unlock all doors passively
when Driver ’s Door Only is programmed in the EVIC.
Sound Horn with Lock
When YES (Y) is selected, a short horn sound will occur
when the RKE transmitter LOCK button is pressed. This
feature may be selected with or without the flash lights
on lock/unlock feature. To make your selection, press
and release the FUNCTION SELECT button until YES (Y)
or NO (N) appears.
Flash Lamps with Lock
When YES (Y) is selected, the front and rear turn signals
will flash when the doors are locked or unlocked with the
RKE transmitter. This feature may be selected with or
without the “Sound Horn with Lock” feature. To make
your selection, press and release the FUNCTION SE-
LECT button until YES (Y) or NO (N) appears.
UNDERSTANDING YOUR INSTRUMENT PANEL 213
4
