VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days you may want to take steps to protect your
battery. You may:
•Remove fuse #27 in the Intelligent Power Module
labeled Ignition-Off Draw (IOD#1).
•Or, disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior LightsBulb Type
Glove Box Lamp ......................... 194
Grab Handle Lamp ................ L002825W5W
Overhead Console Reading Lamps .........VT4976
Rear Cargo Lamp ....................... 214–2
Visor Vanity Lamp ..................... V26377
Underpanel Courtesy Lamps ................ 906
Instrument Cluster (General Illumination) ....... 103
Telltale/Hazard Lamp ...................... 74
* Available only from authorized dealers.
Exterior Lights Bulb Type
Backup Lamps ......................... 3057K
Front Fog Lamps ........................ 9145
Front Park/Turn Lamp ................... 3157A
Front Side Marker ...................... W5W
Headlamps (Low Beam) ................... 9006
Headlamps (High Beam) ..................9005
Rear Turn/Stop/Tail Lamps ...............3057K
400 MAINTAINING YOUR VEHICLE
Page 401 of 460
NOTE:Numbers refer to commercial bulb types that
can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
BULB REPLACEMENT
Head Lamp
1. Open the hood.
2. Disconnect the electrical connector.
3. Turn the low or high beam bulb 1/4 turn counterclock-
wise to unlock it from the housing.
4. Pull the bulb and base straight out from the opening in
the reflector.
1 — Low Beam Bulb
2 — High Beam Bulb
3 — Front Park/Turn Signal Bulb
7
MAINTAINING YOUR VEHICLE 401
Page 402 of 460
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Front Turn Signal
1. Turn the steering wheel all the way to the left or right.
2. Reach into the front wheel house ahead of the front
wheel to unsnap and lift the cover over the access hole in
the front of the wheel house splash shield. Access to the
bulb can be gained through the wheel liner hole.3. Reach through the access hole to access the park/turn
signal bulb socket on the bottom of the front lamp unit
housing.
402 MAINTAINING YOUR VEHICLE
Page 403 of 460
4. Turn the socket on the bottom of the front lamp unit
housing 1/4 turn counterclockwise to unlock it.5. Pull the socket and bulb straight out from the opening
in the housing.
6. Disconnect the electrical connector.
7. Pull the base of the bulb straight out of the socket.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Front Fog Lamp
1. Turn the steering wheel all the way to the left or right.
1 — Low Beam Bulb
2 — High Beam Bulb
3 — Front Park/Turn Signal Bulb
7
MAINTAINING YOUR VEHICLE 403
Page 404 of 460
2. Reach into the front wheel house ahead of the front
wheel to unsnap and lift the cover over the access hole in
the front of the wheel house splash shield. Access to the
bulb can be gained through the wheel liner hole.
3. Reach through the access hole to access the back of the
front fog lamp housing on the back of the front fascia.
4. Disconnect the electrical connector.5. Turn the socket on the back of the housing 1/4 turn
counterclockwise to unlock it.
6. Pull the socket and bulb straight out from the opening
in the housing.
7. Pull the base of the bulb straight out of the socket.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Rear Tail, Stop, Turn Signal, and Backup Lamps
1. Raise the liftgate.
2. Remove the two push-pins that secure the rear lamp
unit to the side of the liftgate opening.
404 MAINTAINING YOUR VEHICLE
Page 405 of 460
3. Pull the outboard side of the rear lamp unit rearward
far enough to unsnap the two ball studs on the outboard
side of the lamp housing from the two plastic grommets
in the quarter outer panel. Pull the lamp unit rearward
far enough away to access the bulbs.4. Firmly grasp the appropriate bulb socket on the back
of the rear lamp unit housing, and turn 1/4 turn coun-
terclockwise to unlock it.
1 — Rear Backup Lamp Bulb
2 — Rear Park/Stop Lamp Bulb
3 — Rear Park/Turn Signal Bulb
4 — Rear Side Marker Lamp Bulb
7
MAINTAINING YOUR VEHICLE 405
Page 406 of 460
5. Disconnect the electrical connector.
6. Pull the socket and bulb straight out from the opening
in the housing.
7. Pull the base of the bulb straight out of the socket.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.

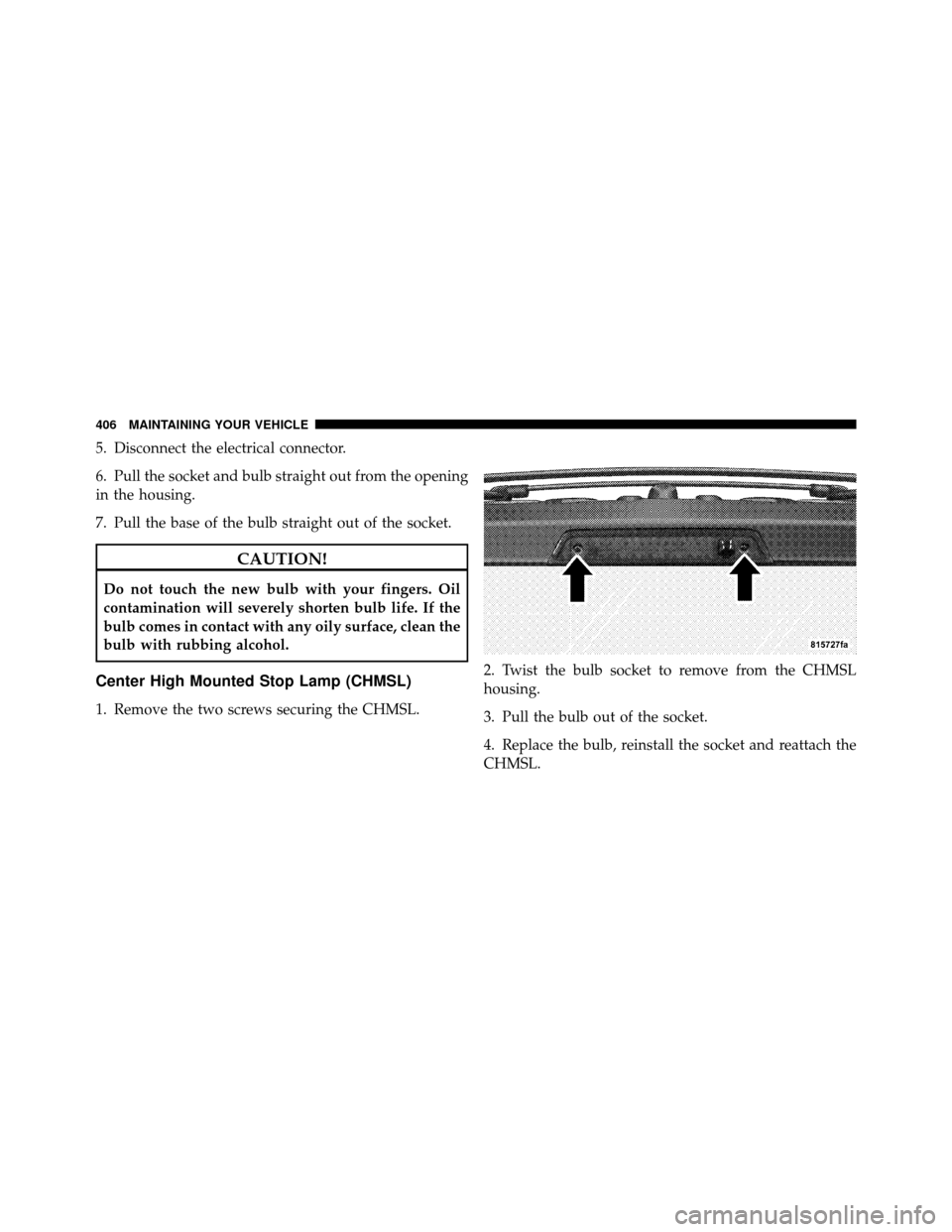

Center High Mounted Stop Lamp (CHMSL)
1. Remove the two screws securing the CHMSL.2. Twist the bulb socket to remove from the CHMSL
housing.
3. Pull the bulb out of the socket.
4. Replace the bulb, reinstall the socket and reattach the
CHMSL.
406 MAINTAINING YOUR VEHICLE
