Rear Park Assist — If Equipped ........... 122
▫ Rear Park Assist Sensors ............... 122
▫ Rear Park Assist Warning Display ........ 123
▫ Enable/Disable The Rear Park Assist ...... 124
▫ Service The Rear Park Assist ............ 125
▫ Cleaning The Rear Park Assist ........... 125
▫ System Usage Precautions .............. 125
 Rear Camera — If Equipped .............. 128
▫ Turning The Rear Camera On Or Off — With
Navigation Radio .................... 129
▫ Turning The Rear Camera On Or Off —
Without Navigation Radio .............. 130
 Overhead Console — If Equipped .......... 130
 Garage Door Opener — If Equipped ........ 130▫
Programming HomeLink .............. 132
▫ Gate Operator/Canadian Programming .... 134
▫ Using HomeLink ................... 135
▫ Reprogramming A Single HomeLink
Button ............................ 135
▫ Security ........................... 135
▫ Troubleshooting Tips .................. 136
▫ General Information .................. 136
 Power Sunroof — If Equipped ............ 137
▫ Opening Sunroof — Express ............ 138
▫ Closing Sunroof — Express ............. 138
▫ Pinch Protect Feature ................. 138
▫ Pinch Protect Override ................ 138
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirrors
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.
WARNING!
Vehicles and other objects seen in the passenger-side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger-side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in the passenger-side mirror.
Exterior Mirrors Folding Feature
All exterior mirrors are hinged and may be moved either
forward or rearward to resist damage. The hinges have
three detent positions; full forward, full rearward and
normal.
Automatic Dimming Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83

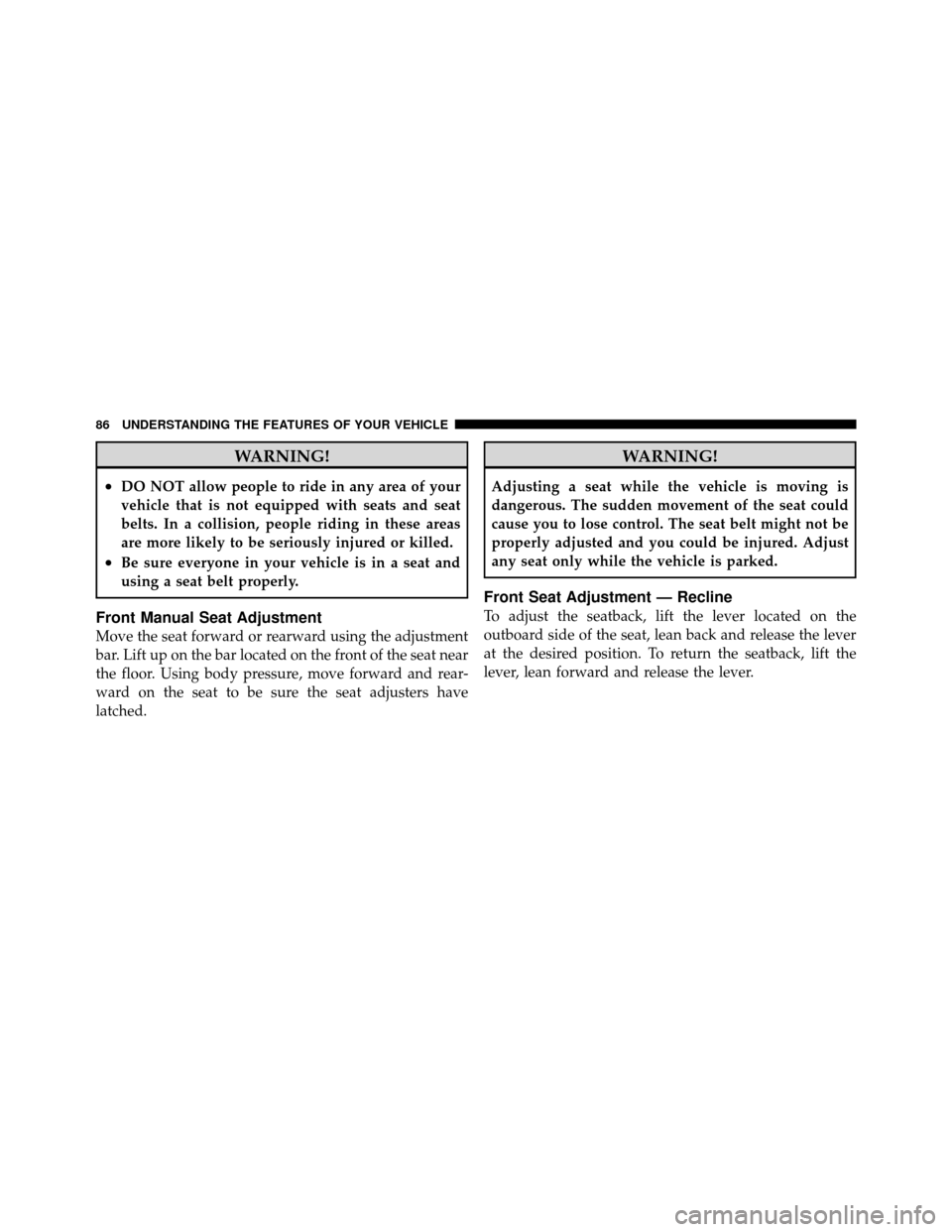

WARNING!
•DO NOT allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts. In a collision, people riding in these areas
are more likely to be seriously injured or killed.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Front Manual Seat Adjustment
Move the seat forward or rearward using the adjustment
bar. Lift up on the bar located on the front of the seat near
the floor. Using body pressure, move forward and rear-
ward on the seat to be sure the seat adjusters have
latched.
WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Adjust
any seat only while the vehicle is parked.
Front Seat Adjustment — Recline
To adjust the seatback, lift the lever located on the
outboard side of the seat, lean back and release the lever
at the desired position. To return the seatback, lift the
lever, lean forward and release the lever.
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Do not ride with the seatback reclined so that the seat
belt is no longer resting against your chest. In a
collision you could slide under the seat belt and be
seriously or even fatally injured. Use the recliner
only when the vehicle is parked.
Manual Lumbar Support Adjustment
The manual lumbar support adjustment lever is located
on the right side of the driver’s seatback and on the left
side of the passenger’s seatback (if equipped). Moving
the lumbar control lever fore and aft increases or de-
creases the lumbar support.
Manual Lumbar Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87

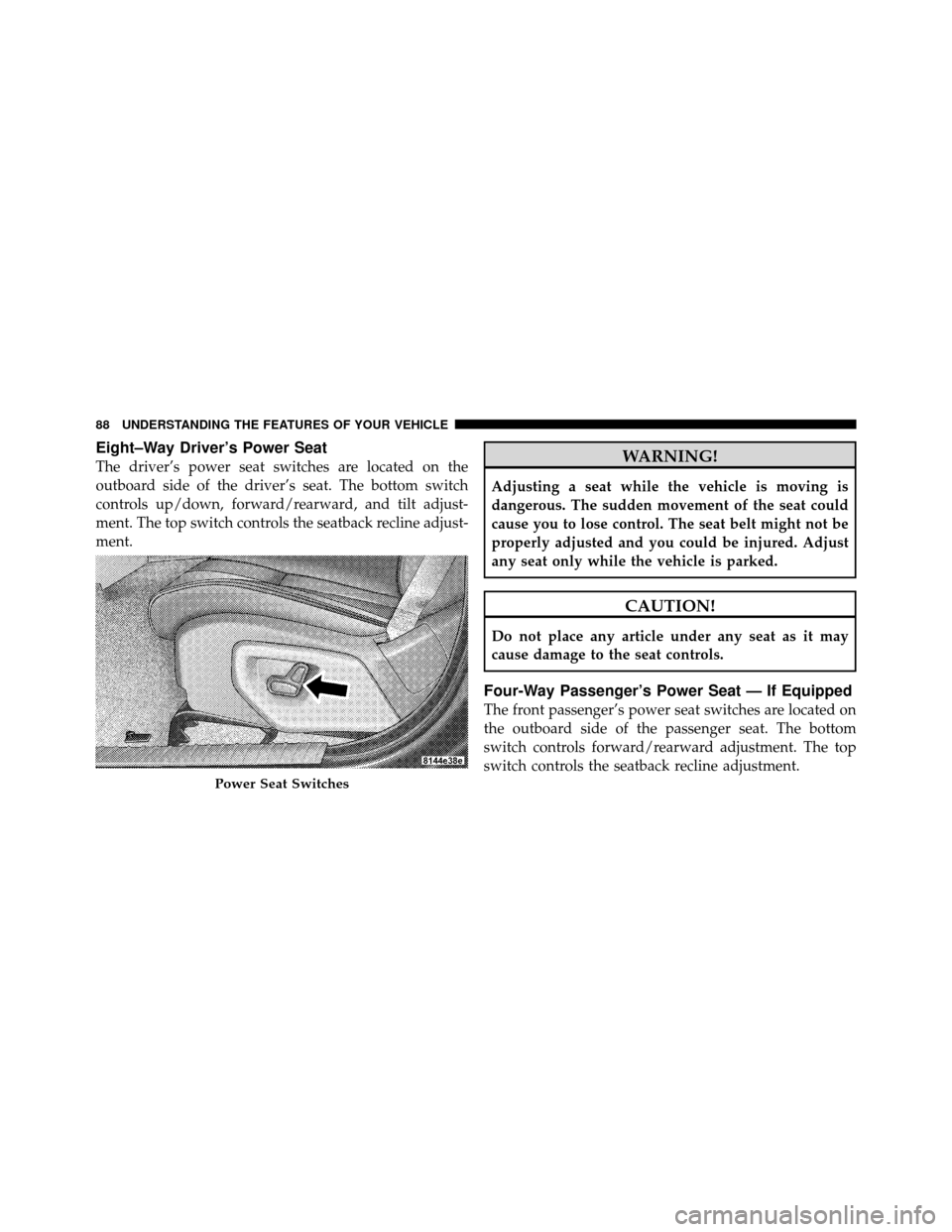

Eight–Way Driver’s Power Seat
The driver’s power seat switches are located on the
outboard side of the driver’s seat. The bottom switch
controls up/down, forward/rearward, and tilt adjust-
ment. The top switch controls the seatback recline adjust-
ment.WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Adjust
any seat only while the vehicle is parked.
CAUTION!
Do not place any article under any seat as it may
cause damage to the seat controls.
Four-Way Passenger’s Power Seat — If Equipped
The front passenger’s power seat switches are located on
the outboard side of the passenger seat. The bottom
switch controls forward/rearward adjustment. The top
switch controls the seatback recline adjustment.
Power Seat Switches
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

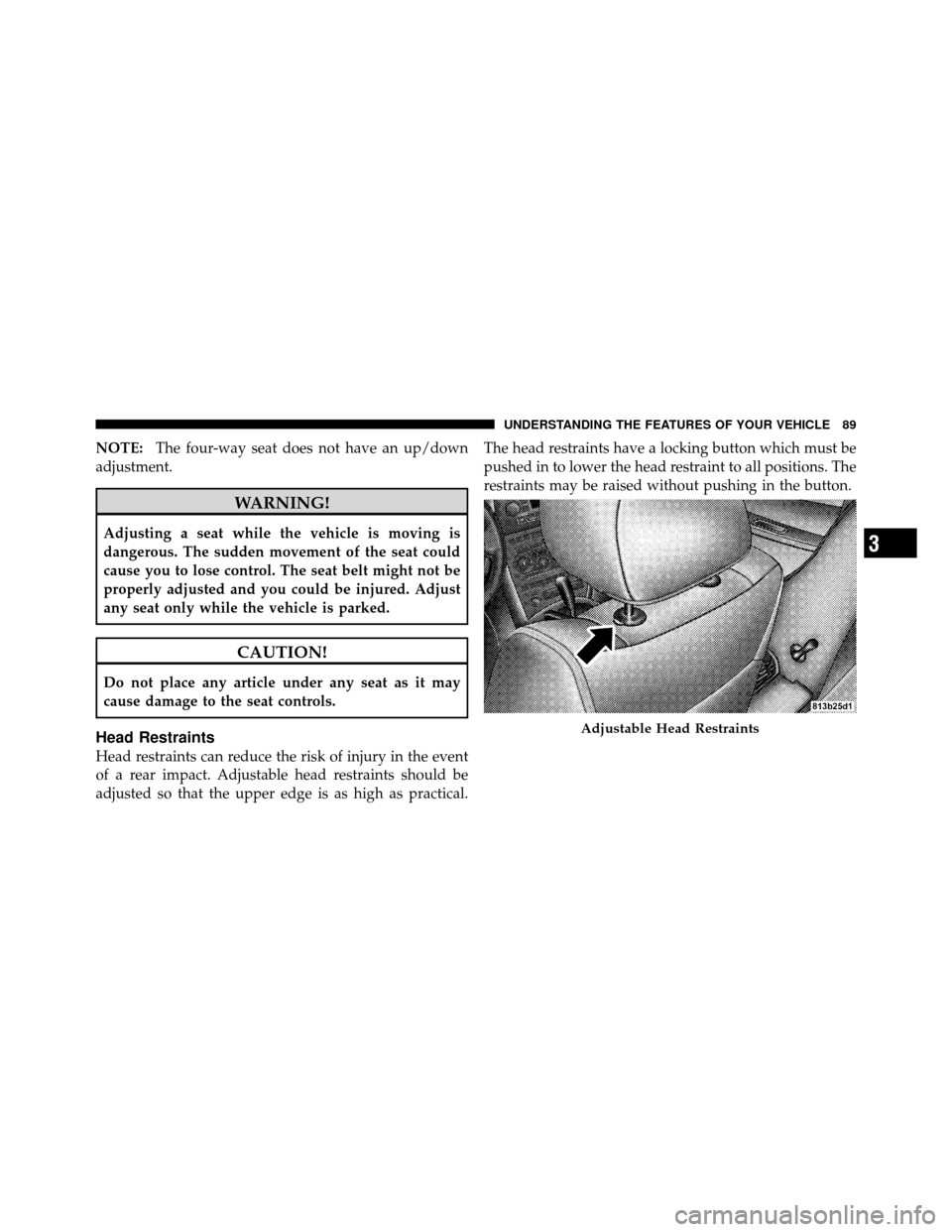

NOTE:The four-way seat does not have an up/down
adjustment.
WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Adjust
any seat only while the vehicle is parked.
CAUTION!
Do not place any article under any seat as it may
cause damage to the seat controls.
Head Restraints
Head restraints can reduce the risk of injury in the event
of a rear impact. Adjustable head restraints should be
adjusted so that the upper edge is as high as practical. The head restraints have a locking button which must be
pushed in to lower the head restraint to all positions. The
restraints may be raised without pushing in the button.
Adjustable Head Restraints
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89

WARNING!
Driving a vehicle with the head restraints removed or
improperly adjusted could cause serious injury or
death in the event of a collision. The head restraints
should always be checked prior to operating the
vehicle and never adjusted while the vehicle is in
motion. Always adjust the head restraints when the
vehicle is in PARK.
Front Heated Seats — If Equipped
The controls for each heater are located near the bottom
center of the instrument panel (below the heater/air
conditioning controls).
After turning the ignition ON, you can choose from High,
Low or Off heat settings. Amber indicator lights in each
switch indicate the level of heat in use. Two indicator
lights will illuminate for High, one for Low and none for
Off.Press the switch once to select High-level heat-
ing. Press the switch a second time to select
Low-level heating. Press the switch a third time
to shut the heating elements Off.
When High-level heating is selected, the heaters provide
a boosted heat level during the first four minutes of
operation after heating is activated. The heat output then
drops to the normal High-level. If High-level heating is
selected, the system will automatically switch to the
Low-level after approximately 30 minutes of continuous
operation. At that time, the number of illuminated LEDs
changes from two to one, indicating the change. Opera-
tion on the Low-level setting also turns Off automatically
after approximately 30 minutes.
NOTE: Once a heat setting is selected, heat will be felt
within two to five minutes.
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

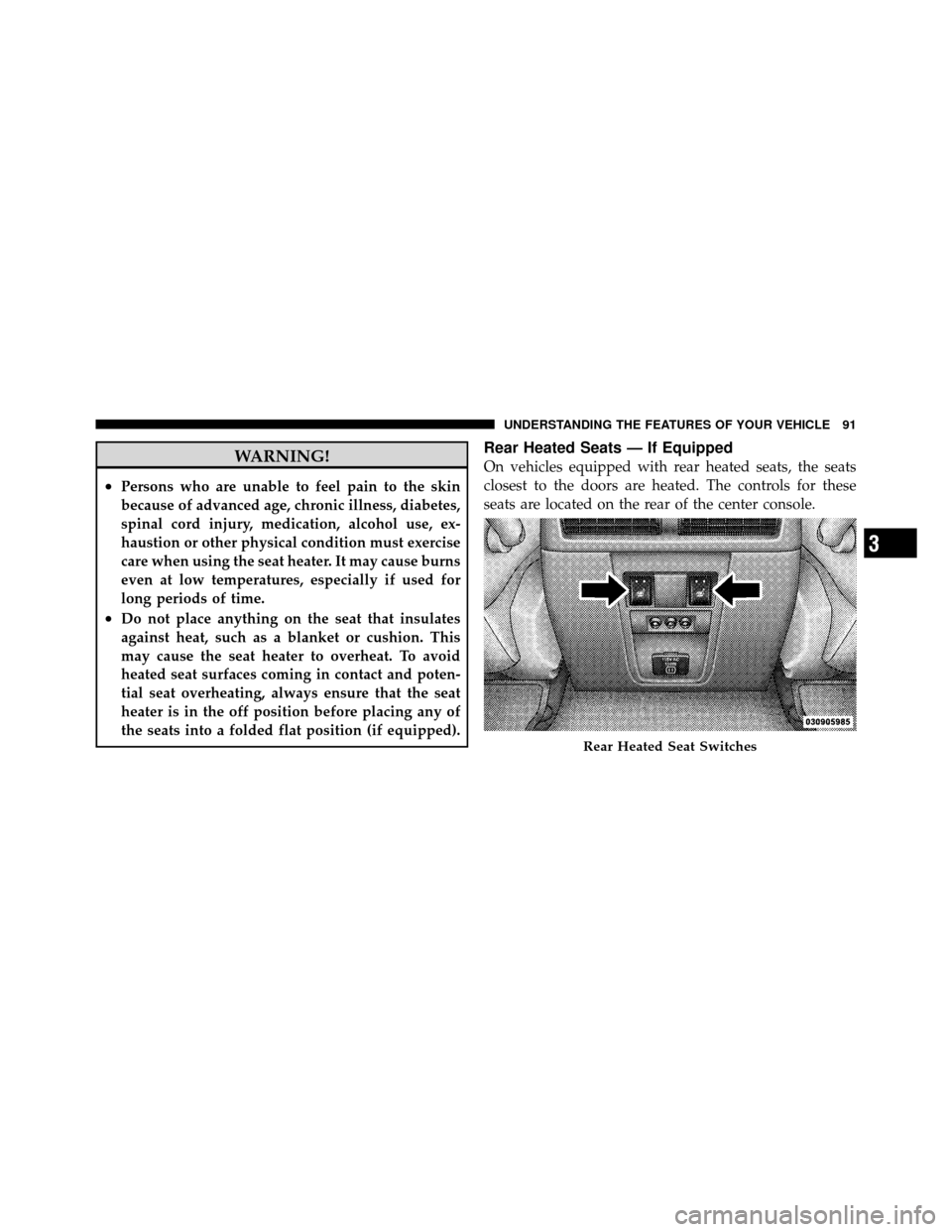

WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, ex-
haustion or other physical condition must exercise
care when using the seat heater. It may cause burns
even at low temperatures, especially if used for
long periods of time.
•Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This
may cause the seat heater to overheat. To avoid
heated seat surfaces coming in contact and poten-
tial seat overheating, always ensure that the seat
heater is in the off position before placing any of
the seats into a folded flat position (if equipped).
Rear Heated Seats — If Equipped
On vehicles equipped with rear heated seats, the seats
closest to the doors are heated. The controls for these
seats are located on the rear of the center console.
Rear Heated Seat Switches
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

After turning the ignition ON, you can choose from High,
Low or Off heat settings. Amber indicator lights in each
switch indicate the level of heat in use. Two indicator
lights will illuminate for High, one for Low and none for
Off.Press the switch once to select High-level heat-
ing. Press the switch a second time to select
Low-level heating. Press the switch a third time
to shut the heating elements Off.
When the High-level setting is selected, the heater will
provide a boosted heat level during the first four minutes
of operation. Then, the heat output will drop to the
normal High-level. If the High-level setting is selected,
the system will automatically switch to Low-level after
approximately 30 minutes of continuous operation. At
that time, the number of illuminated LEDs changes from two to one, indicating the change. The Low-level setting
will turn Off automatically after approximately 30 min-
utes.
NOTE:
Once a heat setting is selected, heat will be felt
within two to five minutes.
WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, ex-
haustion or other physical condition must exercise
care when using the seat heater. It may cause burns
even at Low temperatures, especially if used for
long periods of time.
(Continued)
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

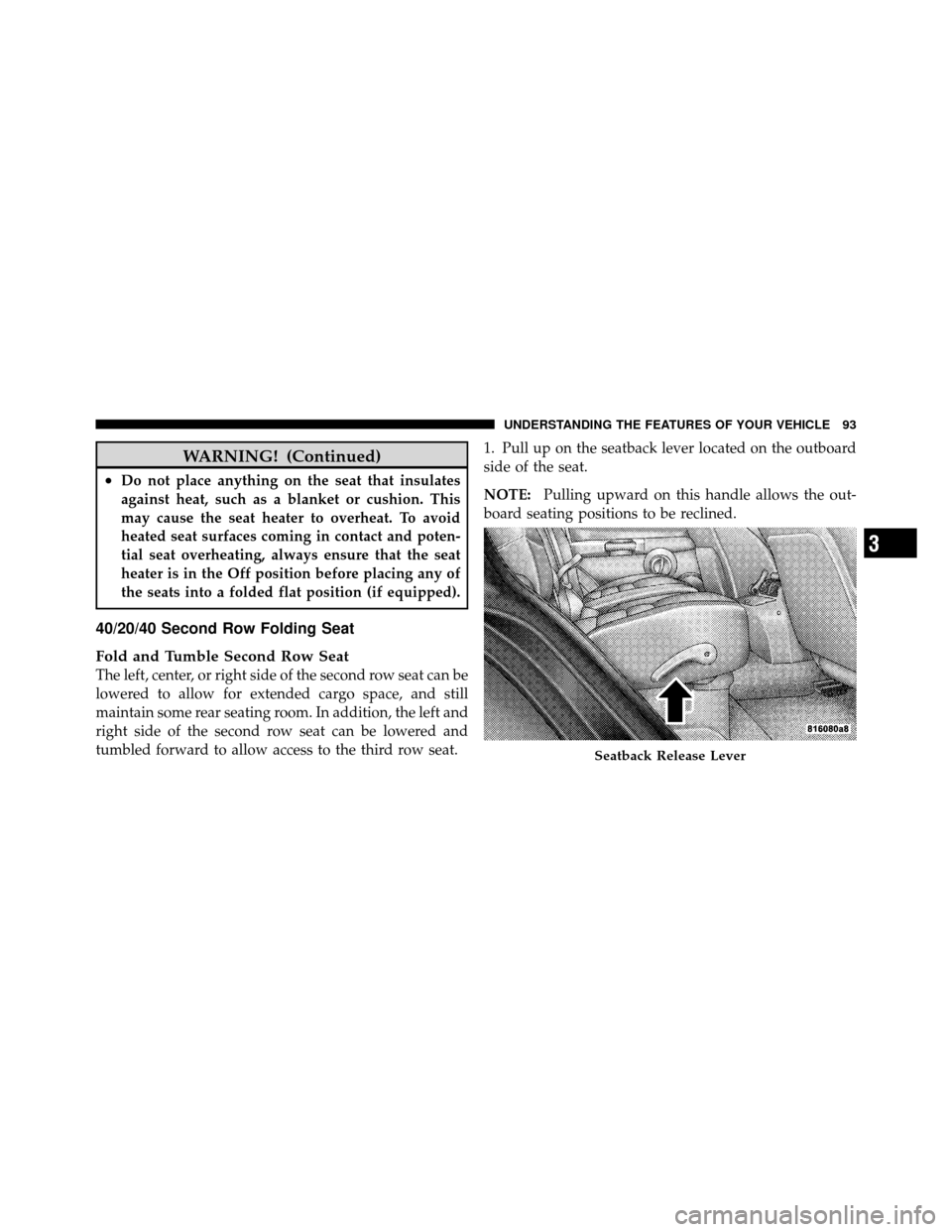

WARNING! (Continued)
•Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This
may cause the seat heater to overheat. To avoid
heated seat surfaces coming in contact and poten-
tial seat overheating, always ensure that the seat
heater is in the Off position before placing any of
the seats into a folded flat position (if equipped).
40/20/40 Second Row Folding Seat
Fold and Tumble Second Row Seat
The left, center, or right side of the second row seat can be
lowered to allow for extended cargo space, and still
maintain some rear seating room. In addition, the left and
right side of the second row seat can be lowered and
tumbled forward to allow access to the third row seat.1. Pull up on the seatback lever located on the outboard
side of the seat.
NOTE:
Pulling upward on this handle allows the out-
board seating positions to be reclined.
Seatback Release Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93
