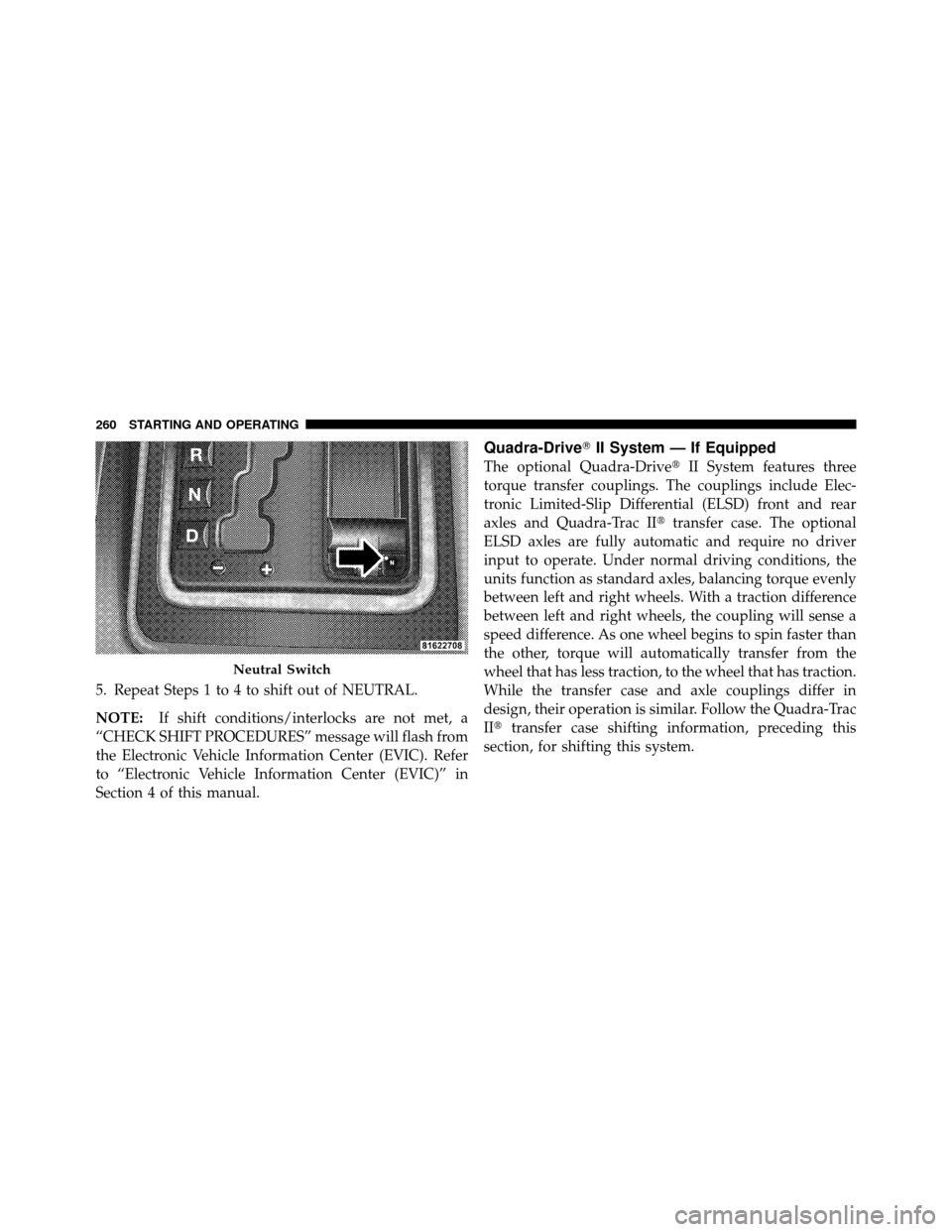

5. Repeat Steps 1 to 4 to shift out of NEUTRAL.
NOTE:If shift conditions/interlocks are not met, a
“CHECK SHIFT PROCEDURES” message will flash from
the Electronic Vehicle Information Center (EVIC). Refer
to “Electronic Vehicle Information Center (EVIC)” in
Section 4 of this manual.
Quadra-Drive II System — If Equipped
The optional Quadra-Drive II System features three
torque transfer couplings. The couplings include Elec-
tronic Limited-Slip Differential (ELSD) front and rear
axles and Quadra-Trac II transfer case. The optional
ELSD axles are fully automatic and require no driver
input to operate. Under normal driving conditions, the
units function as standard axles, balancing torque evenly
between left and right wheels. With a traction difference
between left and right wheels, the coupling will sense a
speed difference. As one wheel begins to spin faster than
the other, torque will automatically transfer from the
wheel that has less traction, to the wheel that has traction.
While the transfer case and axle couplings differ in
design, their operation is similar. Follow the Quadra-Trac
II transfer case shifting information, preceding this
section, for shifting this system.
Neutral Switch
260 STARTING AND OPERATING

Traction Control System (TCS)
This system monitors the amount of wheel spin of each of
the driven wheels. If wheel spin is detected, brake
pressure is applied to the slipping wheel(s) and engine
power is reduced to provide enhanced acceleration and
stability. A feature of the TCS system functions similar to
a limited-slip differential and controls the wheel spin
across a driven axle. If one wheel on a driven axle is
spinning faster than the other, the system will apply the
brake of the spinning wheel. This will allow more engine
torque to be applied to the wheel that is not spinning.
This feature remains active even if TCS and ESP are in
either the “Partial Off” or “Full Off” modes. Refer to
“Electronic Stability Program (ESP)” in this section for
more information.
Brake Assist System (BAS)
The BAS is designed to optimize the vehicle’s braking
capability during emergency braking maneuvers. The
system detects an emergency braking situation by sens-
ing the rate and amount of brake application and then
applies optimum pressure to the brakes. This can help
reduce braking distances. The BAS complements the
anti-lock brake system (ABS). Applying the brakes very
quickly results in the best BAS assistance. To receive the
benefit of the system, you must applycontinuousbrak-
ing pressure during the stopping sequence (do not
“pump” the brakes). Do not reduce brake pedal pressure
unless braking is no longer desired. Once the brake pedal
is released, the BAS is deactivated.
5
STARTING AND OPERATING 273

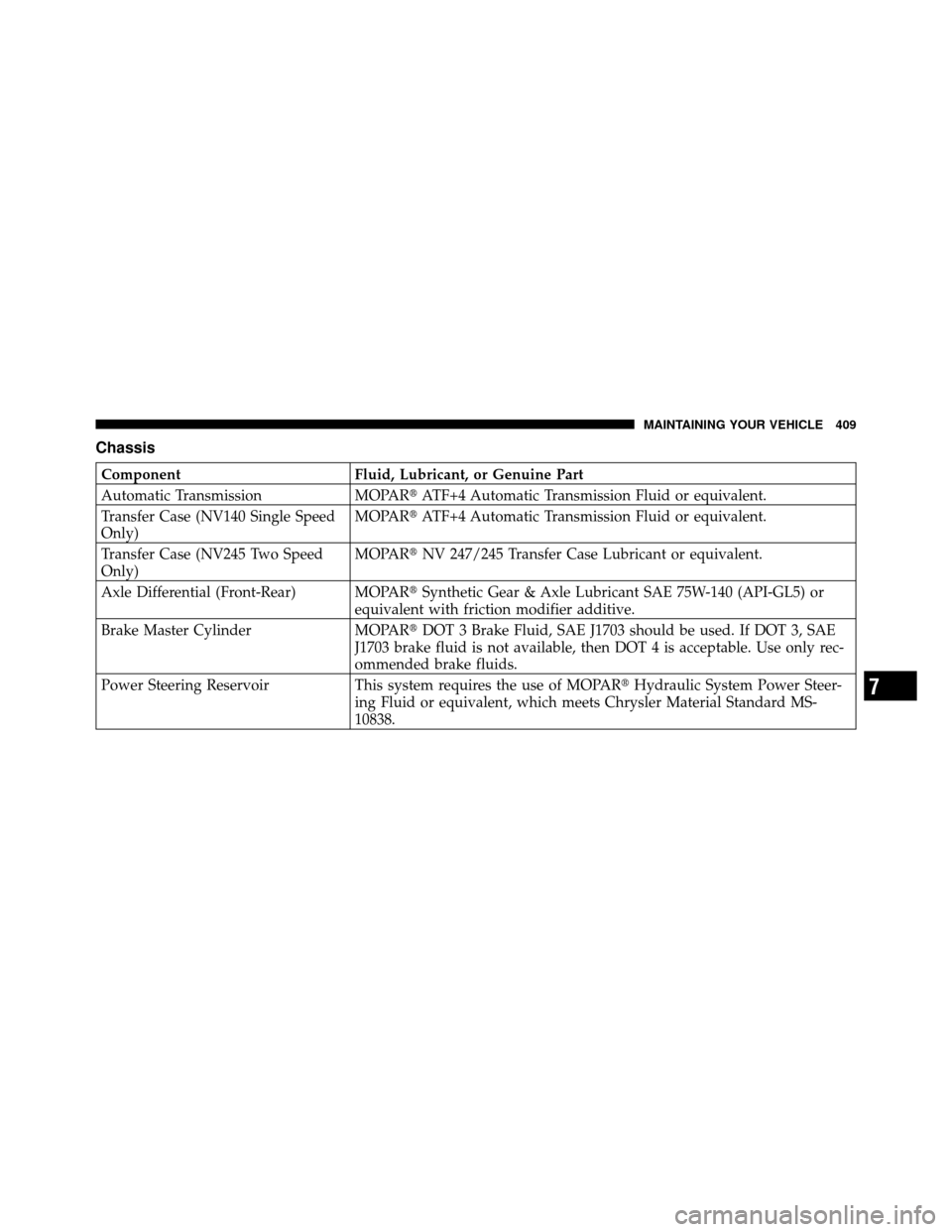

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission MOPARATF+4 Automatic Transmission Fluid or equivalent.
Transfer Case (NV140 Single Speed
Only) MOPAR
ATF+4 Automatic Transmission Fluid or equivalent.
Transfer Case (NV245 Two Speed
Only) MOPAR
NV 247/245 Transfer Case Lubricant or equivalent.
Axle Differential (Front-Rear) MOPAR Synthetic Gear & Axle Lubricant SAE 75W-140 (API-GL5) or
equivalent with friction modifier additive.
Brake Master Cylinder MOPARDOT 3 Brake Fluid, SAE J1703 should be used. If DOT 3, SAE
J1703 brake fluid is not available, then DOT 4 is acceptable. Use only rec-
ommended brake fluids.
Power Steering Reservoir This system requires the use of MOPAR Hydraulic System Power Steer-
ing Fluid or equivalent, which meets Chrysler Material Standard MS-
10838.
7
MAINTAINING YOUR VEHICLE 409

Exhaust Gas Caution..............38,74,317,371
Exhaust System ....................... 74,371
Extender, Seat Belt ........................ 48
Exterior Finish Care ...................... 387
Exterior Lights .......................... 76
Filters Air Cleaner .......................... 366
Engine Oil ........................... 366
Engine Oil Disposal .................... 365
Finish Care ............................ 387
Flashers .............................. 342
Hazard Warning ....................... 342
Turn Signal ................... 76,161,402,404
Flipper Glass, Liftgate ..................... 34
Flooded Engine Starting ................... 244
Fluid Capacities ......................... 407
Fluid Leaks ............................. 76
Fluid Level Checks Automatic Transmission ............383,384,385Brake
.............................. 380
Engine Oil ........................... 363
Power Steering ........................ 266
Fluids, Lubricants and Genuine Parts .......... 408
Fog Light Service ........................ 403
Fog Lights ....................... 108,169,403
Fold and Tumble Rear Seat .................. 93
Folding Rear Seat ...................... 93,97
Four Wheel Drive ....................... 256
Operation ........................... 256
Systems ............................. 256
Four Wheel Drive Operation ................ 256
Four-Way Hazard Flasher .................. 342
Freeing A Stuck Vehicle ................... 255
Front Axle (Differential) ................... 381
Front Heated Seats ....................... 90
Fuel ................................. 314
Conserving .......................... 176
Filler Cap (Gas Cap) .................... 318
10
INDEX 447

Inverter............................. 143
Lift Gate ............................. 35
Mirrors .............................. 84
Outlet (Auxiliary Electrical Outlet) .......... 140
Seats ................................ 88
Steering .......................... 265,266
Sunroof ............................. 137
Windows ............................. 30
Pregnant Women and Seat Belts .............. 48
Preparation for Jacking .................... 345
Pretensioners Seat Belts ............................ 46
Programmable Electronic Features ............ 181
Programming Transmitters (Remote Keyless
Entry) ................................. 21
Quadra-Trac ........................... 256
Radial Ply Tires ......................... 297
Radio Operation ........................ 223 Radio, Satellite (uconnect
studios)........ 215,219
Rain Sensitive Wiper System ................ 115
Rear Air Conditioning .................... 233
Rear Axle (Differential) .................... 381
Rear Camera ........................... 128
Rear Cupholder ......................... 145
Rear Heated Seats ........................ 91
Rear Heater ............................ 233
Rear Park Sense System ................... 122
Rear Seat, Fold and Tumble ................. 93
Rear Seat, Folding ...................... 93,97
Rear Window Defroster ................... 150
Rear Window Features .................... 148
Rear Wiper/Washer ...................... 148
Rearview Mirrors ........................ 82
Reclining Front Seats ...................... 86
Recreational Towing ...................... 336
Shifting into Transfer Case Neutral (N) ....... 337
Shifting out of Transfer Case Neutral (N) ..... 339
