headlight bulb JEEP COMMANDER 2010 1.G Owners Manual

Battery Saver Feature — Exterior/Interior Lights
If the multifunction lever is left in the interior light
position, parking light position, or the headlight position
when the ignition switch is moved to the OFF position,
the battery saver feature will automatically turn off the
exterior and interior lights after eight minutes. Normal
operation will resume when the ignition is turned ON or
when the headlight switch is turned to another position.
Lights-On Reminder
If the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound when the driver’s door
is opened.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.NOTE:
If either light remains on and does not flash, or
there is a very fast flash rate, check for a defective outside
light bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
Turn Signal Control
110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

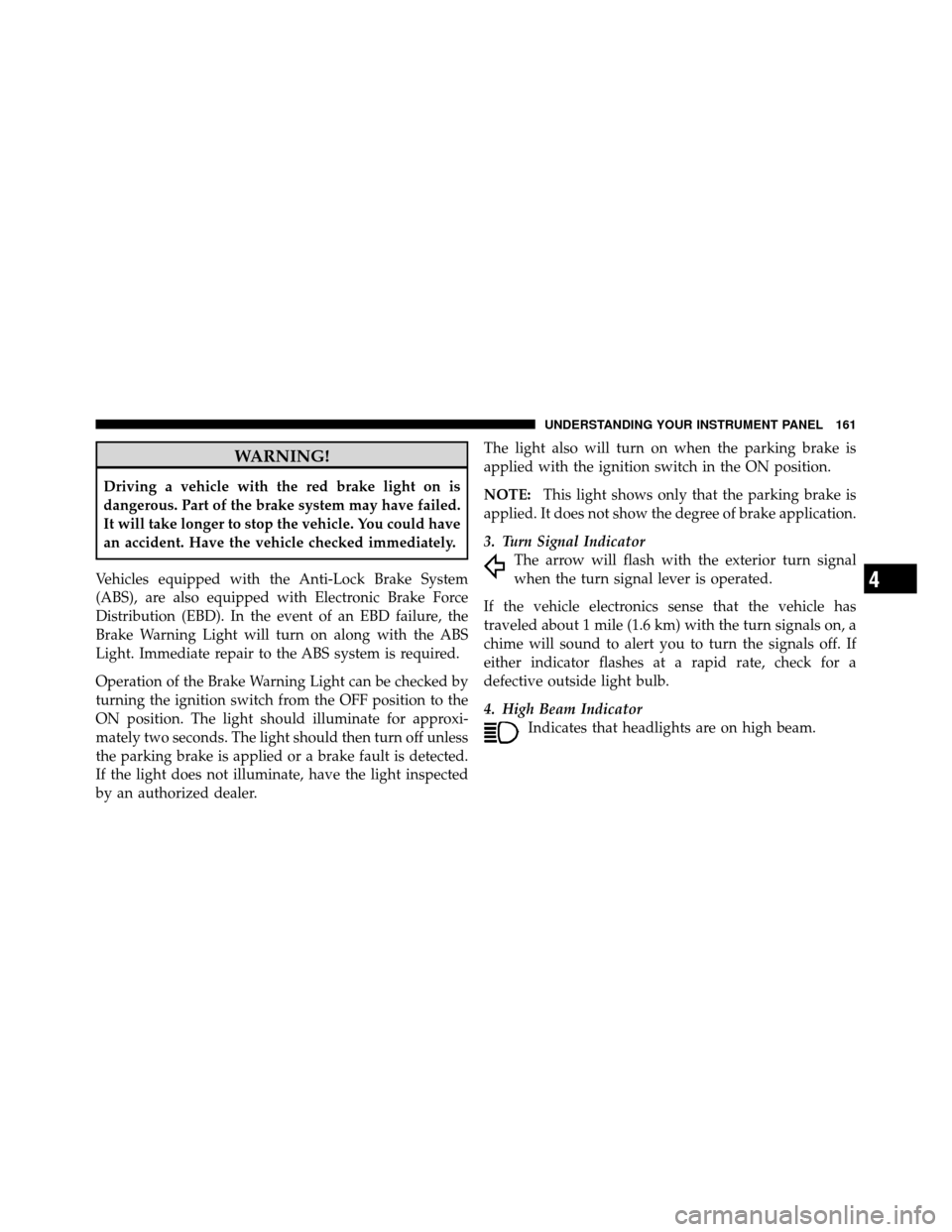

WARNING!
Driving a vehicle with the red brake light on is
dangerous. Part of the brake system may have failed.
It will take longer to stop the vehicle. You could have
an accident. Have the vehicle checked immediately.
Vehicles equipped with the Anti-Lock Brake System
(ABS), are also equipped with Electronic Brake Force
Distribution (EBD). In the event of an EBD failure, the
Brake Warning Light will turn on along with the ABS
Light. Immediate repair to the ABS system is required.
Operation of the Brake Warning Light can be checked by
turning the ignition switch from the OFF position to the
ON position. The light should illuminate for approxi-
mately two seconds. The light should then turn off unless
the parking brake is applied or a brake fault is detected.
If the light does not illuminate, have the light inspected
by an authorized dealer. The light also will turn on when the parking brake is
applied with the ignition switch in the ON position.
NOTE:
This light shows only that the parking brake is
applied. It does not show the degree of brake application.
3. Turn Signal Indicator The arrow will flash with the exterior turn signal
when the turn signal lever is operated.
If the vehicle electronics sense that the vehicle has
traveled about 1 mile (1.6 km) with the turn signals on, a
chime will sound to alert you to turn the signals off. If
either indicator flashes at a rapid rate, check for a
defective outside light bulb.
4. High Beam Indicator Indicates that headlights are on high beam.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 161

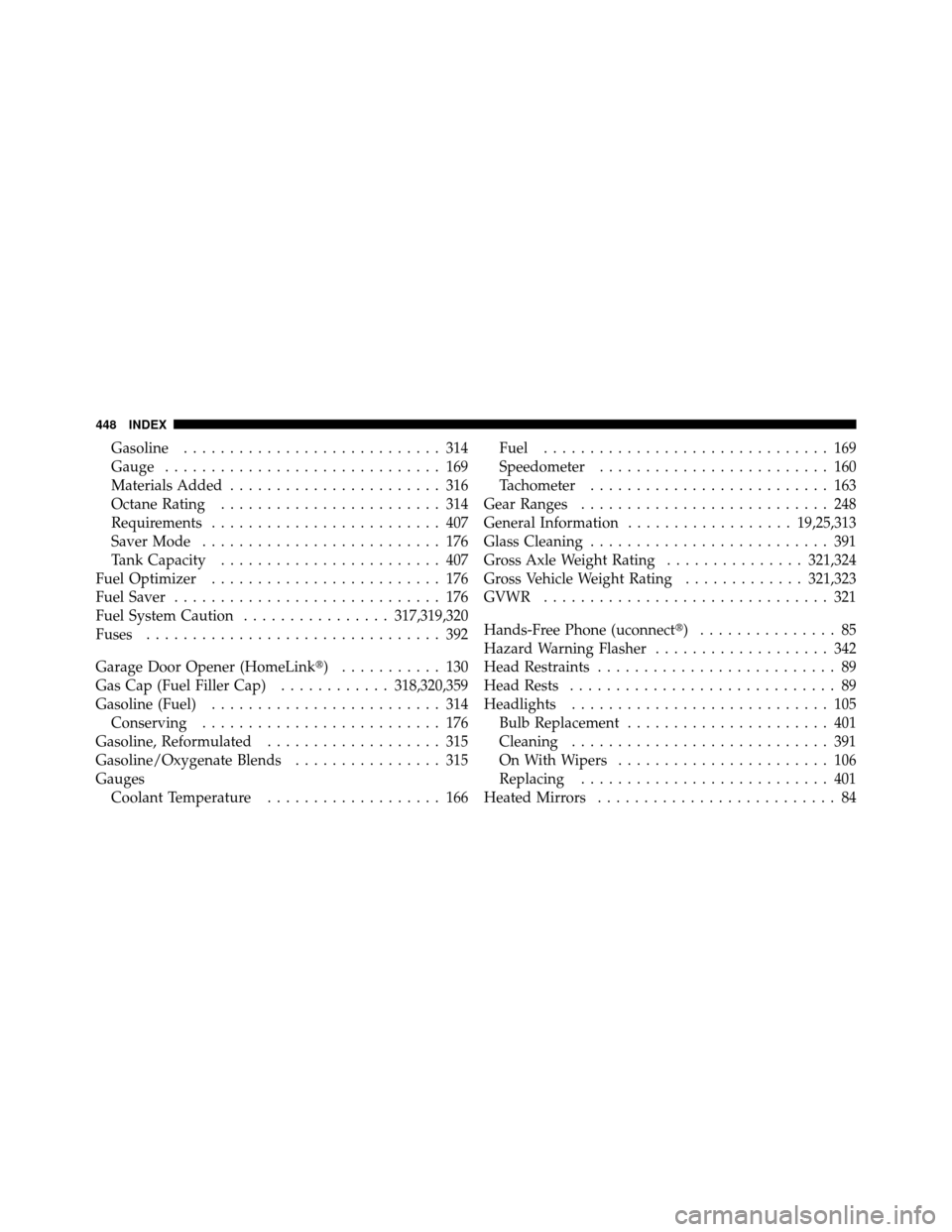

Gasoline............................ 314
Gauge .............................. 169
Materials Added ....................... 316
Octane Rating ........................ 314
Requirements ......................... 407
Saver Mode .......................... 176
Tank Capacity ........................ 407
Fuel Optimizer ......................... 176
Fuel Saver ............................. 176
Fuel System Caution ................ 317,319,320
Fuses ................................ 392
Garage Door Opener (HomeLink) ........... 130
Gas Cap (Fuel Filler Cap) ............318,320,359
Gasoline (Fuel) ......................... 314
Conserving .......................... 176
Gasoline, Reformulated ................... 315
Gasoline/Oxygenate Blends ................ 315
Gauges Coolant Temperature ................... 166 Fuel
............................... 169
Speedometer ......................... 160
Tachometer .......................... 163
Gear Ranges ........................... 248
General Information .................. 19,25,313
Glass Cleaning .......................... 391
Gross Axle Weight Rating ...............321,324
Gross Vehicle Weight Rating .............321,323
GVWR ............................... 321
Hands-Free Phone (uconnect) ............... 85
Hazard Warning Flasher ................... 342
Head Restraints .......................... 89
Head Rests ............................. 89
Headlights ............................ 105
Bulb Replacement ...................... 401
Cleaning ............................ 391
On With Wipers ....................... 106
Replacing ........................... 401
Heated Mirrors .......................... 84
448 INDEX

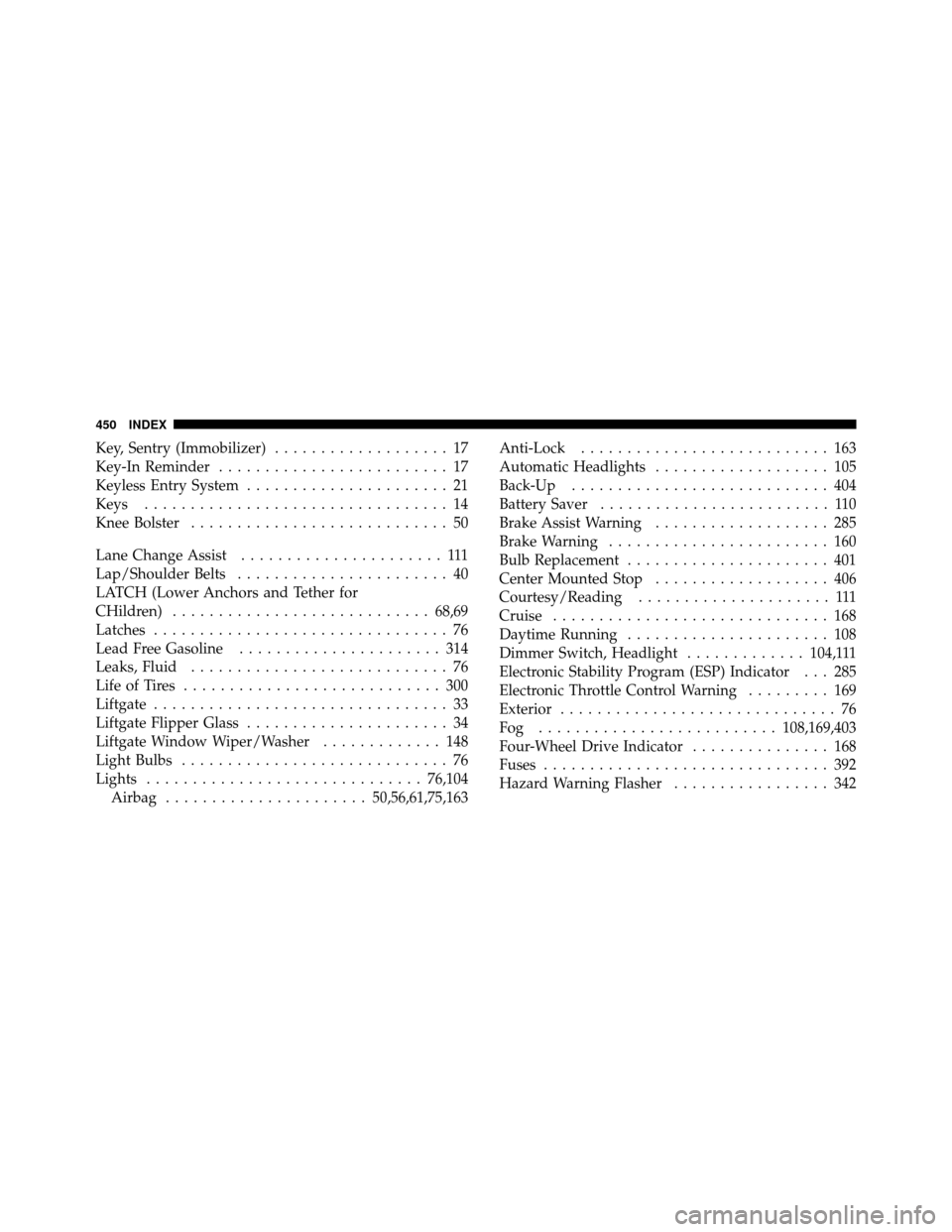

Key, Sentry (Immobilizer)................... 17
Key-In Reminder ......................... 17
Keyless Entry System ...................... 21
Keys ................................. 14
Knee Bolster ............................ 50
Lane Change Assist ...................... 111
Lap/Shoulder Belts ....................... 40
LATCH (Lower Anchors and Tether for
CHildren) ............................ 68,69
Latches ................................ 76
Lead Free Gasoline ...................... 314
Leaks, Fluid ............................ 76
Life of Tires ............................ 300
Liftgate ................................ 33
Liftgate Flipper Glass ...................... 34
Liftgate Window Wiper/Washer ............. 148
Light Bulbs ............................. 76
Lights .............................. 76,104
Airbag ...................... 50,56,61,75,163Anti-Lock
........................... 163
Automatic Headlights ................... 105
Back-Up ............................ 404
Battery Saver ......................... 110
Brake Assist Warning ................... 285
Brake Warning ........................ 160
Bulb Replacement ...................... 401
Center Mounted Stop ................... 406
Courtesy/Reading ..................... 111
Cruise .............................. 168
Daytime Running ...................... 108
Dimmer Switch, Headlight .............104,111
Electronic Stability Program (ESP) Indicator . . . 285
Electronic Throttle Control Warning ......... 169
Exterior .............................. 76
Fog .......................... 108,169,403
Four-Wheel Drive Indicator ............... 168
Fuses ............................... 392
Hazard Warning Flasher ................. 342
450 INDEX
