Page 316 of 460
•OBD II “Malfunction Indicator Light” on
•poor engine performance
•poor cold start and cold drivability
•increased risk for fuel system component corrosion
To fix a Non-FFV vehicle inadvertently fueled once with
E-85 perform the following:
•drain the fuel tank (see your authorized dealer)
•change the engine oil and oil filter
•disconnect and reconnect the battery to reset the
engine controller memory
More extensive repairs will be required for prolonged
exposure to E-85 fuel.
MMT In Gasoline
MMT is a manganese containing metallic additive that is
blended into some gasoline to increase octane. Gasoline blended with MMT provides no performance advantage
beyond gasoline of the same octane number without
MMT. Gasoline blended with MMT reduces spark plug
life and reduces emission system performance in some
vehicles. The manufacturer recommends that gasoline
without MMT be used in your vehicle. The MMT content
of gasoline may not be indicated on the gasoline pump,
therefore, you should ask your gasoline retailer if the
gasoline contains MMT.
It is even more important to look for gasoline without
MMT in Canada, because MMT can be used at levels
higher than those allowed in the United States.
MMT is prohibited in Federal and California reformu-
lated gasoline.
Materials Added To Fuel
All gasoline sold in the United States is required to
contain effective detergent additives. Use of additional
detergents or other additives is not needed under normal
316 STARTING AND OPERATING
Page 335 of 460
Towing Tips
Before setting out on a trip, practice turning, stopping
and backing the trailer in an area away from heavy
traffic.
Automatic Transmission
The DRIVE range can be selected when towing. How-
ever, if frequent shifting occurs while in this range, the
TOW/HAUL mode (if equipped) or a lower gear range
should be selected.
NOTE:Using the TOW/HAUL mode (if equipped) or a
lower gear range while operating the vehicle under
heavy operating conditions, will improve performance
and extend transmission life by reducing excessive shift-
ing and heat buildup. This action will also provide better
engine braking. The transmission fluid and filter should be changed if
you REGULARLY tow a trailer for more than 45 minutes
of continuous operation. Refer to the “Maintenance
Schedule” in Section 8 for the proper maintenance inter-
vals.
NOTE:
Check the transmission fluid level before towing
(5.7L engine).
Electronic Speed Control — If Equipped
Do not use in hilly terrain or with heavy loads.
When using the speed control, if you experience speed
drops greater than 10 mph (16 km/h), disengage until
you can get back to cruising speed.
Use speed control in flat terrain and with light loads to
maximize fuel efficiency.
5
STARTING AND OPERATING 335
Page 355 of 460
MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment – 3.7L .............. 357
Engine Compartment – 5.7L .............. 358
Onboard Diagnostic System – OBD II ....... 359
▫ Loose Fuel Filler Cap Message ........... 359
Emissions Inspection And Maintenance
Programs ............................ 360
Replacement Parts ..................... 362
Dealer Service ........................ 362
Maintenance Procedures ................. 362 ▫
Engine Oil ......................... 363
▫ Engine Oil Filter ..................... 366
▫ Engine Air Cleaner Filter ............... 366
▫ Maintenance-Free Battery .............. 367
▫ Air Conditioner Maintenance ............ 368
▫ Body Lubrication .................... 369
▫ Windshield Wiper Blades ............... 369
▫ Adding Washer Fluid ................. 370
▫ Exhaust System ..................... 371
7

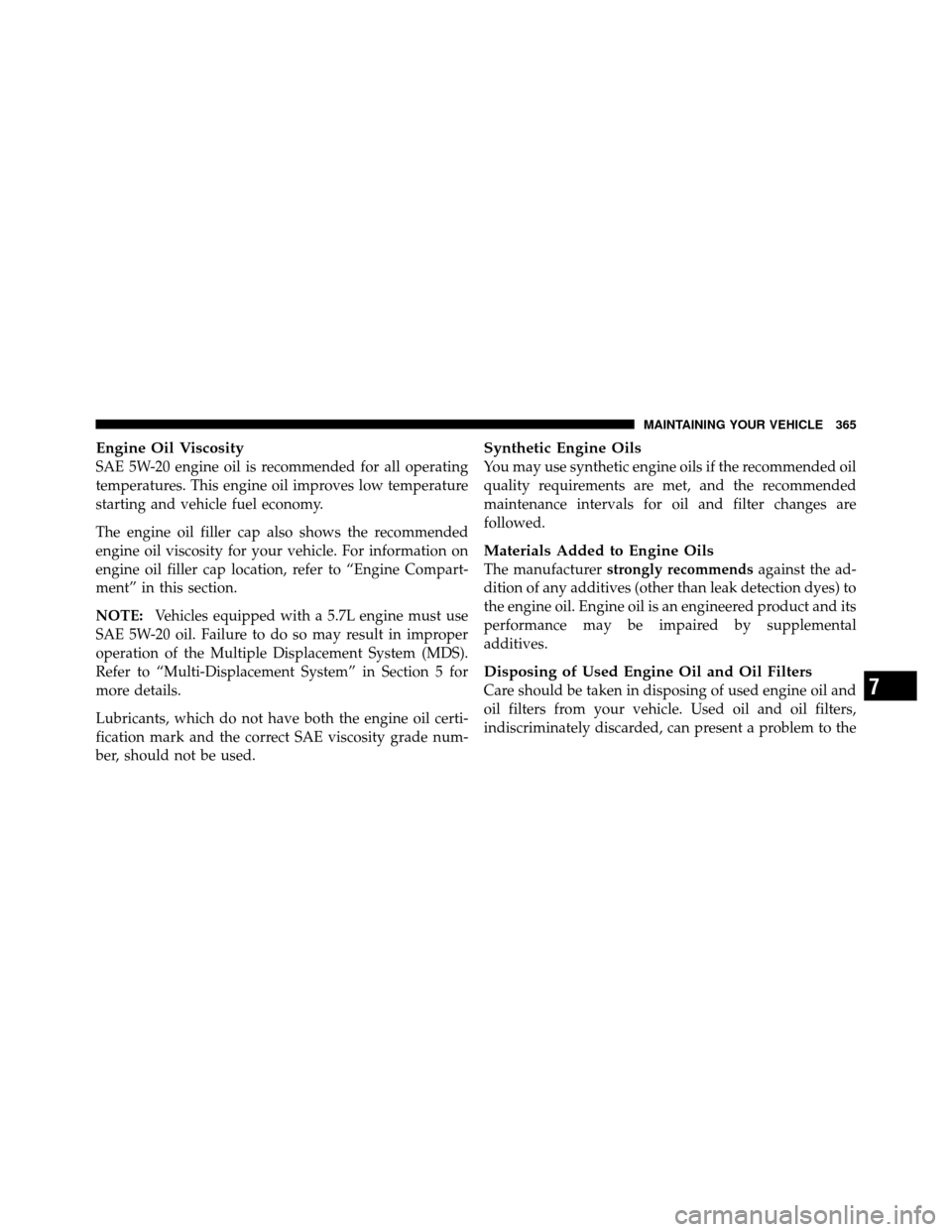

Page 365 of 460
Engine Oil Viscosity
SAE 5W-20 engine oil is recommended for all operating
temperatures. This engine oil improves low temperature
starting and vehicle fuel economy.
The engine oil filler cap also shows the recommended
engine oil viscosity for your vehicle. For information on
engine oil filler cap location, refer to “Engine Compart-
ment” in this section.
NOTE:Vehicles equipped with a 5.7L engine must use
SAE 5W-20 oil. Failure to do so may result in improper
operation of the Multiple Displacement System (MDS).
Refer to “Multi-Displacement System” in Section 5 for
more details.
Lubricants, which do not have both the engine oil certi-
fication mark and the correct SAE viscosity grade num-
ber, should not be used.
Synthetic Engine Oils
You may use synthetic engine oils if the recommended oil
quality requirements are met, and the recommended
maintenance intervals for oil and filter changes are
followed.
Materials Added to Engine Oils
The manufacturer strongly recommends against the ad-
dition of any additives (other than leak detection dyes) to
the engine oil. Engine oil is an engineered product and its
performance may be impaired by supplemental
additives.
Disposing of Used Engine Oil and Oil Filters
Care should be taken in disposing of used engine oil and
oil filters from your vehicle. Used oil and oil filters,
indiscriminately discarded, can present a problem to the7
MAINTAINING YOUR VEHICLE 365
Page 407 of 460
FLUIDS AND CAPACITIES
U.S.Metric
Fuel (Approximate) 21 Gallons79 Liters
Engine Oil with Filter
3.7 Liter Engine (SAE 5W-20, API Certified) 5 Quarts4.7 Liters
5.7 Liter Engine (SAE 5W-20, API Certified) 7 Quarts6.6 Liters
Cooling System *
3.7L Engine (MOPAR Engine Coolant/Antifreeze 5
Year/100,000 Mile Formula or equivalent) — Without Rear
Heat 12.7 Quarts
11.8 Liters
3.7L Engine (MOPAR Engine Coolant/Antifreeze 5
Year/100,000 Mile Formula or equivalent) — With Rear Heat 14 Quarts
13.2 Liters
5.7 Liter Engine (MOPAR Engine Coolant/Antifreeze 5
Year/100,000 Mile Formula or equivalent) — Without Rear
Heat 15.2 Quarts
14.4 Liters
5.7 Liter Engine (MOPAR Engine Coolant/Antifreeze 5
Year/100,000 Mile Formula or equivalent) — With Rear Heat 16.7 Quarts
15.8 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
7
MAINTAINING YOUR VEHICLE 407
Page 408 of 460
FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hy-
brid Organic Additive Technology) or equivalent.
Engine Oil Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil Filter MOPAREngine Oil Filter or equivalent.
Spark Plugs (3.7L Engine) ZFR6F-11G (Gap 0.043 in [1.09 mm])
Spark Plugs (5.7L Engine) LZFR5C–11 (Gap 0.043 in [1.09 mm])
Fuel Selection (3.7L Engine) 87 Octane
Fuel Selection (5.7L Engine) 87 Octane Acceptable - 89 Octane Recommended
408 MAINTAINING YOUR VEHICLE
Page 442 of 460
ABS (Anti-Lock Brake System).............. 269
Adding Fuel ........................... 318
Adjustable Pedals ........................ 117
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 366
Air Conditioner Maintenance ............... 368
Air Conditioning ........................ 226
Air Conditioning, Operating Tips ............ 235
Air Conditioning, Rear Zone ................ 233
Air Conditioning Refrigerant ............... 369
Air Conditioning System .................. 226
Air Filter .............................. 366
Air Pressure, Tires ....................... 295
Airbag .............................. 49,57
Airbag Deployment ....................... 58
Airbag Light ................... 50,56,61,75,163
Airbag Maintenance ....................... 60
Airbag, Side .......................... 55,57
Airbag, Window (Side Curtain) ...........51,55,57
Alarm, Panic ............................ 24 Alarm (Security Alarm)
.................19,163
Alterations/Modifications, Vehicle ............. 9
Antenna, Satellite Radio ................... 216
Antifreeze (Engine Coolant) ................ 407
Anti-Lock Brake System (ABS) ............269,272
Anti-Lock Warning Light .................. 163
Anti-Theft System ....................... 163
Appearance Care ........................ 387
Arming Theft System (Security Alarm) ......... 19
Assist, Hill Start ........................ 280
Auto Down Power Windows ................ 31
Automatic Dimming Mirror ................. 82
Automatic Door Locks ..................... 29
Automatic Headlights .................... 105
Automatic Temperature Control (ATC) ......... 226
Automatic Transmission ................248,383
Adding Fluid ......................... 385
Fluid and Filter Changes ................. 383
Fluid Level Check ................... 384,385
442 INDEX
Page 446 of 460
Electronic Roll Mitigation (ERM)............. 274
Electronic Speed Control (Cruise Control) ....... 119
Electronic Stability Program (ESP) ............ 275
Electronic Throttle Control Warning Light ...... 169
Electronic Vehicle Information Center (EVIC) . 167,170
Emergency, In Case of Freeing Vehicle When Stuck ............... 255
Hazard Warning Flasher ................. 342
Jacking ............................. 343
Jump Starting ......................... 351
Tow Hooks .......................... 353
Emission Control System Maintenance ......360,412
Engine Air Cleaner .......................... 366
Block Heater ......................... 245
Break-In Recommendations ................ 73
Compartment ...................... 357,358
Compartment Identification ............357,358
Cooling ............................. 374 Exhaust Gas Caution
................ 38,74,317
Fails to Start .......................... 244
Flooded, Starting ...................... 244
Fuel Requirements .................. 314,407
Multi-Displacement .................... 271
Oil .............................. 363,407
Oil Change Interval .................... 364
Oil Disposal .......................... 365
Oil Filter ............................ 366
Oil Filter Disposal ..................... 365
Oil Selection ....................... 364,407
Oil Synthetic ......................... 365
Overheating .......................... 342
Starting ............................. 243
Temperature Gauge .................... 166
Engine Oil Viscosity ...................... 365
Engine Oil Viscosity Chart ................. 365
Enhanced Accident Response Feature .......... 58
Entry System, Illuminated .................. 20
446 INDEX
Page 447 of 460
Exhaust Gas Caution..............38,74,317,371
Exhaust System ....................... 74,371
Extender, Seat Belt ........................ 48
Exterior Finish Care ...................... 387
Exterior Lights .......................... 76
Filters Air Cleaner .......................... 366
Engine Oil ........................... 366
Engine Oil Disposal .................... 365
Finish Care ............................ 387
Flashers .............................. 342
Hazard Warning ....................... 342
Turn Signal ................... 76,161,402,404
Flipper Glass, Liftgate ..................... 34
Flooded Engine Starting ................... 244
Fluid Capacities ......................... 407
Fluid Leaks ............................. 76
Fluid Level Checks Automatic Transmission ............383,384,385Brake
.............................. 380
Engine Oil ........................... 363
Power Steering ........................ 266
Fluids, Lubricants and Genuine Parts .......... 408
Fog Light Service ........................ 403
Fog Lights ....................... 108,169,403
Fold and Tumble Rear Seat .................. 93
Folding Rear Seat ...................... 93,97
Four Wheel Drive ....................... 256
Operation ........................... 256
Systems ............................. 256
Four Wheel Drive Operation ................ 256
Four-Way Hazard Flasher .................. 342
Freeing A Stuck Vehicle ................... 255
Front Axle (Differential) ................... 381
Front Heated Seats ....................... 90
Fuel ................................. 314
Conserving .......................... 176
Filler Cap (Gas Cap) .................... 318
10
INDEX 447
