When adding engine coolant (antifreeze), a minimum
solution of 50% recommended MOPARAntifreeze/
Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid
Organic Additive Technology), or equivalent, in water
should be used. Use higher concentrations (not to exceed
70%) if temperatures below34°F (37°C) are antici-
pated.
Use only high purity water such as distilled or deionized
water when mixing the water/engine coolant (antifreeze)
solution. The use of lower quality water will reduce the
amount of corrosion protection in the engine cooling
system.
Please note that it is the owner’s responsibility to main-
tain the proper level of protection against freezing ac-
cording to the temperatures occurring in the area where
the vehicle is operated.NOTE:Mixing engine coolant (antifreeze) types will
decrease the life of the engine coolant (antifreeze) and
will require more frequent coolant changes.
Cooling System Pressure Cap
The cap must be fully tightened to prevent loss of engine
coolant (antifreeze) and to ensure that engine coolant
(antifreeze) will return to the radiator from the coolant
recovery bottle.
The cap should be inspected and cleaned if there is any
accumulation of foreign material on the sealing surfaces.
MAINTAINING YOUR VEHICLE 361
7
Page 372 of 439

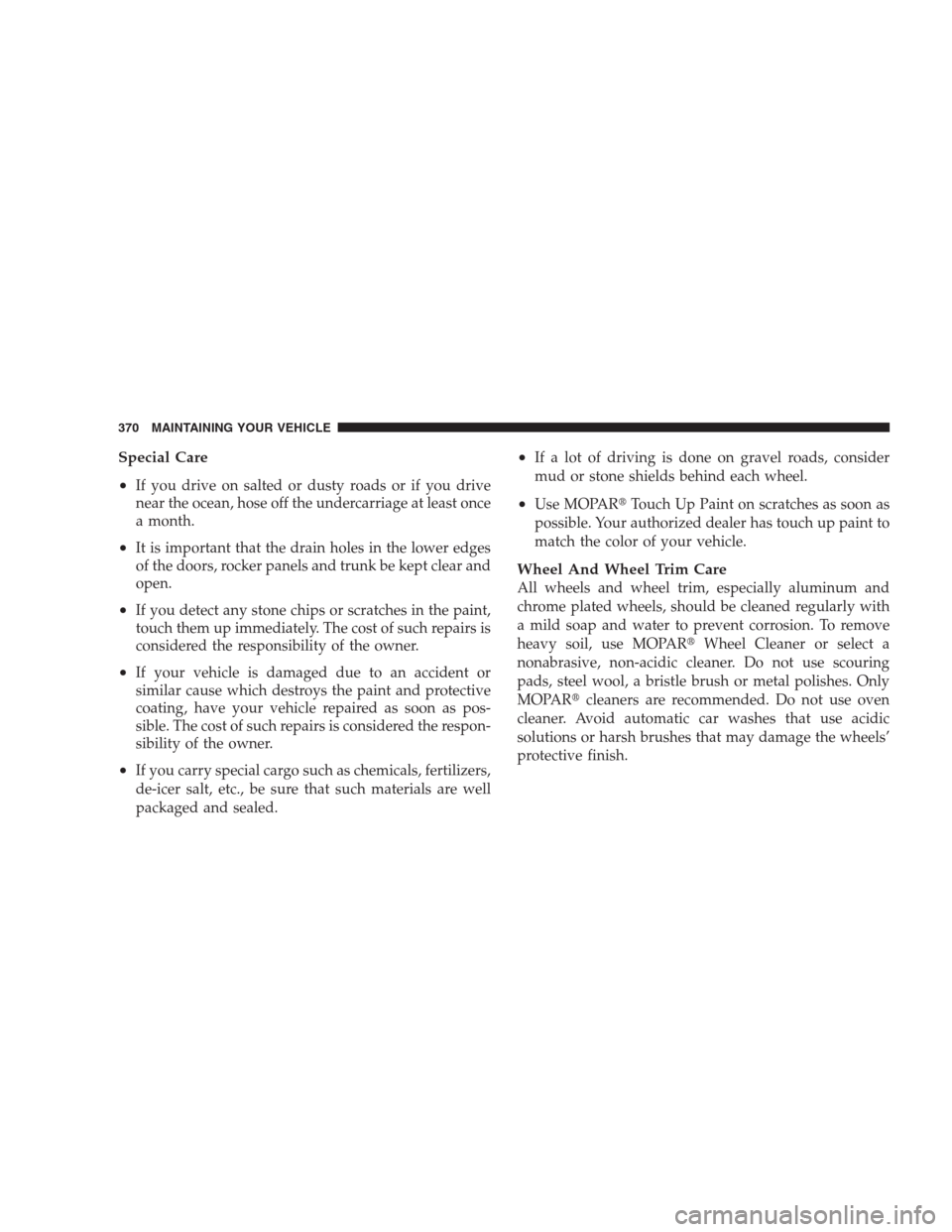

Special Care
•
If you drive on salted or dusty roads or if you drive
near the ocean, hose off the undercarriage at least once
a month.
•It is important that the drain holes in the lower edges
of the doors, rocker panels and trunk be kept clear and
open.
•If you detect any stone chips or scratches in the paint,
touch them up immediately. The cost of such repairs is
considered the responsibility of the owner.
•If your vehicle is damaged due to an accident or
similar cause which destroys the paint and protective
coating, have your vehicle repaired as soon as pos-
sible. The cost of such repairs is considered the respon-
sibility of the owner.
•If you carry special cargo such as chemicals, fertilizers,
de-icer salt, etc., be sure that such materials are well
packaged and sealed.
•If a lot of driving is done on gravel roads, consider
mud or stone shields behind each wheel.
•Use MOPARTouch Up Paint on scratches as soon as
possible. Your authorized dealer has touch up paint to
match the color of your vehicle.
Wheel And Wheel Trim Care
All wheels and wheel trim, especially aluminum and
chrome plated wheels, should be cleaned regularly with
a mild soap and water to prevent corrosion. To remove
heavy soil, use MOPARWheel Cleaner or select a
nonabrasive, non-acidic cleaner. Do not use scouring
pads, steel wool, a bristle brush or metal polishes. Only
MOPARcleaners are recommended. Do not use oven
cleaner. Avoid automatic car washes that use acidic
solutions or harsh brushes that may damage the wheels’
protective finish.
370 MAINTAINING YOUR VEHICLE
Page 374 of 439

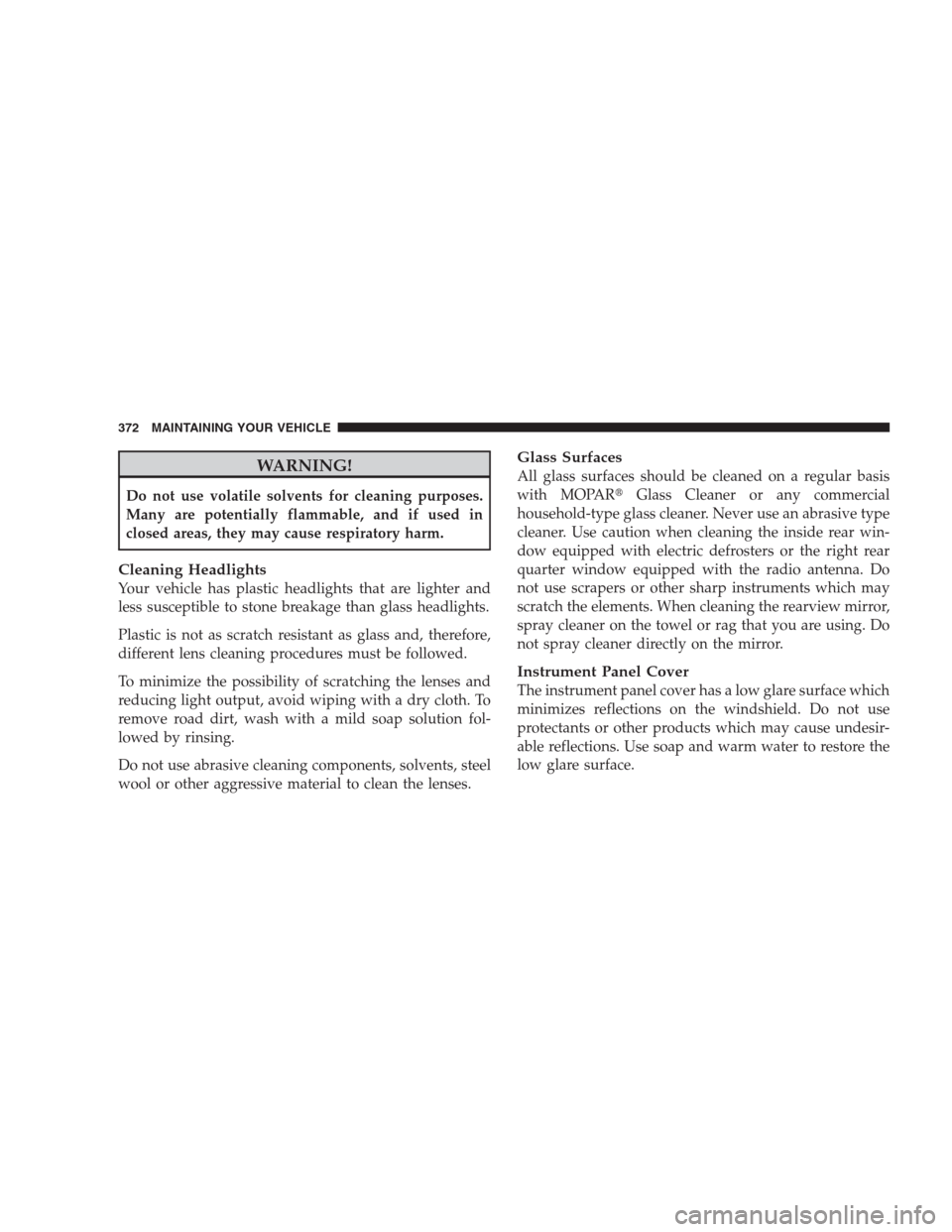

WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas, they may cause respiratory harm.
Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and, therefore,
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPARGlass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments which may
scratch the elements. When cleaning the rearview mirror,
spray cleaner on the towel or rag that you are using. Do
not spray cleaner directly on the mirror.
Instrument Panel Cover
The instrument panel cover has a low glare surface which
minimizes reflections on the windshield. Do not use
protectants or other products which may cause undesir-
able reflections. Use soap and warm water to restore the
low glare surface.
372 MAINTAINING YOUR VEHICLE
Page 413 of 439

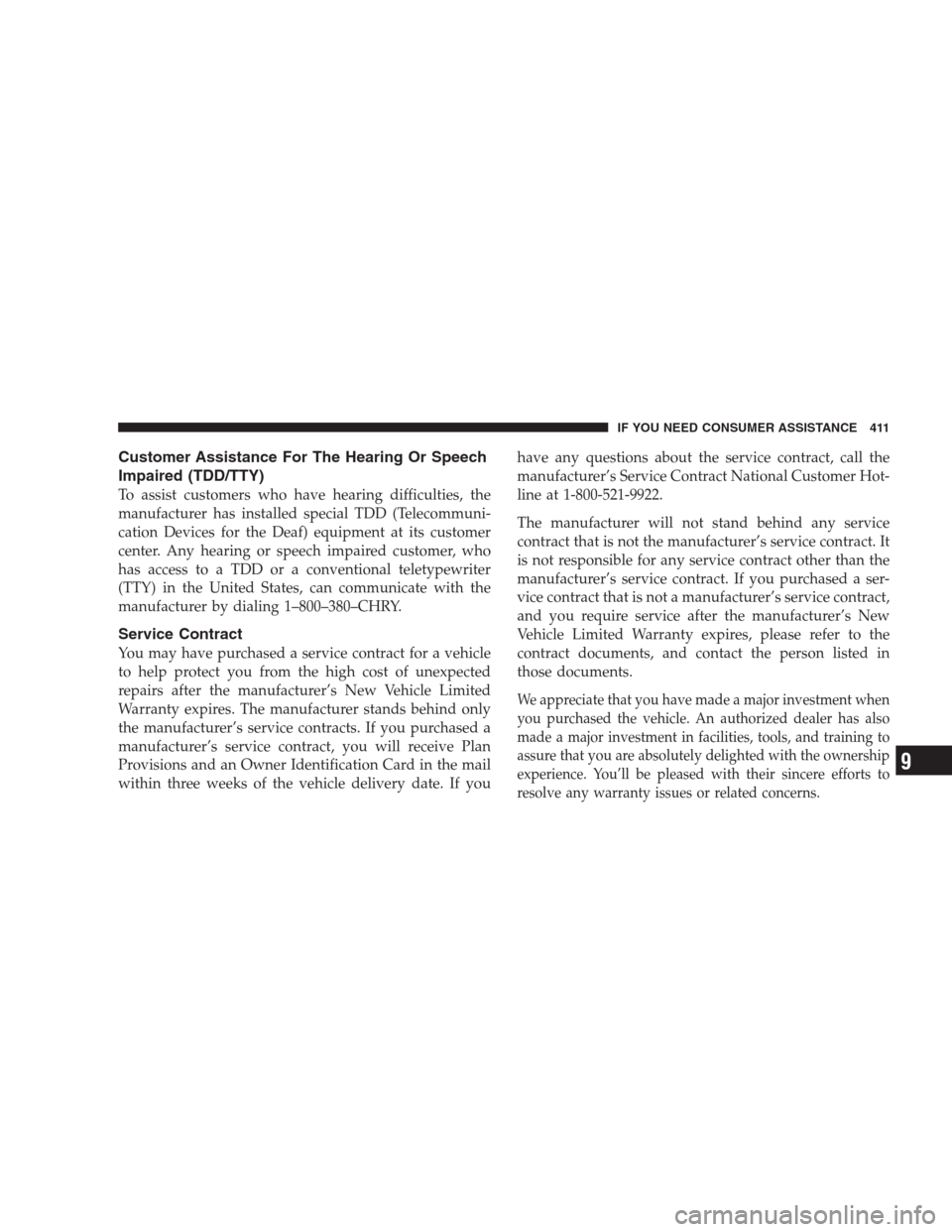

Customer Assistance For The Hearing Or Speech
Impaired (TDD/TTY)
To assist customers who have hearing difficulties, the
manufacturer has installed special TDD (Telecommuni-
cation Devices for the Deaf) equipment at its customer
center. Any hearing or speech impaired customer, who
has access to a TDD or a conventional teletypewriter
(TTY) in the United States, can communicate with the
manufacturer by dialing 1–800–380–CHRY.
Service Contract
You may have purchased a service contract for a vehicle
to help protect you from the high cost of unexpected
repairs after the manufacturer’s New Vehicle Limited
Warranty expires. The manufacturer stands behind only
the manufacturer’s service contracts. If you purchased a
manufacturer’s service contract, you will receive Plan
Provisions and an Owner Identification Card in the mail
within three weeks of the vehicle delivery date. If youhave any questions about the service contract, call the
manufacturer’s Service Contract National Customer Hot-
line at 1-800-521-9922.
The manufacturer will not stand behind any service
contract that is not the manufacturer’s service contract. It
is not responsible for any service contract other than the
manufacturer’s service contract. If you purchased a ser-
vice contract that is not a manufacturer’s service contract,
and you require service after the manufacturer’s New
Vehicle Limited Warranty expires, please refer to the
contract documents, and contact the person listed in
those documents.
We appreciate that you have made a major investment when
you purchased the vehicle. An authorized dealer has also
made a major investment in facilities, tools, and training to
assure that you are absolutely delighted with the ownership
experience. You’ll be pleased with their sincere efforts to
resolve any warranty issues or related concerns.
IF YOU NEED CONSUMER ASSISTANCE 411
9
Page 418 of 439

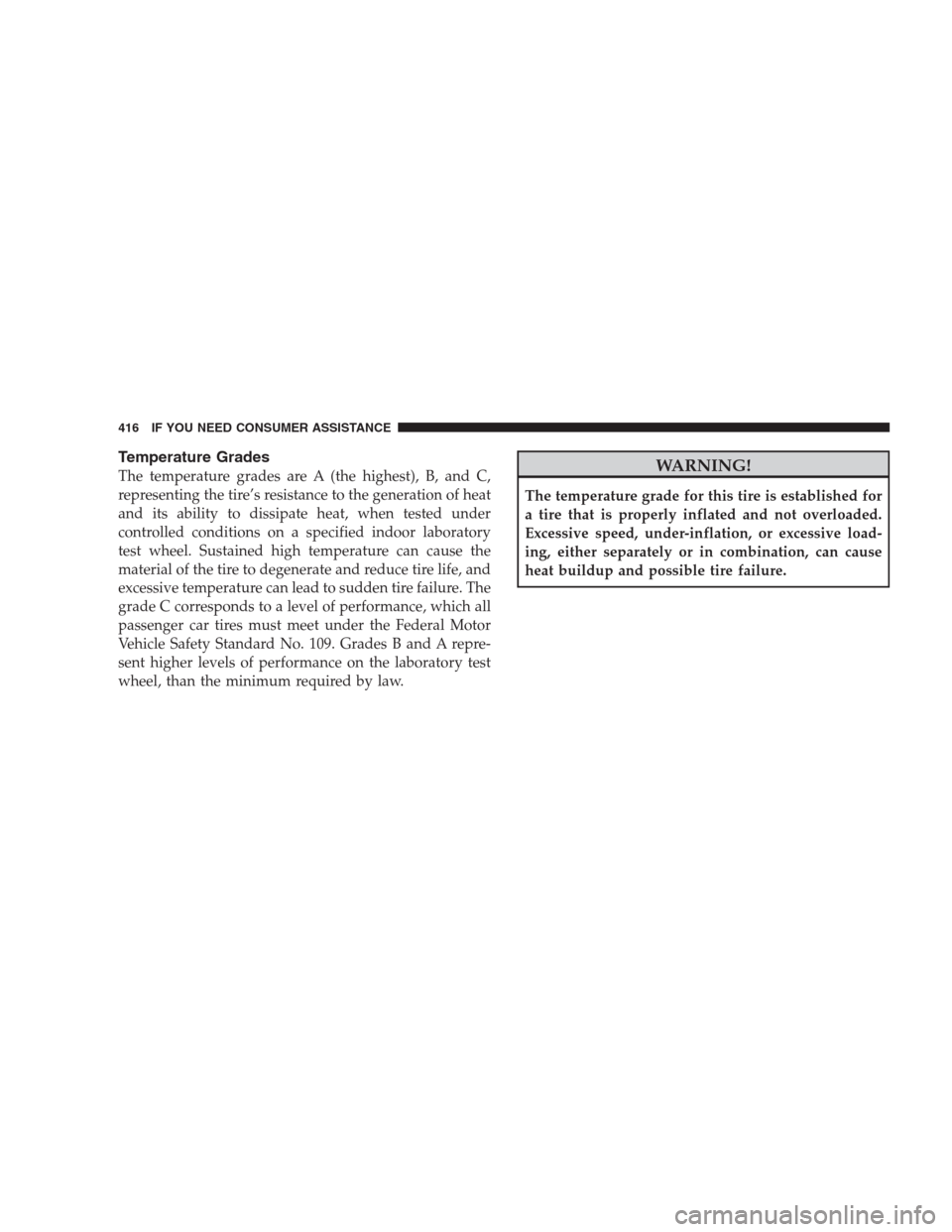

Temperature Grades
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of heat
and its ability to dissipate heat, when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure. The
grade C corresponds to a level of performance, which all
passenger car tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades B and A repre-
sent higher levels of performance on the laboratory test
wheel, than the minimum required by law.WARNING!
The temperature grade for this tire is established for
a tire that is properly inflated and not overloaded.
Excessive speed, under-inflation, or excessive load-
ing, either separately or in combination, can cause
heat buildup and possible tire failure.
416 IF YOU NEED CONSUMER ASSISTANCE
Page 423 of 439
Customer Assistance..................... 409
Data Recorder, Event...................... 58
Dealer Service.......................... 349
Defroster, Rear Window................... 155
Defroster, Windshield...................70,238
Delay (Intermittent) Wipers................. 128
Diagnostic System, Onboard................ 346
Dimmer Switch, Headlight................. 124
Dipsticks
Power Steering........................ 266
Disposal
Antifreeze (Engine Coolant)............... 362
Engine Oil........................... 352
Door Locks............................. 26
Door Locks, Automatic.................... 28
Door Opener, Garage..................... 134
Downshifting.......................... 255
Driver’s Seat Back Tilt.................... 114Driving
On Slippery Surfaces.................... 262
Through Flowing, Rising, or Shallow
Standing Water........................ 263
Electric Remote Mirrors.................... 77
Electrical Power Outlets................... 144
Electronic Brake Control System............. 272
Anti-Lock Brake System................. 272
Brake Assist System.................... 273
Electronic Roll Mitigation................ 274
Electronic Stability Program............... 275
Traction Control System................. 272
Electronic Speed Control (Cruise Control)...... 131
Electronic Stability Program (ESP)............ 275
Electronic Vehicle Information Center (EVIC).... 175
Emergency, In Case of
Jacking............................. 332
Jump Starting......................... 338
INDEX 421
10
Page 424 of 439
Towing............................. 341
Emission Control System Maintenance......347,390
Engine............................... 345
Break-In Recommendations................ 68
Checking Oil Level..................... 349
Cooling............................. 358
Exhaust Gas Caution.................... 311
Fuel Requirements..................... 307
Jump Starting......................... 338
Oil ...........................349,386,387
Oil Change Interval.................... 350
Oil Filler Cap......................345,351
Oil Filter............................ 387
Oil Selection.......................... 350
Oil Synthetic......................... 351
Overheating.......................... 330
Temperature Gauge..................... 168
Enhanced Accident Response Feature.......... 56
Event Data Recorder...................... 58Exhaust Gas Caution............35,69,311,356,357
Exhaust System......................... 356
Fabric Care............................ 371
Filters
Air Cleaner.......................... 352
Engine Oil........................352,387
Flashers.............................. 330
Hazard Warning....................... 330
Turn Signal........................164,381
Flat Tire Stowage........................ 337
Flooded Engine Starting................... 253
Fluid, Brake........................... 388
Fluid Capacities......................... 386
Fluid Leaks............................. 70
Fluid Level Checks
Automatic Transaxle.................... 366
Power Steering........................ 266
Fluids................................ 387
422 INDEX
Page 427 of 439
Jack Location........................... 333
Jack Operation.......................332,334
Jacking Instructions...................... 334
Jump Starting.......................... 338
Key, Programming........................ 18
Key, Replacement........................ 17
Key, Sentry (Immobilizer)................... 16
Key-In Reminder......................... 15
Keyless Entry System (Sedan)................ 20
Keys................................. 12
Knee Bolster............................ 48
Lane Change and Turn Signals.............. 381
Lap/Shoulder Belts....................... 37
Latches
Hood............................... 119
Lead Free Gasoline...................... 307
Life of Tires............................ 294Liftgate (Sedan).......................... 34
Liftgate Window Wiper/Washer............. 154
Light Bulbs............................ 377
Lights..............................70,121
Airbag........................54,57,70,164
Alarm.............................. 168
Anti-Lock........................... 165
Back-Up............................. 381
Brake Warning........................ 166
Bulb Replacement...................... 378
Cargo .............................. 151
Center Mounted Stop................... 384
Daytime Running...................... 123
Dimmer Switch, Headlight............... 121
Electronic Stability Program (ESP)
Indicator...........................275,278
Engine Temperature Warning.............. 166
Fog ..........................122,173,380
Headlight Switch...................... 121
INDEX 425
10
