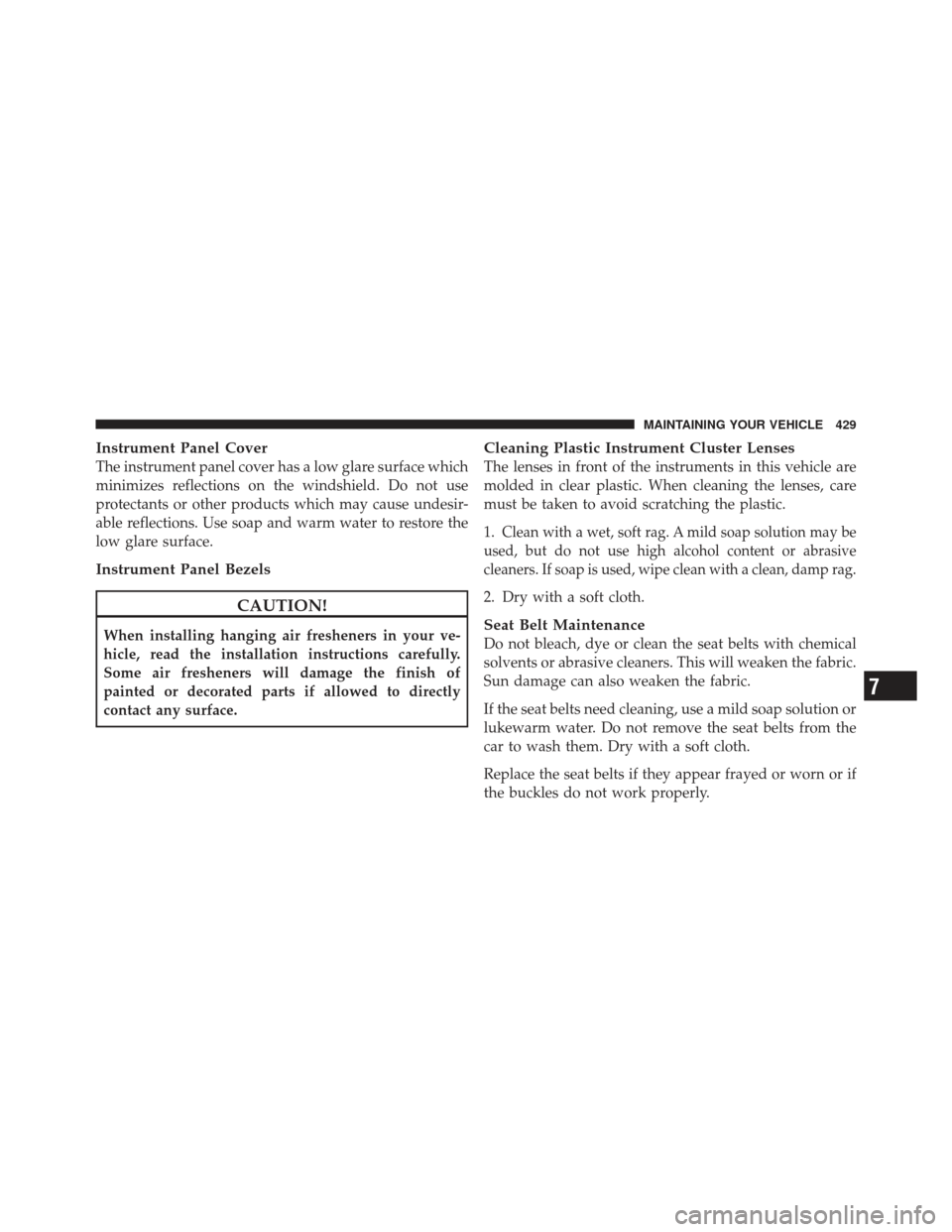

Instrument Panel Cover
The instrument panel cover has a low glare surface which
minimizes reflections on the windshield. Do not use
protectants or other products which may cause undesir-
able reflections. Use soap and warm water to restore the
low glare surface.
Instrument Panel Bezels
CAUTION!
When installing hanging air fresheners in your ve-
hicle, read the installation instructions carefully.
Some air fresheners will damage the finish of
painted or decorated parts if allowed to directly
contact any surface.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1.
Clean with a wet, soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean, damp rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye or clean the seat belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the seat belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the seat belts from the
car to wash them. Dry with a soft cloth.
Replace the seat belts if they appear frayed or worn or if
the buckles do not work properly.
7
MAINTAINING YOUR VEHICLE 429

FUSES
Integrated Power Module
The Integrated Power Module is located in the engine
compartment near the air cleaner assembly. This center
contains cartridge fuses and mini-fuses. A label that
identifies each component may be printed on the inside
of the cover. Refer to “Engine Compartment” in “Main-
taining Your Vehicle” for further information.
Cavity CartridgeFuseMini-
Fuse Description
1 Empty Empty
2 15 Amp
Lt Blue AWD/4WD Control
Module
Integrated Power Module
430 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuseMini-
Fuse Description
3 10 Amp
Red Rear Center Brake
Light Switch
4 10 Amp
Red Ignition Switch/
Occupant Classifica-
tion Module
5 20 Amp
Yellow Trailer Tow
6 10 Amp
Red Power Mirror/
Steering Control Sat-
ellite Radio/Hands-
Free Phone
7 30 Amp
Green Ignition Off Draw
8 30 Amp
Green Ignition Off Draw
9 40 Amp Green Power SeatsCavity Cartridge
FuseMini-
Fuse Description
10 20 Amp
Yellow Power Locks/Interior
Lighting
11 15 Amp
Lt Blue Power Outlet
12 20 Amp
Yellow 115V AC Inverter
13 20 Amp
Yellow Cigar Lighter
14 10 Amp
Red Instrument Cluster
15 40 Amp Green Radiator Fan
16 15 Amp
Lt Blue Dome Lamp/
Sunroof/Rear Wiper
Motor
17 10 Amp
Red Wireless Control
Module
7
MAINTAINING YOUR VEHICLE 431

Cavity CartridgeFuseMini-
Fuse Description
18 40 Amp Green Auto Shutdown Relay
19 20 Amp
Yellow Radio Amplifiers
20 15 Amp
Lt Blue Radio
21 10 Amp
Red Intrusion Module/
Siren – If Equipped
22 10 Amp
Red Heating, AC/
Compass
23 15 Amp
Lt Blue Auto Shutdown Relay
24 15 Amp
Lt Blue Power Sunroof
25 10 Amp
Red Heated Mirror – If
EquippedCavity Cartridge
FuseMini-
Fuse Description
26 15 Amp
Lt Blue Auto Shutdown Relay
27 10 Amp
Red Airbag Control Mod-
ule
28 10 Amp
Red Airbag Control
Module/Occupant
Classification Module
29 Hot Car (No Fuse Re-
quired)
30 20 Amp
Yellow Heated Seat – If
Equipped
31 10 Amp
Red Headlamp Washer –
If Equipped
32 30 Amp Pink Auto Shutdown Relay
432 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuseMini-
Fuse Description
33 10 Amp
Red J1962 Conn/
Powertrain Control
Module
34 30 Amp Pink Antilock BrakeValve
35 40 Amp Green Antilock Brake Pump
36 30 Amp Pink Headlamp/Washer
Control/Smart Glass
– If Equipped
37 25 Amp
Natural Diesel Fuel Heater –
If EquippedCAUTION!
•When installing the IPM cover, it is important to
ensure the cover is properly positioned and fully
latched. Failure to do so may allow water to get
into the IPM, and possibly result in an electrical
system failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
7
MAINTAINING YOUR VEHICLE 433

VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Or disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS – Interior Bulb Number
Front Header Lamp...................... T578
Center Dome Lamp ...................... T578
Rear Cargo Lamp/Flashlight .............8–A35LF
434 MAINTAINING YOUR VEHICLE

LIGHTS BULBS – ExteriorBulb No.
Low Beam Headlamp ..................... H11
High Beam Headlamp .................... 9005
Front Park/Turn Signal Lamp ............7444NA
Front Side Marker Lamp .................. W5W
Front Fog Lamp ...................... PSX24W
Center High Mounted Stop Lamp (CHMSL) ..... LED
Assembly (Serviced at Authorized Dealer)
Rear Tail/Stop Lamp ..................... LED
(Serviced at Authorized Dealer)
Rear Turn Lamp ..........7440NA (WY21W) Amber
Backup Lamp ............ 7440NA (W21W) Crystal
License Lamp .......................... W5W
BULB REPLACEMENT
Headlamps
1. Raise the hood and locate the connector behind the
headlamp. 2. Reach into the engine compartment and pull the red
lock out at the green connector.
3. Remove green connector from back of bulb by pulling
straight back.
4. Twist the bulb to the left.
5. Pull bulb outward from assembly.
NOTE:
These are halogen bulbs. Take care not to touch
the bulb with your fingers. Body oils from your fingers
could cause excessive heat buildup which reduces bulb
life.
Fog Lamps
1. Access lamp through the lower fascia cutout.
2. Remove electrical connector from bulb.
3. Remove bulb from housing.
7
MAINTAINING YOUR VEHICLE 435

Rear Turn Signal And Backup Lamp
1. Remove the two push-pins from the taillamp housing.
2. Grasp the taillamp and pull firmly to disengage the
lamp from the aperture panel.3. Twist and remove socket from lamp.
4. Remove bulb from socket and replace.
License Lamps
1. Use a screw driver to gently pry against the side of the
snap tab to remove the lamp from the liftgate.
2. Rotate the socket 1/4 turn counterclockwise.
3. Pull bulb from socket.
Center High-Mounted Stoplamp
This light is an LED assembly. See your authorized dealer
for replacement.
436 MAINTAINING YOUR VEHICLE

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) 13.6 Gallons51.5 Liters
Engine Oil with Filter
2.0L and 2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts4.26 Liters
Cooling System *
2.0L and 2.4L Engine (MOPAR Engine Coolant/Antifreeze 5
Year/100,000 Mile Formula or equivalent) 7.2 Quarts
6.8 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
7
MAINTAINING YOUR VEHICLE 437

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hy-
brid Organic Additive Technology) or equivalent.
Engine Oil Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil Filter MOPAREngine Oil Filter or equivalent.
Spark Plugs ZFR5F-11 (Gap 0.043 in [1.1 mm])
Fuel Selection 87 Octane
