4WD JEEP COMPASS 2012 1.G User Guide

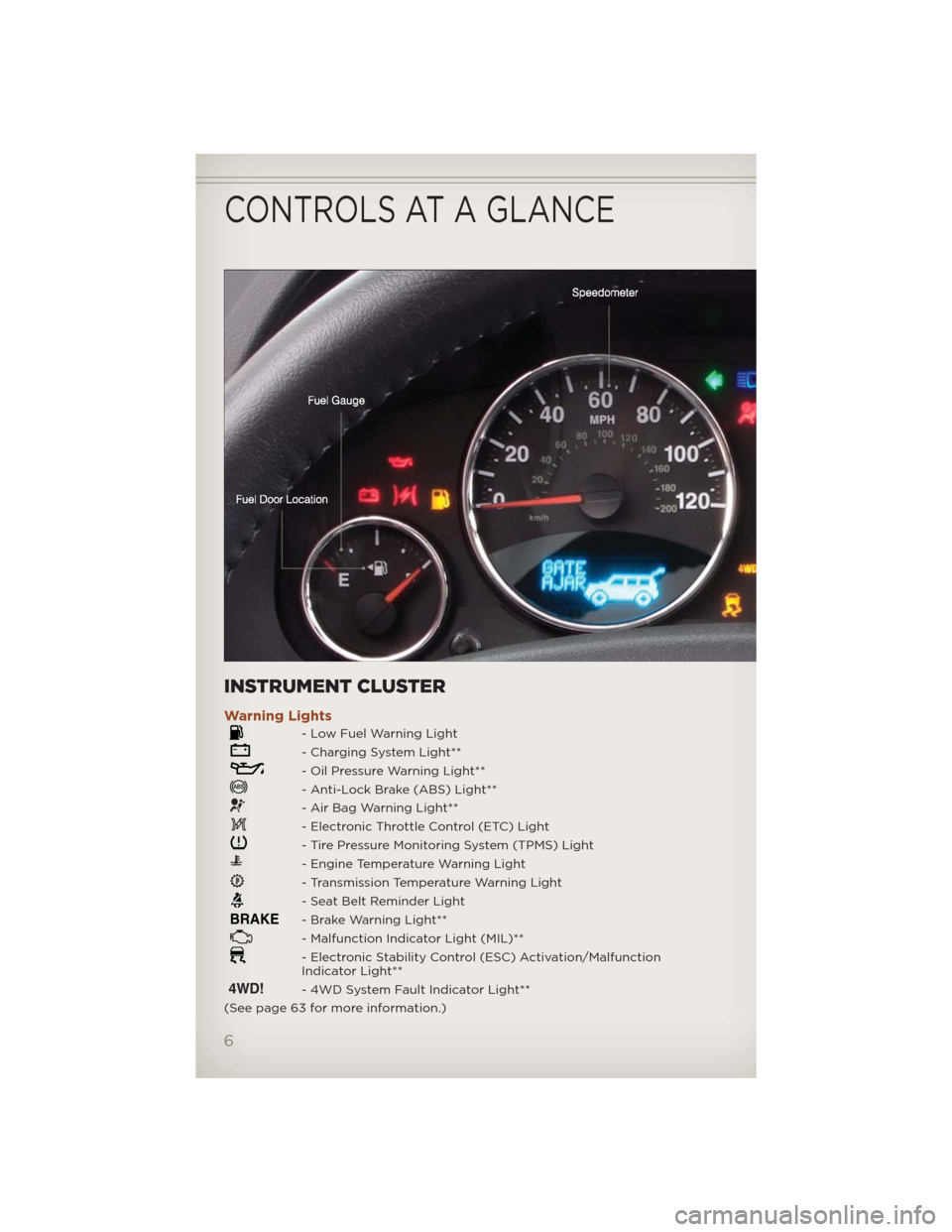

INSTRUMENT CLUSTER
Warning Lights
- Low Fuel Warning Light
- Charging System Light**
- Oil Pressure Warning Light**
- Anti-Lock Brake (ABS) Light**
- Air Bag Warning Light**
- Electronic Throttle Control (ETC) Light
- Tire Pressure Monitoring System (TPMS) Light
- Engine Temperature Warning Light
- Transmission Temperature Warning Light
- Seat Belt Reminder Light
BRAKE- Brake Warning Light**
- Malfunction Indicator Light (MIL)**
- Electronic Stability Control (ESC) Activation/Malfunction
Indicator Light**
4WD!- 4WD System Fault Indicator Light**
(See page 63 for more information.)
CONTROLS AT A GLANCE
6

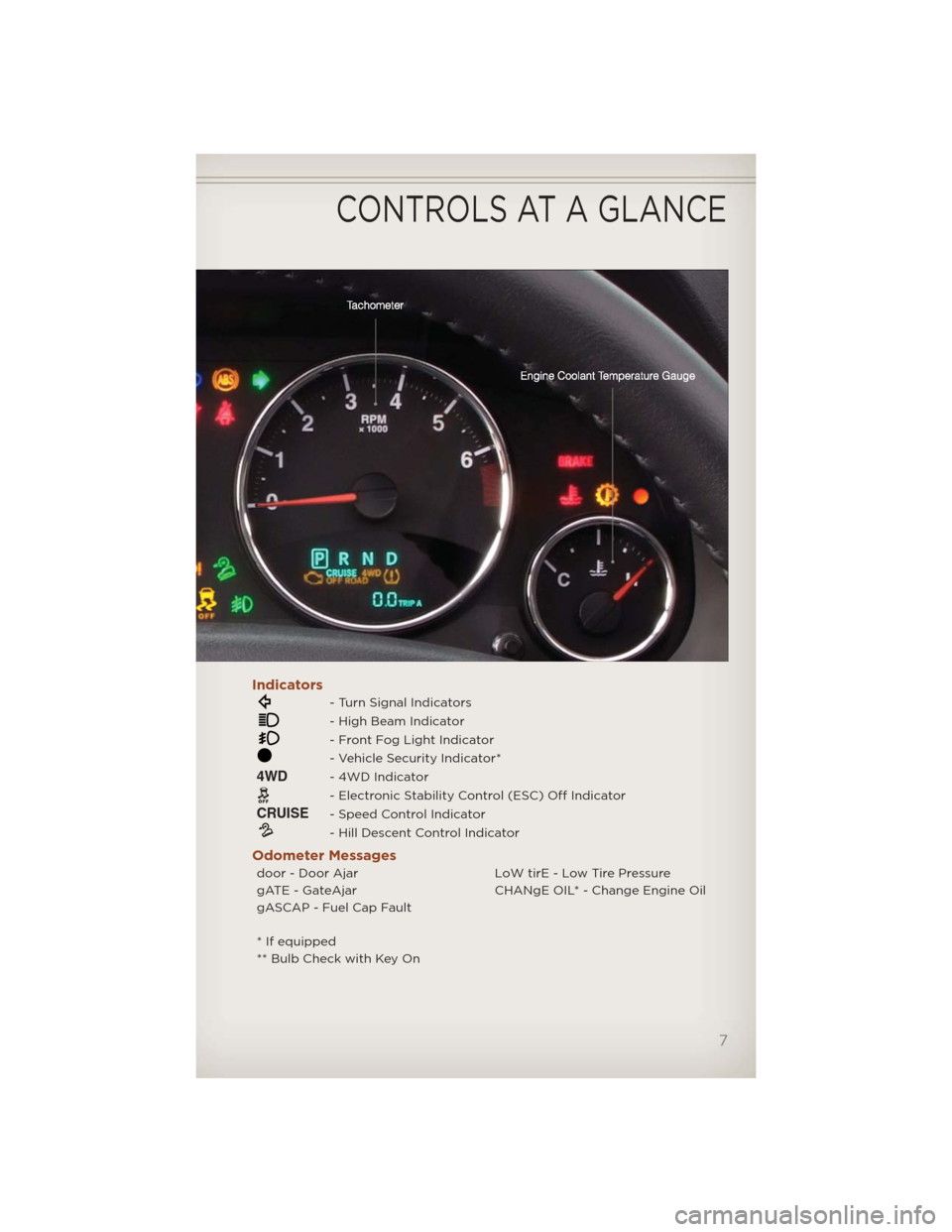

Indicators
- Turn Signal Indicators
- High Beam Indicator
- Front Fog Light Indicator
- Vehicle Security Indicator*
4WD- 4WD Indicator
- Electronic Stability Control (ESC) Off Indicator
CRUISE- Speed Control Indicator
- Hill Descent Control Indicator
Odometer Messages
door - Door Ajar LoW tirE - Low Tire Pressure
gATE - GateAjar CHANgE OIL* - Change Engine Oil
gASCAP - Fuel Cap Fault
* If equipped
** Bulb Check with Key On
CONTROLS AT A GLANCE
7

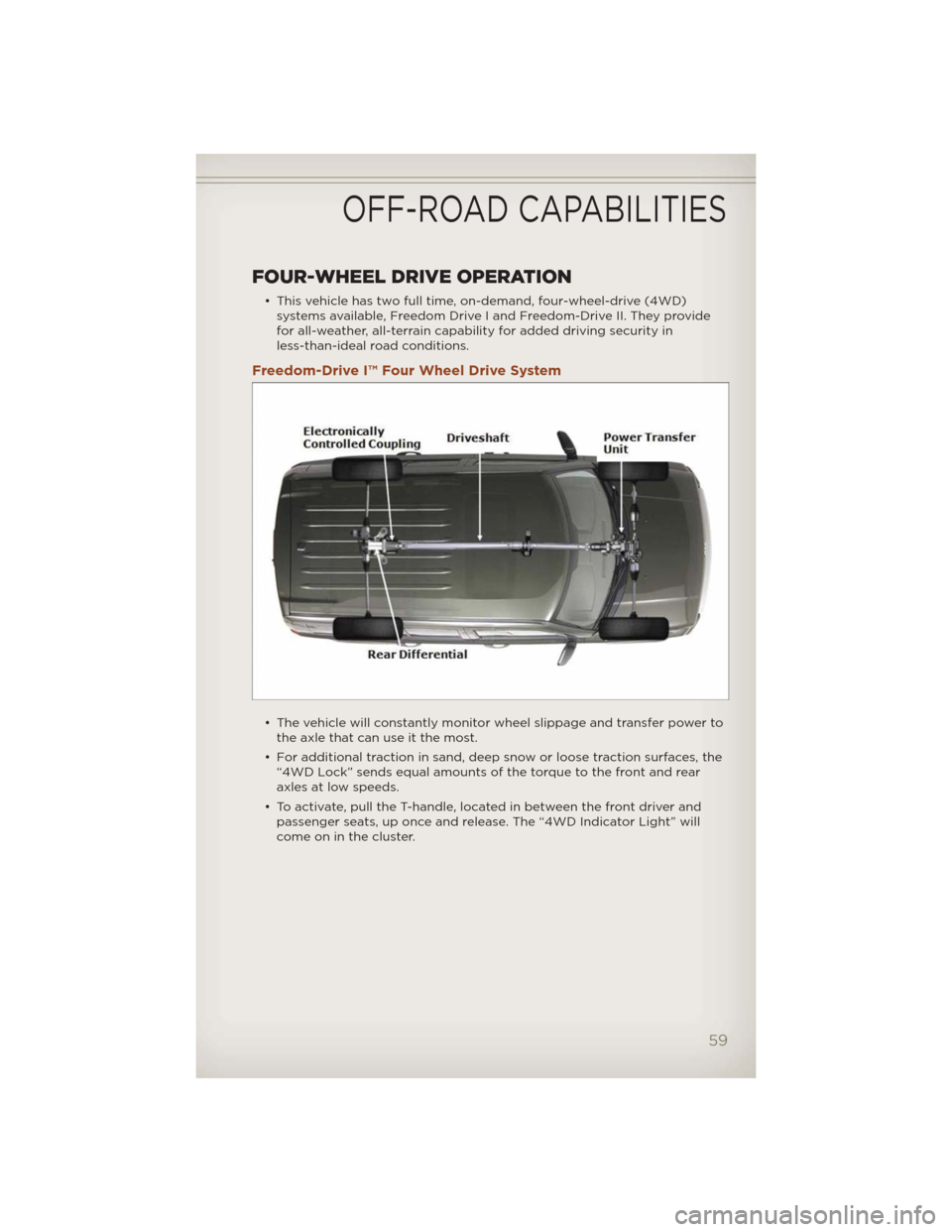

FOUR-WHEEL DRIVE OPERATION
• This vehicle has two full time, on-demand, four-wheel-drive (4WD)
systems available, Freedom Drive I and Freedom-Drive II. They provide
for all-weather, all-terrain capability for added driving security in
less-than-ideal road conditions.
Freedom-Drive I™ Four Wheel Drive System
• The vehicle will constantly monitor wheel slippage and transfer power to
the axle that can use it the most.
• For additional traction in sand, deep snow or loose traction surfaces, the
“4WD Lock” sends equal amounts of the torque to the front and rear
axles at low speeds.
• To activate, pull the T-handle, located in between the front driver and
passenger seats, up once and release. The “4WD Indicator Light” will
come on in the cluster.
OFF-ROAD CAPABILITIES
59

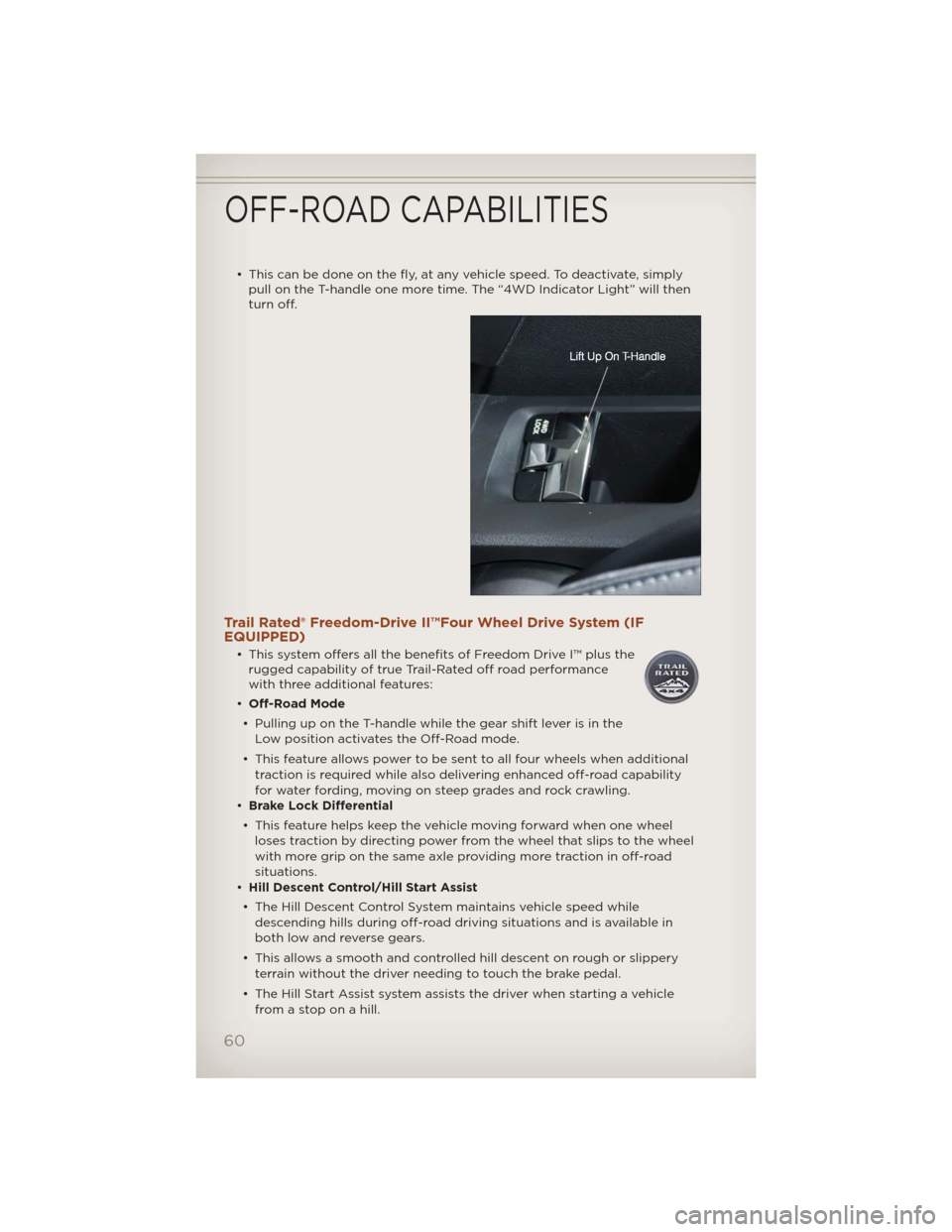

• This can be done on the fly, at any vehicle speed. To deactivate, simply
pull on the T-handle one more time. The “4WD Indicator Light” will then
turn off.
Trail Rated® Freedom-Drive II™Four Wheel Drive System (IF
EQUIPPED)
• This system offers all the benefits of Freedom Drive I™ plus the
rugged capability of true Trail-Rated off road performance
with three additional features:
•Off-Road Mode
• Pulling up on the T-handle while the gear shift lever is in the
Low position activates the Off-Road mode.
• This feature allows power to be sent to all four wheels when additional
traction is required while also delivering enhanced off-road capability
for water fording, moving on steep grades and rock crawling.
•Brake Lock Differential
• This feature helps keep the vehicle moving forward when one wheel
loses traction by directing power from the wheel that slips to the wheel
with more grip on the same axle providing more traction in off-road
situations.
•Hill Descent Control/Hill Start Assist
• The Hill Descent Control System maintains vehicle speed while
descending hills during off-road driving situations and is available in
both low and reverse gears.
• This allows a smooth and controlled hill descent on rough or slippery
terrain without the driver needing to touch the brake pedal.
• The Hill Start Assist system assists the driver when starting a vehicle
from a stop on a hill.
OFF-ROAD CAPABILITIES
60

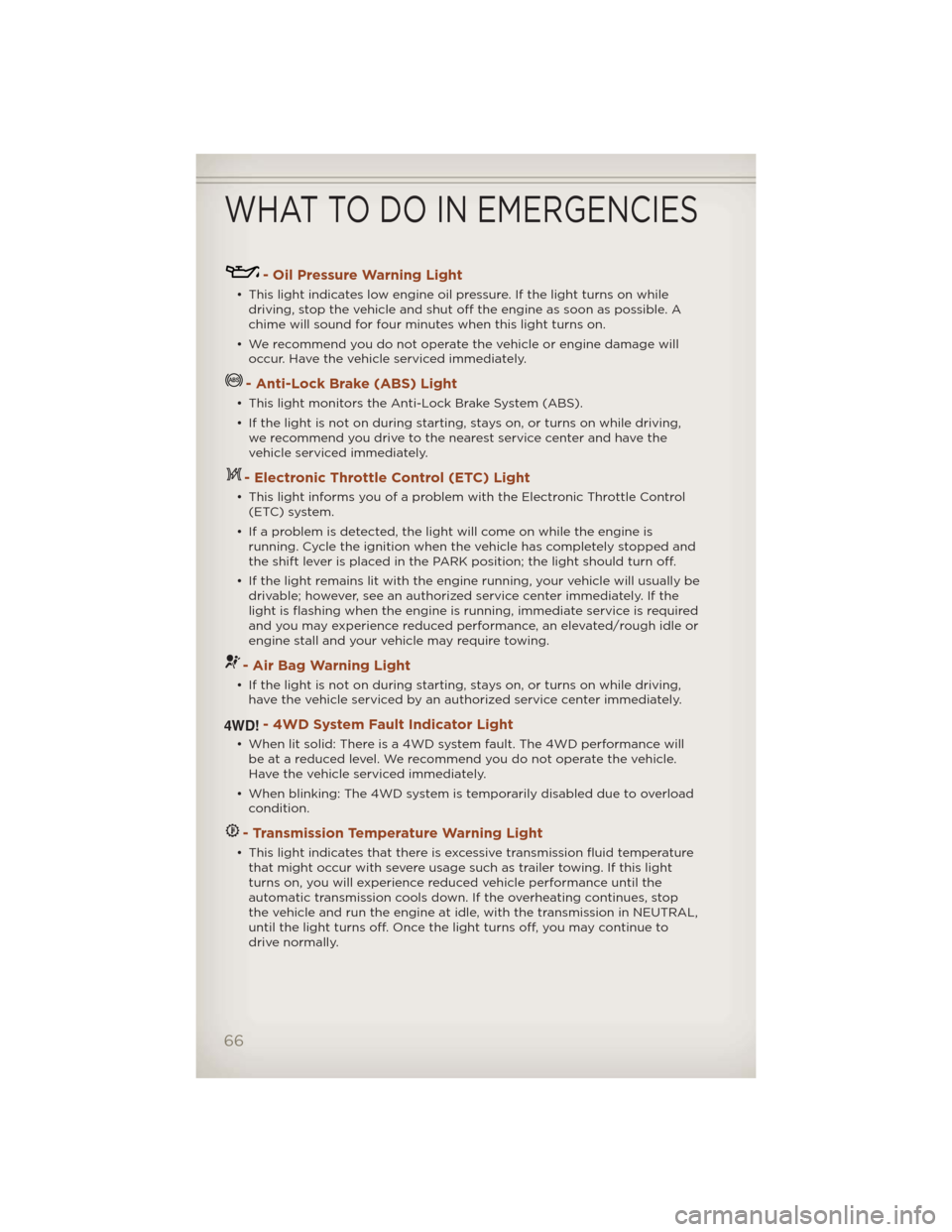

- Oil Pressure Warning Light
• This light indicates low engine oil pressure. If the light turns on while
driving, stop the vehicle and shut off the engine as soon as possible. A
chime will sound for four minutes when this light turns on.
• We recommend you do not operate the vehicle or engine damage will
occur. Have the vehicle serviced immediately.
- Anti-Lock Brake (ABS) Light
• This light monitors the Anti-Lock Brake System (ABS).
• If the light is not on during starting, stays on, or turns on while driving,
we recommend you drive to the nearest service center and have the
vehicle serviced immediately.
- Electronic Throttle Control (ETC) Light
• This light informs you of a problem with the Electronic Throttle Control
(ETC) system.
• If a problem is detected, the light will come on while the engine is
running. Cycle the ignition when the vehicle has completely stopped and
the shift lever is placed in the PARK position; the light should turn off.
• If the light remains lit with the engine running, your vehicle will usually be
drivable; however, see an authorized service center immediately. If the
light is flashing when the engine is running, immediate service is required
and you may experience reduced performance, an elevated/rough idle or
engine stall and your vehicle may require towing.
- Air Bag Warning Light
• If the light is not on during starting, stays on, or turns on while driving,
have the vehicle serviced by an authorized service center immediately.
4WD!- 4WD System Fault Indicator Light
• When lit solid: There is a 4WD system fault. The 4WD performance will
be at a reduced level. We recommend you do not operate the vehicle.
Have the vehicle serviced immediately.
• When blinking: The 4WD system is temporarily disabled due to overload
condition.
- Transmission Temperature Warning Light
• This light indicates that there is excessive transmission fluid temperature
that might occur with severe usage such as trailer towing. If this light
turns on, you will experience reduced vehicle performance until the
automatic transmission cools down. If the overheating continues, stop
the vehicle and run the engine at idle, with the transmission in NEUTRAL,
until the light turns off. Once the light turns off, you may continue to
drive normally.
WHAT TO DO IN EMERGENCIES
66

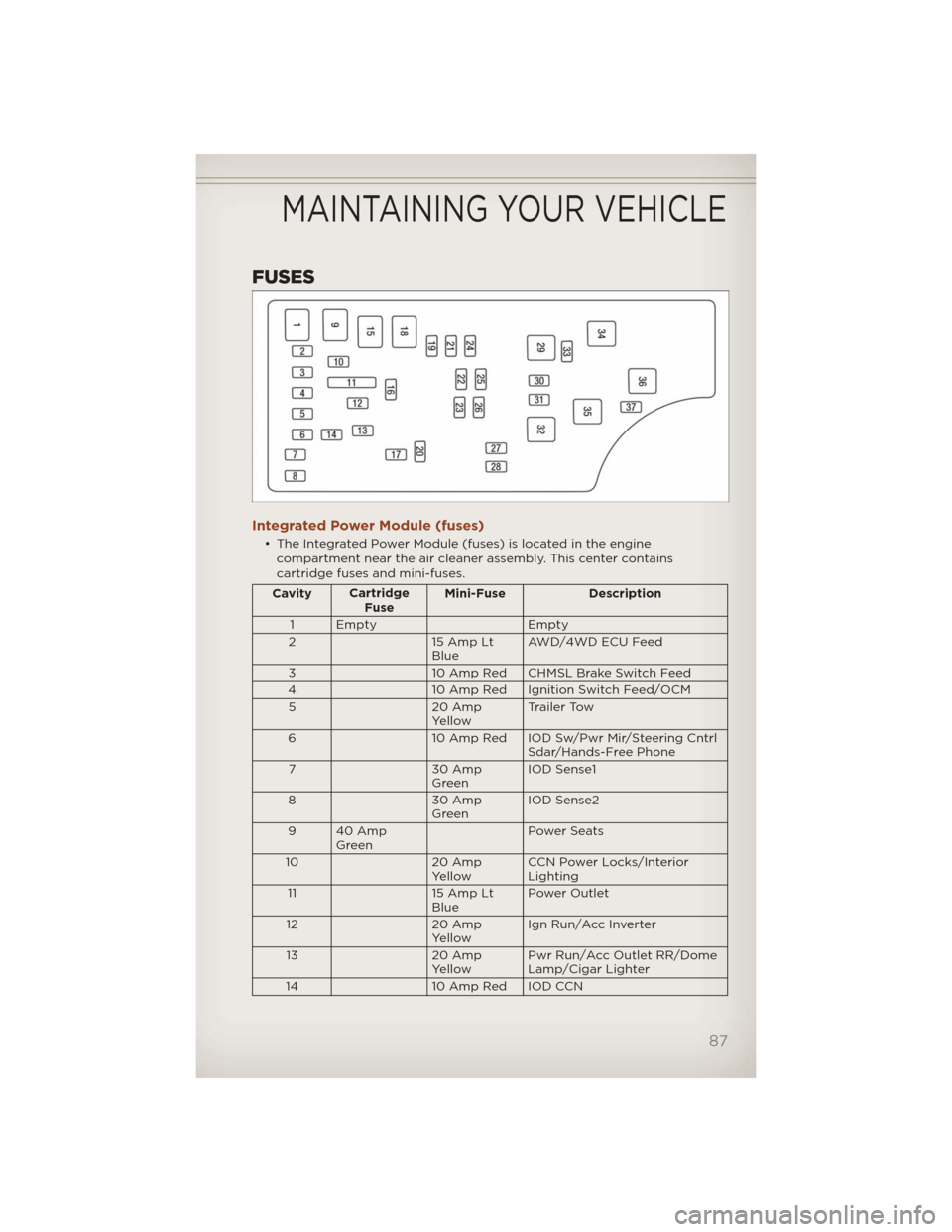

FUSES
Integrated Power Module (fuses)
• The Integrated Power Module (fuses) is located in the engine
compartment near the air cleaner assembly. This center contains
cartridge fuses and mini-fuses.
CavityCartridge
FuseMini-Fuse Description
1 Empty Empty
2 15 Amp Lt
BlueAWD/4WD ECU Feed
3 10 Amp Red CHMSL Brake Switch Feed
4 10 Amp Red Ignition Switch Feed/OCM
5 20 Amp
YellowTrailer Tow
6 10 Amp Red IOD Sw/Pwr Mir/Steering Cntrl
Sdar/Hands-Free Phone
7 30 Amp
GreenIOD Sense1
8 30 Amp
GreenIOD Sense2
9 40 Amp
GreenPower Seats
10 20 Amp
YellowCCN Power Locks/Interior
Lighting
11 15 Amp Lt
BluePower Outlet
12 20 Amp
YellowIgn Run/Acc Inverter
13 20 Amp
YellowPwr Run/Acc Outlet RR/Dome
Lamp/Cigar Lighter
14 10 Amp Red IOD CCN
MAINTAINING YOUR VEHICLE
