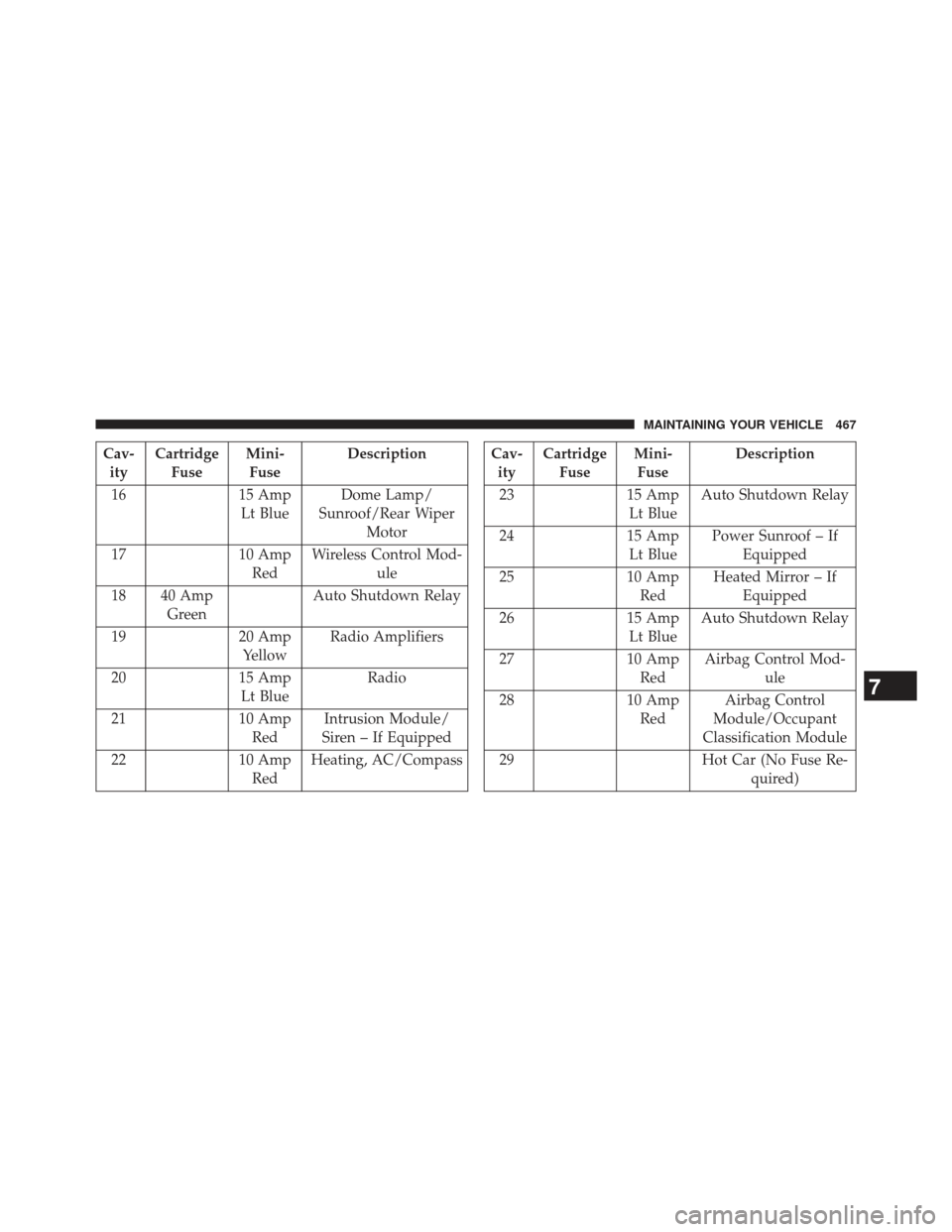

Cav-ity Cartridge
Fuse Mini-
Fuse Description
16 15 Amp Lt BlueDome Lamp/
Sunroof/Rear Wiper Motor
17 10 Amp
Red Wireless Control Mod-
ule
18 40 Amp Green Auto Shutdown Relay
19 20 Amp
Yellow Radio Amplifiers
20 15 Amp
Lt Blue Radio
21 10 Amp
Red Intrusion Module/
Siren – If Equipped
22 10 Amp
Red Heating, AC/CompassCav-
ity Cartridge
Fuse Mini-
Fuse Description
23 15 Amp Lt BlueAuto Shutdown Relay
24 15 Amp
Lt Blue Power Sunroof – If
Equipped
25 10 Amp
Red Heated Mirror – If
Equipped
26 15 Amp
Lt Blue Auto Shutdown Relay
27 10 Amp
Red Airbag Control Mod-
ule
28 10 Amp
Red Airbag Control
Module/Occupant
Classification Module
29 Hot Car (No Fuse Re-
quired)
7
MAINTAINING YOUR VEHICLE 467

Cav-ity Cartridge
Fuse Mini-
Fuse Description
30 20 Amp YellowHeated Seat – If
Equipped
31 10 Amp RedHeadlamp Washer – If
Equipped
32 30 Amp Pink Auto Shutdown Relay
33 10 Amp
Red J1962 Conn/
Powertrain Control Module
34 30 Amp Pink Antilock BrakeValve
35 40 Amp Green Antilock Brake PumpCav-
ity Cartridge
Fuse Mini-
Fuse Description
36 30 Amp Pink Headlamp/Washer
Control/Smart Glass – If Equipped
37 25 Amp
Natural Diesel Fuel Heater – If
Equipped
CAUTION!
•When installing the IPM cover, it is important to
ensure the cover is properly positioned and fully
latched. Failure to do so may allow water to get into
the IPM, and possibly result in an electrical system
failure.
(Continued)
468 MAINTAINING YOUR VEHICLE

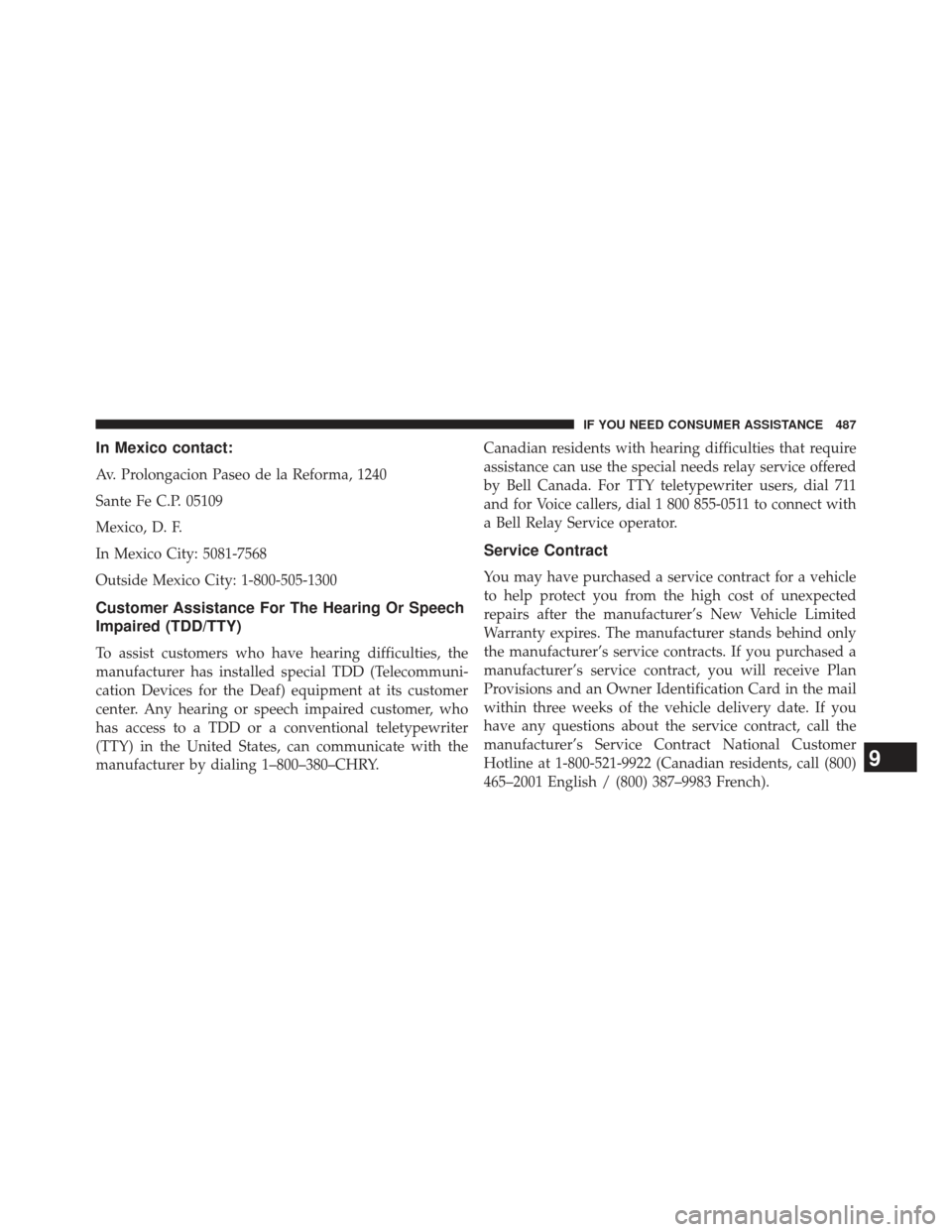

In Mexico contact:
