wipers JEEP COMPASS 2013 1.G Owners Manual

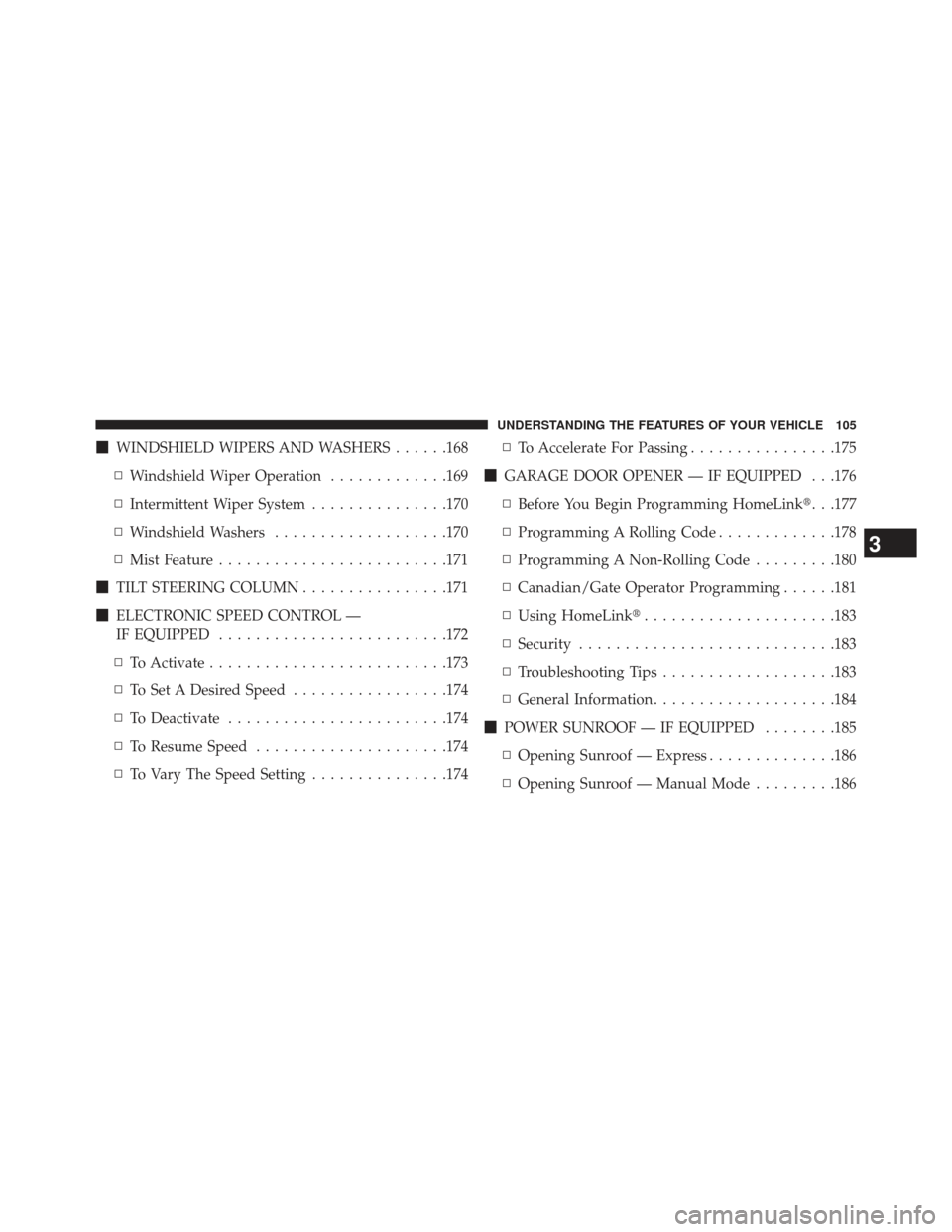

WINDSHIELD WIPERS AND WASHERS ......168
▫ Windshield Wiper Operation .............169
▫ Intermittent Wiper System ...............170
▫ Windshield Washers ...................170
▫ Mist Feature ........................ .171
 TILT STEERING COLUMN ................171
 ELECTRONIC SPEED CONTROL —
IF EQUIPPED ........................ .172
▫ To Activate ......................... .173
▫ To Set A Desired Speed .................174
▫ To Deactivate ....................... .174
▫ To Resume Speed .....................174
▫ To Vary The Speed Setting ...............174 ▫
To Accelerate For Passing ................175
 GARAGE DOOR OPENER — IF EQUIPPED . . .176
▫ Before You Begin Programming HomeLink . . .177
▫ Programming A Rolling Code .............178
▫ Programming A Non-Rolling Code .........180
▫ Canadian/Gate Operator Programming ......181
▫ Using HomeLink .....................183
▫ Security ........................... .183
▫ Troubleshooting Tips ...................183
▫ General Information ....................184
 POWER SUNROOF — IF EQUIPPED ........185
▫ Opening Sunroof — Express ..............186
▫ Opening Sunroof — Manual Mode .........186
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105

WINDSHIELD WIPERS AND WASHERS
The windshield wiper/washer control lever is
located on the right side of the steering column.
The front wipers are operated by rotating a
switch, located on the end of the lever. For information
on the rear wiper/washer, refer to “Rear Window Fea-
tures” in “Understanding The Features Of Your Vehicle”.
Wiper/Washer Control Lever
168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
•Turn the windshield wipers off when driving
through an automatic car wash. Damage to the
windshield wipers may result if the wiper control
is left in any position other than off.
• In cold weather, always turn off the wiper switch
and allow the wipers to return to the “Park” posi-
tion before turning off the engine. If the wiper
switch is left on and the wipers freeze to the
windshield, damage to the wiper motor may occur
when the vehicle is restarted.
• Always remove any buildup of snow that prevents
the windshield wiper blades from returning to the
off position. If the windshield wiper control is
turned off and the blades cannot return to the off
position, damage to the wiper motor may occur.
Windshield Wiper Operation
Rotate the end of the lever upward to the second detent
past the intermittent settings for low-speed wiper opera-
tion. Rotate the end of the lever upward to the third
detent past the intermittent settings for high-speed wiper
operation.
Windshield Wiper Operation
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169

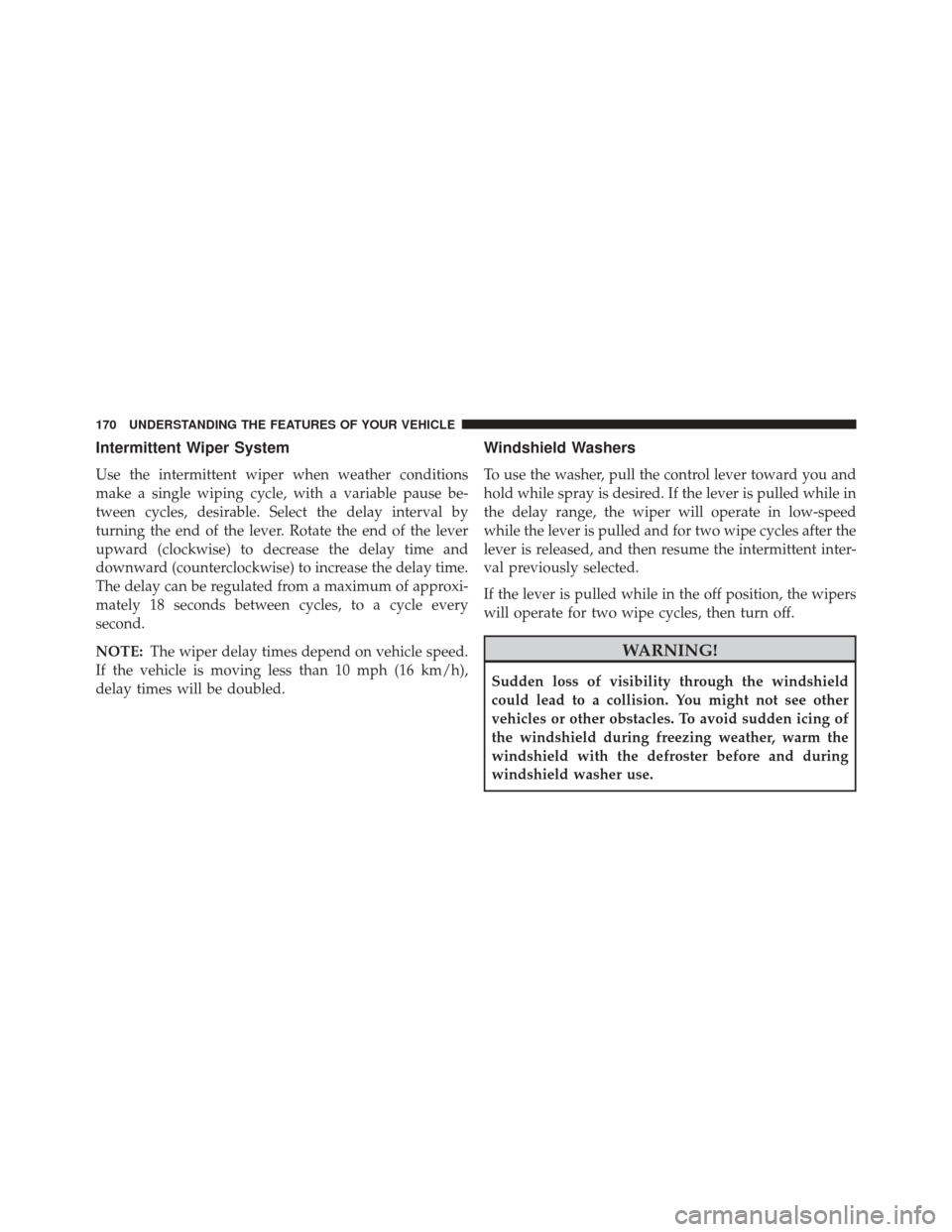

Intermittent Wiper System
Use the intermittent wiper when weather conditions
make a single wiping cycle, with a variable pause be-
tween cycles, desirable. Select the delay interval by
turning the end of the lever. Rotate the end of the lever
upward (clockwise) to decrease the delay time and
downward (counterclockwise) to increase the delay time.
The delay can be regulated from a maximum of approxi-
mately 18 seconds between cycles, to a cycle every
second.
NOTE:The wiper delay times depend on vehicle speed.
If the vehicle is moving less than 10 mph (16 km/h),
delay times will be doubled.
Windshield Washers
To use the washer, pull the control lever toward you and
hold while spray is desired. If the lever is pulled while in
the delay range, the wiper will operate in low-speed
while the lever is pulled and for two wipe cycles after the
lever is released, and then resume the intermittent inter-
val previously selected.
If the lever is pulled while in the off position, the wipers
will operate for two wipe cycles, then turn off.
WARNING!
Sudden loss of visibility through the windshield
could lead to a collision. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Mist Feature
Push down on the control lever to activate a single wipe
to clear the windshield of road mist or spray from a
passing vehicle. As long as the lever is held down, the
wipers will continue to operate.
NOTE:The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
TILT STEERING COLUMN
This feature allows you to tilt the steering column
upward or downward. The tilt steering column lever is
located on the left side of the steering column, below the
turn signal lever.
Mist Operation
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171

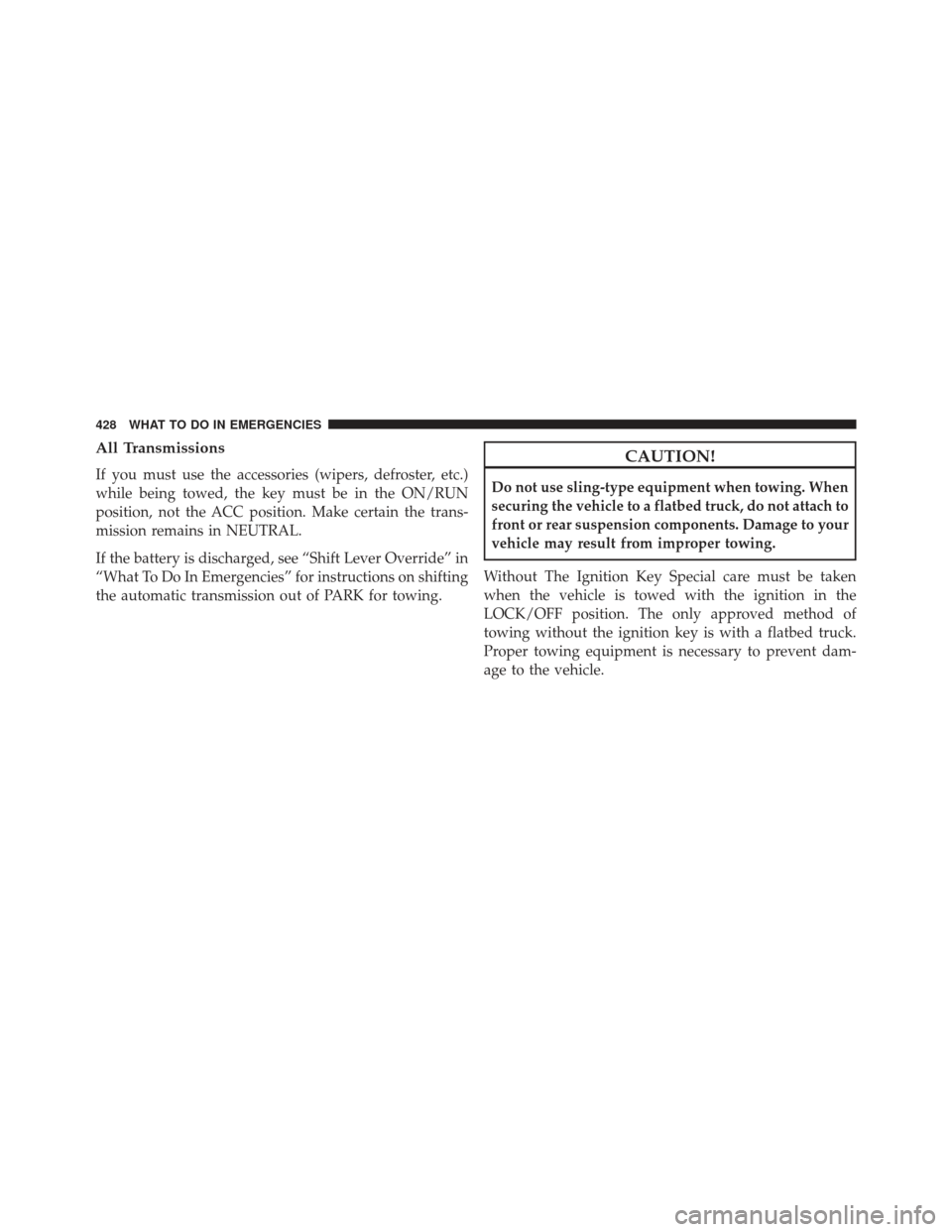

All Transmissions
If you must use the accessories (wipers, defroster, etc.)
while being towed, the key must be in the ON/RUN
position, not the ACC position. Make certain the trans-
mission remains in NEUTRAL.
If the battery is discharged, see “Shift Lever Override” in
“What To Do In Emergencies” for instructions on shifting
the automatic transmission out of PARK for towing.
CAUTION!
Do not use sling-type equipment when towing. When
securing the vehicle to a flatbed truck, do not attach to
front or rear suspension components. Damage to your
vehicle may result from improper towing.
Without The Ignition Key Special care must be taken
when the vehicle is towed with the ignition in the
LOCK/OFF position. The only approved method of
towing without the ignition key is with a flatbed truck.
Proper towing equipment is necessary to prevent dam-
age to the vehicle.
428 WHAT TO DO IN EMERGENCIES

hood latching components to ensure proper function.
When performing other underhood services, the hood
latch, release mechanism and safety catch should be
cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR
Lock Cylinder Lubricant or equivalent directly into the
lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:
Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any of these conditions
are present, clean the wiper blades or replace as neces-
sary.
Adding Washer Fluid
The washer fluid reservoir is located in the engine
compartment, and the fluid level should be checked at
regular intervals. Fill the reservoir with windshield
washer solvent only (not radiator antifreeze).
When refilling the washer fluid reservoir, take some
washer fluid and apply it to a cloth or towel and wipe
clean the wiper blades, this will help blade performance.
To prevent freeze-up of your windshield washer system
444 MAINTAINING YOUR VEHICLE

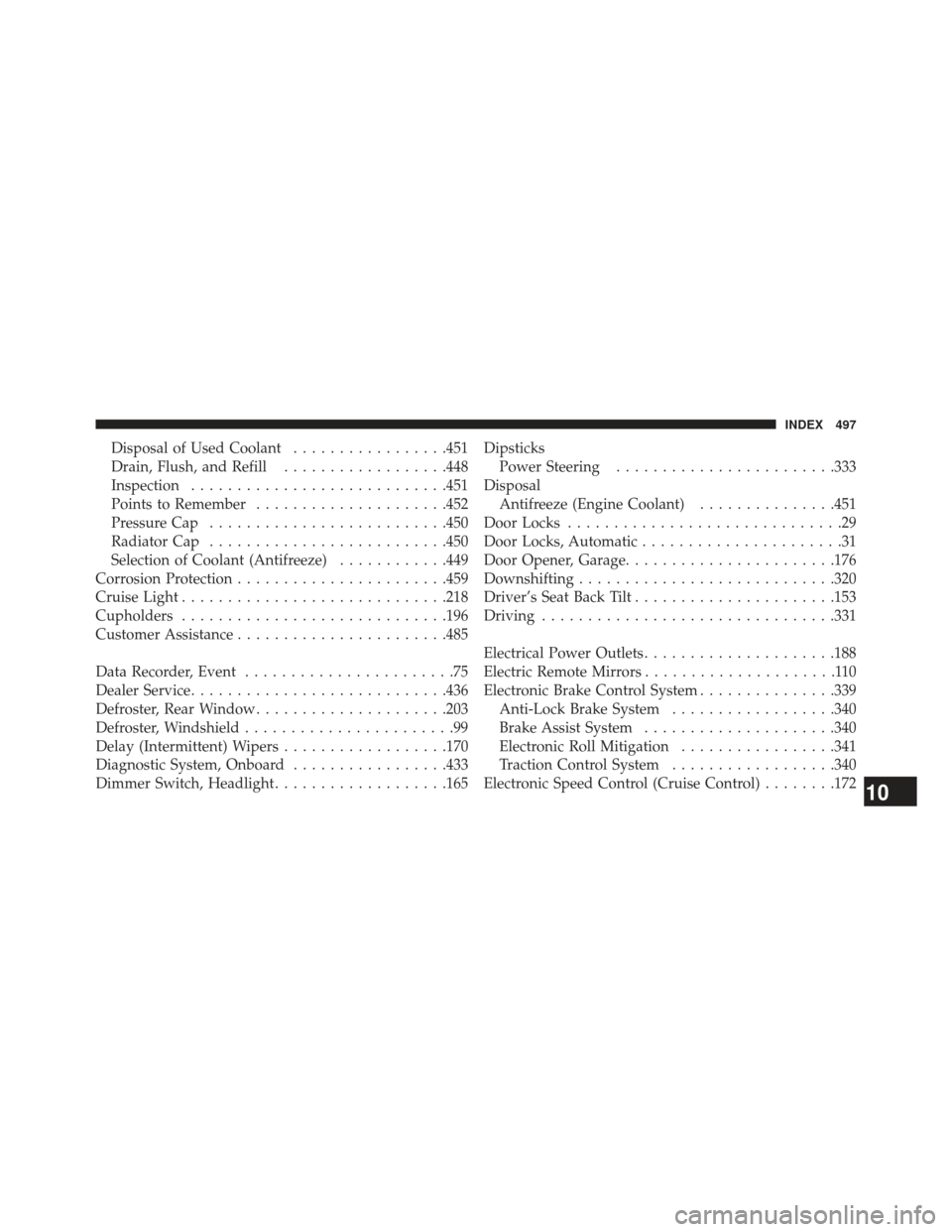

Disposal of Used Coolant.................451
Drain, Flush, and Refill ..................448
Inspection ........................... .451
Points to Remember .....................452
Pressure Cap ......................... .450
Radiator Cap ......................... .450
Selection of Coolant (Antifreeze) ............449
Corrosion Protection ...................... .459
Cruise Light ............................ .218
Cupholders ............................ .196
Customer Assistance ...................... .485
Data Recorder, Event .......................75
Dealer Service ........................... .436
Defroster, Rear Window .....................203
Defroster, Windshield .......................99
Delay (Intermittent) Wipers ..................170
Diagnostic System, Onboard .................433
Dimmer Switch, Headlight ...................165 Dipsticks
Power Steering ....................... .333
Disposal Antifreeze (Engine Coolant) ...............451
Door Locks ..............................29
Door Locks, Automatic ......................31
Door Opener, Garage ...................... .176
Downshifting ........................... .320
Driver’s Seat Back Tilt ..................... .153
Driving ............................... .331
Electrical Power Outlets .....................188
Electric Remote Mirrors .....................110
Electronic Brake Control System ...............339
Anti-Lock Brake System ..................340
Brake Assist System .....................340
Electronic Roll Mitigation .................341
Traction Control System ..................340
Electronic Speed Control (Cruise Control) ........172
10
INDEX 497

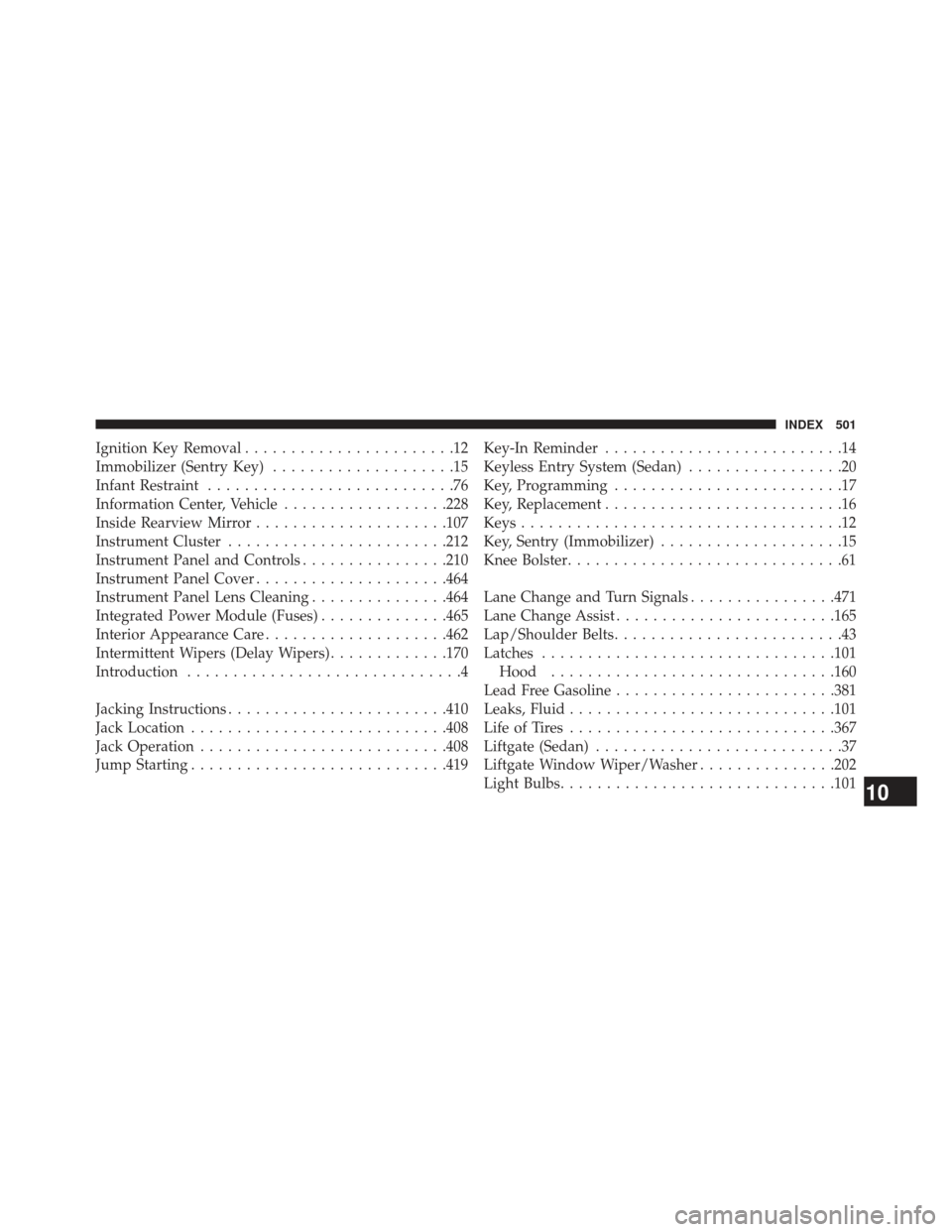

Ignition Key Removal.......................12
Immobilizer (Sentry Key) ....................15
Infant Restraint ...........................76
Information Center, Vehicle ..................228
Inside Rearview Mirror .....................107
Instrument Cluster ....................... .212
Instrument Panel and Controls ................210
Instrument Panel Cover .....................464
Instrument Panel Lens Cleaning ...............464
Integrated Power Module (Fuses) ..............465
Interior Appearance Care ....................462
Intermittent Wipers (Delay Wipers) .............170
Introduction ..............................4
Jacking Instructions ....................... .410
Jack Location ........................... .408
Jack Operation .......................... .408
Jump Starting ........................... .419Key-In Reminder
..........................14
Keyless Entry System (Sedan) .................20
Key, Programming .........................17
Key, Replacement ..........................16
Keys ...................................12
Key, Sentry (Immobilizer) ....................15
Knee Bolster ..............................61
Lane Change and Turn Signals ................471
Lane Change Assist ....................... .165
Lap/Shoulder Belts .........................43
Latches ............................... .101
Hood .............................. .160
Lead Free Gasoline ....................... .381
Leaks, Fluid ............................ .101
Life of Tires ............................ .367
Liftgate (Sedan) ...........................37
Liftgate Window Wiper/Washer ...............202
Light Bulbs ............................. .101
10
INDEX 501

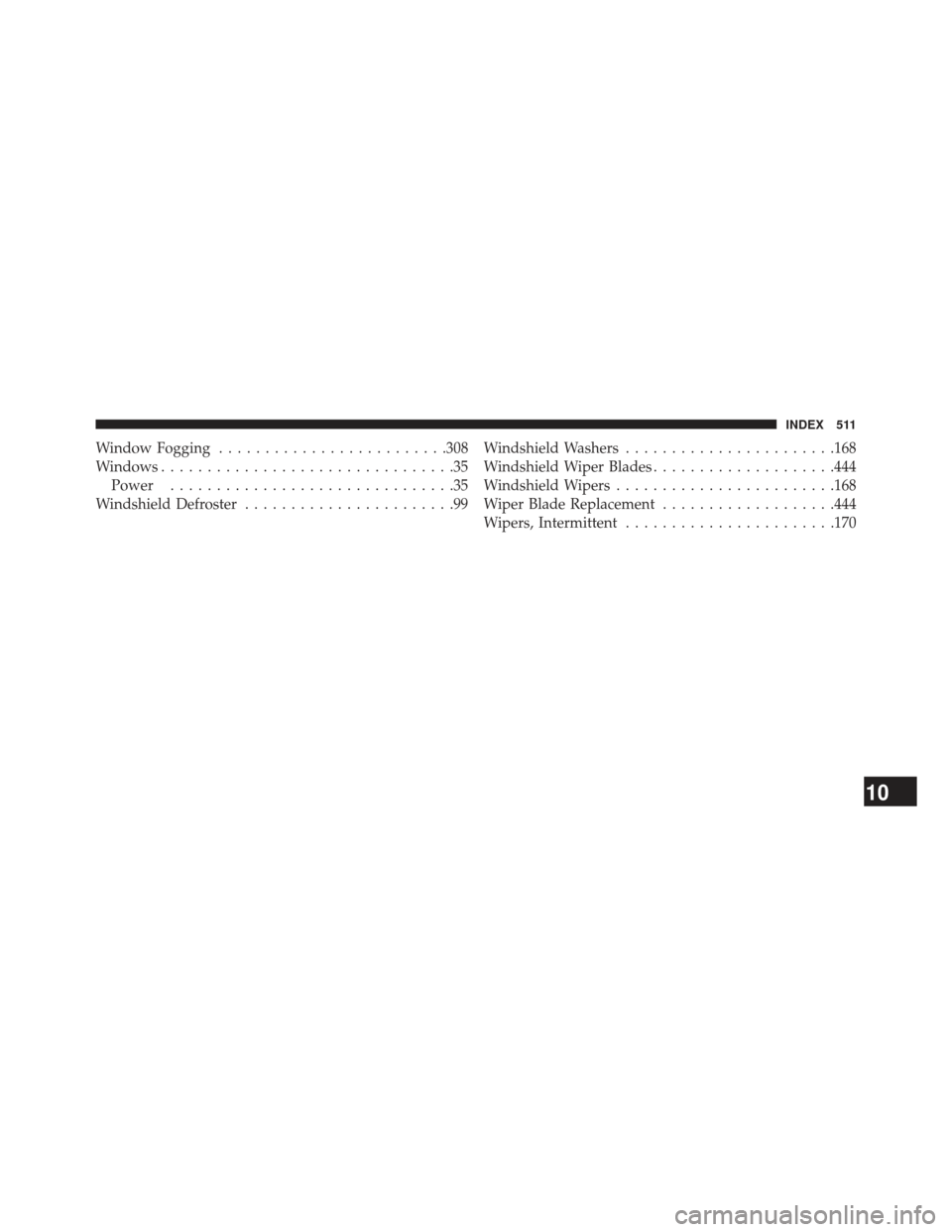

Window Fogging........................ .308
Windows ................................35
Power ...............................35
Windshield Defroster .......................99 Windshield Washers
...................... .168
Windshield Wiper Blades ....................444
Windshield Wipers ....................... .168
Wiper Blade Replacement ...................444
Wipers, Intermittent ...................... .170
10
INDEX 511
