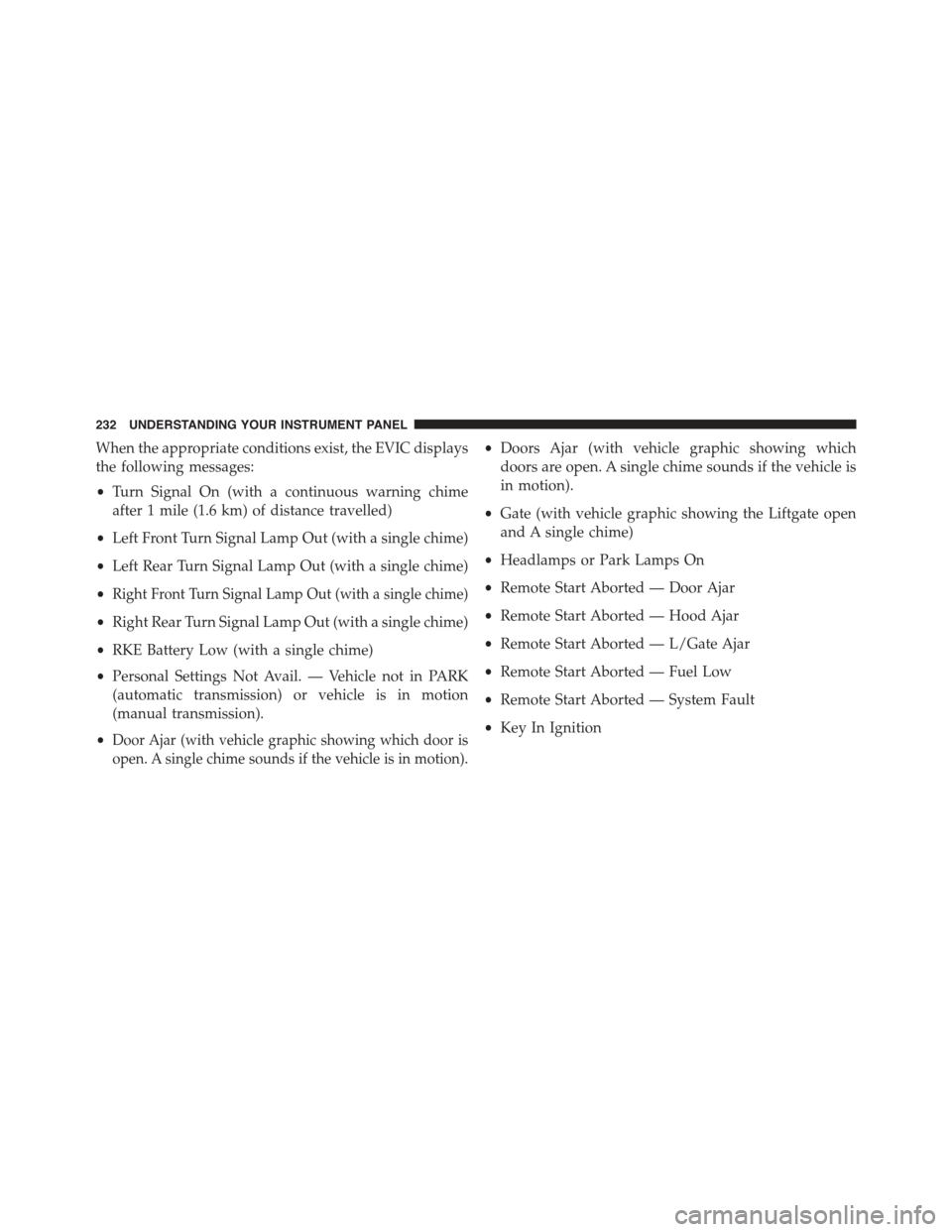

When the appropriate conditions exist, the EVIC displays
the following messages:
•Turn Signal On (with a continuous warning chime
after 1 mile (1.6 km) of distance travelled)
•Left Front Turn Signal Lamp Out (with a single chime)
•Left Rear Turn Signal Lamp Out (with a single chime)
•Right Front Turn Signal Lamp Out (with a single chime)
•Right Rear Turn Signal Lamp Out (with a single chime)
•RKE Battery Low (with a single chime)
•Personal Settings Not Avail. — Vehicle not in PARK
(automatic transmission) or vehicle is in motion
(manual transmission).
•Door Ajar (with vehicle graphic showing which door is
open. A single chime sounds if the vehicle is in motion).
•Doors Ajar (with vehicle graphic showing which
doors are open. A single chime sounds if the vehicle is
in motion).
•Gate (with vehicle graphic showing the Liftgate open
and A single chime)
•Headlamps or Park Lamps On
•Remote Start Aborted — Door Ajar
•Remote Start Aborted — Hood Ajar
•Remote Start Aborted — L/Gate Ajar
•Remote Start Aborted — Fuel Low
•Remote Start Aborted — System Fault
•Key In Ignition
232 UNDERSTANDING YOUR INSTRUMENT PANEL

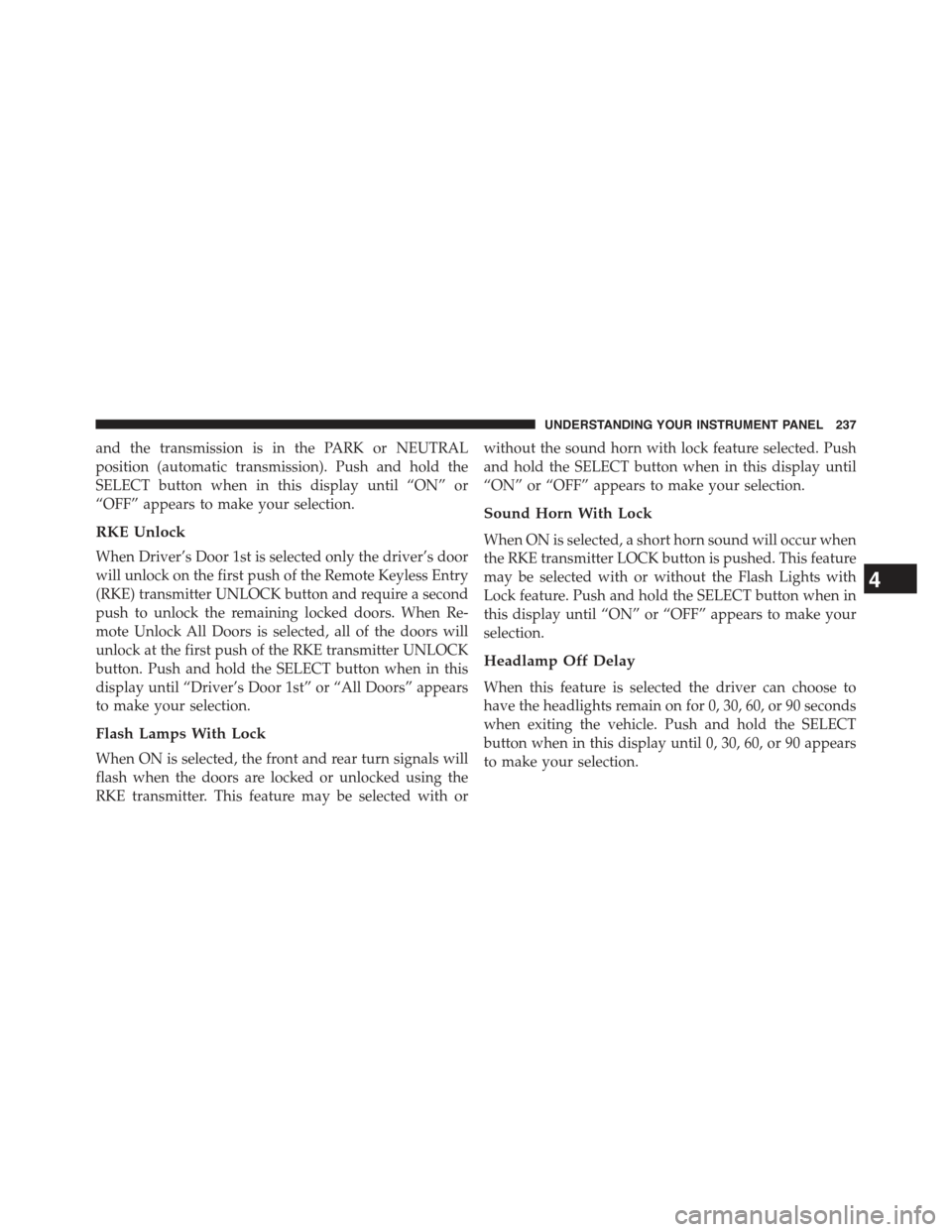

and the transmission is in the PARK or NEUTRAL
position (automatic transmission). Push and hold the
SELECT button when in this display until “ON” or
“OFF” appears to make your selection.
RKE Unlock
When Driver’s Door 1st is selected only the driver’s door
will unlock on the first push of the Remote Keyless Entry
(RKE) transmitter UNLOCK button and require a second
push to unlock the remaining locked doors. When Re-
mote Unlock All Doors is selected, all of the doors will
unlock at the first push of the RKE transmitter UNLOCK
button. Push and hold the SELECT button when in this
display until “Driver’s Door 1st” or “All Doors” appears
to make your selection.
Flash Lamps With Lock
When ON is selected, the front and rear turn signals will
flash when the doors are locked or unlocked using the
RKE transmitter. This feature may be selected with or
without the sound horn with lock feature selected. Push
and hold the SELECT button when in this display until
“ON” or “OFF” appears to make your selection.
Sound Horn With Lock
When ON is selected, a short horn sound will occur when
the RKE transmitter LOCK button is pushed. This feature
may be selected with or without the Flash Lights with
Lock feature. Push and hold the SELECT button when in
this display until “ON” or “OFF” appears to make your
selection.
Headlamp Off Delay
When this feature is selected the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. Push and hold the SELECT
button when in this display until 0, 30, 60, or 90 appears
to make your selection.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 237

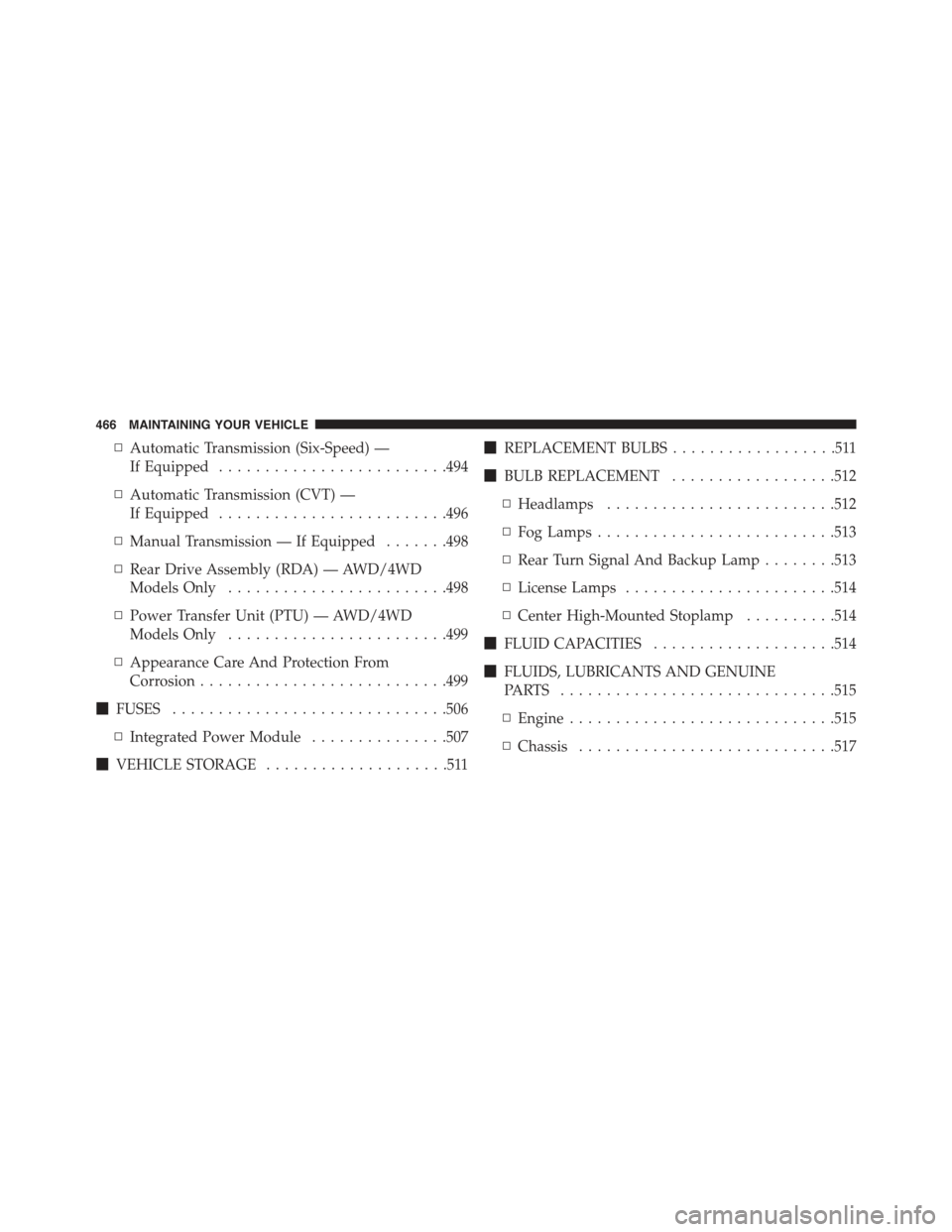

▫Automatic Transmission (Six-Speed) —
If Equipped.........................494
▫Automatic Transmission (CVT) —
If Equipped.........................496
▫Manual Transmission — If Equipped.......498
▫Rear Drive Assembly (RDA) — AWD/4WD
Models Only........................498
▫Power Transfer Unit (PTU) — AWD/4WD
Models Only........................499
▫Appearance Care And Protection From
Corrosion...........................499
!FUSES..............................506
▫Integrated Power Module...............507
!VEHICLE STORAGE....................511
!REPLACEMENT BULBS..................511
!BULB REPLACEMENT..................512
▫Headlamps.........................512
▫Fog Lamps..........................513
▫Rear Turn Signal And Backup Lamp........513
▫License Lamps.......................514
▫Center High-Mounted Stoplamp..........514
!FLUID CAPACITIES....................514
!FLUIDS, LUBRICANTS AND GENUINE
PA R T S . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..515
▫Engine.............................515
▫Chassis............................517
466 MAINTAINING YOUR VEHICLE

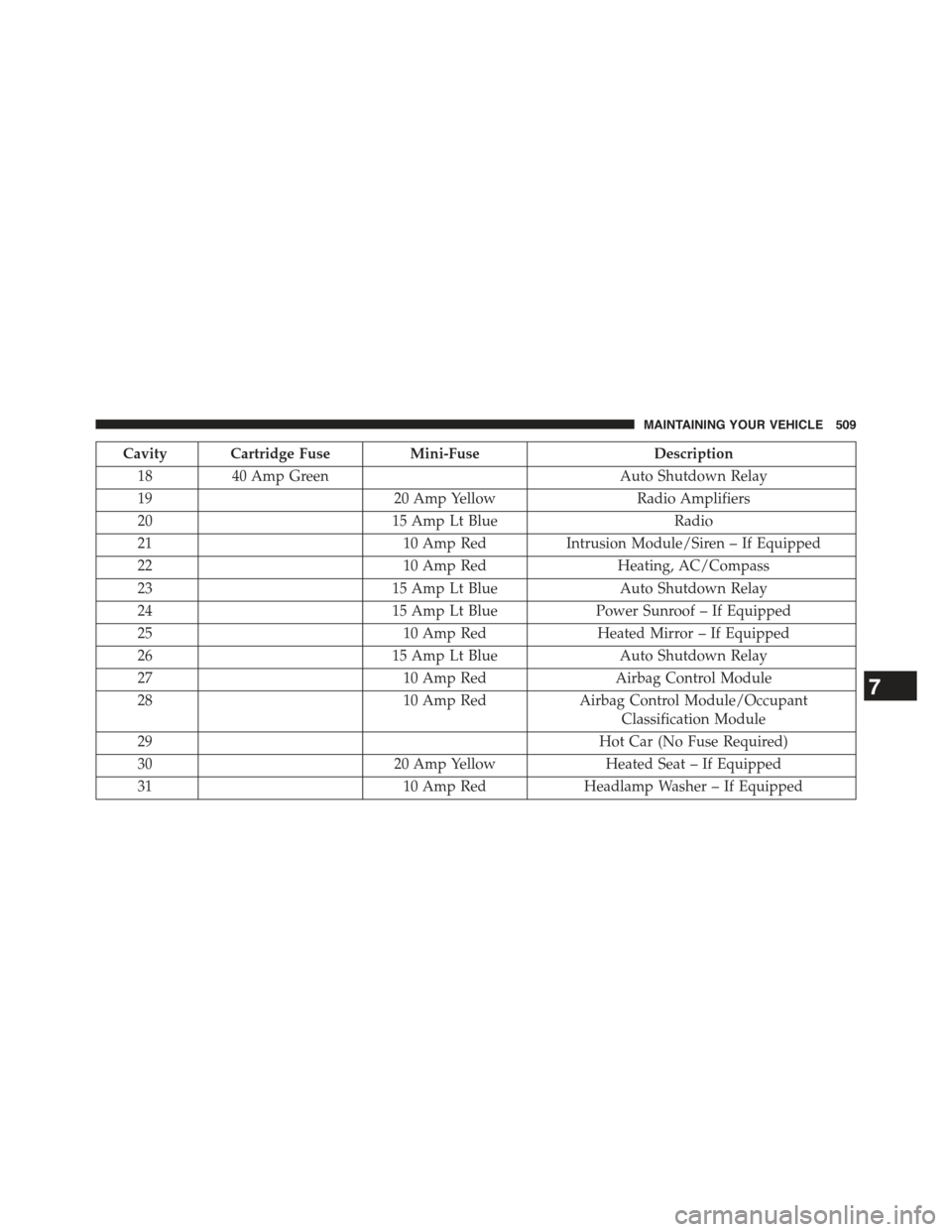

Cavity Cartridge FuseMini-FuseDescription
1840 Amp GreenAuto Shutdown Relay
1920 Amp YellowRadio Amplifiers
2015 Amp Lt BlueRadio
2110 Amp RedIntrusion Module/Siren – If Equipped
2210 Amp RedHeating, AC/Compass
2315 Amp Lt BlueAuto Shutdown Relay
2415 Amp Lt BluePower Sunroof – If Equipped
2510 Amp RedHeated Mirror – If Equipped
2615 Amp Lt BlueAuto Shutdown Relay
2710 Amp RedAirbag Control Module
2810 Amp RedAirbag Control Module/Occupant
Classification Module
29Hot Car (No Fuse Required)
3020 Amp YellowHeated Seat – If Equipped
3110 Amp RedHeadlamp Washer – If Equipped
7
MAINTAINING YOUR VEHICLE 509

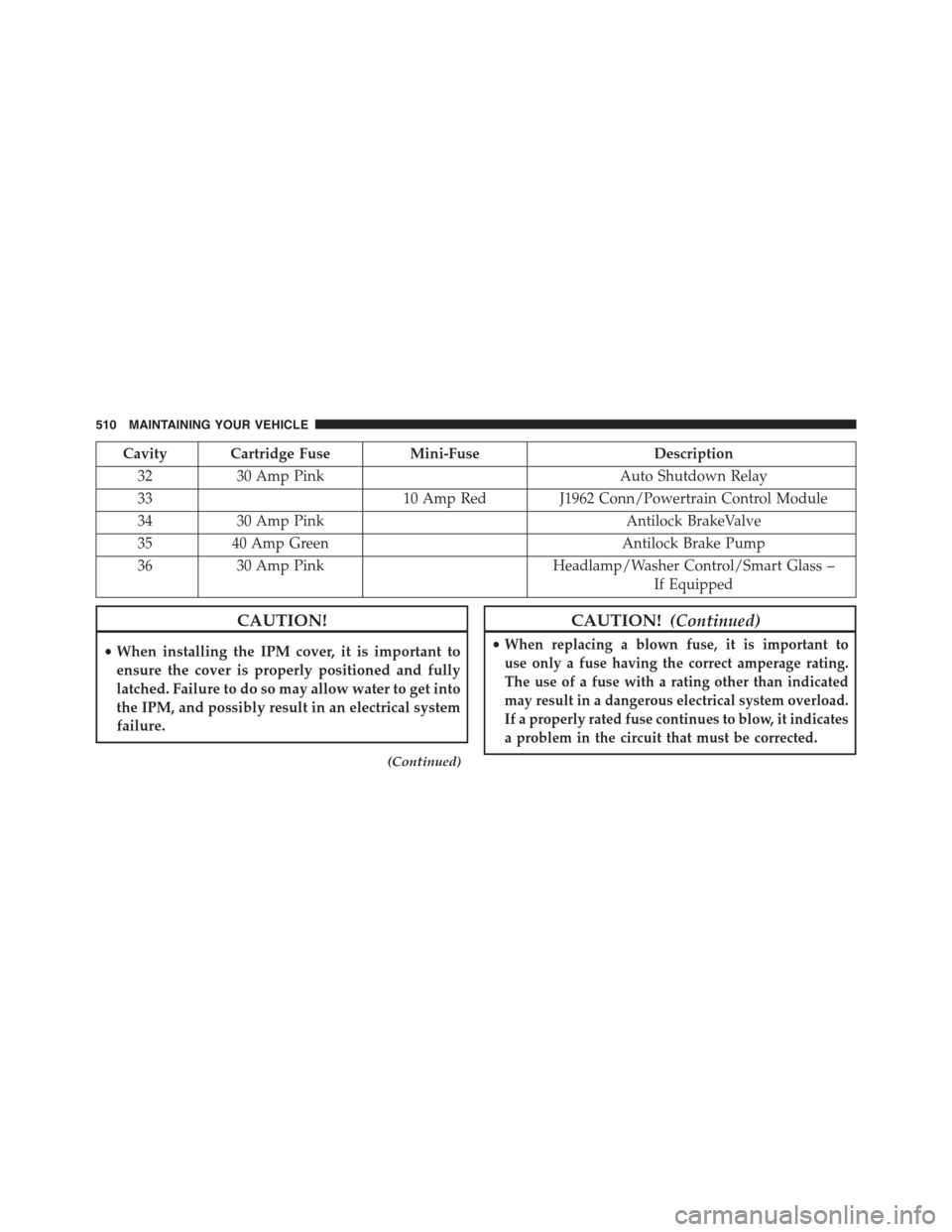

Cavity Cartridge FuseMini-FuseDescription
3230 Amp PinkAuto Shutdown Relay
3310 Amp Red J1962 Conn/Powertrain Control Module
3430 Amp PinkAntilock BrakeValve
3540 Amp GreenAntilock Brake Pump
3630 Amp PinkHeadlamp/Washer Control/Smart Glass –
If Equipped
CAUTION!
•When installing the IPM cover, it is important to
ensure the cover is properly positioned and fully
latched. Failure to do so may allow water to get into
the IPM, and possibly result in an electrical system
failure.
(Continued)
CAUTION!(Continued)
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system overload.
If a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
510 MAINTAINING YOUR VEHICLE

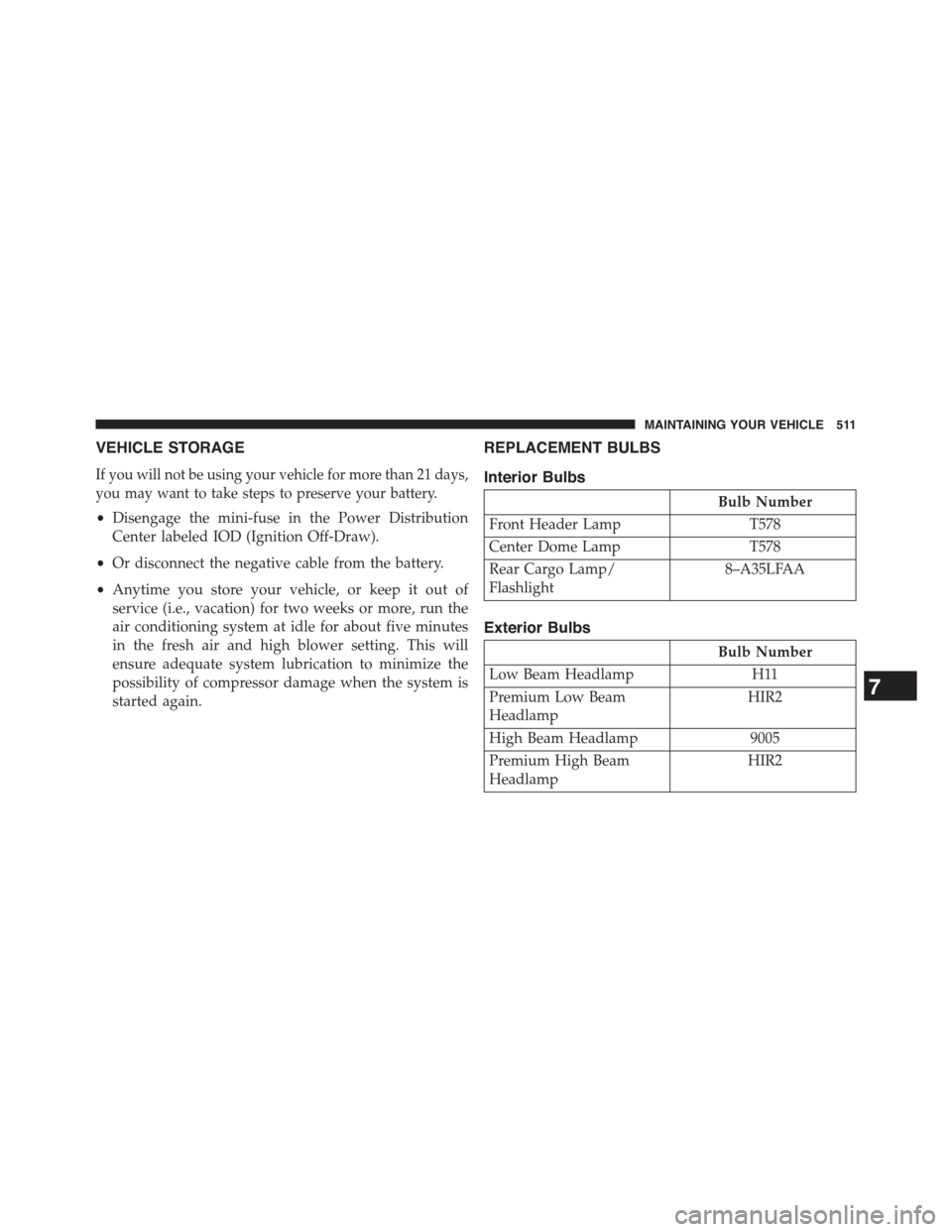

VEHICLE STORAGE
If you will not be using your vehicle for more than 21 days,
you may want to take steps to preserve your battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Or disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Front Header LampT578
Center Dome LampT578
Rear Cargo Lamp/
Flashlight
8–A35LFAA
Exterior Bulbs
Bulb Number
Low Beam HeadlampH11
Premium Low Beam
Headlamp
HIR2
High Beam Headlamp9005
Premium High Beam
Headlamp
HIR2
7
MAINTAINING YOUR VEHICLE 511

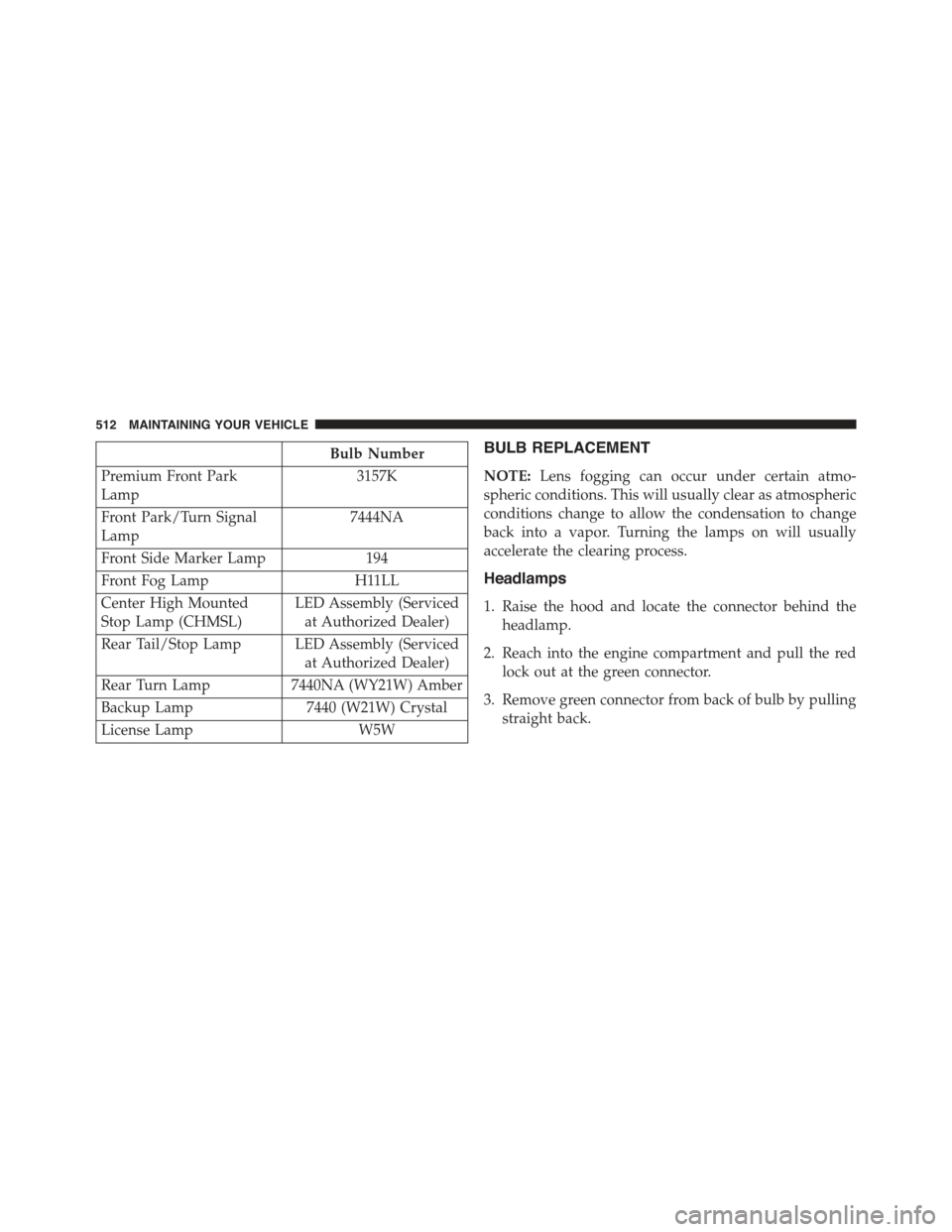

Bulb Number
Premium Front Park
Lamp
3157K
Front Park/Turn Signal
Lamp
7444NA
Front Side Marker Lamp 194
Front Fog Lamp H11LL
Center High Mounted
Stop Lamp (CHMSL)
LED Assembly (Serviced
at Authorized Dealer)
Rear Tail/Stop Lamp LED Assembly (Serviced
at Authorized Dealer)
Rear Turn Lamp7440NA (WY21W) Amber
Backup Lamp7440 (W21W) Crystal
License LampW5W
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Headlamps
1. Raise the hood and locate the connector behind the
headlamp.
2. Reach into the engine compartment and pull the red
lock out at the green connector.
3. Remove green connector from back of bulb by pulling
straight back.
