Page 283 of 429
Mileage or time passed (whichever comes first)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Additional Inspections
Inspect the CV joints. X X X X X X X
Inspect front suspension, boot seals. tie rod ends,
and replace if necessary. XXX X X X X
Inspect brake linings, replace if necessary. Check
park brake function, adjust if necessary. XXX X X X X
Additional Maintenance
Replace engine air cleaner filter. XX X X X
Replace air conditioning/cabin air filter. X X X X X X X
Replace spark plugs ** XX X X X
Flush and replace the engine coolant at 10 years or
150,000 miles (240,000 km) whichever comes first. XX
Replace rear drive assembly (RDA) fluid. XX
Replace power transfer unit (PTU) fluid. XX
Change automatic transmission fluid and filter if using
your vehicle for any of the following: police, taxi, fleet,
or frequent trailer towing. (CVT only) XX
8
SERVICING AND MAINTENANCE 281
Page 342 of 429

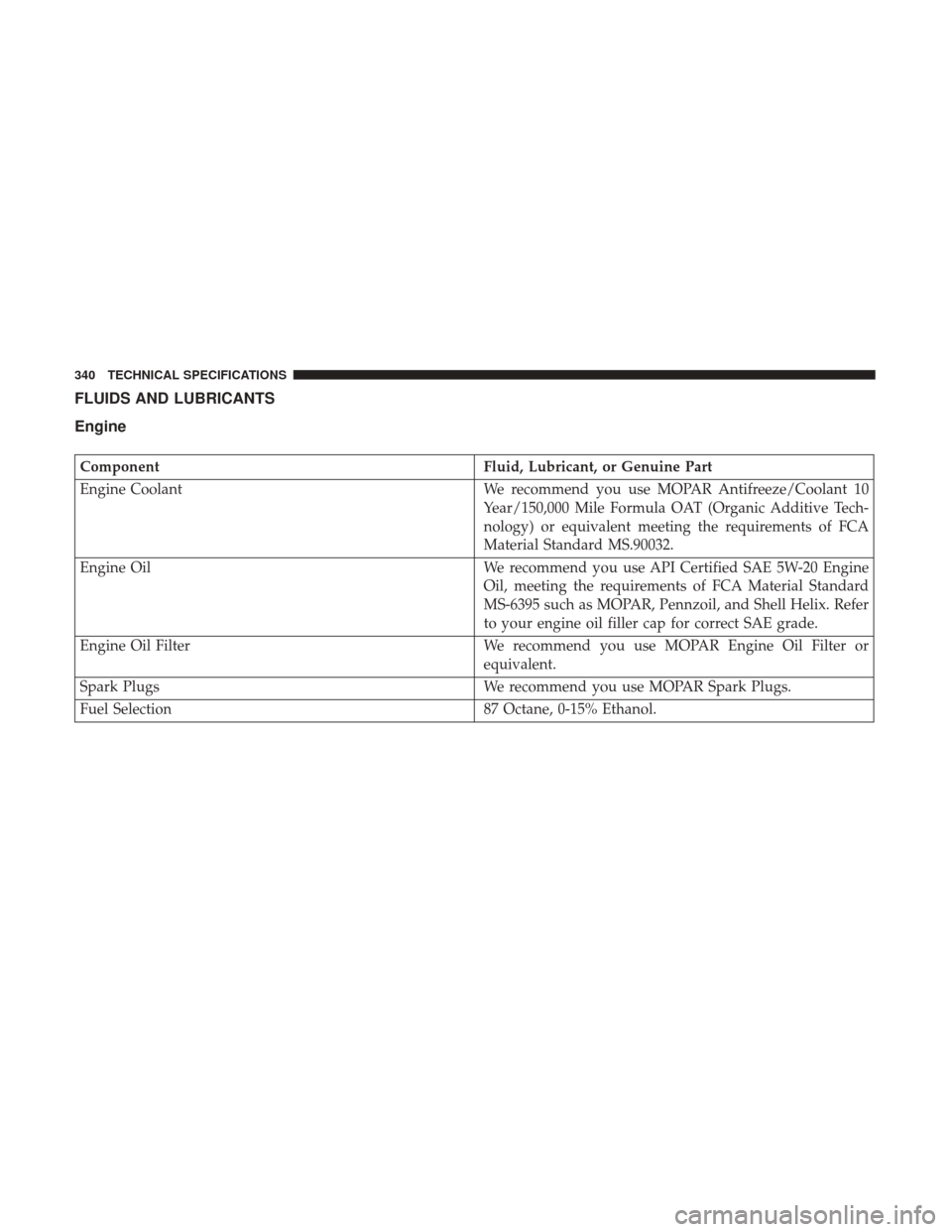

FLUIDS AND LUBRICANTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR Antifreeze/Coolant 10
Year/150,000 Mile Formula OAT (Organic Additive Tech-
nology) or equivalent meeting the requirements of FCA
Material Standard MS.90032.
Engine Oil We recommend you use API Certified SAE 5W-20 Engine
Oil, meeting the requirements of FCA Material Standard
MS-6395 such as MOPAR, Pennzoil, and Shell Helix. Refer
to your engine oil filler cap for correct SAE grade.
Engine Oil Filter We recommend you use MOPAR Engine Oil Filter or
equivalent.
Spark Plugs We recommend you use MOPAR Spark Plugs.
Fuel Selection 87 Octane, 0-15% Ethanol.
340 TECHNICAL SPECIFICATIONS
Page 424 of 429
Seat Belts............................ .148, 192
Adjustable Shoulder Belt ...................154
Adjustable Upper Shoulder Anchorage .........154
Child Restraint ..........................174
Extender ...............................157
Front Seat .......................148, 150, 152
Inspection ............................. .192
Operating Instructions .....................152
Pregnant Women ........................ .158
Pretensioners .......................... .159
Rear Seat ............................. .150
Reminder ..............................111
Untwisting Procedure .....................154
Seats ................................. .34, 37
Adjustment .......................... .34, 37
Heated .................................37
Lumbar Support ..........................35
Rear Folding .............................38
Seatback Release ..........................35
Tilting .................................35
Security Alarm ..........................25, 113
Selection Of Coolant (Antifreeze) ...............340
Sentry Key (Immobilizer) ......................23
Sentry Key Programming ......................24
Sentry Key Replacement ......................24 Service Assistance
..........................406
Service Contract .......................... .408
Service Manuals .......................... .409
Settings, Personal ..........................105
Setting The Clock .......................345, 353
Shift Lever Override ........................271
Shift Speeds, Manual Transmission ..............203
Shoulder Belts ............................ .150
Signals, Turn .......................123, 194, 247
Snow Chains (Tire Chains) ....................323
Snow Tires ...............................320
Spare Tire ........................ .252, 320, 321
Spark Plugs ............................. .340
Speed Contr
ol
Accel/Decel ............................219
Cancel ............................... .217
Resume ...............................217
Speed Control (Cruise Control) .................216
Starting .................................197
Automatic Transmission ....................197
Cold Weather .......................... .198
Engine Fails To Start ..................... .198
Manual Transmission ..................... .197
Remote ................................27
Starting Procedures ........................ .197
422 INDEX
