SERVICING AND MAINTENANCE285

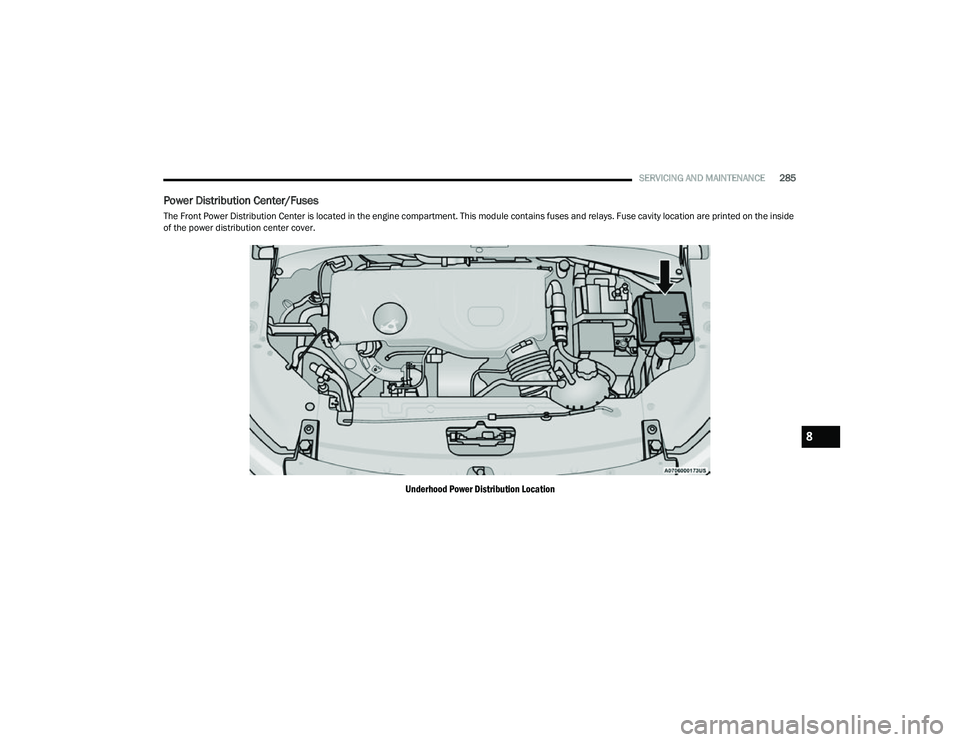

Power Distribution Center/Fuses
The Front Power Distribution Center is located in the engine compartment. This module contains fuses and relays. Fuse cavity location are printed on the inside
of the power distribution center cover.
Underhood Power Distribution Location
8

22_MP_OM_EN_USC_t.book Page 285

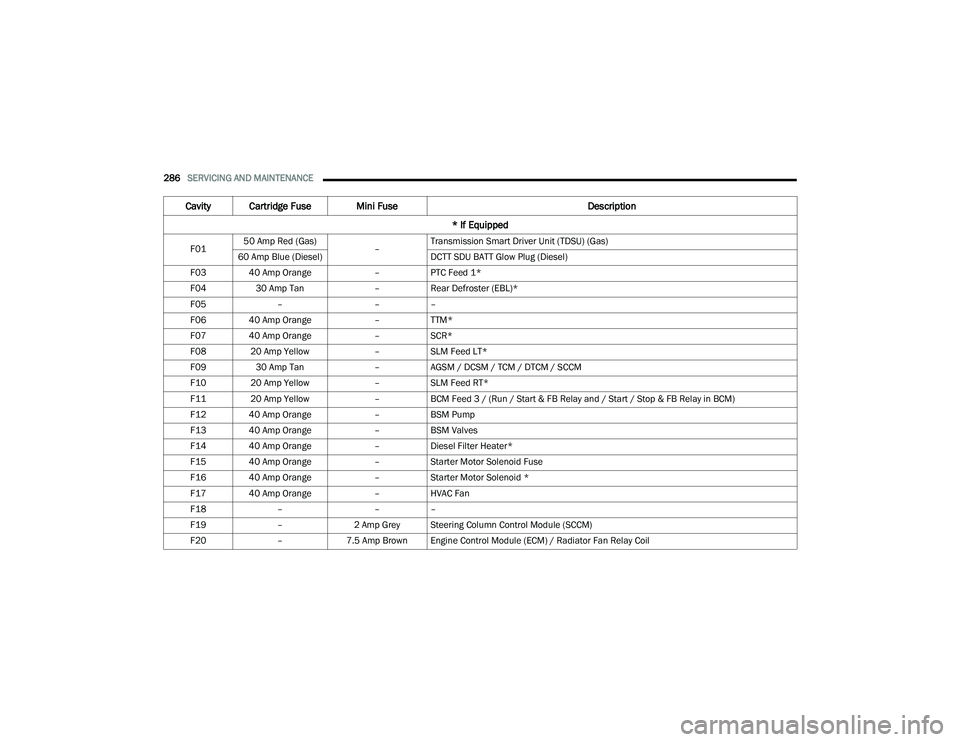

286SERVICING AND MAINTENANCE
Cavity Cartridge Fuse Mini Fuse Description
* If Equipped
F01 50 Amp Red (Gas)
–Transmission Smart Driver Unit (TDSU) (Gas)
60 Amp Blue (Diesel) DCTT SDU BATT Glow Plug (Diesel)
F03 40 Amp Orange –PTC Feed 1*
F04 30 Amp Tan –Rear Defroster (EBL)*
F05 – ––
F06 40 Amp Orange –TTM*
F07 40 Amp Orange –SCR*
F08 20 Amp Yellow –SLM Feed LT*
F09 30 Amp Tan –AGSM / DCSM / TCM / DTCM / SCCM
F10 20 Amp Yellow –SLM Feed RT*
F11 20 Amp Yellow –BCM Feed 3 / (Run / Start & FB Relay and / Start / Stop & FB Relay in BCM)
F12 40 Amp Orange –BSM Pump
F13 40 Amp Orange –BSM Valves
F14 40 Amp Orange –Diesel Filter Heater*
F15 40 Amp Orange –Starter Motor Solenoid Fuse
F16 40 Amp Orange –Starter Motor Solenoid *
F17 40 Amp Orange –HVAC Fan
F18 – ––
F19 –2 Amp Grey Steering Column Control Module (SCCM)
F20 –7.5 Amp Brown Engine Control Module (ECM) / Radiator Fan Relay Coil

22_MP_OM_EN_USC_t.book Page 286

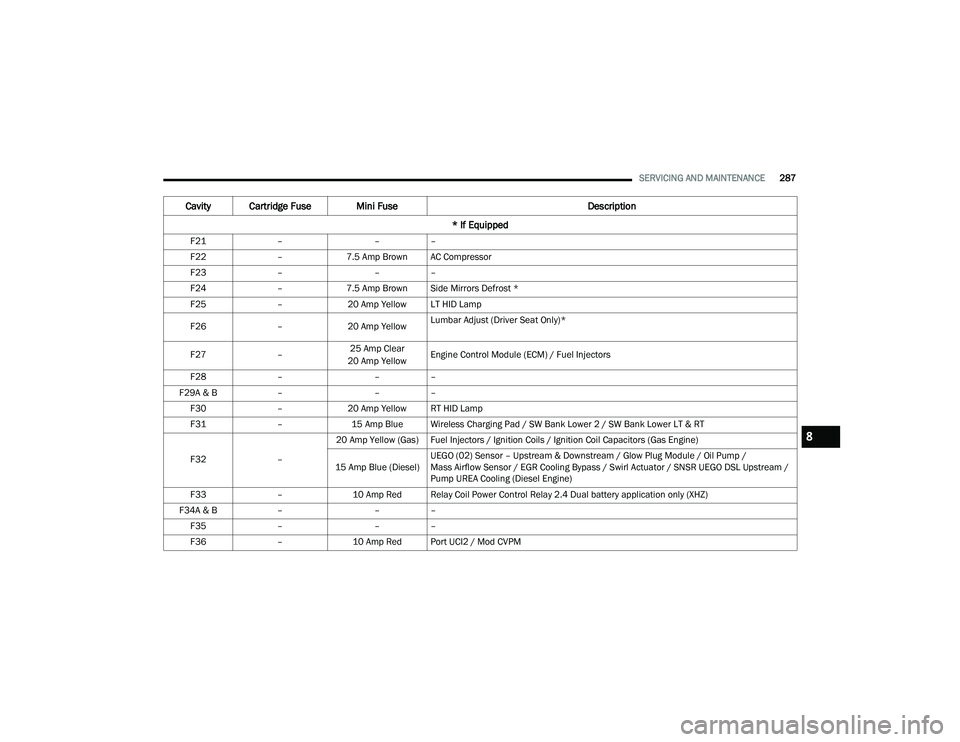

SERVICING AND MAINTENANCE287
F21 – ––
F22 –7.5 Amp Brown AC Compressor
F23 – ––
F24 –7.5 Amp Brown Side Mirrors Defrost *
F25 –20 Amp Yellow LT HID Lamp
F26 –20 Amp Yellow Lumbar Adjust (Driver Seat Only)*

F27 –25 Amp Clear
20 Amp Yellow Engine Control Module (ECM) / Fuel Injectors
F28 – ––
F29A & B –––
F30 –20 Amp Yellow RT HID Lamp
F31 –15 Amp Blue Wireless Charging Pad / SW Bank Lower 2 / SW Bank Lower LT & RT
F32 –20 Amp Yellow (Gas) Fuel Injectors / Ignition Coils / Ignition Coil Capacitors (Gas Engine)
15 Amp Blue (Diesel) UEGO (02) Sensor – Upstream & Downstream / Glow Plug Module / Oil Pump /
Mass Airflow Sensor / EGR Cooling Bypass / Swirl Actuator / SNSR UEGO DSL Upstream /
Pump UREA Cooling (Diesel Engine)
F33 –10 Amp Red Relay Coil Power Control Relay 2.4 Dual battery application only (XHZ)
F34A & B –––
F35 – ––
F36 –10 Amp Red Port UCI2 / Mod CVPM
Cavity Cartridge Fuse Mini Fuse Description
* If Equipped
8

22_MP_OM_EN_USC_t.book Page 287

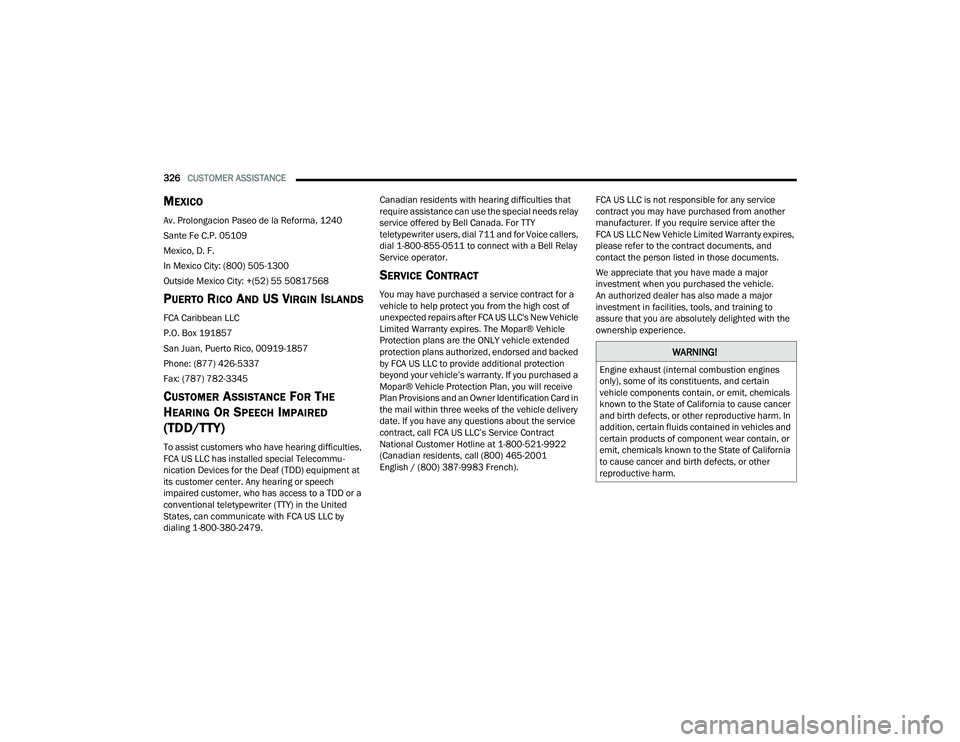

326CUSTOMER ASSISTANCE
MEXICO
Av. Prolongacion Paseo de la Reforma, 1240
Sante Fe C.P. 05109
Mexico, D. F.
In Mexico City: (800) 505-1300
Outside Mexico City: +(52) 55 50817568
PUERTO RICO AND US VIRGIN ISLANDS
FCA Caribbean LLC
P.O. Box 191857
San Juan, Puerto Rico, 00919-1857
Phone: (877) 426-5337
Fax: (787) 782-3345
CUSTOMER ASSISTANCE FOR THE
H
EARING OR SPEECH IMPAIRED
(TD D/T TY)
To assist customers who have hearing difficulties,
FCA US LLC has installed special Telecommu -
nication Devices for the Deaf (TDD) equipment at
its customer center. Any hearing or speech
impaired customer, who has access to a TDD or a
conventional teletypewriter (TTY) in the United
States, can communicate with FCA US LLC by
dialing 1-800-380-2479. Canadian residents with hearing difficulties that
require assistance can use the special needs relay
service offered by Bell Canada. For TTY
teletypewriter users, dial 711 and for Voice callers,
dial 1-800-855-0511 to connect with a Bell Relay
Service operator.
SERVICE CONTRACT
You may have purchased a service contract for a
vehicle to help protect you from the high cost of
unexpected repairs after FCA US LLC's New Vehicle
Limited Warranty expires. The Mopar® Vehicle
Protection plans are the ONLY vehicle extended
protection plans authorized, endorsed and backed
by FCA US LLC to provide additional protection
beyond your vehicle’s warranty. If you purchased a
Mopar® Vehicle Protection Plan, you will receive
Plan Provisions and an Owner Identification Card in
the mail within three weeks of the vehicle delivery
date. If you have any questions about the service
contract, call FCA US LLC’s Service Contract
National Customer Hotline at 1-800-521-9922
(Canadian residents, call (800) 465-2001
English / (800) 387-9983 French).
FCA US LLC is not responsible for any service
contract you may have purchased from another
manufacturer. If you require service after the
FCA US LLC New Vehicle Limited Warranty expires,
please refer to the contract documents, and
contact the person listed in those documents.
We appreciate that you have made a major
investment when you purchased the vehicle.
An authorized dealer has also made a major
investment in facilities, tools, and training to
assure that you are absolutely delighted with the
ownership experience.
WARNING!
Engine exhaust (internal combustion engines
only), some of its constituents, and certain
vehicle components contain, or emit, chemicals
known to the State of California to cause cancer
and birth defects, or other reproductive harm. In
addition, certain fluids contained in vehicles and
certain products of component wear contain, or
emit, chemicals known to the State of California
to cause cancer and birth defects, or other
reproductive harm.

22_MP_OM_EN_USC_t.book Page 326
