cruise control JEEP GRAND CHEROKEE 2008 WK / 3.G SRT Owners Manual

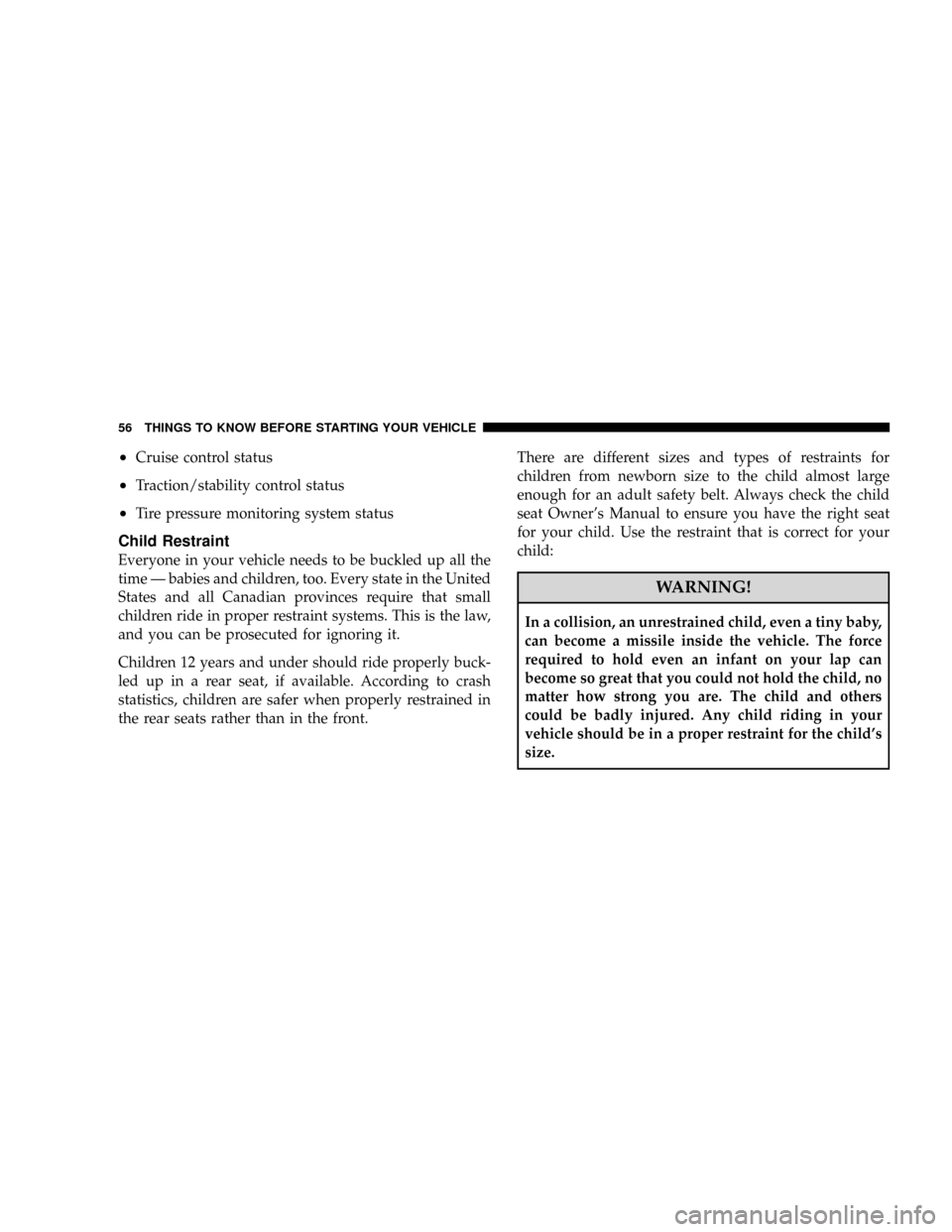

²Cruise control status
²Traction/stability control status
²Tire pressure monitoring system status
Child Restraint
Everyone in your vehicle needs to be buckled up all the
time Ð babies and children, too. Every state in the United
States and all Canadian provinces require that small
children ride in proper restraint systems. This is the law,
and you can be prosecuted for ignoring it.
Children 12 years and under should ride properly buck-
led up in a rear seat, if available. According to crash
statistics, children are safer when properly restrained in
the rear seats rather than in the front.There are different sizes and types of restraints for
children from newborn size to the child almost large
enough for an adult safety belt. Always check the child
seat Owner's Manual to ensure you have the right seat
for your child. Use the restraint that is correct for your
child:
WARNING!
In a collision, an unrestrained child, even a tiny baby,
can become a missile inside the vehicle. The force
required to hold even an infant on your lap can
become so great that you could not hold the child, no
matter how strong you are. The child and others
could be badly injured. Any child riding in your
vehicle should be in a proper restraint for the child's
size.
56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

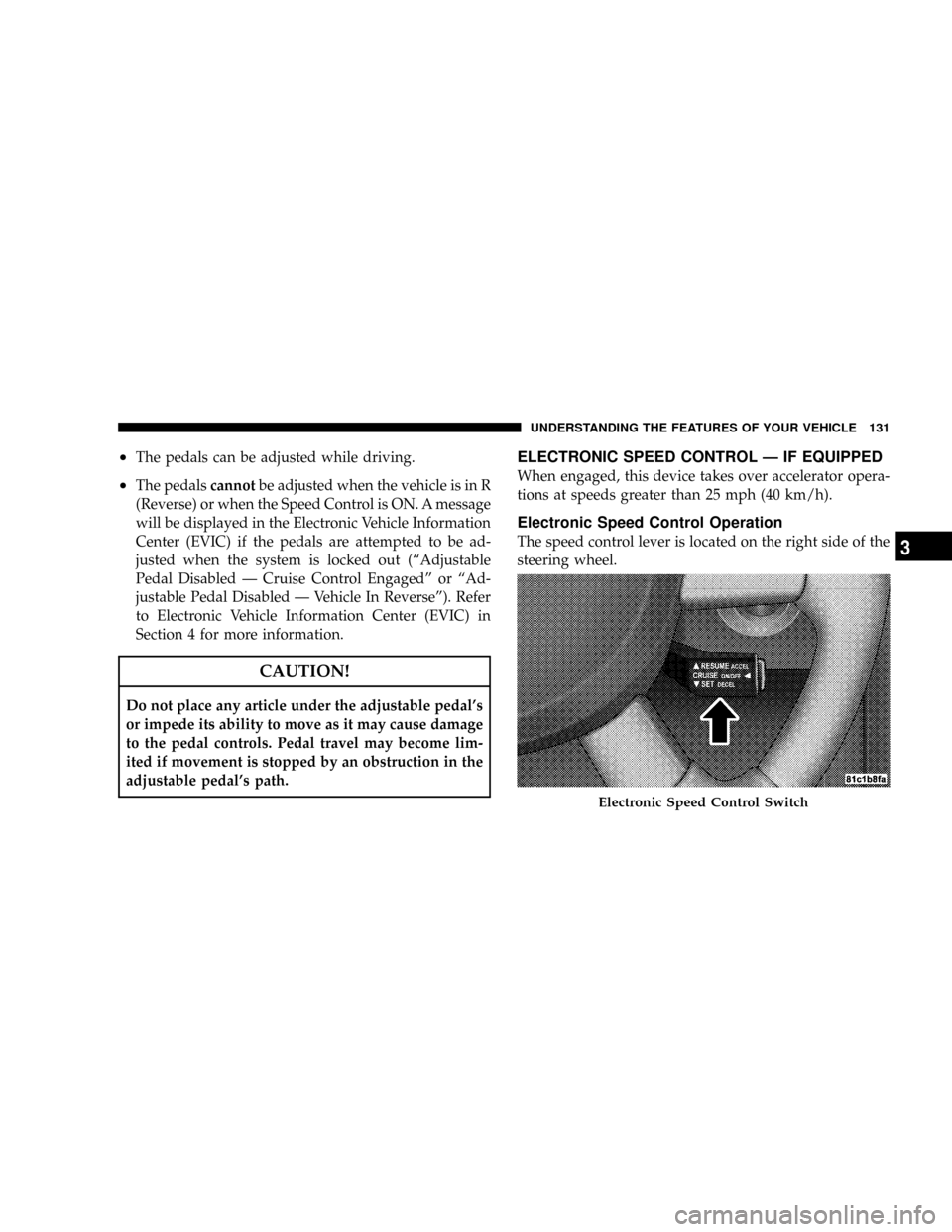

²The pedals can be adjusted while driving.
²The pedalscannotbe adjusted when the vehicle is in R
(Reverse) or when the Speed Control is ON. A message
will be displayed in the Electronic Vehicle Information
Center (EVIC) if the pedals are attempted to be ad-
justed when the system is locked out (ªAdjustable
Pedal Disabled Ð Cruise Control Engagedº or ªAd-
justable Pedal Disabled Ð Vehicle In Reverseº). Refer
to Electronic Vehicle Information Center (EVIC) in
Section 4 for more information.
CAUTION!
Do not place any article under the adjustable pedal's
or impede its ability to move as it may cause damage
to the pedal controls. Pedal travel may become lim-
ited if movement is stopped by an obstruction in the
adjustable pedal's path.
ELECTRONIC SPEED CONTROL Ð IF EQUIPPED
When engaged, this device takes over accelerator opera-
tions at speeds greater than 25 mph (40 km/h).
Electronic Speed Control Operation
The speed control lever is located on the right side of the
steering wheel.
Electronic Speed Control Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131
3

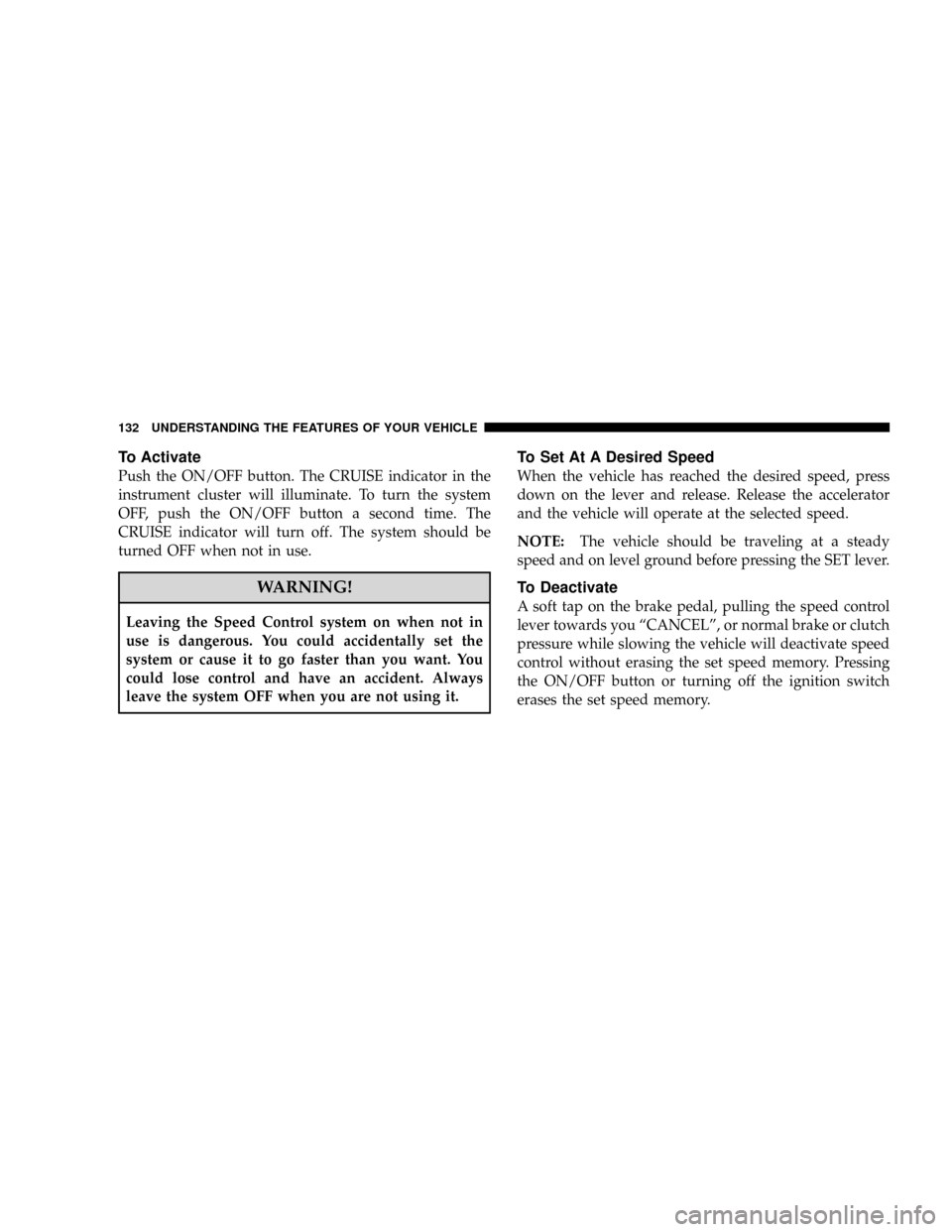

To Activate
Push the ON/OFF button. The CRUISE indicator in the
instrument cluster will illuminate. To turn the system
OFF, push the ON/OFF button a second time. The
CRUISE indicator will turn off. The system should be
turned OFF when not in use.
WARNING!
Leaving the Speed Control system on when not in
use is dangerous. You could accidentally set the
system or cause it to go faster than you want. You
could lose control and have an accident. Always
leave the system OFF when you are not using it.
To Set At A Desired Speed
When the vehicle has reached the desired speed, press
down on the lever and release. Release the accelerator
and the vehicle will operate at the selected speed.
NOTE:The vehicle should be traveling at a steady
speed and on level ground before pressing the SET lever.
To Deactivate
A soft tap on the brake pedal, pulling the speed control
lever towards you ªCANCELº, or normal brake or clutch
pressure while slowing the vehicle will deactivate speed
control without erasing the set speed memory. Pressing
the ON/OFF button or turning off the ignition switch
erases the set speed memory.
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

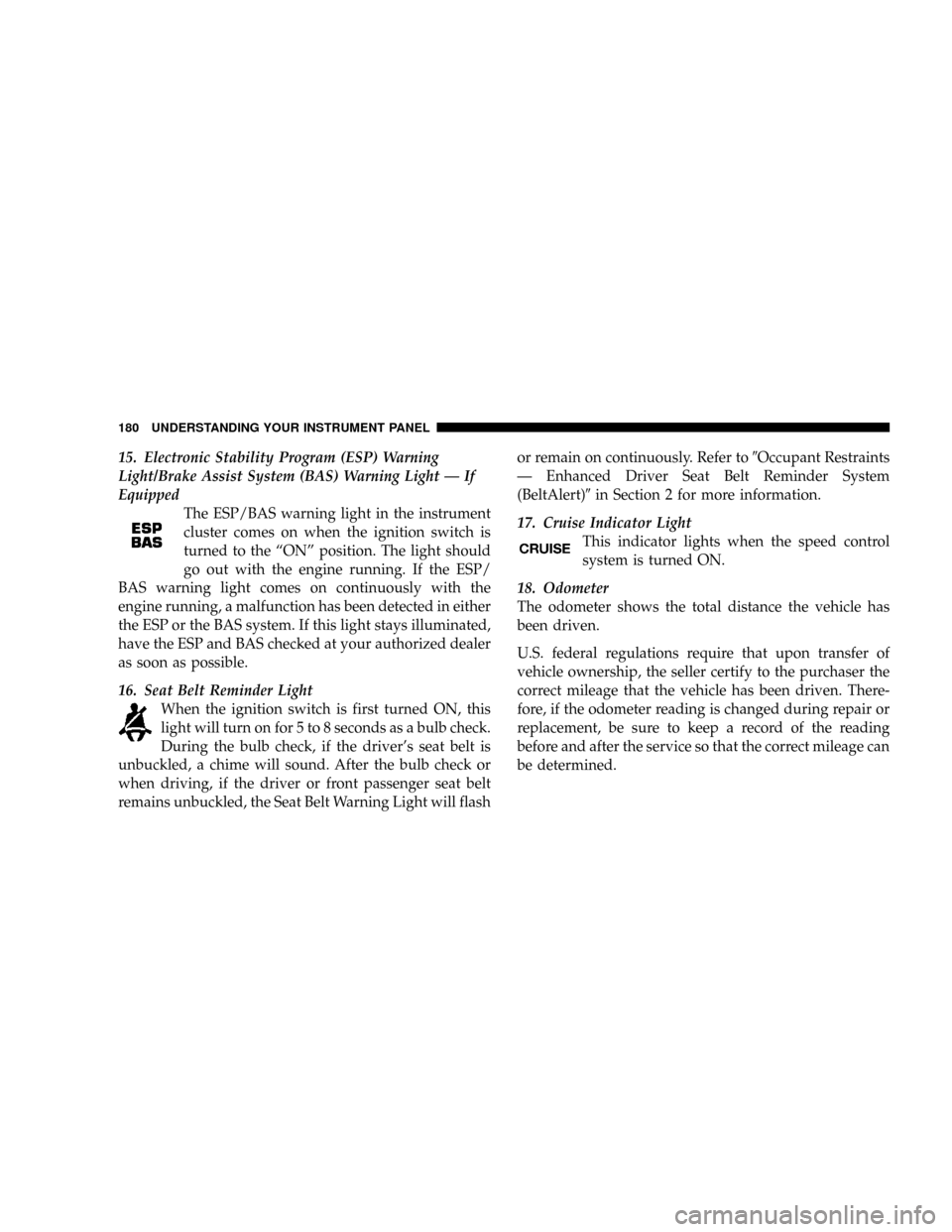

15. Electronic Stability Program (ESP) Warning
Light/Brake Assist System (BAS) Warning Light Ð If
Equipped
The ESP/BAS warning light in the instrument
cluster comes on when the ignition switch is
turned to the ªONº position. The light should
go out with the engine running. If the ESP/
BAS warning light comes on continuously with the
engine running, a malfunction has been detected in either
the ESP or the BAS system. If this light stays illuminated,
have the ESP and BAS checked at your authorized dealer
as soon as possible.
16. Seat Belt Reminder Light
When the ignition switch is first turned ON, this
light will turn on for 5 to 8 seconds as a bulb check.
During the bulb check, if the driver's seat belt is
unbuckled, a chime will sound. After the bulb check or
when driving, if the driver or front passenger seat belt
remains unbuckled, the Seat Belt Warning Light will flashor remain on continuously. Refer to9Occupant Restraints
Ð Enhanced Driver Seat Belt Reminder System
(BeltAlert)9in Section 2 for more information.
17. Cruise Indicator Light
This indicator lights when the speed control
system is turned ON.
18. Odometer
The odometer shows the total distance the vehicle has
been driven.
U.S. federal regulations require that upon transfer of
vehicle ownership, the seller certify to the purchaser the
correct mileage that the vehicle has been driven. There-
fore, if the odometer reading is changed during repair or
replacement, be sure to keep a record of the reading
before and after the service so that the correct mileage can
be determined.
180 UNDERSTANDING YOUR INSTRUMENT PANEL

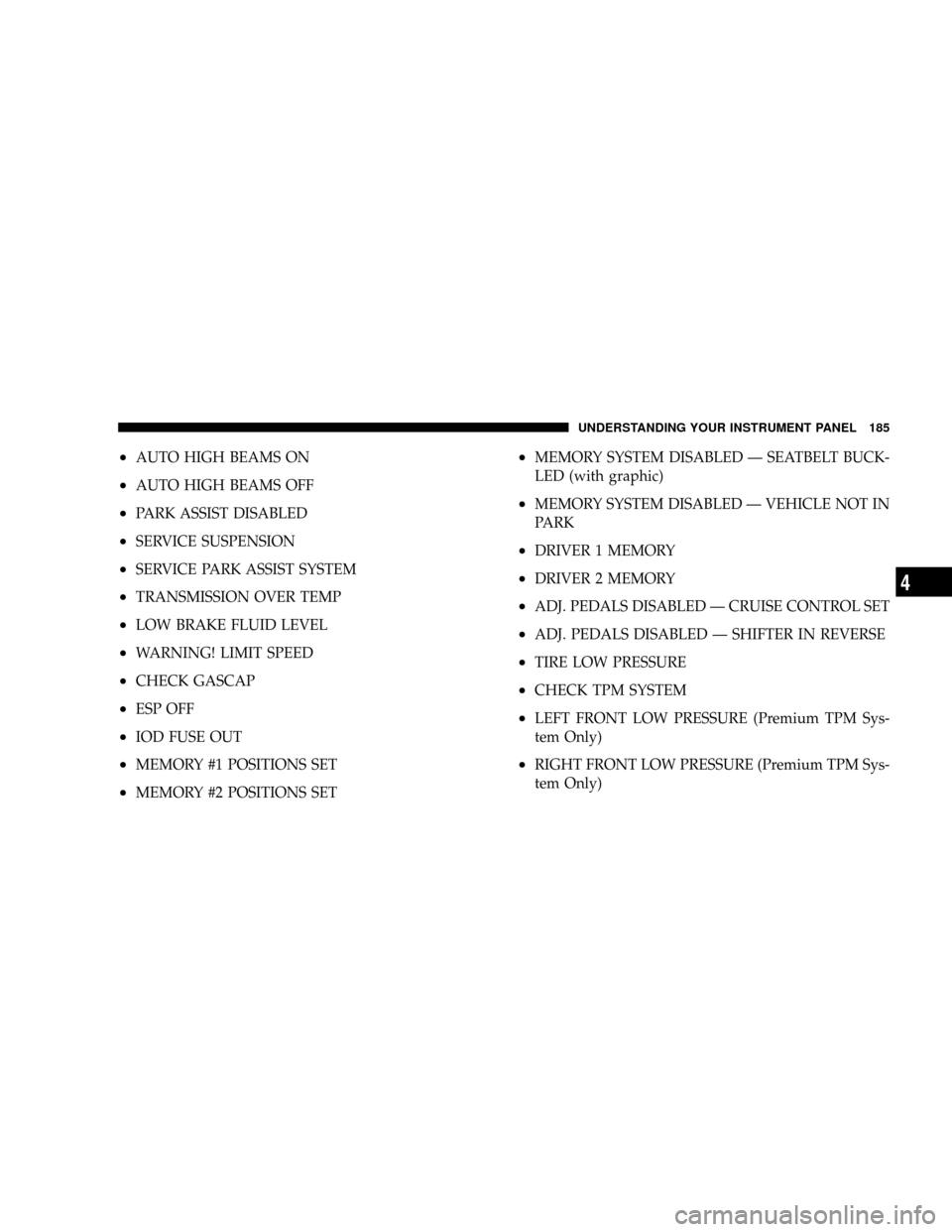

²AUTO HIGH BEAMS ON
²AUTO HIGH BEAMS OFF
²PARK ASSIST DISABLED
²SERVICE SUSPENSION
²SERVICE PARK ASSIST SYSTEM
²TRANSMISSION OVER TEMP
²LOW BRAKE FLUID LEVEL
²WARNING! LIMIT SPEED
²CHECK GASCAP
²ESP OFF
²IOD FUSE OUT
²MEMORY #1 POSITIONS SET
²MEMORY #2 POSITIONS SET
²MEMORY SYSTEM DISABLED Ð SEATBELT BUCK-
LED (with graphic)
²MEMORY SYSTEM DISABLED Ð VEHICLE NOT IN
PARK
²DRIVER 1 MEMORY
²DRIVER 2 MEMORY
²ADJ. PEDALS DISABLED Ð CRUISE CONTROL SET
²ADJ. PEDALS DISABLED Ð SHIFTER IN REVERSE
²TIRE LOW PRESSURE
²CHECK TPM SYSTEM
²LEFT FRONT LOW PRESSURE (Premium TPM Sys-
tem Only)
²RIGHT FRONT LOW PRESSURE (Premium TPM Sys-
tem Only)
UNDERSTANDING YOUR INSTRUMENT PANEL 185
4

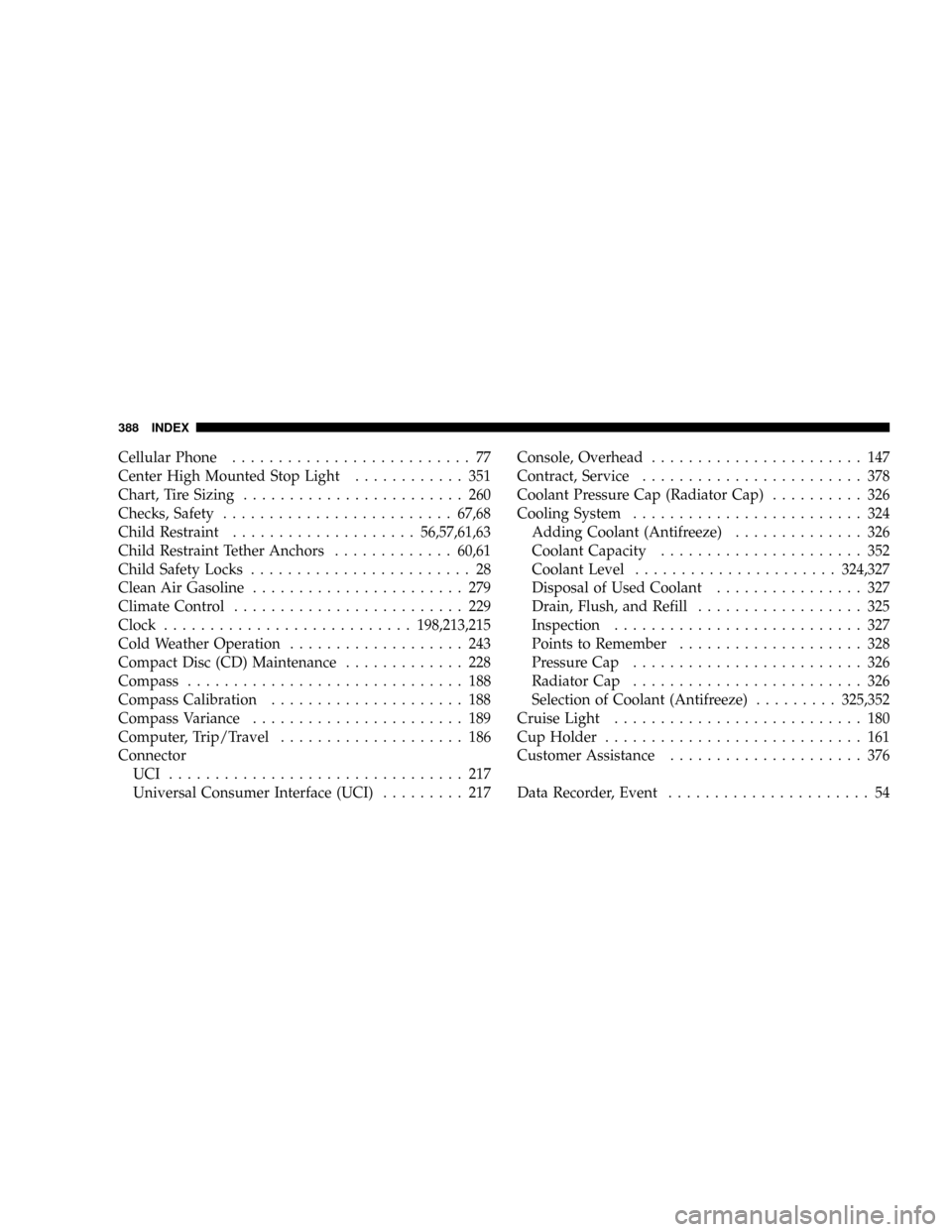

Cellular Phone.......................... 77
Center High Mounted Stop Light............ 351
Chart, Tire Sizing........................ 260
Checks, Safety.........................67,68
Child Restraint....................56,57,61,63
Child Restraint Tether Anchors.............60,61
Child Safety Locks........................ 28
Clean Air Gasoline....................... 279
Climate Control......................... 229
Clock...........................198,213,215
Cold Weather Operation................... 243
Compact Disc (CD) Maintenance............. 228
Compass.............................. 188
Compass Calibration..................... 188
Compass Variance....................... 189
Computer, Trip/Travel.................... 186
Connector
UCI ................................ 217
Universal Consumer Interface (UCI)......... 217Console, Overhead....................... 147
Contract, Service........................ 378
Coolant Pressure Cap (Radiator Cap).......... 326
Cooling System......................... 324
Adding Coolant (Antifreeze).............. 326
Coolant Capacity...................... 352
Coolant Level......................324,327
Disposal of Used Coolant................ 327
Drain, Flush, and Refill.................. 325
Inspection........................... 327
Points to Remember.................... 328
Pressure Cap......................... 326
Radiator Cap......................... 326
Selection of Coolant (Antifreeze).........325,352
Cruise Light........................... 180
Cup Holder............................ 161
Customer Assistance..................... 376
Data Recorder, Event...................... 54
388 INDEX

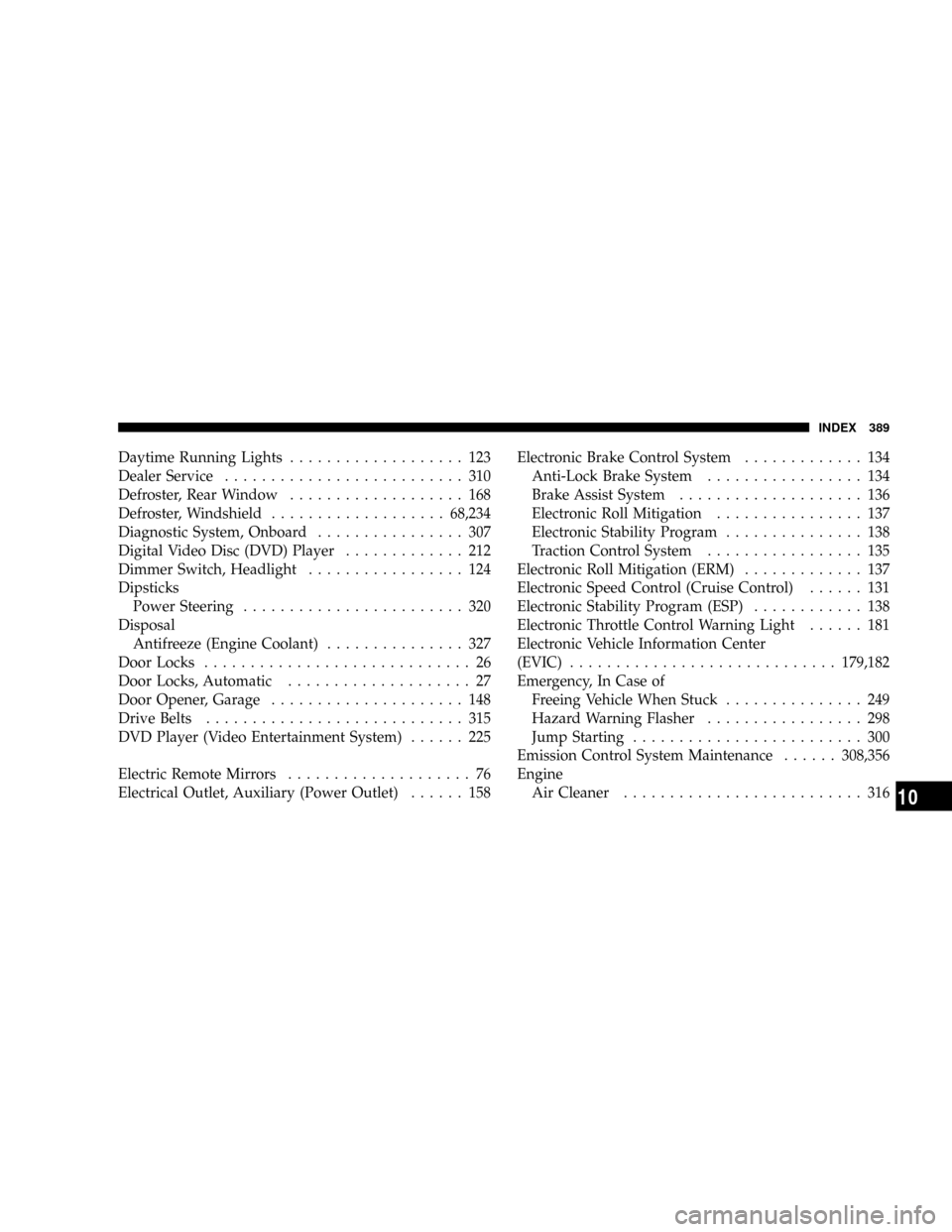

Daytime Running Lights................... 123
Dealer Service.......................... 310
Defroster, Rear Window................... 168
Defroster, Windshield...................68,234
Diagnostic System, Onboard................ 307
Digital Video Disc (DVD) Player............. 212
Dimmer Switch, Headlight................. 124
Dipsticks
Power Steering........................ 320
Disposal
Antifreeze (Engine Coolant)............... 327
Door Locks............................. 26
Door Locks, Automatic.................... 27
Door Opener, Garage..................... 148
Drive Belts............................ 315
DVD Player (Video Entertainment System)...... 225
Electric Remote Mirrors.................... 76
Electrical Outlet, Auxiliary (Power Outlet)...... 158Electronic Brake Control System............. 134
Anti-Lock Brake System................. 134
Brake Assist System.................... 136
Electronic Roll Mitigation................ 137
Electronic Stability Program............... 138
Traction Control System................. 135
Electronic Roll Mitigation (ERM)............. 137
Electronic Speed Control (Cruise Control)...... 131
Electronic Stability Program (ESP)............ 138
Electronic Throttle Control Warning Light...... 181
Electronic Vehicle Information Center
(EVIC).............................179,182
Emergency, In Case of
Freeing Vehicle When Stuck............... 249
Hazard Warning Flasher................. 298
Jump Starting......................... 300
Emission Control System Maintenance......308,356
Engine
Air Cleaner.......................... 316
INDEX 389

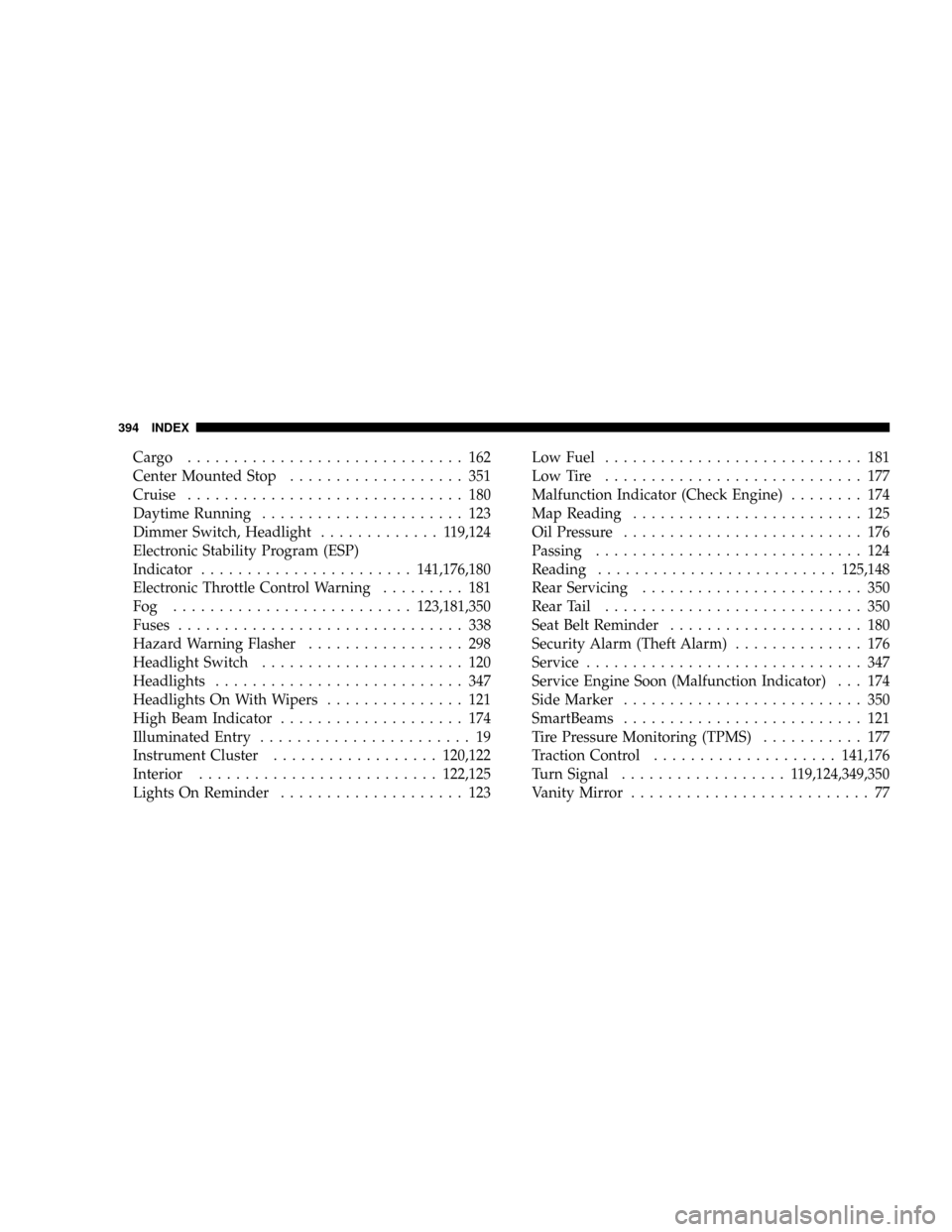

10

Cargo .............................. 162
Center Mounted Stop................... 351
Cruise.............................. 180
Daytime Running...................... 123
Dimmer Switch, Headlight............. 119,124
Electronic Stability Program (ESP)
Indicator.......................141,176,180
Electronic Throttle Control Warning......... 181
Fog ..........................123,181,350
Fuses............................... 338
Hazard Warning Flasher................. 298
Headlight Switch...................... 120
Headlights........................... 347
Headlights On With Wipers............... 121
High Beam Indicator.................... 174
Illuminated Entry....................... 19
Instrument Cluster..................120,122
Interior..........................122,125
Lights On Reminder.................... 123Low Fuel............................ 181
LowTire ............................ 177
Malfunction Indicator (Check Engine)........ 174
Map Reading......................... 125
Oil Pressure.......................... 176
Passing............................. 124
Reading..........................125,148
Rear Servicing........................ 350
Rear Tail............................ 350
Seat Belt Reminder..................... 180
Security Alarm (Theft Alarm).............. 176
Service.............................. 347
Service Engine Soon (Malfunction Indicator) . . . 174
Side Marker.......................... 350
SmartBeams.......................... 121
Tire Pressure Monitoring (TPMS)........... 177
Traction Control....................141,176
Turn Signal.................. 119,124,349,350
Vanity Mirror.......................... 77
394 INDEX

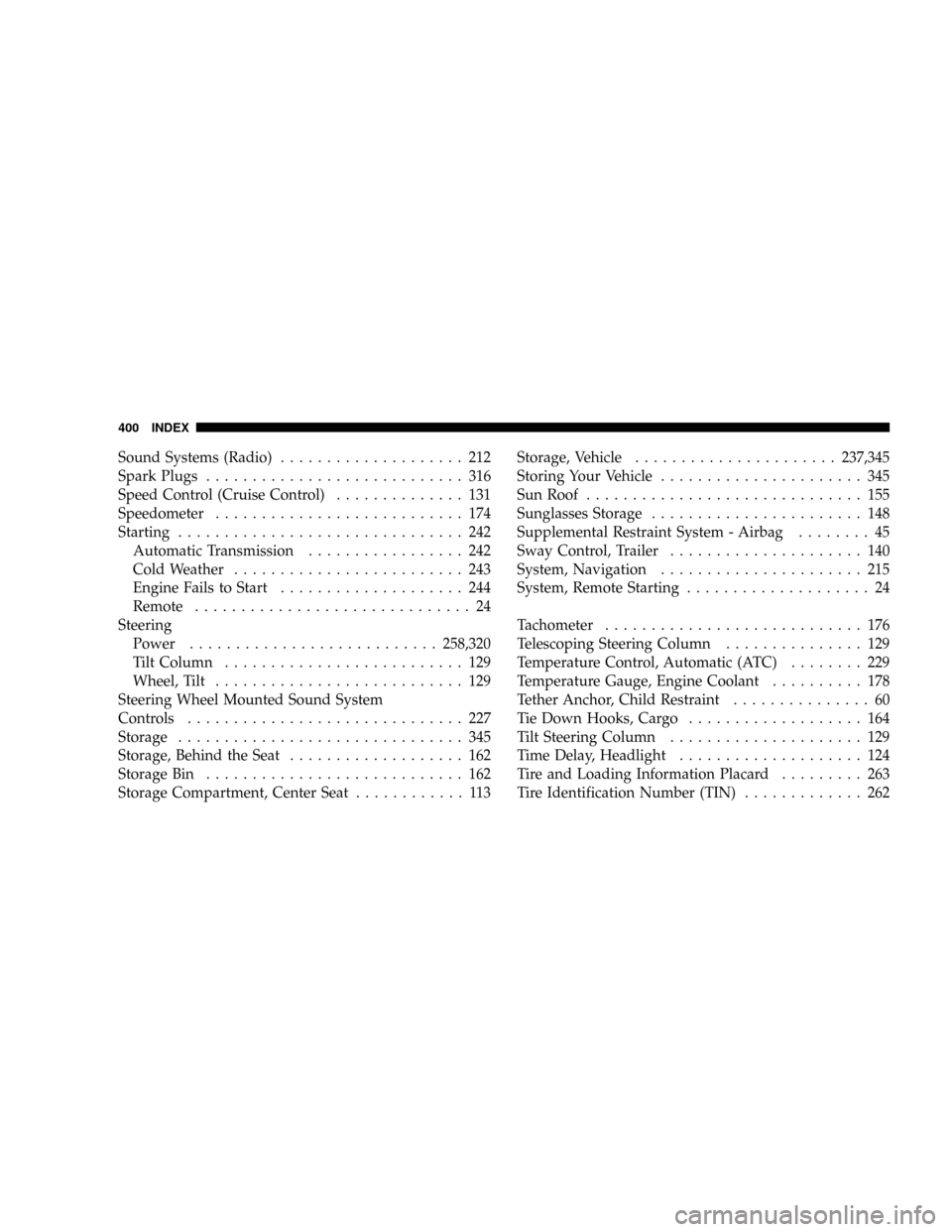

Sound Systems (Radio).................... 212
Spark Plugs............................ 316
Speed Control (Cruise Control).............. 131
Speedometer........................... 174
Starting............................... 242
Automatic Transmission................. 242
Cold Weather......................... 243
Engine Fails to Start.................... 244
Remote.............................. 24
Steering
Power...........................258,320
Tilt Column.......................... 129
Wheel, Tilt........................... 129
Steering Wheel Mounted Sound System
Controls.............................. 227
Storage............................... 345
Storage, Behind the Seat................... 162
Storage Bin............................ 162
Storage Compartment, Center Seat............ 113Storage, Vehicle......................237,345
Storing Your Vehicle...................... 345
Sun Roof.............................. 155
Sunglasses Storage....................... 148
Supplemental Restraint System - Airbag........ 45
Sway Control, Trailer..................... 140
System, Navigation...................... 215
System, Remote Starting.................... 24
Tachometer............................ 176
Telescoping Steering Column............... 129
Temperature Control, Automatic (ATC)........ 229
Temperature Gauge, Engine Coolant.......... 178
Tether Anchor, Child Restraint............... 60
Tie Down Hooks, Cargo................... 164
Tilt Steering Column..................... 129
Time Delay, Headlight.................... 124
Tire and Loading Information Placard......... 263
Tire Identification Number (TIN)............. 262
400 INDEX
