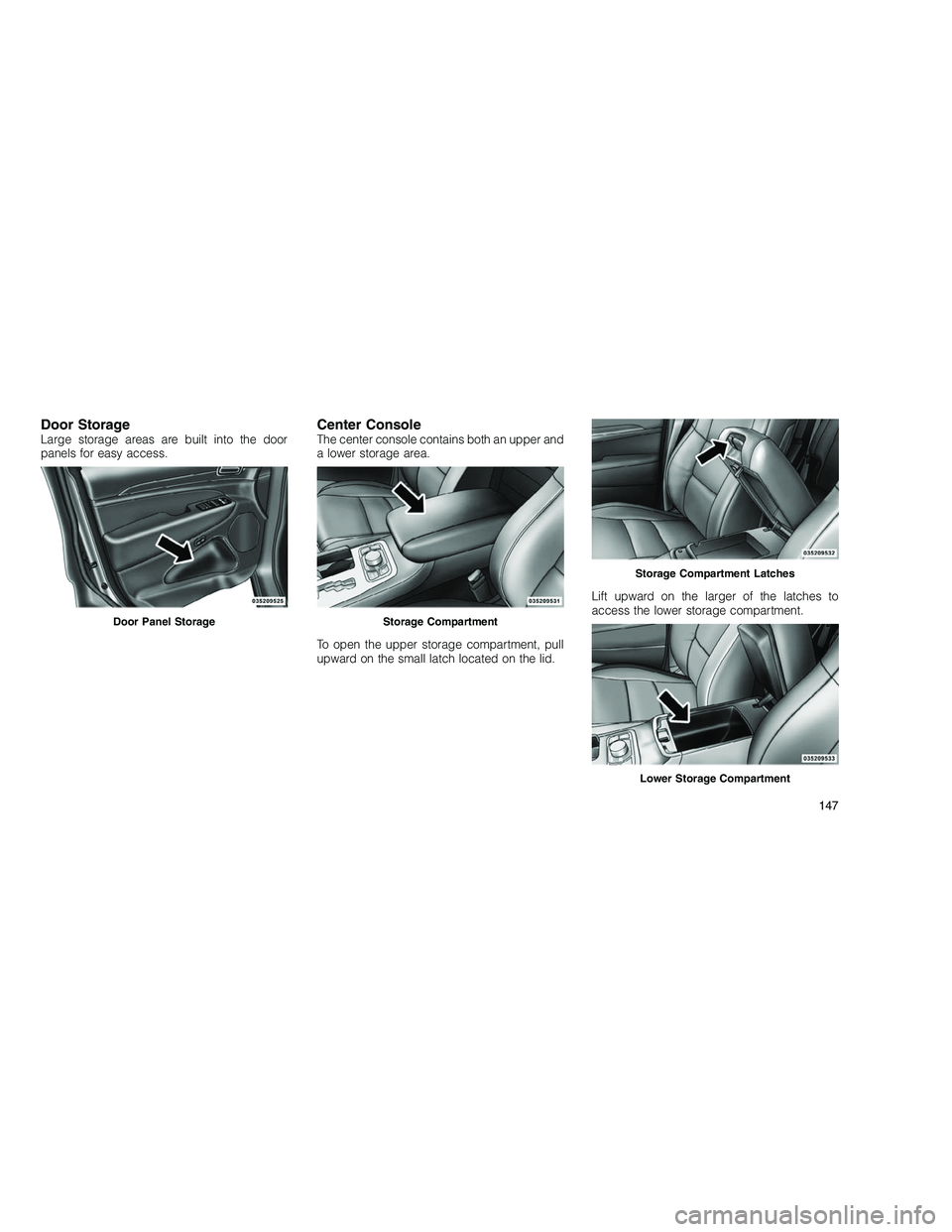

Door StorageLarge storage areas are built into the door
panels for easy access.Center ConsoleThe center console contains both an upper and
a lower storage area.
To open the upper storage compartment, pull
upward on the small latch located on the lid.Lift upward on the larger of the latches to
access the lower storage compartment.
Door Panel StorageStorage Compartment
Storage Compartment Latches
Lower Storage Compartment
147

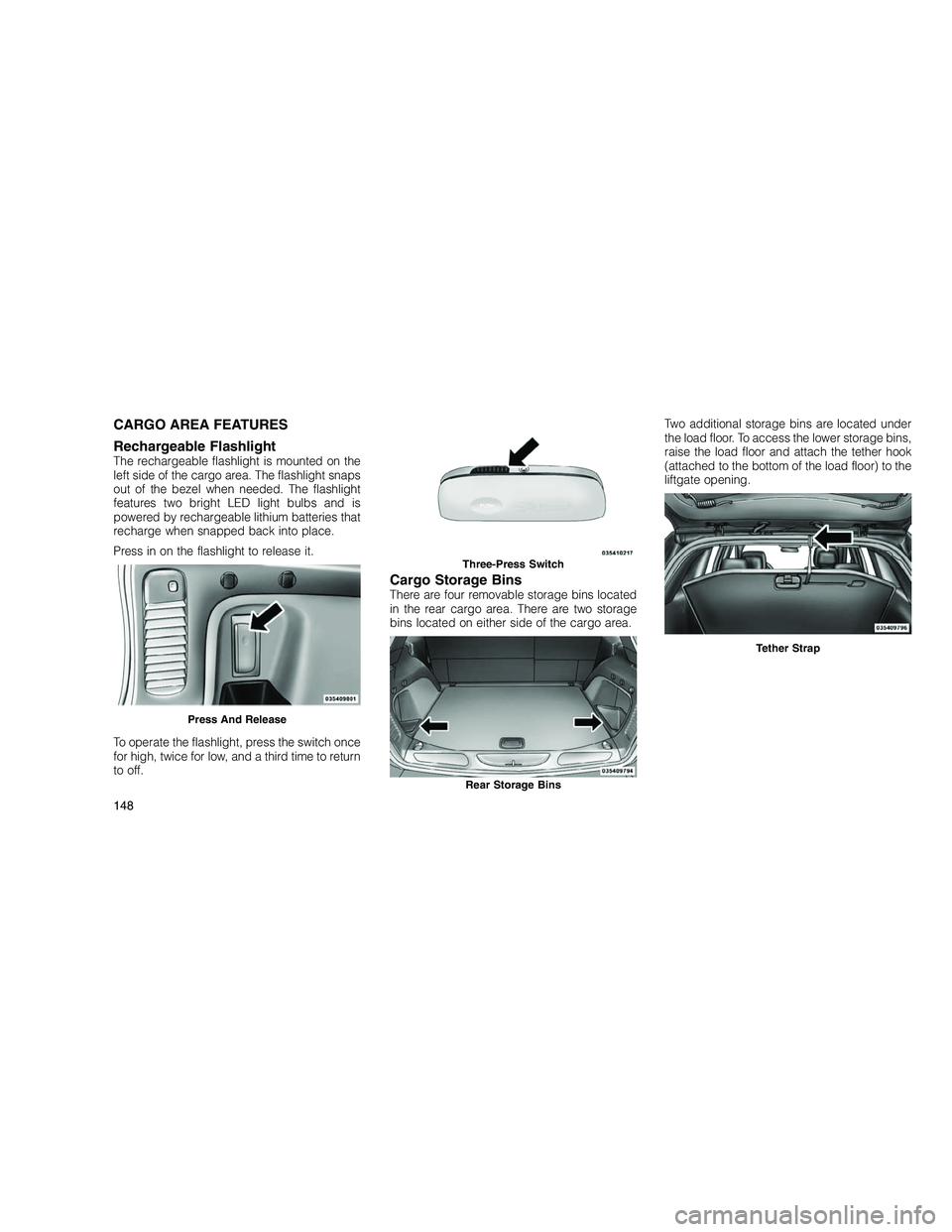

CARGO AREA FEATURES
Rechargeable Flashlight
The rechargeable flashlight is mounted on the
left side of the cargo area. The flashlight snaps
out of the bezel when needed. The flashlight
features two bright LED light bulbs and is
powered by rechargeable lithium batteries that
recharge when snapped back into place.
Press in on the flashlight to release it.
To operate the flashlight, press the switch once
for high, twice for low, and a third time to return
to off.
Cargo Storage BinsThere are four removable storage bins located
in the rear cargo area. There are two storage
bins located on either side of the cargo area.Two additional storage bins are located under
the load floor. To access the lower storage bins,
raise the load floor and attach the tether hook
(attached to the bottom of the load floor) to the
liftgate opening.
Press And Release
Three-Press Switch
Rear Storage Bins
Tether Strap
148

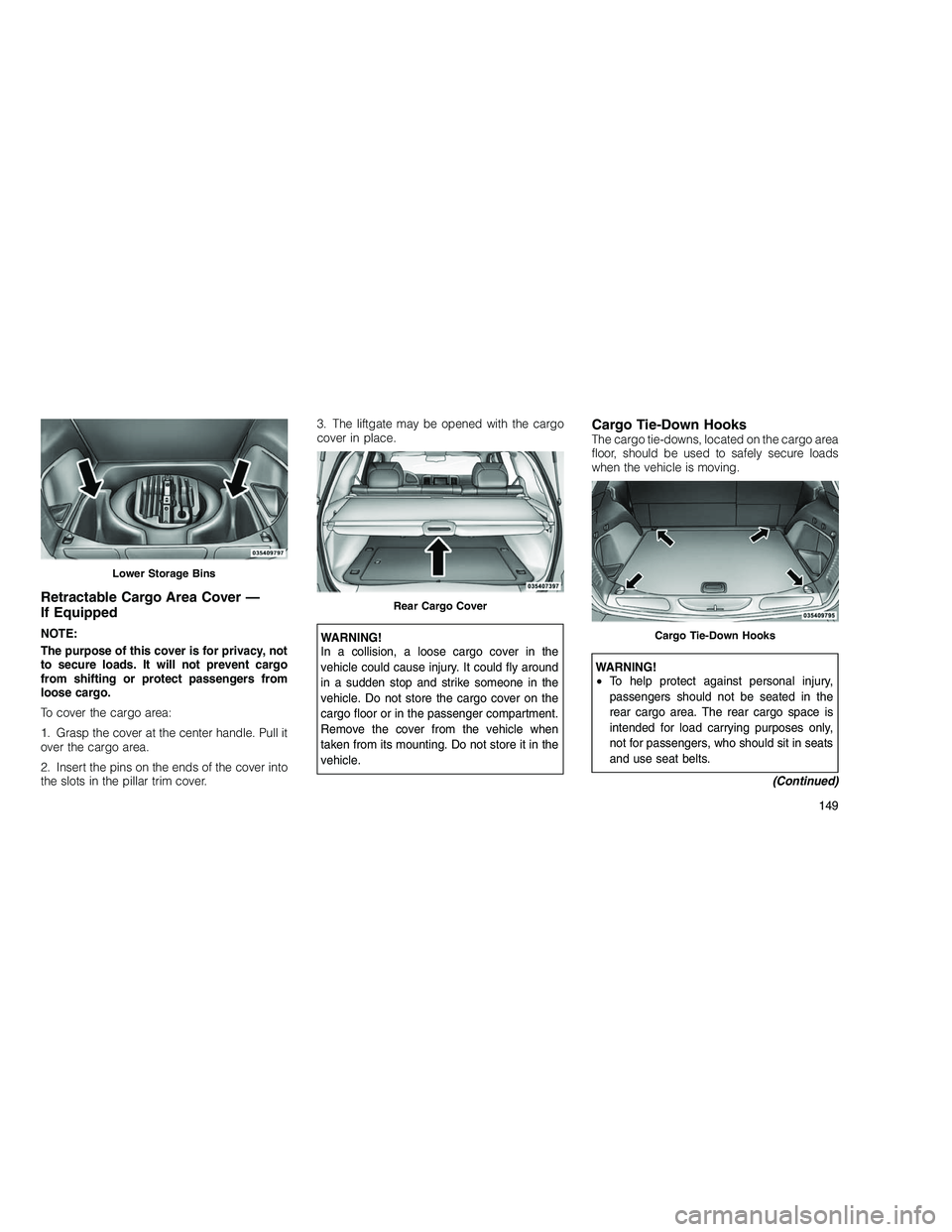

Retractable Cargo Area Cover —
If Equipped
NOTE:
The purpose of this cover is for privacy, not
to secure loads. It will not prevent cargo
from shifting or protect passengers from
loose cargo.
To cover the cargo area:
1. Grasp the cover at the center handle. Pull it
over the cargo area.
2. Insert the pins on the ends of the cover into
the slots in the pillar trim cover.3. The liftgate may be opened with the cargo
cover in place.WARNING!
In a collision, a loose cargo cover in the
vehicle could cause injury. It could fly around
in a sudden stop and strike someone in the
vehicle. Do not store the cargo cover on the
cargo floor or in the passenger compartment.
Remove the cover from the vehicle when
taken from its mounting. Do not store it in the
vehicle.
Cargo Tie-Down HooksThe cargo tie-downs, located on the cargo area
floor, should be used to safely secure loads
when the vehicle is moving.
WARNING!
•
To help protect against personal injury,
passengers should not be seated in the
rear cargo area. The rear cargo space is
intended for load carrying purposes only,
not for passengers, who should sit in seats
and use seat belts.
(Continued)
Lower Storage Bins
Rear Cargo Cover
Cargo Tie-Down Hooks
149

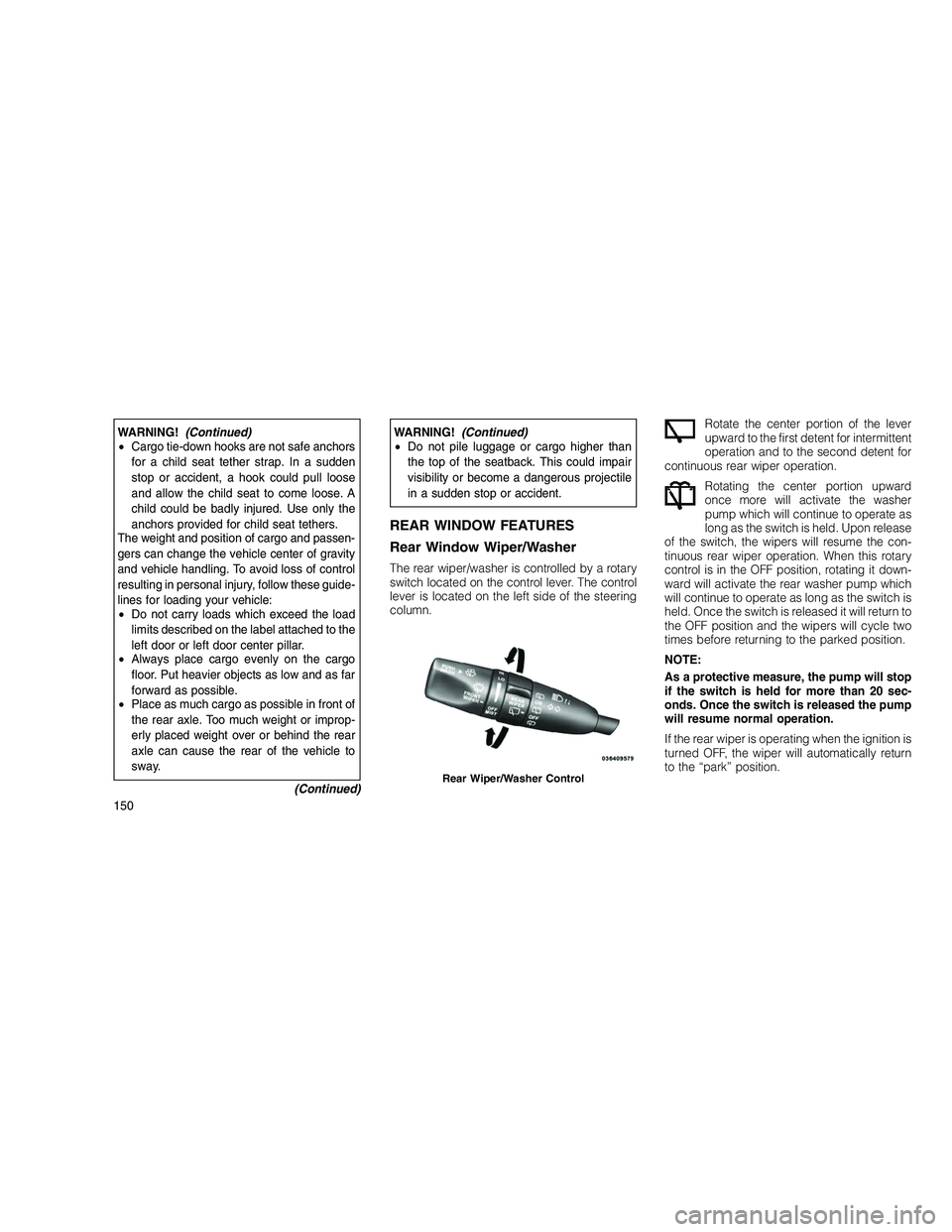

WARNING!(Continued)
• Cargo tie-down hooks are not safe anchors
for a child seat tether strap. In a sudden
stop or accident, a hook could pull loose
and allow the child seat to come loose. A
child could be badly injured. Use only the
anchors provided for child seat tethers.
The weight and position of cargo and passen-
gers can change the vehicle center of gravity
and vehicle handling. To avoid loss of control
resulting in personal injury, follow these guide-
lines for loading your vehicle:
• Do not carry loads which exceed the load
limits described on the label attached to the
left door or left door center pillar.
• Always place cargo evenly on the cargo
floor. Put heavier objects as low and as far
forward as possible.
• Place as much cargo as possible in front of
the rear axle. Too much weight or improp-
erly placed weight over or behind the rear
axle can cause the rear of the vehicle to
sway.
(Continued)WARNING!(Continued)
• Do not pile luggage or cargo higher than
the top of the seatback. This could impair
visibility or become a dangerous projectile
in a sudden stop or accident.
REAR WINDOW FEATURES
Rear Window Wiper/Washer
The rear wiper/washer is controlled by a rotary
switch located on the control lever. The control
lever is located on the left side of the steering
column. Rotate the center portion of the lever
upward to the first detent for intermittent
operation and to the second detent for
continuous rear wiper operation.
Rotating the center portion upward
once more will activate the washer
pump which will continue to operate as
long as the switch is held. Upon release
of the switch, the wipers will resume the con-
tinuous rear wiper operation. When this rotary
control is in the OFF position, rotating it down-
ward will activate the rear washer pump which
will continue to operate as long as the switch is
held. Once the switch is released it will return to
the OFF position and the wipers will cycle two
times before returning to the parked position.
NOTE:
As a protective measure, the pump will stop
if the switch is held for more than 20 sec-
onds. Once the switch is released the pump
will resume normal operation.
If the rear wiper is operating when the ignition is
turned OFF, the wiper will automatically return
to the “park” position.
Rear Wiper/Washer Control
150

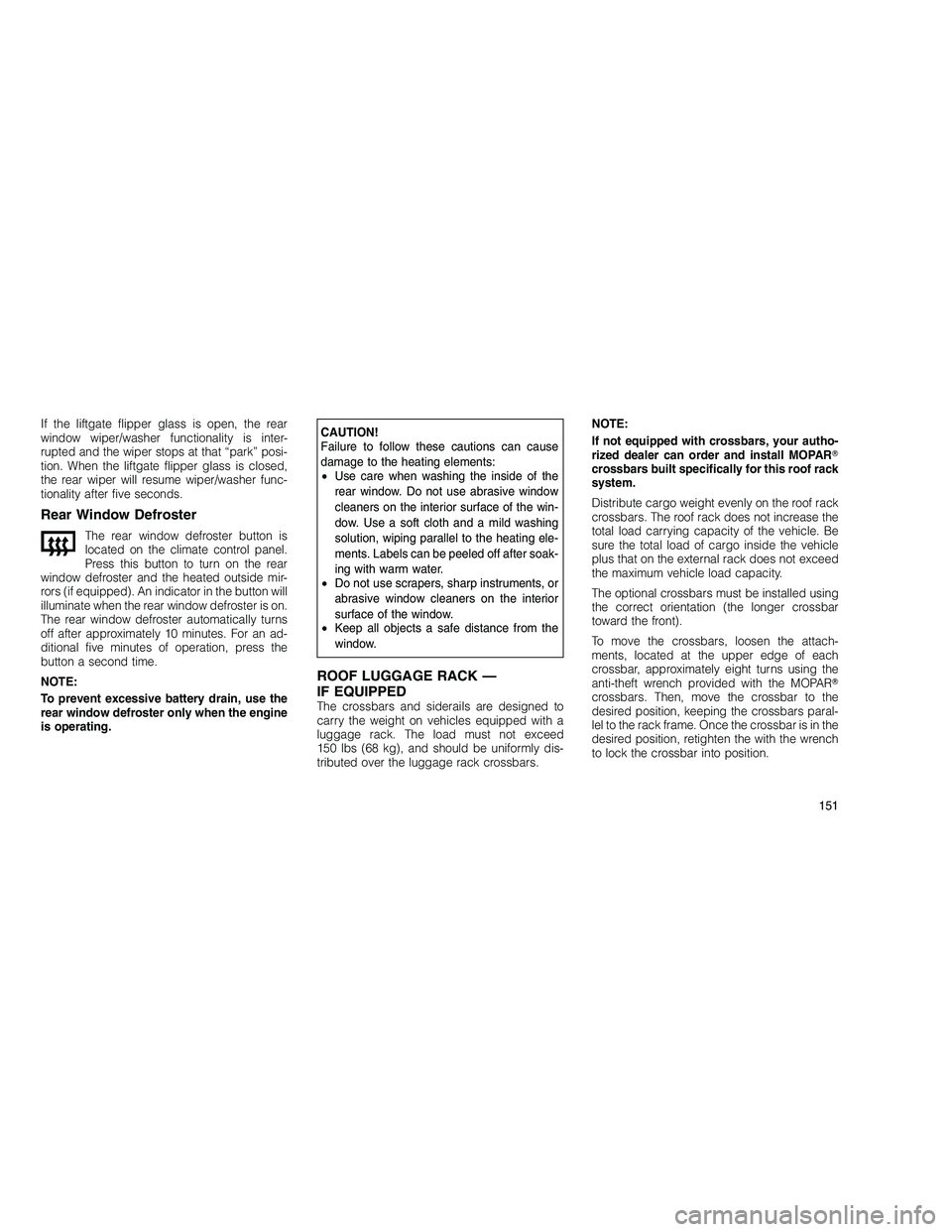

If the liftgate flipper glass is open, the rear
window wiper/washer functionality is inter-
rupted and the wiper stops at that “park” posi-
tion. When the liftgate flipper glass is closed,
the rear wiper will resume wiper/washer func-
tionality after five seconds.
Rear Window Defroster
The rear window defroster button is
located on the climate control panel.
Press this button to turn on the rear
window defroster and the heated outside mir-
rors (if equipped). An indicator in the button will
illuminate when the rear window defroster is on.
The rear window defroster automatically turns
off after approximately 10 minutes. For an ad-
ditional five minutes of operation, press the
button a second time.
NOTE:
To prevent excessive battery drain, use the
rear window defroster only when the engine
is operating.
CAUTION!
Failure to follow these cautions can cause
damage to the heating elements:
• Use care when washing the inside of the
rear window. Do not use abrasive window
cleaners on the interior surface of the win-
dow. Use a soft cloth and a mild washing
solution, wiping parallel to the heating ele-
ments. Labels can be peeled off after soak-
ing with warm water.
• Do not use scrapers, sharp instruments, or
abrasive window cleaners on the interior
surface of the window.
• Keep all objects a safe distance from the
window.
ROOF LUGGAGE RACK —
IF EQUIPPED
The crossbars and siderails are designed to
carry the weight on vehicles equipped with a
luggage rack. The load must not exceed
150 lbs (68 kg), and should be uniformly dis-
tributed over the luggage rack crossbars. NOTE:
If not equipped with crossbars, your autho-
rized dealer can order and install MOPAR

crossbars built specifically for this roof rack
system.
Distribute cargo weight evenly on the roof rack
crossbars. The roof rack does not increase the
total load carrying capacity of the vehicle. Be
sure the total load of cargo inside the vehicle
plus that on the external rack does not exceed
the maximum vehicle load capacity.
The optional crossbars must be installed using
the correct orientation (the longer crossbar
toward the front).
To move the crossbars, loosen the attach-
ments, located at the upper edge of each
crossbar, approximately eight turns using the
anti-theft wrench provided with the MOPAR
crossbars. Then, move the crossbar to the
desired position, keeping the crossbars paral-
lel to the rack frame. Once the crossbar is in the
desired position, retighten the with the wrench
to lock the crossbar into position.
151

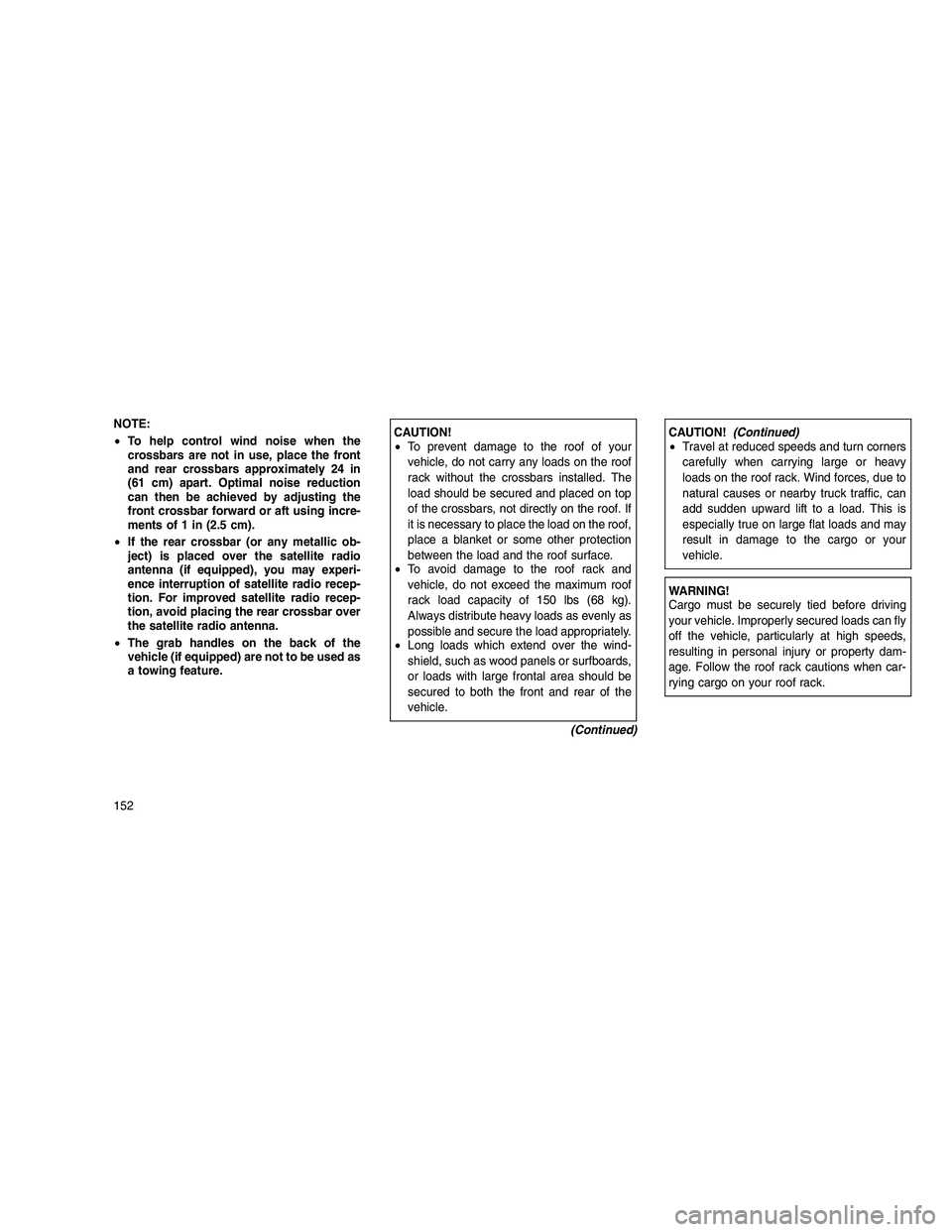

NOTE:
•To help control wind noise when the
crossbars are not in use, place the front
and rear crossbars approximately 24 in
(61 cm) apart. Optimal noise reduction
can then be achieved by adjusting the
front crossbar forward or aft using incre-
ments of 1 in (2.5 cm).
• If the rear crossbar (or any metallic ob-
ject) is placed over the satellite radio
antenna (if equipped), you may experi-
ence interruption of satellite radio recep-
tion. For improved satellite radio recep-
tion, avoid placing the rear crossbar over
the satellite radio antenna.
• The grab handles on the back of the
vehicle (if equipped) are not to be used as
a towing feature.CAUTION!
• To prevent damage to the roof of your
vehicle, do not carry any loads on the roof
rack without the crossbars installed. The
load should be secured and placed on top
of the crossbars, not directly on the roof. If
it is necessary to place the load on the roof,
place a blanket or some other protection
between the load and the roof surface.
• To avoid damage to the roof rack and
vehicle, do not exceed the maximum roof
rack load capacity of 150 lbs (68 kg).
Always distribute heavy loads as evenly as
possible and secure the load appropriately.
• Long loads which extend over the wind-
shield, such as wood panels or surfboards,
or loads with large frontal area should be
secured to both the front and rear of the
vehicle.
(Continued)CAUTION!(Continued)
• Travel at reduced speeds and turn corners
carefully when carrying large or heavy
loads on the roof rack. Wind forces, due to
natural causes or nearby truck traffic, can
add sudden upward lift to a load. This is
especially true on large flat loads and may
result in damage to the cargo or your
vehicle.
WARNING!
Cargo must be securely tied before driving
your vehicle. Improperly secured loads can fly
off the vehicle, particularly at high speeds,
resulting in personal injury or property dam-
age. Follow the roof rack cautions when car-
rying cargo on your roof rack.
152

4
UNDERSTANDING YOUR INSTRUMENT
PANEL
•INSTRUMENT PANEL FEATURES ................. 156
• INSTRUMENT CLUSTER ...................... 157
• INSTRUMENT CLUSTER DESCRIPTIONS ............ 158
• ELECTRONIC VEHICLE INFORMATION CENTER (EVIC) . . . 163
• Electronic Vehicle Information Center (EVIC) Displays . . 164
• EVIC White Telltale Lights ................... 167
• EVIC Amber Telltale Lights .................. 168
• EVIC Red Telltale Lights .................... 169
• Engine Oil Change Indicator System ............ 171
• Fuel Economy .......................... 171
• Vehicle Speed .......................... 172
• Trip Info .............................. 172
• Units ............................... 173
• Vehicle Info (Customer Information Features) ....... 173
• TirePSI .............................. 173
153

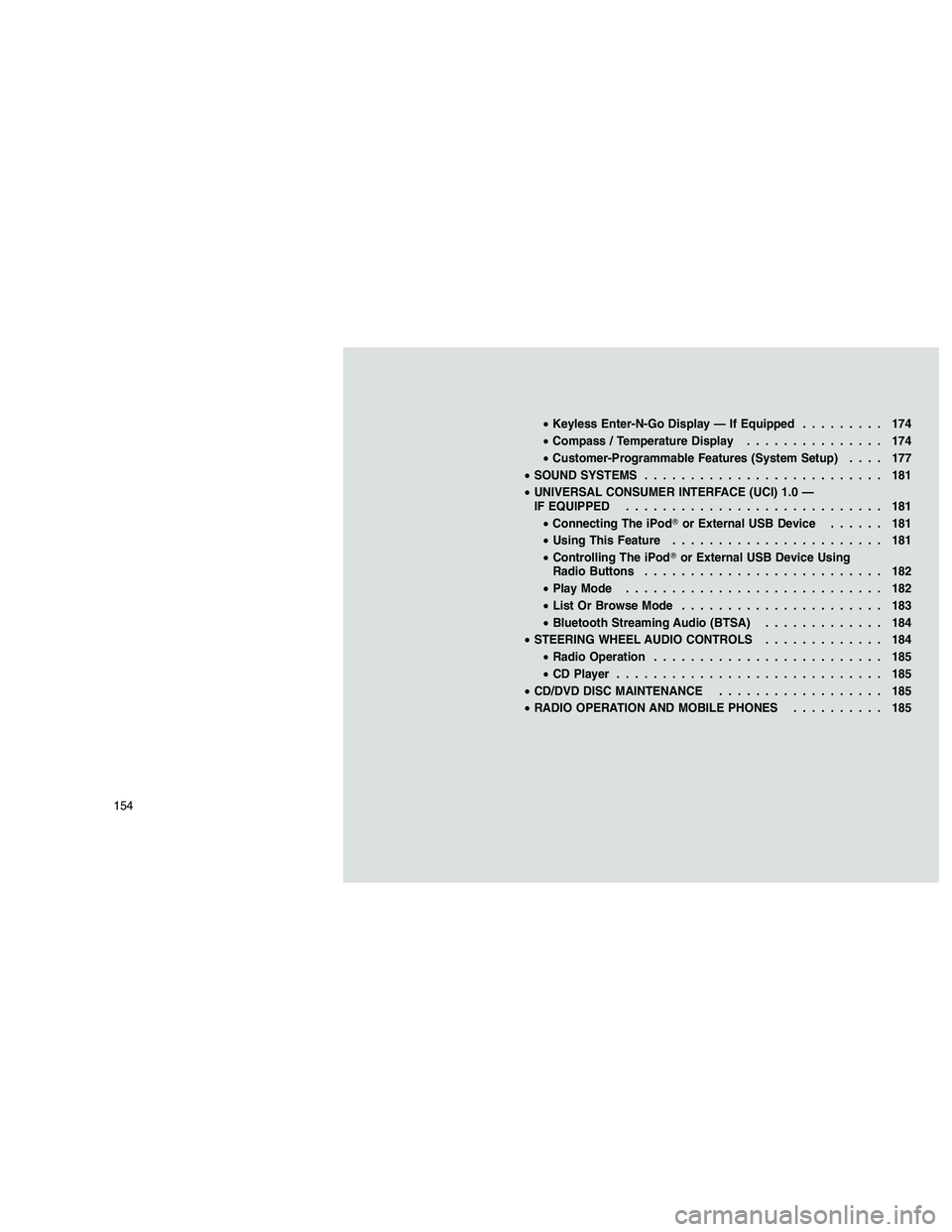

•Keyless Enter-N-Go Display — If Equipped ......... 174
• Compass / Temperature Display ............... 174
• Customer-Programmable Features (System Setup) .... 177
• SOUND SYSTEMS .......................... 181
• UNIVERSAL CONSUMER INTERFACE (UCI) 1.0 —
IF EQUIPPED ............................ 181
• Connecting The iPod or External USB Device ...... 181
• Using This Feature ....................... 181
• Controlling The iPod or External USB Device Using
Radio Buttons .......................... 182
• Play Mode ............................ 182
• List Or Browse Mode ...................... 183
• Bluetooth Streaming Audio (BTSA) ............. 184
• STEERING WHEEL AUDIO CONTROLS ............. 184
• Radio Operation ......................... 185
• CD Player ............................. 185
• CD/DVD DISC MAINTENANCE .................. 185
• RADIO OPERATION AND MOBILE PHONES .......... 185
154

•CLIMATE CONTROLS ........................ 185
• Dual-Zone Manual Heating and Air Conditioning ...... 186
• Dual-Zone Automatic Temperature Control (ATC) —
If Equipped ............................ 188
• Operating Tips .......................... 192
• Operating Tips Chart ...................... 193
155

INSTRUMENT PANEL FEATURES

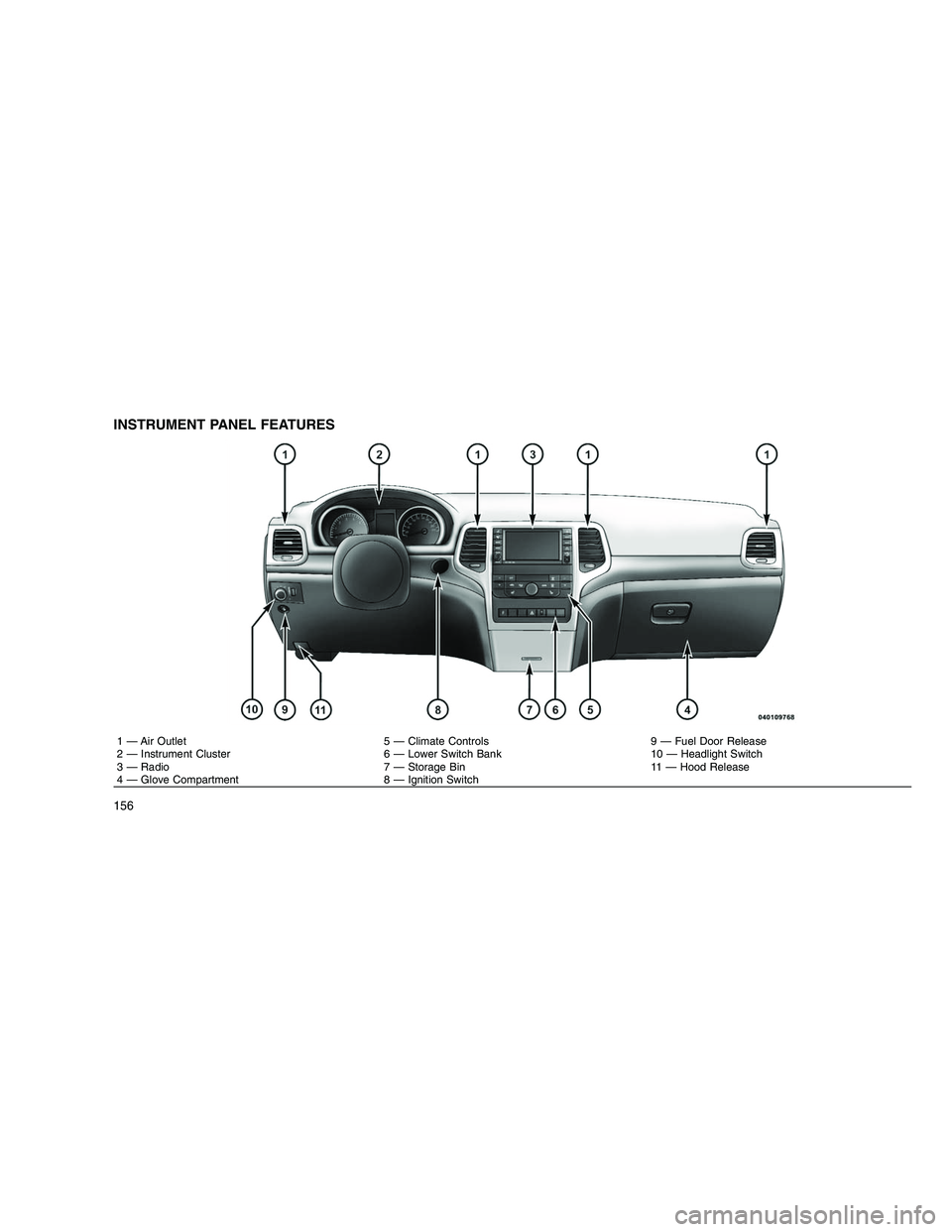

1 — Air Outlet 5 — Climate Controls 9 — Fuel Door Release
2 — Instrument Cluster 6 — Lower Switch Bank 10 — Headlight Switch
3 — Radio 7 — Storage Bin 11 — Hood Release
4 — Glove Compartment 8 — Ignition Switch
156
