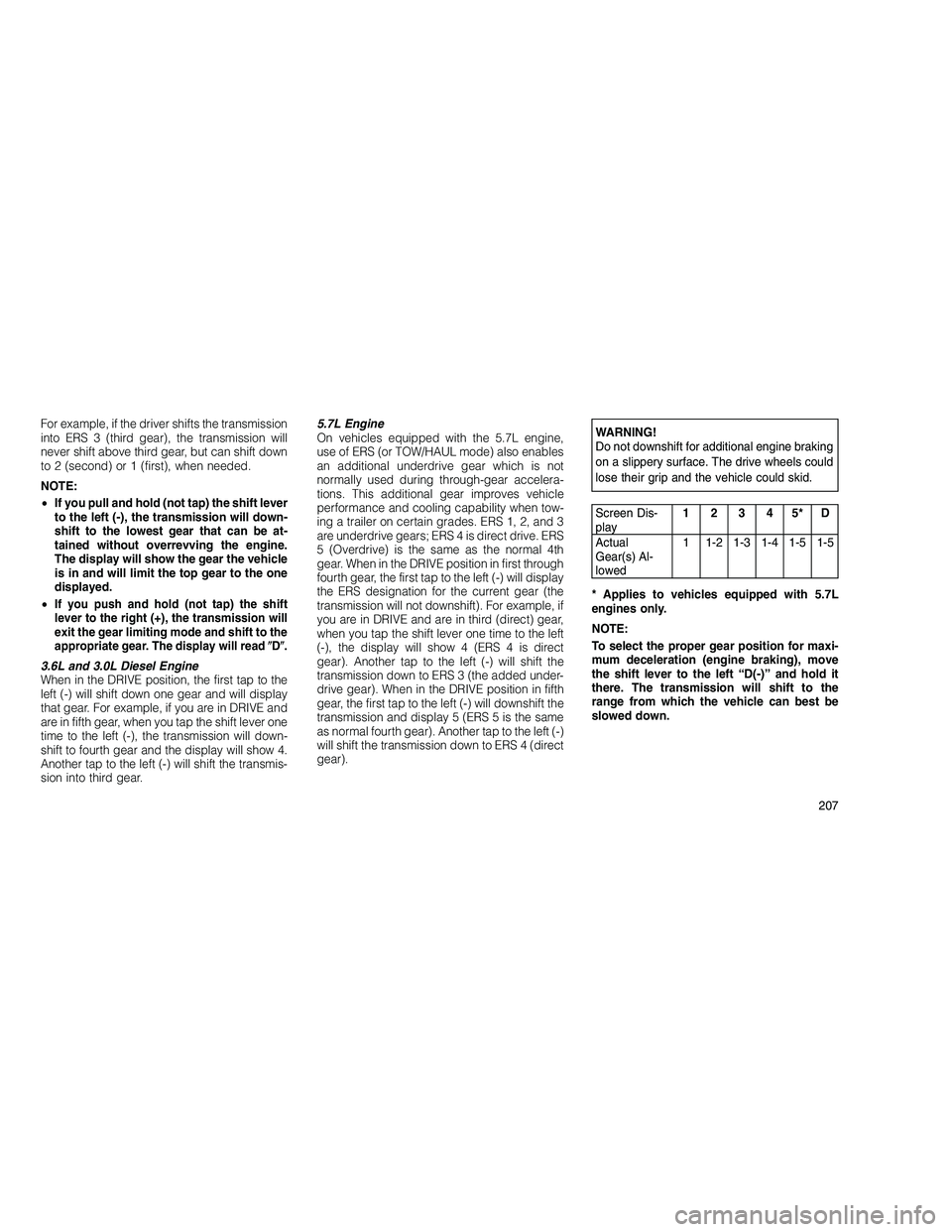

For example, if the driver shifts the transmission
into ERS 3 (third gear), the transmission will
never shift above third gear, but can shift down
to 2 (second) or 1 (first), when needed.
NOTE:
•If you pull and hold (not tap) the shift lever
to the left (-), the transmission will down-
shift to the lowest gear that can be at-
tained without overrevving the engine.
The display will show the gear the vehicle
is in and will limit the top gear to the one
displayed.
•
If you push and hold (not tap) the shift
lever to the right (+), the transmission will
exit the gear limiting mode and shift to the
appropriate gear. The display will read D .
3.6L and 3.0L Diesel Engine
When in the DRIVE position, the first tap to the
left (-) will shift down one gear and will display
that gear. For example, if you are in DRIVE and
are in fifth gear, when you tap the shift lever one
time to the left (-), the transmission will down-
shift to fourth gear and the display will show 4.
Another tap to the left (-) will shift the transmis-
sion into third gear. 5.7L Engine
On vehicles equipped with the 5.7L engine,
use of ERS (or TOW/HAUL mode) also enables
an additional underdrive gear which is not
normally used during through-gear accelera-
tions. This additional gear improves vehicle
performance and cooling capability when tow-
ing a trailer on certain grades. ERS 1, 2, and 3
are underdrive gears; ERS 4 is direct drive. ERS
5 (Overdrive) is the same as the normal 4th
gear. When in the DRIVE position in first through
fourth gear, the first tap to the left (-) will display
the ERS designation for the current gear (the
transmission will not downshift). For example, if
you are in DRIVE and are in third (direct) gear,
when you tap the shift lever one time to the left
(-), the display will show 4 (ERS 4 is direct
gear). Another tap to the left (-) will shift the
transmission down to ERS 3 (the added under-
drive gear). When in the DRIVE position in fifth
gear, the first tap to the left (-) will downshift the
transmission and display 5 (ERS 5 is the same
as normal fourth gear). Another tap to the left (-)
will shift the transmission down to ERS 4 (direct
gear).
WARNING!
Do not downshift for additional engine braking
on a slippery surface. The drive wheels could
lose their grip and the vehicle could skid.
Screen Dis-
play
12345*D
Actual
Gear(s) Al-
lowed 1 1-2 1-3 1-4 1-5 1-5
* Applies to vehicles equipped with 5.7L
engines only.
NOTE:
To select the proper gear position for maxi-
mum deceleration (engine braking), move
the shift lever to the left “D(-)” and hold it
there. The transmission will shift to the
range from which the vehicle can best be
slowed down.
207

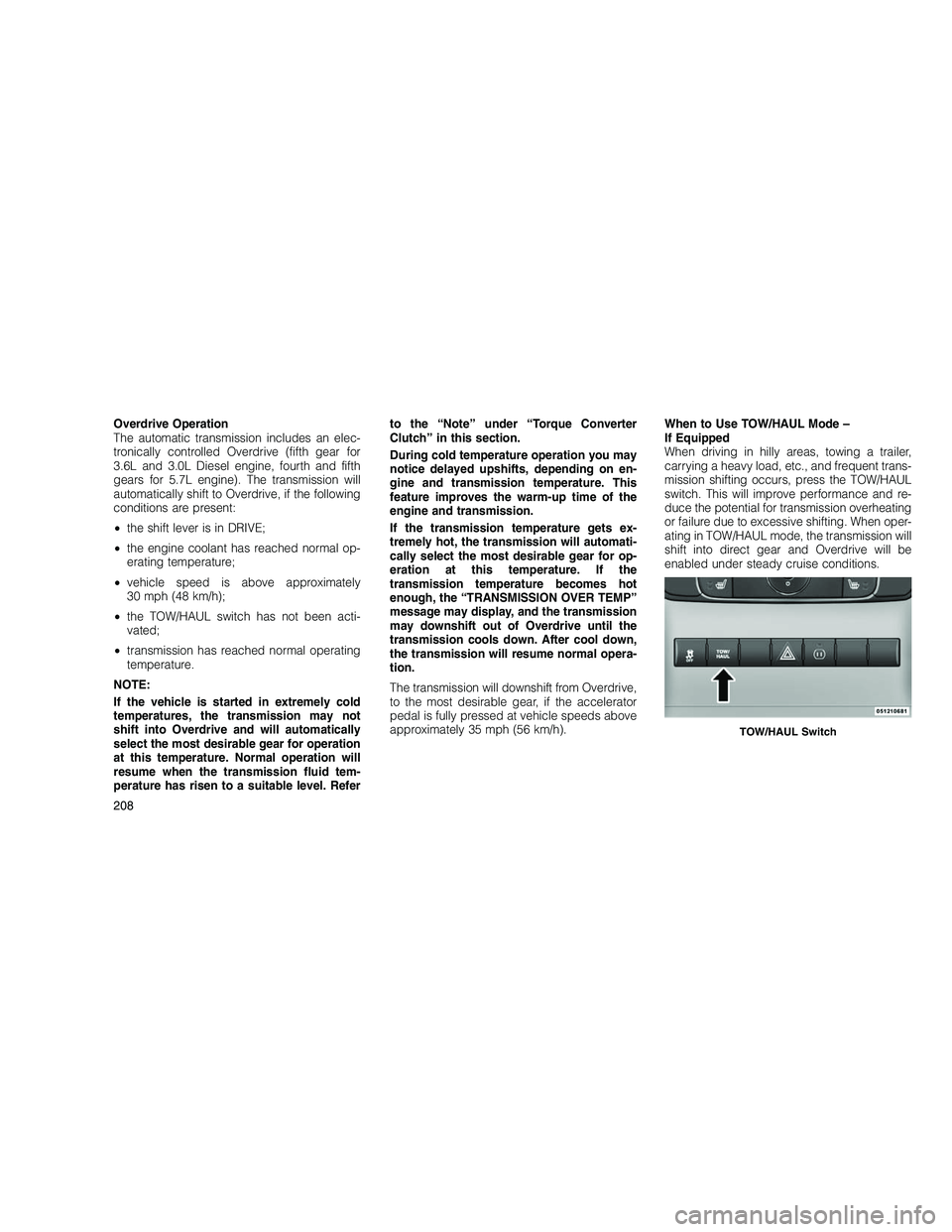

Overdrive Operation
The automatic transmission includes an elec-
tronically controlled Overdrive (fifth gear for
3.6L and 3.0L Diesel engine, fourth and fifth
gears for 5.7L engine). The transmission will
automatically shift to Overdrive, if the following
conditions are present:
•the shift lever is in DRIVE;
• the engine coolant has reached normal op-
erating temperature;
• vehicle speed is above approximately
30 mph (48 km/h);
• the TOW/HAUL switch has not been acti-
vated;
• transmission has reached normal operating
temperature.
NOTE:
If the vehicle is started in extremely cold
temperatures, the transmission may not
shift into Overdrive and will automatically
select the most desirable gear for operation
at this temperature. Normal operation will
resume when the transmission fluid tem-
perature has risen to a suitable level. Refer to the “Note” under “Torque Converter
Clutch” in this section.
During cold temperature operation you may
notice delayed upshifts, depending on en-
gine and transmission temperature. This
feature improves the warm-up time of the
engine and transmission.
If the transmission temperature gets ex-
tremely hot, the transmission will automati-
cally select the most desirable gear for op-
eration at this temperature. If the
transmission temperature becomes hot
enough, the “TRANSMISSION OVER TEMP”
message may display, and the transmission
may downshift out of Overdrive until the
transmission cools down. After cool down,
the transmission will resume normal opera-
tion.
The transmission will downshift from Overdrive,
to the most desirable gear, if the accelerator
pedal is fully pressed at vehicle speeds above
approximately 35 mph (56 km/h).
When to Use TOW/HAUL Mode –
If Equipped
When driving in hilly areas, towing a trailer,
carrying a heavy load, etc., and frequent trans-
mission shifting occurs, press the TOW/HAUL
switch. This will improve performance and re-
duce the potential for transmission overheating
or failure due to excessive shifting. When oper-
ating in TOW/HAUL mode, the transmission will
shift into direct gear and Overdrive will be
enabled under steady cruise conditions.
TOW/HAUL Switch
208

The “TOW/HAUL Indicator Light” will illuminate
in the instrument cluster to indicate when the
switch has been activated. Pressing the switch
a second time restores normal operation. If the
TOW/HAUL mode is desired, the switch must
be pressed each time the engine is started.
In high ambient temperatures with sustained
high engine speed and load, an upshift, fol-
lowed shortly thereafter by a downshift, may
occur. The “TOW/HAUL Indicator Light” will
turn off. This is a normal part of the overheat
protection strategy when operating in the TOW/
HAUL mode.
Transmission Limp Home Mode
Transmission function is monitored for abnor-
mal conditions. If a condition is detected that
could result in transmission damage, the Trans-
mission Limp Home Mode will be engaged. In
this mode, the transmission will remain in the
current gear (3.6L and 3.0L Diesel engine) or in
direct gear (5.7L engine) until the vehicle is
brought to a stop.To reset the transmission, use the following
procedure:
1. Stop the vehicle.
2. Move the shift lever into the PARK position.
3. Turn the engine off, and be sure to turn the
ignition switch to the LOCK position.
4. Wait approximately 10 seconds, then restart
the engine.
5. Move the shift lever to the desired gear
range.
If the problem is no longer detected, the trans-
mission will return to normal operation. If the
problem persists, PARK, REVERSE, and NEU-
TRAL will continue to operate. Only second
gear (3.6L and 3.0L Diesel engine) or third gear
(5.7L engine) will be available in the DRIVE
position. Have the transmission checked at
your authorized dealer as soon as possible.
Torque Converter Clutch
A feature, designed to improve fuel economy,
has been included in the automatic transmis-
sion on your vehicle. A clutch within the torque
converter engages automatically, at a cali-brated speed, at light throttle. It engages at
higher speeds under heavier acceleration. This
may result in a slightly different feeling or
response during normal operation in high gear.
When the vehicle speed drops below a cali-
brated speed, or during acceleration, the
clutch automatically and smoothly disengages.
NOTE:
•
The torque converter clutch will not en-
gage until the transmission fluid and en-
gine coolant are warm [usually after 1 to
3 miles (1.6 to 4.8 km) of driving]. Because
the engine speed is higher when the
torque converter clutch is not engaged, it
may seem as if the transmission is not
shifting into Overdrive when cold. This is
normal. Manually shifting (using the ERS
shift control) between 4 (direct gear) and
5/D (Overdrive gear) positions will dem-
onstrate that the transmission is able to
shift into and out of Overdrive. For ve-
hicles with 5.7L engines (which have two
Overdrive gears), the transmission may
not shift into the top Overdrive gear (nor-
mal fifth gear) until the transmission fluid
and engine coolant are warm.
209

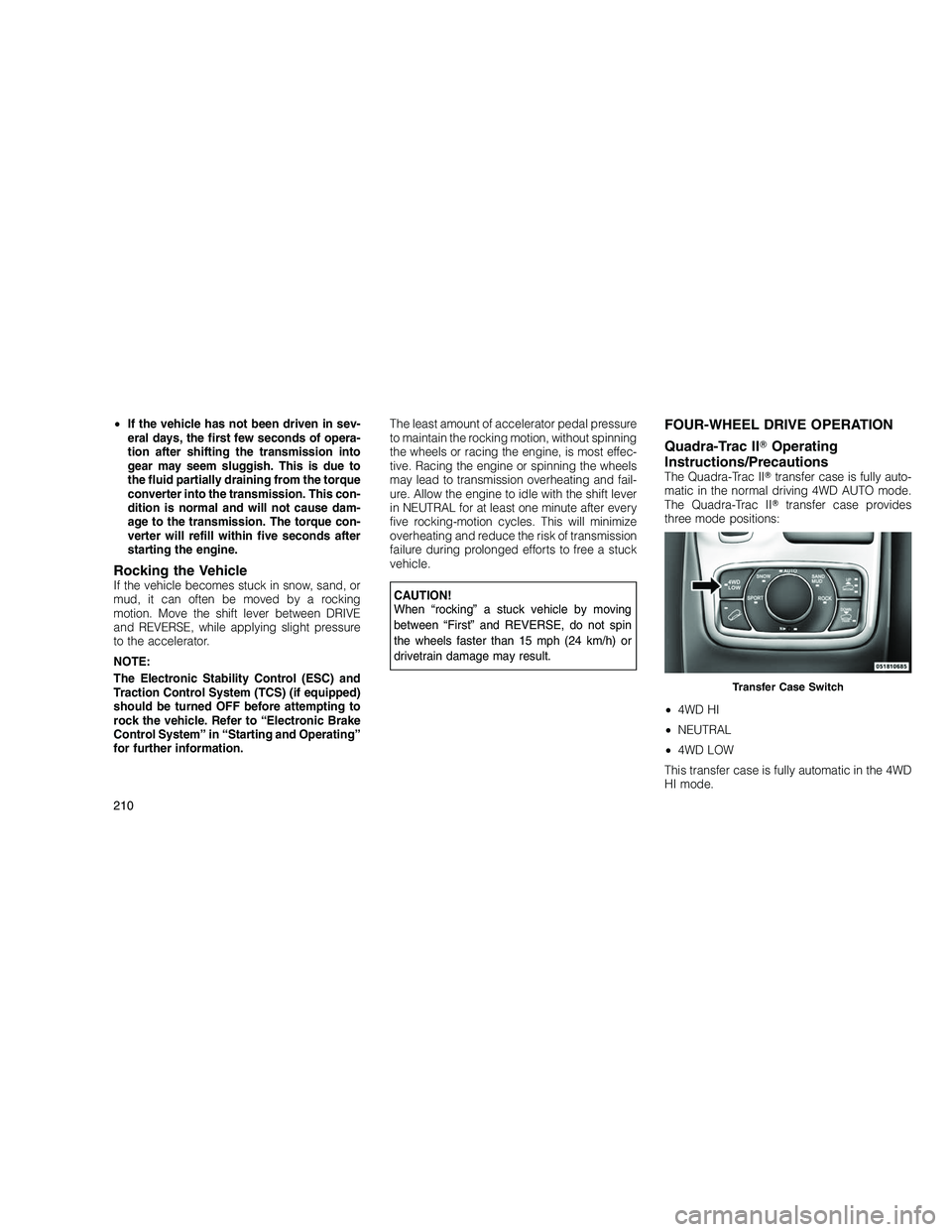

•If the vehicle has not been driven in sev-
eral days, the first few seconds of opera-
tion after shifting the transmission into
gear may seem sluggish. This is due to
the fluid partially draining from the torque
converter into the transmission. This con-
dition is normal and will not cause dam-
age to the transmission. The torque con-
verter will refill within five seconds after
starting the engine.
Rocking the VehicleIf the vehicle becomes stuck in snow, sand, or
mud, it can often be moved by a rocking
motion. Move the shift lever between DRIVE
and REVERSE, while applying slight pressure
to the accelerator.
NOTE:
The Electronic Stability Control (ESC) and
Traction Control System (TCS) (if equipped)
should be turned OFF before attempting to
rock the vehicle. Refer to “Electronic Brake
Control System” in “Starting and Operating”
for further information. The least amount of accelerator pedal pressure
to maintain the rocking motion, without spinning
the wheels or racing the engine, is most effec-
tive. Racing the engine or spinning the wheels
may lead to transmission overheating and fail-
ure. Allow the engine to idle with the shift lever
in NEUTRAL for at least one minute after every
five rocking-motion cycles. This will minimize
overheating and reduce the risk of transmission
failure during prolonged efforts to free a stuck
vehicle.CAUTION!
When “rocking” a stuck vehicle by moving
between “First” and REVERSE, do not spin
the wheels faster than 15 mph (24 km/h) or
drivetrain damage may result.
FOUR-WHEEL DRIVE OPERATION
Quadra-Trac II
Operating
Instructions/Precautions
The Quadra-Trac II transfer case is fully auto-
matic in the normal driving 4WD AUTO mode.
The Quadra-Trac II transfer case provides
three mode positions:
• 4WD HI
• NEUTRAL
• 4WD LOW
This transfer case is fully automatic in the 4WD
HI mode.
Transfer Case Switch
210

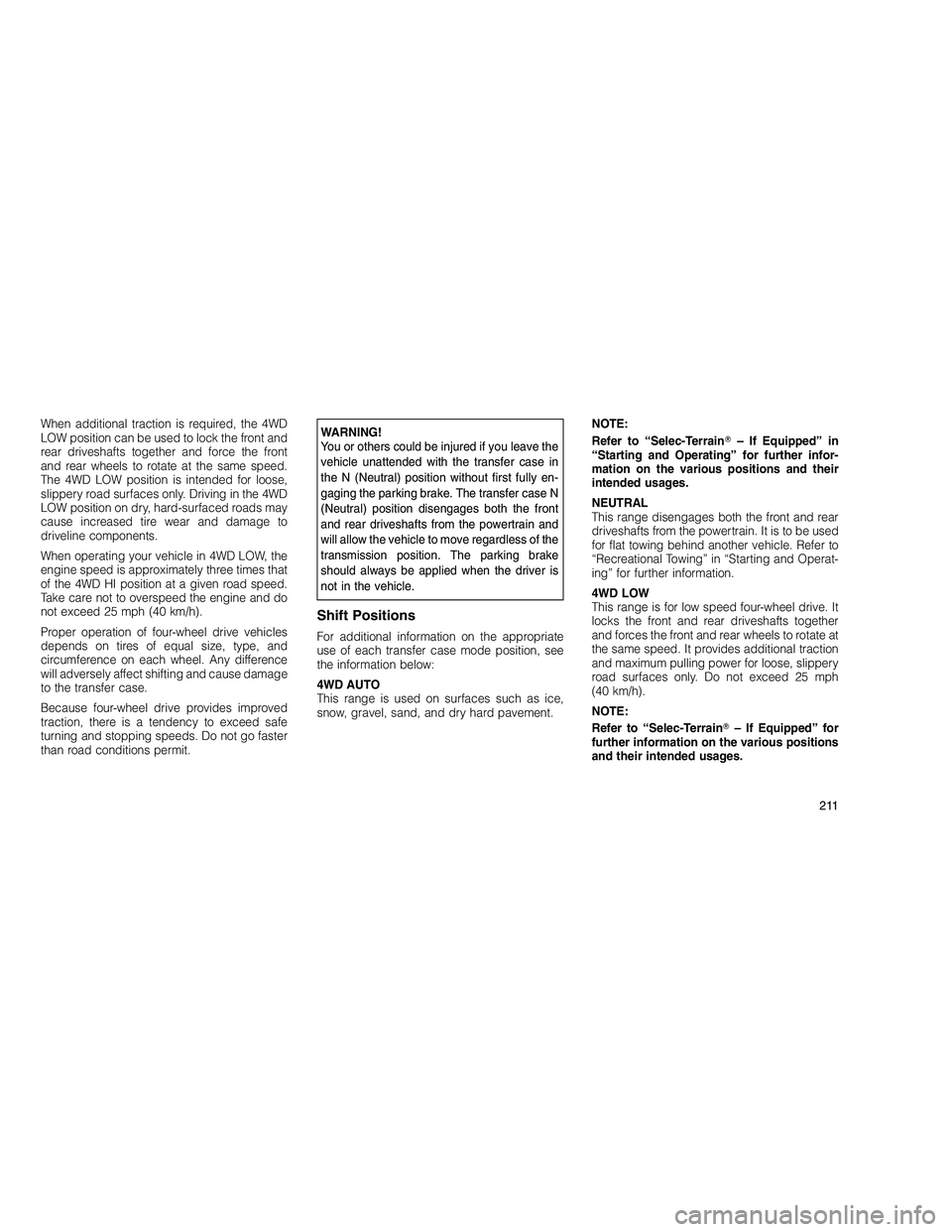

When additional traction is required, the 4WD
LOW position can be used to lock the front and
rear driveshafts together and force the front
and rear wheels to rotate at the same speed.
The 4WD LOW position is intended for loose,
slippery road surfaces only. Driving in the 4WD
LOW position on dry, hard-surfaced roads may
cause increased tire wear and damage to
driveline components.
When operating your vehicle in 4WD LOW, the
engine speed is approximately three times that
of the 4WD HI position at a given road speed.
Take care not to overspeed the engine and do
not exceed 25 mph (40 km/h).
Proper operation of four-wheel drive vehicles
depends on tires of equal size, type, and
circumference on each wheel. Any difference
will adversely affect shifting and cause damage
to the transfer case.
Because four-wheel drive provides improved
traction, there is a tendency to exceed safe
turning and stopping speeds. Do not go faster
than road conditions permit.WARNING!
You or others could be injured if you leave the
vehicle unattended with the transfer case in
the N (Neutral) position without first fully en-
gaging the parking brake. The transfer case N
(Neutral) position disengages both the front
and rear driveshafts from the powertrain and
will allow the vehicle to move regardless of the
transmission position. The parking brake
should always be applied when the driver is
not in the vehicle.
Shift Positions
For additional information on the appropriate
use of each transfer case mode position, see
the information below:
4WD AUTO
This range is used on surfaces such as ice,
snow, gravel, sand, and dry hard pavement.NOTE:
Refer to “Selec-Terrain
– If Equipped” in
“Starting and Operating” for further infor-
mation on the various positions and their
intended usages.
NEUTRAL
This range disengages both the front and rear
driveshafts from the powertrain. It is to be used
for flat towing behind another vehicle. Refer to
“Recreational Towing” in “Starting and Operat-
ing” for further information.
4WD LOW
This range is for low speed four-wheel drive. It
locks the front and rear driveshafts together
and forces the front and rear wheels to rotate at
the same speed. It provides additional traction
and maximum pulling power for loose, slippery
road surfaces only. Do not exceed 25 mph
(40 km/h).
NOTE:
Refer to “Selec-Terrain – If Equipped” for
further information on the various positions
and their intended usages.
211

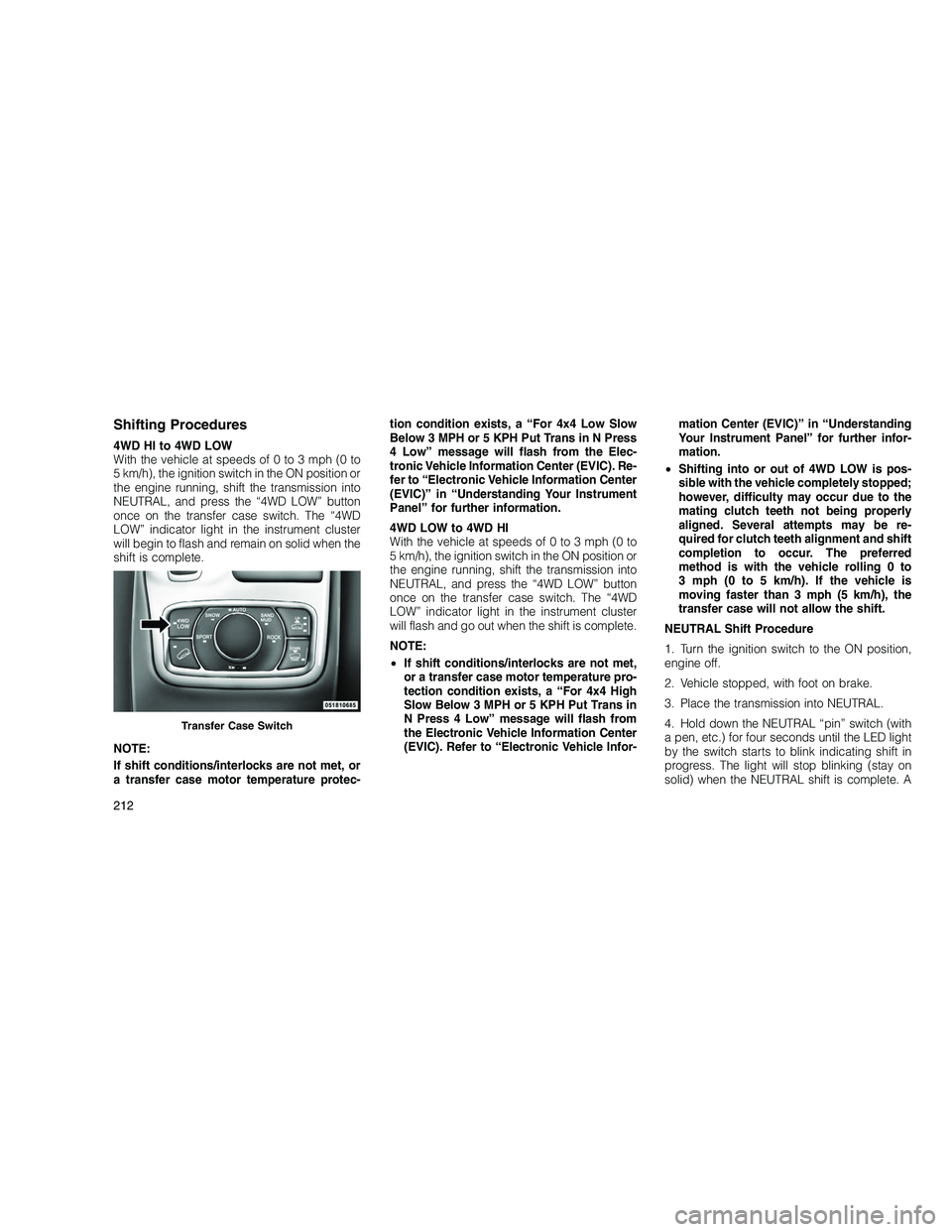

Shifting Procedures
4WD HI to 4WD LOW
With the vehicle at speeds of 0 to 3 mph (0 to
5 km/h), the ignition switch in the ON position or
the engine running, shift the transmission into
NEUTRAL, and press the “4WD LOW” button
once on the transfer case switch. The “4WD
LOW” indicator light in the instrument cluster
will begin to flash and remain on solid when the
shift is complete.
NOTE:
If shift conditions/interlocks are not met, or
a transfer case motor temperature protec-tion condition exists, a “For 4x4 Low Slow
Below 3 MPH or 5 KPH Put Trans in N Press
4 Low” message will flash from the Elec-
tronic Vehicle Information Center (EVIC). Re-
fer to “Electronic Vehicle Information Center
(EVIC)” in “Understanding Your Instrument
Panel” for further information.
4WD LOW to 4WD HI
With the vehicle at speeds of 0 to 3 mph (0 to
5 km/h), the ignition switch in the ON position or
the engine running, shift the transmission into
NEUTRAL, and press the “4WD LOW” button
once on the transfer case switch. The “4WD
LOW” indicator light in the instrument cluster
will flash and go out when the shift is complete.
NOTE:
•
If shift conditions/interlocks are not met,
or a transfer case motor temperature pro-
tection condition exists, a “For 4x4 High
Slow Below 3 MPH or 5 KPH Put Trans in
N Press 4 Low” message will flash from
the Electronic Vehicle Information Center
(EVIC). Refer to “Electronic Vehicle Infor- mation Center (EVIC)” in “Understanding
Your Instrument Panel” for further infor-
mation.
• Shifting into or out of 4WD LOW is pos-
sible with the vehicle completely stopped;
however, difficulty may occur due to the
mating clutch teeth not being properly
aligned. Several attempts may be re-
quired for clutch teeth alignment and shift
completion to occur. The preferred
method is with the vehicle rolling 0 to
3 mph (0 to 5 km/h). If the vehicle is
moving faster than 3 mph (5 km/h), the
transfer case will not allow the shift.
NEUTRAL Shift Procedure
1. Turn the ignition switch to the ON position,
engine off.
2. Vehicle stopped, with foot on brake.
3. Place the transmission into NEUTRAL.
4. Hold down the NEUTRAL “pin” switch (with
a pen, etc.) for four seconds until the LED light
by the switch starts to blink indicating shift in
progress. The light will stop blinking (stay on
solid) when the NEUTRAL shift is complete. A
Transfer Case Switch
212

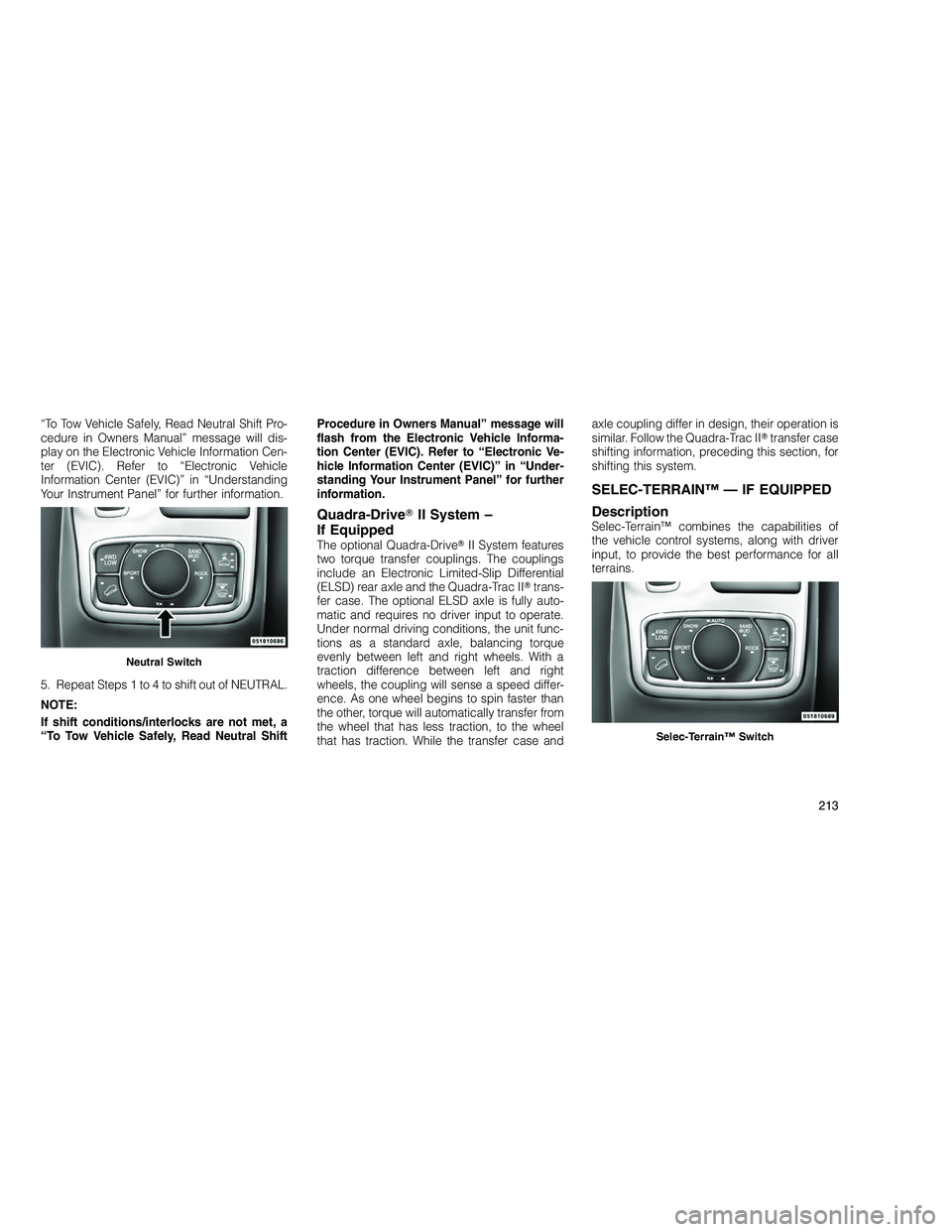

“To Tow Vehicle Safely, Read Neutral Shift Pro-
cedure in Owners Manual” message will dis-
play on the Electronic Vehicle Information Cen-
ter (EVIC). Refer to “Electronic Vehicle
Information Center (EVIC)” in “Understanding
Your Instrument Panel” for further information.
5. Repeat Steps 1 to 4 to shift out of NEUTRAL.
NOTE:
If shift conditions/interlocks are not met, a
“To Tow Vehicle Safely, Read Neutral ShiftProcedure in Owners Manual” message will
flash from the Electronic Vehicle Informa-
tion Center (EVIC). Refer to “Electronic Ve-
hicle Information Center (EVIC)” in “Under-
standing Your Instrument Panel” for further
information.
Quadra-Drive
II System –
If Equipped
The optional Quadra-Drive II System features
two torque transfer couplings. The couplings
include an Electronic Limited-Slip Differential
(ELSD) rear axle and the Quadra-Trac II trans-
fer case. The optional ELSD axle is fully auto-
matic and requires no driver input to operate.
Under normal driving conditions, the unit func-
tions as a standard axle, balancing torque
evenly between left and right wheels. With a
traction difference between left and right
wheels, the coupling will sense a speed differ-
ence. As one wheel begins to spin faster than
the other, torque will automatically transfer from
the wheel that has less traction, to the wheel
that has traction. While the transfer case and axle coupling differ in design, their operation is
similar. Follow the Quadra-Trac II
transfer case
shifting information, preceding this section, for
shifting this system.
SELEC-TERRAIN™ — IF EQUIPPED
Description
Selec-Terrain™ combines the capabilities of
the vehicle control systems, along with driver
input, to provide the best performance for all
terrains.
Neutral Switch
Selec-Terrain™ Switch
213

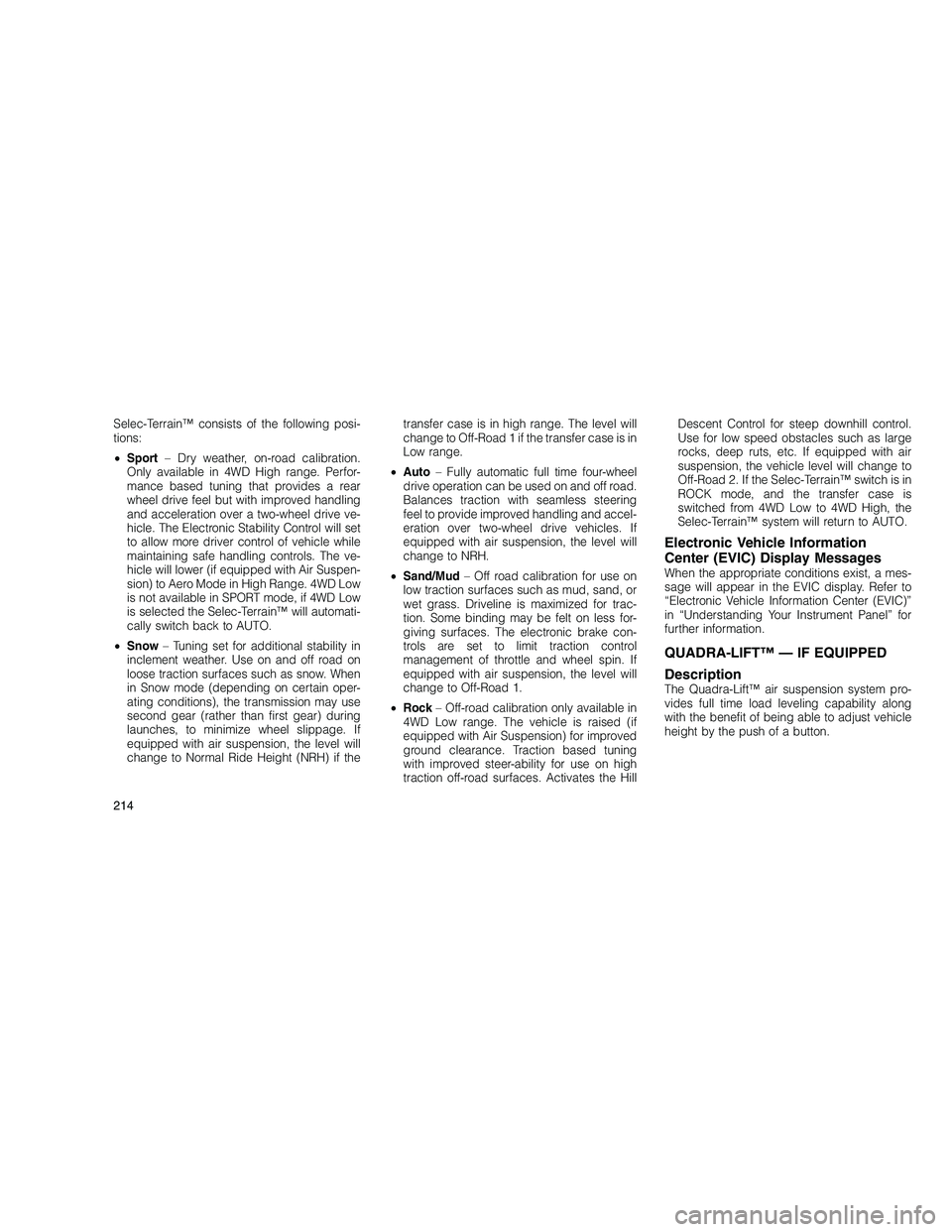

Selec-Terrain™ consists of the following posi-
tions:
•Sport – Dry weather, on-road calibration.
Only available in 4WD High range. Perfor-
mance based tuning that provides a rear
wheel drive feel but with improved handling
and acceleration over a two-wheel drive ve-
hicle. The Electronic Stability Control will set
to allow more driver control of vehicle while
maintaining safe handling controls. The ve-
hicle will lower (if equipped with Air Suspen-
sion) to Aero Mode in High Range. 4WD Low
is not available in SPORT mode, if 4WD Low
is selected the Selec-Terrain™ will automati-
cally switch back to AUTO.
• Snow – Tuning set for additional stability in
inclement weather. Use on and off road on
loose traction surfaces such as snow. When
in Snow mode (depending on certain oper-
ating conditions), the transmission may use
second gear (rather than first gear) during
launches, to minimize wheel slippage. If
equipped with air suspension, the level will
change to Normal Ride Height (NRH) if the transfer case is in high range. The level will
change to Off-Road 1 if the transfer case is in
Low range.
• Auto – Fully automatic full time four-wheel
drive operation can be used on and off road.
Balances traction with seamless steering
feel to provide improved handling and accel-
eration over two-wheel drive vehicles. If
equipped with air suspension, the level will
change to NRH.
• Sand/Mud – Off road calibration for use on
low traction surfaces such as mud, sand, or
wet grass. Driveline is maximized for trac-
tion. Some binding may be felt on less for-
giving surfaces. The electronic brake con-
trols are set to limit traction control
management of throttle and wheel spin. If
equipped with air suspension, the level will
change to Off-Road 1.
• Rock – Off-road calibration only available in
4WD Low range. The vehicle is raised (if
equipped with Air Suspension) for improved
ground clearance. Traction based tuning
with improved steer-ability for use on high
traction off-road surfaces. Activates the Hill Descent Control for steep downhill control.
Use for low speed obstacles such as large
rocks, deep ruts, etc. If equipped with air
suspension, the vehicle level will change to
Off-Road 2. If the Selec-Terrain™ switch is in
ROCK mode, and the transfer case is
switched from 4WD Low to 4WD High, the
Selec-Terrain™ system will return to AUTO.
Electronic Vehicle Information
Center (EVIC) Display Messages
When the appropriate conditions exist, a mes-
sage will appear in the EVIC display. Refer to
“Electronic Vehicle Information Center (EVIC)”
in “Understanding Your Instrument Panel” for
further information.
QUADRA-LIFT™ — IF EQUIPPED
Description
The Quadra-Lift™ air suspension system pro-
vides full time load leveling capability along
with the benefit of being able to adjust vehicle
height by the push of a button.
214

•Normal Ride Height (NRH) – This is the
standard position of the suspension and is
meant for normal driving.
• Off-Road 1 (OR1) (Raises the vehicle ap-
proximately 1.3 in (33 mm) (1.1 in (28 mm)
w/AMS package) – This position should be
the default position for all off-road driving
until OR2 is needed. A smoother and more
comfortable ride will result. Press the “Up” button once from the NRH position while the
vehicle speed is below 48 mph (77 km/h).
When in the OR1 position, if the vehicle
speed remains between 40 mph (64 km/h)
and 50 mph (80 km/h) for greater than
20 seconds or if the vehicle speed exceeds
50 mph (80 km/h), the vehicle will be auto-
matically lowered to NRH. Refer to “Off-Road
Driving Tips” in “Starting and Operating” for
further information.
• Off-Road 2 (OR2) (Raises the vehicle ap-
proximately 2.6 in (65 mm) (2.2 in (56mm)
w/AMS package) – This position is intended
for off-roading use only where maximum
ground clearance is required. To enter OR2,
press the “Up” button twice from the NRH
position or once from the OR1 position while
vehicle speed is below 20 mph (32 km/h).
While in OR2, if the vehicle speed exceeds
25 mph (40 km/h) the vehicle height will be
automatically lowered to OR1. Refer to “Off-
Road Driving Tips” in “Starting and Operat-
ing” for further information.
• Aero Mode (Lowers the vehicle approxi-
mately 0.5 in (13 mm) – This position pro-
vides improved aerodynamics by lowering the vehicle. The vehicle will automatically
enter Aero Mode when the vehicle speed
remains between 62 mph (100 km/h) and
66 mph (106 km/h) for greater than 20 sec-
onds or if the vehicle speed exceeds 66 mph
(106 km/h). The vehicle will return to NRH
from Aero Mode if the vehicle speed remains
between 30 mph (48 km/h) and 35 mph
(56 km/h) for greater than 20 seconds or if
the vehicle speed falls below 30 mph
(48 km/h). The vehicle will enter Aero Mode,
regardless of vehicle speed if the Selec-
Terrain™ knob is turned to the “SPORT”
position. Turning the Selec-Terrain™ knob to
the “AUTO” position will return the system to
normal operation.
• Park Mode (Lowers the vehicle approxi-
mately 1.5 in (38 mm) – This position lowers
the vehicle for easier passenger entry and
exit as well as lowering the rear of the vehicle
for easier loading and unloading of cargo. To
enter Park Mode, press the “Down” button
once while the vehicle speed is below
25 mph (40 km/h). Once the vehicle speed
goes below 15 mph (24 km/h) the vehicle
height will begin to lower. If the vehicle
Selec-Terrain™ Switch
1 — Up Button
2 — Down Button
3 — Park Mode Indicator Lamp
4 — Normal Ride Height Indicator Lamp
5 — Off-Road 1 Indicator Lamp
6 — Off-Road 2 Indicator Lamp
215

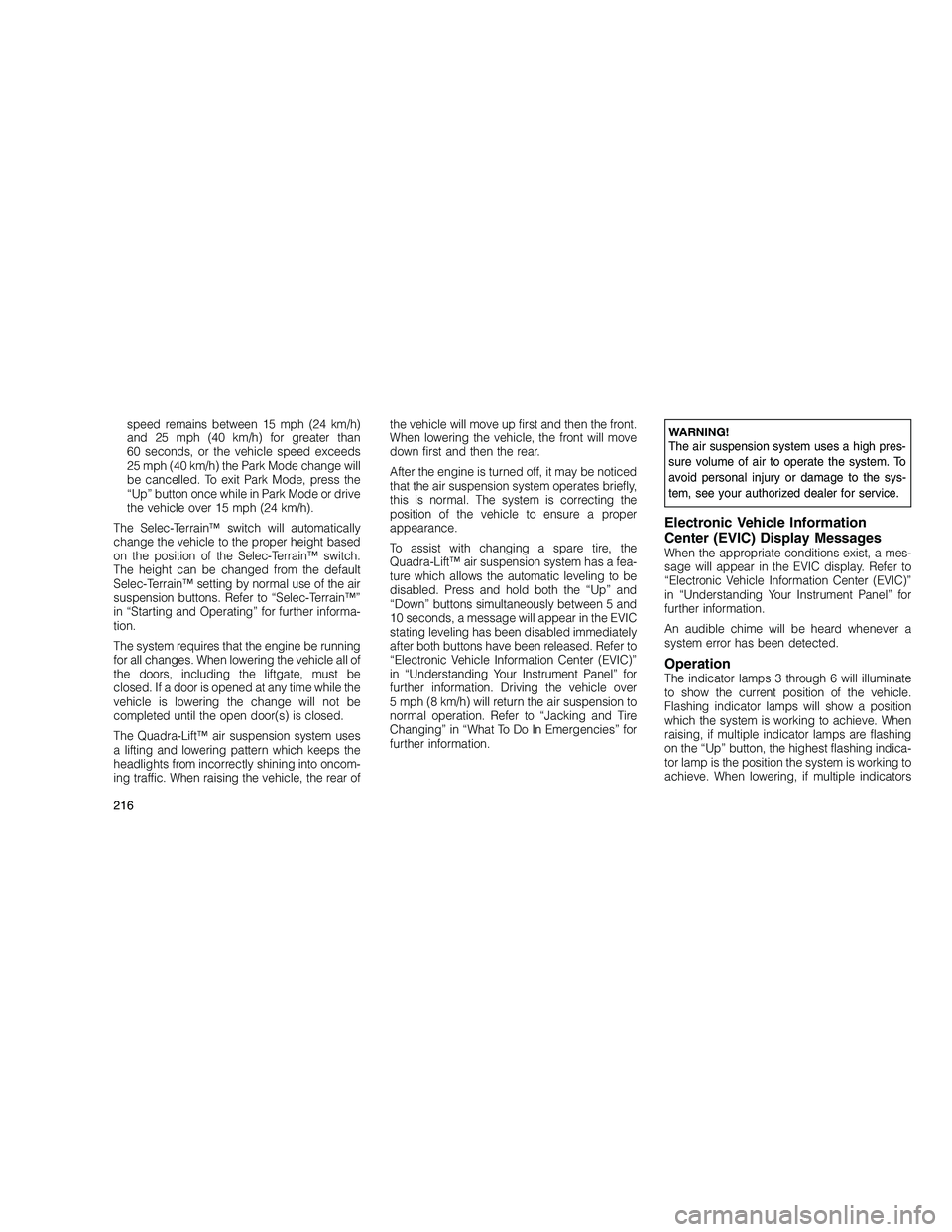

speed remains between 15 mph (24 km/h)
and 25 mph (40 km/h) for greater than
60 seconds, or the vehicle speed exceeds
25 mph (40 km/h) the Park Mode change will
be cancelled. To exit Park Mode, press the
“Up” button once while in Park Mode or drive
the vehicle over 15 mph (24 km/h).
The Selec-Terrain™ switch will automatically
change the vehicle to the proper height based
on the position of the Selec-Terrain™ switch.
The height can be changed from the default
Selec-Terrain™ setting by normal use of the air
suspension buttons. Refer to “Selec-Terrain™”
in “Starting and Operating” for further informa-
tion.
The system requires that the engine be running
for all changes. When lowering the vehicle all of
the doors, including the liftgate, must be
closed. If a door is opened at any time while the
vehicle is lowering the change will not be
completed until the open door(s) is closed.
The Quadra-Lift™ air suspension system uses
a lifting and lowering pattern which keeps the
headlights from incorrectly shining into oncom-
ing traffic. When raising the vehicle, the rear of the vehicle will move up first and then the front.
When lowering the vehicle, the front will move
down first and then the rear.
After the engine is turned off, it may be noticed
that the air suspension system operates briefly,
this is normal. The system is correcting the
position of the vehicle to ensure a proper
appearance.
To assist with changing a spare tire, the
Quadra-Lift™ air suspension system has a fea-
ture which allows the automatic leveling to be
disabled. Press and hold both the “Up” and
“Down” buttons simultaneously between 5 and
10 seconds, a message will appear in the EVIC
stating leveling has been disabled immediately
after both buttons have been released. Refer to
“Electronic Vehicle Information Center (EVIC)”
in “Understanding Your Instrument Panel” for
further information. Driving the vehicle over
5 mph (8 km/h) will return the air suspension to
normal operation. Refer to “Jacking and Tire
Changing” in “What To Do In Emergencies” for
further information.WARNING!
The air suspension system uses a high pres-
sure volume of air to operate the system. To
avoid personal injury or damage to the sys-
tem, see your authorized dealer for service.
Electronic Vehicle Information
Center (EVIC) Display Messages
When the appropriate conditions exist, a mes-
sage will appear in the EVIC display. Refer to
“Electronic Vehicle Information Center (EVIC)”
in “Understanding Your Instrument Panel” for
further information.
An audible chime will be heard whenever a
system error has been detected.
OperationThe indicator lamps 3 through 6 will illuminate
to show the current position of the vehicle.
Flashing indicator lamps will show a position
which the system is working to achieve. When
raising, if multiple indicator lamps are flashing
on the “Up” button, the highest flashing indica-
tor lamp is the position the system is working to
achieve. When lowering, if multiple indicators
216
