NOTE:
If the vehicle is equipped with Keyless
Enter-N-Go (Passive Entry) and the EVIC is
programmed to Unlock All Doors 1st Press,
all doors will unlock no matter which Pas-
sive Entry equipped door handle is grasped.
If Driver Door 1st Press is programmed, only
the driver’s door will unlock when the driv-
er’s door is grasped. With Passive Entry, if
Driver Door 1st Press is programmed touch-
ing the handle more than once will only
result in the driver’s door opening. If driver
door first is selected, once the driver door is
opened, the interior door lock/unlock switch
can be used to unlock all doors (or use RKE
transmitter).
RKE Linked To Memory
When this feature is selected, you can use your
RKE transmitter to recall one of two pre-
programmed memory profiles. Each memory
profile contains desired position settings for the
driver seat, side mirror, adjustable pedals (if
equipped), power tilt and telescopic steering
column (if equipped), and a set of desired radio
station presets. When OFF is selected, only the
MEMORY switch on the driver’s door trim panelwill recall memory profiles. To make your selec-
tion, press and release the SELECT button a
check-mark appears next to the feature show-
ing the system has been activated or the
check-mark is removed, showing the system
has been deactivated. Refer to “Driver Memory
Seat” in “Understanding The Features Of Your
Vehicle”.
Flash Lamps With Lock
When this feature is selected, the front and rear
turn signals will flash when the doors are locked
or unlocked with the RKE transmitter. This fea-
ture may be selected with or without the sound
horn on lock feature selected. To make your
selection, press and release the SELECT but-
ton until a check-mark appears next to the
feature showing the system has been activated
or the check-mark is removed, showing the
system has been deactivated.
Headlamp Off Delay
When this feature is selected, the driver can
choose to have the headlights remain on for 0,
30, 60, or 90 seconds when exiting the vehicle.
To make your selection, scroll up or down until
the preferred setting is highlighted, then press
and release the SELECT button until a check-mark appears next to the setting, showing that
setting has been selected.
Headlamps with Wipers (Available with
Automatic Headlamps Only)
When this feature is selected, and the headlight
switch is in the AUTO position, the headlights
will turn on approximately 10 seconds after the
wipers are turned on. The headlights will also
turn off when the wipers are turned off if they
were turned on by this feature. To make your
selection, press and release the SELECT but-
ton until a check-mark appears next to the
feature showing the system has been activated
or the check-mark is removed, showing the
system has been deactivated.
NOTE:
Turning the headlights on during the day-
time causes the instrument panel lights to
dim. To increase the brightness, refer to
“Lights” in “Understanding The Features Of
Your Vehicle”.
Easy Entry/Exit Seat
(Available with Memory Seat Only)
This feature provides automatic driver seat
positioning to enhance driver mobility when
178
Page 246 of 350

WARNING!(Continued)
• Do not inhale exhaust gases. They contain
carbon monoxide, a colorless and odorless
gas which can kill. Never run the engine in
a closed area, such as a garage, and never
sit in a parked vehicle with the engine
running for an extended period. If the ve-
hicle is stopped in an open area with the
engine running for more than a short pe-
riod, adjust the ventilation system to force
fresh, outside air into the vehicle.
• Guard against carbon monoxide with
proper maintenance. Have the exhaust
system inspected every time the vehicle is
raised. Have any abnormal conditions re-
paired promptly. Until repaired, drive with
all side windows fully open.
• Keep the liftgate closed when driving your
vehicle to prevent carbon monoxide and
other poisonous exhaust gases from enter-

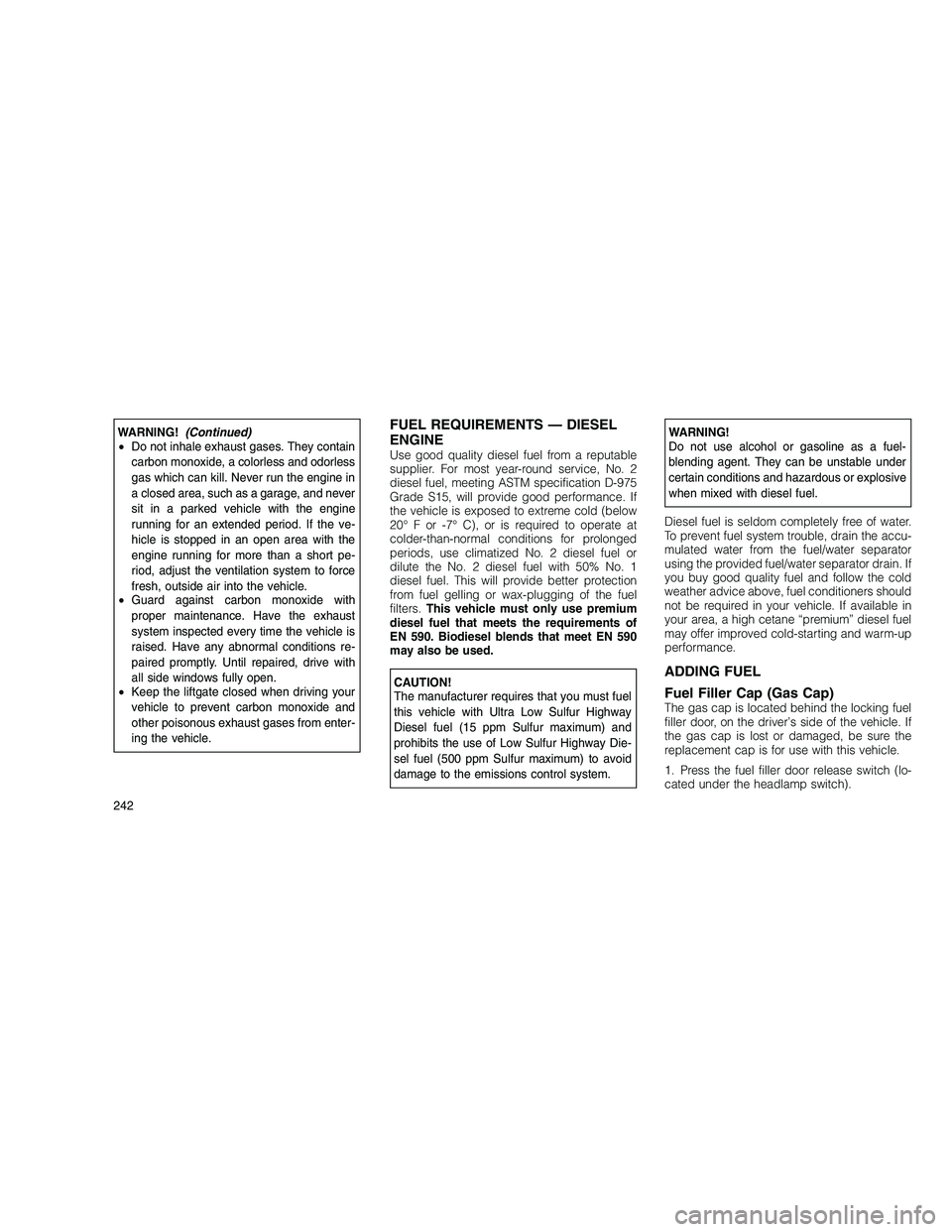

ing the vehicle.FUEL REQUIREMENTS — DIESEL
ENGINE
Use good quality diesel fuel from a reputable
supplier. For most year-round service, No. 2
diesel fuel, meeting ASTM specification D-975
Grade S15, will provide good performance. If
the vehicle is exposed to extreme cold (below
20° F or -7° C), or is required to operate at
colder-than-normal conditions for prolonged
periods, use climatized No. 2 diesel fuel or
dilute the No. 2 diesel fuel with 50% No. 1
diesel fuel. This will provide better protection
from fuel gelling or wax-plugging of the fuel
filters. This vehicle must only use premium
diesel fuel that meets the requirements of
EN 590. Biodiesel blends that meet EN 590
may also be used.
CAUTION!
The manufacturer requires that you must fuel
this vehicle with Ultra Low Sulfur Highway
Diesel fuel (15 ppm Sulfur maximum) and
prohibits the use of Low Sulfur Highway Die-
sel fuel (500 ppm Sulfur maximum) to avoid
damage to the emissions control system.
WARNING!
Do not use alcohol or gasoline as a fuel-
blending agent. They can be unstable under
certain conditions and hazardous or explosive
when mixed with diesel fuel.
Diesel fuel is seldom completely free of water.
To prevent fuel system trouble, drain the accu-
mulated water from the fuel/water separator
using the provided fuel/water separator drain. If
you buy good quality fuel and follow the cold
weather advice above, fuel conditioners should
not be required in your vehicle. If available in
your area, a high cetane “premium” diesel fuel
may offer improved cold-starting and warm-up
performance.
ADDING FUEL
Fuel Filler Cap (Gas Cap)
The gas cap is located behind the locking fuel
filler door, on the driver’s side of the vehicle. If
the gas cap is lost or damaged, be sure the
replacement cap is for use with this vehicle.
1. Press the fuel filler door release switch (lo-
cated under the headlamp switch).
242
Page 272 of 350

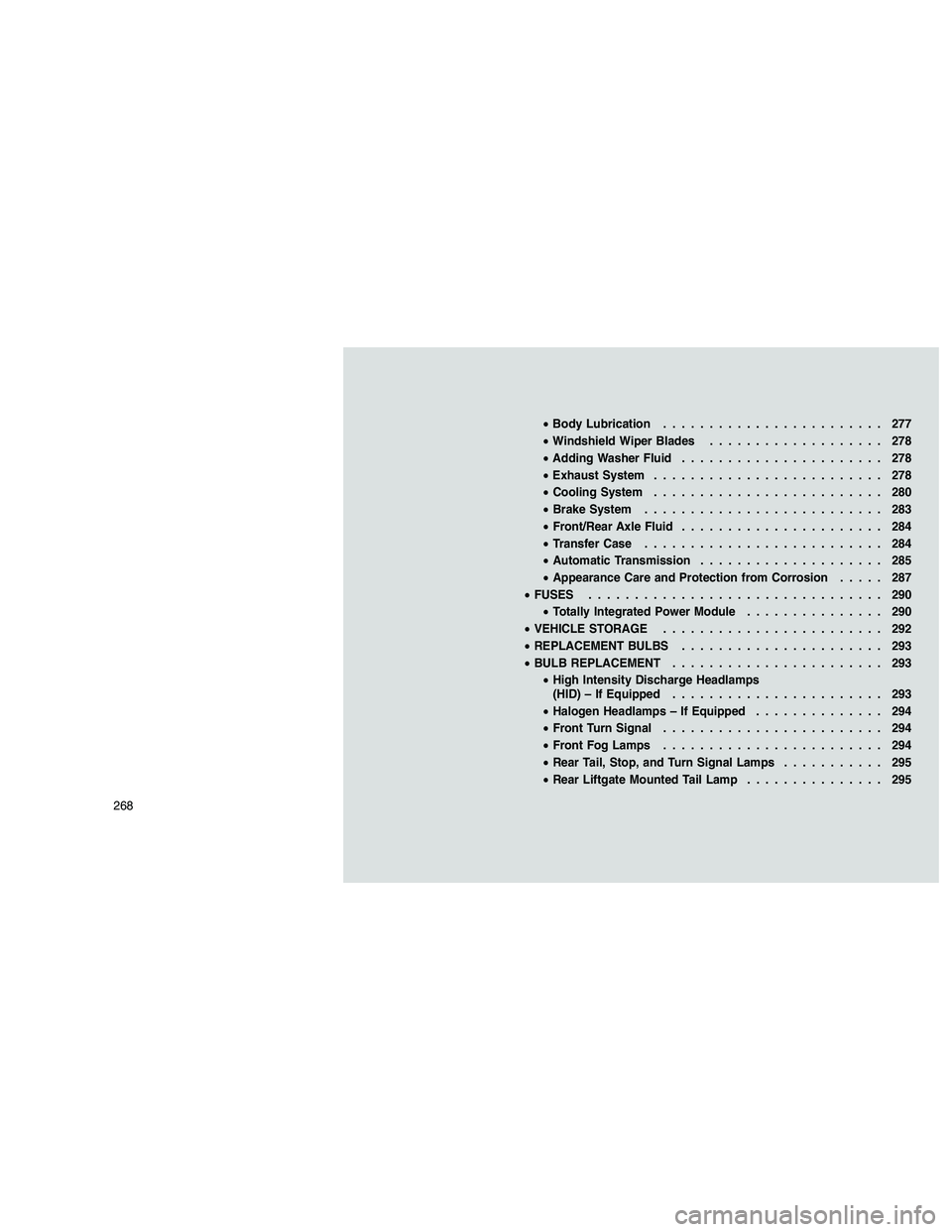

•Body Lubrication ........................ 277
• Windshield Wiper Blades ................... 278
• Adding Washer Fluid ...................... 278
• Exhaust System ......................... 278
• Cooling System ......................... 280
• Brake System .......................... 283
• Front/Rear Axle Fluid ...................... 284
• Transfer Case .......................... 284
• Automatic Transmission .................... 285
• Appearance Care and Protection from Corrosion ..... 287
• FUSES ................................ 290
• Totally Integrated Power Module ............... 290
• VEHICLE STORAGE ........................ 292
• REPLACEMENT BULBS ...................... 293
• BULB REPLACEMENT ....................... 293
• High Intensity Discharge Headlamps
(HID) – If Equipped ....................... 293
• Halogen Headlamps – If Equipped .............. 294
• Front Turn Signal ........................ 294
• Front Fog Lamps ........................ 294
• Rear Tail, Stop, and Turn Signal Lamps ........... 295
• Rear Liftgate Mounted Tail Lamp ............... 295
268
Page 294 of 350

FUSES
Totally Integrated Power Module
The totally integrated power module (TIPM) is
located in the engine compartment. This center
contains cartridge fuses and mini fuses. A
description of each fuse and component may
be stamped on the inside cover, otherwise the
cavity number of each fuse is stamped on the
inside cover that corresponds to the following
chart.
Cav-ity Car-
tridge Fuse Mini
Fuse Description
J01 40 Amp Green Air Suspension
J02 30 Amp Pink Power Liftgate
Module
J03 30 Amp Pink Trailer Tow
J04 25 Amp Natural Driver Door Node
J05 25 Amp Natural Passenger Door
Node
J06 40 Amp Green Antilock Brakes
Pump/Stability
Control System
J07 30 Amp Pink Antilock Brakes
Valve/Stability
Control System
J08 40 Amp Green Power Seat
J09 30 Amp Pink E-Brake
J10 30 Amp Pink Headlamp Wash
Relay ContactCav-
ity Car-
tridge Fuse Mini
Fuse Description
J11 30 Amp Pink Drive Train Control
Module
J12 30 Amp Pink Rear Defroster
J13 60 Amp Yellow Main Ignition Off
Draw (IOD)
J14 20 Amp Blue Trailer Tow Lamps/
Park Lamps
J15 40 Amp Green Front Cabin Fan/
Blower
J17 40 Amp Green Starter Motor So-
lenoid
J18 20 Amp Blue Powertrain Control
Module/Powertrain
Control Module
Transmission
Range
J19 60 Amp Yellow Radiator Fan Mo-
tor HI/Radiator
Fan Motor Low
J20 30 Amp Pink Front Wiper
Totally Integrated Power Module (TIPM)
290
Page 297 of 350

•Or, disconnect the negative cable from the
battery.
• Anytime you store your vehicle, or keep it out
of service (i.e. vacation) for two weeks or
more, run the air conditioning system at idle
for about five minutes in the fresh air and
high blower setting. This will ensure ad-
equate system lubrication to minimize the
possibility of compressor damage when the
system is started again.

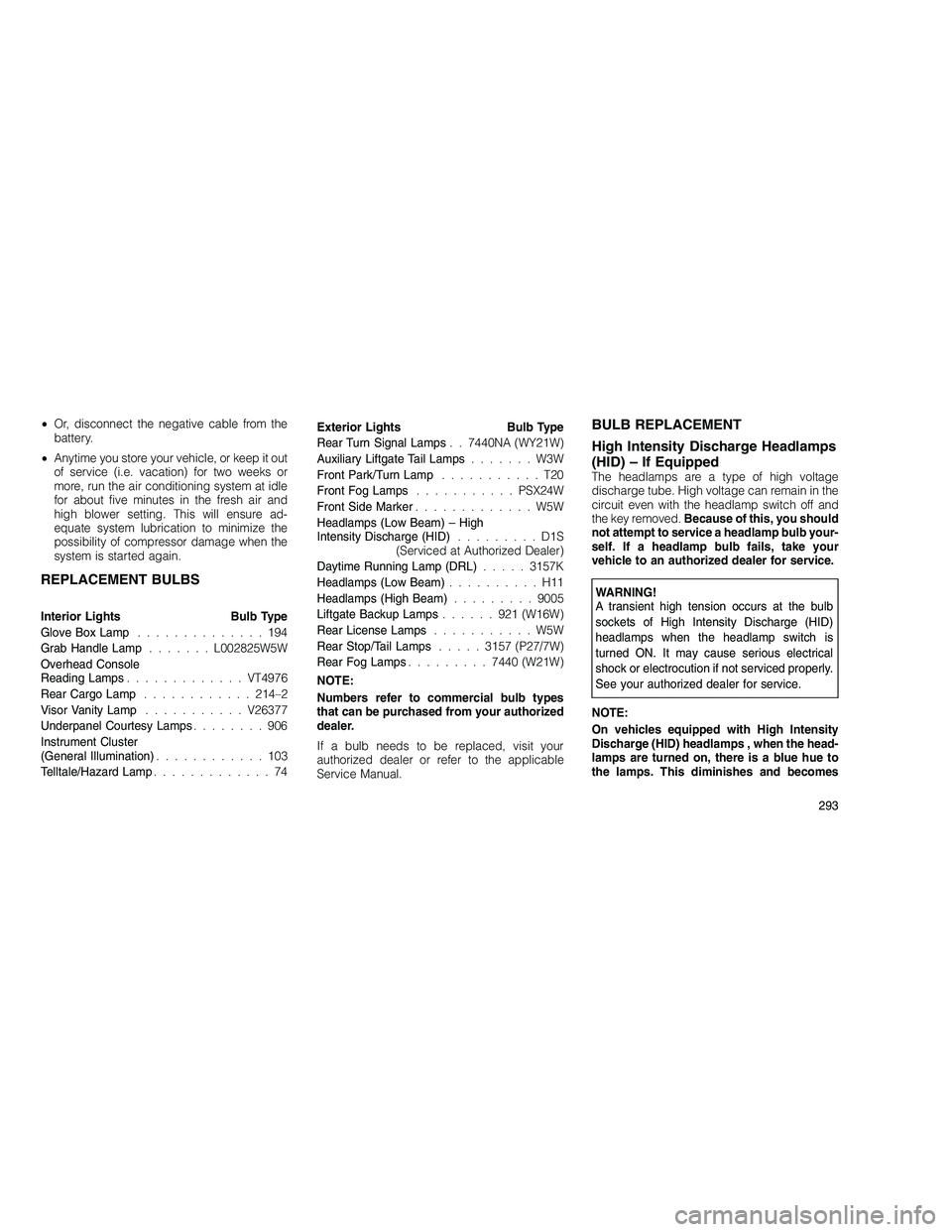

REPLACEMENT BULBS
Interior Lights Bulb Type
Glove Box Lamp ..............194
Grab Handle Lamp .......L002825W5W
Overhead Console
Reading Lamps ............. VT4976
Rear Cargo Lamp ............ 214–2
Visor Vanity Lamp ...........V26377
Underpanel Courtesy Lamps ........906
Instrument Cluster
(General Illumination) ............103
Telltale/Hazard Lamp .............74 Exterior Lights Bulb Type
Rear Turn Signal Lamps
. . 7440NA (WY21W)
Auxiliary Liftgate Tail Lamps .......W3W
Front Park/Turn Lamp ...........T20
Front Fog Lamps ........... PSX24W
Front Side Marker .............W5W
Headlamps (Low Beam) – High
Intensity Discharge (HID) .........D1S
(Serviced at Authorized Dealer)
Daytime Running Lamp (DRL) .....3157K
Headlamps (Low Beam) ..........H11
Headlamps (High Beam) .........9005
Liftgate Backup Lamps ......921(W16W)
Rear License Lamps ...........W5W
Rear Stop/Tail Lamps .....3157 (P27/7W)
Rear Fog Lamps .........7440 (W21W)
NOTE:
Numbers refer to commercial bulb types
that can be purchased from your authorized
dealer.
If a bulb needs to be replaced, visit your
authorized dealer or refer to the applicable
Service Manual.
BULB REPLACEMENT
High Intensity Discharge Headlamps
(HID) – If Equipped
The headlamps are a type of high voltage
discharge tube. High voltage can remain in the
circuit even with the headlamp switch off and
the key removed. Because of this, you should
not attempt to service a headlamp bulb your-
self. If a headlamp bulb fails, take your
vehicle to an authorized dealer for service.
WARNING!
A transient high tension occurs at the bulb
sockets of High Intensity Discharge (HID)
headlamps when the headlamp switch is
turned ON. It may cause serious electrical
shock or electrocution if not serviced properly.
See your authorized dealer for service.
NOTE:
On vehicles equipped with High Intensity
Discharge (HID) headlamps , when the head-
lamps are turned on, there is a blue hue to
the lamps. This diminishes and becomes
293
Page 298 of 350

more white after approximately 10 seconds,
as the system charges.

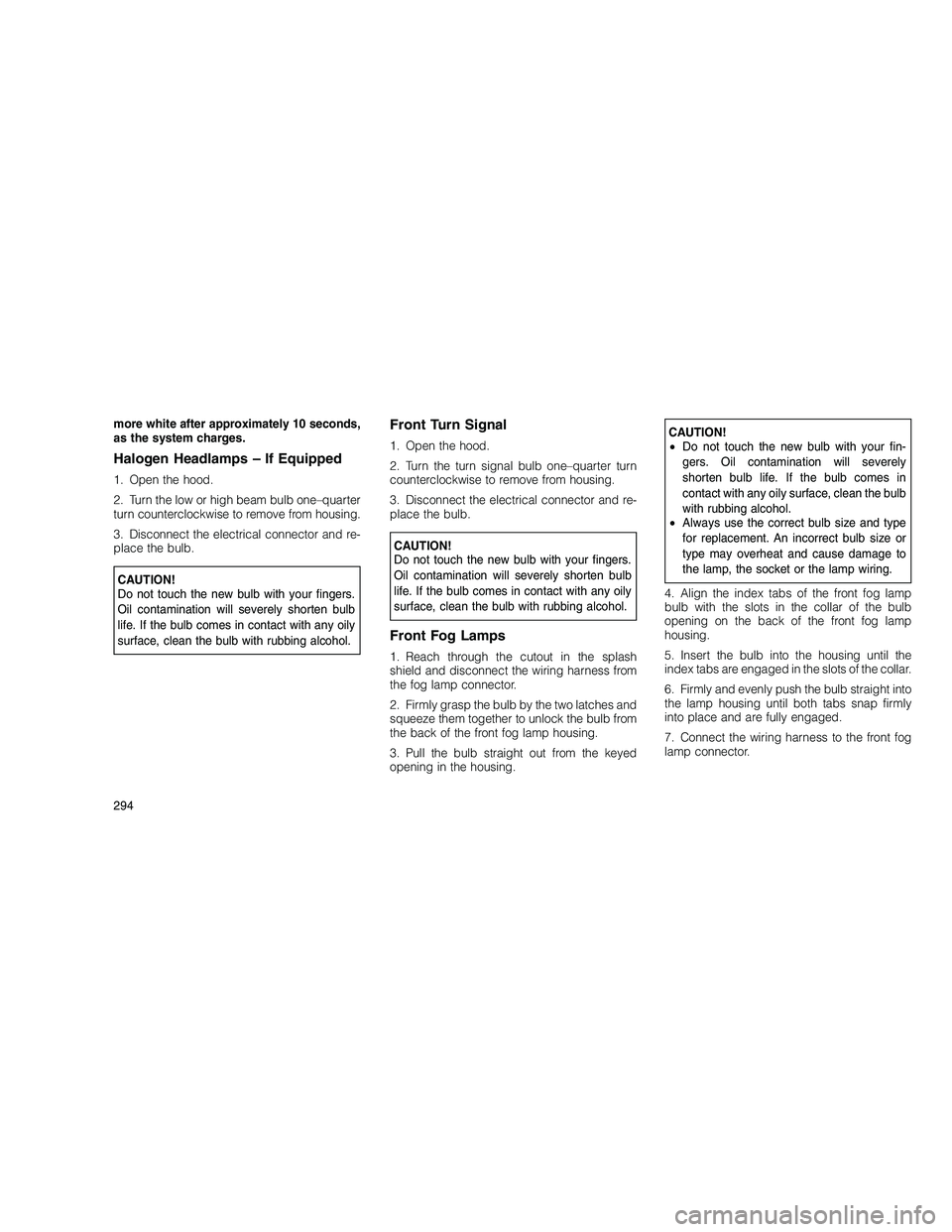

Halogen Headlamps – If Equipped
1. Open the hood.
2. Turn the low or high beam bulb one–quarter
turn counterclockwise to remove from housing.
3. Disconnect the electrical connector and re-
place the bulb.
CAUTION!
Do not touch the new bulb with your fingers.
Oil contamination will severely shorten bulb
life. If the bulb comes in contact with any oily
surface, clean the bulb with rubbing alcohol.
Front Turn Signal
1. Open the hood.
2. Turn the turn signal bulb one–quarter turn
counterclockwise to remove from housing.
3. Disconnect the electrical connector and re-
place the bulb.
CAUTION!
Do not touch the new bulb with your fingers.
Oil contamination will severely shorten bulb
life. If the bulb comes in contact with any oily
surface, clean the bulb with rubbing alcohol.
Front Fog Lamps
1. Reach through the cutout in the splash
shield and disconnect the wiring harness from
the fog lamp connector.
2. Firmly grasp the bulb by the two latches and
squeeze them together to unlock the bulb from
the back of the front fog lamp housing.
3. Pull the bulb straight out from the keyed
opening in the housing.
CAUTION!
•Do not touch the new bulb with your fin-
gers. Oil contamination will severely
shorten bulb life. If the bulb comes in
contact with any oily surface, clean the bulb
with rubbing alcohol.
• Always use the correct bulb size and type
for replacement. An incorrect bulb size or
type may overheat and cause damage to
the lamp, the socket or the lamp wiring.
4. Align the index tabs of the front fog lamp
bulb with the slots in the collar of the bulb
opening on the back of the front fog lamp
housing.
5. Insert the bulb into the housing until the
index tabs are engaged in the slots of the collar.
6. Firmly and evenly push the bulb straight into
the lamp housing until both tabs snap firmly
into place and are fully engaged.
7. Connect the wiring harness to the front fog
lamp connector.
294
