•Off Road Ride Height Leve l 2 — This mes-
sage is displayed (for 5 seconds) when the
vehicle has achieved the Off Road Height
Level 2.
• Vehicle Lowered To Entry/Exit (Park) Height
— This message is displayed (for 5 sec-
onds) when the vehicle has achieved the
Park Height.
• Entry/Exit (Park) Height in Progress — This
message is displayed (for 5 seconds) when
the request is made to go into Entry/Exit
Height while the vehicle speed is between
15 and 25 mph. This shows that the request
has been recognized and will lower to Entry/
Exit height when vehicle is below 15 mph.
• Service Air Suspension System — This is
displayed when a fault has occurred in the
system. The system will have limited opera-
tion at that point.
• Immediate Air Suspension Service/Repair
Required — This is displayed when a fault
has occurred in the system which results in a
complete system shutdown. The system will
be non operational at that point. •
Reduce Speed To Maintain Selected Ride
Height — This message is displayed in ad-
vance warning to the driver that the vehicle
will be moved to the next lower preset posi-
tion unless the speed is reduced.
• Selected Ride Height Not Permitted — The
vehicle speed is too high to enter one of the
preset levels (Entry/Exit Level/Off Road Ride
Height Level 1/Off Road Ride Height Level
2).
• Air Suspension System Cooling Down –
Please Wait — This message is displayed if
the compressor temperature level is too
high. Level control is suspended until the
compressor has cooled down.
• Vehicle Cannot Be Lowered – Door Open —
This message is displayed if a door or the
liftgate is ajar and level control is sus-
pended.
• Air Suspension Temporarily Disabled For
Jacking And Tire Change
• Aerodynamic Ride Height — This is dis-
played (for 5 seconds) when the vehicle has
achieved the Aerodynamic Height.EVIC White Telltale LightsThis area will show reconfigurable white cau-
tion telltales. These telltales include:
• Shift Lever Status
The shift lever status “P,R,N,D,L,5,4,3,2,1” are
displayed indicating the shift lever position.
Telltales “5,4,3,2,1” indicate the Electronic
Range Select (ERS) feature has been engaged
and the gear selected is displayed. For further
information on ERS, refer to “Starting And Op-
erating”
• Electronic Speed Control ON
This light will turn on when the
electronic speed control is ON. For
further information, refer to “Elec-
tronic Speed Control” in “Under-
standing The Features Of Your Ve-
hicle”.
• Electronic Speed Control SET
This light will turn on when the
electronic speed control is SET.
For further information, refer to
“Electronic Speed Control” in “Un-
derstanding The Features Of Your
Vehicle”.
167

speed remains between 15 mph (24 km/h)
and 25 mph (40 km/h) for greater than
60 seconds, or the vehicle speed exceeds
25 mph (40 km/h) the Park Mode change will
be cancelled. To exit Park Mode, press the
“Up” button once while in Park Mode or drive
the vehicle over 15 mph (24 km/h).
The Selec-Terrain™ switch will automatically
change the vehicle to the proper height based
on the position of the Selec-Terrain™ switch.
The height can be changed from the default
Selec-Terrain™ setting by normal use of the air
suspension buttons. Refer to “Selec-Terrain™”
in “Starting and Operating” for further informa-
tion.
The system requires that the engine be running
for all changes. When lowering the vehicle all of
the doors, including the liftgate, must be
closed. If a door is opened at any time while the
vehicle is lowering the change will not be
completed until the open door(s) is closed.
The Quadra-Lift™ air suspension system uses
a lifting and lowering pattern which keeps the
headlights from incorrectly shining into oncom-
ing traffic. When raising the vehicle, the rear of the vehicle will move up first and then the front.
When lowering the vehicle, the front will move
down first and then the rear.
After the engine is turned off, it may be noticed
that the air suspension system operates briefly,
this is normal. The system is correcting the
position of the vehicle to ensure a proper
appearance.
To assist with changing a spare tire, the
Quadra-Lift™ air suspension system has a fea-
ture which allows the automatic leveling to be
disabled. Press and hold both the “Up” and
“Down” buttons simultaneously between 5 and
10 seconds, a message will appear in the EVIC
stating leveling has been disabled immediately
after both buttons have been released. Refer to
“Electronic Vehicle Information Center (EVIC)”
in “Understanding Your Instrument Panel” for
further information. Driving the vehicle over
5 mph (8 km/h) will return the air suspension to
normal operation. Refer to “Jacking and Tire
Changing” in “What To Do In Emergencies” for
further information.WARNING!
The air suspension system uses a high pres-
sure volume of air to operate the system. To
avoid personal injury or damage to the sys-
tem, see your authorized dealer for service.
Electronic Vehicle Information
Center (EVIC) Display Messages
When the appropriate conditions exist, a mes-
sage will appear in the EVIC display. Refer to
“Electronic Vehicle Information Center (EVIC)”
in “Understanding Your Instrument Panel” for
further information.
An audible chime will be heard whenever a
system error has been detected.
OperationThe indicator lamps 3 through 6 will illuminate
to show the current position of the vehicle.
Flashing indicator lamps will show a position
which the system is working to achieve. When
raising, if multiple indicator lamps are flashing
on the “Up” button, the highest flashing indica-
tor lamp is the position the system is working to
achieve. When lowering, if multiple indicators
216

6
WHAT TO DO IN EMERGENCIES
•HAZARD WARNING FLASHERS ................. 258
• IF YOUR ENGINE OVERHEATS .................. 258
• JACKING AND TIRE CHANGING ................. 259
• Jack Location .......................... 259
• Spare Tire Stowage ....................... 259
• Preparations for Jacking .................... 259
• Jacking Instructions ...................... 260
• JUMP-STARTING .......................... 262
• Preparations for Jump-Start .................. 262
• Jump-Starting Procedure ................... 263
• TOW EYES .............................. 264
• TOWING A DISABLED VEHICLE ................. 265
• Towing Without the Ignition Key Fob ............ 266
• Four-Wheel Drive Vehicles ................... 266
257

JACKING AND TIRE CHANGING
WARNING!
•Getting under a jacked-up vehicle is dan-
gerous. The vehicle could slip off the jack
and fall on you. You could be crushed.
Never get any part of your body under a
vehicle that is on a jack. If you need to get
under a raised vehicle, take it to a service
center where it can be raised on a lift.
• The jack is designed to be used as a tool
for changing tires only. The jack should not
be used to lift the vehicle for service pur-
poses. The vehicle should be jacked on a
firm, level surface only. Avoid ice or slippery
areas.
Jack LocationThe scissor-type jack and tire changing tools
are located in rear cargo area, below the load
floor.
Spare Tire StowageThe spare tire is stowed under the load floor in
the rear cargo area.
Preparations for Jacking
1. Park the vehicle on a firm, level surface.
Avoid ice or slippery surfaces.
WARNING!
Do not attempt to change a tire on the side of
the vehicle closest to moving traffic. Pull far
enough off the road to avoid being hit when
operating the jack or changing the wheel. 2. Turn on the Hazard Warning flasher.
3. Set the parking brake.
4. Place the shift lever into PARK.
5. Turn the ignition OFF.
6. Block both the front
and rear of the wheel
diagonally opposite of
the jacking position. For
example, if changing
the right front tire, block
the left rear wheel.
NOTE:
Passengers should not remain in the vehicle
when the vehicle is being jacked.
7. For vehicle equipped with Quadra-Lift refer
to “Quadra-Lift — If Equipped” in “Starting and
Operating” for further information on disabling
automatic leveling.
Jack Storage Location
259

Jacking Instructions
WARNING!
Carefully follow these tire changing warnings
to help prevent personal injury or damage to
your vehicle:
•Always park on a firm, level surface as far
from the edge of the roadway as possible
before raising the vehicle.
• Turn on the Hazard Warning flasher.
• Block the wheel diagonally opposite the
wheel to be raised.
• Set the parking brake firmly and set an
automatic transmission in PARK.
• Never start or run the engine with the
vehicle on a jack.
• Do not let anyone sit in the vehicle when it
is on a jack.
• Do not get under the vehicle when it is on a
jack.
• Only use the jack in the positions indicated
and for lifting this vehicle during a tire
change.
(Continued)
WARNING!(Continued)
• If working on or near a roadway, be ex-
tremely careful of motor traffic.
• To assure that spare tires, flat or inflated,
are securely stowed, spares must be
stowed with the valve stem facing the
ground.
1. Remove the spare tire, jack, and tools from
storage.
2. Loosen (but do not remove) the wheel lug
nuts by turning them to the left, one turn, while
the wheel is still on the ground.
3. Assemble the jack and jacking tools. 4. For a front tire, place the jack and protective
cap on the body flange just behind the front tire
(as indicated by the triangular lift point symbol
on the sill molding).
Do not raise the vehicle
until you are sure the jack is fully engaged.
Jack Warning Label
Jack and Tool Assembly
260

5. For a rear tire, place the jack and protective
cap in the slot on the rear tie-down bracket, just
forward of the rear tire (as indicated by the
triangular lift point symbol on the sill molding).
Do not raise the vehicle until you are sure
the jack is fully engaged.6. Raise the vehicle by turning the jack screw
clockwise. Raise the vehicle only until the tire
just clears the surface and enough clearance is
obtained to install the spare tire. Minimum tire
lift provides maximum stability.
WARNING!
Raising the vehicle higher than necessary can
make the vehicle less stable. It could slip off
the jack and hurt someone near it. Raise the
vehicle only enough to remove the tire.7. Remove the lug nuts and wheel.
8. Position the spare wheel/tire on the vehicle
and install the lug nuts with the cone-shaped
end toward the wheel. Lightly tighten the nuts.
To avoid the risk of forcing the vehicle off the
jack, do not tighten the nuts fully until the
vehicle has been lowered.
9. Lower the vehicle by turning the jack screw
counterclockwise, and remove the jack and
wheel blocks.
10. Finish tightening the lug nuts. Push down
on the wrench while tightening for increased
leverage. Alternate nuts until each nut has
been tightened twice. The correct wheel nut
tightness is 95 ft lbs (130 N·m). If in doubt about
the correct tightness, have them checked with
a torque wrench by your authorized dealer or at
a service station.
11. Lower the jack to the fully closed position
and return it and the tools to the proper posi-
tions in the foam tray.
Front Jacking LocationRear Jacking Location
261

Emergency, In Case ofFreeing Vehicle When Stuck ......210
Hazard Warning Flasher ........258
Jacking ..................259
Jump Starting ..............262
Engine Air Cleaner ................276
Break-In Recommendations .......54
Compartment .........270,271,272
Compartment Identification . . 270,271,272
Cooling ..................280
Exhaust Gas Caution .........28,55
Fails to Start ...............202
Flooded, Starting ............202
Fuel Requirements .........240,297
Jump Starting ..............262
Multi-Displacement ...........222
Oil .................. 274,297
Oil Change Interval ...........274
Oil Disposal ...............276
Oil Filter .................276
Oil Selection .......... 274,275,297
Oil Synthetic ...............275
Overheating ...............258
Starting ..................200
Temperature Gauge ...........163
Engine Oil Viscosity ............275 Engine Oil Viscosity Chart
........275
Enhanced Accident Response Feature . . 43
Entry System, Illuminated ..........16
Ethanol ...................241
Event Data Recorder ............45
Exhaust Gas Caution ........28,55,279
Exhaust System ............ 55,278
Exterior Finish Care ............287
Exterior Lights ................57
Filters Air Cleaner ................276
Engine Oil ................276
Finish Care .................287
Flashers ..................258
Hazard Warning .............258
Turn Signal ......... 57,159,294,295
Flipper Glass, Liftgate ...........26
Flooded Engine Starting .........202
Fluid Capacities ..............297
Fluid Leaks .................57
Fluid Level Checks Automatic Transmission ......285,286
Brake ...................283
Engine Oil
................274
Power Steering .............221 Fluids, Lubricants and Genuine Parts . . 298
Fog Light Service
.............294
Fog Lights ............ 109,159,294
Fog Lights, Rear ..............163
Folding Rear Seat .............101
Four Wheel Drive ........... 210,213
Operation ................210
Systems .................210
Four Wheel Drive Operation .......210
Four-Way Hazard Flasher .........258
Freeing A Stuck Vehicle ..........210
Front Axle (Differential) ..........284
Fuel .....................240
Additives .................241
Conserving ...............171
Diesel ..................242
Filler Cap (Gas Cap) ........242,244
Gasoline .................240
Gauge ..................162
Light ...................169
Octane Rating ..............240
Requirements ..............297
Saver Mode ...............171
Tank Capacity ..............297
Fuel System Caution ............243
Fuses ....................290
338

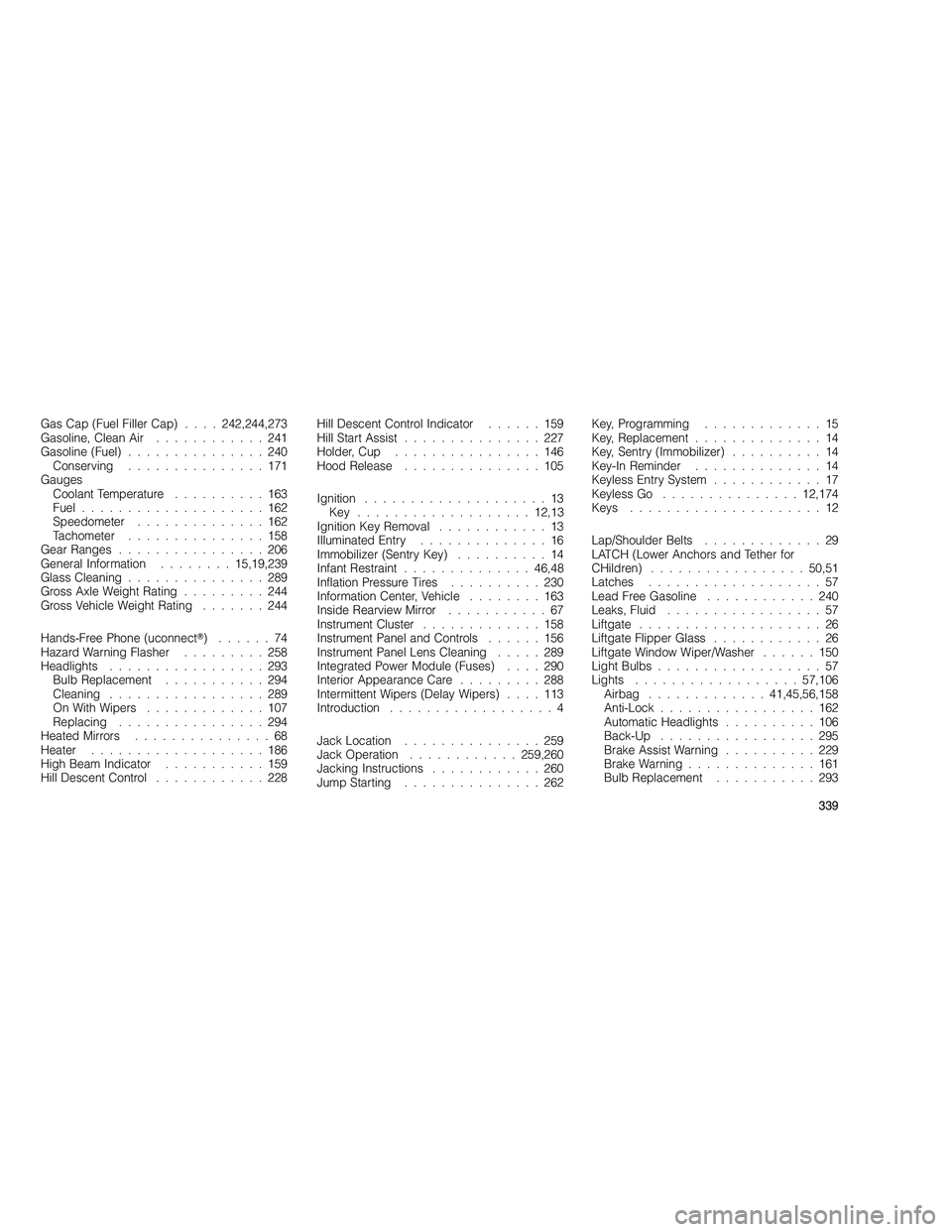

Gas Cap (Fuel Filler Cap)....242,244,273
Gasoline, Clean Air ............241
Gasoline (Fuel) ...............240
Conserving ...............171
Gauges Coolant Temperature ..........163
Fuel ....................162
Speedometer ..............162
Tachometer ...............158
Gear Ranges ................206
General Information ........15,19,239
Glass Cleaning ...............289
Gross Axle Weight Rating .........244
Gross Vehicle Weight Rating .......244
Hands-Free Phone (uconnect ) ......74
Hazard Warning Flasher .........258
Headlights .................293
Bulb Replacement ...........294
Cleaning .................289
On With Wipers .............107
Replacing ................294
Heated Mirrors ...............68
Heater ...................186
High Beam Indicator ...........159
Hill Descent Control ............228 Hill Descent Control Indicator
......159
Hill Start Assist ...............227
Holder, Cup ................146
Hood Release ...............105
Ignition ....................13
Key ................... 12,13
Ignition Key Removal ............13
Illuminated Entry ..............16
Immobilizer (Sentry Key) ..........14
Infant Restraint .............. 46,48
Inflation Pressure Tires ..........230
Information Center, Vehicle ........163
Inside Rearview Mirror ...........67
Instrument Cluster .............158
Instrument Panel and Controls ......156
Instrument Panel Lens Cleaning .....289
Integrated Power Module (Fuses) ....290
Interior Appearance Care .........288
Intermittent Wipers (Delay Wipers) ....113
Introduction ..................4
Jack Location ...............259
Jack Operation ............ 259,260
Jacking Instructions ............260
Jump Starting
...............262 Key, Programming
.............15
Key, Replacement ..............14
Key, Sentry (Immobilizer) ..........14
Key-In Reminder ..............14
Keyless Entry System ............17
Keyless Go ............... 12,174
Keys .....................12
Lap/Shoulder Belts .............29
LATCH (Lower Anchors and Tether for
CHildren) ................. 50,51
Latches ...................57
Lead Free Gasoline ............240
Leaks, Fluid .................57
Liftgate ....................26
Liftgate Flipper Glass ............26
Liftgate Window Wiper/Washer ......150
Light Bulbs ..................57
Lights .................. 57,106
Airbag ............. 41,45,56,158
Anti-Lock .................162
Automatic Headlights ..........106
Back-Up .................295
Brake Assist Warning ..........229
Brake Warning ..............161
Bulb Replacement ...........293
339

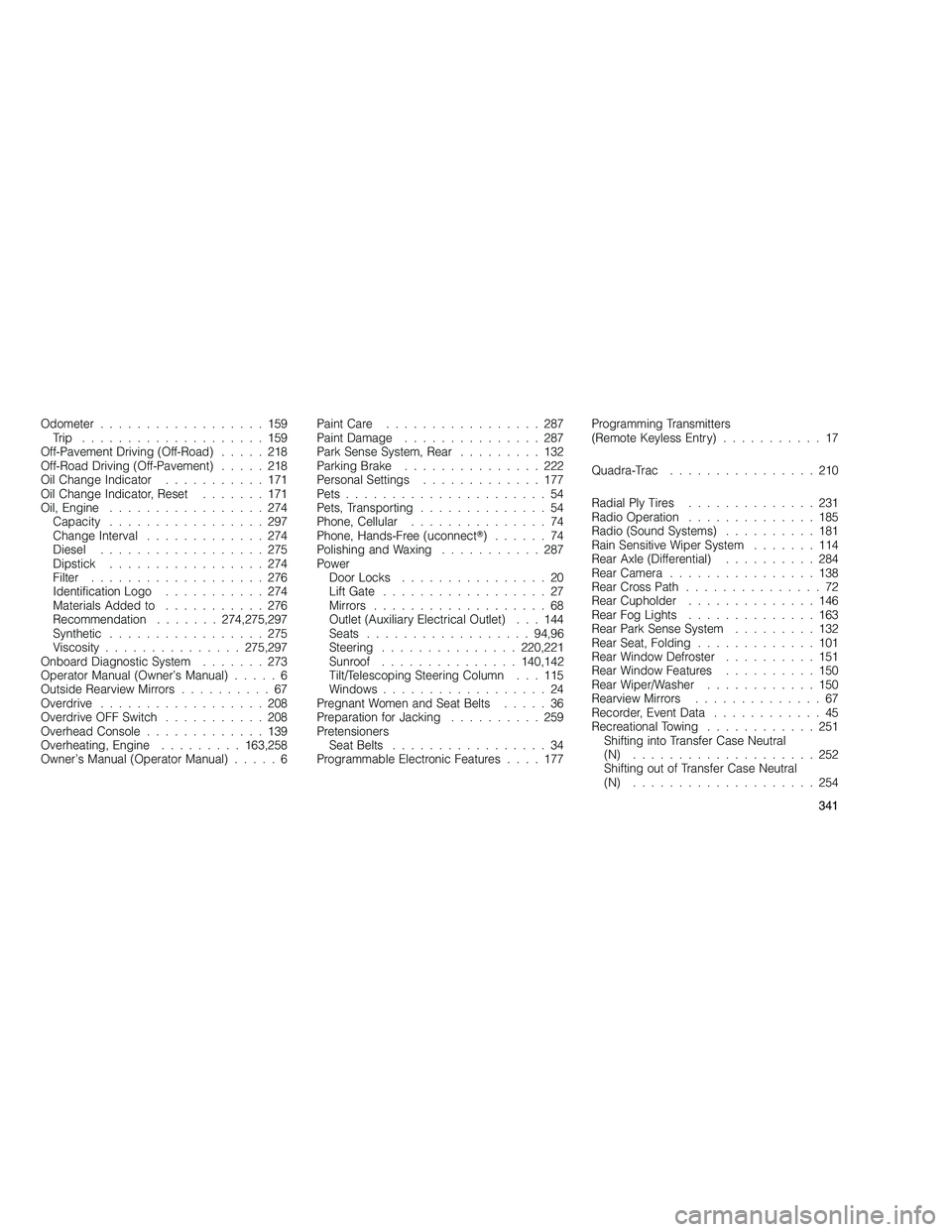

Odometer..................159
Trip ....................159
Off-Pavement Driving (Off-Road) .....218
Off-Road Driving (Off-Pavement) .....218
Oil Change Indicator ...........171
Oil Change Indicator, Reset .......171
Oil, Engine .................274
Capacity .................297
Change Interval .............274
Diesel ..................275
Dipstick .................274
Filter ...................276
Identification Logo ...........274
Materials Added to ...........276
Recommendation .......274,275,297
Synthetic .................275
Viscosity ............... 275,297
Onboard Diagnostic System .......273
Operator Manual (Owner’s Manual) .....6
Outside Rearview Mirrors ..........67
Overdrive ..................208
Overdrive OFF Switch ...........208
Overhead Console .............139
Overheating, Engine .........163,258
Owner’s Manual (Operator Manual) .....6Paint Care
.................287
Paint Damage ...............287
Park Sense System, Rear .........132
Parking Brake ...............222
Personal Settings .............177
Pets ......................54
Pets, Transporting ..............54
Phone, Cellular ...............74
Phone, Hands-Free (uconnect ) ......74
Polishing and Waxing ...........287
Power Door Locks ................20
Lift Gate ..................27
Mirrors ...................68
Outlet (Auxiliary Electrical Outlet) . . . 144
Seats .................. 94,96
Steering ............... 220,221
Sunroof ............... 140,142
Tilt/Telescoping Steering Column . . . 115
Windows ..................24
Pregnant Women and Seat Belts .....36
Preparation for Jacking ..........259
Pretensioners Seat Belts .................34
Programmable Electronic Features ....177Programming Transmitters(Remote Keyless Entry)
...........17
Quadra-Trac ................210
Radial Ply Tires ..............231
Radio Operation ..............185
Radio (Sound Systems) ..........181
Rain Sensitive Wiper System .......114
Rear Axle (Differential) ..........284
Rear Camera ................138
Rear Cross Path ...............72
Rear Cupholder ..............146
Rear Fog Lights ..............163
Rear Park Sense System .........132
Rear Seat, Folding .............101
Rear Window Defroster ..........151
Rear Window Features ..........150
Rear Wiper/Washer ............150
Rearview Mirrors ..............67
Recorder, Event Data ............45
Recreational Towing ............251
Shifting into Transfer Case Neutral
(N) ....................252
Shifting out of Transfer Case Neutral
(N) ....................254
341

Storage, Vehicle............ 192,292
Storing Your Vehicle ............292
Sun Roof ................ 140,142
Sun Visor Extension .............69
Sunglasses Storage ............140
Supplemental Restraint System -
Airbag ....................37
Suspension, Air ..............214
Sway Control, Trailer ............226
Synthetic Engine Oil ............275
Tachometer .................158
Telescoping Steering Column .......115
Temperature Control, Automatic (ATC) . . 188
Temperature Gauge, Engine Coolant . . 163
Tether Anchor, Child Restraint .......50
Tie Down Hooks, Cargo ..........149
Tilt Steering Column ............115
Tip Start ..................203
Tires ................... 57,230
Air Pressure ...............230
Chains ..................231
Changing ................259
High Speed ...............231
Inflation Pressures ...........230
Jacking ..................259 Pressure Monitor System (TPMS) . . . 234
Pressure Warning Light
.........160
Radial ..................231
Replacement ..............233
Rotation .................234
Spare Tire ................259
Spinning .................231
Tread Wear Indicators .........232
Wheel Mounting .............261
Tongue Weight/Trailer Weight .......246
Torque Converter Clutch .........209
Tow/Haul Indicator Light .........159
Towing ................. 244,265
Disabled Vehicle ............265
Guide ..................246
Recreational ...............251
Weight ..................246
Towing Eyes ................264
Traction Control ..............224
Trailer Sway Control (TSC) ........226
Trailer Towing ................244
Cooling System Tips ..........250
Hitches ..................250
Minimum Requirements .........247
Trailer and Tongue Weight .......246
Wiring ..................248
Trailer Towing Guide ............246 Trailer Weight................246
Transfer Case ...............284
Maintenance ...............284
Transmission Automatic .............. 206,285
Maintenance ...............285
Shifting ..................204
Transmitter Battery Service
(Remote Keyless Entry) ...........18
Transmitter Programming
(Remote Keyless Entry) ...........17
Transmitter, Remote Keyless Entry
(RKE) .....................17
Tread Wear Indicators ...........232
Turn Signals ........... 159,294,295
UCI Connector ...............181
uconnect (Hands-Free Phone) ......74
Universal Consumer Interface (UCI)
Connector .................181
Untwisting Procedure, Seat Belt ......32
Upholstery Care ..............288
Vanity Mirrors ................69
Variance, Compass ............175
Vehicle Identification Number (VIN) .....8
343
