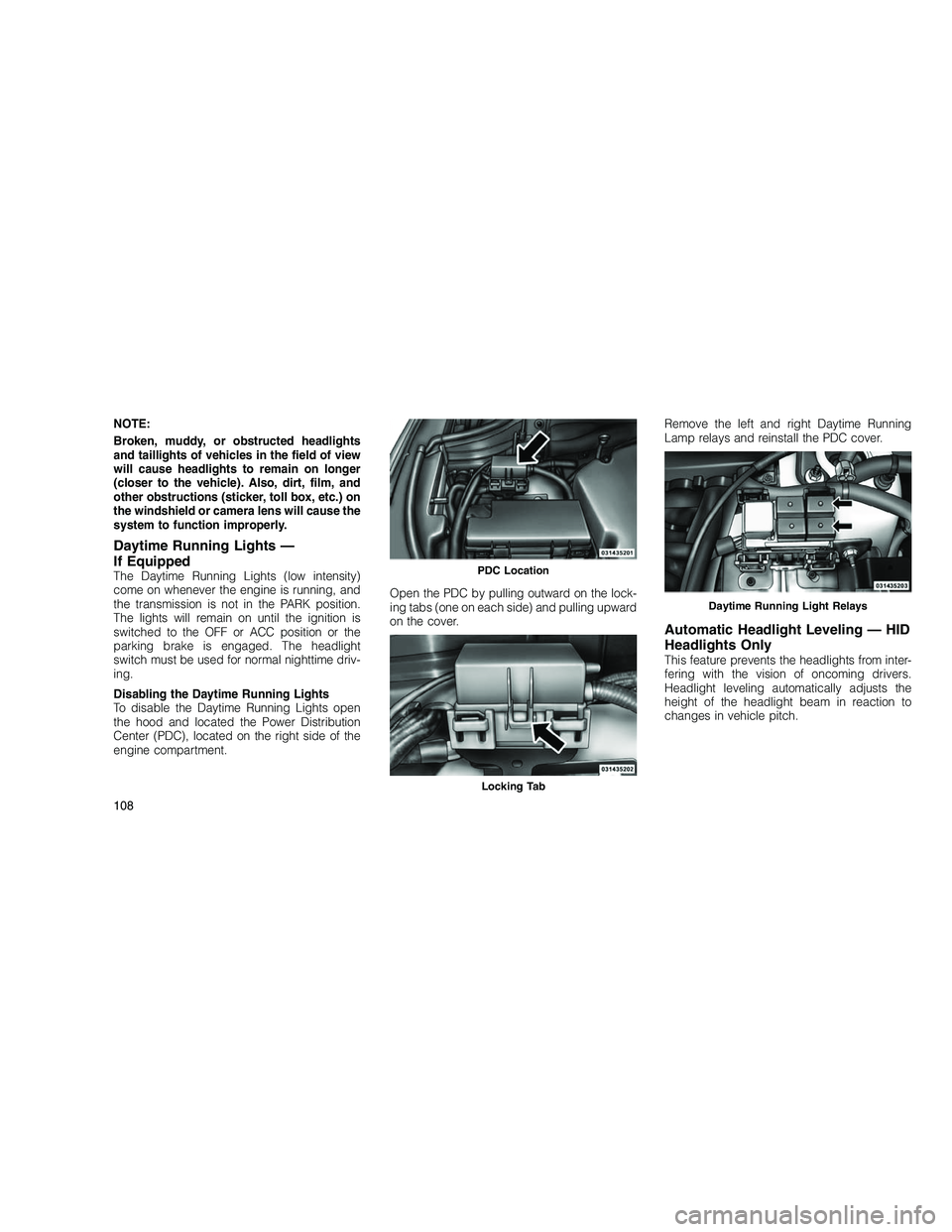

NOTE:
Broken, muddy, or obstructed headlights
and taillights of vehicles in the field of view
will cause headlights to remain on longer
(closer to the vehicle). Also, dirt, film, and
other obstructions (sticker, toll box, etc.) on
the windshield or camera lens will cause the
system to function improperly.
Daytime Running Lights —
If Equipped
The Daytime Running Lights (low intensity)
come on whenever the engine is running, and
the transmission is not in the PARK position.
The lights will remain on until the ignition is
switched to the OFF or ACC position or the
parking brake is engaged. The headlight
switch must be used for normal nighttime driv-
ing.
Disabling the Daytime Running Lights
To disable the Daytime Running Lights open
the hood and located the Power Distribution
Center (PDC), located on the right side of the
engine compartment.Open the PDC by pulling outward on the lock-
ing tabs (one on each side) and pulling upward
on the cover.Remove the left and right Daytime Running
Lamp relays and reinstall the PDC cover.
Automatic Headlight Leveling — HID
Headlights Only
This feature prevents the headlights from inter-
fering with the vision of oncoming drivers.
Headlight leveling automatically adjusts the
height of the headlight beam in reaction to
changes in vehicle pitch.
PDC Location
Locking Tab
Daytime Running Light Relays
108

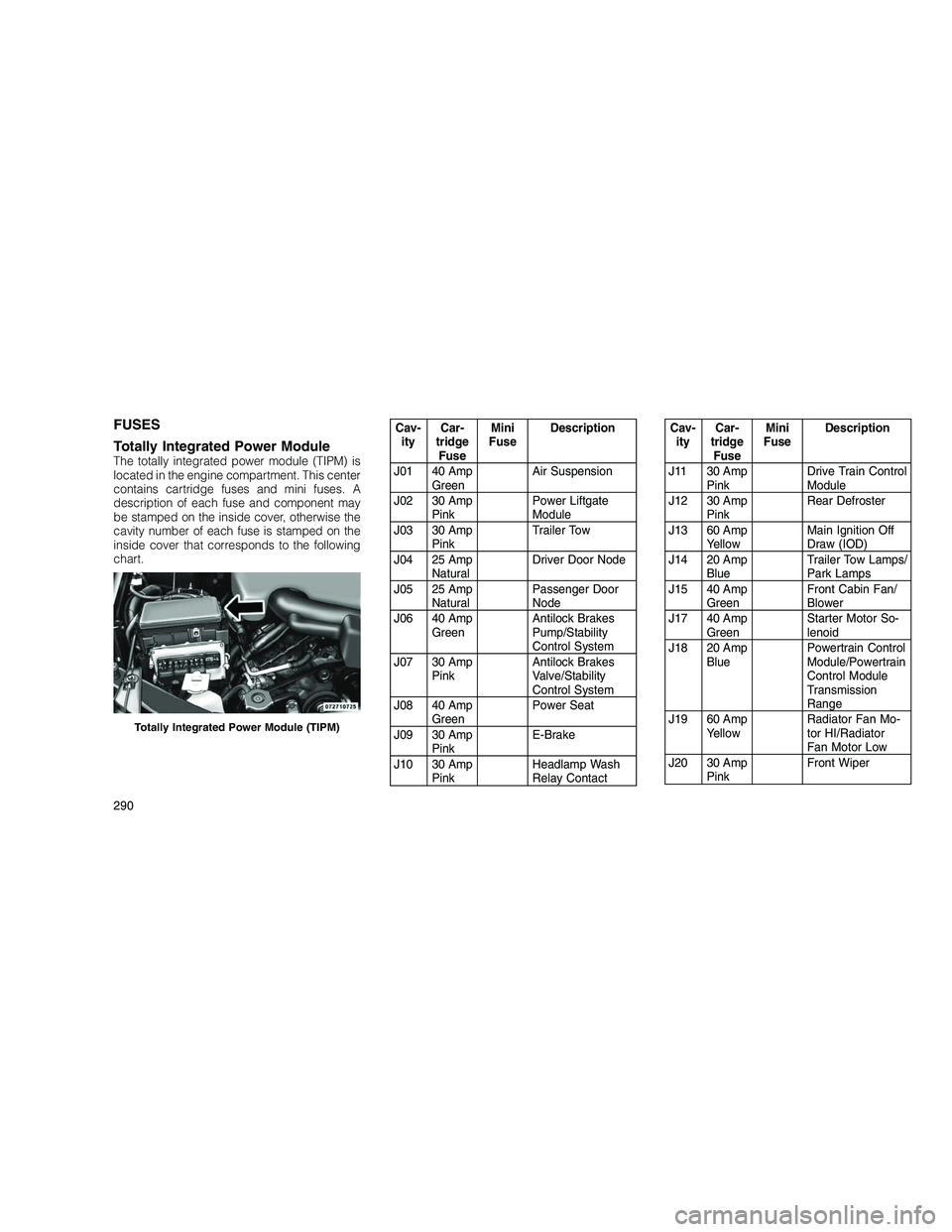

FUSES
Totally Integrated Power Module
The totally integrated power module (TIPM) is
located in the engine compartment. This center
contains cartridge fuses and mini fuses. A
description of each fuse and component may
be stamped on the inside cover, otherwise the
cavity number of each fuse is stamped on the
inside cover that corresponds to the following
chart.
Cav-ity Car-
tridge Fuse Mini
Fuse Description
J01 40 Amp Green Air Suspension
J02 30 Amp Pink Power Liftgate
Module
J03 30 Amp Pink Trailer Tow
J04 25 Amp Natural Driver Door Node
J05 25 Amp Natural Passenger Door
Node
J06 40 Amp Green Antilock Brakes
Pump/Stability
Control System
J07 30 Amp Pink Antilock Brakes
Valve/Stability
Control System
J08 40 Amp Green Power Seat
J09 30 Amp Pink E-Brake
J10 30 Amp Pink Headlamp Wash
Relay ContactCav-
ity Car-
tridge Fuse Mini
Fuse Description
J11 30 Amp Pink Drive Train Control
Module
J12 30 Amp Pink Rear Defroster
J13 60 Amp Yellow Main Ignition Off
Draw (IOD)
J14 20 Amp Blue Trailer Tow Lamps/
Park Lamps
J15 40 Amp Green Front Cabin Fan/
Blower
J17 40 Amp Green Starter Motor So-
lenoid
J18 20 Amp Blue Powertrain Control
Module/Powertrain
Control Module
Transmission
Range
J19 60 Amp Yellow Radiator Fan Mo-
tor HI/Radiator
Fan Motor Low
J20 30 Amp Pink Front Wiper
Totally Integrated Power Module (TIPM)
290

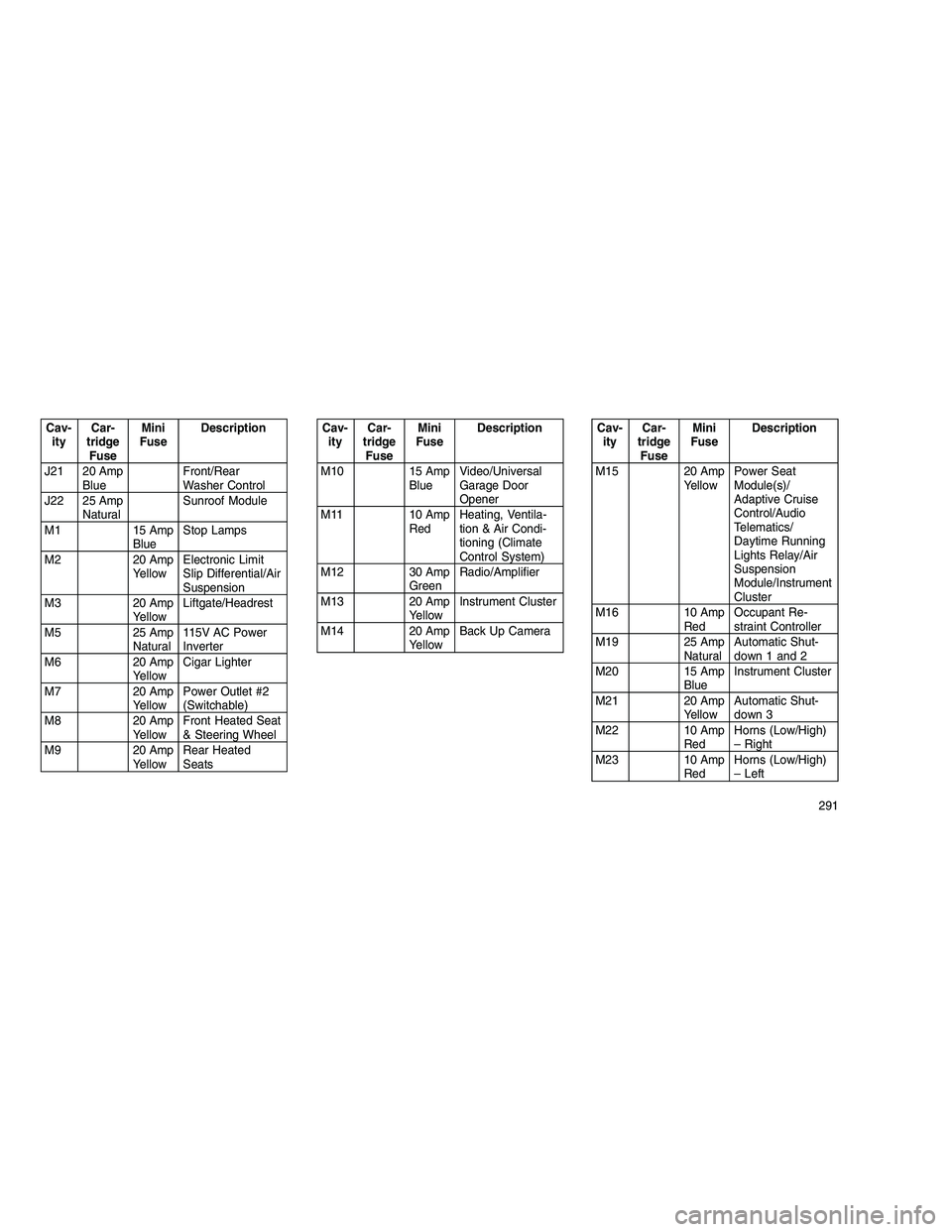

Cav-ity Car-
tridge Fuse Mini
Fuse Description
J21 20 Amp Blue Front/Rear
Washer Control
J22 25 Amp Natural Sunroof Module
M1 15 Amp BlueStop Lamps
M2 20 Amp YellowElectronic Limit
Slip Differential/Air
Suspension
M3 20 Amp YellowLiftgate/Headrest
M5 25 Amp Natural115V AC Power
Inverter
M6 20 Amp YellowCigar Lighter
M7 20 Amp YellowPower Outlet #2
(Switchable)
M8 20 Amp YellowFront Heated Seat
& Steering Wheel
M9 20 Amp YellowRear Heated
SeatsCav-
ity Car-
tridge Fuse Mini
Fuse Description
M10 15 Amp BlueVideo/Universal
Garage Door
Opener
M11 10 Amp RedHeating, Ventila-
tion & Air Condi-
tioning (Climate
Control System)
M12 30 Amp GreenRadio/Amplifier
M13 20 Amp YellowInstrument Cluster
M14 20 Amp YellowBack Up CameraCav-
ity Car-
tridge Fuse Mini
Fuse Description
M15 20 Amp YellowPower Seat
Module(s)/
Adaptive Cruise
Control/Audio
Telematics/
Daytime Running
Lights Relay/Air
Suspension
Module/Instrument
Cluster
M16 10 Amp RedOccupant Re-
straint Controller
M19 25 Amp NaturalAutomatic Shut-
down 1 and 2
M20 15 Amp BlueInstrument Cluster
M21 20 Amp YellowAutomatic Shut-
down 3
M22 10 Amp RedHorns (Low/High)
– Right
M23 10 Amp RedHorns (Low/High)
– Left
