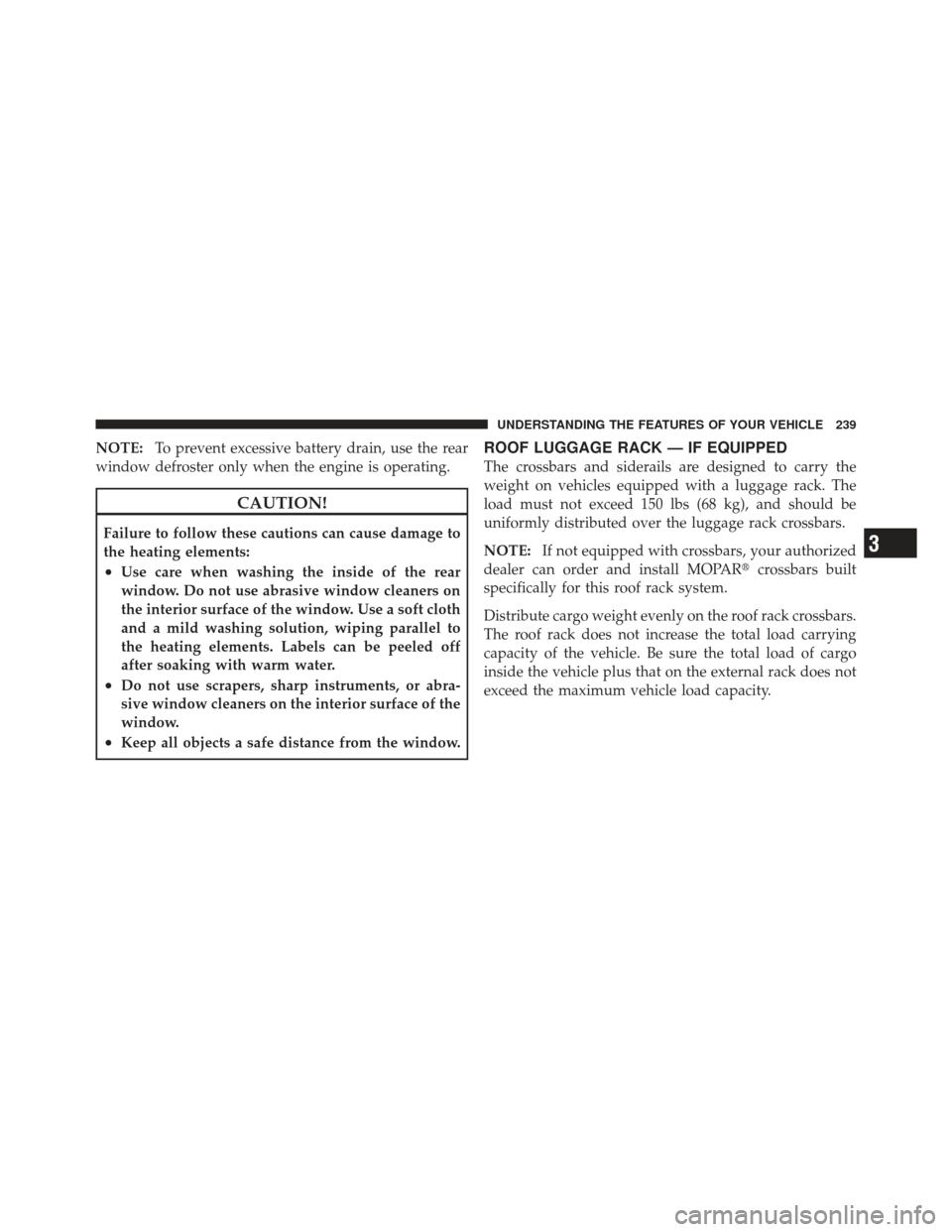

NOTE:To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
•Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
ROOF LUGGAGE RACK — IF EQUIPPED
The crossbars and siderails are designed to carry the
weight on vehicles equipped with a luggage rack. The
load must not exceed 150 lbs (68 kg), and should be
uniformly distributed over the luggage rack crossbars.
NOTE: If not equipped with crossbars, your authorized
dealer can order and install MOPAR crossbars built
specifically for this roof rack system.
Distribute cargo weight evenly on the roof rack crossbars.
The roof rack does not increase the total load carrying
capacity of the vehicle. Be sure the total load of cargo
inside the vehicle plus that on the external rack does not
exceed the maximum vehicle load capacity.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 239

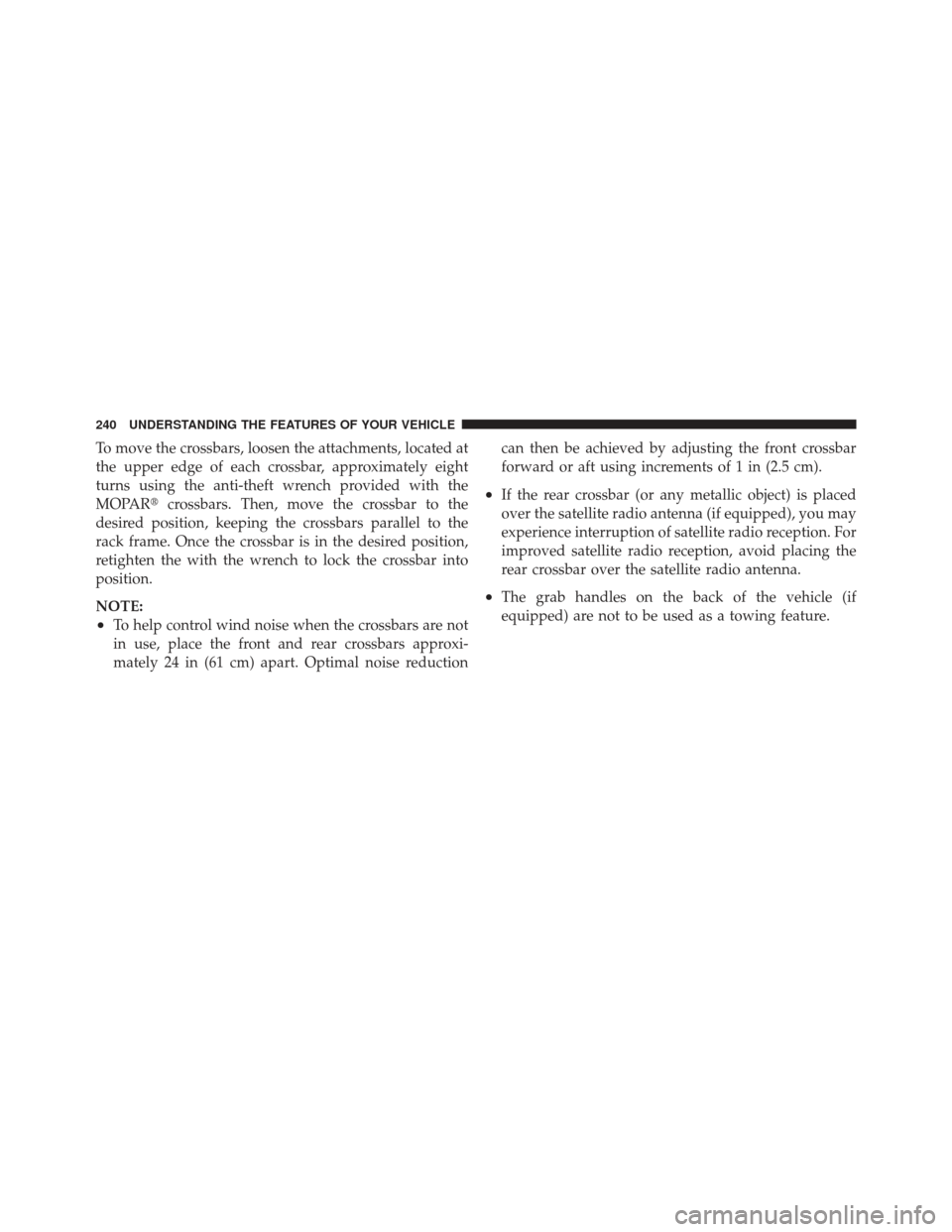

To move the crossbars, loosen the attachments, located at
the upper edge of each crossbar, approximately eight
turns using the anti-theft wrench provided with the
MOPARcrossbars. Then, move the crossbar to the
desired position, keeping the crossbars parallel to the
rack frame. Once the crossbar is in the desired position,
retighten the with the wrench to lock the crossbar into
position.
NOTE:
•To help control wind noise when the crossbars are not
in use, place the front and rear crossbars approxi-
mately 24 in (61 cm) apart. Optimal noise reduction can then be achieved by adjusting the front crossbar
forward or aft using increments of 1 in (2.5 cm).
•If the rear crossbar (or any metallic object) is placed
over the satellite radio antenna (if equipped), you may
experience interruption of satellite radio reception. For
improved satellite radio reception, avoid placing the
rear crossbar over the satellite radio antenna.
•The grab handles on the back of the vehicle (if
equipped) are not to be used as a towing feature.
240 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

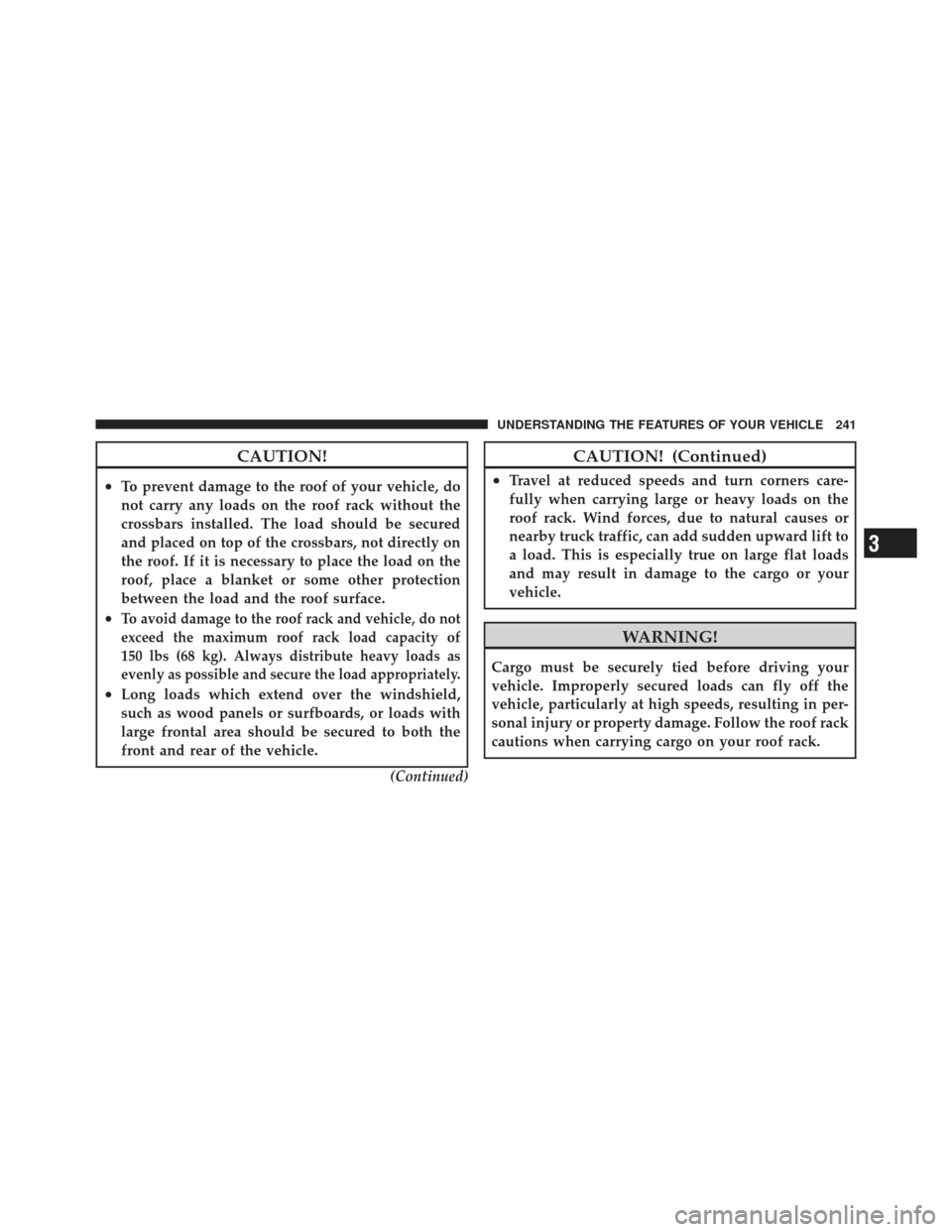

CAUTION!
•To prevent damage to the roof of your vehicle, do
not carry any loads on the roof rack without the
crossbars installed. The load should be secured
and placed on top of the crossbars, not directly on
the roof. If it is necessary to place the load on the
roof, place a blanket or some other protection
between the load and the roof surface.
•To avoid damage to the roof rack and vehicle, do not
exceed the maximum roof rack load capacity of
150 lbs (68 kg). Always distribute heavy loads as
evenly as possible and secure the load appropriately.
•Long loads which extend over the windshield,
such as wood panels or surfboards, or loads with
large frontal area should be secured to both the
front and rear of the vehicle.(Continued)
CAUTION! (Continued)
•Travel at reduced speeds and turn corners care-
fully when carrying large or heavy loads on the
roof rack. Wind forces, due to natural causes or
nearby truck traffic, can add sudden upward lift to
a load. This is especially true on large flat loads
and may result in damage to the cargo or your
vehicle.
WARNING!
Cargo must be securely tied before driving your
vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the roof rack
cautions when carrying cargo on your roof rack.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 241

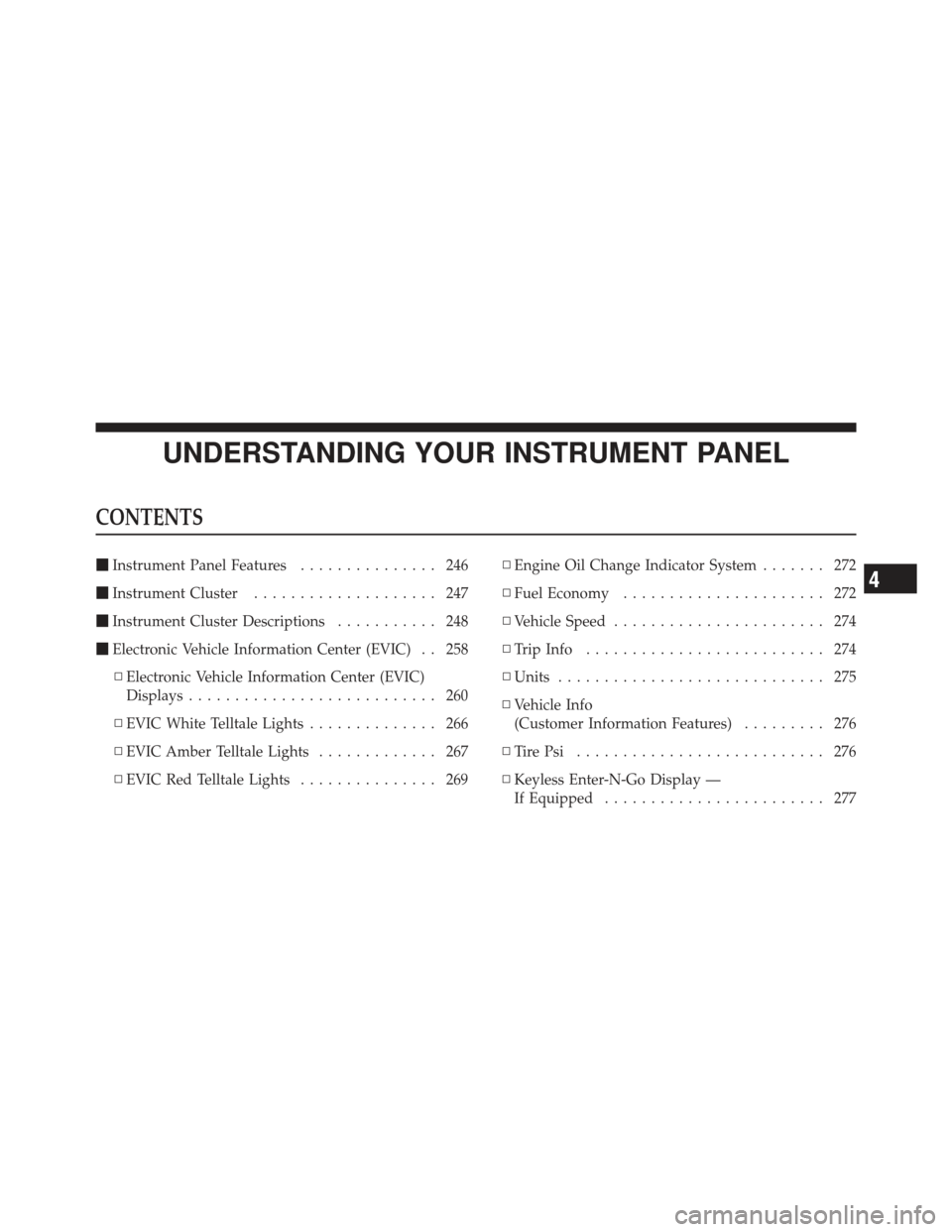

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features ............... 246
 Instrument Cluster .................... 247
 Instrument Cluster Descriptions ........... 248
 Electronic Vehicle Information Center (EVIC) . . 258
▫ Electronic Vehicle Information Center (EVIC)
Displays ........................... 260
▫ EVIC White Telltale Lights .............. 266
▫ EVIC Amber Telltale Lights ............. 267
▫ EVIC Red Telltale Lights ............... 269 ▫
Engine Oil Change Indicator System ....... 272
▫ Fuel Economy ...................... 272
▫ Vehicle Speed ....................... 274
▫ Trip Info .......................... 274
▫ Units ............................. 275
▫ Vehicle Info
(Customer Information Features) ......... 276
▫ TirePsi ........................... 276
▫ Keyless Enter-N-Go Display —
If Equipped ........................ 277
4

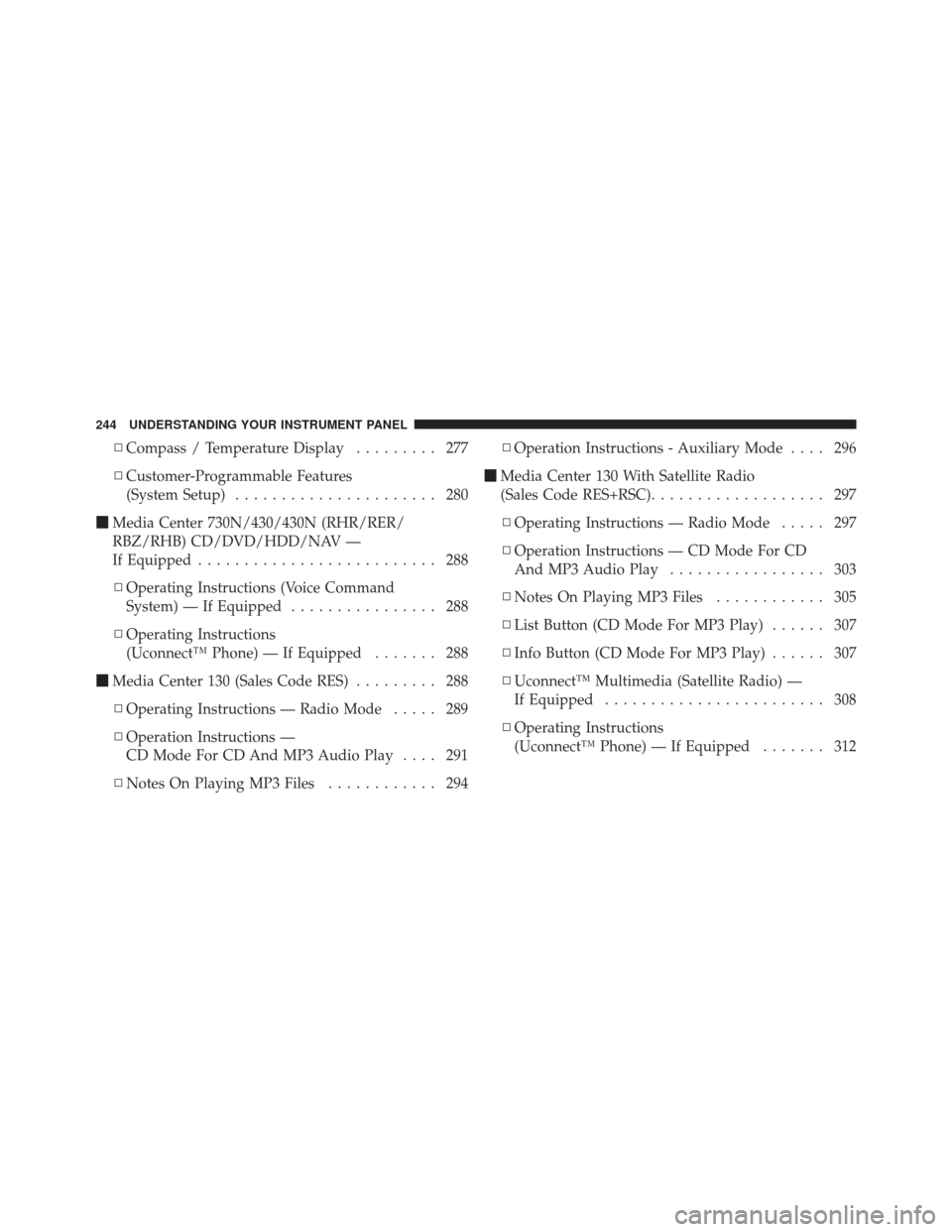

▫Compass / Temperature Display ......... 277
▫ Customer-Programmable Features
(System Setup) ...................... 280
 Media Center 730N/430/430N (RHR/RER/
RBZ/RHB) CD/DVD/HDD/NAV —
If Equipped .......................... 288
▫ Operating Instructions (Voice Command
System) — If Equipped ................ 288
▫ Operating Instructions
(Uconnect™ Phone) — If Equipped ....... 288
 Media Center 130 (Sales Code RES) ......... 288
▫ Operating Instructions — Radio Mode ..... 289
▫ Operation Instructions —
CD Mode For CD And MP3 Audio Play .... 291
▫ Notes On Playing MP3 Files ............ 294▫
Operation Instructions - Auxiliary Mode .... 296
 Media Center 130 With Satellite Radio
(Sales Code RES+RSC) ................... 297
▫ Operating Instructions — Radio Mode ..... 297
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 303
▫ Notes On Playing MP3 Files ............ 305
▫ List Button (CD Mode For MP3 Play) ...... 307
▫ Info Button (CD Mode For MP3 Play) ...... 307
▫ Uconnect™ Multimedia (Satellite Radio) —
If Equipped ........................ 308
▫ Operating Instructions
(Uconnect™ Phone) — If Equipped ....... 312
244 UNDERSTANDING YOUR INSTRUMENT PANEL

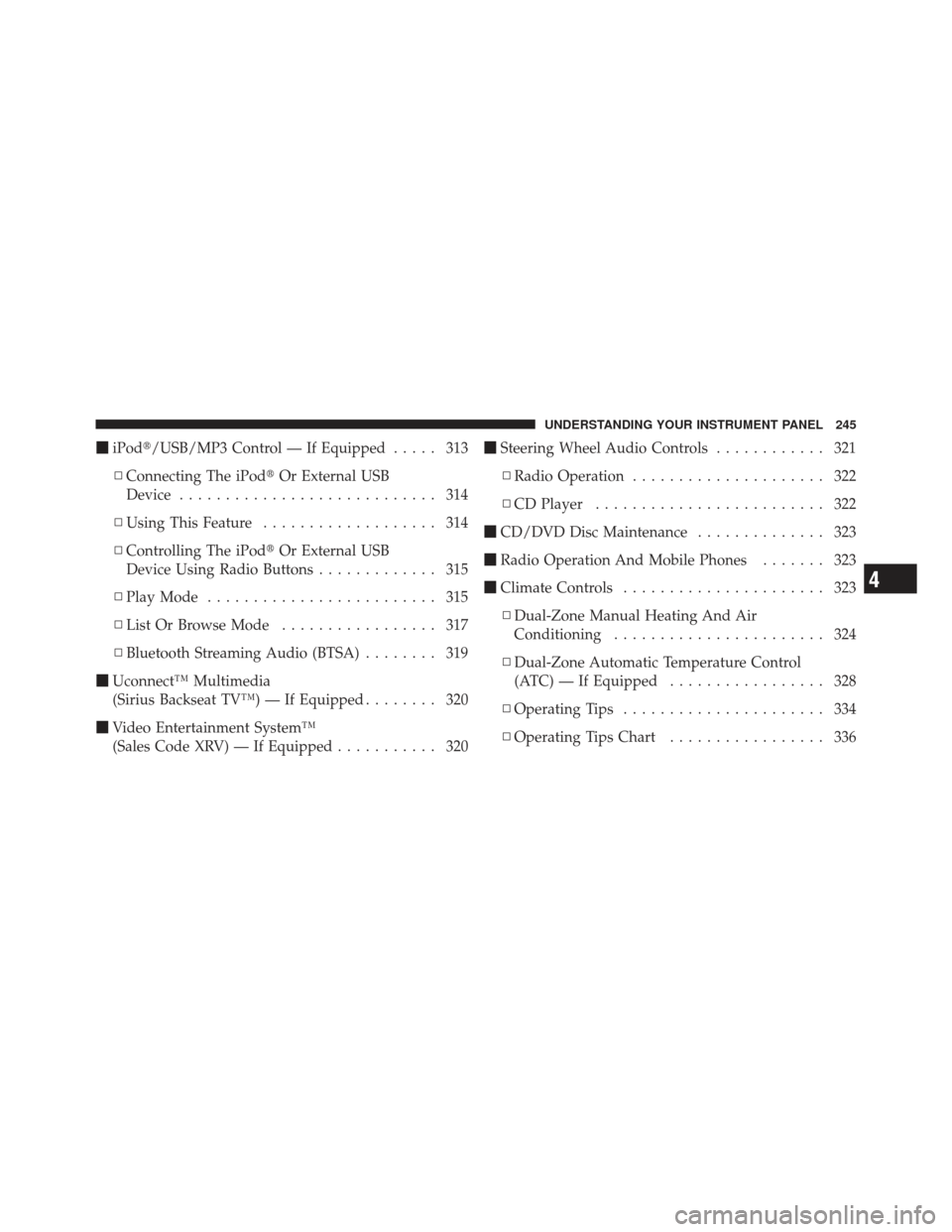

iPod/USB/MP3 Control — If Equipped ..... 313
▫ Connecting The iPod Or External USB
Device ............................ 314
▫ Using This Feature ................... 314
▫ Controlling The iPod Or External USB
Device Using Radio Buttons ............. 315
▫ Play Mode ......................... 315
▫ List Or Browse Mode ................. 317
▫ Bluetooth Streaming Audio (BTSA) ........ 319
 Uconnect™ Multimedia
(Sirius Backseat TV™) — If Equipped ........ 320
 Video Entertainment System™
(Sales Code XRV) — If Equipped ........... 320
Steering Wheel Audio Controls ............ 321
▫ Radio Operation ..................... 322
▫ CD Player ......................... 322
 CD/DVD Disc Maintenance .............. 323
 Radio Operation And Mobile Phones ....... 323
 Climate Controls ...................... 323
▫ Dual-Zone Manual Heating And Air
Conditioning ....................... 324
▫ Dual-Zone Automatic Temperature Control
(ATC) — If Equipped ................. 328
▫ Operating Tips ...................... 334
▫ Operating Tips Chart ................. 336
4
UNDERSTANDING YOUR INSTRUMENT PANEL 245

INSTRUMENT PANEL FEATURES
1 — Air Outlet6 — Lower Switch Bank11 — Hood Release
2 — Instrument Cluster 7 — Hazard Switch12 — Fuel Door Release
3 — Radio 8 — Storage Bin13 — Headlight Switch
4 — Glove Compartment 9 — ESC Button14 – Dimmer Control
5 — Climate Controls 10 — Ignition Switch
246 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER
4
UNDERSTANDING YOUR INSTRUMENT PANEL 247

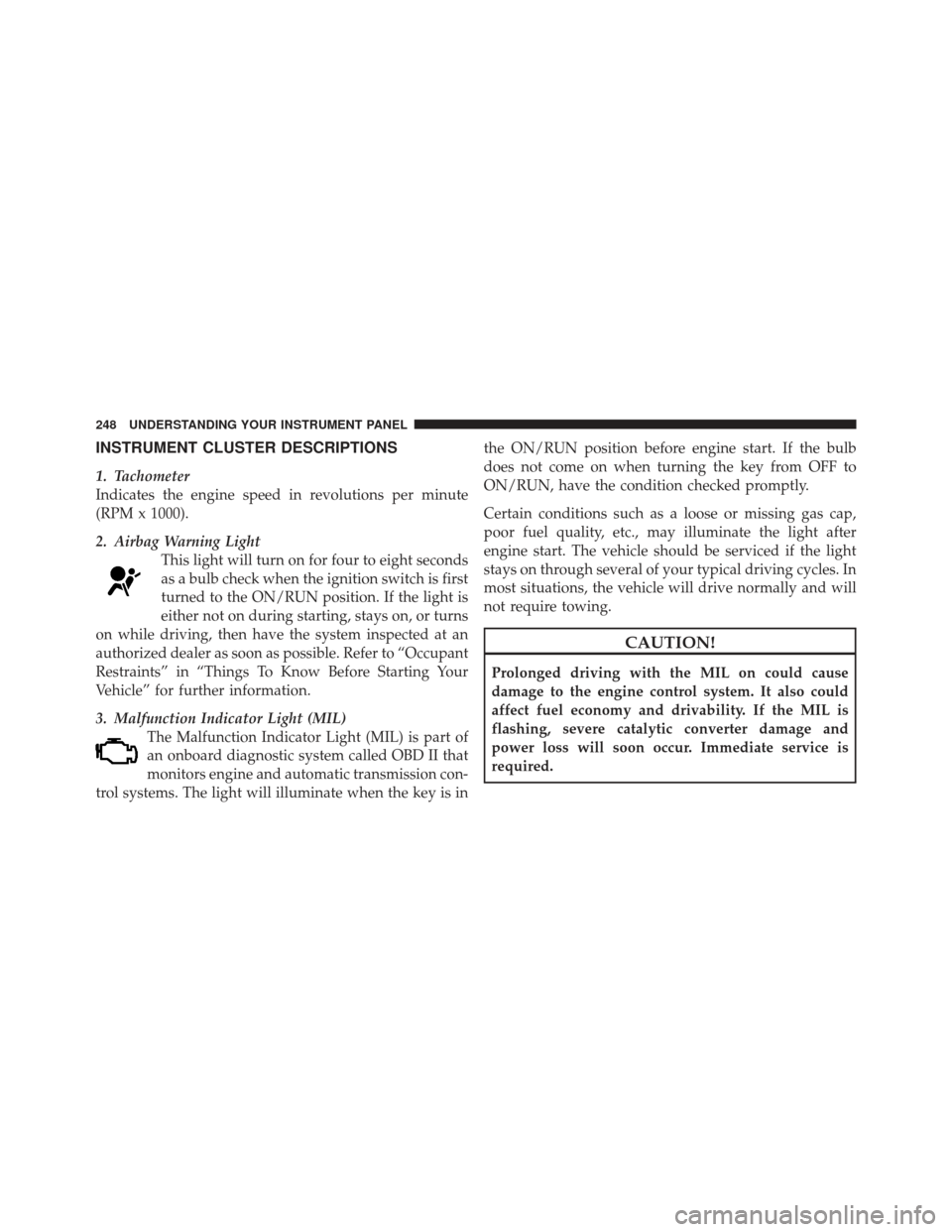

INSTRUMENT CLUSTER DESCRIPTIONS
1. Tachometer
Indicates the engine speed in revolutions per minute
(RPM x 1000).
2. Airbag Warning LightThis light will turn on for four to eight seconds
as a bulb check when the ignition switch is first
turned to the ON/RUN position. If the light is
either not on during starting, stays on, or turns
on while driving, then have the system inspected at an
authorized dealer as soon as possible. Refer to “Occupant
Restraints” in “Things To Know Before Starting Your
Vehicle” for further information.
3. Malfunction Indicator Light (MIL) The Malfunction Indicator Light (MIL) is part of
an onboard diagnostic system called OBD II that
monitors engine and automatic transmission con-
trol systems. The light will illuminate when the key is in the ON/RUN position before engine start. If the bulb
does not come on when turning the key from OFF to
ON/RUN, have the condition checked promptly.
Certain conditions such as a loose or missing gas cap,
poor fuel quality, etc., may illuminate the light after
engine start. The vehicle should be serviced if the light
stays on through several of your typical driving cycles. In
most situations, the vehicle will drive normally and will
not require towing.
CAUTION!
Prolonged driving with the MIL on could cause
damage to the engine control system. It also could
affect fuel economy and drivability. If the MIL is
flashing, severe catalytic converter damage and
power loss will soon occur. Immediate service is
required.
248 UNDERSTANDING YOUR INSTRUMENT PANEL
