JEEP GRAND CHEROKEE 2011 WK2 / 4.G Owners Manual

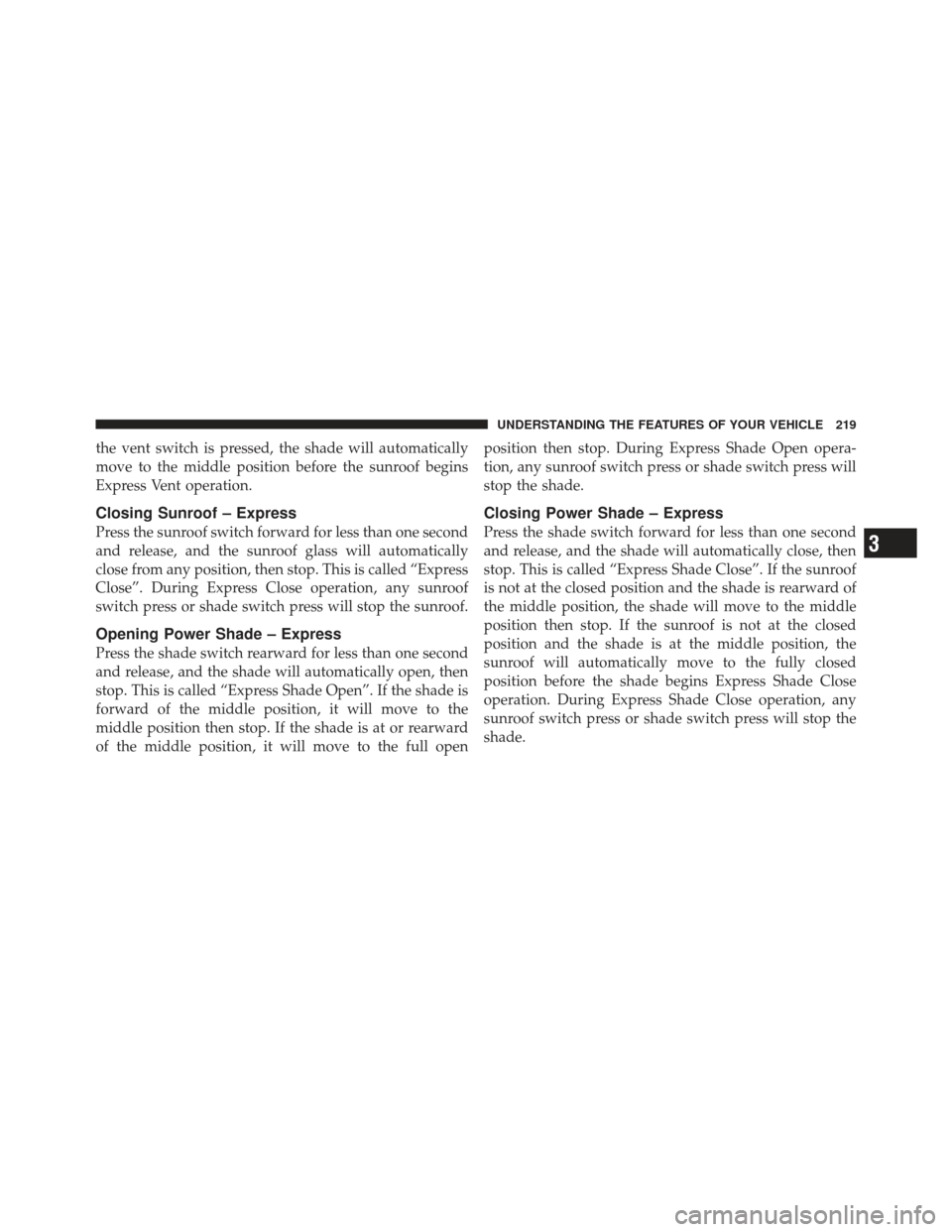

the vent switch is pressed, the shade will automatically
move to the middle position before the sunroof begins
Express Vent operation.
Closing Sunroof – Express
Press the sunroof switch forward for less than one second
and release, and the sunroof glass will automatically
close from any position, then stop. This is called “Express
Close”. During Express Close operation, any sunroof
switch press or shade switch press will stop the sunroof.
Opening Power Shade – Express
Press the shade switch rearward for less than one second
and release, and the shade will automatically open, then
stop. This is called “Express Shade Open”. If the shade is
forward of the middle position, it will move to the
middle position then stop. If the shade is at or rearward
of the middle position, it will move to the full openposition then stop. During Express Shade Open opera-
tion, any sunroof switch press or shade switch press will
stop the shade.
Closing Power Shade – Express
Press the shade switch forward for less than one second
and release, and the shade will automatically close, then
stop. This is called “Express Shade Close”. If the sunroof
is not at the closed position and the shade is rearward of
the middle position, the shade will move to the middle
position then stop. If the sunroof is not at the closed
position and the shade is at the middle position, the
sunroof will automatically move to the fully closed
position before the shade begins Express Shade Close
operation. During Express Shade Close operation, any
sunroof switch press or shade switch press will stop the
shade.3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 219

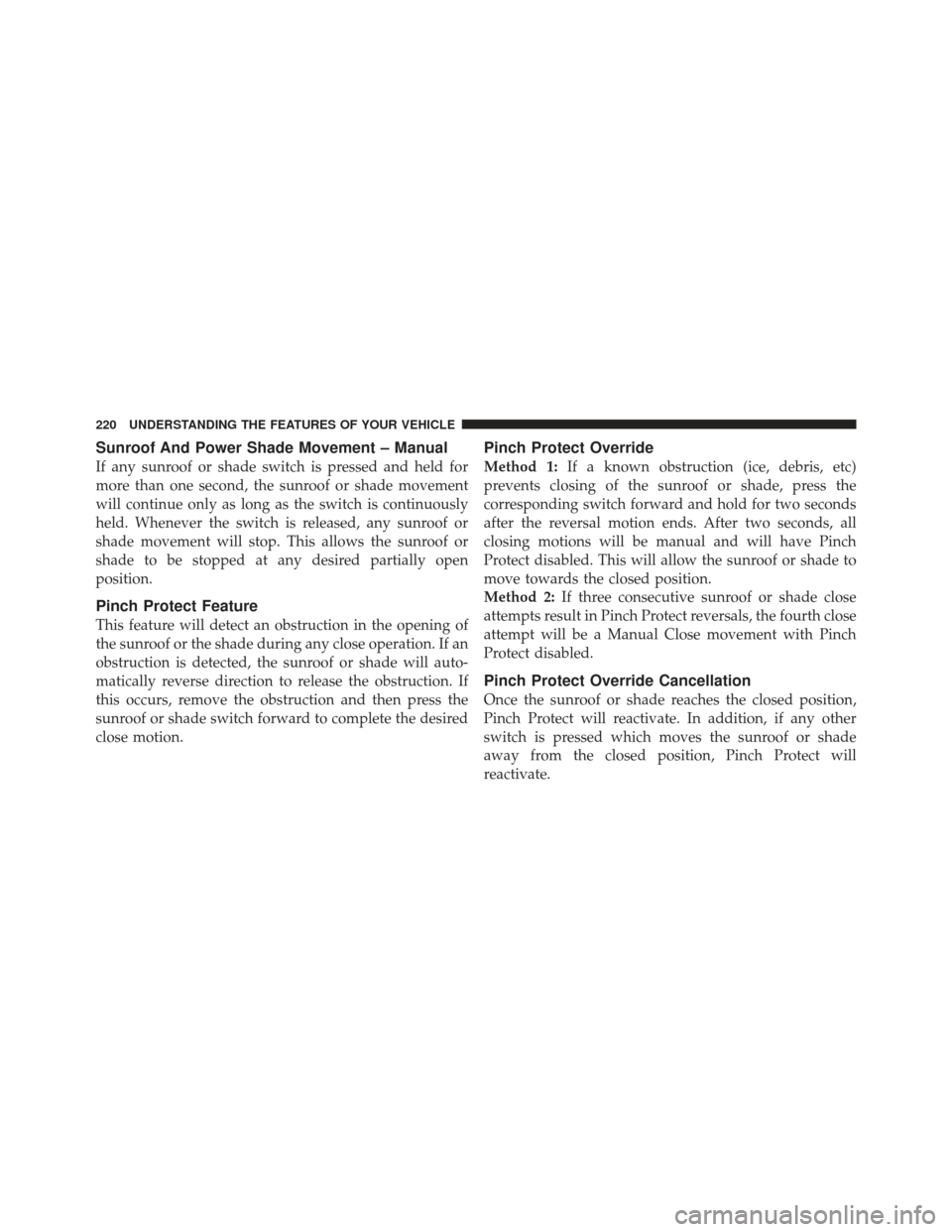

Sunroof And Power Shade Movement – Manual
If any sunroof or shade switch is pressed and held for
more than one second, the sunroof or shade movement
will continue only as long as the switch is continuously
held. Whenever the switch is released, any sunroof or
shade movement will stop. This allows the sunroof or
shade to be stopped at any desired partially open
position.
Pinch Protect Feature
This feature will detect an obstruction in the opening of
the sunroof or the shade during any close operation. If an
obstruction is detected, the sunroof or shade will auto-
matically reverse direction to release the obstruction. If
this occurs, remove the obstruction and then press the
sunroof or shade switch forward to complete the desired
close motion.
Pinch Protect Override
Method 1:If a known obstruction (ice, debris, etc)
prevents closing of the sunroof or shade, press the
corresponding switch forward and hold for two seconds
after the reversal motion ends. After two seconds, all
closing motions will be manual and will have Pinch
Protect disabled. This will allow the sunroof or shade to
move towards the closed position.
Method 2: If three consecutive sunroof or shade close
attempts result in Pinch Protect reversals, the fourth close
attempt will be a Manual Close movement with Pinch
Protect disabled.
Pinch Protect Override Cancellation
Once the sunroof or shade reaches the closed position,
Pinch Protect will reactivate. In addition, if any other
switch is pressed which moves the sunroof or shade
away from the closed position, Pinch Protect will
reactivate.
220 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

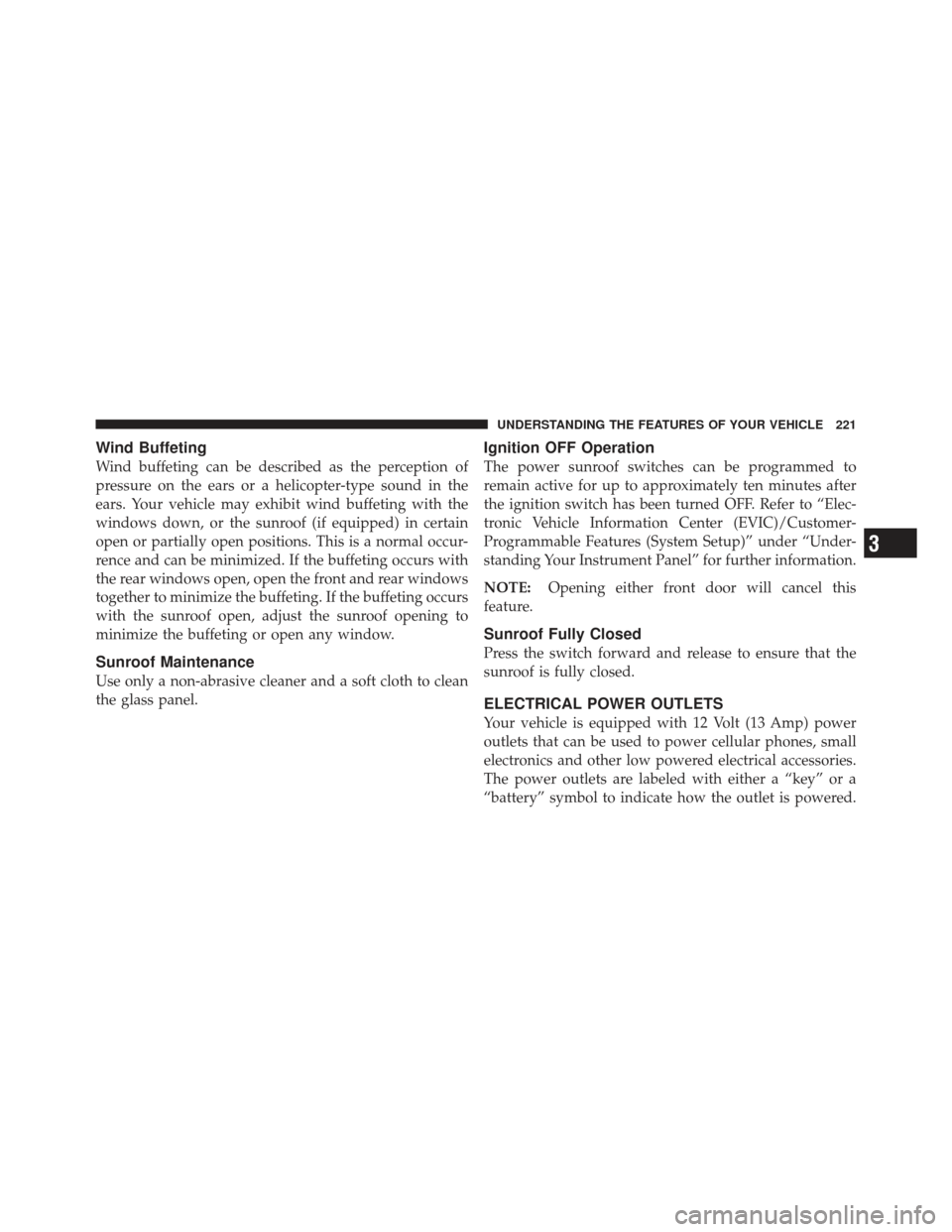

Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting or open any window.
Sunroof Maintenance
Use only a non-abrasive cleaner and a soft cloth to clean
the glass panel.
Ignition OFF Operation
The power sunroof switches can be programmed to
remain active for up to approximately ten minutes after
the ignition switch has been turned OFF. Refer to “Elec-
tronic Vehicle Information Center (EVIC)/Customer-
Programmable Features (System Setup)” under “Under-
standing Your Instrument Panel” for further information.
NOTE:Opening either front door will cancel this
feature.
Sunroof Fully Closed
Press the switch forward and release to ensure that the
sunroof is fully closed.
ELECTRICAL POWER OUTLETS
Your vehicle is equipped with 12 Volt (13 Amp) power
outlets that can be used to power cellular phones, small
electronics and other low powered electrical accessories.
The power outlets are labeled with either a “key” or a
“battery” symbol to indicate how the outlet is powered.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 221

Power outlets labeled with a “key” are powered when
the ignition switch is in the ON or ACC position, while
the outlets labeled with a “battery” are connected directly
to the battery and powered at all times.
NOTE:
•All accessories connected to the “battery” powered
outlets should be removed or turned off when the
vehicle is not in use to protect the battery against
discharge.
•To ensure proper operation a MOPARknob and
element must be used.
•Do not exceed the maximum power of 160 Watts (13
Amps) at 12 Volts. If the 160 Watt (13 Amp) power
rating is exceeded the fuse protecting the system will
need to be replaced. The front power outlet is located inside the storage area
on the center stack of the instrument panel. Push inward
on the storage lid to open the compartment and gain
access to this power outlet.
In addition to the front power outlet, there is also a power
outlet located in the storage area of the center console.
Front Power Outlet
222 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The rear power outlet is located in the right rear cargo
area.
Center Console OutletRear Power Outlet
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 223

WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of
outlet should be inserted into any 12 Volt outlet.
•Do not touch with wet hands.
•Close the lid when not in use and while driving
the vehicle.
•If this outlet is mishandled, it may cause an
electric shock and failure.
Power Outlet Fuse Locations
1 — M7 Fuse 20 A Yellow Power Outlet Right Rear Quarter
Panel
2 — M6 Fuse 20 A Yellow Cigar Lighter Instrument Panel
3 — M36 Fuse 20 A Yellow Power Outlet Console Bin
224 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

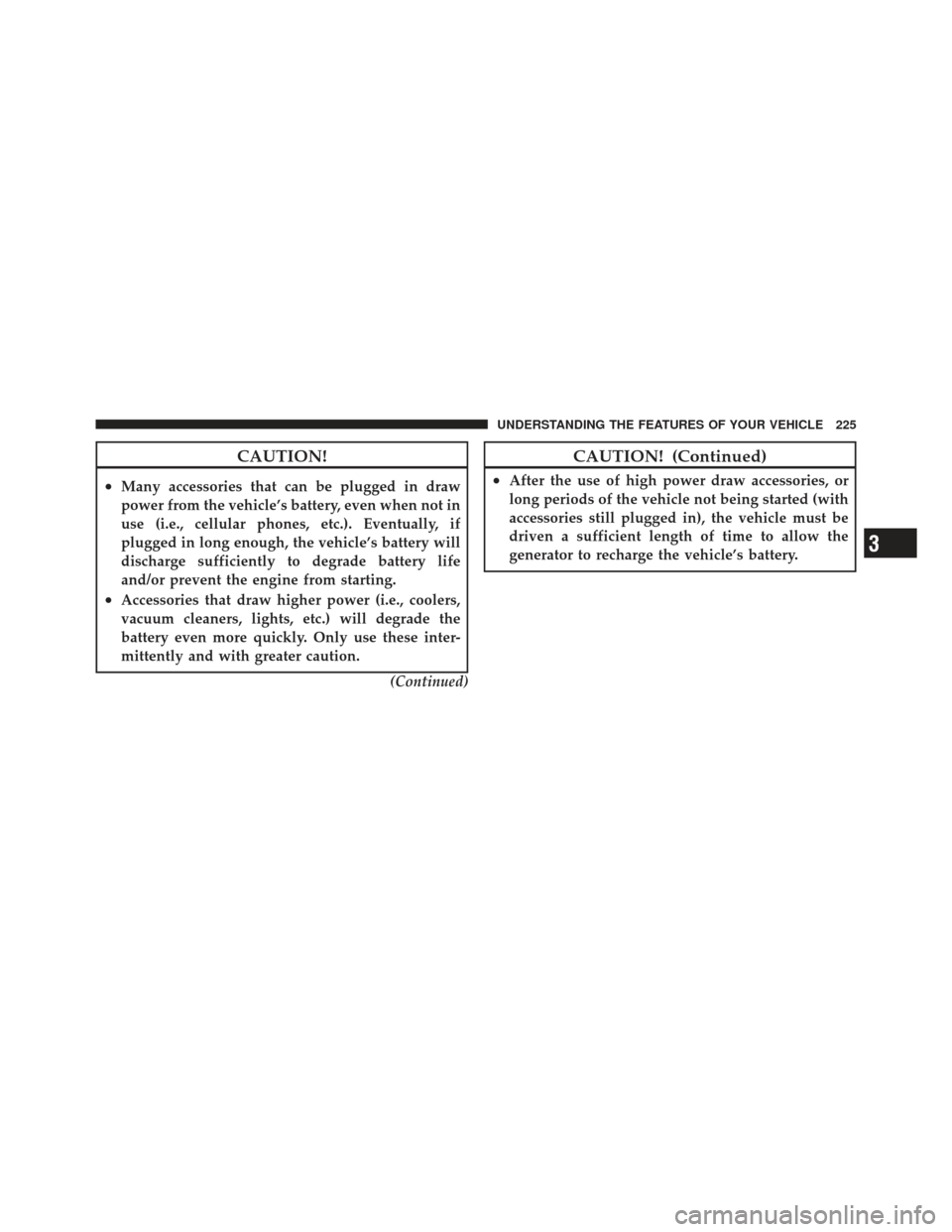

CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the
battery even more quickly. Only use these inter-
mittently and with greater caution.(Continued)
CAUTION! (Continued)
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 225

POWER INVERTER — IF EQUIPPED
There is a 115 Volt, 150 Watt inverter outlet located on the
back of the center console to convert DC current to AC
current. This outlet can power cellular phones, electron-
ics and other low power devices requiring power up to
150 Watts. Certain high-end video games, such as Play-
station3 and XBox360 will exceed this power limit, as will
most power tools.The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded,
the power inverter will automatically shut down. Once
the electrical device has been removed from the outlet the
inverter should automatically reset. If the power rating
exceeds approximately 170 Watts, the power inverter
Power Inverter
226 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

may have to be reset manually. To reset the inverter
manually press the power inverter button OFF and ON.
To avoid overloading the circuit, check the power ratings
on electrical devices prior to using the inverter.The power inverter switch is located
on the switch bank below the Climate
Controls. To turn on the power outlet,
press the switch once. Press the switch
a second time to turn the power outlet
off.
NOTE: When the power inverter switch is pressed,
there will be a delay of approximately one second before
the inverter status indicator turns ON. The status indica-
tor of the AC power inverter indicates whether the
inverter is producing AC power.WARNING!
To avoid serious injury or death:
•Do not use a three-prong adaptor.
•Do not insert any objects into the receptacles.
•Do not touch with wet hands.
•Close the lid when not in use.
•If this outlet is mishandled it may cause an electric
shock and failure.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 227

CUPHOLDERS
There are two cupholders for the front seat passengers
located in the center console.There are two cupholders for the rear seat passengers
located in the fold-down center armrest.
Front Cupholder Location
Rear Cupholders
228 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
