JEEP GRAND CHEROKEE 2012 WK2 / 4.G Owners Manual

Front Fog Lamps
1. Reach through the cutout in the splash shield and
disconnect the wiring harness from the fog lamp connec-
tor.
2. Firmly grasp the bulb by the two latches and squeeze
them together to unlock the bulb from the back of the
front fog lamp housing.
3. Pull the bulb straight out from the keyed opening in
the housing.
CAUTION!
•Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If
the bulb comes in contact with any oily surface,
clean the bulb with rubbing alcohol.(Continued)
CAUTION! (Continued)
•Always use the correct bulb size and type for
replacement. An incorrect bulb size or type may
overheat and cause damage to the lamp, the socket
or the lamp wiring.
4. Align the index tabs of the front fog lamp bulb with
the slots in the collar of the bulb opening on the back of
the front fog lamp housing.
5. Insert the bulb into the housing until the index tabs are
engaged in the slots of the collar.
6. Firmly and evenly push the bulb straight into the lamp
housing until both tabs snap firmly into place and are
fully engaged.
7. Connect the wiring harness to the front fog lamp
connector.
7
MAINTAINING YOUR VEHICLE 619

Rear Tail, Stop, Turn Signal, And Backup Lamps
1. Raise the liftgate.
2. Remove the two push-pins from the tail lamp housing.
3. Grasp the tail lamp and pull firmly rearward to
disengage the lamp from the aperture panel.
4. Twist socket counter clockwise and remove from
lamp.5. Pull the bulb to remove it from the socket.
6. Replace the bulb, reinstall the socket, and reattach the
lamp assembly.
Rear Liftgate Mounted Tail Lamp
1. Raise the liftgate.
2. Use a fiber stick or flat blade screw driver to pry the
lower trim from the liftgate.
3. Once lower trim is loose, close the liftgate.
4. Open the flipper glass.
5. Pull up glass seal at bottom of window opening.
6. Remove small trim panel around liftgate glass striker.
7. Close flipper glass and raise the liftgate.
8. Continue removing the trim.
9. Disconnect the two trim panel lights.
620 MAINTAINING YOUR VEHICLE

10. Tail lamps are now visible. Rotate socket(s) counter
clockwise.
11. Remove/replace bulb(s).
12. Reinstall the socket(s)
13. Reverse process to reinstall the liftgate trim.
Center High-Mounted Stop Lamp (CHMSL)
The center high-mounted stop lamp is an LED assembly.
See your authorized dealer for replacement.
Rear Liftgate Tail Lamps
Center High-Mounted Stop Lamp
7
MAINTAINING YOUR VEHICLE 621

Rear License Lamp
1. Use a screw driver to gently pry against the side of the
snap tab to remove the license lamp lens.2. Pull bulb from socket.
3. Replace bulb.
4. Reinstall lens.
FLUID CAPACITIES
U.S.
Metric
Fuel (Approximate)
All Engines 24.6 Gallons 93 Liters
Engine Oil with Filter
3.6L Engine (SAE 5W-30, API Certified) 6 Quarts 5.6 Liters
5.7L Engine (SAE 5W-20, API Certified) 7 Quarts 6.6 Liters
Cooling System *
3.6L Engine (MOPAR Engine Coolant/Antifreeze 5-Year/100,000 Mile
Formula or equivalent) 10.4 Quarts 9.9 Liters
5.7 Liter Engine (MOPAR Engine Coolant/Antifreeze 5-Year/100,000 Mile
Formula or equivalent) – Without Trailer Tow Package 15.4 Quarts 14.6 Liters
5.7 Liter Engine (MOPAR Engine Coolant/Antifreeze 5-Year/100,000 Mile
Formula or equivalent) – With Trailer Tow Package 16 Quarts 15.2 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
622 MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT
(Hybrid Organic Additive Technology) or equivalent.
Engine Oil – 3.6L Engine Use API Certified SAE 5W-30 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil – 5.7L Engine Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil Filter MOPAREngine Oil Filter or equivalent.
Spark Plugs – 3.6L Engine RER8ZWYCB4 (Gap 0.043 in [1.1 mm])
Spark Plugs – 5.7L Engine LZFR5C–11G (Gap 0.043 in [1.1 mm])
Fuel Selection – 3.6L Engine 87 Octane
Fuel Selection – 5.7L Engine 87 Octane Acceptable - 89 Octane Recommended
7
MAINTAINING YOUR VEHICLE 623

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission MOPARATF+4Automatic Transmission Fluid or equivalent licensed
ATF+4 product.
Transfer Case – 3.6L Engine Shell Automatic Transmission Fluid 3353 or equivalent.
Transfer Case – 5.7L Engine MOPAR ATF+4Automatic Transmission Fluid or equivalent licensed
ATF+4 product.
Axle Differential (Front-Rear) We recommend you use MOPAR GL-5 Synthetic Axle Lubricant
SAE 75W-85.
Axle Differential (Rear) – 5.7L
Engine With Electronic Limited-Slip
Differential (ELSD) We recommend you use MOPAR
GL-5 Synthetic Axle Lubricant
SAE 75W-85 with friction modifier additive.
Axle Differential (Rear) – 5.7L
Engine Without Electronic
Limited-Slip Differential (ELSD) We recommend you use MOPAR
GL-5 Synthetic Axle Lubricant
SAE 75W-85.
Brake Master Cylinder MOPARDOT 3 Brake Fluid, SAE J1703 should be used. If DOT 3, SAE
J1703 brake fluid is not available, then DOT 4 is acceptable. Use only rec-
ommended brake fluids or equivalent.
624 MAINTAINING YOUR VEHICLE

ComponentFluid, Lubricant, or Genuine Part
Power Steering Reservoir – 3.6L
Engine MOPAR
Hydraulic Fluid or equivalent meeting MS-11655, such as Fuchs
EG ZH 3044 or Pentosin CHF 11s.
Power Steering Reservoir – 5.7L
Engine MOPAR
Power Steering Fluid +4, MOPAR ATF+4Automatic
Transmission Fluid or equivalent licensed ATF+4 product.
7
MAINTAINING YOUR VEHICLE 625

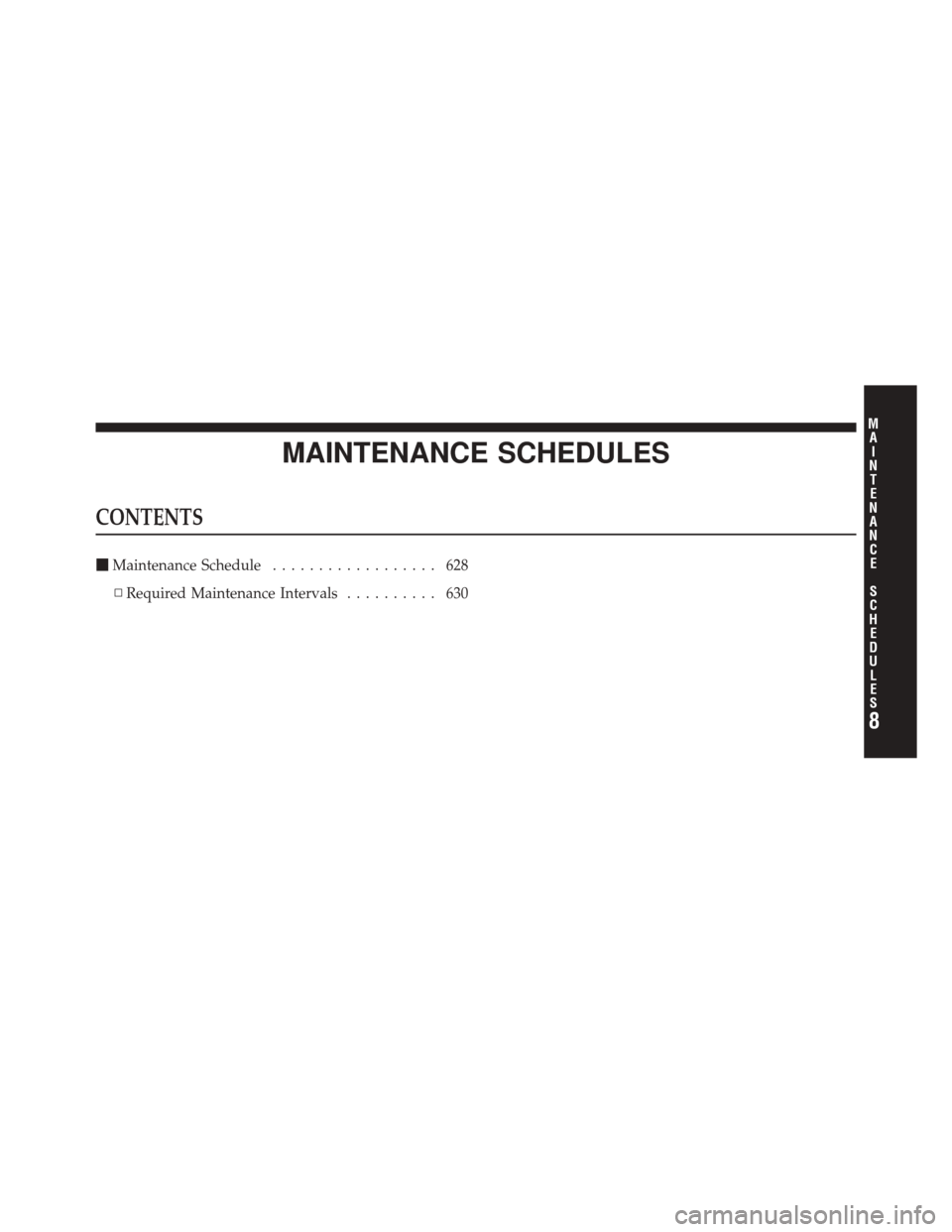

MAINTENANCE SCHEDULES
CONTENTS
Maintenance Schedule .................. 628
▫ Required Maintenance Intervals .......... 630
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

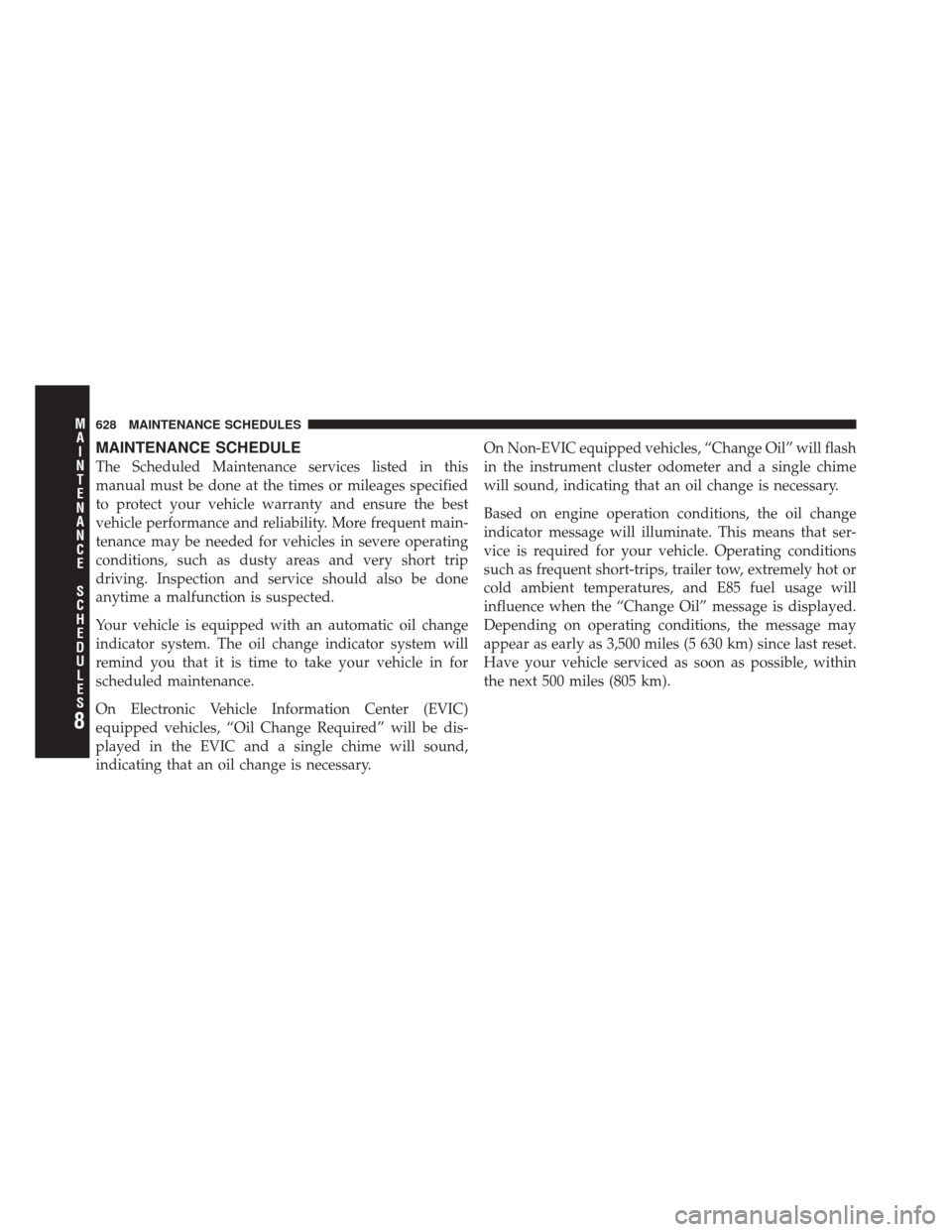

MAINTENANCE SCHEDULE
The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving. Inspection and service should also be done
anytime a malfunction is suspected.
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.On Non-EVIC equipped vehicles, “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Change Oil” message is displayed.
Depending on operating conditions, the message may
appear as early as 3,500 miles (5 630 km) since last reset.
Have your vehicle serviced as soon as possible, within
the next 500 miles (805 km).
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S628 MAINTENANCE SCHEDULES
