JEEP GRAND CHEROKEE 2013 WK2 / 4.G Owners Manual

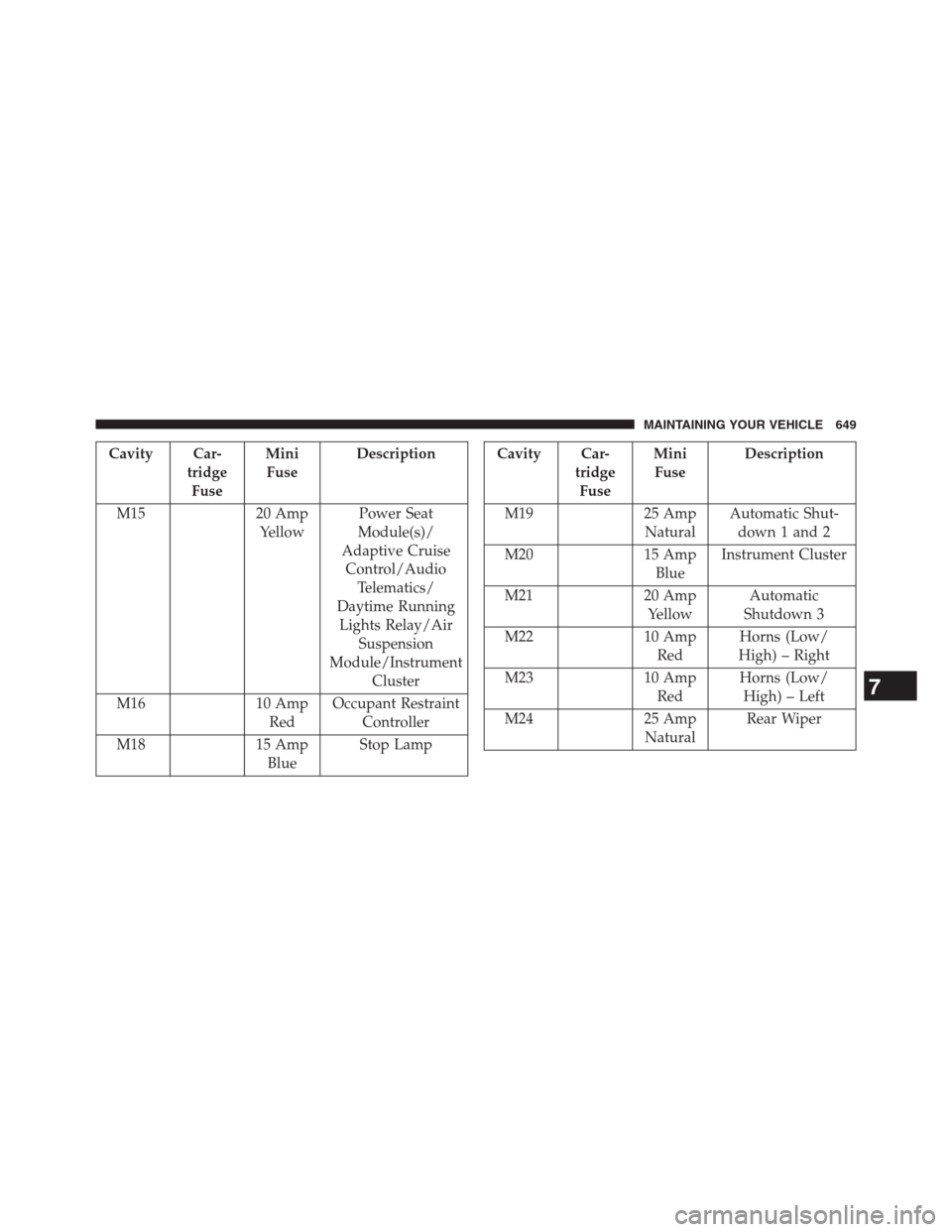

Cavity Car-
tridge
FuseMini
FuseDescription
M15 20 Amp
YellowPower Seat
Module(s)/
Adaptive Cruise
Control/Audio
Telematics/
Daytime Running
Lights Relay/Air
Suspension
Module/Instrument
Cluster
M16 10 Amp
RedOccupant Restraint
Controller
M18 15 Amp
BlueStop LampCavity Car-
tridge
FuseMini
FuseDescription
M19 25 Amp
NaturalAutomatic Shut-
down 1 and 2
M20 15 Amp
BlueInstrument Cluster
M21 20 Amp
YellowAutomatic
Shutdown 3
M22 10 Amp
RedHorns (Low/
High) – Right
M23 10 Amp
RedHorns (Low/
High) – Left
M24 25 Amp
NaturalRear Wiper
7
MAINTAINING YOUR VEHICLE 649

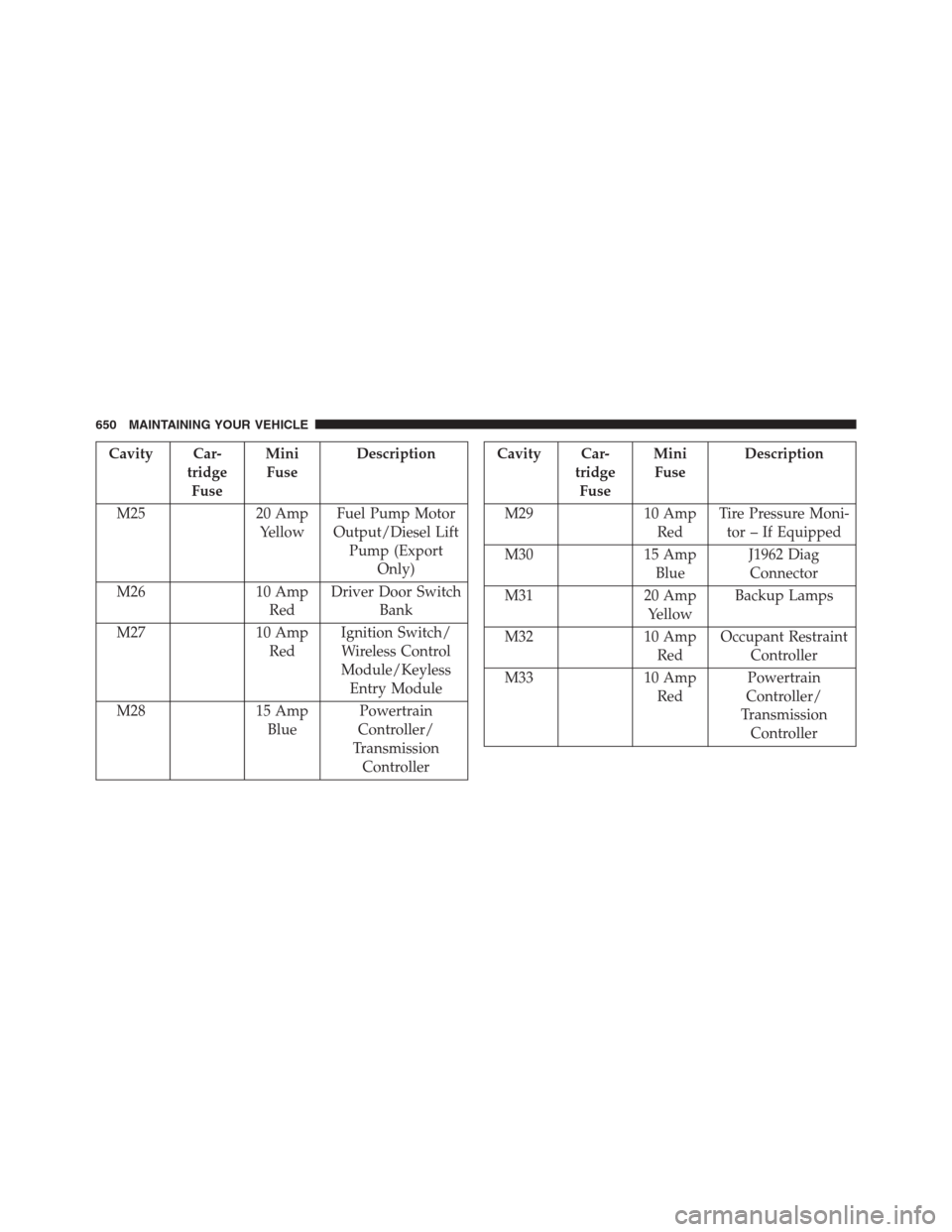

Cavity Car-
tridge
FuseMini
FuseDescription
M25 20 Amp
YellowFuel Pump Motor
Output/Diesel Lift
Pump (Export
Only)
M26 10 Amp
RedDriver Door Switch
Bank
M27 10 Amp
RedIgnition Switch/
Wireless Control
Module/Keyless
Entry Module
M28 15 Amp
BluePowertrain
Controller/
Transmission
ControllerCavity Car-
tridge
FuseMini
FuseDescription
M29 10 Amp
RedTire Pressure Moni-
tor – If Equipped
M30 15 Amp
BlueJ1962 Diag
Connector
M31 20 Amp
YellowBackup Lamps
M32 10 Amp
RedOccupant Restraint
Controller
M33 10 Amp
RedPowertrain
Controller/
Transmission
Controller
650 MAINTAINING YOUR VEHICLE

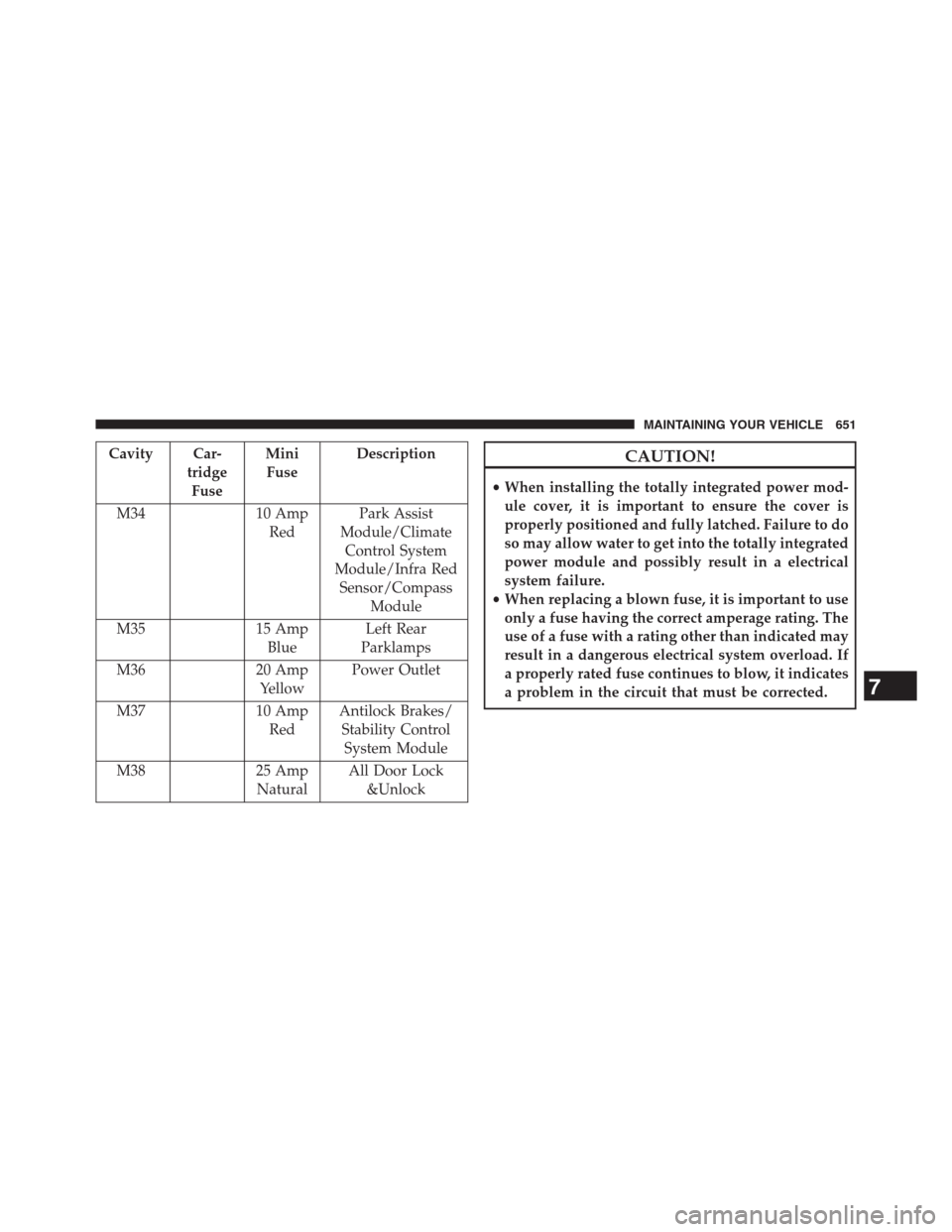

Cavity Car-
tridge
FuseMini
FuseDescription
M34 10 Amp
RedPark Assist
Module/Climate
Control System
Module/Infra Red
Sensor/Compass
Module
M35 15 Amp
BlueLeft Rear
Parklamps
M36 20 Amp
YellowPower Outlet
M37 10 Amp
RedAntilock Brakes/
Stability Control
System Module
M38 25 Amp
NaturalAll Door Lock
&UnlockCAUTION!
•When installing the totally integrated power mod-
ule cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to do
so may allow water to get into the totally integrated
power module and possibly result in a electrical
system failure.
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
7
MAINTAINING YOUR VEHICLE 651

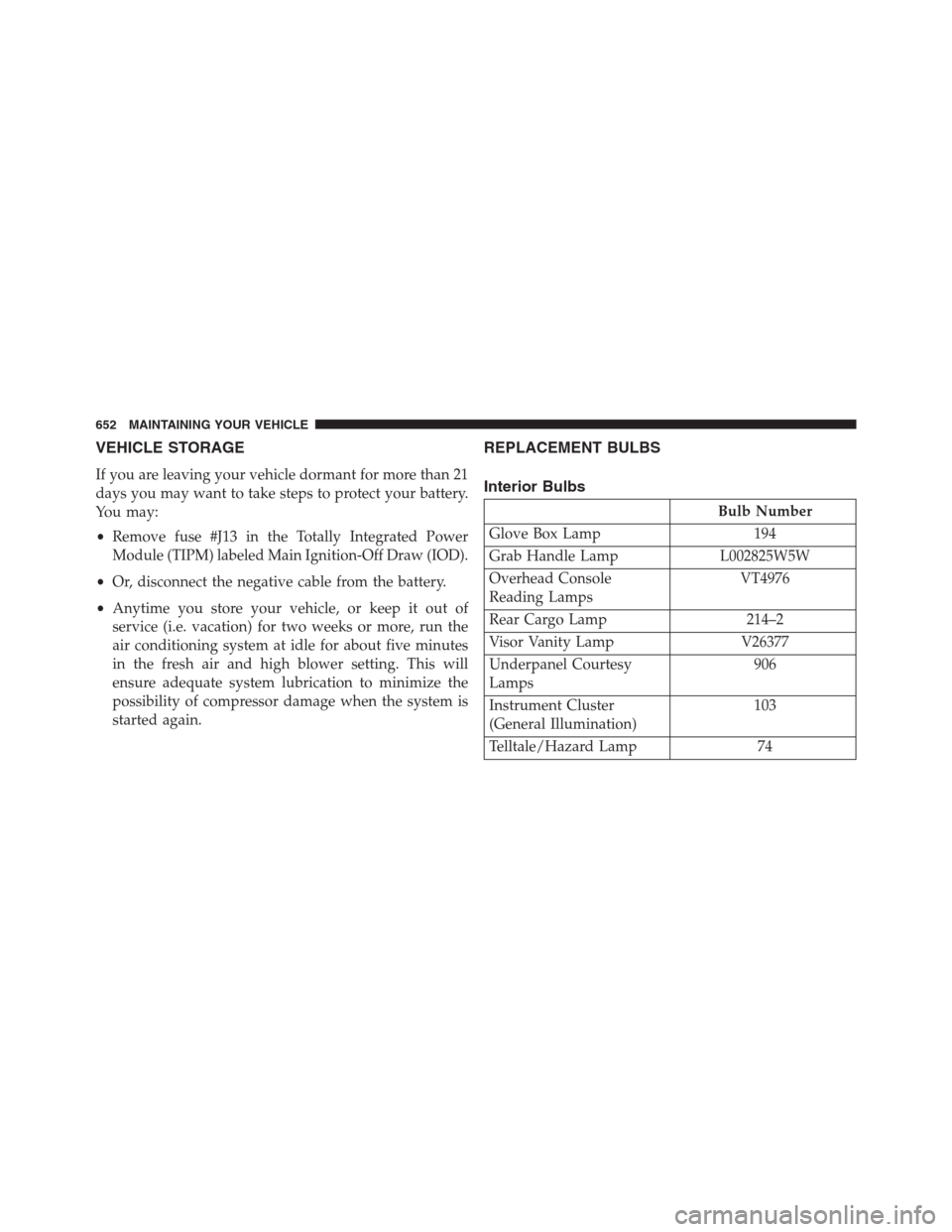

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days you may want to take steps to protect your battery.
You may:
•Remove fuse #J13 in the Totally Integrated Power
Module (TIPM) labeled Main Ignition-Off Draw (IOD).
•Or, disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Glove Box Lamp 194
Grab Handle Lamp L002825W5W
Overhead Console
Reading LampsVT4976
Rear Cargo Lamp 214–2
Visor Vanity Lamp V26377
Underpanel Courtesy
Lamps906
Instrument Cluster
(General Illumination)103
Telltale/Hazard Lamp 74
652 MAINTAINING YOUR VEHICLE

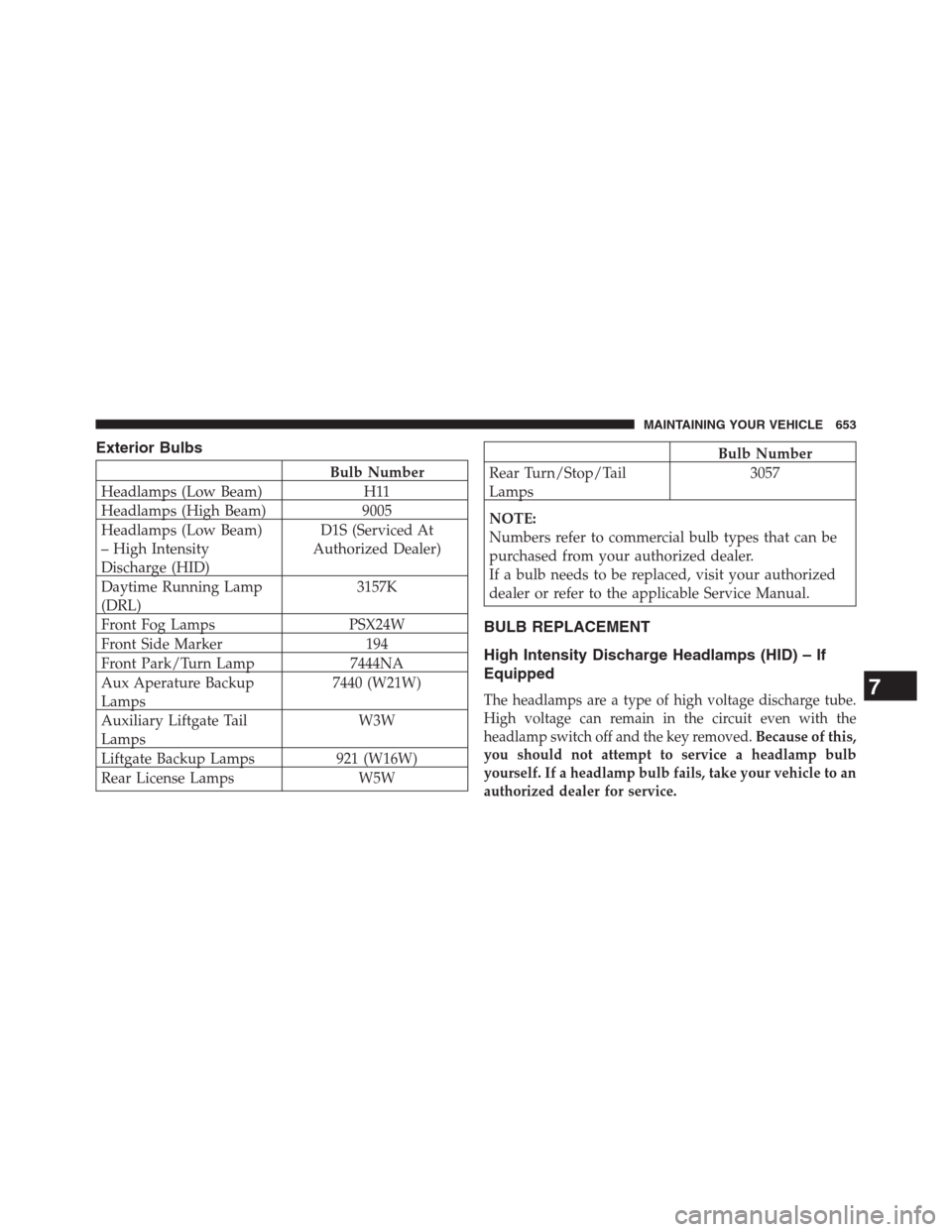

Exterior Bulbs
Bulb Number
Headlamps (Low Beam) H11
Headlamps (High Beam) 9005
Headlamps (Low Beam)
– High Intensity
Discharge (HID)D1S (Serviced At
Authorized Dealer)
Daytime Running Lamp
(DRL)3157K
Front Fog Lamps PSX24W
Front Side Marker 194
Front Park/Turn Lamp 7444NA
Aux Aperature Backup
Lamps7440 (W21W)
Auxiliary Liftgate Tail
LampsW3W
Liftgate Backup Lamps 921 (W16W)
Rear License Lamps W5W
Bulb Number
Rear Turn/Stop/Tail
Lamps3057
NOTE:
Numbers refer to commercial bulb types that can be
purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
BULB REPLACEMENT
High Intensity Discharge Headlamps (HID) – If
Equipped
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed.Because of this,
you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to an
authorized dealer for service.7
MAINTAINING YOUR VEHICLE 653

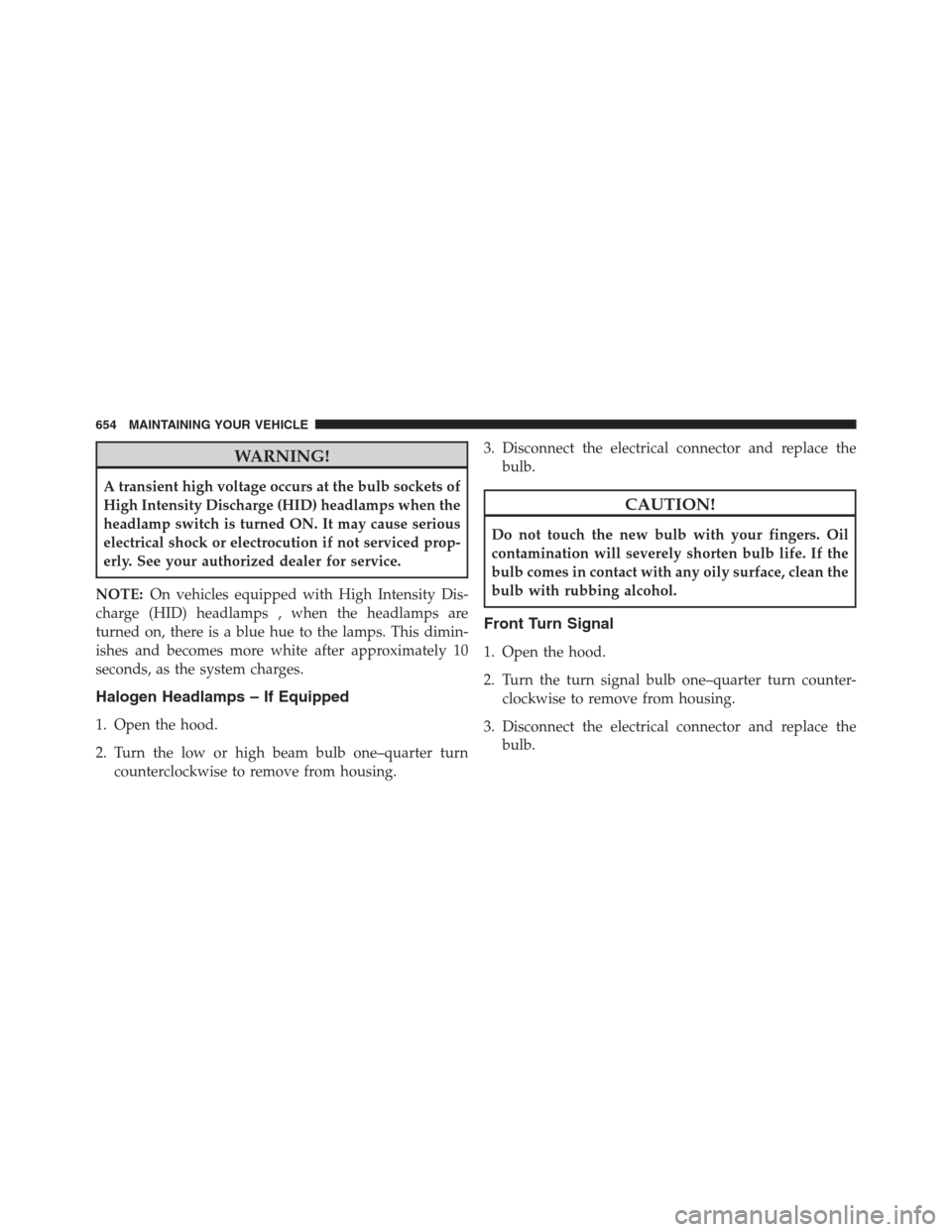

WARNING!
A transient high voltage occurs at the bulb sockets of
High Intensity Discharge (HID) headlamps when the
headlamp switch is turned ON. It may cause serious
electrical shock or electrocution if not serviced prop-
erly. See your authorized dealer for service.
NOTE:On vehicles equipped with High Intensity Dis-
charge (HID) headlamps , when the headlamps are
turned on, there is a blue hue to the lamps. This dimin-
ishes and becomes more white after approximately 10
seconds, as the system charges.
Halogen Headlamps – If Equipped
1. Open the hood.
2. Turn the low or high beam bulb one–quarter turn
counterclockwise to remove from housing.3. Disconnect the electrical connector and replace the
bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Front Turn Signal
1. Open the hood.
2. Turn the turn signal bulb one–quarter turn counter-
clockwise to remove from housing.
3. Disconnect the electrical connector and replace the
bulb.
654 MAINTAINING YOUR VEHICLE

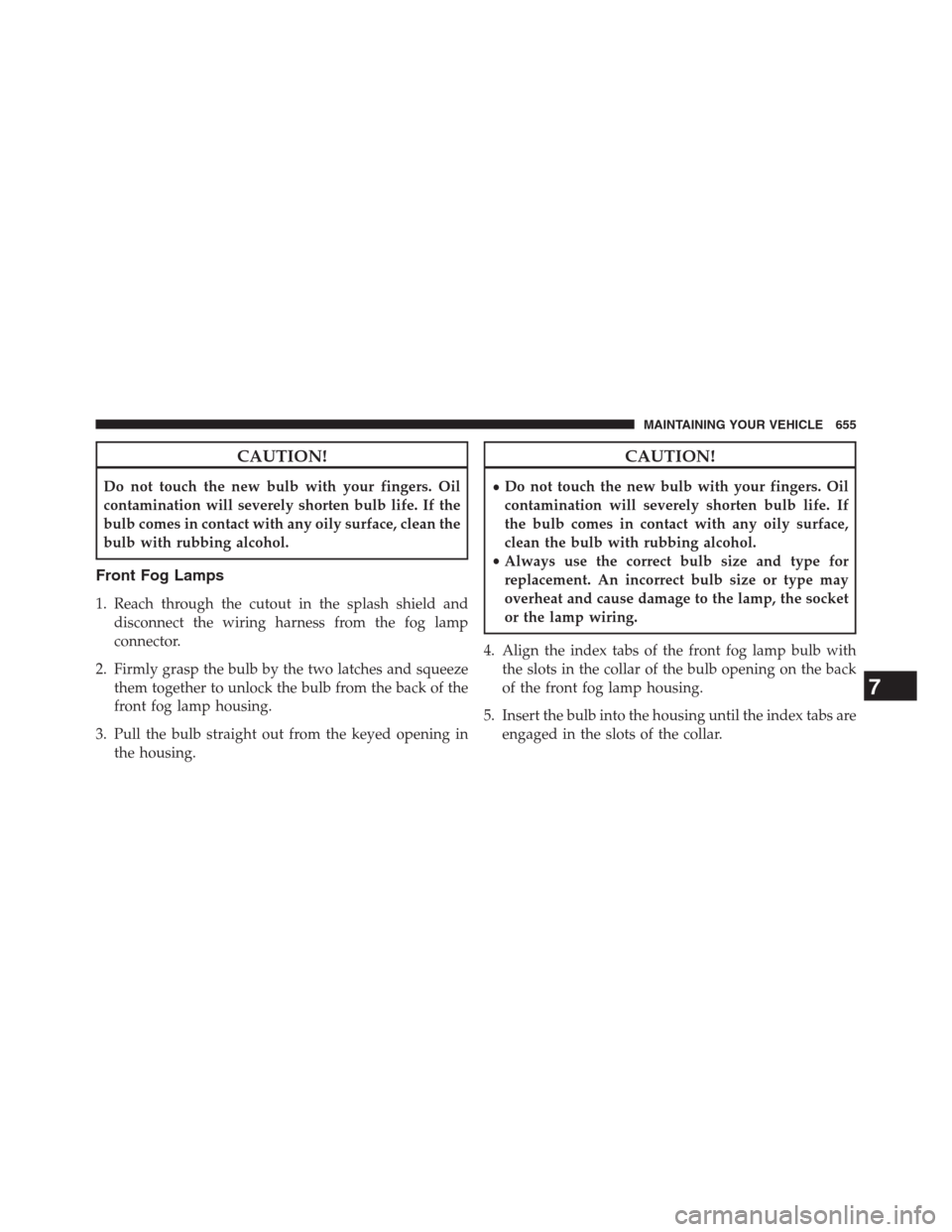

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Front Fog Lamps
1. Reach through the cutout in the splash shield and
disconnect the wiring harness from the fog lamp
connector.
2. Firmly grasp the bulb by the two latches and squeeze
them together to unlock the bulb from the back of the
front fog lamp housing.
3. Pull the bulb straight out from the keyed opening in
the housing.
CAUTION!
•Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If
the bulb comes in contact with any oily surface,
clean the bulb with rubbing alcohol.
•Always use the correct bulb size and type for
replacement. An incorrect bulb size or type may
overheat and cause damage to the lamp, the socket
or the lamp wiring.
4. Align the index tabs of the front fog lamp bulb with
the slots in the collar of the bulb opening on the back
of the front fog lamp housing.
5. Insert the bulb into the housing until the index tabs are
engaged in the slots of the collar.
7
MAINTAINING YOUR VEHICLE 655

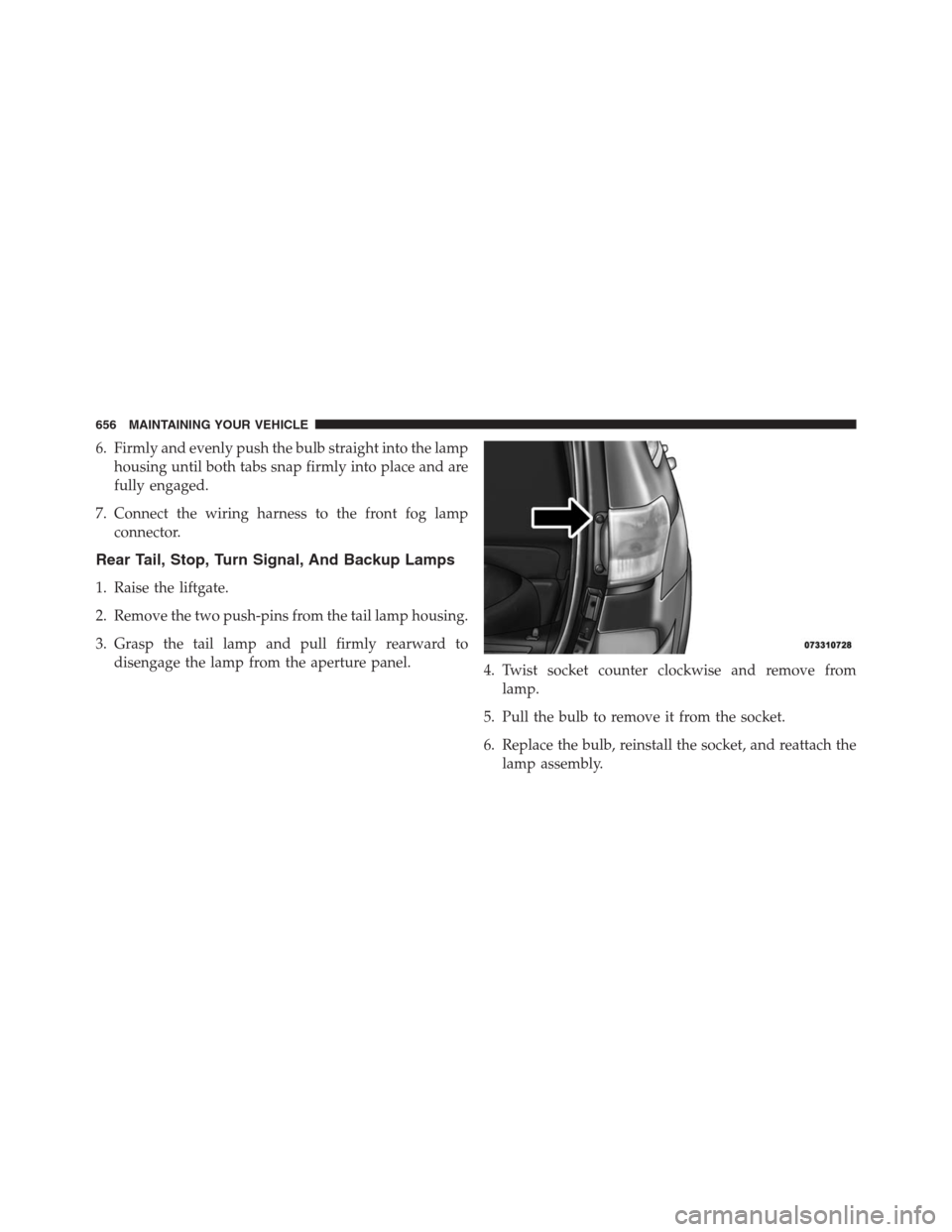

6. Firmly and evenly push the bulb straight into the lamp
housing until both tabs snap firmly into place and are
fully engaged.
7. Connect the wiring harness to the front fog lamp
connector.
Rear Tail, Stop, Turn Signal, And Backup Lamps
1. Raise the liftgate.
2. Remove the two push-pins from the tail lamp housing.
3. Grasp the tail lamp and pull firmly rearward to
disengage the lamp from the aperture panel.
4. Twist socket counter clockwise and remove from
lamp.
5. Pull the bulb to remove it from the socket.
6. Replace the bulb, reinstall the socket, and reattach the
lamp assembly.
656 MAINTAINING YOUR VEHICLE

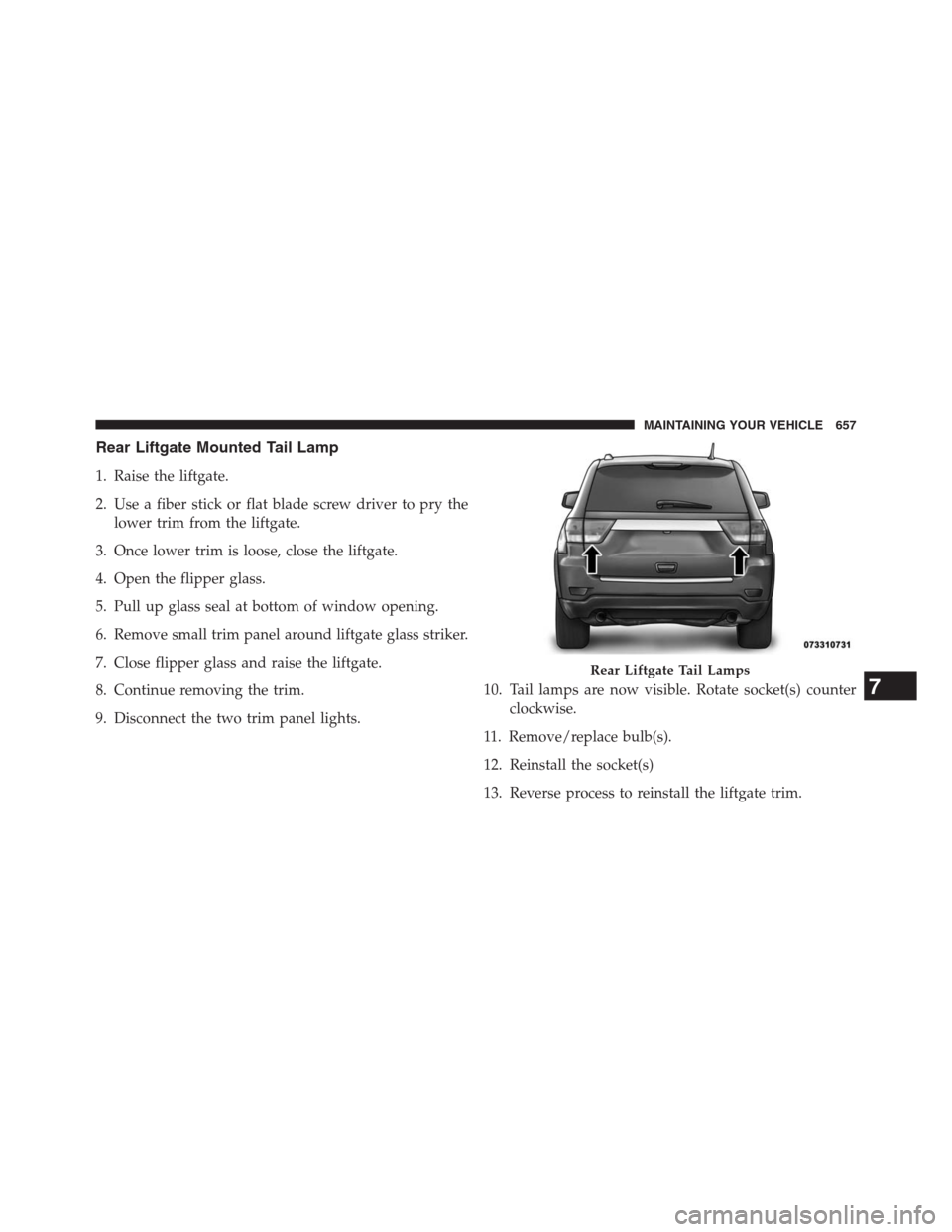

Rear Liftgate Mounted Tail Lamp
1. Raise the liftgate.
2. Use a fiber stick or flat blade screw driver to pry the
lower trim from the liftgate.
3. Once lower trim is loose, close the liftgate.
4. Open the flipper glass.
5. Pull up glass seal at bottom of window opening.
6. Remove small trim panel around liftgate glass striker.
7. Close flipper glass and raise the liftgate.
8. Continue removing the trim.
9. Disconnect the two trim panel lights.10. Tail lamps are now visible. Rotate socket(s) counter
clockwise.
11. Remove/replace bulb(s).
12. Reinstall the socket(s)
13. Reverse process to reinstall the liftgate trim.
Rear Liftgate Tail Lamps
7
MAINTAINING YOUR VEHICLE 657

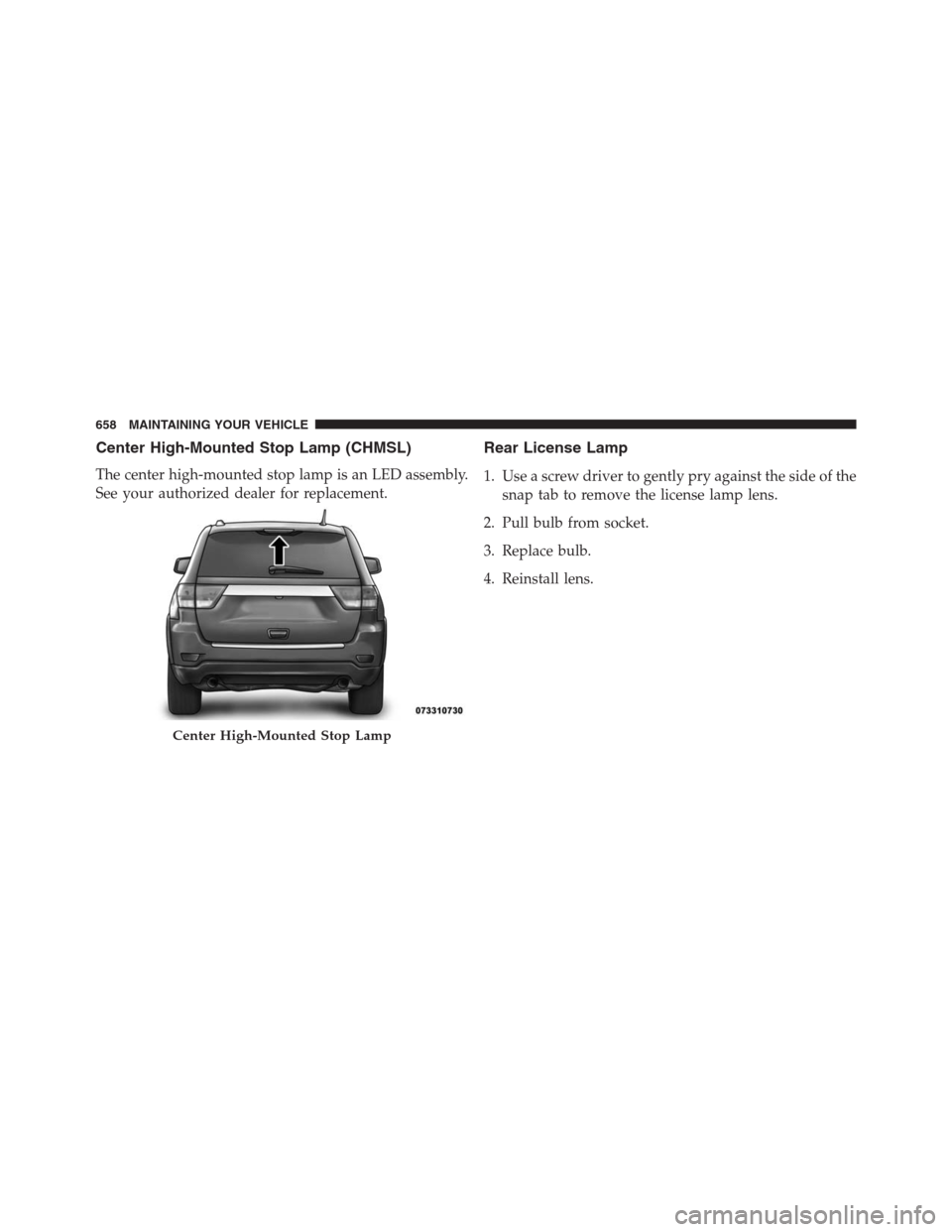

Center High-Mounted Stop Lamp (CHMSL)
The center high-mounted stop lamp is an LED assembly.
See your authorized dealer for replacement.
Rear License Lamp
1. Use a screw driver to gently pry against the side of the
snap tab to remove the license lamp lens.
2. Pull bulb from socket.
3. Replace bulb.
4. Reinstall lens.
Center High-Mounted Stop Lamp
658 MAINTAINING YOUR VEHICLE
