engine coolant JEEP GRAND CHEROKEE 2014 WK2 / 4.G Owner's Manual

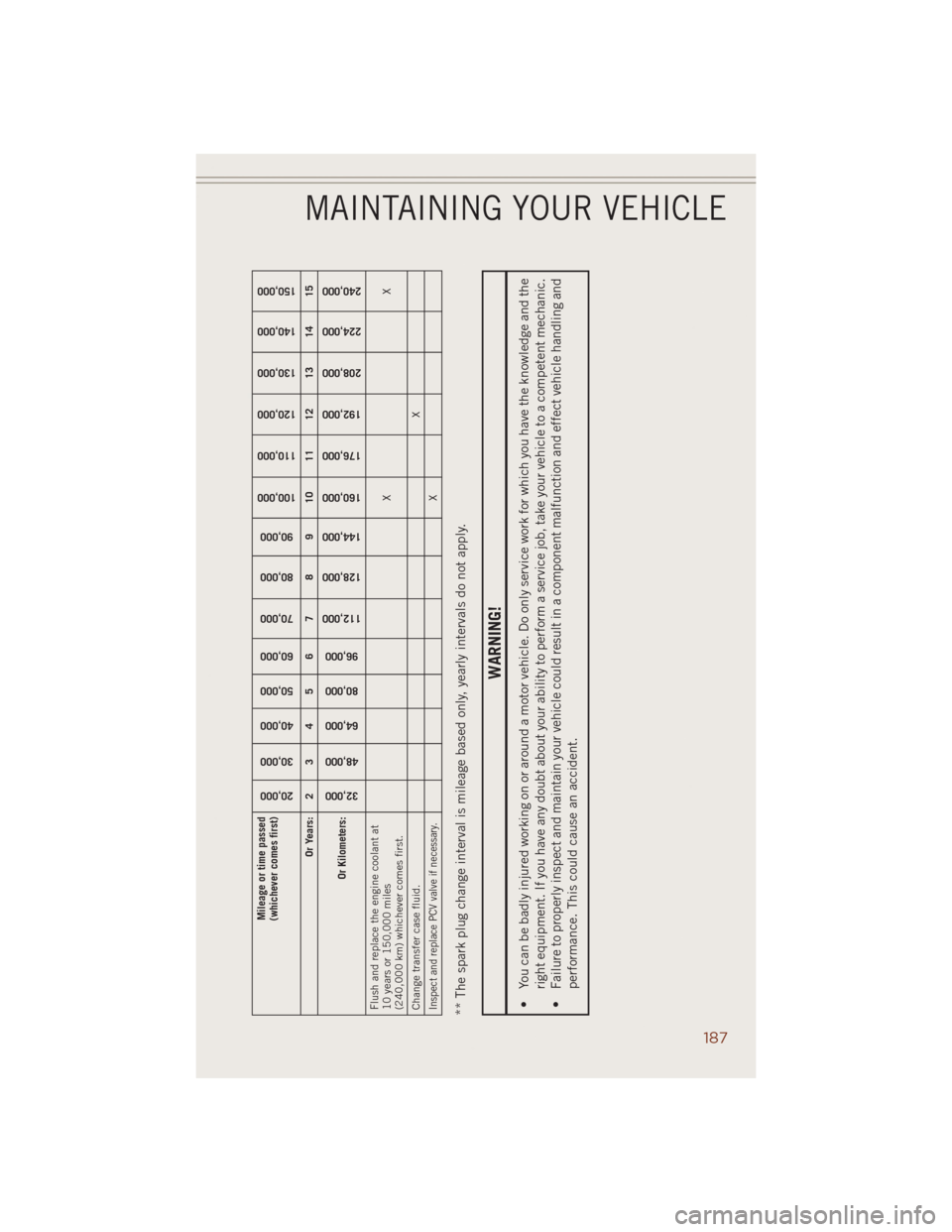

Mileage or time passed
(whichever comes first)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Flush and replace the engine coolant at
10 years or 150,000 miles
(240,000 km) whichever comes first.XX
Change transfer case fluid.XInspect and replace PCV valve if necessary.
X
** The spark plug change interval is mileage based only, yearly intervals do not apply.
WARNING!
• You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the
right equipment. If you have any doubt about your ability to perform a service job, take your vehicle to a competent mechanic.
• Failure to properly inspect and maintain your vehicle could result in a component malfunction and effect vehicle handling and
performance. This could cause an accident.
MAINTAINING YOUR VEHICLE
187

At Each Stop For Fuel
• Check the engine oil level. Refer to “Maintenance Procedures/Engine Oil” in
“Maintaining Your Vehicle” for further information.
• Check the windshield washer solvent and add if required.
Once A Month
• Check tire pressure and look for unusual wear or damage.
• Inspect the battery, and clean and tighten the terminals as required.
• Check the fluid levels of the coolant reservoir, brake master cylinder, and power
steering, and add as needed.
• Check all lights and other electrical items for correct operation.
At Each Oil Change
• Change the engine oil filter.
• Inspect the brake hoses and lines.
CAUTION!
Failure to perform the required maintenance items may result in damage to the
vehicle.
MAINTAINING YOUR VEHICLE
190

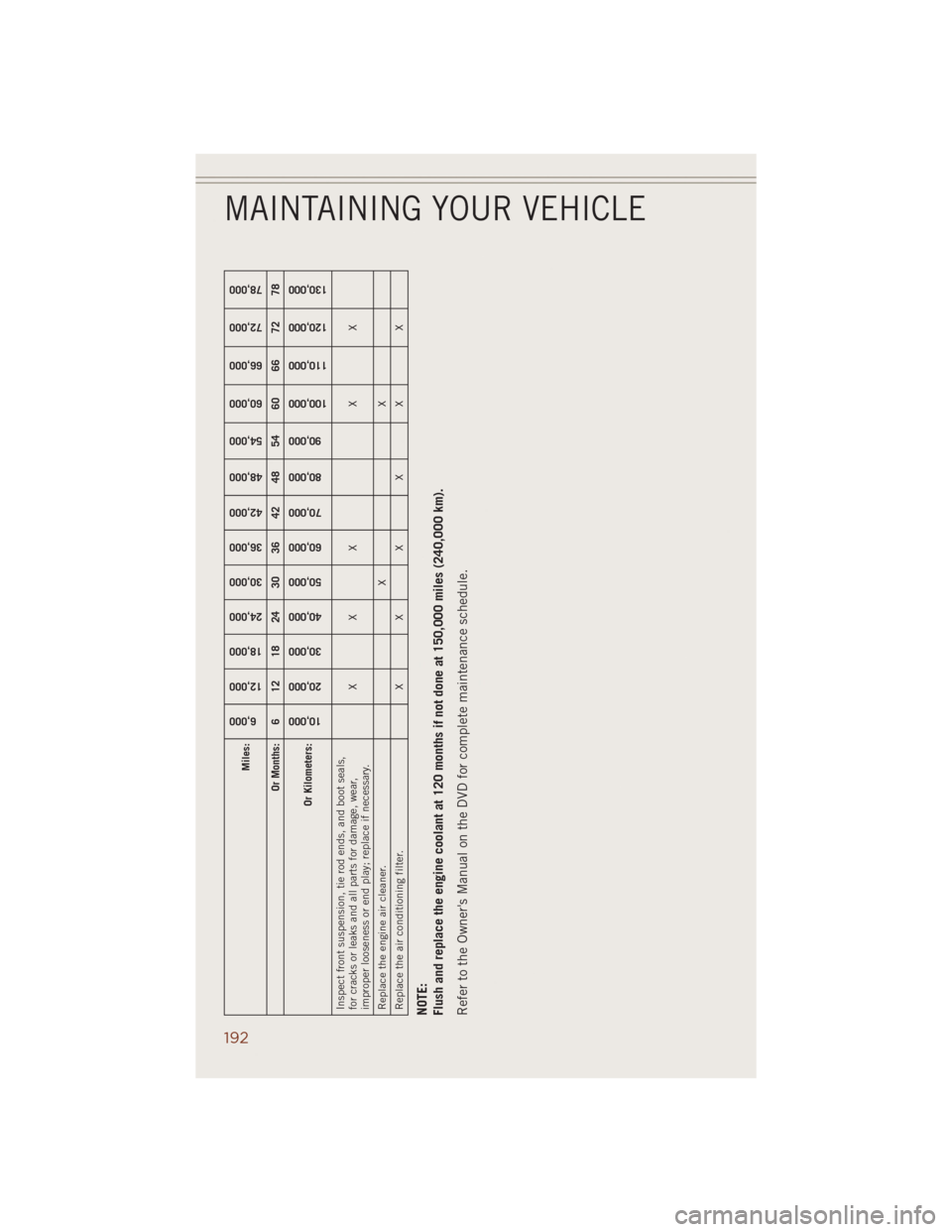

Miles:
6,000
12,000
18,000
24,000
30,000
36,000
42,000
48,000
54,000
60,000
66,000
72,000
78,000
Or Months: 6 12 18 24 30 36 42 48 54 60 66 72 78
Or Kilometers:
10,000
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
Inspect front suspension, tie rod ends, and boot seals,
for cracks or leaks and all parts for damage, wear,
improper looseness or end play; replace if necessary.XXX X X
Replace the engine air cleaner. X X
Replace the air conditioning filter. X X X X X XNOTE:
Flush and replace the engine coolant at 120 months if not done at 150,000 miles (240,000 km).
Refer to the Owner's Manual on the DVD for complete maintenance schedule.
MAINTAINING YOUR VEHICLE
192

Once A Month Or Before A Long Trip:
• Check engine oil level
• Check windshield washer fluid level
• Check the tire inflation pressures and look for unusual wear or damage
• Check the fluid levels of the coolant reservoir, brake master cylinder, power
steering and transmission as needed
• Check function of all interior and exterior lights
Required Maintenance
Refer to the Maintenance Schedules on the following pages for required mainte-
nance.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
•
Change oil and filter.
•
Completely fill the Diesel Exhaust Fluid tank.
• Rotate the tires.Rotate at the first sign of irregular wear, even if it occurs before the oil
indicator system turns on.
•
Inspect battery and clean and tighten terminals as required.
•
Inspect automatic transmission fluid if equipped with dipstick.
•
Inspect brake pads, shoes, rotors, drums, hoses and park brake.
•
Inspect engine cooling system protection and hoses.
•
Inspect exhaust system.
•
Inspect engine air cleaner if using in dusty or off-road conditions.
MAINTAINING YOUR VEHICLE
195

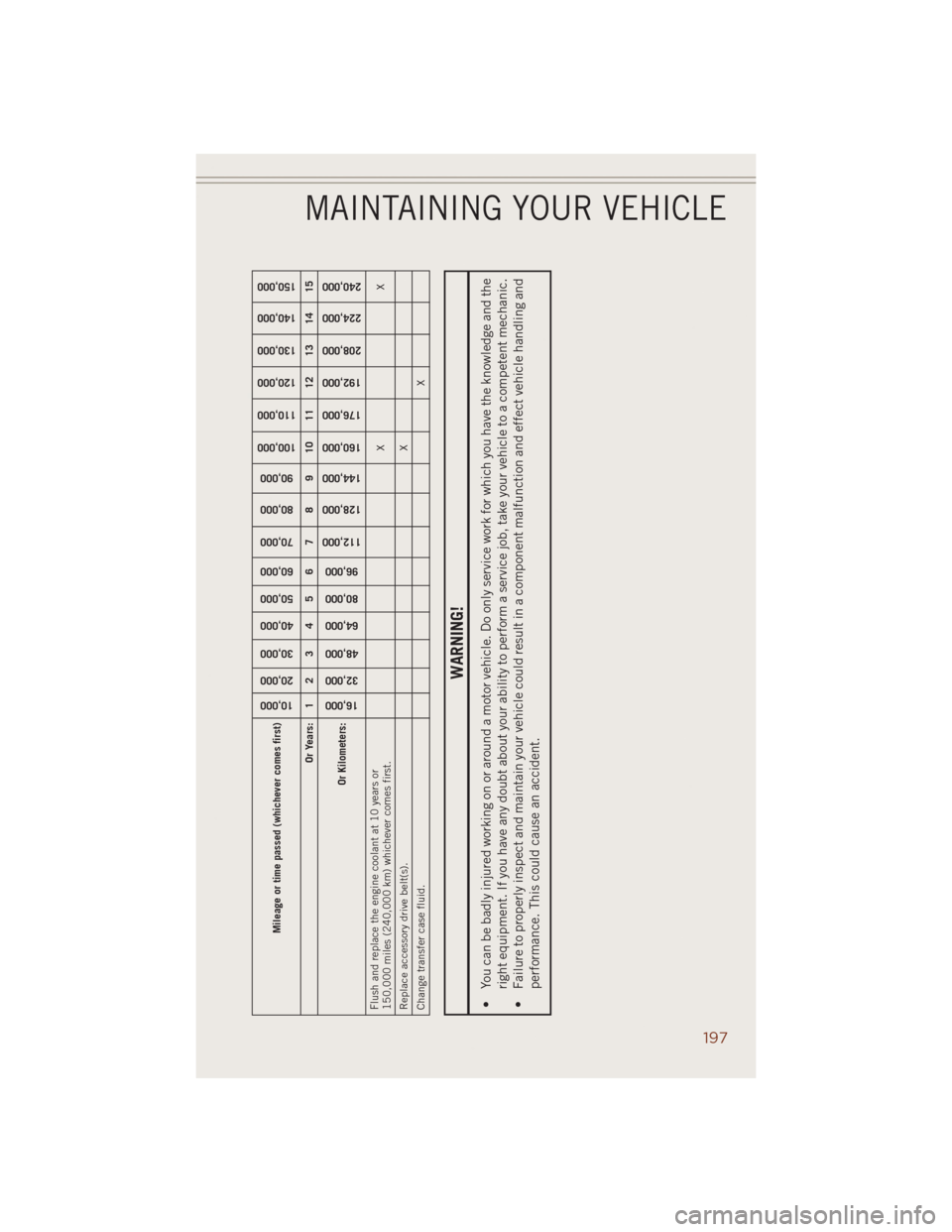

Mileage or time passed (whichever comes first)
10,000
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
16,000
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Flush and replace the engine coolant at 10 years or
150,000 miles (240,000 km) whichever comes first.XX
Replace accessory drive belt(s).X
Change transfer case fluid.X
WARNING!
• You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the
right equipment. If you have any doubt about your ability to perform a service job, take your vehicle to a competent mechanic.
• Failure to properly inspect and maintain your vehicle could result in a component malfunction and effect vehicle handling and
performance. This could cause an accident.
MAINTAINING YOUR VEHICLE
197

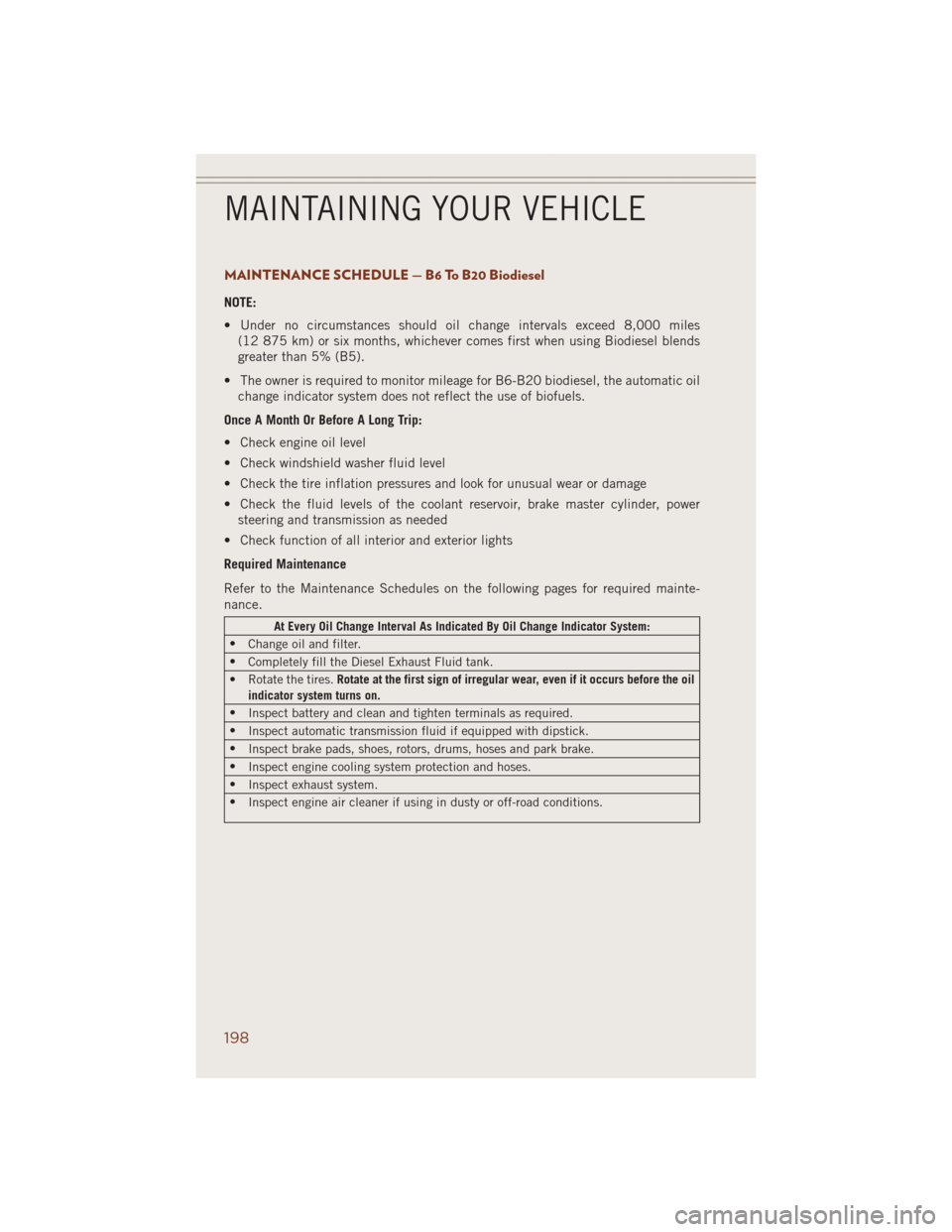

MAINTENANCE SCHEDULE — B6 To B20 Biodiesel
NOTE:
• Under no circumstances should oil change intervals exceed 8,000 miles
(12 875 km) or six months, whichever comes first when using Biodiesel blends
greater than 5% (B5).
• The owner is required to monitor mileage for B6-B20 biodiesel, the automatic oil
change indicator system does not reflect the use of biofuels.
Once A Month Or Before A Long Trip:
• Check engine oil level
• Check windshield washer fluid level
• Check the tire inflation pressures and look for unusual wear or damage
• Check the fluid levels of the coolant reservoir, brake master cylinder, power
steering and transmission as needed
• Check function of all interior and exterior lights
Required Maintenance
Refer to the Maintenance Schedules on the following pages for required mainte-
nance.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
•
Change oil and filter.
•
Completely fill the Diesel Exhaust Fluid tank.
• Rotate the tires.Rotate at the first sign of irregular wear, even if it occurs before the oil
indicator system turns on.
•
Inspect battery and clean and tighten terminals as required.
•
Inspect automatic transmission fluid if equipped with dipstick.
•
Inspect brake pads, shoes, rotors, drums, hoses and park brake.
•
Inspect engine cooling system protection and hoses.
•
Inspect exhaust system.
•
Inspect engine air cleaner if using in dusty or off-road conditions.
MAINTAINING YOUR VEHICLE
198

Access
Uconnect®.............51
Access Registration
Uconnect
®.............52
Adaptive Cruise Control (ACC) (Cruise
Control)................34
Adding Fuel..............172
Airbag..................16
Air Bag
AdvanceFrontAirBag ......16
AirBags ...............16
AirBagWarningLight....16,155
Driver Knee Air Bag........16
FrontAirBag ............16
Rollover...............16
SideImpacts ............16
Air Conditioning..........40,41
Air Suspension............125
Alarm
Arm The System..........15
Disarm The System........15
Vehicle Security Alarm......15
Alarm (Security Alarm).....15,156
Anti-Lock Brake System (ABS) . . .154
Arming System (Security Alarm) . . .15
Assistance Towing..........150
Automatic Headlights.........29
Automatic High Beams........30
Automatic Temperature
Control (ATC)............40
Automatic Transmission
FluidType .........177, 181
Shifting...............38
AxleFluid.........177, 178, 181
Axle Lubrication........178, 182
Back-Up Camera............43
Battery.................165
Charging System Light.....154
Blind Spot Monitoring.........44
Brake Fluid....177, 178, 181, 182
Brake System
WarningLight ..........152
Break-In Recommendations, Diesel. .142
Break-In Recommendations, New
Vehicle................28
BulbReplacement ..........205Calibration, Compass.........115
Caps, Filler
Fuel ................170
ChangingAFlatTire .........158
Charging System Light........154
Check Engine Light (Malfunction Indi-
cator Light).............153
Child Restraints
CarSeat ...............17
Child Restraints..........17
Child Seat Installation.......19
Installing Child Restraints Using The
Vehicle Seat Belt..........19
LATCH Positions..........17
Locating The LATCH Anchorages..17
Lower Anchors And Tethers For Chil-
dren ..............17,19
Using The Top Tether
Anchorage............18,19
ChildSeat................19
Climate Control.............40
Cluster Warning/Indicator Lights
AirBagWarningLight ......155
Brake Warning Light.......152
Electronic Speed Control ON
Indicator..............157
Electronic Speed Control SET Indi-
cator................157
Electronic Stability Control (ESC)
OFF Indicator Light.......154
Front Fog Light Indicator....156
High Beam Indicator......156
Park/Headlight ON Indicator . .157
Vehicle Security Light......156
Compass Calibration.........115
Cooling System
Coolant Capacity.....177, 181
Cruise Control (Speed Control)....32
CruiseLight...............32
Customer Assistance.........206
Customer Programmable Features...115
Defects, Reporting..........207
Diesel Engine Maintenance.....144
Diesel Exhaust Fluid.........146
Diesel Fuel Water Separator.....144
DimmerControl.............30
Dimmer Switch, Headlight......30
INDEX
211

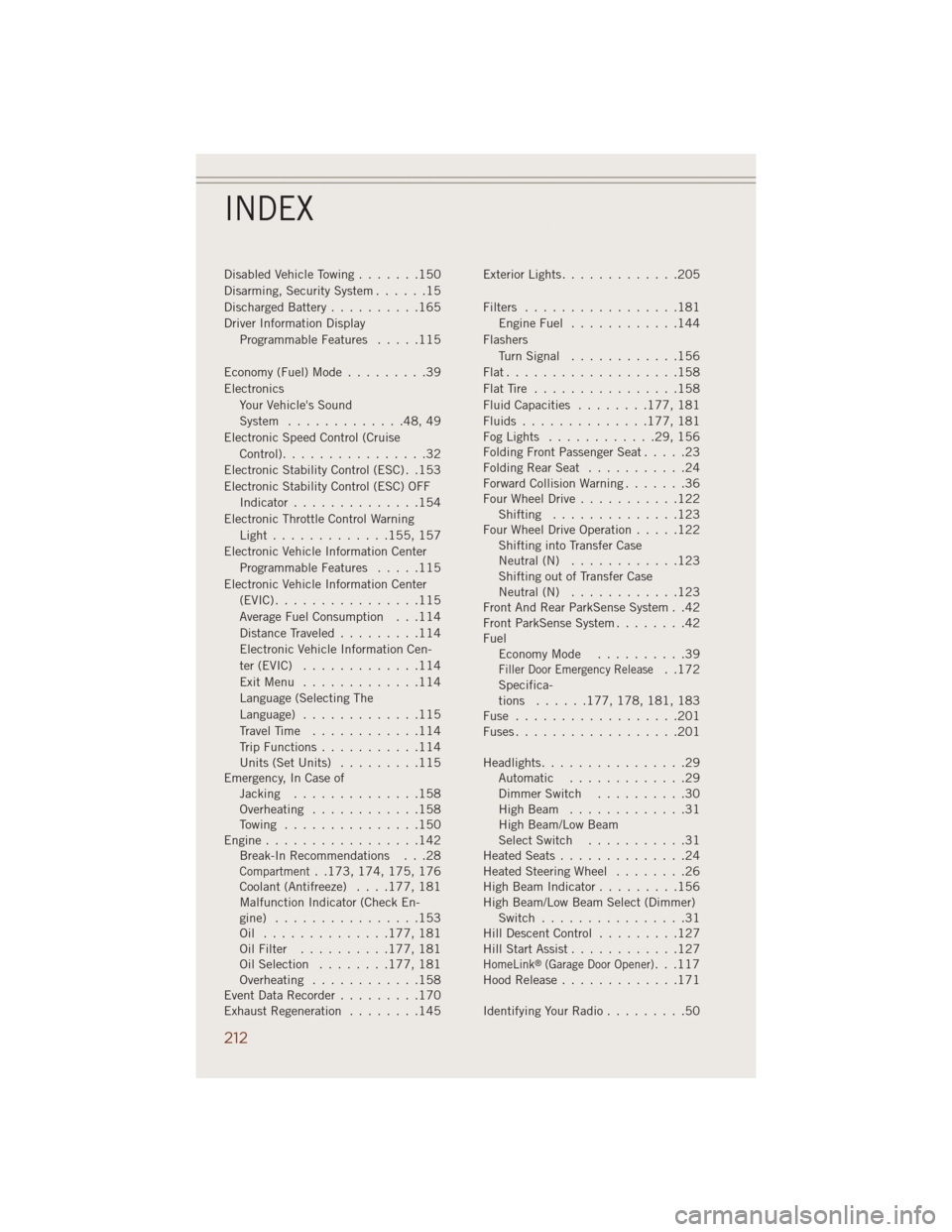

Disabled Vehicle Towing.......150
Disarming, Security System......15
Discharged Battery..........165
Driver Information Display
Programmable Features.....115
Economy(Fuel)Mode.........39
Electronics
Your Vehicle's Sound
System.............48,49
Electronic Speed Control (Cruise
Control)................32
Electronic Stability Control (ESC) . .153
Electronic Stability Control (ESC) OFF
Indicator..............154
Electronic Throttle Control Warning
Light.............155, 157
Electronic Vehicle Information Center
Programmable Features.....115
Electronic Vehicle Information Center
(EVIC)................115
Average Fuel Consumption . . .114
Distance Traveled.........114
Electronic Vehicle Information Cen-
ter(EVIC) .............114
ExitMenu .............114
Language (Selecting The
Language).............115
Travel Time............114
Trip Functions...........114
Units (Set Units).........115
Emergency, In Case of
Jacking..............158
Overheating............158
Towing ...............150
Engine.................142
Break-In Recommendations . . .28
Compartment. .173, 174, 175, 176
Coolant (Antifreeze)....177, 181
Malfunction Indicator (Check En-
gine) ................153
Oil ..............177, 181
Oil Filter..........177, 181
OilSelection ........177, 181
Overheating............158
Event Data Recorder.........170
Exhaust Regeneration........145Exterior Lights.............205
Filters.................181
EngineFuel ............144
Flashers
TurnSignal ............156
Flat...................158
FlatTire ................158
Fluid Capacities........177, 181
Fluids..............177, 181
FogLights ............29,156
FoldingFrontPassengerSeat.....23
FoldingRearSeat ...........24
Forward Collision Warning.......36
Four Wheel Drive...........122
Shifting..............123
Four Wheel Drive Operation.....122
Shifting into Transfer Case
Neutral (N)............123
Shifting out of Transfer Case
Neutral (N)............123
Front And Rear ParkSense System . .42
Front ParkSense System........42
Fuel
EconomyMode ..........39
Filler Door Emergency Release. .172
Specifica-
tions......177, 178, 181, 183
Fuse ..................201
Fuses..................201
Headlights................29
Automatic.............29
Dimmer Switch..........30
HighBeam .............31
High Beam/Low Beam
Select Switch...........31
Heated Seats..............24
Heated Steering Wheel........26
High Beam Indicator.........156
High Beam/Low Beam Select (Dimmer)
Switch................31
Hill Descent Control.........127
Hill Start Assist............127
HomeLink®(Garage Door Opener)...117
Hood Release.............171
Identifying Your Radio.........50
INDEX
212
