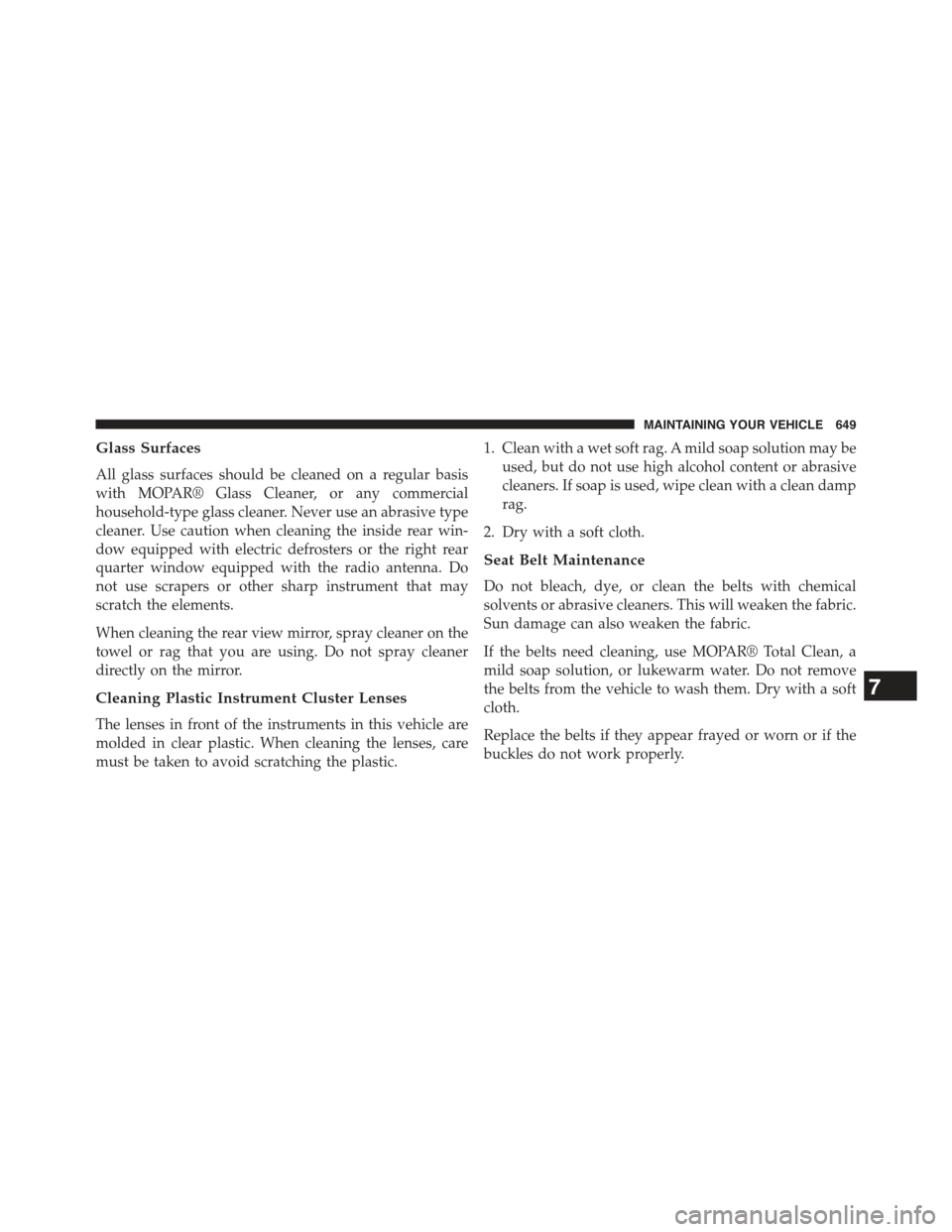

Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPAR® Glass Cleaner, or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instrument that may
scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use MOPAR® Total Clean, a
mild soap solution, or lukewarm water. Do not remove
the belts from the vehicle to wash them. Dry with a soft
cloth.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
7
MAINTAINING YOUR VEHICLE 649

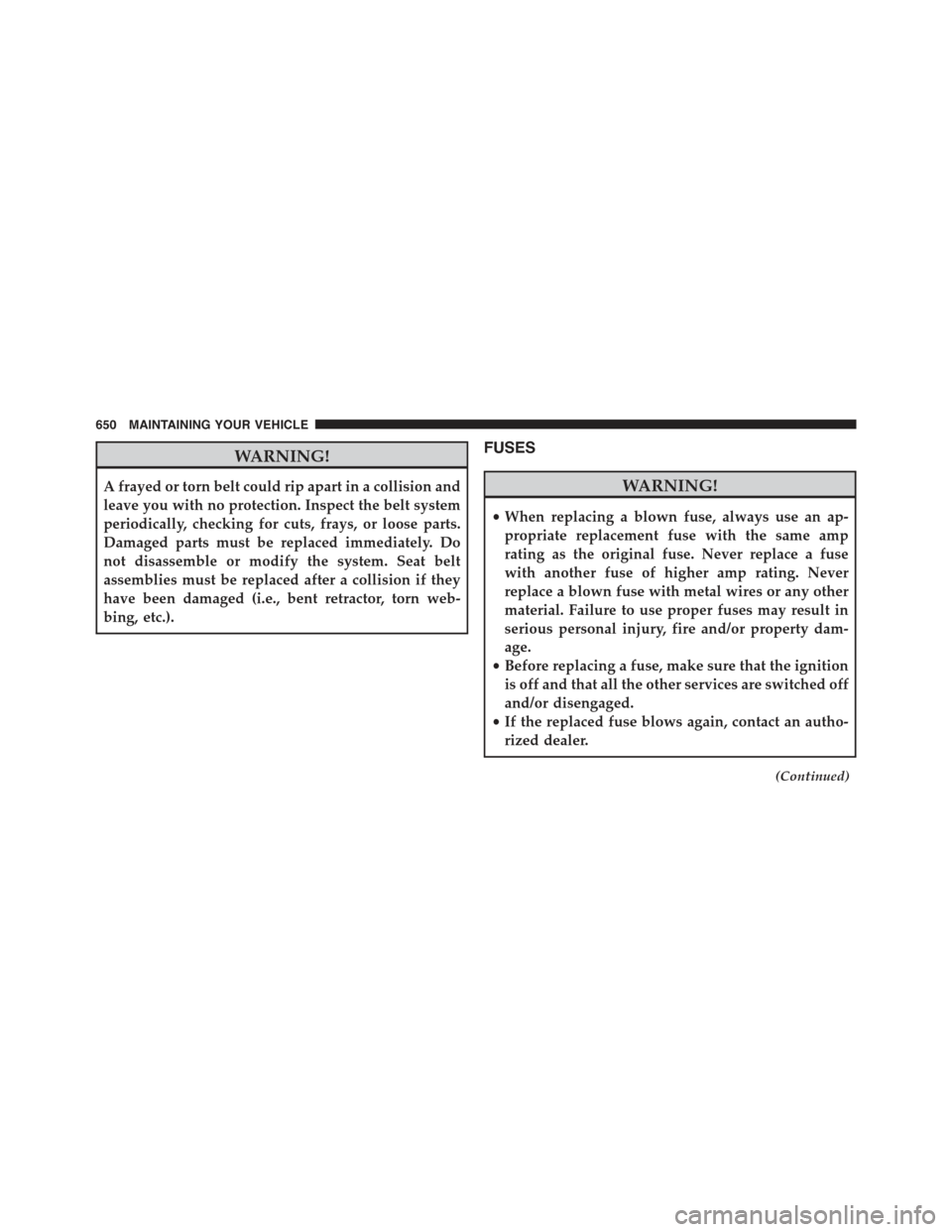

WARNING!
A frayed or torn belt could rip apart in a collision and
leave you with no protection. Inspect the belt system
periodically, checking for cuts, frays, or loose parts.
Damaged parts must be replaced immediately. Do
not disassemble or modify the system. Seat belt
assemblies must be replaced after a collision if they
have been damaged (i.e., bent retractor, torn web-
bing, etc.).
FUSES
WARNING!
•When replacing a blown fuse, always use an ap-
propriate replacement fuse with the same amp
rating as the original fuse. Never replace a fuse
with another fuse of higher amp rating. Never
replace a blown fuse with metal wires or any other
material. Failure to use proper fuses may result in
serious personal injury, fire and/or property dam-
age.
•Before replacing a fuse, make sure that the ignition
is off and that all the other services are switched off
and/or disengaged.
•If the replaced fuse blows again, contact an autho-
rized dealer.
(Continued)
650 MAINTAINING YOUR VEHICLE

WARNING!(Continued)
•If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.
Power Distribution Center
The Power Distribution Center is located in the engine
compartment near the battery. This center contains car-
tridge fuses, micro fuses, relays, and circuit breakers. A
description of each fuse and component may be stamped
on the inside cover, otherwise the cavity number of each
fuse is stamped on the inside cover that corresponds to
the following chart.

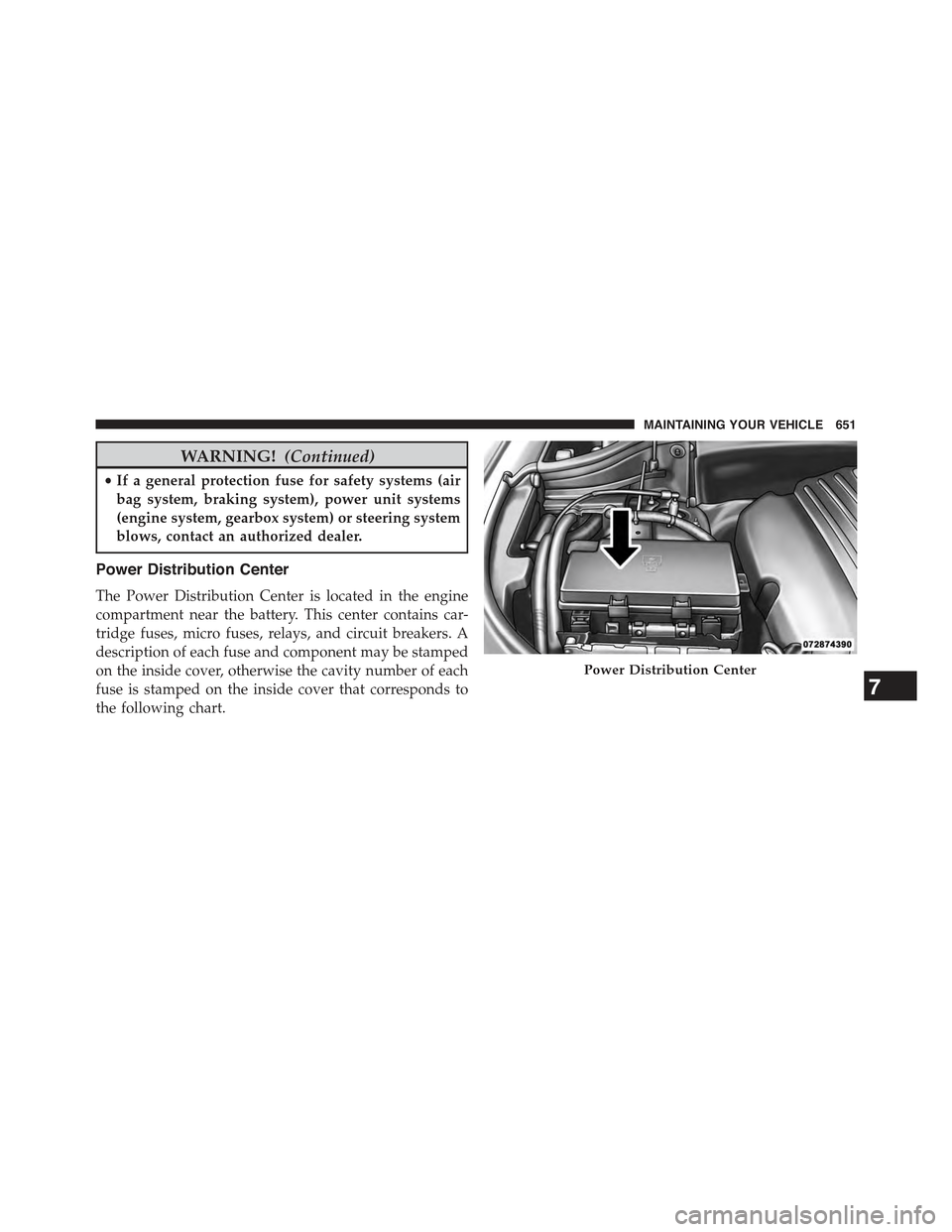

Power Distribution Center
7
MAINTAINING YOUR VEHICLE 651

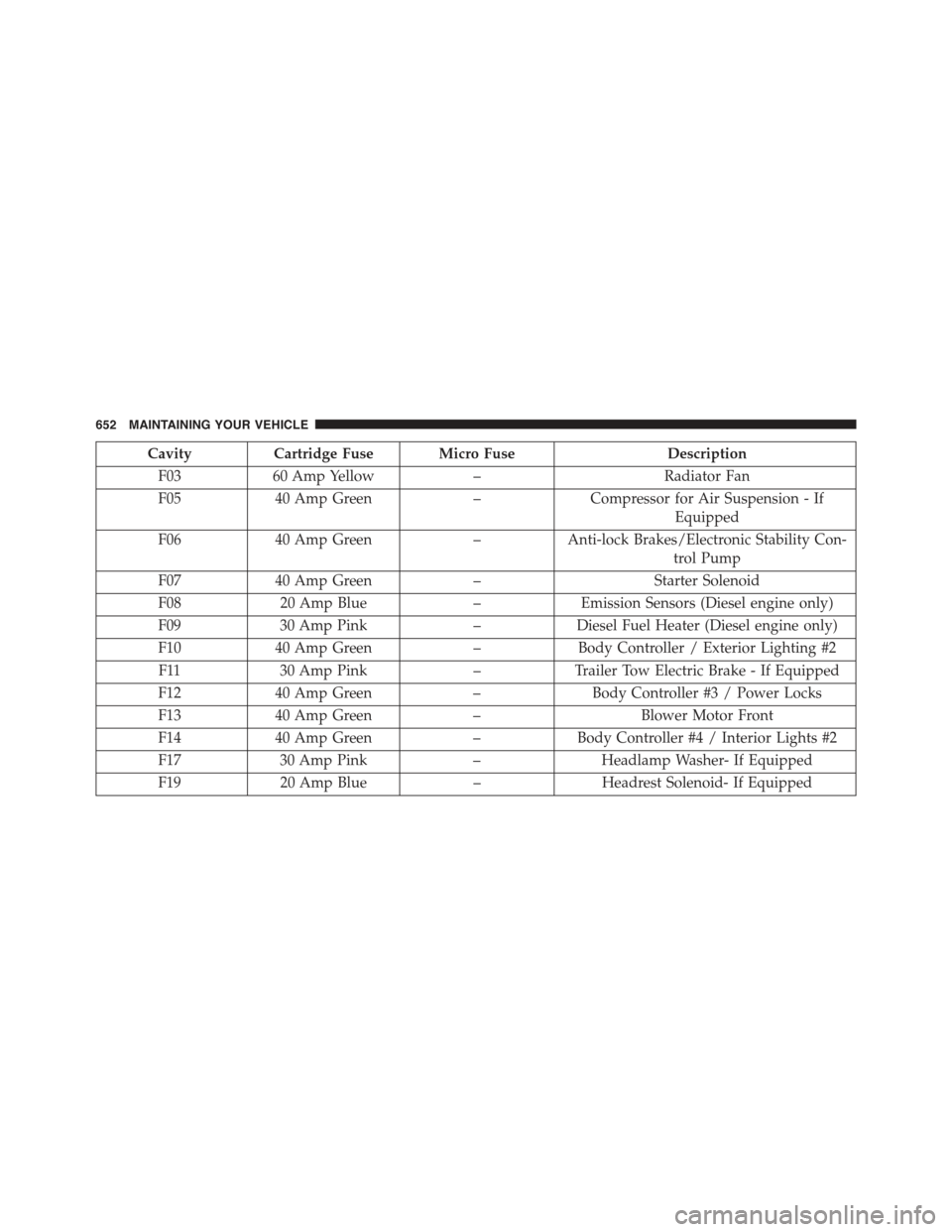

CavityCartridge Fuse Micro FuseDescription
F0360 Amp Yellow–Radiator Fan
F0540 Amp Green–Compressor for Air Suspension - If
Equipped
F0640 Amp Green–Anti-lock Brakes/Electronic Stability Con-
trol Pump
F0740 Amp Green–Starter Solenoid
F0820 Amp Blue–Emission Sensors (Diesel engine only)
F0930 Amp Pink–Diesel Fuel Heater (Diesel engine only)
F1040 Amp Green–Body Controller / Exterior Lighting #2
F1130 Amp Pink–Trailer Tow Electric Brake - If Equipped
F1240 Amp Green–Body Controller #3 / Power Locks
F1340 Amp Green–Blower Motor Front
F1440 Amp Green–Body Controller #4 / Interior Lights #2
F1730 Amp Pink–Headlamp Washer- If Equipped
F1920 Amp Blue–Headrest Solenoid- If Equipped
652 MAINTAINING YOUR VEHICLE

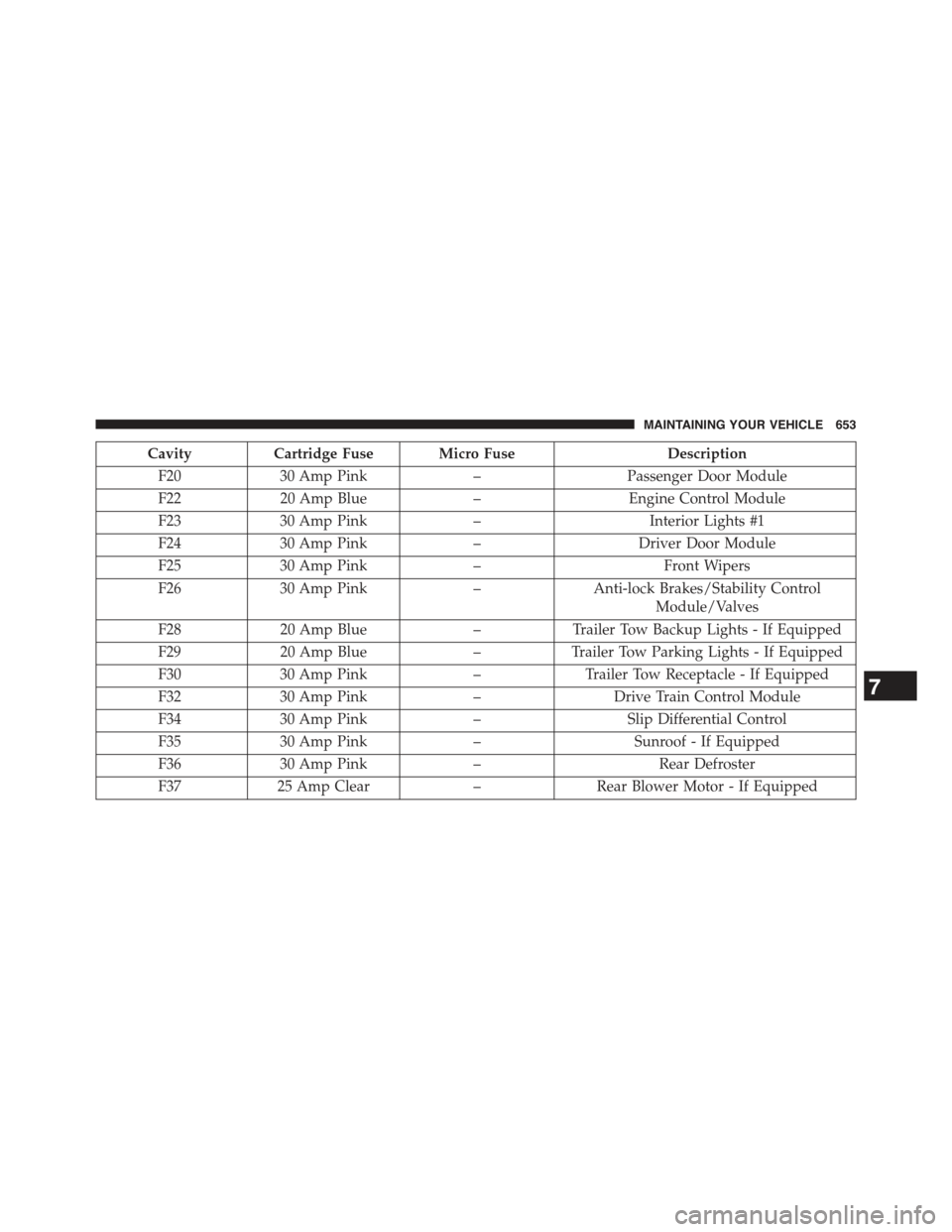

CavityCartridge Fuse Micro FuseDescription
F2030 Amp Pink–Passenger Door Module
F2220 Amp Blue–Engine Control Module
F2330 Amp Pink–Interior Lights #1
F2430 Amp Pink–Driver Door Module
F2530 Amp Pink–Front Wipers
F2630 Amp Pink–Anti-lock Brakes/Stability Control
Module/Valves
F2820 Amp Blue–Trailer Tow Backup Lights - If Equipped
F2920 Amp Blue–Trailer Tow Parking Lights - If Equipped
F3030 Amp Pink–Trailer Tow Receptacle - If Equipped
F3230 Amp Pink–Drive Train Control Module
F3430 Amp Pink–Slip Differential Control
F3530 Amp Pink–Sunroof - If Equipped
F3630 Amp Pink–Rear Defroster
F3725 Amp Clear–Rear Blower Motor - If Equipped
7
MAINTAINING YOUR VEHICLE 653

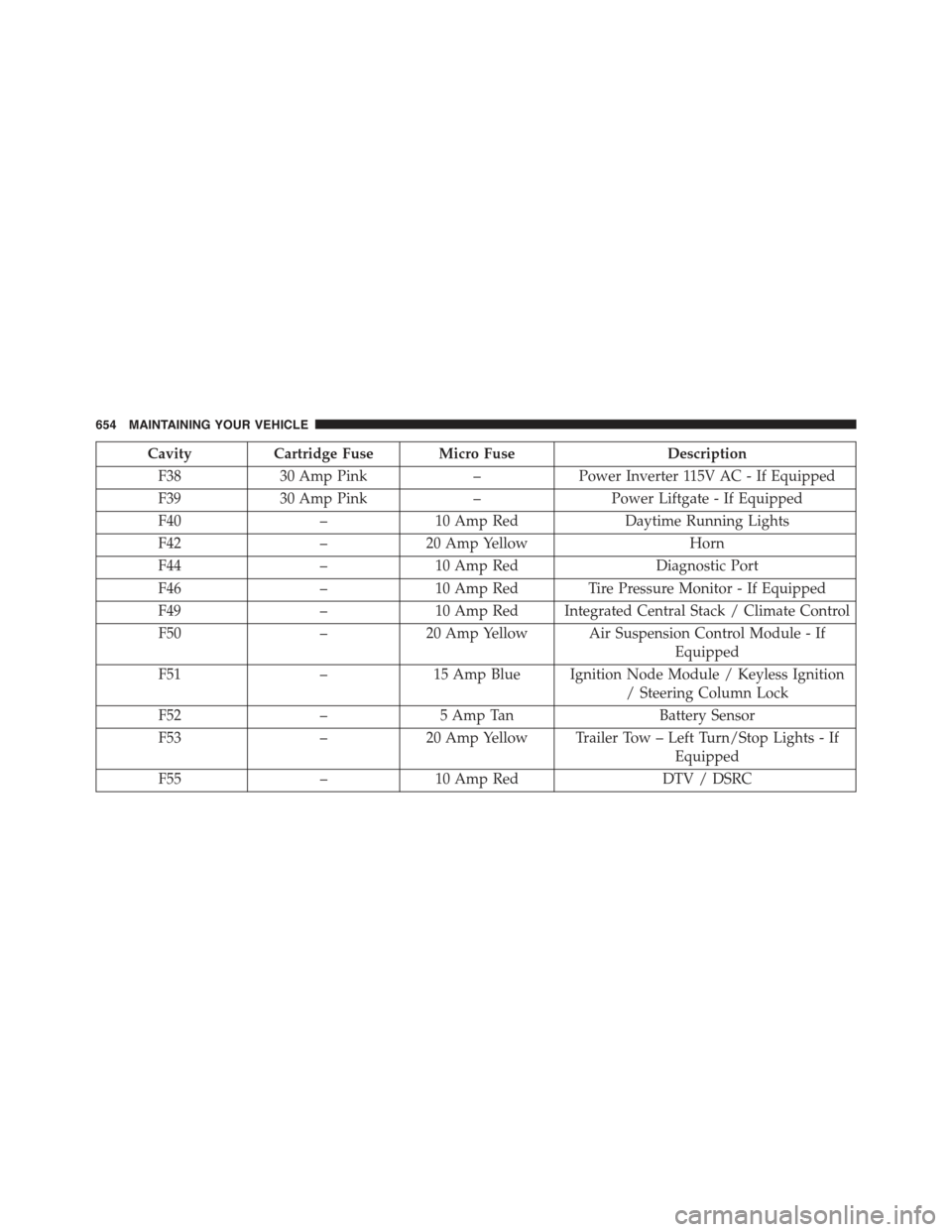

CavityCartridge Fuse Micro FuseDescription
F3830 Amp Pink–Power Inverter 115V AC - If Equipped
F3930 Amp Pink–Power Liftgate - If Equipped
F40–10 Amp RedDaytime Running Lights
F42–20 Amp YellowHorn
F44–10 Amp RedDiagnostic Port
F46–10 Amp Red Tire Pressure Monitor - If Equipped
F49–10 Amp Red Integrated Central Stack / Climate Control
F50–20 Amp Yellow Air Suspension Control Module - If
Equipped
F51–15 Amp Blue Ignition Node Module / Keyless Ignition
/ Steering Column Lock
F52–5 Amp TanBattery Sensor
F53–20 Amp Yellow Trailer Tow – Left Turn/Stop Lights - If
Equipped
F55–10 Amp RedDTV / DSRC
654 MAINTAINING YOUR VEHICLE

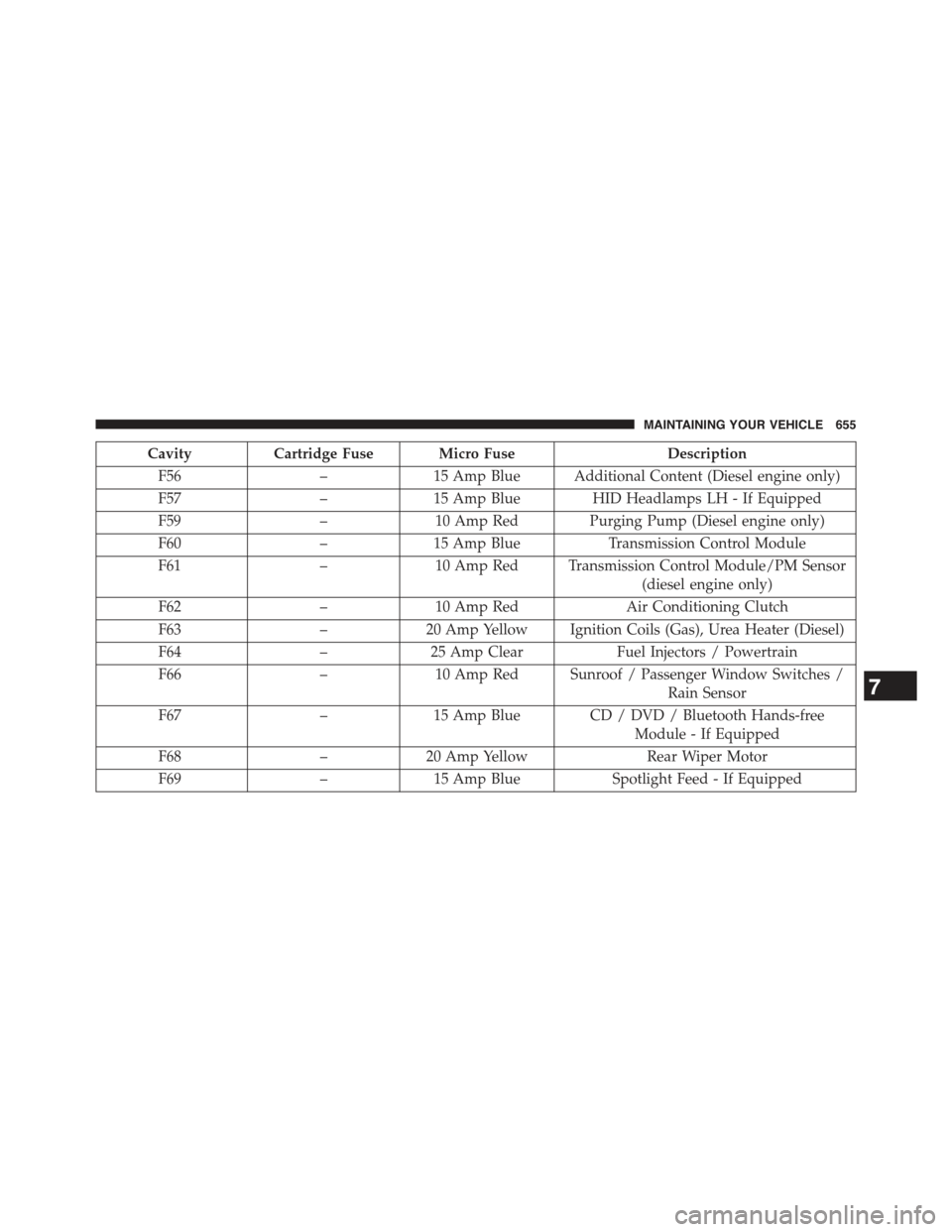

CavityCartridge Fuse Micro FuseDescription
F56–15 Amp Blue Additional Content (Diesel engine only)
F57–15 Amp Blue HID Headlamps LH - If Equipped
F59–10 Amp Red Purging Pump (Diesel engine only)
F60–15 Amp BlueTransmission Control Module
F61–10 Amp Red Transmission Control Module/PM Sensor
(diesel engine only)
F62–10 Amp RedAir Conditioning Clutch
F63–20 Amp Yellow Ignition Coils (Gas), Urea Heater (Diesel)
F64–25 Amp ClearFuel Injectors / Powertrain
F66–10 Amp Red Sunroof / Passenger Window Switches /
Rain Sensor
F67–15 Amp Blue CD / DVD / Bluetooth Hands-free
Module - If Equipped
F68–20 Amp YellowRear Wiper Motor
F69–15 Amp BlueSpotlight Feed - If Equipped
7
MAINTAINING YOUR VEHICLE 655

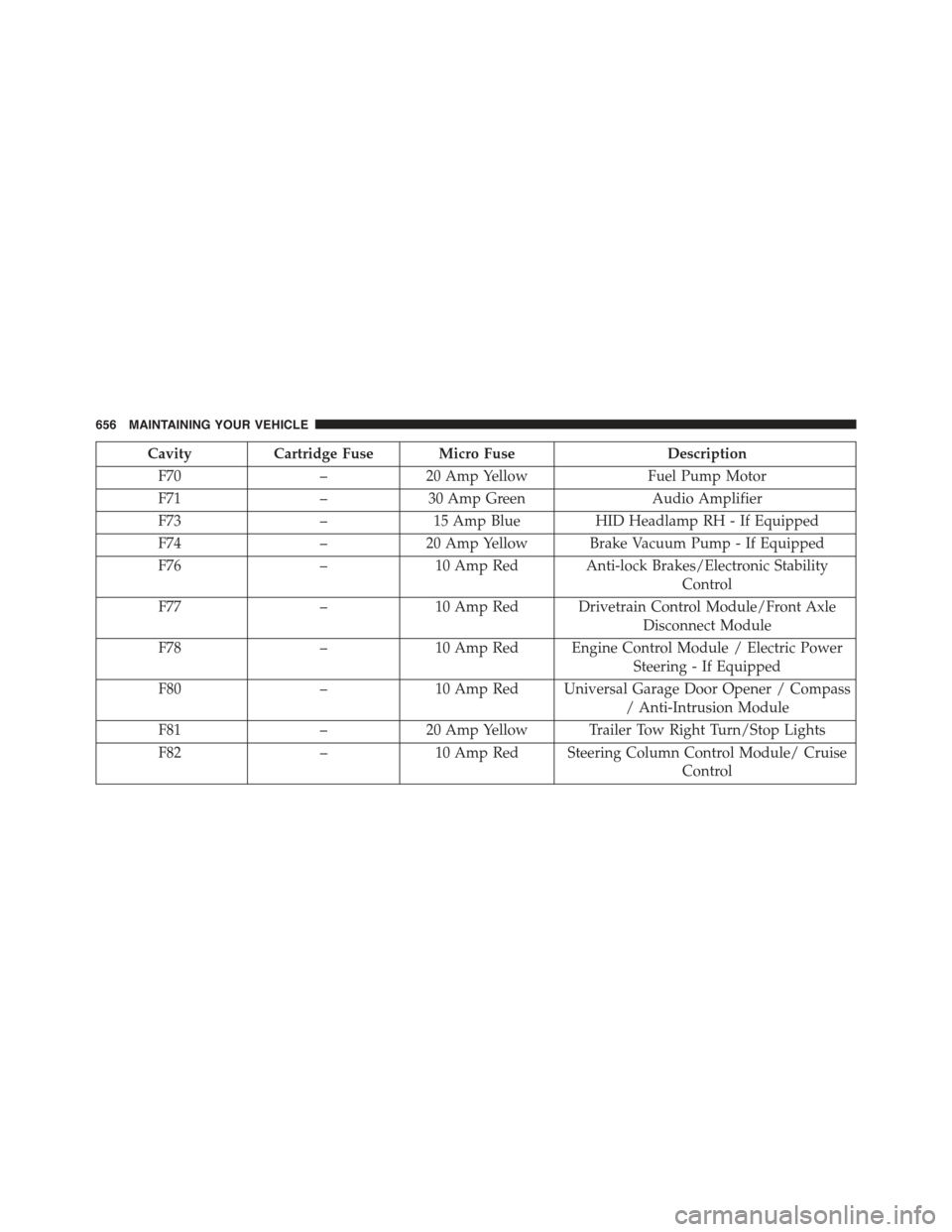

CavityCartridge Fuse Micro FuseDescription
F70–20 Amp YellowFuel Pump Motor
F71–30 Amp GreenAudio Amplifier
F73–15 Amp BlueHID Headlamp RH - If Equipped
F74–20 Amp Yellow Brake Vacuum Pump - If Equipped
F76–10 Amp Red Anti-lock Brakes/Electronic Stability
Control
F77–10 Amp Red Drivetrain Control Module/Front Axle
Disconnect Module
F78–10 Amp Red Engine Control Module / Electric Power
Steering - If Equipped
F80–10 Amp Red Universal Garage Door Opener / Compass
/ Anti-Intrusion Module
F81–20 Amp Yellow Trailer Tow Right Turn/Stop Lights
F82–10 Amp Red Steering Column Control Module/ Cruise
Control
656 MAINTAINING YOUR VEHICLE

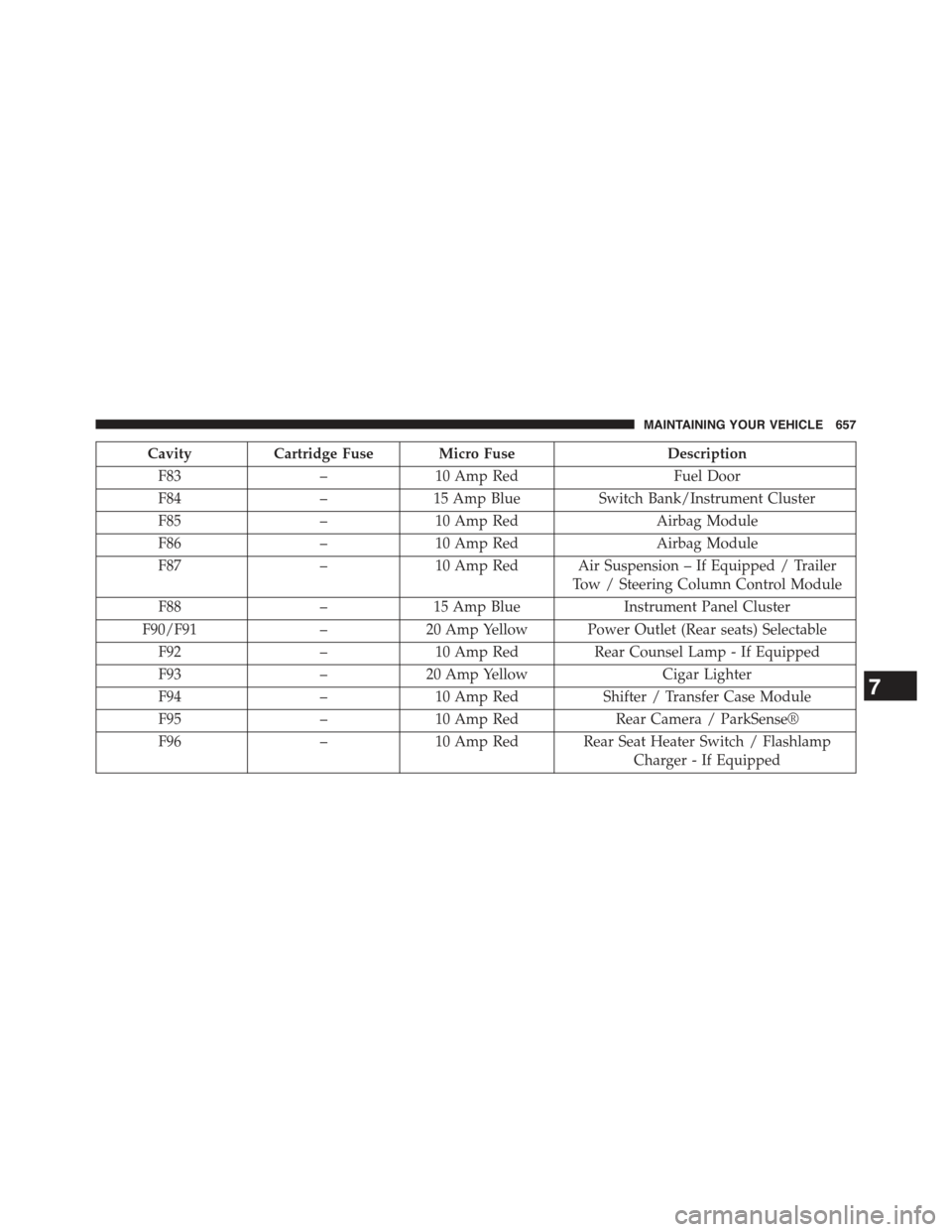

CavityCartridge Fuse Micro FuseDescription
F83–10 Amp RedFuel Door
F84–15 Amp BlueSwitch Bank/Instrument Cluster
F85–10 Amp RedAirbag Module
F86–10 Amp RedAirbag Module
F87–10 Amp Red Air Suspension – If Equipped / Trailer
Tow / Steering Column Control Module
F88–15 Amp BlueInstrument Panel Cluster
F90/F91–20 Amp Yellow Power Outlet (Rear seats) Selectable
F92–10 Amp RedRear Counsel Lamp - If Equipped
F93–20 Amp YellowCigar Lighter
F94–10 Amp RedShifter / Transfer Case Module
F95–10 Amp RedRear Camera / ParkSense®
F96–10 Amp Red Rear Seat Heater Switch / Flashlamp
Charger - If Equipped
7
MAINTAINING YOUR VEHICLE 657

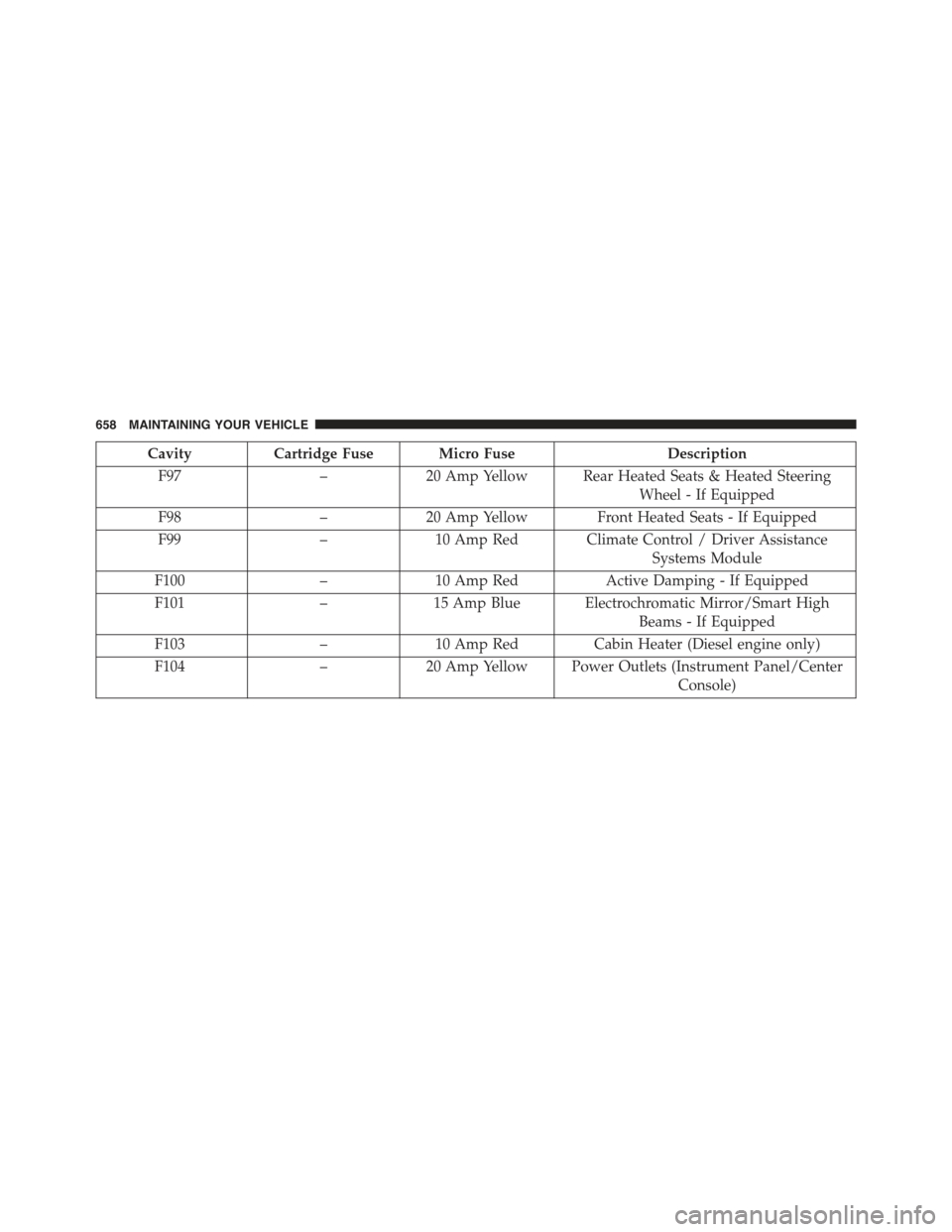

CavityCartridge Fuse Micro FuseDescription
F97–20 Amp Yellow Rear Heated Seats & Heated Steering
Wheel - If Equipped
F98–20 Amp Yellow Front Heated Seats - If Equipped
F99–10 Amp Red Climate Control / Driver Assistance
Systems Module
F100–10 Amp RedActive Damping - If Equipped
F101–15 Amp Blue Electrochromatic Mirror/Smart High
Beams - If Equipped
F103–10 Amp RedCabin Heater (Diesel engine only)
F104–20 Amp Yellow Power Outlets (Instrument Panel/Center
Console)
