JEEP GRAND CHEROKEE 2016 WK2 / 4.G Owners Manual

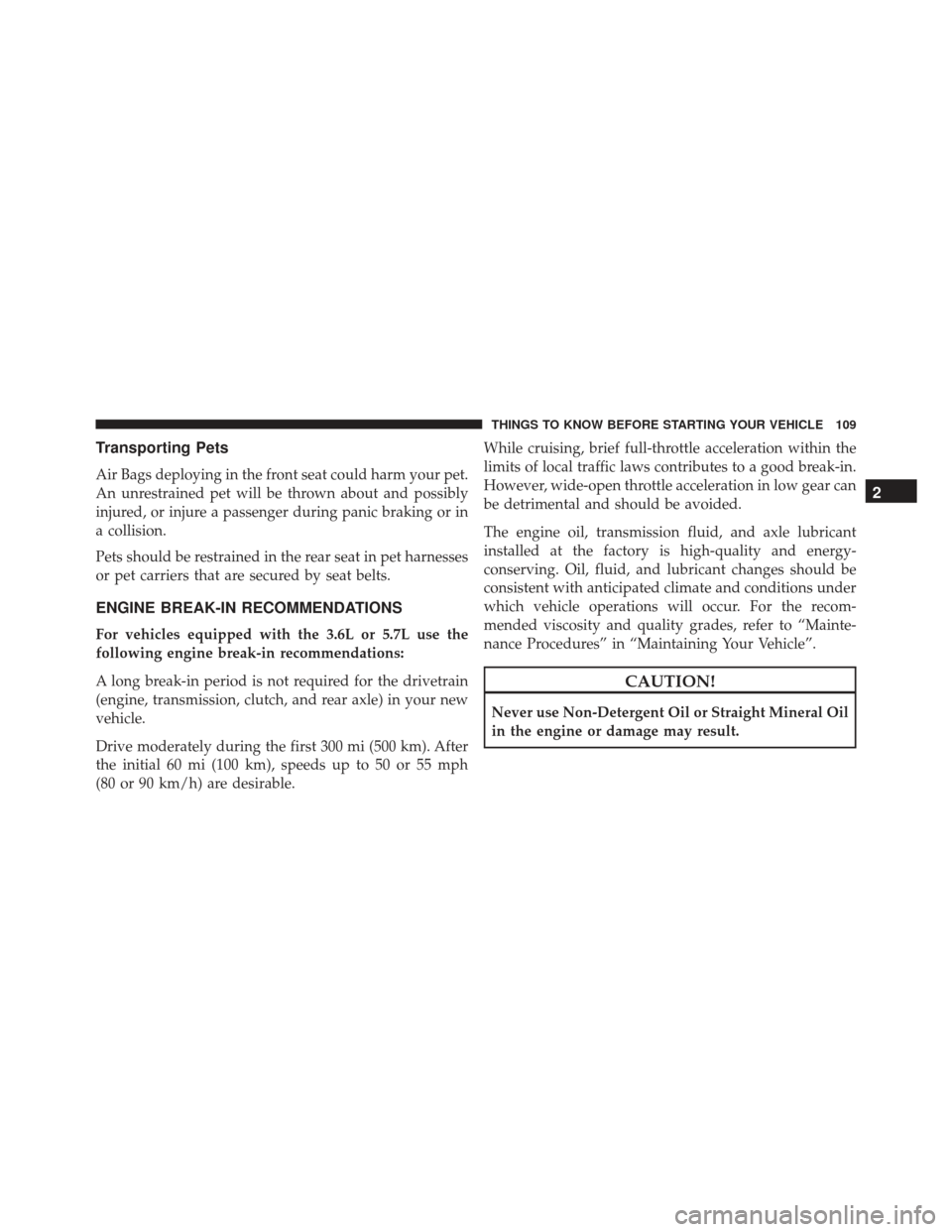

Transporting Pets
Air Bags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possibly
injured, or injure a passenger during panic braking or in
a collision.
Pets should be restrained in the rear seat in pet harnesses
or pet carriers that are secured by seat belts.
ENGINE BREAK-IN RECOMMENDATIONS
For vehicles equipped with the 3.6L or 5.7L use the
following engine break-in recommendations:
A long break-in period is not required for the drivetrain
(engine, transmission, clutch, and rear axle) in your new
vehicle.
Drive moderately during the first 300 mi (500 km). After
the initial 60 mi (100 km), speeds up to 50 or 55 mph
(80 or 90 km/h) are desirable.While cruising, brief full-throttle acceleration within the
limits of local traffic laws contributes to a good break-in.
However, wide-open throttle acceleration in low gear can
be detrimental and should be avoided.
The engine oil, transmission fluid, and axle lubricant
installed at the factory is high-quality and energy-
conserving. Oil, fluid, and lubricant changes should be
consistent with anticipated climate and conditions under
which vehicle operations will occur. For the recom-
mended viscosity and quality grades, refer to “Mainte-
nance Procedures” in “Maintaining Your Vehicle”.
CAUTION!
Never use Non-Detergent Oil or Straight Mineral Oil
in the engine or damage may result.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 109

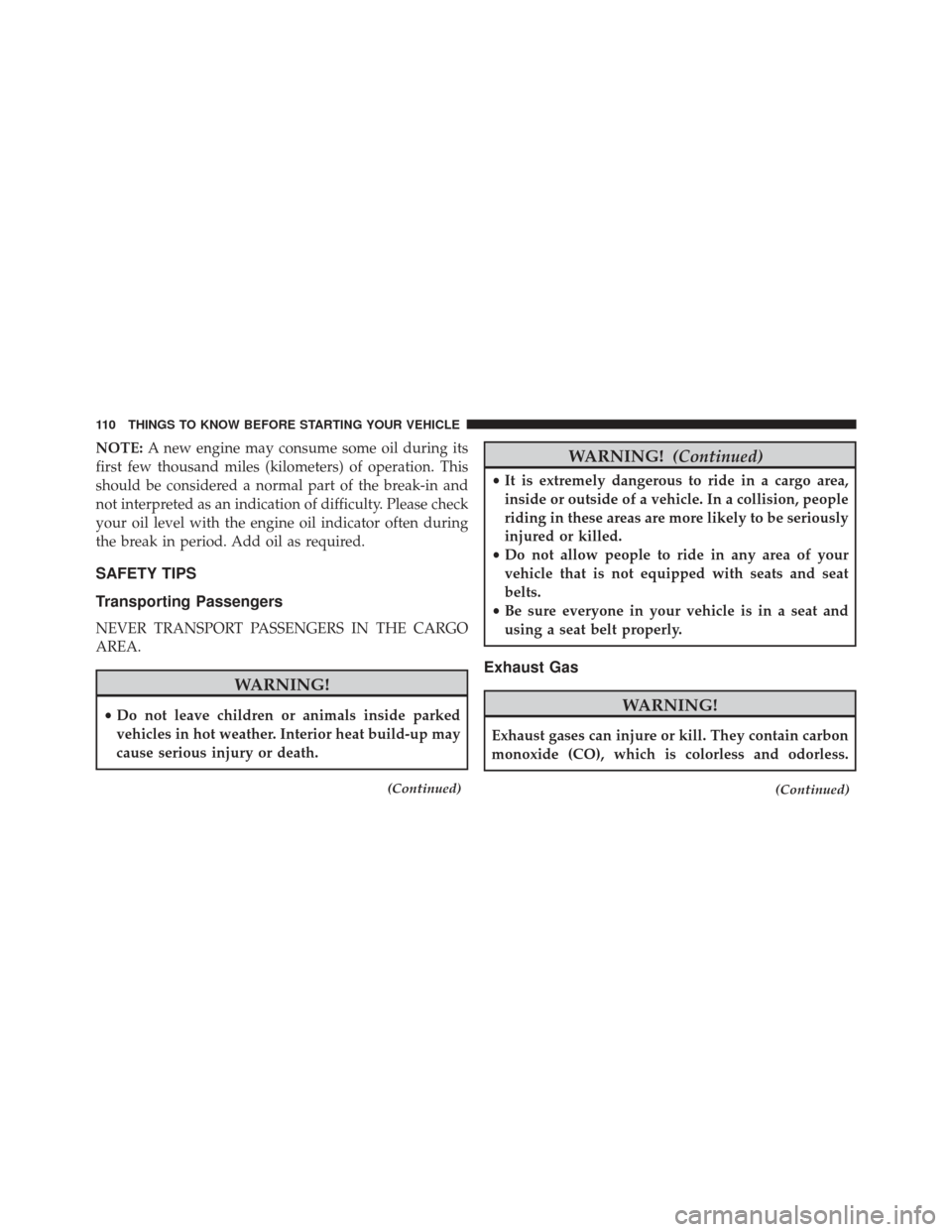

NOTE:A new engine may consume some oil during its
first few thousand miles (kilometers) of operation. This
should be considered a normal part of the break-in and
not interpreted as an indication of difficulty. Please check
your oil level with the engine oil indicator often during
the break in period. Add oil as required.
SAFETY TIPS
Transporting Passengers
NEVER TRANSPORT PASSENGERS IN THE CARGO
AREA.
WARNING!
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
(Continued)
WARNING! (Continued)
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed.
• Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Exhaust Gas
WARNING!
Exhaust gases can injure or kill. They contain carbon
monoxide (CO), which is colorless and odorless.
(Continued)
110 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!(Continued)
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing (CO),
follow these safety tips:
•Do not run the engine in a closed garage or in
confined areas any longer than needed to move
your vehicle in or out of the area.
•
If you are required to drive with the trunk/liftgate/
rear doors open, make sure that all windows are
closed and the climate control BLOWER switch is set
at high speed. DO NOT use the recirculation mode.
• If it is necessary to sit in a parked vehicle with the
engine running, adjust your heating or cooling
controls to force outside air into the vehicle. Set the
blower at high speed. The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the
vehicle, or when the underside or rear of the vehicle is
damaged, have a competent mechanic inspect the com-
plete exhaust system and adjacent body areas for broken,
damaged, deteriorated, or mispositioned parts. Open
seams or loose connections could permit exhaust fumes
to seep into the passenger compartment. In addition,
inspect the exhaust system each time the vehicle is raised
for lubrication or oil change. Replace as required.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 111

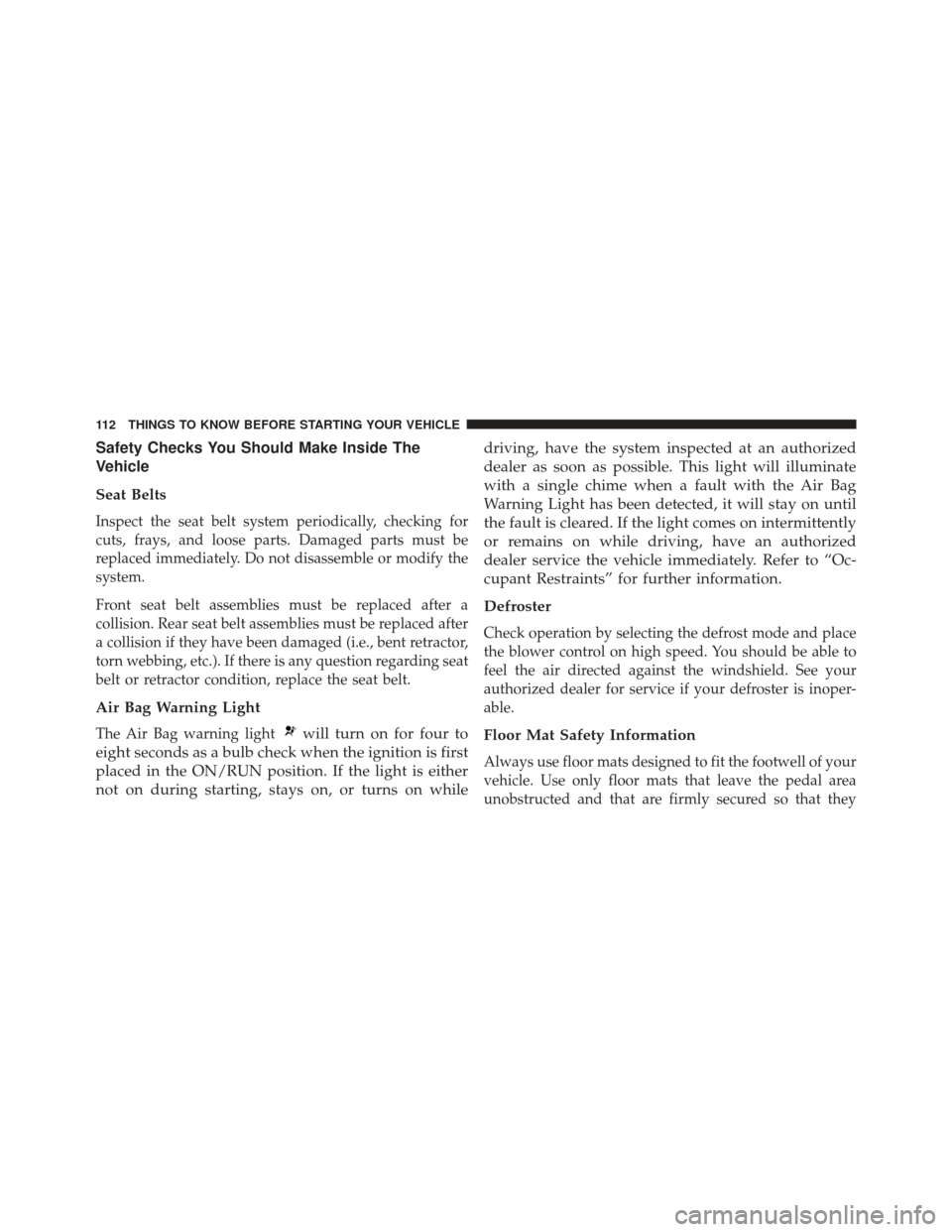

Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the seat belt system periodically, checking for
cuts, frays, and loose parts. Damaged parts must be
replaced immediately. Do not disassemble or modify the
system.
Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (i.e., bent retractor,
torn webbing, etc.). If there is any question regarding seat
belt or retractor condition, replace the seat belt.
Air Bag Warning Light
The Air Bag warning lightwill turn on for four to
eight seconds as a bulb check when the ignition is first
placed in the ON/RUN position. If the light is either
not on during starting, stays on, or turns on while driving, have the system inspected at an authorized
dealer as soon as possible. This light will illuminate
with a single chime when a fault with the Air Bag
Warning Light has been detected, it will stay on until
the fault is cleared. If the light comes on intermittently
or remains on while driving, have an authorized
dealer service the vehicle immediately. Refer to “Oc-
cupant Restraints” for further information.
Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is inoper-
able.
Floor Mat Safety Information
Always use floor mats designed to fit the footwell of your
vehicle. Use only floor mats that leave the pedal area
unobstructed and that are firmly secured so that they
112 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

cannot slip out of position and interfere with the pedals
or impair safe operation of your vehicle in other ways.
WARNING!
Pedals that cannot move freely can cause loss of
vehicle control and increase the risk of serious per-
sonal injury.
•Always make sure that floor mats are properly
attached to the floor mat fasteners.
• Never place or install floor mats or other floor
coverings in the vehicle that cannot be properly
secured to prevent them from moving and interfer-
ing with the pedals or the ability to control the
vehicle.
• Never put floor mats or other floor coverings on top
of already installed floor mats. Additional floor
mats and other coverings will reduce the size of the
pedal area and interfere with the pedals.
(Continued)
WARNING! (Continued)
•Check mounting of mats on a regular basis. Always
properly reinstall and secure floor mats that have
been removed for cleaning.
• Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Ob-
jects can become trapped under the brake pedal
and accelerator pedal causing a loss of vehicle
control.
• If required, mounting posts must be properly in-
stalled, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss of
control of the vehicle.2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 113

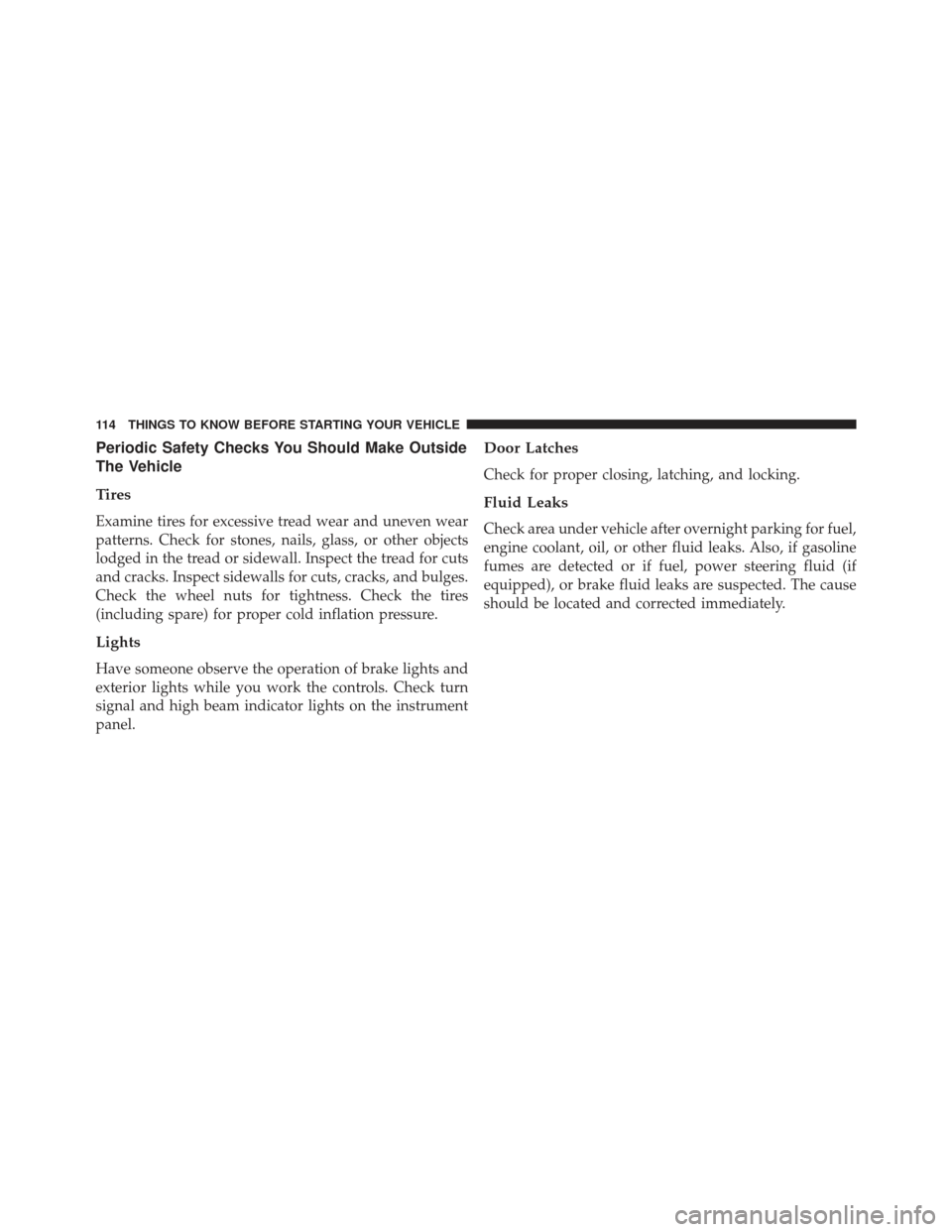

Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks, and bulges.
Check the wheel nuts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
Door Latches
Check for proper closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid (if
equipped), or brake fluid leaks are suspected. The cause
should be located and corrected immediately.
114 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

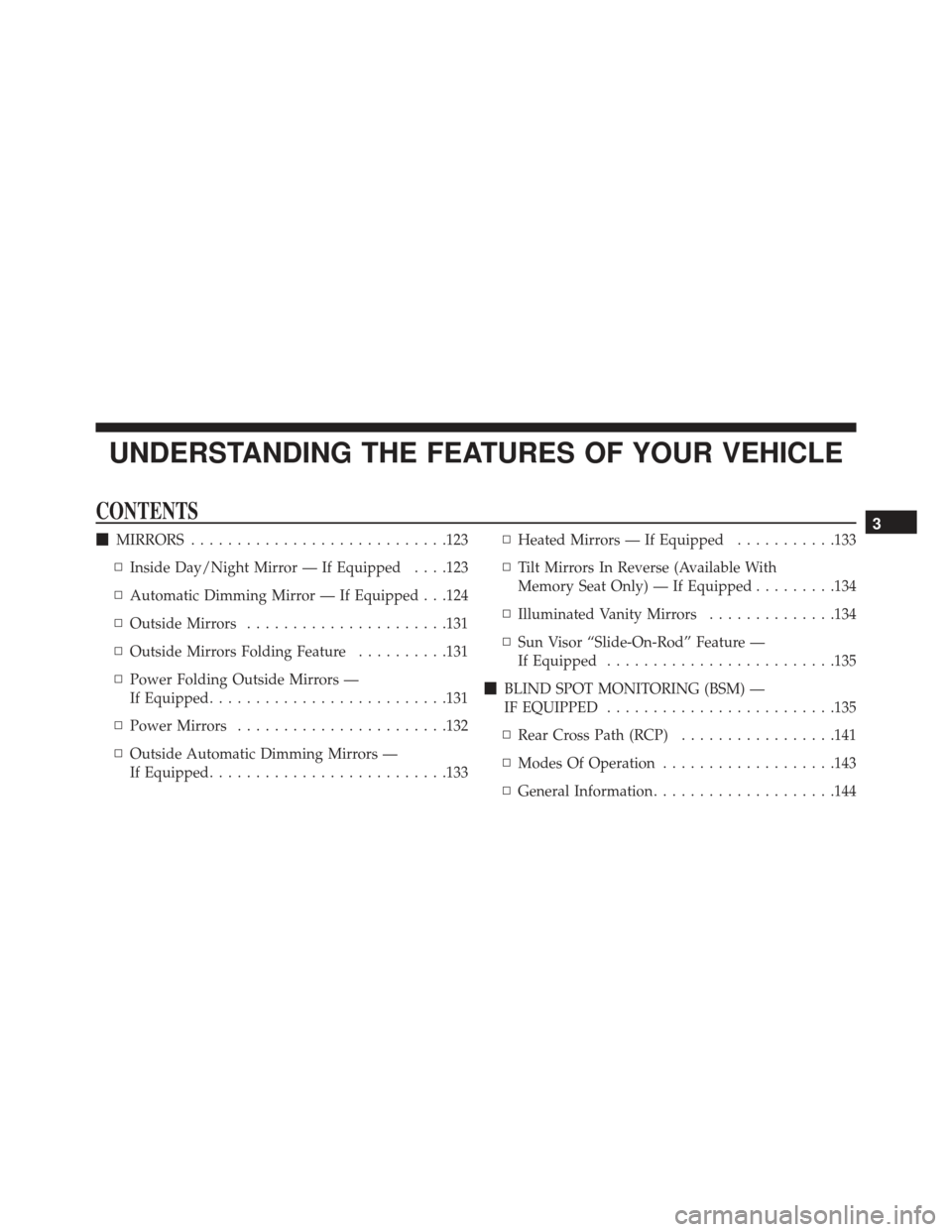

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
MIRRORS ........................... .123
▫ Inside Day/Night Mirror — If Equipped . . . .123
▫ Automatic Dimming Mirror — If Equipped . . .124
▫ Outside Mirrors ..................... .131
▫ Outside Mirrors Folding Feature ..........131
▫ Power Folding Outside Mirrors —
If Equipped ......................... .131
▫ Power Mirrors ...................... .132
▫ Outside Automatic Dimming Mirrors —
If Equipped ......................... .133▫
Heated Mirrors — If Equipped ...........133
▫ Tilt Mirrors In Reverse (Available With
Memory Seat Only) — If Equipped .........134
▫ Illuminated Vanity Mirrors ..............134
▫ Sun Visor “Slide-On-Rod” Feature —
If Equipped ........................ .135
 BLIND SPOT MONITORING (BSM) —
IF EQUIPPED ........................ .135
▫ Rear Cross Path (RCP) .................141
▫ Modes Of Operation ...................143
▫ General Information ....................1443

SEATS ............................. .144
▫ Power Seats — If Equipped ..............145
▫ Power Lumbar — If Equipped ............147
▫ Manual Front Seats Forward/Rearward
Adjustment ........................ .148
▫ Manual Front Passenger Seatback Adjustment —
Recline ........................... .149
▫ Front Passenger Seat Fold-Flat Feature —
If Equipped ........................ .149
▫ Heated Seats — If Equipped .............151
▫ Front Ventilated Seats — If Equipped .......154
▫ Head Restraints ..................... .155
▫ 60/40 Split Rear Seat ..................160
▫ Reclining Rear Seat ....................162
DRIVER MEMORY SEAT — IF EQUIPPED . . . .162
▫ Programming The Memory Feature .........164
▫ Linking And Unlinking The Remote Keyless
Entry Key Fob To Memory ...............164
▫ Memory Position Recall .................165
▫ Easy Entry/Exit Seat ...................166
 TO OPEN AND CLOSE THE HOOD .........167
 LIGHTS ............................ .169
▫ Headlight Switch .....................169
▫ Automatic Headlights — If Equipped .......170
▫ Headlights On Automatically With Wipers . . .170
▫ Automatic High Beam — If Equipped ......171
▫ Daytime Running Lights — If Equipped .....172
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

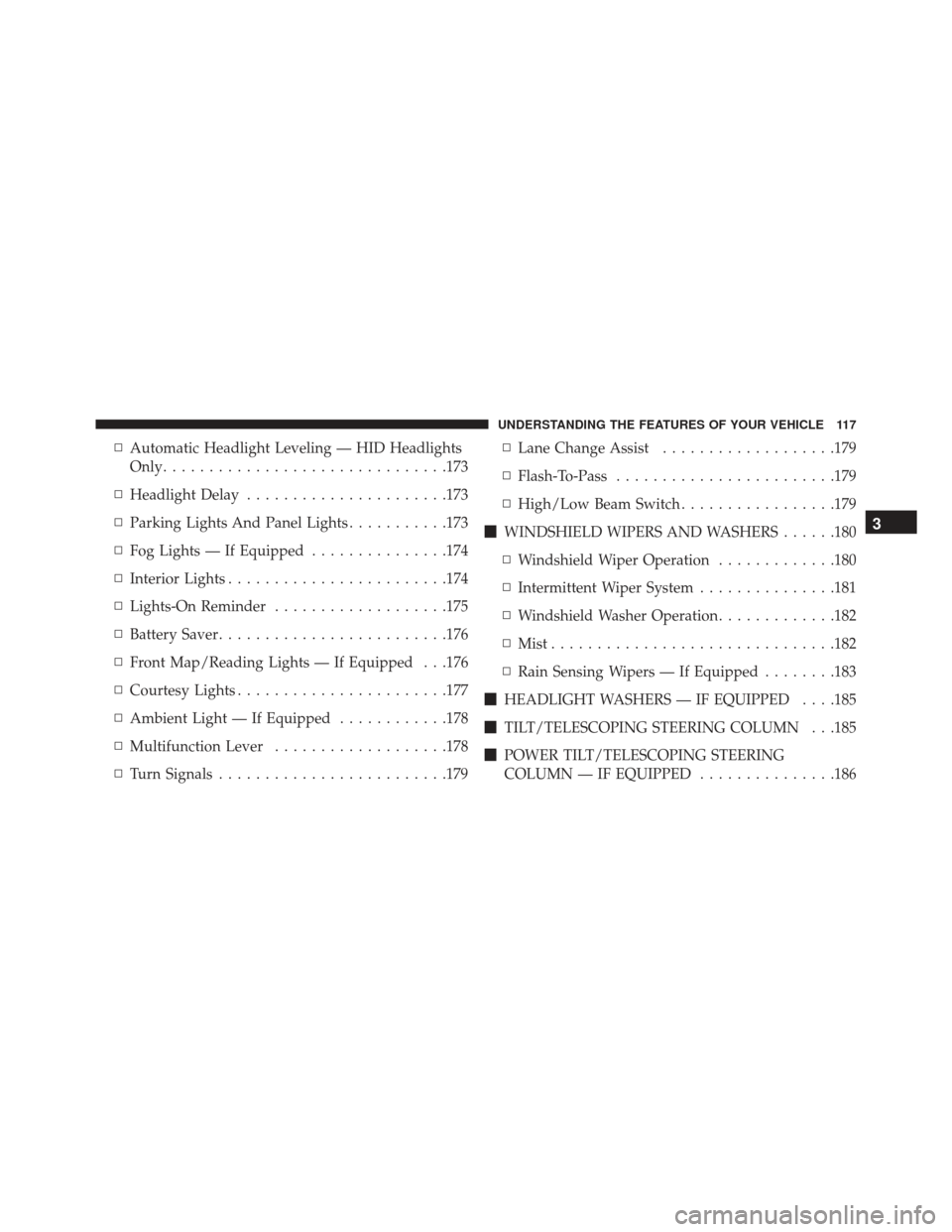

▫Automatic Headlight Leveling — HID Headlights
Only .............................. .173
▫ Headlight Delay ..................... .173
▫ Parking Lights And Panel Lights ...........173
▫ Fog Lights — If Equipped ...............174
▫ Interior Lights ....................... .174
▫ Lights-On Reminder ...................175
▫ Battery Saver ........................ .176
▫ Front Map/Reading Lights — If Equipped . . .176
▫ Courtesy Lights ...................... .177
▫ Ambient Light — If Equipped ............178
▫ Multifunction Lever ...................178
▫ Turn Signals ........................ .179▫
Lane Change Assist ...................179
▫ Flash-To-Pass ....................... .179
▫ High/Low Beam Switch .................179
 WINDSHIELD WIPERS AND WASHERS ......180
▫ Windshield Wiper Operation .............180
▫ Intermittent Wiper System ...............181
▫ Windshield Washer Operation .............182
▫ Mist .............................. .182
▫ Rain Sensing Wipers — If Equipped ........183
 HEADLIGHT WASHERS — IF EQUIPPED . . . .185
 TILT/TELESCOPING STEERING COLUMN . . .185
 POWER TILT/TELESCOPING STEERING
COLUMN — IF EQUIPPED ...............186
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117

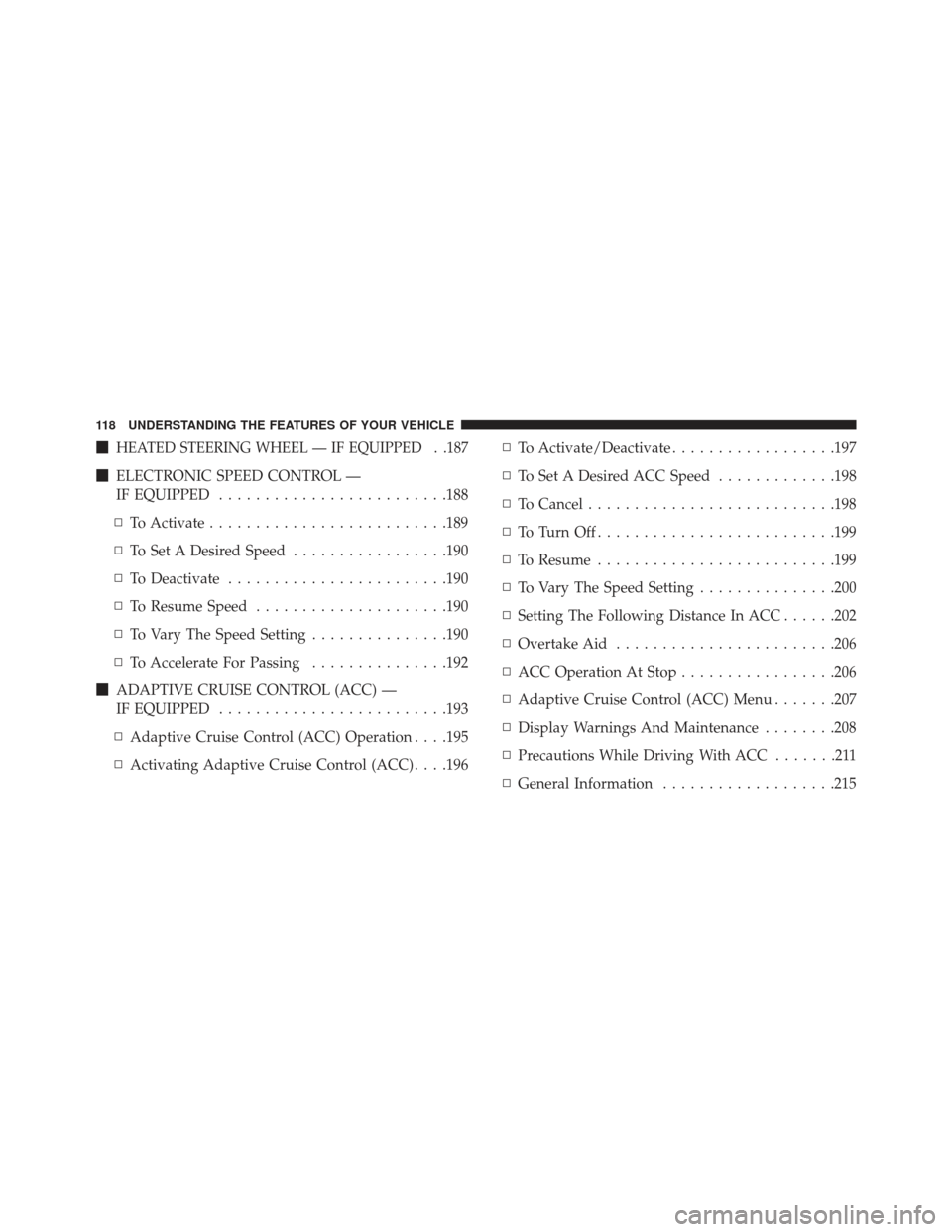

HEATED STEERING WHEEL — IF EQUIPPED . .187
ELECTRONIC SPEED CONTROL —
IF EQUIPPED ........................ .188
▫ To Activate ......................... .189
▫ To Set A Desired Speed .................190
▫ To Deactivate ....................... .190
▫ To Resume Speed .....................190
▫ To Vary The Speed Setting ...............190
▫ To Accelerate For Passing ...............192
 ADAPTIVE CRUISE CONTROL (ACC) —
IF EQUIPPED ........................ .193
▫ Adaptive Cruise Control (ACC) Operation . . . .195
▫ Activating Adaptive Cruise Control (ACC) . . . .196 ▫
To Activate/Deactivate ..................197
▫ To Set A Desired ACC Speed .............198
▫ To Cancel .......................... .198
▫ ToTurnOff......................... .199
▫ To Resume ......................... .199
▫ To Vary The Speed Setting ...............200
▫ Setting The Following Distance In ACC ......202
▫ Overtake Aid ....................... .206
▫ ACC Operation At Stop .................206
▫ Adaptive Cruise Control (ACC) Menu .......207
▫ Display Warnings And Maintenance ........208
▫ Precautions While Driving With ACC .......211
▫ General Information ...................215
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
