JEEP GRAND CHEROKEE 2016 WK2 / 4.G Owners Manual

▫Normal (Fixed Speed) Electronic Speed
Control Mode ....................... .215
 FORWARD COLLISION WARNING (FCW)
WITH MITIGATION — IF EQUIPPED .......219
▫ Forward Collision Warning (FCW) With
Mitigation Operation ...................219
▫ Turning FCW ON Or OFF ...............221
▫ Changing FCW And Active Braking Status. . . .221
▫ FCW Limited Warning ..................223
▫ Service FCW Warning ..................223
 PARKSENSE REAR PARK ASSIST —
IF EQUIPPED ........................ .223
▫ ParkSense Sensors .....................225
▫ ParkSense Warning Display ..............225▫
ParkSense Display .....................226
▫ Enabling And Disabling ParkSense .........231
▫ Service The ParkSense Rear Park Assist
System ............................ .232
▫ Cleaning The ParkSense System ...........233
▫ ParkSense System Usage Precautions ........233

PARKSENSE FRONT AND REAR PARK ASSIST —
IF EQUIPPED
......................... .235
▫ ParkSense Sensors .....................238
▫ ParkSense Warning Display ..............238
▫ ParkSense Display .....................239
▫ Enabling And Disabling ParkSense .........245
▫ Service The ParkSense Park Assist System . . . .246
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119

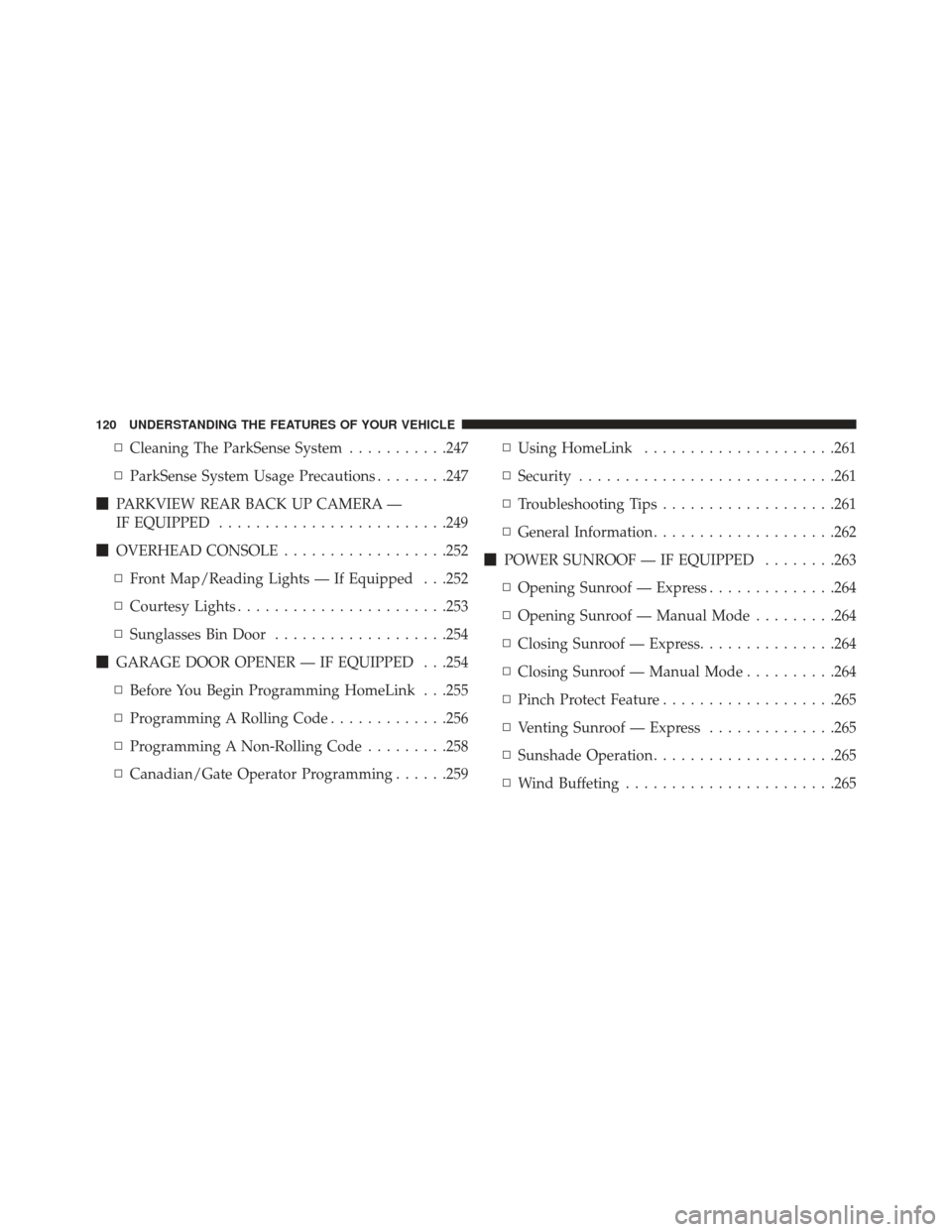

▫Cleaning The ParkSense System ...........247
▫ ParkSense System Usage Precautions ........247
 PARKVIEW REAR BACK UP CAMERA —
IF EQUIPPED ........................ .249
 OVERHEAD CONSOLE ..................252
▫ Front Map/Reading Lights — If Equipped . . .252
▫ Courtesy Lights ...................... .253
▫ Sunglasses Bin Door ...................254
 GARAGE DOOR OPENER — IF EQUIPPED . . .254
▫ Before You Begin Programming HomeLink . . .255
▫ Programming A Rolling Code .............256
▫ Programming A Non-Rolling Code .........258
▫ Canadian/Gate Operator Programming ......259▫
Using HomeLink .....................261
▫ Security ........................... .261
▫ Troubleshooting Tips ...................261
▫ General Information ....................262
 POWER SUNROOF — IF EQUIPPED ........263
▫ Opening Sunroof — Express ..............264
▫ Opening Sunroof — Manual Mode .........264
▫ Closing Sunroof — Express ...............264
▫ Closing Sunroof — Manual Mode ..........264
▫ Pinch Protect Feature ...................265
▫ Venting Sunroof — Express ..............265
▫ Sunshade Operation ....................265
▫ Wind Buffeting ...................... .265
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

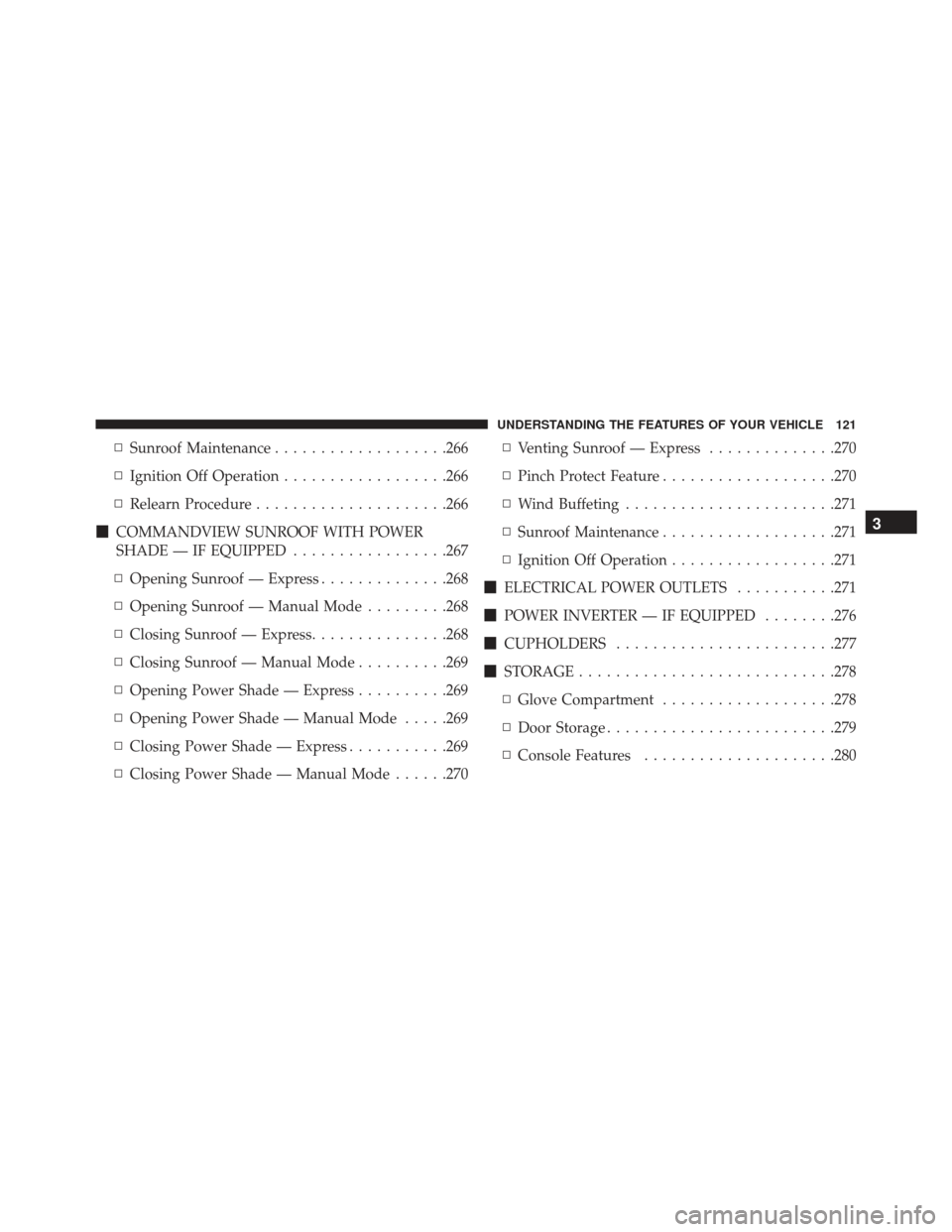

▫Sunroof Maintenance ...................266
▫ Ignition Off Operation ..................266
▫ Relearn Procedure .....................266
 COMMANDVIEW SUNROOF WITH POWER
SHADE — IF EQUIPPED .................267
▫ Opening Sunroof — Express ..............268
▫ Opening Sunroof — Manual Mode .........268
▫ Closing Sunroof — Express ...............268
▫ Closing Sunroof — Manual Mode ..........269
▫ Opening Power Shade — Express ..........269
▫ Opening Power Shade — Manual Mode .....269
▫ Closing Power Shade — Express ...........269
▫ Closing Power Shade — Manual Mode ......270▫
Venting Sunroof — Express ..............270
▫ Pinch Protect Feature ...................270
▫ Wind Buffeting ...................... .271
▫ Sunroof Maintenance ...................271
▫ Ignition Off Operation ..................271
 ELECTRICAL POWER OUTLETS ...........271
 POWER INVERTER — IF EQUIPPED ........276
 CUPHOLDERS ....................... .277
 STORAGE ........................... .278
▫ Glove Compartment ...................278
▫ Door Storage ........................ .279
▫ Console Features .....................280
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121

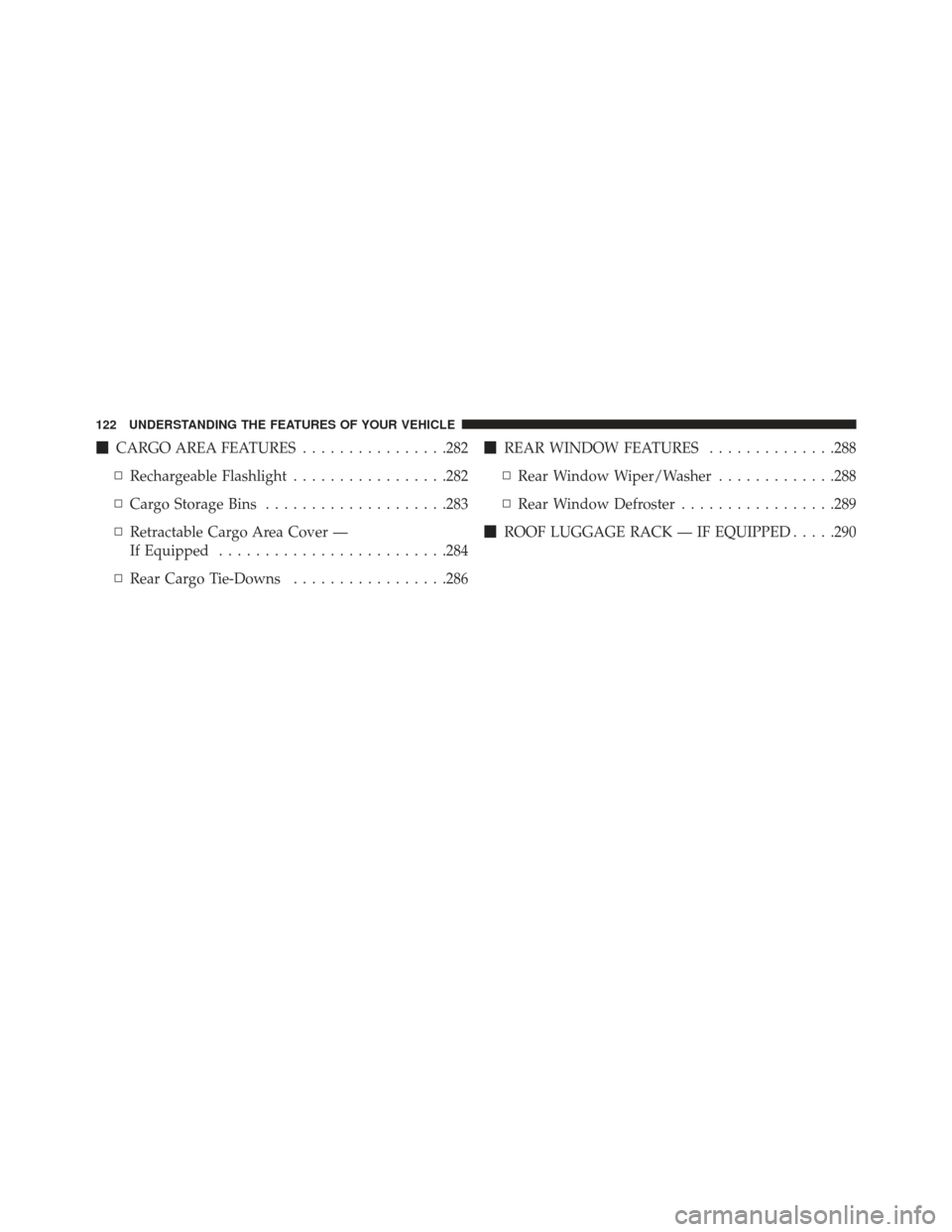

CARGO AREA FEATURES ................282
▫ Rechargeable Flashlight .................282
▫ Cargo Storage Bins ....................283
▫ Retractable Cargo Area Cover —
If Equipped ........................ .284
▫ Rear Cargo Tie-Downs .................286
REAR WINDOW FEATURES ..............288
▫ Rear Window Wiper/Washer .............288
▫ Rear Window Defroster .................289
 ROOF LUGGAGE RACK — IF EQUIPPED .....290
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

MIRRORS
Inside Day/Night Mirror — If Equipped
The mirror head can be adjusted up, down, left, and right
for various drivers. The mirror should be adjusted to
center on the view through the rear window.
Headlight glare from vehicles behind you can be reduced
by moving the small control under the mirror to the night
position (toward the rear of the vehicle). The mirror
should be adjusted while set in the day position (toward
the windshield).
Adjusting Rearview Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123

Automatic Dimming Mirror — If Equipped
The mirror head can be adjusted up, down, left, and right
for various drivers. The mirror should be adjusted to
center on the view through the rear window.
This mirror automatically adjusts for headlight glare
from vehicles behind you.
NOTE:The Automatic Dimming Mirror feature is dis-
abled when the vehicle is in reverse gear to improve rear
view viewing.
The Automatic Dimming Mirror feature can be turned
On or Off through the touchscreen.
• Press the Mirror Dimmer button once to turn the
feature On.
• Press the Mirror Dimmer button a second time to turn
the feature Off. If equipped, the rearview mirror contains an ASSIST and
a 9-1-1 button.
Automatic Dimming Mirror
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

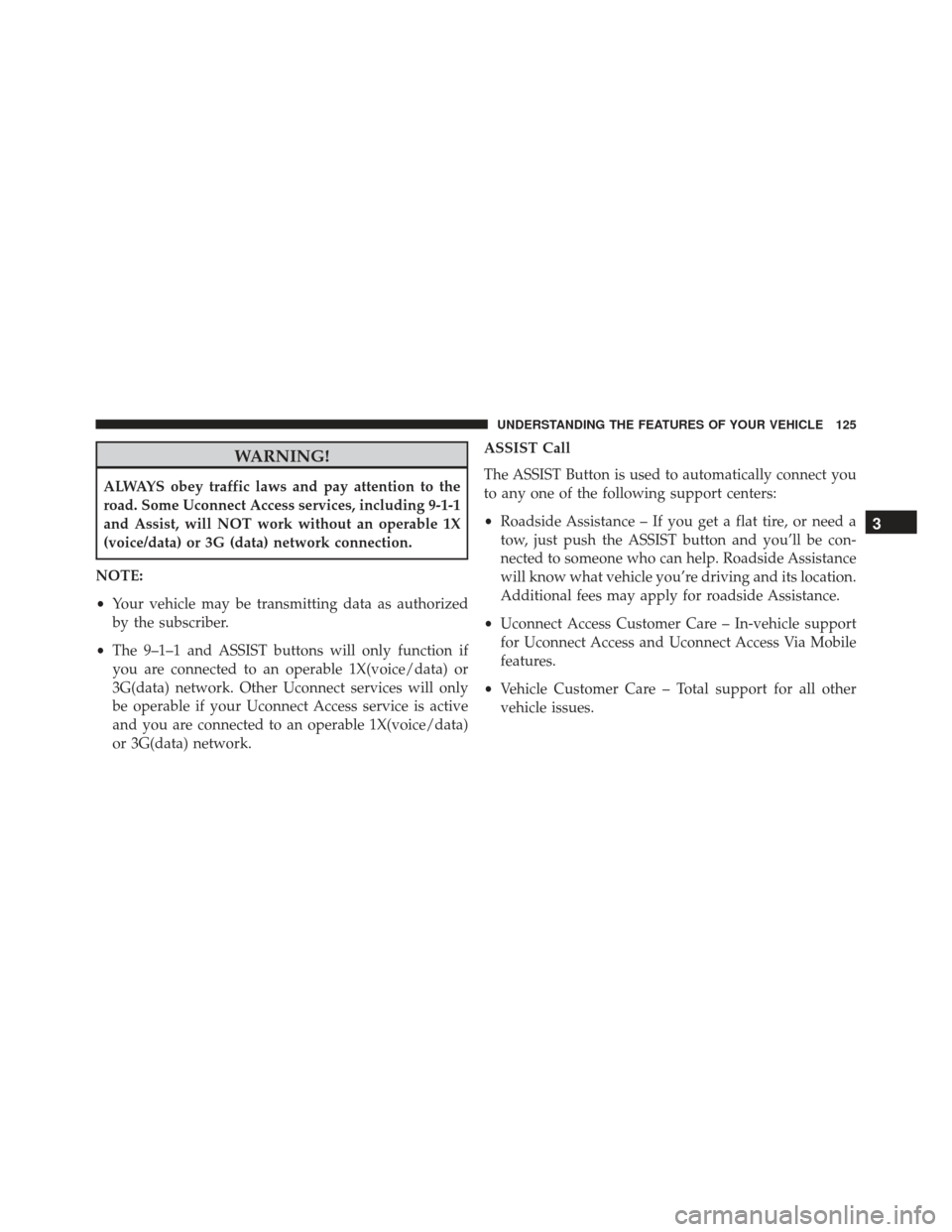

WARNING!
ALWAYS obey traffic laws and pay attention to the
road. Some Uconnect Access services, including 9-1-1
and Assist, will NOT work without an operable 1X
(voice/data) or 3G (data) network connection.
NOTE:
• Your vehicle may be transmitting data as authorized
by the subscriber.
• The 9–1–1 and ASSIST buttons will only function if
you are connected to an operable 1X(voice/data) or
3G(data) network. Other Uconnect services will only
be operable if your Uconnect Access service is active
and you are connected to an operable 1X(voice/data)
or 3G(data) network. ASSIST Call
The ASSIST Button is used to automatically connect you
to any one of the following support centers:
•
Roadside Assistance – If you get a flat tire, or need a
tow, just push the ASSIST button and you’ll be con-
nected to someone who can help. Roadside Assistance
will know what vehicle you’re driving and its location.
Additional fees may apply for roadside Assistance.
• Uconnect Access Customer Care – In-vehicle support
for Uconnect Access and Uconnect Access Via Mobile
features.
• Vehicle Customer Care – Total support for all other
vehicle issues.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125

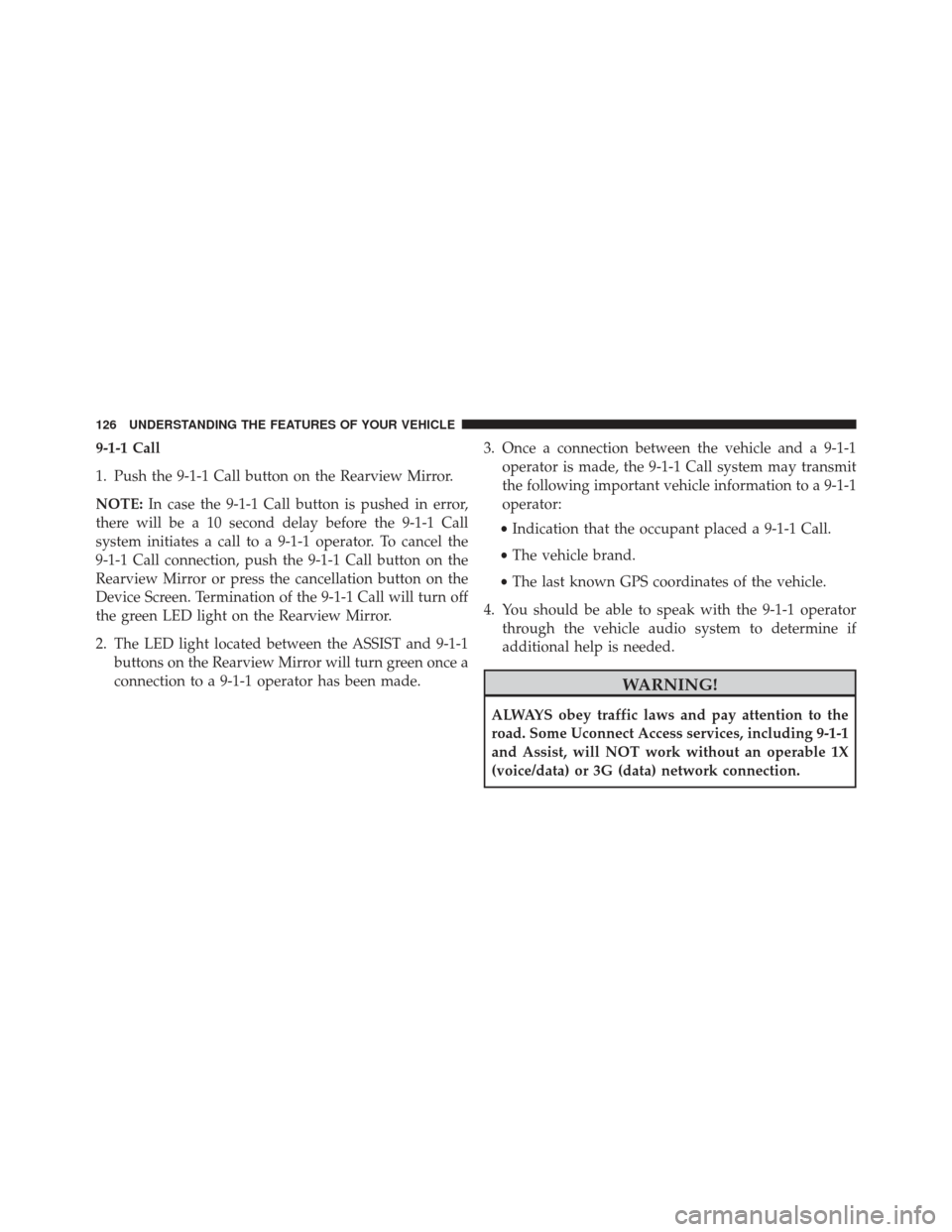

9-1-1 Call
1. Push the 9-1-1 Call button on the Rearview Mirror.
NOTE:In case the 9-1-1 Call button is pushed in error,
there will be a 10 second delay before the 9-1-1 Call
system initiates a call to a 9-1-1 operator. To cancel the
9-1-1 Call connection, push the 9-1-1 Call button on the
Rearview Mirror or press the cancellation button on the
Device Screen. Termination of the 9-1-1 Call will turn off
the green LED light on the Rearview Mirror.
2. The LED light located between the ASSIST and 9-1-1 buttons on the Rearview Mirror will turn green once a
connection to a 9-1-1 operator has been made. 3. Once a connection between the vehicle and a 9-1-1
operator is made, the 9-1-1 Call system may transmit
the following important vehicle information to a 9-1-1
operator:
• Indication that the occupant placed a 9-1-1 Call.
• The vehicle brand.
• The last known GPS coordinates of the vehicle.
4. You should be able to speak with the 9-1-1 operator through the vehicle audio system to determine if
additional help is needed.
WARNING!
ALWAYS obey traffic laws and pay attention to the
road. Some Uconnect Access services, including 9-1-1
and Assist, will NOT work without an operable 1X
(voice/data) or 3G (data) network connection.
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

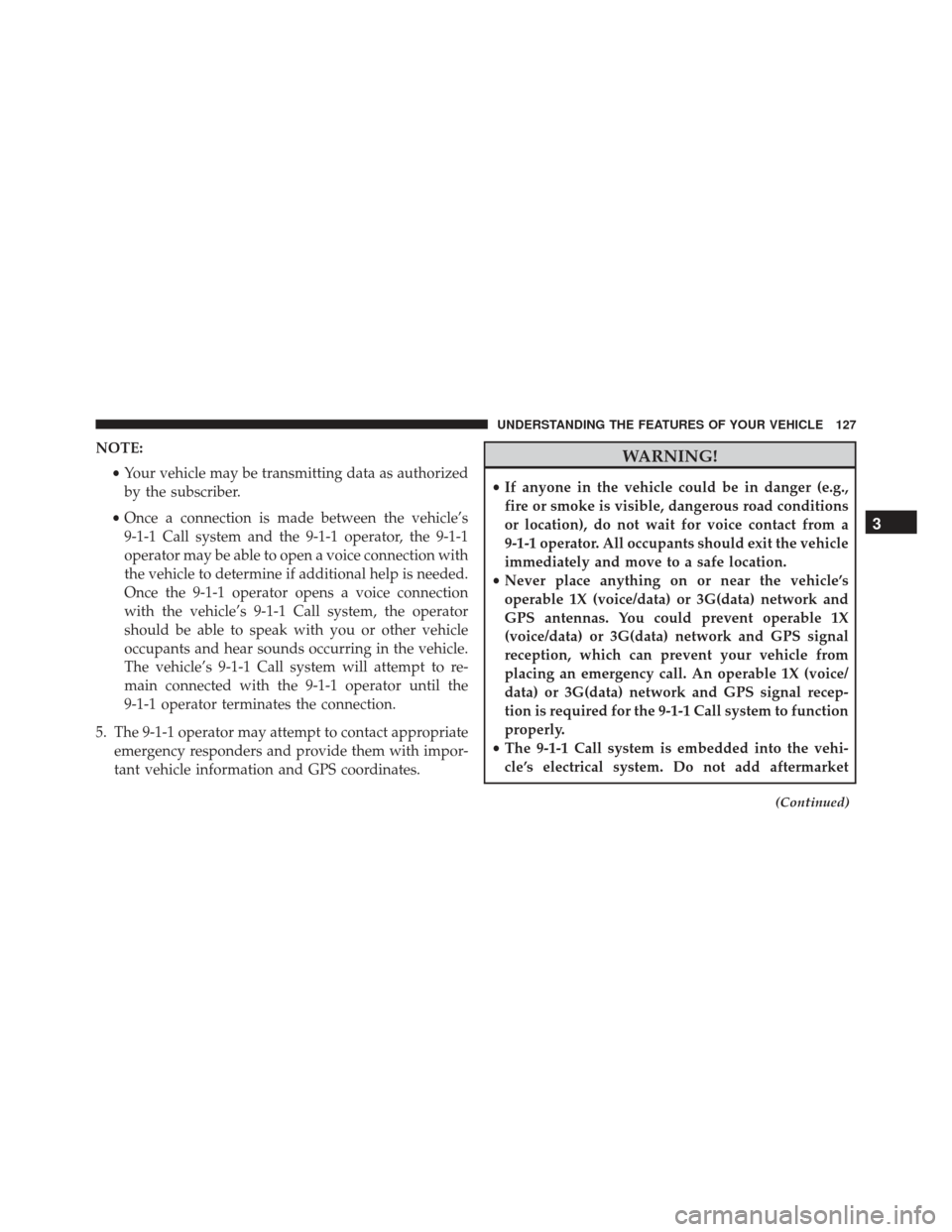

NOTE:•Your vehicle may be transmitting data as authorized
by the subscriber.
• Once a connection is made between the vehicle’s
9-1-1 Call system and the 9-1-1 operator, the 9-1-1
operator may be able to open a voice connection with
the vehicle to determine if additional help is needed.
Once the 9-1-1 operator opens a voice connection
with the vehicle’s 9-1-1 Call system, the operator
should be able to speak with you or other vehicle
occupants and hear sounds occurring in the vehicle.
The vehicle’s 9-1-1 Call system will attempt to re-
main connected with the 9-1-1 operator until the
9-1-1 operator terminates the connection.
5. The 9-1-1 operator may attempt to contact appropriate emergency responders and provide them with impor-
tant vehicle information and GPS coordinates.WARNING!
•If anyone in the vehicle could be in danger (e.g.,
fire or smoke is visible, dangerous road conditions
or location), do not wait for voice contact from a
9-1-1 operator. All occupants should exit the vehicle
immediately and move to a safe location.
• Never place anything on or near the vehicle’s
operable 1X (voice/data) or 3G(data) network and
GPS antennas. You could prevent operable 1X
(voice/data) or 3G(data) network and GPS signal
reception, which can prevent your vehicle from
placing an emergency call. An operable 1X (voice/
data) or 3G(data) network and GPS signal recep-
tion is required for the 9-1-1 Call system to function
properly.
• The 9-1-1 Call system is embedded into the vehi-
cle’s electrical system. Do not add aftermarket
(Continued)
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127

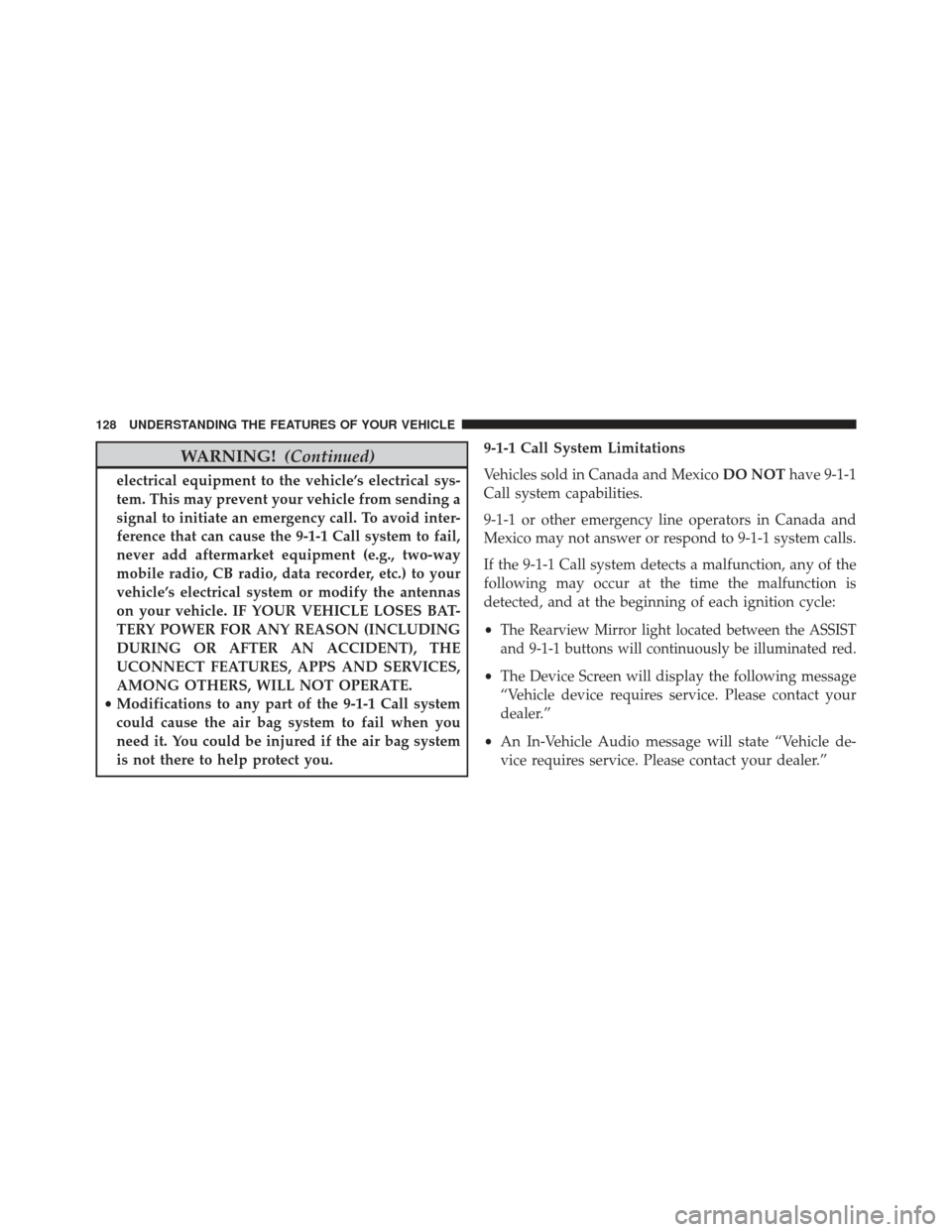

WARNING!(Continued)
electrical equipment to the vehicle’s electrical sys-
tem. This may prevent your vehicle from sending a
signal to initiate an emergency call. To avoid inter-
ference that can cause the 9-1-1 Call system to fail,
never add aftermarket equipment (e.g., two-way
mobile radio, CB radio, data recorder, etc.) to your
vehicle’s electrical system or modify the antennas
on your vehicle. IF YOUR VEHICLE LOSES BAT-
TERY POWER FOR ANY REASON (INCLUDING
DURING OR AFTER AN ACCIDENT), THE
UCONNECT FEATURES, APPS AND SERVICES,
AMONG OTHERS, WILL NOT OPERATE.
• Modifications to any part of the 9-1-1 Call system
could cause the air bag system to fail when you
need it. You could be injured if the air bag system
is not there to help protect you. 9-1-1 Call System Limitations
Vehicles sold in Canada and Mexico
DO NOThave 9-1-1
Call system capabilities.
9-1-1 or other emergency line operators in Canada and
Mexico may not answer or respond to 9-1-1 system calls.
If the 9-1-1 Call system detects a malfunction, any of the
following may occur at the time the malfunction is
detected, and at the beginning of each ignition cycle:
•
The Rearview Mirror light located between the ASSIST
and 9-1-1 buttons will continuously be illuminated red.
• The Device Screen will display the following message
“Vehicle device requires service. Please contact your
dealer.”
• An In-Vehicle Audio message will state “Vehicle de-
vice requires service. Please contact your dealer.”
