Page 41 of 745

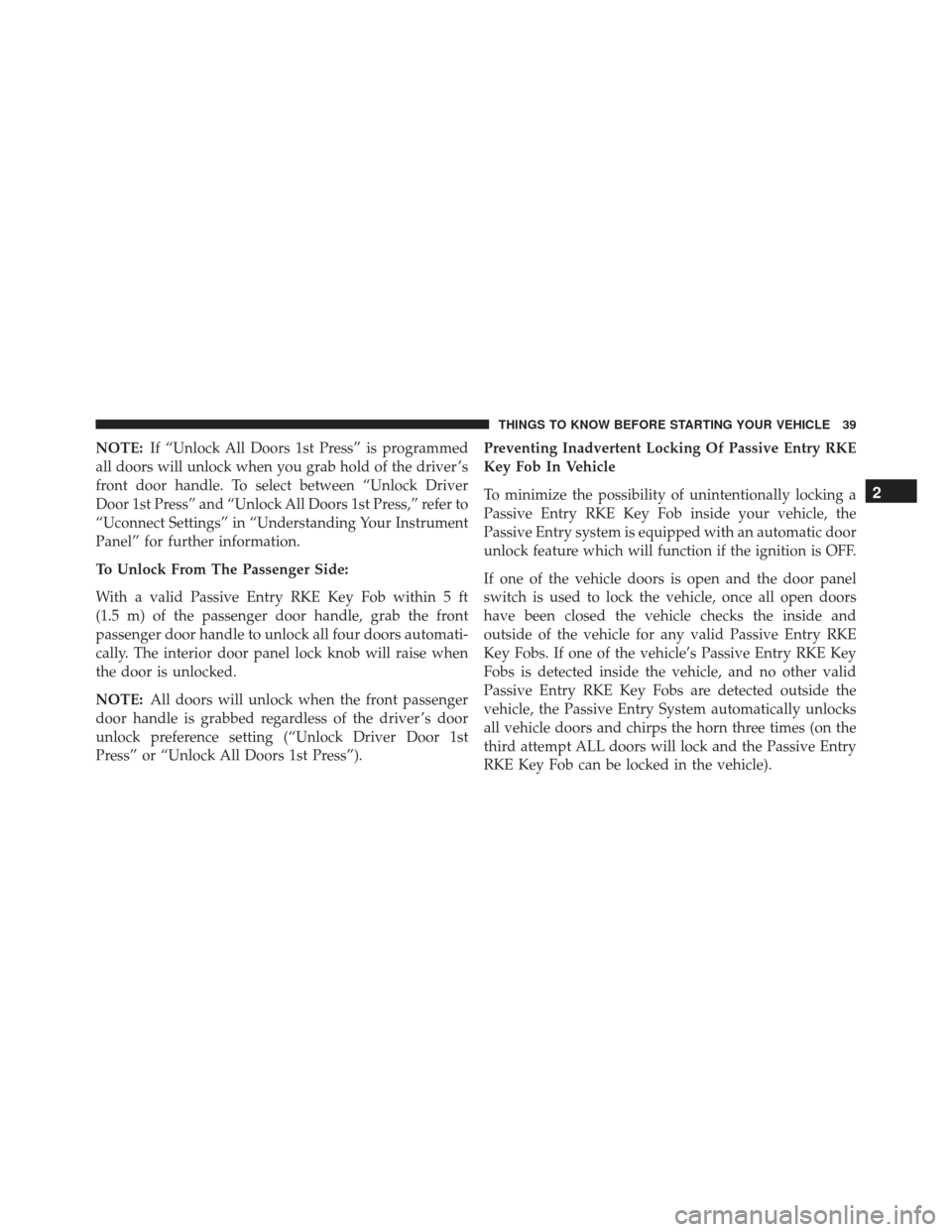

NOTE:If “Unlock All Doors 1st Press” is programmed
all doors will unlock when you grab hold of the driver ’s
front door handle. To select between “Unlock Driver
Door 1st Press” and “Unlock All Doors 1st Press,” refer to
“Uconnect Settings” in “Understanding Your Instrument
Panel” for further information.
To Unlock From The Passenger Side:
With a valid Passive Entry RKE Key Fob within 5 ft
(1.5 m) of the passenger door handle, grab the front
passenger door handle to unlock all four doors automati-
cally. The interior door panel lock knob will raise when
the door is unlocked.
NOTE: All doors will unlock when the front passenger
door handle is grabbed regardless of the driver ’s door
unlock preference setting (“Unlock Driver Door 1st
Press” or “Unlock All Doors 1st Press”). Preventing Inadvertent Locking Of Passive Entry RKE
Key Fob In Vehicle
To minimize the possibility of unintentionally locking a
Passive Entry RKE Key Fob inside your vehicle, the
Passive Entry system is equipped with an automatic door
unlock feature which will function if the ignition is OFF.
If one of the vehicle doors is open and the door panel
switch is used to lock the vehicle, once all open doors
have been closed the vehicle checks the inside and
outside of the vehicle for any valid Passive Entry RKE
Key Fobs. If one of the vehicle’s Passive Entry RKE Key
Fobs is detected inside the vehicle, and no other valid
Passive Entry RKE Key Fobs are detected outside the
vehicle, the Passive Entry System automatically unlocks
all vehicle doors and chirps the horn three times (on the
third attempt ALL doors will lock and the Passive Entry
RKE Key Fob can be locked in the vehicle).
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39
Page 42 of 745
To Unlock/Enter The Liftgate
The liftgate passive entry unlock feature is built into the
electronic liftgate release. With a valid Passive Entry RKE
Key Fob within 3 ft (1.0 m) of the liftgate, push the
electronic liftgate release for a power open on vehicles
equipped with Power Liftgate. Push the electronic lift-
gate release and lift for Manual Liftgate vehicles.
NOTE:If the vehicle is unlocked, then the liftgate will
open with the electronic liftgate release and no RKE Key
Fob is required.
Passive Entry/Lock Button Location
1 — Electronic Liftgate Release
2 — Lock Button Location
40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 43 of 745
To Lock The Liftgate
With a valid Passive Entry RKE Key Fob within 3 ft
(1.0 m) of the liftgate, push the passive entry lock button
located to the right of electronic liftgate release.
NOTE:If “Unlock All Doors 1st Press” is programmed
in Uconnect Settings, all doors will unlock when you
push the electronic liftgate release. If Unlock Driver
Door 1st Press is programmed in Uconnect, the liftgate
will only unlock when you push the electronic liftgate
release. For further information, refer to “Uconnect Set-
tings” in “Understanding Your Instrument Panel.”
To Lock The Vehicle’s Doors
With one of the vehicle’s Passive Entry RKE Key Fobs
within 5 ft (1.5 m) of the driver or passenger front door
handle, push the door handle LOCK button to lock all
four doors and liftgate. NOTE:
The key must be within 5 ft (1.5 m) of the handle
being used to lock the vehicle.
Push The Door Handle Button To Lock
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41
Page 44 of 745
Do NOT grab the door handle, when pushing the door
handle button. This could unlock the door(s).NOTE:
•
After pushing the door handle button, you must wait
two seconds before you can lock or unlock the doors,
using either Passive Entry door handle. This is done to
allow you to check if the vehicle is locked by pulling
the door handle without the vehicle reacting and
unlocking.
• The Passive Entry system will not operate if the RKE
Key Fob battery is dead.
• Closeness to mobile devices can have an effect on the
passive entry system.
The vehicle doors can also be locked by using the RKE
Key Fob lock button or the lock button located on the
vehicle’s interior door panel.
Do NOT Grab The Door Handle When Locking
42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 45 of 745

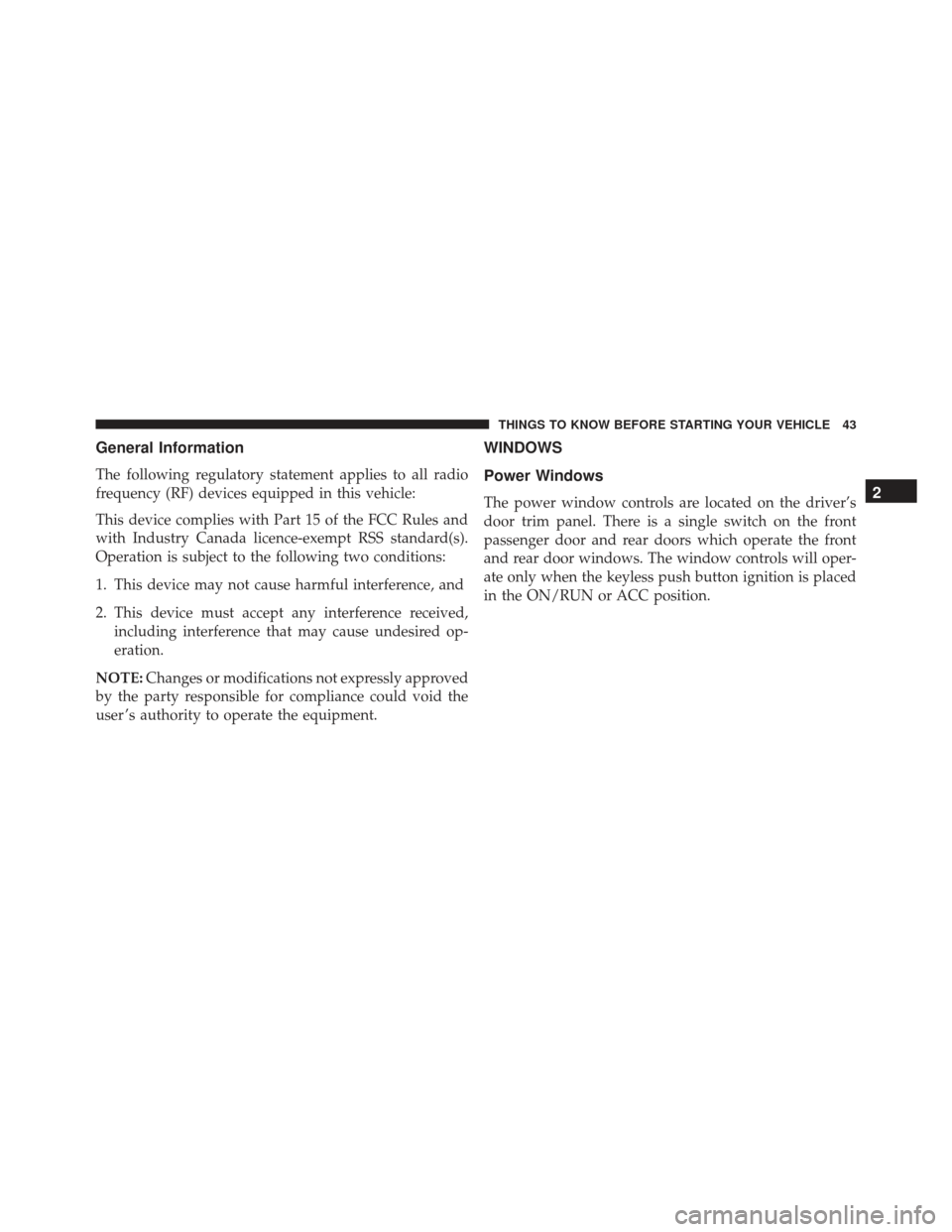

General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,including interference that may cause undesired op-
eration.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
WINDOWS
Power Windows
The power window controls are located on the driver’s
door trim panel. There is a single switch on the front
passenger door and rear doors which operate the front
and rear door windows. The window controls will oper-
ate only when the keyless push button ignition is placed
in the ON/RUN or ACC position.2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43
Page 46 of 745
The power window switches remain active for up to ten
minutes after the keyless push button ignition has been
turned OFF. Opening a vehicle front door will cancel this
feature.
WARNING!
Never leave children unattended in a vehicle, and do
not let children play with power windows. Do not
leave the RKE Key Fob in or near the vehicle, or in a
location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ACC or ON/RUN mode. Occupants,
particularly unattended children, can become en-
trapped by the windows while operating the power
window switches. Such entrapment may result in
serious injury or death.
Auto-Down
Both the driver and front passenger window switches
have an “Auto-Down” feature. Push the window switch
past the first detent, release, and the window will go
Power Window Switches
44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 47 of 745
down automatically. To cancel the “Auto-Down” move-
ment, operate the switch in either the up or down
direction and release the switch.
To open the window part way, push to the first detent
and release it when you want the window to stop.Auto Up Feature With Anti-Pinch Protection —
Driver And Front Passenger Door Only
Lift the window switch fully upward to the second
detent, release, and the window will go up automatically.
To stop the window from going all the way up during the
“Auto Up” operation, push down on the switch briefly.
To close the window part way, lift the window switch to
the first detent and release when you want the window to
stop.
NOTE:If the window runs into any obstacle during
“Auto Up,” it will reverse direction and then go back
down. Remove the obstacle and use the window switch
again to close the window. Any impact due to rough road
conditions may trigger the auto reverse function unex-
pectedly during “Auto-Up.” If this happens, pull the
switch lightly to the first detent and hold it to close the
window manually.
Auto-Down Window Switches
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45
Page 48 of 745
WARNING!
There is no anti-pinch protection when the window
is almost closed. Be sure to clear all objects from the
window before closing.
Resetting The Auto Up Feature
Should the “Auto Up” feature stop working, the window
probably needs to be reset. To reset “Auto Up”:
1. Pull the window switch up to close the windowcompletely and continue to hold the switch up for an
additional two seconds after the window is closed.
2. Push the window switch down firmly to the second detent to open the window completely and continue
to hold the switch down for an additional two seconds
after the window is fully open.
Window Lockout Button
The Window Lockout button on the driver’s door allows
you to disable the window controls on the rear doors. To
disable the window controls on the rear doors, push the
Window Lockout button. To enable the window controls,
push the Window Lockout button again.
Window Lockout Button
46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 49 of 745

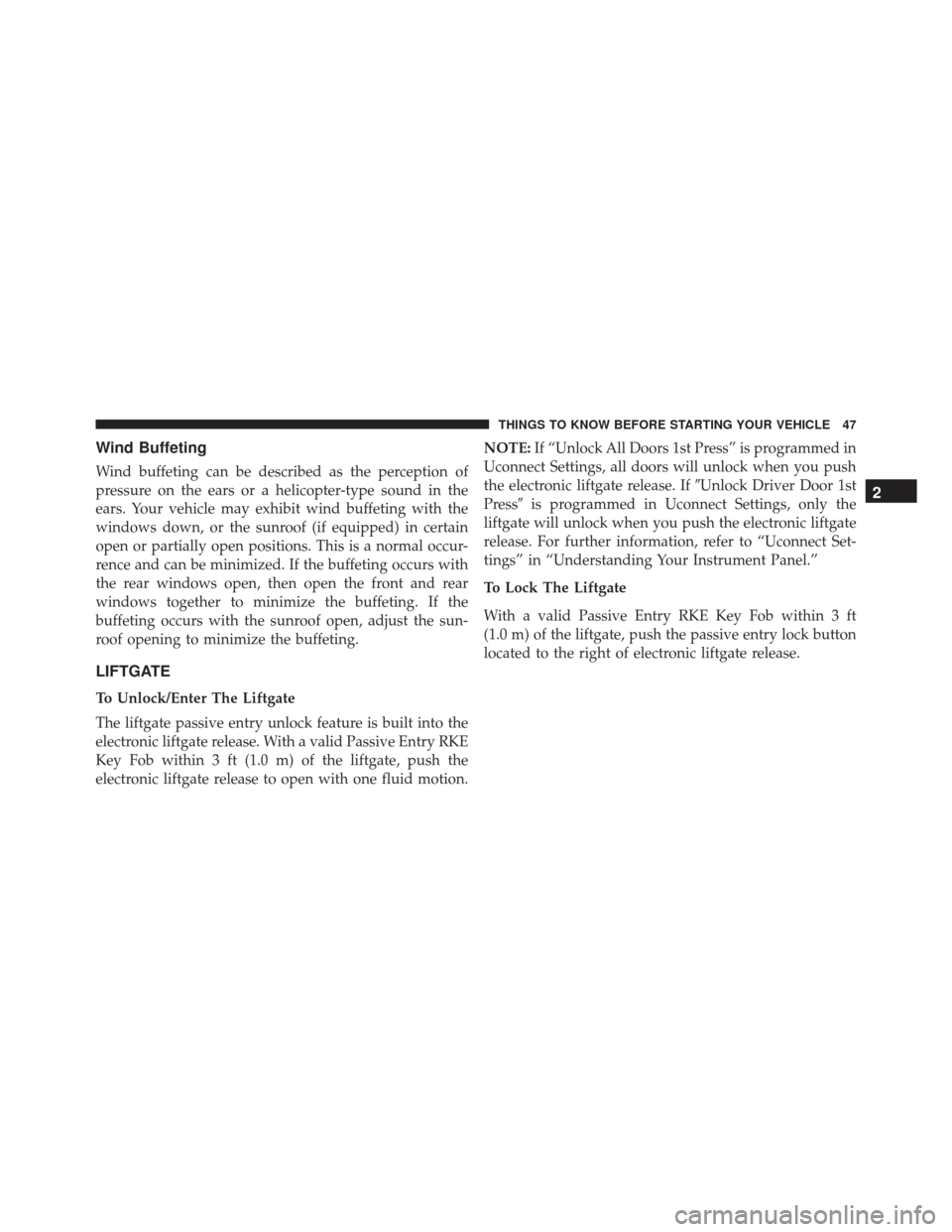

Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, then open the front and rear
windows together to minimize the buffeting. If the
buffeting occurs with the sunroof open, adjust the sun-
roof opening to minimize the buffeting.
LIFTGATE
To Unlock/Enter The Liftgate
The liftgate passive entry unlock feature is built into the
electronic liftgate release. With a valid Passive Entry RKE
Key Fob within 3 ft (1.0 m) of the liftgate, push the
electronic liftgate release to open with one fluid motion.NOTE:
If “Unlock All Doors 1st Press” is programmed in
Uconnect Settings, all doors will unlock when you push
the electronic liftgate release. If Unlock Driver Door 1st
Press is programmed in Uconnect Settings, only the
liftgate will unlock when you push the electronic liftgate
release. For further information, refer to “Uconnect Set-
tings” in “Understanding Your Instrument Panel.”
To Lock The Liftgate
With a valid Passive Entry RKE Key Fob within 3 ft
(1.0 m) of the liftgate, push the passive entry lock button
located to the right of electronic liftgate release.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47
Page 50 of 745
NOTE:The liftgate unlock feature is built into the elec-
tronic liftgate release.WARNING!
Driving with the liftgate open can allow poisonous
exhaust gases into your vehicle. You and your pas-
sengers could be injured by these fumes. Keep the
liftgate closed when you are operating the vehicle.
Power Liftgate — If Equipped
The power liftgate may be opened by pushing
the electronic liftgate release (refer to “Keyless
Enter-N-Go — Passive Entry” located in “Things
To Know Before Starting Your Vehicle”) or by
pushing the LIFTGATE button on the RKE Key Fob. Push
the LIFTGATE button on the RKE Key Fob twice within
five seconds to open the power liftgate. Once the liftgate is
open, pushing the button twice within five seconds a
second time will close the liftgate.
Passive Entry/Lock Button Location
1 — Electronic Liftgate Release 2 — Lock Button Location
48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
