seat adjustment JEEP GRAND CHEROKEE 2016 WK2 / 4.G Owners Manual

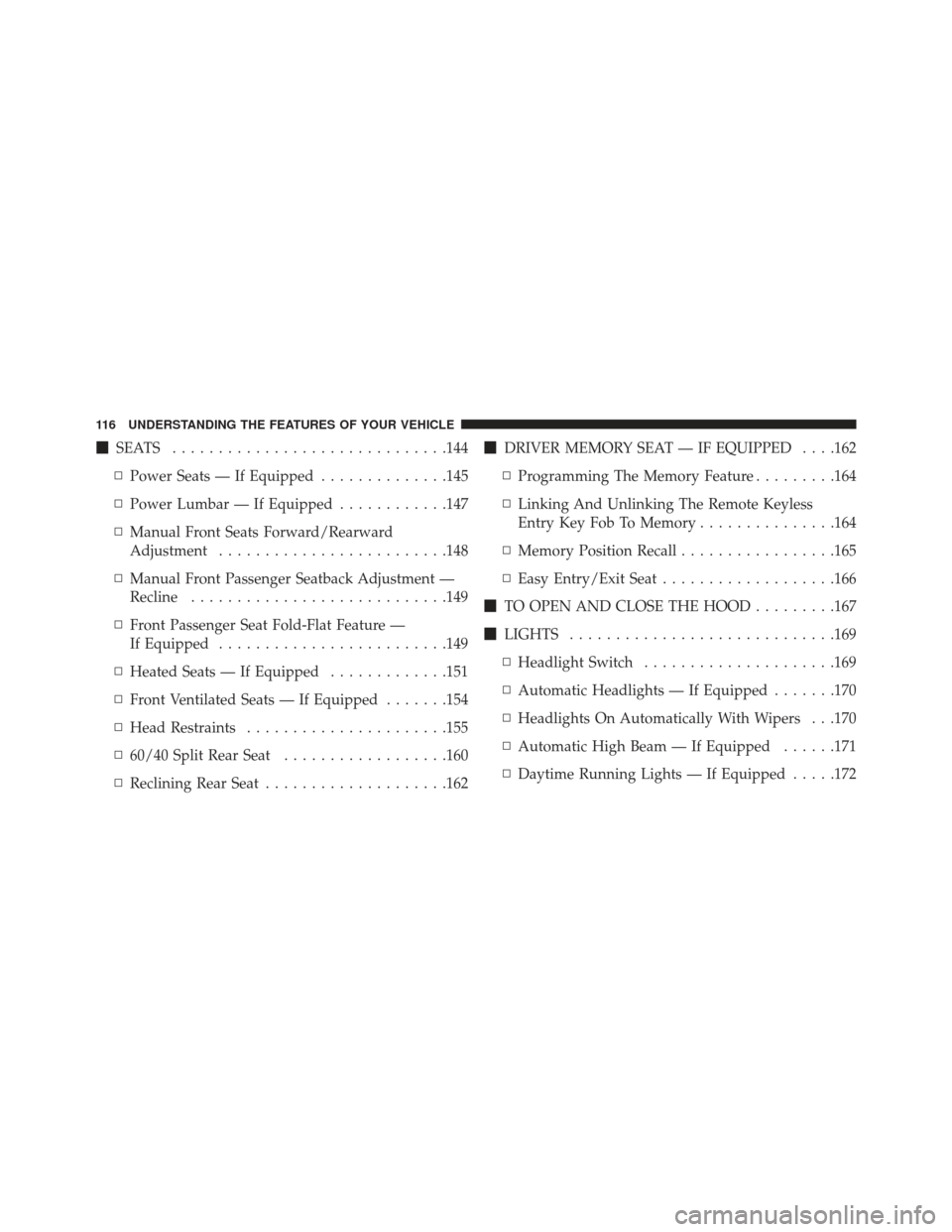

SEATS ............................. .144
▫ Power Seats — If Equipped ..............145
▫ Power Lumbar — If Equipped ............147
▫ Manual Front Seats Forward/Rearward
Adjustment ........................ .148
▫ Manual Front Passenger Seatback Adjustment —
Recline ........................... .149
▫ Front Passenger Seat Fold-Flat Feature —
If Equipped ........................ .149
▫ Heated Seats — If Equipped .............151
▫ Front Ventilated Seats — If Equipped .......154
▫ Head Restraints ..................... .155
▫ 60/40 Split Rear Seat ..................160
▫ Reclining Rear Seat ....................162
DRIVER MEMORY SEAT — IF EQUIPPED . . . .162
▫ Programming The Memory Feature .........164
▫ Linking And Unlinking The Remote Keyless
Entry Key Fob To Memory ...............164
▫ Memory Position Recall .................165
▫ Easy Entry/Exit Seat ...................166
 TO OPEN AND CLOSE THE HOOD .........167
 LIGHTS ............................ .169
▫ Headlight Switch .....................169
▫ Automatic Headlights — If Equipped .......170
▫ Headlights On Automatically With Wipers . . .170
▫ Automatic High Beam — If Equipped ......171
▫ Daytime Running Lights — If Equipped .....172
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Manual Front Seats Forward/Rearward
Adjustment
Some models may be equipped with a manual front
passenger seat. The seat can be adjusted forward or
rearward by using a bar located by the front of the seat
cushion, near the floor.While sitting in the seat, lift up on the bar located under
the seat cushion and move the seat forward or rearward.
Release the bar once you have reached the desired
position. Then, using body pressure, move forward and
rearward on the seat to be sure that the seat adjusters
have latched.
WARNING!
•
Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.
• Seats should be adjusted before fastening the seat
belts and while the vehicle is parked. Serious
injury or death could result from a poorly adjusted
seat belt.
Adjustment Bar
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Manual Front Passenger Seatback Adjustment —
Recline
To adjust the seatback, lift the lever located on the
outboard side of the seat, lean back to the desired
position and release the lever. To return the seatback, lift
the lever, lean forward and release the lever.
WARNING!
Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt,
which could result in serious injury or death.
Front Passenger Seat Fold-Flat Feature —
If Equipped
To fold the seatback to the flat load-floor position, lift the
recline lever and push the seatback forward. To return to
the seating position, raise the seatback and lock it into
place.
Recline Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149

Head Restraints — Rear Seats
The head restraints on the outboard seats are not adjust-
able. They automatically fold forward when the rear seat
is folded to a load floor position but do not return to their
normal position when the rear seat is raised. After
returning either seat to its upright position, raise the head
restraint until it locks in place. The outboard head
restraints are not removable.
The center head restraint has limited adjustment. Lift
upward on the head restraint to raise it, or push down-
ward on the head restraint to lower it.
WARNING!
Sitting in a seat with the head restraint in its lowered
position could result in serious injury or death in a
(Continued)
Rear Head Restraint
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159
