wiper fluid JEEP GRAND CHEROKEE 2016 WK2 / 4.G Owners Manual

NOTE:The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.Rain Sensing Wipers — If Equipped
This feature senses moisture on the windshield and
automatically activates the wipers for the driver. The
feature is especially useful for road splash or overspray
from the windshield washers of the vehicle ahead. Rotate
the end of the multifunction lever to one of four settings
to activate this feature.
The sensitivity of the system can be adjusted with the
multifunction lever. Wiper delay position one is the least
sensitive, and wiper delay position four is the most
sensitive. Setting three should be used for normal rain
conditions. Settings one and two can be used if the driver
desires less wiper sensitivity. Setting four can be used if
the driver desires more sensitivity. Place the wiper switch
in the OFF position when not using the system.
Mist Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 183

HEADLIGHT WASHERS — IF EQUIPPED
The multifunction lever operates the headlight washers
when the ignition switch is in the ON position and the
headlights are turned on. The multifunction lever is
located on the left side of the steering column.
To use the headlight washers, push the multifunction
lever inward (toward the steering column) and release it.
The headlight washers will spray a timed high-pressure
spray of washer fluid onto each headlight lens. In addi-
tion, the windshield washers will spray the windshield
and the windshield wipers will cycle.
NOTE:After turning the ignition switch and headlights
ON, the headlight washers will operate on the first spray
of the windshield washer and then every eleventh spray
after that.
TILT/TELESCOPING STEERING COLUMN
This feature allows you to tilt the steering column
upward or downward. It also allows you to lengthen or
shorten the steering column. The tilt/telescoping lever is
located below the steering wheel at the end of the
steering column.
Tilt/Telescoping Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 185

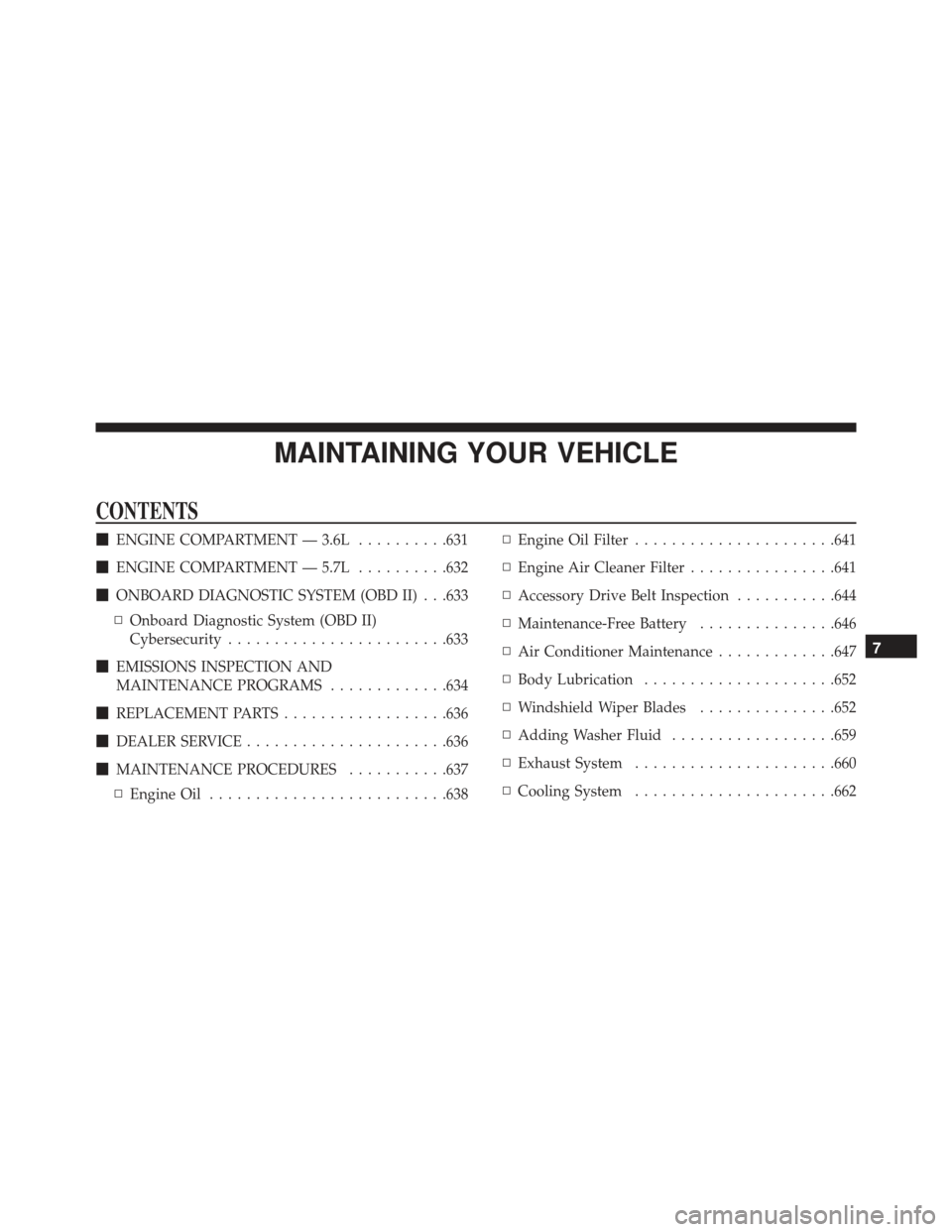

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 3.6L ..........631
 ENGINE COMPARTMENT — 5.7L ..........632
 ONBOARD DIAGNOSTIC SYSTEM (OBD II) . . .633
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ....................... .633
 EMISSIONS INSPECTION AND
MAINTENANCE PROGRAMS .............634
 REPLACEMENT PARTS ..................636
 DEALER SERVICE ..................... .636
 MAINTENANCE PROCEDURES ...........637
▫ Engine Oil ......................... .638▫
Engine Oil Filter ..................... .641
▫ Engine Air Cleaner Filter ................641
▫ Accessory Drive Belt Inspection ...........644
▫ Maintenance-Free Battery ...............646
▫ Air Conditioner Maintenance .............647
▫ Body Lubrication .....................652
▫ Windshield Wiper Blades ...............652
▫ Adding Washer Fluid ..................659
▫ Exhaust System ..................... .660
▫ Cooling System ..................... .662
7

NOTE:Ensure the glove compartment door hinges and
glove compartment travel stops are fully engaged.
Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, decklid, sliding doors and hood hinges, should
be lubricated periodically with a lithium based grease,
such as MOPAR Spray White Lube to assure quiet, easy
operation and to protect against rust and wear. Prior to
the application of any lubricant, the parts concerned
should be wiped clean to remove dust and grit; after
lubricating excess oil and grease should be removed.
Particular attention should also be given to hood latching
components to ensure proper function. When performing
other underhood services, the hood latch, release mecha-
nism and safety catch should be cleaned and lubricated. The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR Lock
Cylinder Lubricant directly into the lock cylinder.Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
652 MAINTAINING YOUR VEHICLE

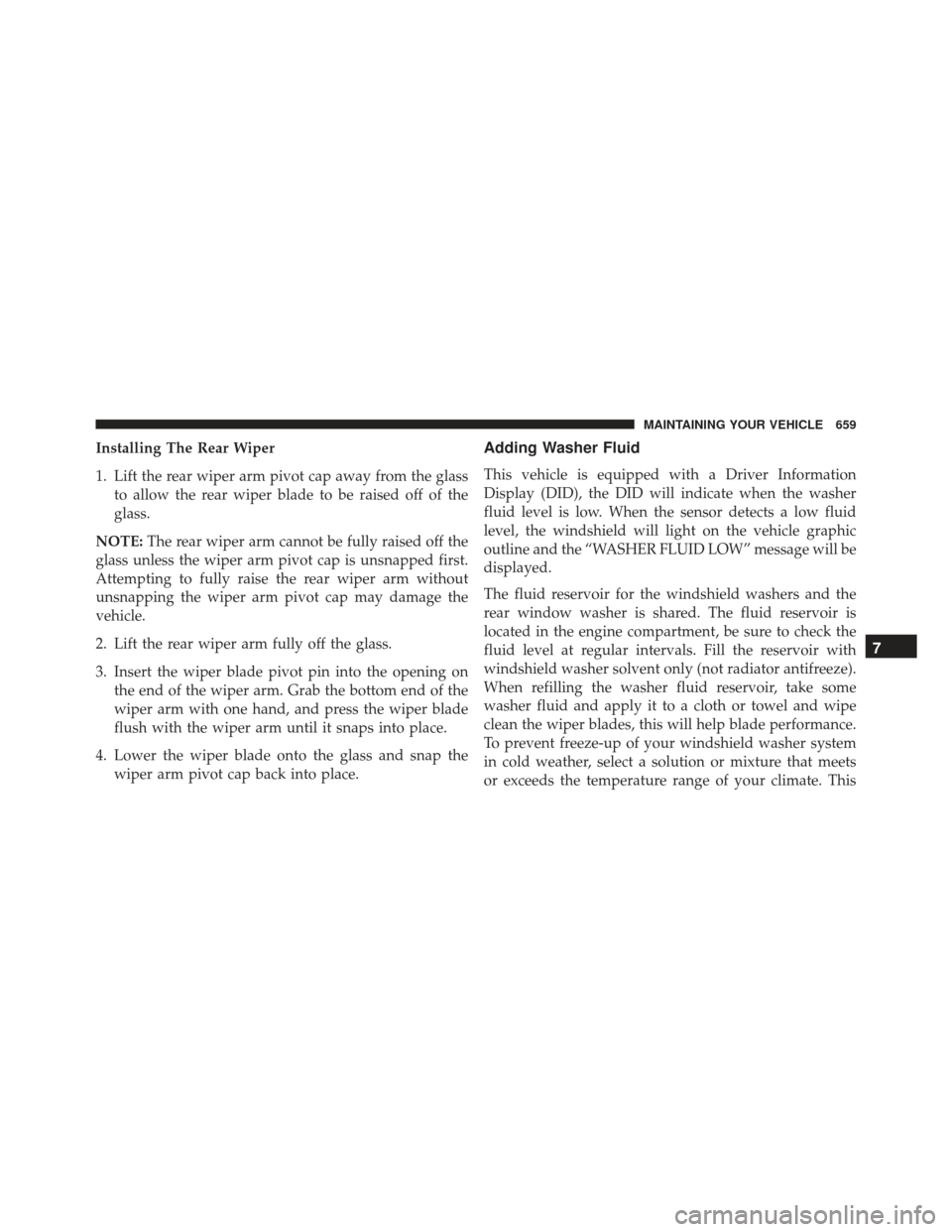

Installing The Rear Wiper
1. Lift the rear wiper arm pivot cap away from the glassto allow the rear wiper blade to be raised off of the
glass.
NOTE: The rear wiper arm cannot be fully raised off the
glass unless the wiper arm pivot cap is unsnapped first.
Attempting to fully raise the rear wiper arm without
unsnapping the wiper arm pivot cap may damage the
vehicle.
2. Lift the rear wiper arm fully off the glass.
3. Insert the wiper blade pivot pin into the opening on the end of the wiper arm. Grab the bottom end of the
wiper arm with one hand, and press the wiper blade
flush with the wiper arm until it snaps into place.
4. Lower the wiper blade onto the glass and snap the wiper arm pivot cap back into place.Adding Washer Fluid
This vehicle is equipped with a Driver Information
Display (DID), the DID will indicate when the washer
fluid level is low. When the sensor detects a low fluid
level, the windshield will light on the vehicle graphic
outline and the “WASHER FLUID LOW” message will be
displayed.
The fluid reservoir for the windshield washers and the
rear window washer is shared. The fluid reservoir is
located in the engine compartment, be sure to check the
fluid level at regular intervals. Fill the reservoir with
windshield washer solvent only (not radiator antifreeze).
When refilling the washer fluid reservoir, take some
washer fluid and apply it to a cloth or towel and wipe
clean the wiper blades, this will help blade performance.
To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets
or exceeds the temperature range of your climate. This
7
MAINTAINING YOUR VEHICLE 659

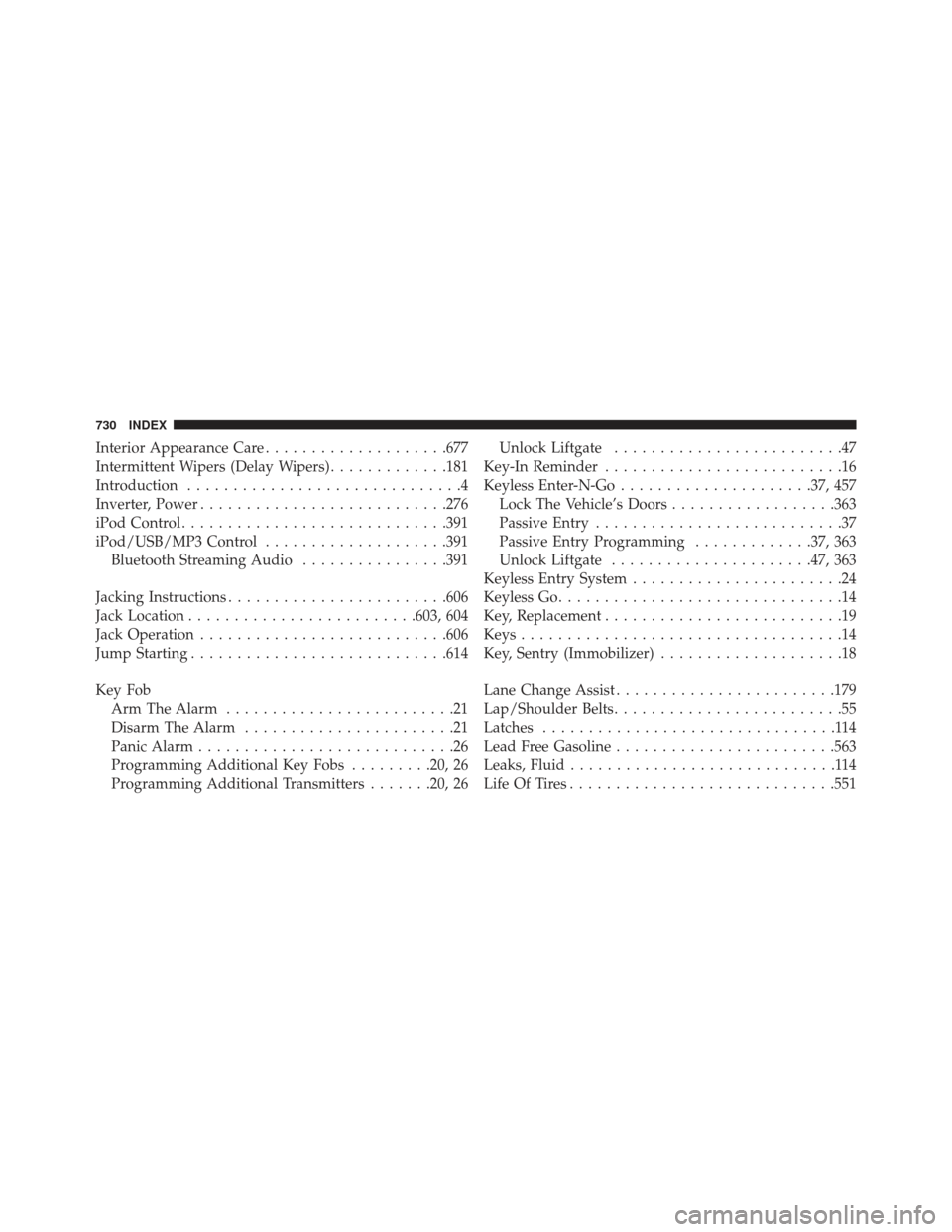

Interior Appearance Care....................677
Intermittent Wipers (Delay Wipers) .............181
Introduction ..............................4
Inverter, Power .......................... .276
iPod Control ............................ .391
iPod/USB/MP3 Control ....................391
Bluetooth Streaming Audio ................391
Jacking Instructions ....................... .606
Jack Location ........................ .603, 604
Jack Operation .......................... .606
Jump Starting ........................... .614
Key Fob Arm The Alarm .........................21
Disarm The Alarm .......................21
Panic Alarm ............................26
Programming Additional Key Fobs .........20, 26
Programming Additional Transmitters .......20, 26Unlock Liftgate
.........................47
Key-In Reminder ..........................16
Keyless Enter-N-Go .....................37, 457
Lock The Vehicle’s Doors ..................363
Passive Entry ...........................37
Passive Entry Programming .............37, 363
Unlock Liftgate ..................... .47, 363
Keyless Entry System .......................24
Keyless Go ...............................14
Key, Replacement ..........................19
Keys ...................................14
Key, Sentry (Immobilizer) ....................18
Lane Change Assist ....................... .179
Lap/Shoulder Belts .........................55
Latches ................................114
Lead Free Gasoline ....................... .563
Leaks, Fluid .............................114
Life Of Tires ............................ .551
730 INDEX

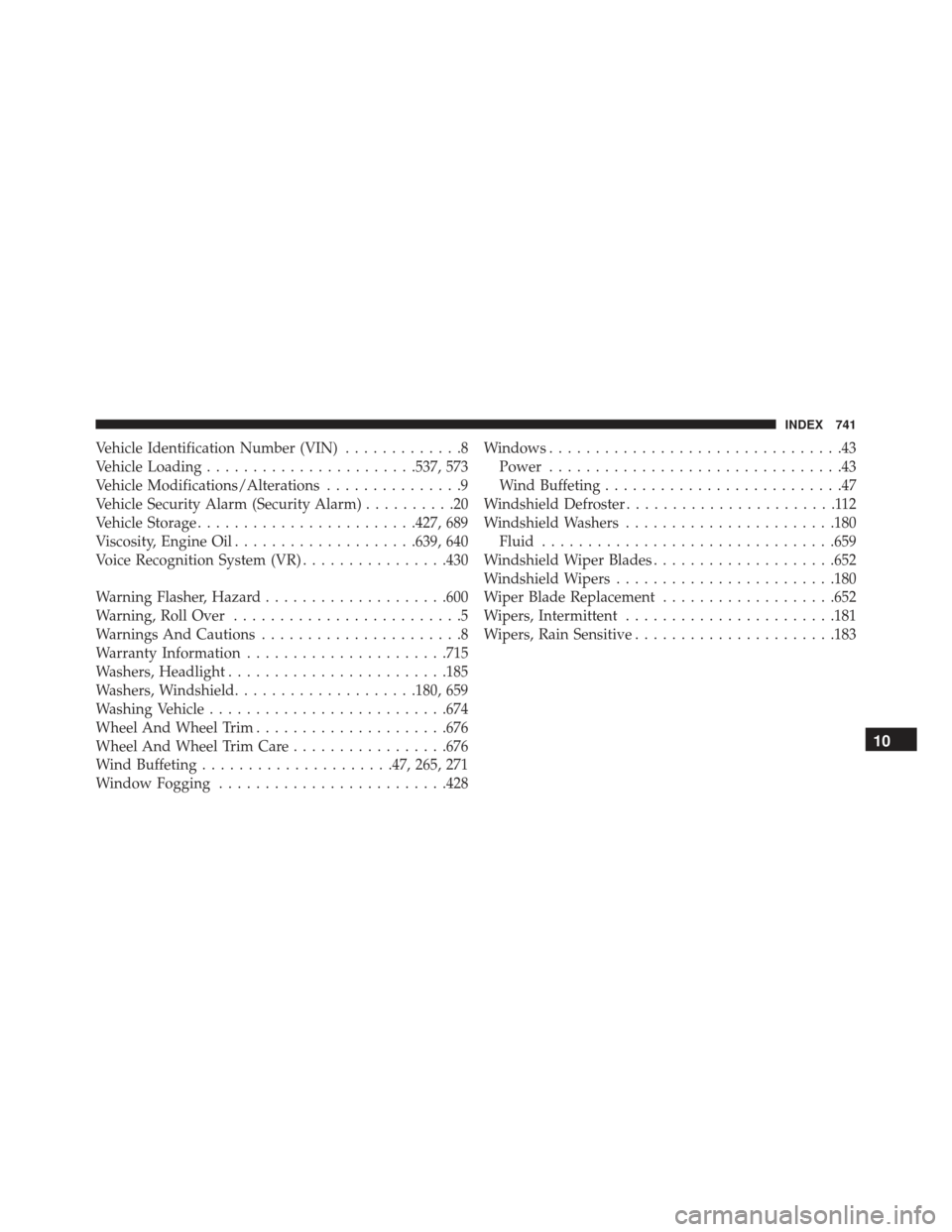

Vehicle Identification Number (VIN).............8
Vehicle Loading ...................... .537, 573
Vehicle Modifications/Alterations ...............9
Vehicle Security Alarm (Security Alarm) ..........20
Vehicle Storage ....................... .427, 689
Viscosity, Engine Oil ....................639, 640
Voice Recognition System (VR) ................430
Warning Flasher, Hazard ....................600
Warning, Roll Over .........................5
Warnings And Cautions ......................8
Warranty Information ..................... .715
Washers, Headlight ....................... .185
Washers, Windshield ....................180, 659
Washing Vehicle ......................... .674
Wheel And Wheel Trim .....................676
Wheel And Wheel Trim Care .................676
Wind Buffeting .....................47, 265, 271
Window Fogging ........................ .428Windows
................................43
Power ................................43
Wind Buffeting ..........................47
Windshield Defroster .......................112
Windshield Washers ...................... .180
Fluid ............................... .659
Windshield Wiper Blades ....................652
Windshield Wipers ....................... .180
Wiper Blade Replacement ...................652
Wipers, Intermittent ...................... .181
Wipers, Rain Sensitive ..................... .183
10
INDEX 741
