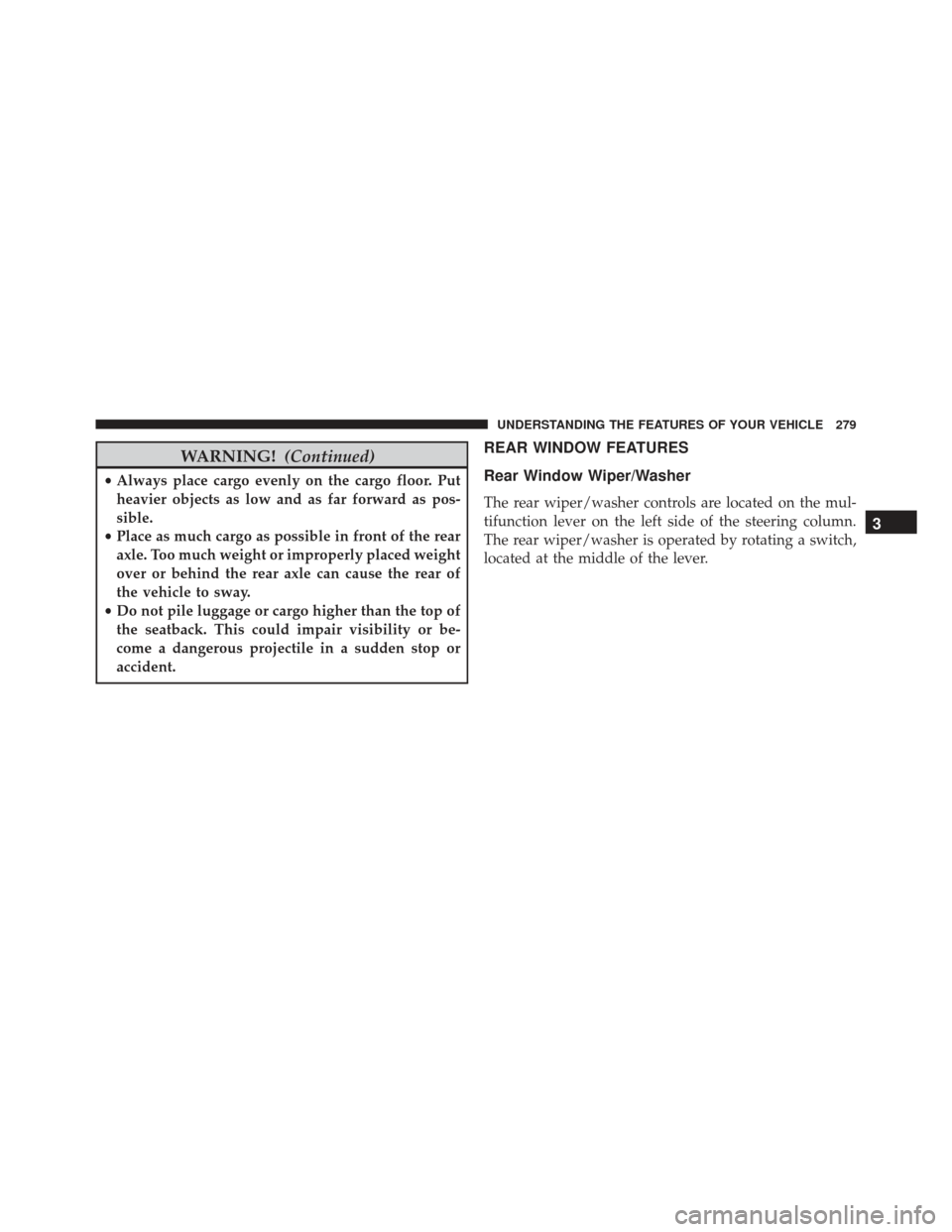

WARNING!(Continued)
•Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as pos-
sible.
• Place as much cargo as possible in front of the rear
axle. Too much weight or improperly placed weight
over or behind the rear axle can cause the rear of
the vehicle to sway.
• Do not pile luggage or cargo higher than the top of
the seatback. This could impair visibility or be-
come a dangerous projectile in a sudden stop or
accident.
REAR WINDOW FEATURES
Rear Window Wiper/Washer
The rear wiper/washer controls are located on the mul-
tifunction lever on the left side of the steering column.
The rear wiper/washer is operated by rotating a switch,
located at the middle of the lever.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 279

Rotate the center portion of the lever upward to
the first detent for intermittent operation and to
the second detent for continuous rear wiper operation.
Rotating the center portion upward once more
will activate the washer pump which will con-
tinue to operate as long as the switch is held. Upon release of the switch, the wipers will resume the continu-
ous rear wiper operation. When this rotary control is in
the OFF position, rotating it downward will activate the
rear washer pump which will continue to operate as long
as the switch is held. Once the switch is released it will
return to the OFF position and the wipers will cycle
several times before returning to the parked position.
NOTE:
As a protective measure, the pump will stop if the
switch is held for more than 20 seconds. Once the switch
is released the pump will resume normal operation.
If the rear wiper is operating when the ignition is turned
OFF, the wiper will automatically return to the “park”
position.
Rear Window Defroster
The rear window defroster button is located on
the climate control panel. Push this button to turn
on the rear window defroster and the heated outside
Rear Wiper/Washer Control
280 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

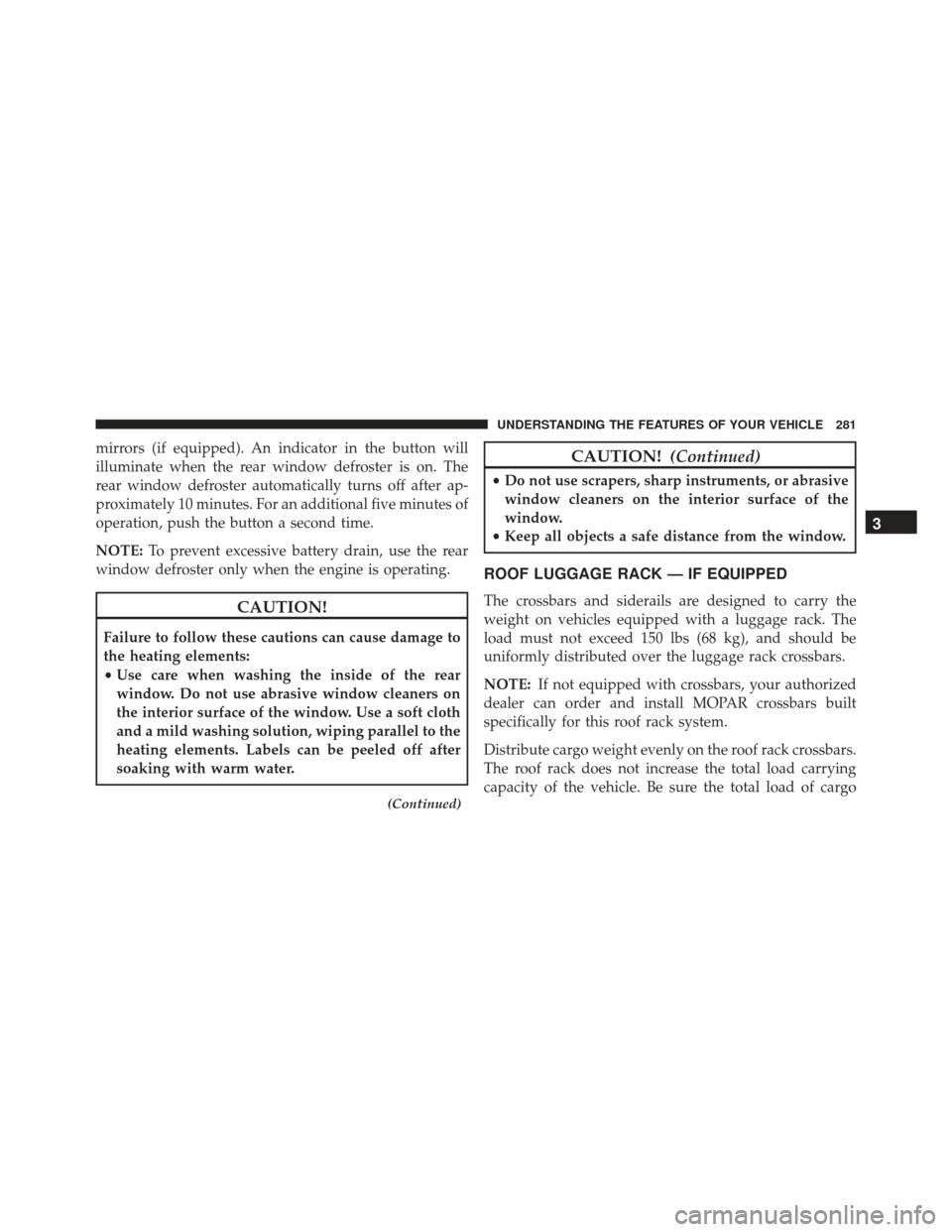

mirrors (if equipped). An indicator in the button will
illuminate when the rear window defroster is on. The
rear window defroster automatically turns off after ap-
proximately 10 minutes. For an additional five minutes of
operation, push the button a second time.
NOTE:To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.
(Continued)
CAUTION! (Continued)
•Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the
window.
• Keep all objects a safe distance from the window.
ROOF LUGGAGE RACK — IF EQUIPPED
The crossbars and siderails are designed to carry the
weight on vehicles equipped with a luggage rack. The
load must not exceed 150 lbs (68 kg), and should be
uniformly distributed over the luggage rack crossbars.
NOTE: If not equipped with crossbars, your authorized
dealer can order and install MOPAR crossbars built
specifically for this roof rack system.
Distribute cargo weight evenly on the roof rack crossbars.
The roof rack does not increase the total load carrying
capacity of the vehicle. Be sure the total load of cargo
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 281

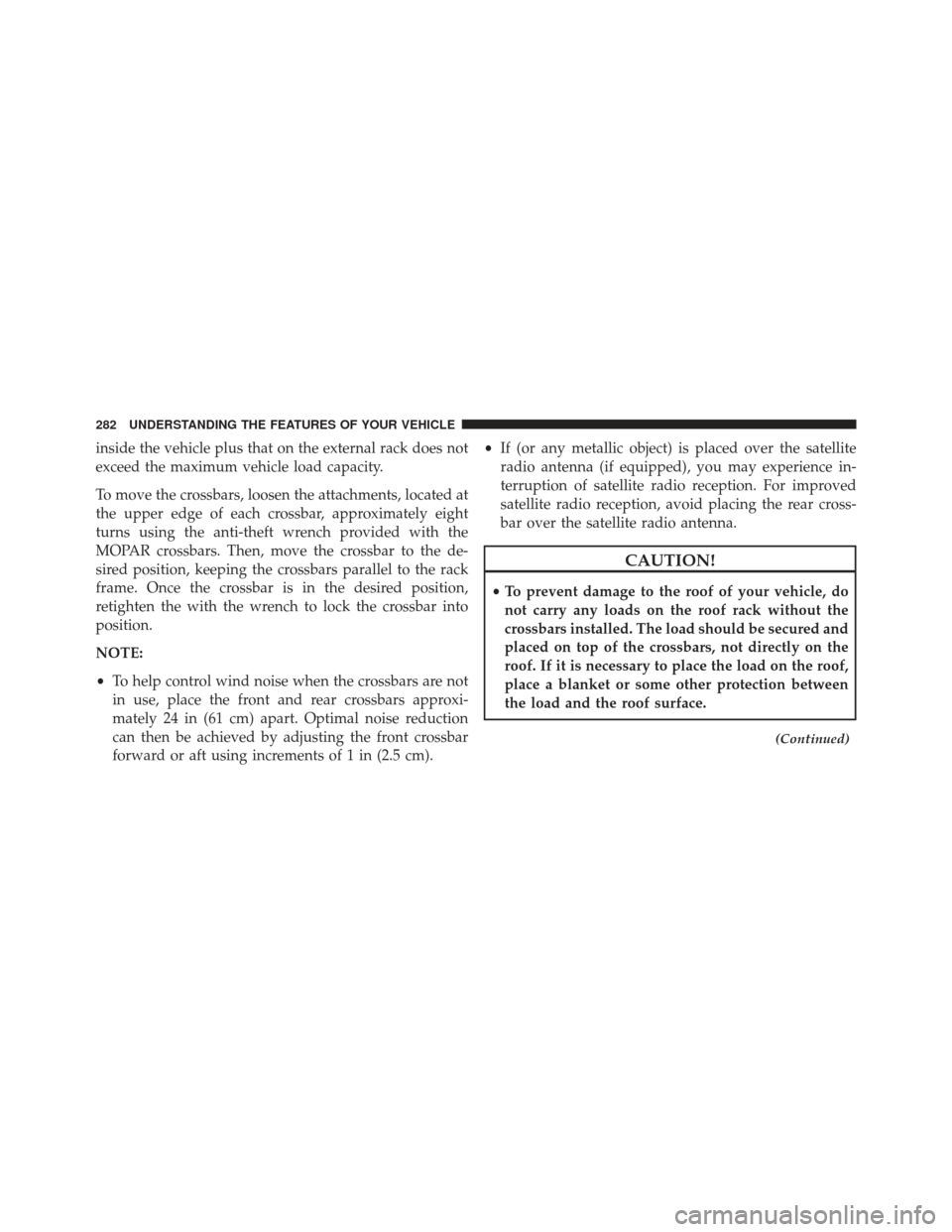

inside the vehicle plus that on the external rack does not
exceed the maximum vehicle load capacity.
To move the crossbars, loosen the attachments, located at
the upper edge of each crossbar, approximately eight
turns using the anti-theft wrench provided with the
MOPAR crossbars. Then, move the crossbar to the de-
sired position, keeping the crossbars parallel to the rack
frame. Once the crossbar is in the desired position,
retighten the with the wrench to lock the crossbar into
position.
NOTE:
•To help control wind noise when the crossbars are not
in use, place the front and rear crossbars approxi-
mately 24 in (61 cm) apart. Optimal noise reduction
can then be achieved by adjusting the front crossbar
forward or aft using increments of 1 in (2.5 cm). •
If (or any metallic object) is placed over the satellite
radio antenna (if equipped), you may experience in-
terruption of satellite radio reception. For improved
satellite radio reception, avoid placing the rear cross-
bar over the satellite radio antenna.
CAUTION!
• To prevent damage to the roof of your vehicle, do
not carry any loads on the roof rack without the
crossbars installed. The load should be secured and
placed on top of the crossbars, not directly on the
roof. If it is necessary to place the load on the roof,
place a blanket or some other protection between
the load and the roof surface.
(Continued)
282 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

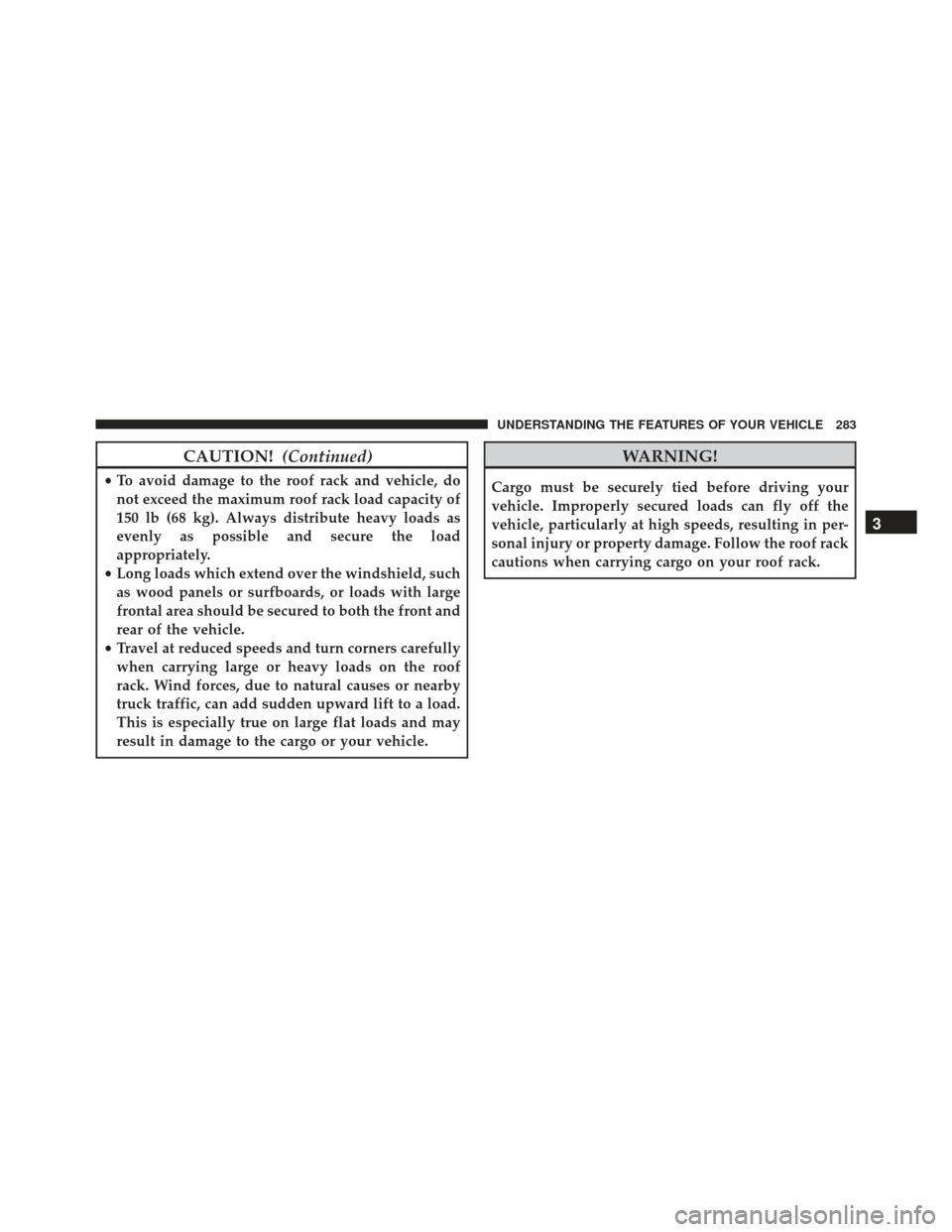

CAUTION!(Continued)
•To avoid damage to the roof rack and vehicle, do
not exceed the maximum roof rack load capacity of
150 lb (68 kg). Always distribute heavy loads as
evenly as possible and secure the load
appropriately.
• Long loads which extend over the windshield, such
as wood panels or surfboards, or loads with large
frontal area should be secured to both the front and
rear of the vehicle.
• Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof
rack. Wind forces, due to natural causes or nearby
truck traffic, can add sudden upward lift to a load.
This is especially true on large flat loads and may
result in damage to the cargo or your vehicle.
WARNING!
Cargo must be securely tied before driving your
vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the roof rack
cautions when carrying cargo on your roof rack.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 283

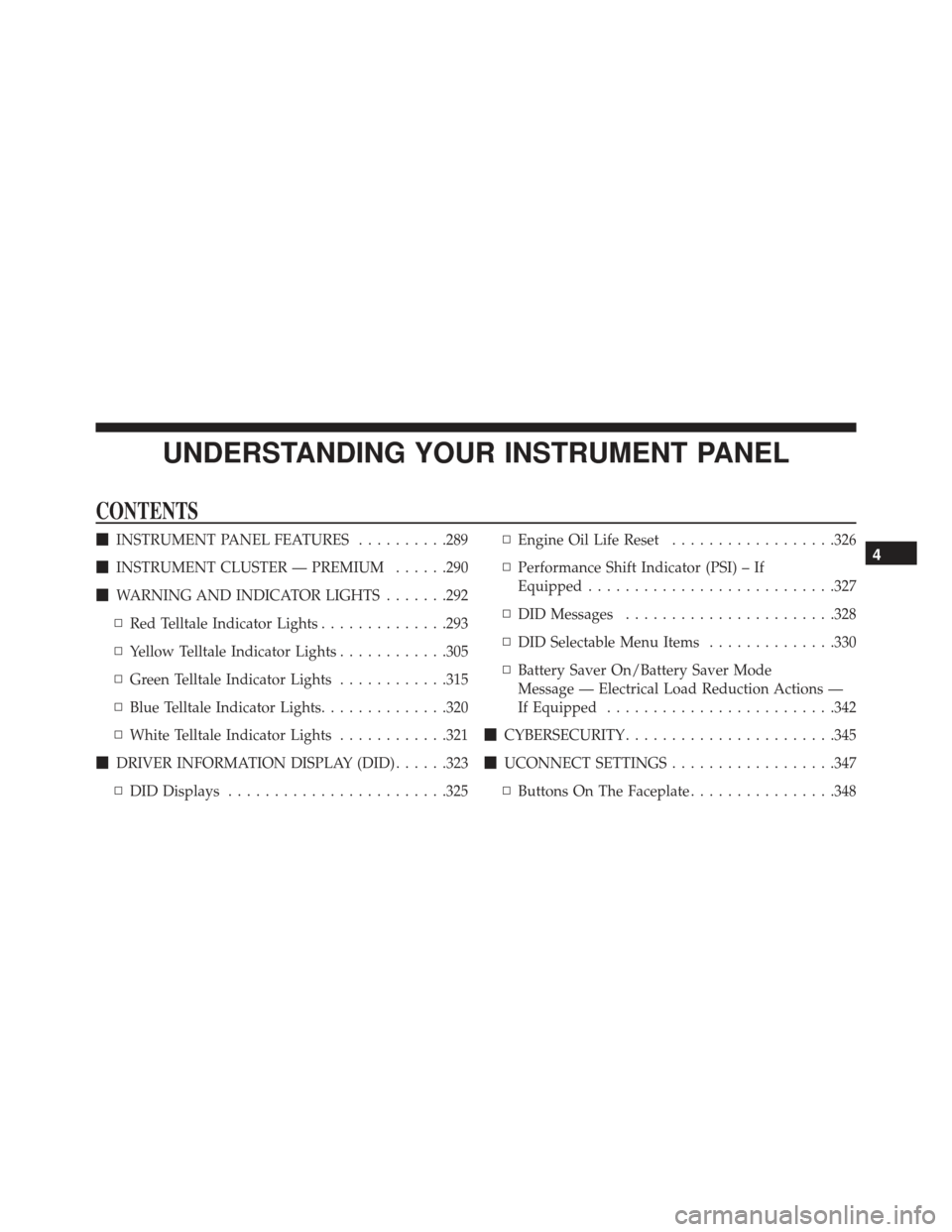

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ..........289
 INSTRUMENT CLUSTER — PREMIUM ......290
 WARNING AND INDICATOR LIGHTS .......292
▫ Red Telltale Indicator Lights ..............293
▫ Yellow Telltale Indicator Lights ............305
▫ Green Telltale Indicator Lights ............315
▫ Blue Telltale Indicator Lights ..............320
▫ White Telltale Indicator Lights ............321
 DRIVER INFORMATION DISPLAY (DID) ......323
▫ DID Displays ....................... .325▫
Engine Oil Life Reset ..................326
▫ Performance Shift Indicator (PSI) – If
Equipped .......................... .327
▫ DID Messages ...................... .328
▫ DID Selectable Menu Items ..............330
▫ Battery Saver On/Battery Saver Mode
Message — Electrical Load Reduction Actions —
If Equipped ........................ .342
 CYBERSECURITY ...................... .345
 UCONNECT SETTINGS ..................347
▫ Buttons On The Faceplate ................3484

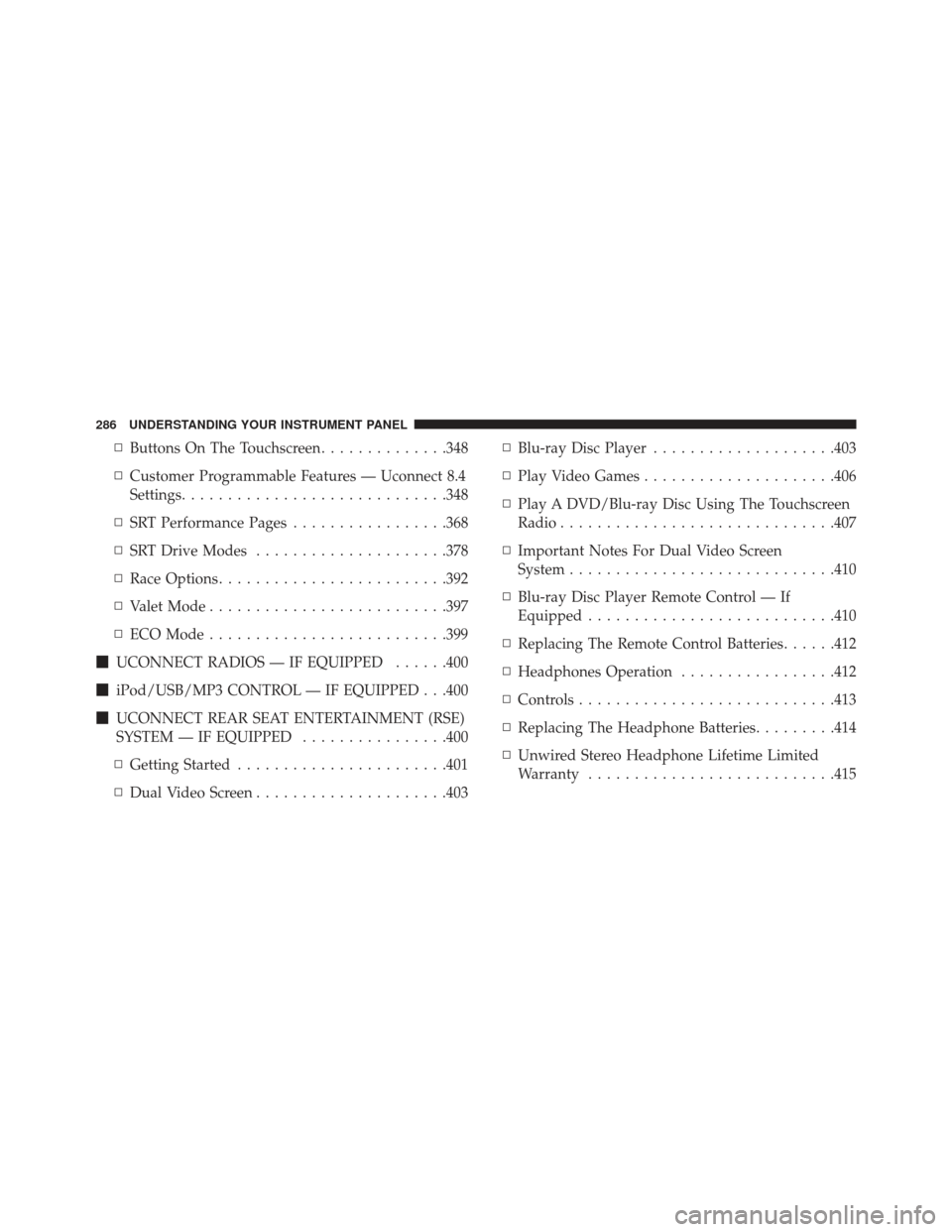

▫Buttons On The Touchscreen ..............348
▫ Customer Programmable Features — Uconnect 8.4
Settings ............................ .348
▫ SRT Performance Pages .................368
▫ SRT Drive Modes .....................378
▫ Race Options ........................ .392
▫ Valet Mode ......................... .397
▫ ECO Mode ......................... .399
 UCONNECT RADIOS — IF EQUIPPED ......400
 iPod/USB/MP3 CONTROL — IF EQUIPPED . . .400
 UCONNECT REAR SEAT ENTERTAINMENT (RSE)
SYSTEM — IF EQUIPPED ................400
▫ Getting Started ...................... .401
▫ Dual Video Screen .....................403 ▫
Blu-ray Disc Player ....................403
▫ Play Video Games .....................406
▫ Play A DVD/Blu-ray Disc Using The Touchscreen
Radio ............................. .407
▫ Important Notes For Dual Video Screen
System ............................ .410
▫ Blu-ray Disc Player Remote Control — If
Equipped .......................... .410
▫ Replacing The Remote Control Batteries ......412
▫ Headphones Operation .................412
▫ Controls ........................... .413
▫ Replacing The Headphone Batteries .........414
▫ Unwired Stereo Headphone Lifetime Limited
Warranty .......................... .415
286 UNDERSTANDING YOUR INSTRUMENT PANEL

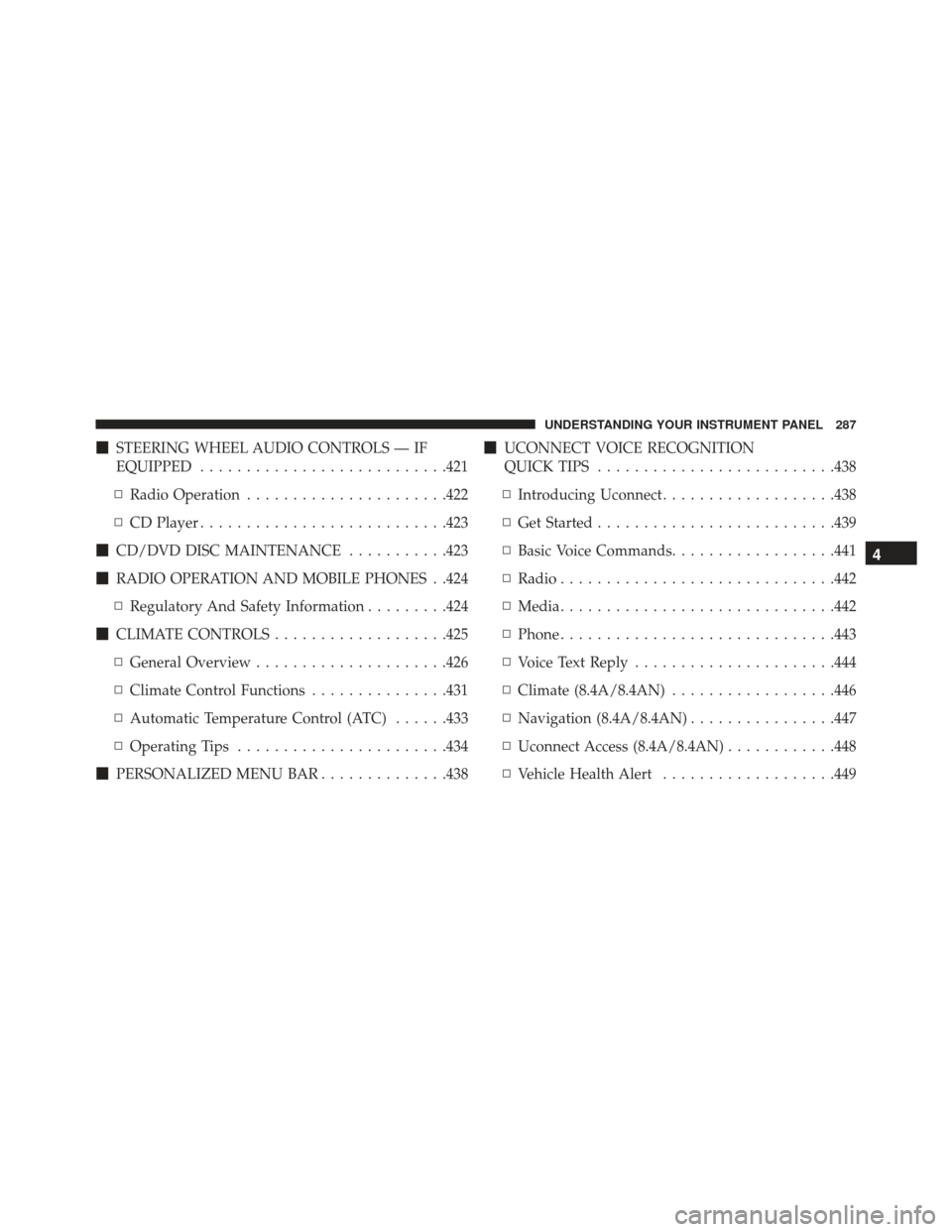

STEERING WHEEL AUDIO CONTROLS — IF
EQUIPPED .......................... .421
▫ Radio Operation ..................... .422
▫ CD Player .......................... .423
 CD/DVD DISC MAINTENANCE ...........423
 RADIO OPERATION AND MOBILE PHONES . .424
▫ Regulatory And Safety Information .........424
 CLIMATE CONTROLS ...................425
▫ General Overview .....................426
▫ Climate Control Functions ...............431
▫ Automatic Temperature Control (ATC) ......433
▫ Operating Tips ...................... .434
 PERSONALIZED MENU BAR ..............438
UCONNECT VOICE RECOGNITION
QUICK TIPS ......................... .438
▫ Introducing Uconnect ...................438
▫ Get Started ......................... .439
▫ Basic Voice Commands ..................441
▫ Radio ............................. .442
▫ Media ............................. .442
▫ Phone ............................. .443
▫ Voice Text Reply ..................... .444
▫ Climate (8.4A/8.4AN) ..................446
▫ Navigation (8.4A/8.4AN) ................447
▫ Uconnect Access (8.4A/8.4AN) ............448
▫ Vehicle Health Alert ...................449
4
UNDERSTANDING YOUR INSTRUMENT PANEL 287

▫Register (8.4A/8.4AN) ..................449
▫ Mobile App (8.4A/8.4AN) ...............450
▫ Voice Texting (8.4A/8.4AN) ..............452
▫ Yelp (8.4A/8.4AN) .....................453
▫ SiriusXM Travel Link (8.4A/8.4AN) .........454▫
Siri Eyes Free — If Equipped .............455
▫ Do Not Disturb ..................... .456
▫ General Information ....................456
▫ Additional Information .................457
